Model Maytag JGS8860BDP18 GAS RANGE – Common Parts & Diagrams

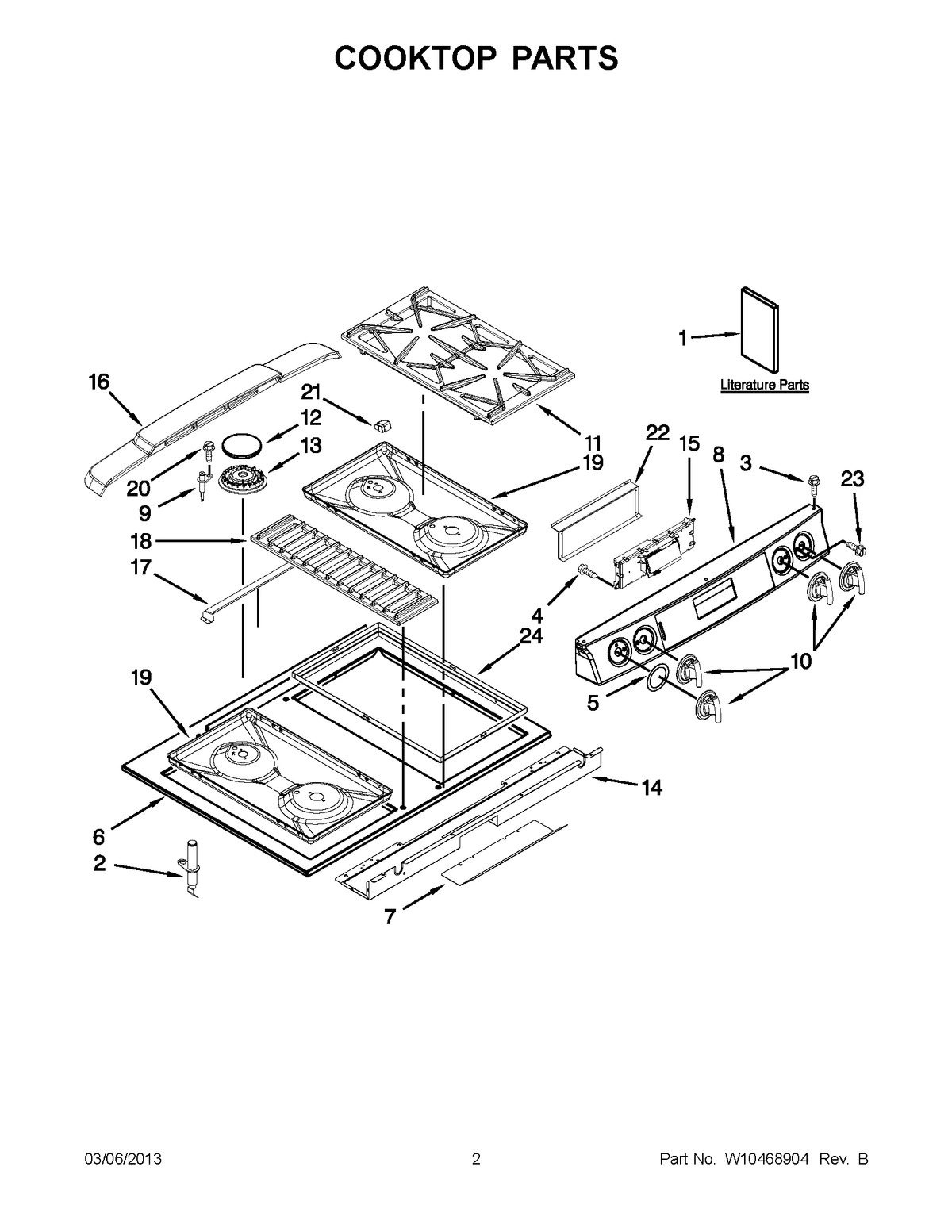

01 - COOKTOP PARTS

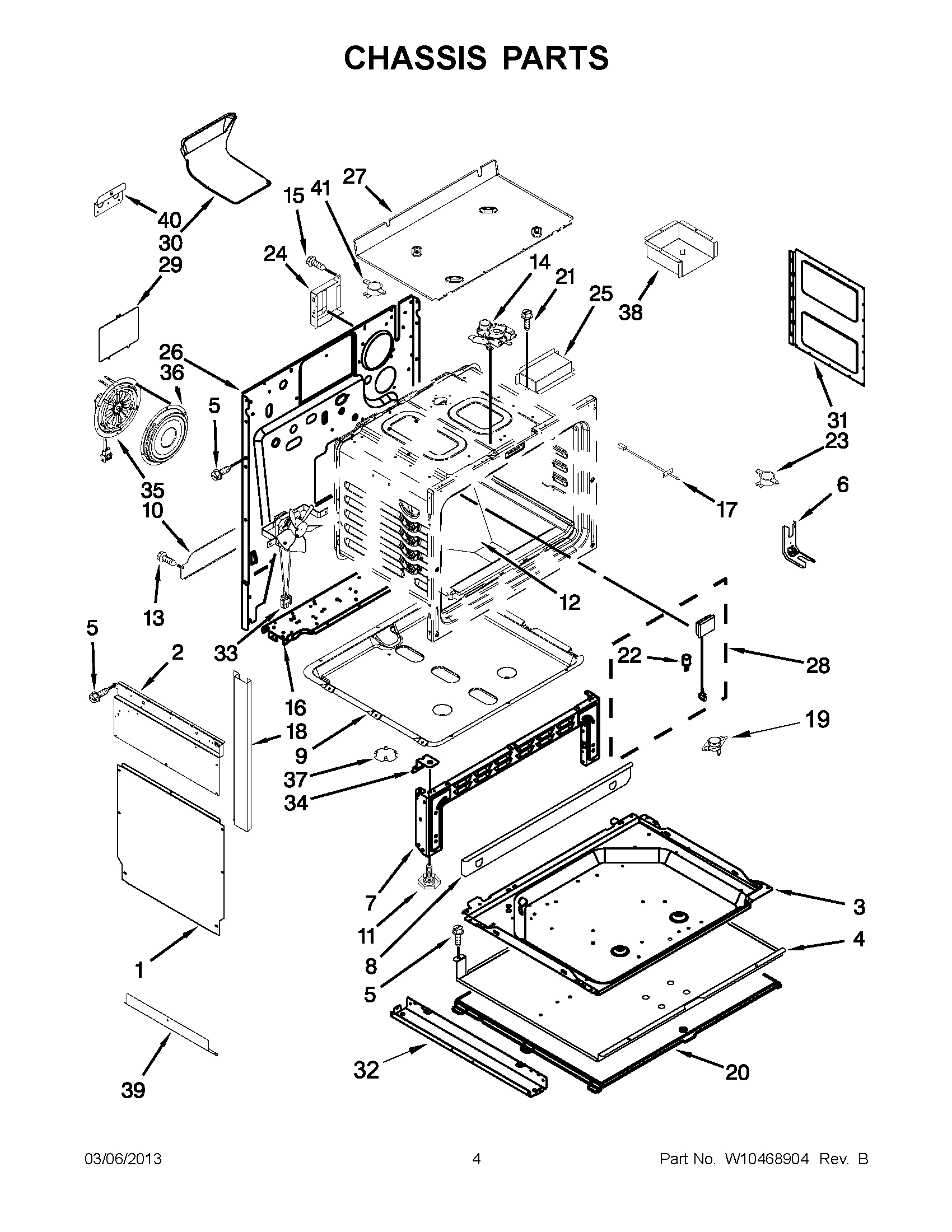

02 - CHASSIS PARTS

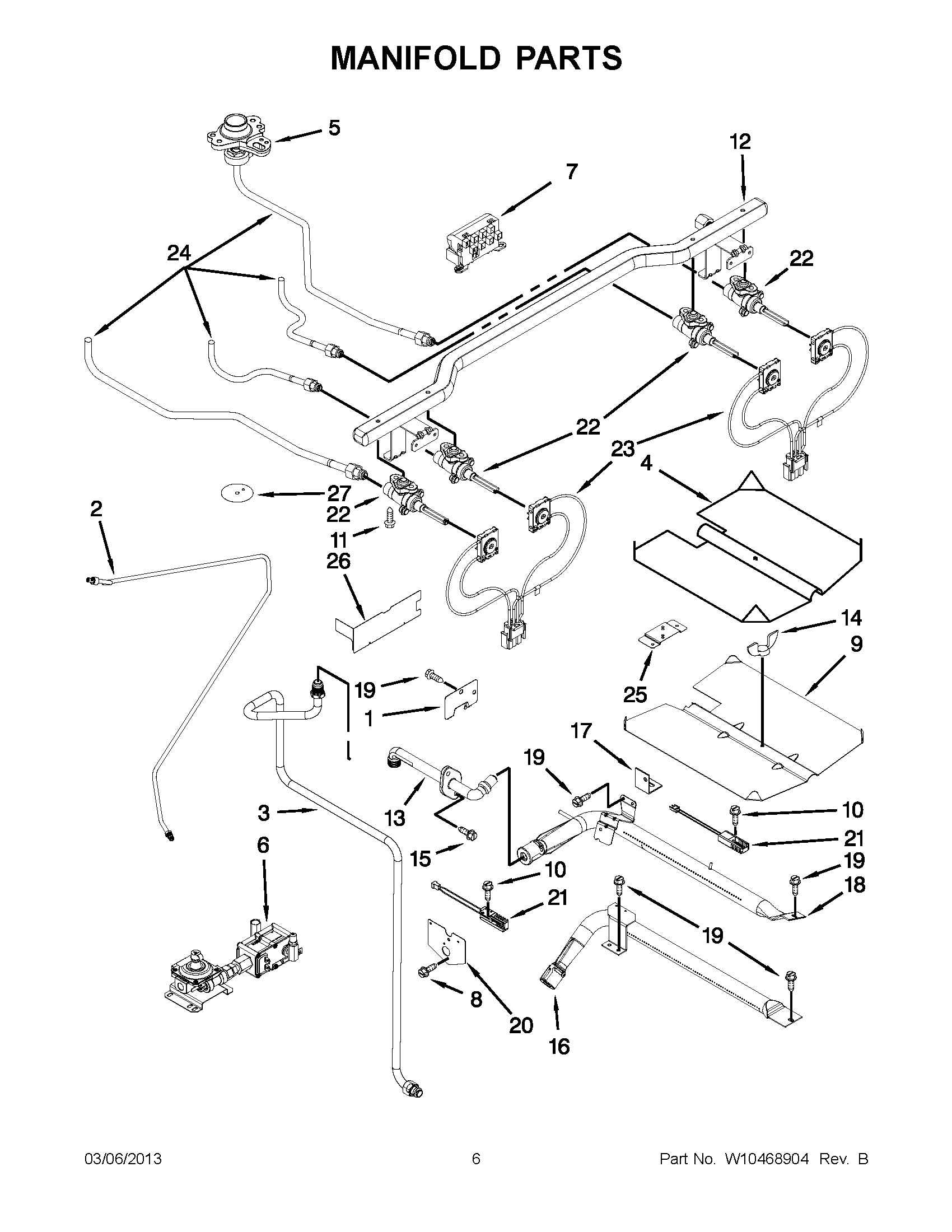

03 - MANIFOLD PARTS

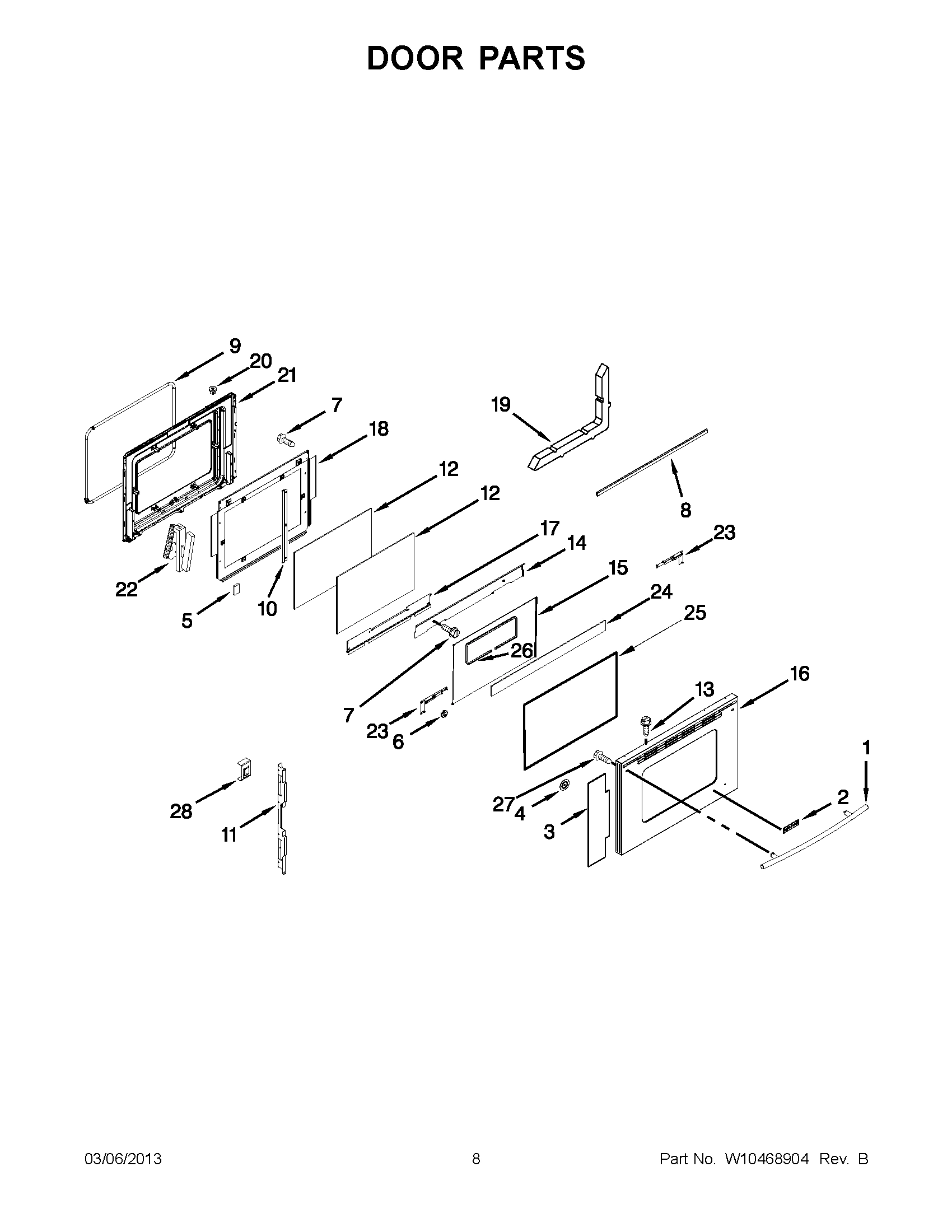

04 - DOOR PARTS

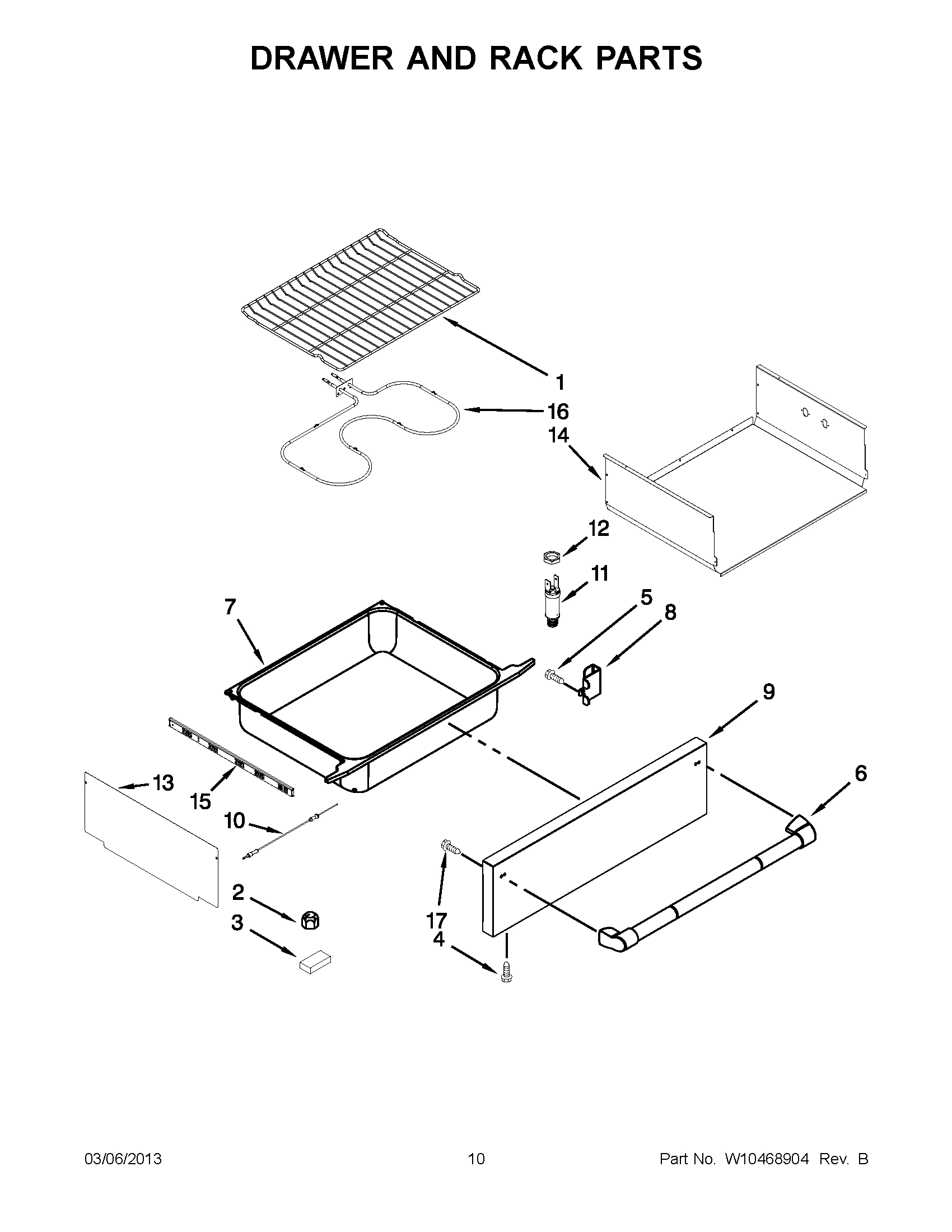

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS8860BDP18 GAS RANGE
1
MAY 8101P697-60 MAY 8101P697-60 Contact Us For Availability
1
OWNERS MANUAL MAY 8113P757-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10394677 MAY W10394677 Contact Us For Availability
1
SHIELD, LOWER MAY 3604F416-51 Contact Us For Availability
1
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
2
MAY 7432P138-60 MAY 7432P138-60 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY W10224720 MAY W10224720 Contact Us For Availability
2
MAY 7719P087-60 MAY 7719P087-60 Contact Us For Availability
3
RETAINER, INSULATION MAY 3804F245-51 Contact Us For Availability
3
TUBING, BROILER FITTING TO VALVE MAY 7506P301-60 Contact Us For Availability
3
INSULATION, FOIL MAY 7002P463-60 Contact Us For Availability
3
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
4
SHIELD, WARMING DRAWER MAY 3604F326-45 Contact Us For Availability
4
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
4
BAFFLE, BROIL BURNER MAY 3601F307-45 Contact Us For Availability
4
BACKPLATE MAY W10167659 Contact Us For Availability
5
MAY 7740P165-60 MAY 7740P165-60 Contact Us For Availability
5
MAY 7740P166-60 MAY 7740P166-60 Contact Us For Availability
5
MAY 7740P167-60 MAY 7740P167-60 Contact Us For Availability
5
HOLDER, ORIFICE (RIGHT REAR) MAY 7527P002-60 Contact Us For Availability
5
HOLDER, ORIFICE (RIGHT FRONT) MAY 7527P004-60 Contact Us For Availability
5
HOLDER, ORIFICE (LEFT REAR) MAY 7527P042-60 Contact Us For Availability
5
HOLDER, ORIFICE (LEFT FRONT) MAY 7527P061-60 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
6
MAY W10331862 MAY W10331862 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
VALVE, SAFETY MAY 7501P231-60 Contact Us For Availability
6
Handle, Door MAY 7701P475-60 Contact Us For Availability
6
MAY 7103P166-60 MAY 7103P166-60 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
MAY 3604F426-51 MAY 3604F426-51 Contact Us For Availability
7
MAY W10271711 MAY W10271711 Contact Us For Availability
7
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
7
DRAWER, WARMING MAY 3405W043-19 Contact Us For Availability
8
MAY 5760M339-60 MAY 5760M339-60 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
SCREW MAY 7101P502-60 Contact Us For Availability
8
MAY 7201P143-60 MAY 7201P143-60 Contact Us For Availability
8
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
9
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
BAFFLE, BAKE BURNER MAY 3601F239-45 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
MAY W10253207 MAY W10253207 Contact Us For Availability
10
MAY W10175695 MAY W10175695 Contact Us For Availability
10
EXTENSION, MAIN BACK MAY 3826F066-51 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
11
GRATE, BURNER MAY 7518P359-60 Contact Us For Availability
11
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
11
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
11
RETAINER, GLASS MAY 3804F293-45 Contact Us For Availability
11
RECEPTACLE, MEAT PROBE MAY 7408P086-60 Contact Us For Availability
12
CAP, BURNER (BLACK (LEFT REAR)) MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (BLACK (RIGHT REAR)) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (BLACK (RIGHT FRONT)) MAY 7504P204-60 Contact Us For Availability
12
CAP, BURNER (BLACK, DUAL INNER) MAY 7504P242-60 Contact Us For Availability
12
CAP, BURNER (BLACK, DUAL OUTER) MAY 7504P243-60 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
PIPE, MANIFOLD MAY W10165142 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
12
MAY 7103P177-60 MAY 7103P177-60 Contact Us For Availability
13
ASSEMBLY, BURNER (RIGHT REAR) MAY 7505P304-60 Contact Us For Availability
13
ASSEMBLY, BURNER (LEFT REAR) MAY 7505P305-60 Contact Us For Availability
13
ASSEMBLY, BURNER (RIGHT FRONT) MAY 7505P306-60 Contact Us For Availability
13
ASSEMBLY, BURNER (LEFT FRONT) MAY 7505P349-60 Contact Us For Availability
13
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
13
FITTING, BROILER MAY 7507P407-60 Contact Us For Availability
13
SCREW MAY 7101P634-60 Contact Us For Availability
13
MAY 3604F435-51 MAY 3604F435-51 Contact Us For Availability
14
SUPPORT, CONTROL PANEL MAY 3807F738-51 Contact Us For Availability
14
MAY W10274035 MAY W10274035 Contact Us For Availability
14
WING NUT MAY 7103P030-60 Contact Us For Availability
14
SHIELD MAY 3604F418-51 Contact Us For Availability
14
MAY 2206F087-45 MAY 2206F087-45 Contact Us For Availability
15
MAY 8507P229-60 MAY 8507P229-60 Contact Us For Availability
15
SCREW, SWITCH MAY 7101P676-60 Contact Us For Availability
15
GLASS, COATED MAY 7902P768-60 Contact Us For Availability
15
MAY W10293200 MAY W10293200 Contact Us For Availability
16
MAY 7724P197-60 MAY 7724P197-60 Contact Us For Availability
16
SUPPORT, REGULATOR VALVE MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
MAY 7760P158-60 MAY 7760P158-60 Contact Us For Availability
16
ELEMENT, WARMING MAY W10310262 Contact Us For Availability
17
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
17
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
17
Screw MAY 7101P282-60 Contact Us For Availability
17
SUPPORT, BAKE BURNER MAY 3807F480-45 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
MAY 7518P367-60 MAY 7518P367-60 Contact Us For Availability
18
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
18
BURNER, BROILER MAY 7505P293-60 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
19
BOWL, DRIP (MEDIUM) MAY 3424F034-09 Contact Us For Availability
19
BOWL, DRIP (DUAL) MAY 3424F037-09 Contact Us For Availability
19
SWITCH, HI-LIMIT MAY 7403P657-60 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
20
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
20
MAY 3604F327-51 MAY 3604F327-51 Contact Us For Availability
20
MAY 3605F269-45 MAY 3605F269-45 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
MAY 7726P396-60 MAY 7726P396-60 Contact Us For Availability
21
MAY 7726P397-60 MAY 7726P397-60 Contact Us For Availability
21
IGNITOR, ELECTRIC IGNITION MAY 7432P106-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 3801F932-51 MAY 3801F932-51 Contact Us For Availability
22
BULB, OVEN MAY 899138-001 Contact Us For Availability
22
VALVE, DUAL RING (LEFT FRONT) MAY 7502P533-60 Contact Us For Availability
22
VALVE, TOP BURNER (LEFT REAR) MAY 7502P561-60 Contact Us For Availability
22
VALVE, TOP BURNER (RIGHT REAR) MAY 7502P562-60 Contact Us For Availability
22
VALVE, TOP BURNER (RIGHT FRONT) MAY 7502P564-60 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
23
Screw MAY 7101P208-60 Contact Us For Availability
23
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
23
SWITCH, REIGNITION (RIGHT FRONT & RIGHT REAR) MAY W10181455 Contact Us For Availability
23
SWITCH, REIGNITION (LEFT FRONT & LEFT REAR) MAY W10181456 Contact Us For Availability
23
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
23
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
24
MAY 3608W146-50 MAY 3608W146-50 Contact Us For Availability
24
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
24
TUBING, INNER DUAL MAY 7506P457-60 Contact Us For Availability
24
TUBING, OUTER DUAL MAY 7506P458-60 Contact Us For Availability
24
TUBE, BURNER (LEFT REAR) MAY 7506P459-60 Contact Us For Availability
24
TUBE, BURNER (RIGHT FRONT) MAY 7506P460-60 Contact Us For Availability
24
TUBE, BURNER (RIGHT REAR) MAY 7506P461-60 Contact Us For Availability
24
MAY 7002P427-60 MAY 7002P427-60 Contact Us For Availability
25
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
25
MAY 3801F944-51 MAY 3801F944-51 Contact Us For Availability
25
GLASS, INNER (CLEAR) MAY 7902P468-60 Contact Us For Availability
26
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
26
COVER, BURNER VALVE MAY 4005F638-51 Contact Us For Availability
26
Gasket, Door MAY 7201P141-60 Contact Us For Availability
27
MAY 4011F496-51 MAY 4011F496-51 Contact Us For Availability
27
COVER,VALVE SWITCH MAY 7724P194-60 Contact Us For Availability
27
SCREW, HANDLE MAY 7101P668-60 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY 7407P180-60 Contact Us For Availability
28
CLIP, DOOR GLASS MAY 7112P034-60 Contact Us For Availability
29
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
30
VENT, GAS MAY 8026P095-60 Contact Us For Availability
31
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
32
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
33
MAY W10317679 MAY W10317679 Contact Us For Availability
34
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
35
MAY W10206590 MAY W10206590 Contact Us For Availability
36
COVER MAY 3605F350-19 Contact Us For Availability
37
MAY 7718P034-60 MAY 7718P034-60 Contact Us For Availability
38
MAY 4005F808-51 MAY 4005F808-51 Contact Us For Availability
39
EXTENSION, HEAT SHIELD MAY 3826F034-51 Contact Us For Availability
40
CLIP, WARMING ELEMENT MAY 3807F633-45 Contact Us For Availability
41
SWITCH, HI-LIMIT MAY 7403P647-60 Contact Us For Availability
NI
INSULATION, DRAWER & SHIELD MAY 7002P078-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P451-60 MAY 7002P451-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P471-60 Contact Us For Availability
NI
MAY 7002P474-60 MAY 7002P474-60 Contact Us For Availability
NI
MAY 7507P418-60 MAY 7507P418-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, WIRE MAY 7111P009-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
WIRING HARNESS PARTS, CORD, POWER MAY 7402P086-60 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK MAY W10173471 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WARMING DRAWER MAY W10250350 Contact Us For Availability
NI
MAY W10394656 MAY W10394656 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10394791 Contact Us For Availability
× ![]()
