Model Maytag JGS8860BDP17 GAS RANGE – Common Parts & Diagrams

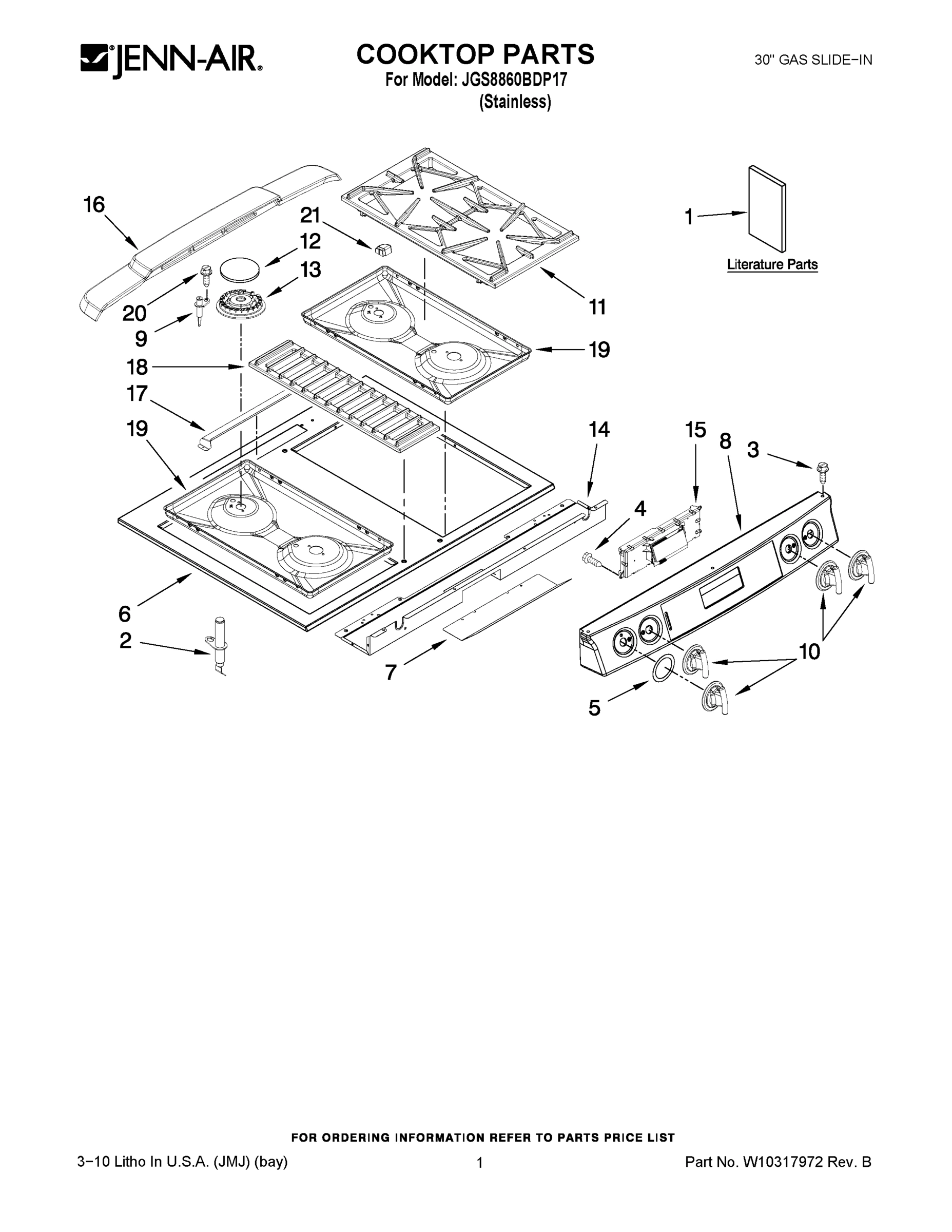

01 - COOKTOP PARTS

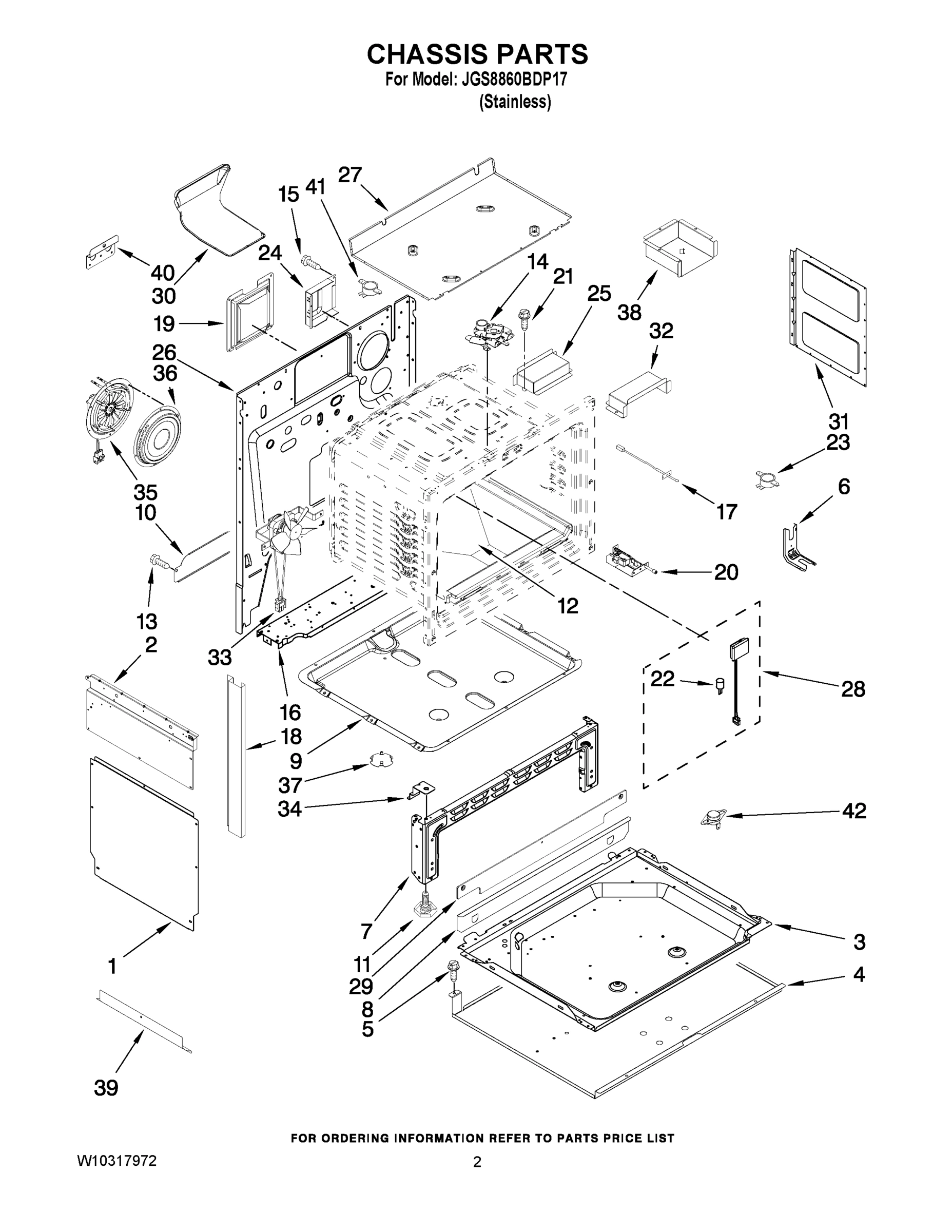

02 - CHASSIS PARTS

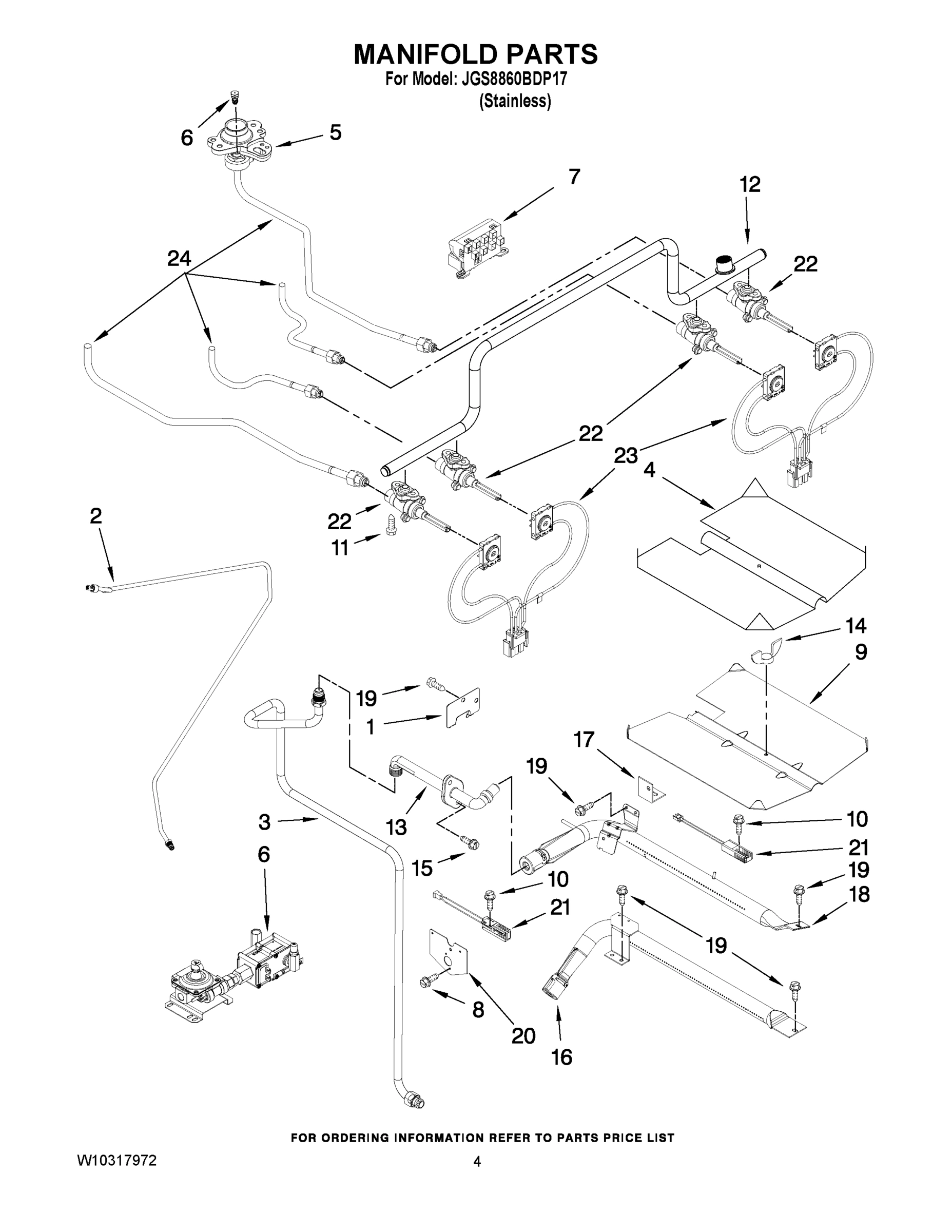

03 - MANIFOLD PARTS

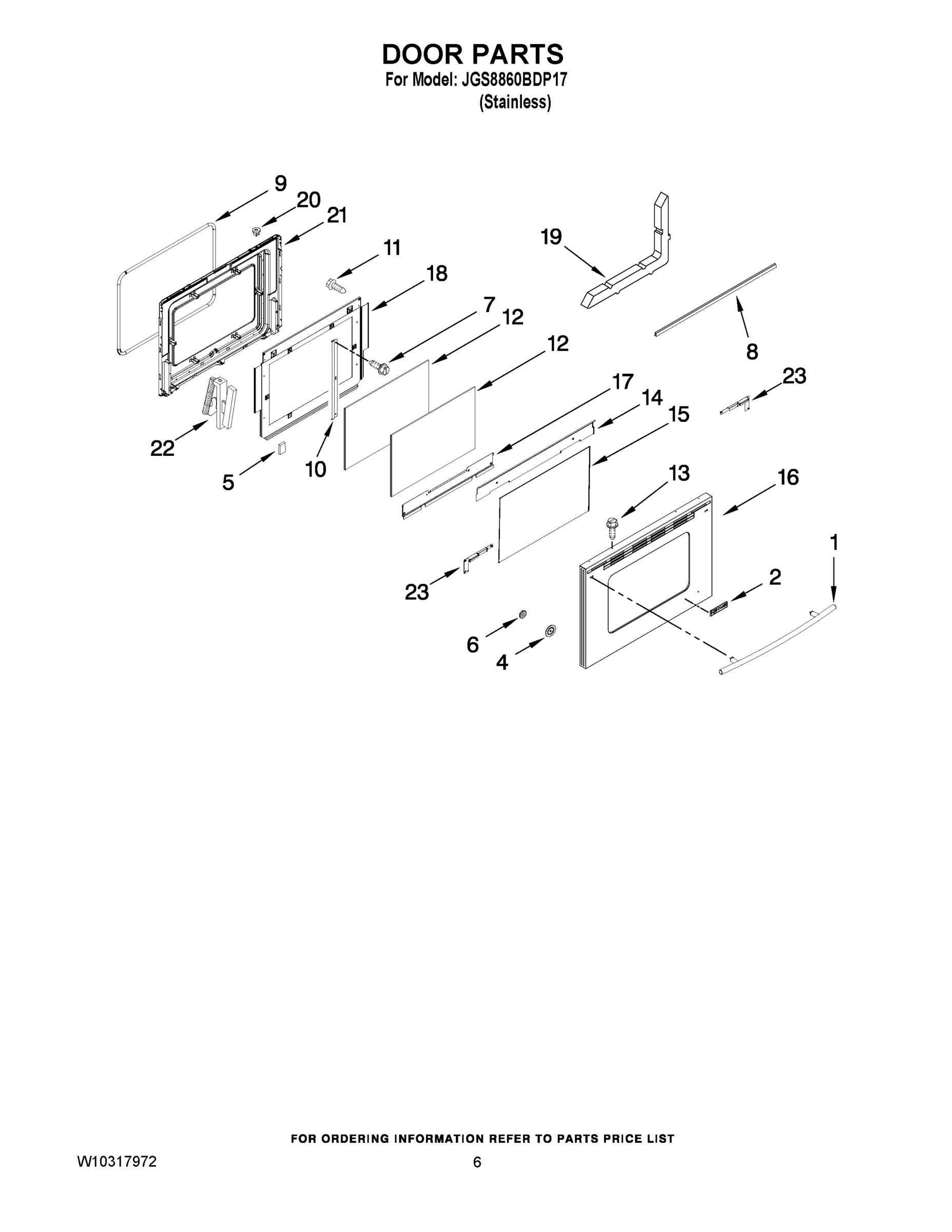

04 - DOOR PARTS

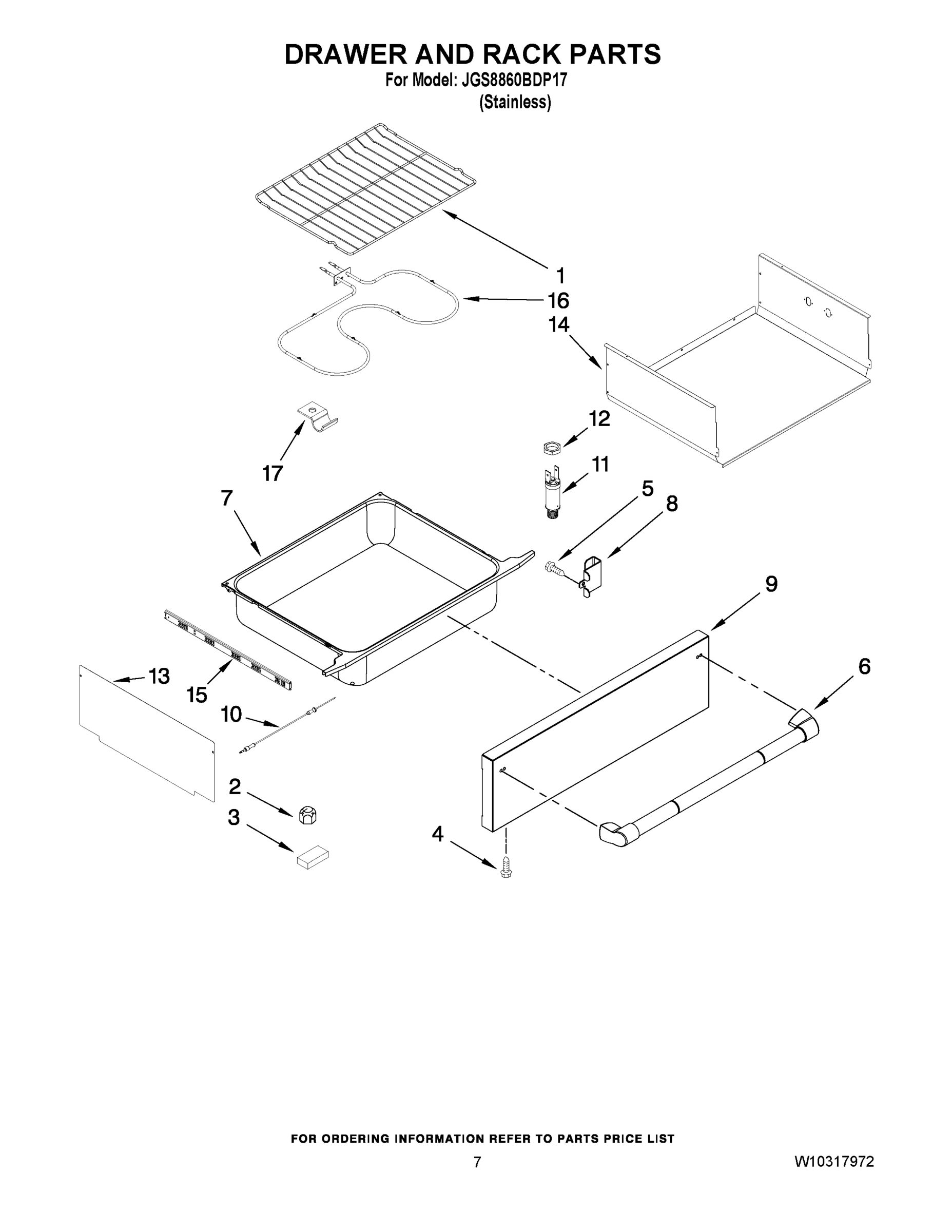

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS8860BDP17 GAS RANGE
1
MAY 8101P697-60 MAY 8101P697-60 Contact Us For Availability
1
OWNERS MANUAL MAY 8113P757-60 Contact Us For Availability
1
MAY 8119P165-60 MAY 8119P165-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
1
RACK, OVEN (3) MAY 7801P173-60 Contact Us For Availability
2
MAY 7432P138-60 MAY 7432P138-60 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY W10224720 MAY W10224720 Contact Us For Availability
2
MAY 7719P087-60 MAY 7719P087-60 Contact Us For Availability
3
TUBING, BROILER MAY 7506P301-60 Contact Us For Availability
3
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
4
MAY 3604F326-45 MAY 3604F326-45 Contact Us For Availability
4
SCREW, PANEL MAY 7101P375-60 Contact Us For Availability
4
BAFFLE, BROIL MAY 3601F307-45 Contact Us For Availability
4
BACKPLATE MAY W10167659 Contact Us For Availability
5
MAY 7740P165-60 MAY 7740P165-60 Contact Us For Availability
5
MAY 7740P166-60 MAY 7740P166-60 Contact Us For Availability
5
MAY 7740P167-60 MAY 7740P167-60 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
ORIFICE, HOLDER (9.2K, RR) MAY 7527P002-60 Contact Us For Availability
5
ORIFICE, HOLDER (15K, RF) MAY 7527P004-60 Contact Us For Availability
5
ORIFICE, HOLDER (5K,LR) MAY 7527P042-60 Contact Us For Availability
5
ORIFICE, HOLDER (DUAL, LF) MAY 7527P061-60 Contact Us For Availability
6
MAY 7746P124-60 MAY 7746P124-60 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
VALVE, SAFETY MAY 7501P231-60 Contact Us For Availability
6
Screw MAY 7101P282-60 Contact Us For Availability
6
HANDLE, DRAWER MAY 7701P475-60 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
MAY 3604F426-51 MAY 3604F426-51 Contact Us For Availability
7
OVEN, FRONT LOWER MAY W10271711 Contact Us For Availability
7
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
7
DRAWER, WARMING MAY 3405W043-19 Contact Us For Availability
8
MAY 5760M339-60 MAY 5760M339-60 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
SCREW MAY 7101P502-60 Contact Us For Availability
8
GASKET, DOOR TOP MAY 7201P143-60 Contact Us For Availability
8
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
9
IGNITOR (3) MAY 7432P121-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
BAFFLE, BAKE MAY 3601F239-45 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
MAY W10253207 MAY W10253207 Contact Us For Availability
10
MAY W10175695 MAY W10175695 Contact Us For Availability
10
EXTENTION, BACK MAY 3826F066-51 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
11
MAY 7518P359-60 MAY 7518P359-60 Contact Us For Availability
11
FOOT, LEVELER (4) MAY 7101P660-60 Contact Us For Availability
11
SCREW, SUPPORT (4) MAY 7101P338-60 Contact Us For Availability
11
MAY 7408P086-60 MAY 7408P086-60 Contact Us For Availability
12
CAP, BURNER (12.5K) MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (5K) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (15K) MAY 7504P204-60 Contact Us For Availability
12
MAY 7504P242-60 MAY 7504P242-60 Contact Us For Availability
12
MAY 7504P243-60 MAY 7504P243-60 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
PIPE, MANIFOLD MAY W10165142 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
12
NUT MAY 7103P177-60 Contact Us For Availability
13
MAY 7505P304-60 MAY 7505P304-60 Contact Us For Availability
13
BURNER, ASSEMBLY (12.5K, RR) MAY 7505P305-60 Contact Us For Availability
13
BURNER, ASSEMBLY (15K, RF) MAY 7505P306-60 Contact Us For Availability
13
MAY 7505P349-60 MAY 7505P349-60 Contact Us For Availability
13
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
13
MAY 7507P407-60 MAY 7507P407-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 3604F435-51 MAY 3604F435-51 Contact Us For Availability
14
MAY 3807F738-51 MAY 3807F738-51 Contact Us For Availability
14
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
14
NUT, WING MAY 7103P030-60 Contact Us For Availability
14
MAY 3604F418-51 MAY 3604F418-51 Contact Us For Availability
14
BODY, WARM DRAWER MAY 2206F087-45 Contact Us For Availability
15
MAY 8507P229-60 MAY 8507P229-60 Contact Us For Availability
15
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
15
GLASS, DOOR (INNER COATED) MAY 7902P768-60 Contact Us For Availability
15
MAY W10293200 MAY W10293200 Contact Us For Availability
16
MAY 7724P197-60 MAY 7724P197-60 Contact Us For Availability
16
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
MAY 7760P158-60 MAY 7760P158-60 Contact Us For Availability
16
MAY 7406P294-60 MAY 7406P294-60 Contact Us For Availability
17
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
17
PROBE, SHORT MAY 7430P041-60 Contact Us For Availability
17
MAY 3807F480-45 MAY 3807F480-45 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
17
CLIP WARMER ELEMENT MAY 7112P153-60 Contact Us For Availability
18
MAY 7518P367-60 MAY 7518P367-60 Contact Us For Availability
18
TRIM, SIDE MAY 3608F138-70 Contact Us For Availability
18
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 3424F034-09 MAY 3424F034-09 Contact Us For Availability
19
MAY 3424F037-09 MAY 3424F037-09 Contact Us For Availability
19
RETAINER, CONV INSULATION MAY 3804F245-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
SCREW, IGNITOR MAY 7101P606-60 Contact Us For Availability
20
LIGHT SWITCH ASSY MAY 7450P109-60 Contact Us For Availability
20
MAY 3605F269-45 MAY 3605F269-45 Contact Us For Availability
20
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
21
MAY 7726P396-60 MAY 7726P396-60 Contact Us For Availability
21
MAY 7726P397-60 MAY 7726P397-60 Contact Us For Availability
21
IGNITOR, ELECTRIC IGNITION MAY 7432P106-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
BULB, OVEN MAY 899138-001 Contact Us For Availability
22
MAY 7502P533-60 MAY 7502P533-60 Contact Us For Availability
22
VALVE, TOP BURNER (5K, LR) MAY 7502P561-60 Contact Us For Availability
22
VALVE, TOP BURNER (9.2K, RR) MAY 7502P562-60 Contact Us For Availability
22
VALVE, TOP BURNER (15K, RF) MAY 7502P564-60 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
23
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
23
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
23

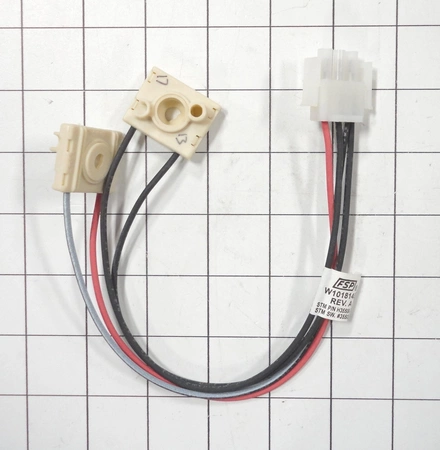

SWITCH, REIGNITION (RF/RR) MAY W10181455 Contact Us For Availability
23

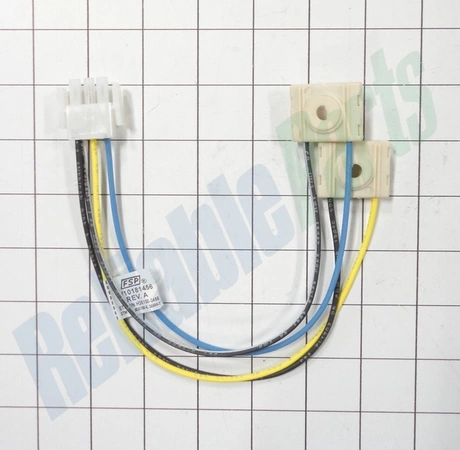

SWITCH, REIGNITION (LF/LR) MAY W10181456 Contact Us For Availability
23
RETAINER, GLASS (RIGHT SIDE) MAY 3804F307-51 Contact Us For Availability
23
RETAINER, GLASS (LEFT SIDE) MAY 3804F308-51 Contact Us For Availability
24
MAY 4005F810-51 MAY 4005F810-51 Contact Us For Availability
24
MAY 7506P457-60 MAY 7506P457-60 Contact Us For Availability
24
MAY 7506P458-60 MAY 7506P458-60 Contact Us For Availability
24
MAY 7506P459-60 MAY 7506P459-60 Contact Us For Availability
24
MAY 7506P460-60 MAY 7506P460-60 Contact Us For Availability
24
MAY 7506P461-60 MAY 7506P461-60 Contact Us For Availability
26
RETAINER, REAR MAY 3804F313-51 Contact Us For Availability
27
MAY 4011F496-51 MAY 4011F496-51 Contact Us For Availability
28
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
29
MAY 7713P054-60 MAY 7713P054-60 Contact Us For Availability
30
VENT, GAS MAY 8026P095-60 Contact Us For Availability
31
RETAINER, INSUL. CONVECT. MAY 3804F300-51 Contact Us For Availability
32
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
33
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
34
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
35
FAN, ASSEMBLY MAY W10206590 Contact Us For Availability
36
MAY 3605F350-19 MAY 3605F350-19 Contact Us For Availability
37
MAY 7718P034-60 MAY 7718P034-60 Contact Us For Availability
38
COVER, BURNER BOX MAY 4005F638-51 Contact Us For Availability
39
EXT., HEAT SHIELD MAY 3826F034-51 Contact Us For Availability
40
SUPPORT, ELEMENT MAY 3807F633-45 Contact Us For Availability
41
MAY 7403P647-60 MAY 7403P647-60 Contact Us For Availability
42
MAY 7403P657-60 MAY 7403P657-60 Contact Us For Availability
NI
INSULATION, DRAWER & SHIELD MAY 7002P078-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P451-60 MAY 7002P451-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
MAY 7002P474-60 MAY 7002P474-60 Contact Us For Availability
NI
MAY 7507P418-60 MAY 7507P418-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
HARNESS, WIRE (SENSOR W/PROBE) MAY 5171P537-60 Contact Us For Availability
NI
MAY 5171P783-60 MAY 5171P783-60 Contact Us For Availability
NI
HARNESS, WIRE (WARMING DRAWER) MAY 5171P809-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 7111P009-60 MAY 7111P009-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
HARNESS, WIRE (SPARK) MAY W10173471 Contact Us For Availability
× ![]()
