Model Maytag JGS8850CDS01 GAS RANGE – Common Parts & Diagrams

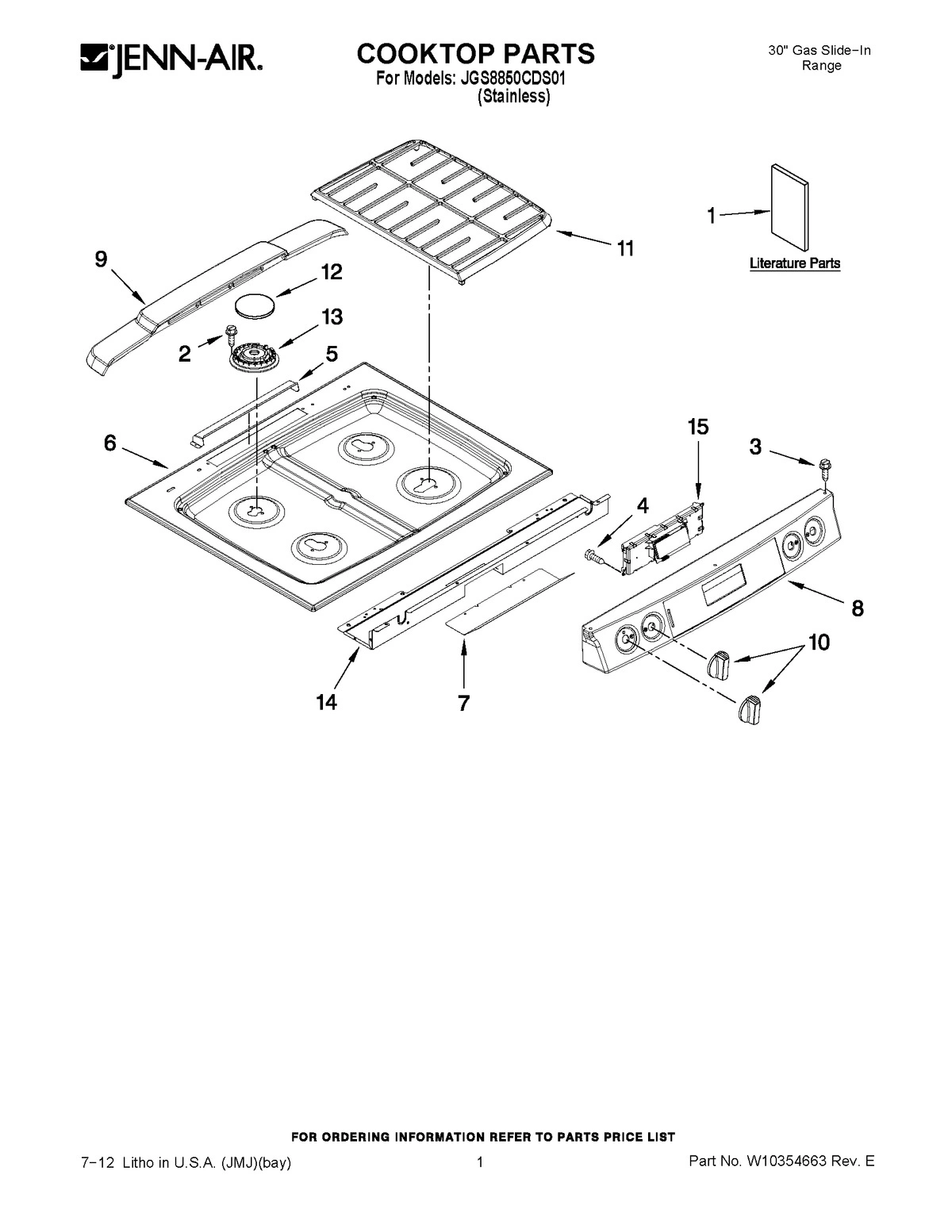

01 - COOKTOP PARTS

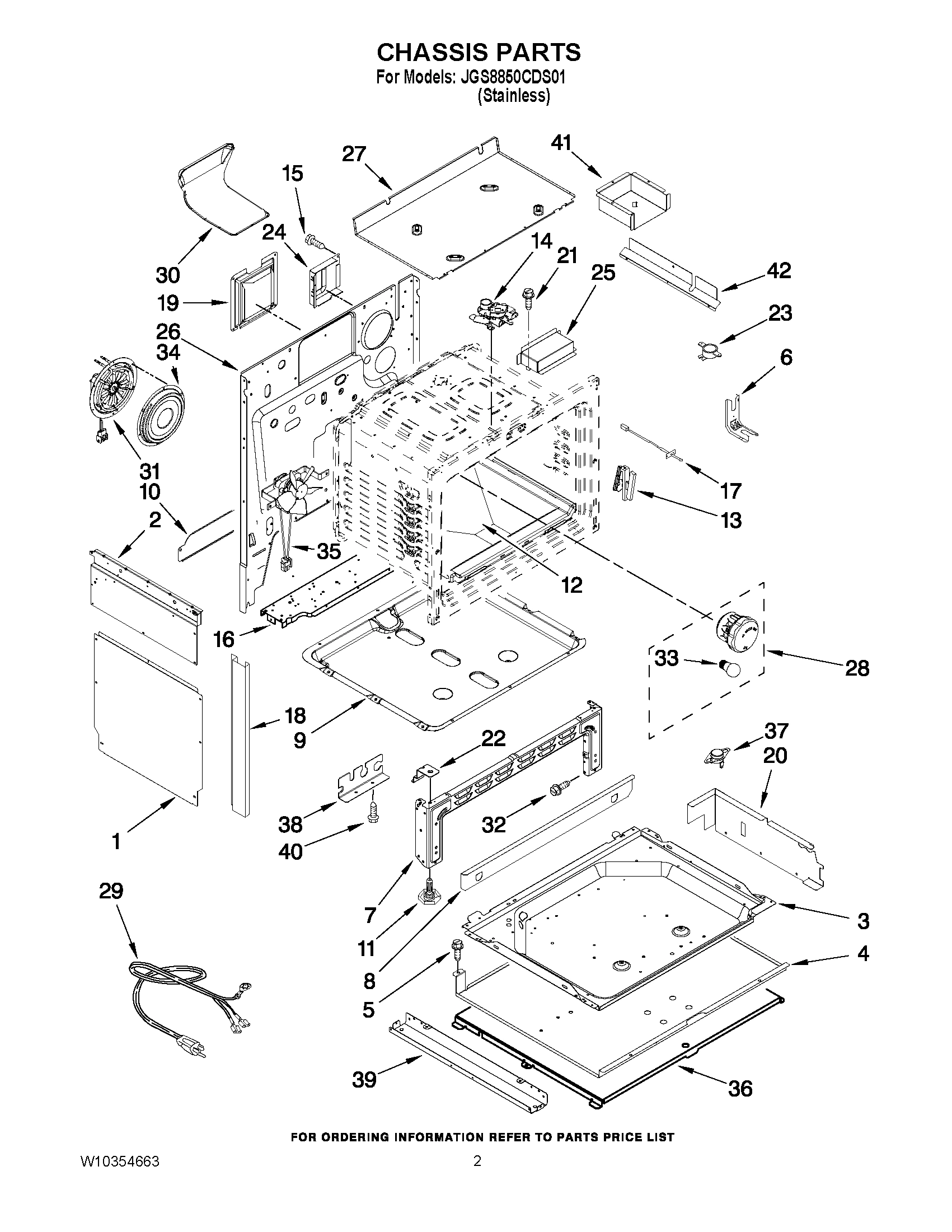

02 - CHASSIS PARTS

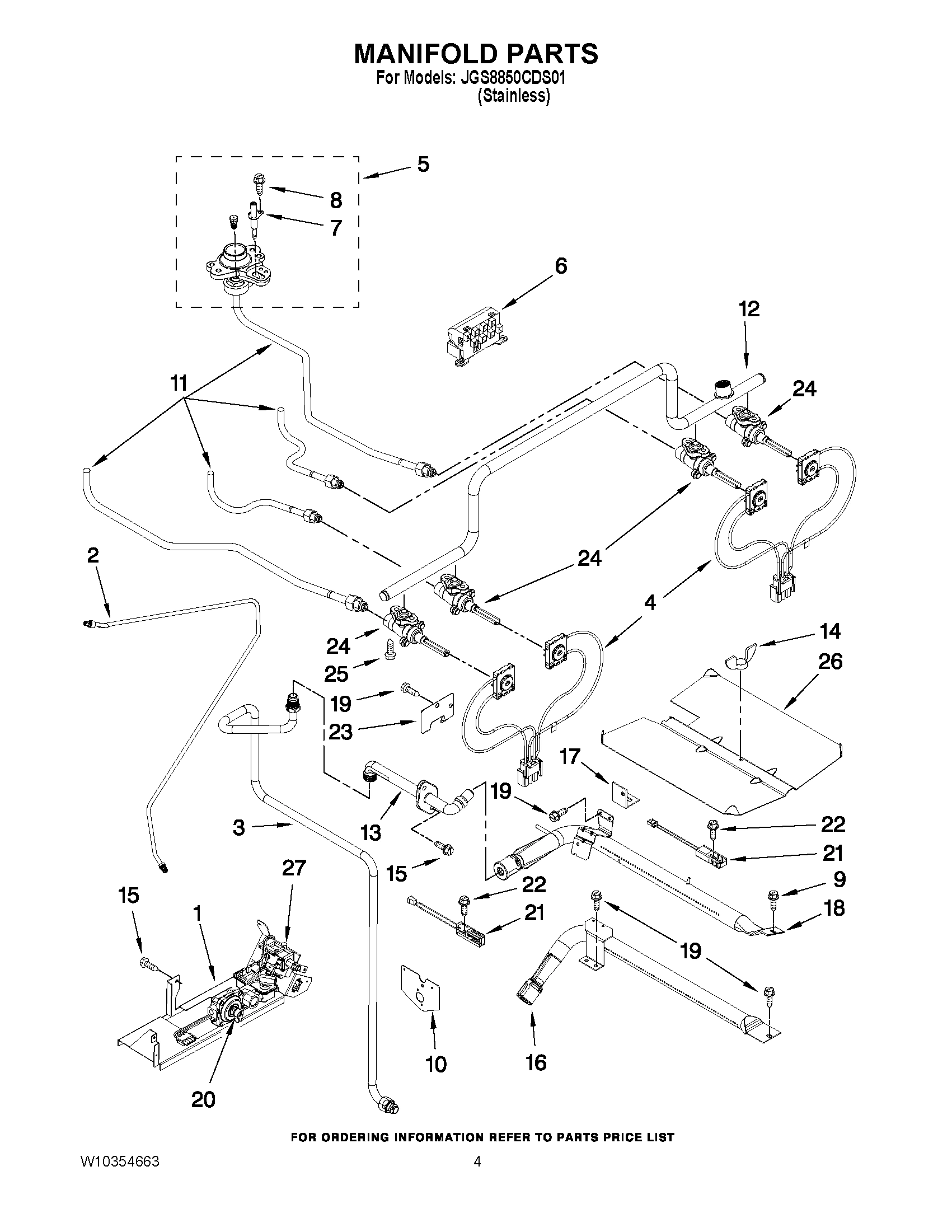

03 - MANIFOLD PARTS

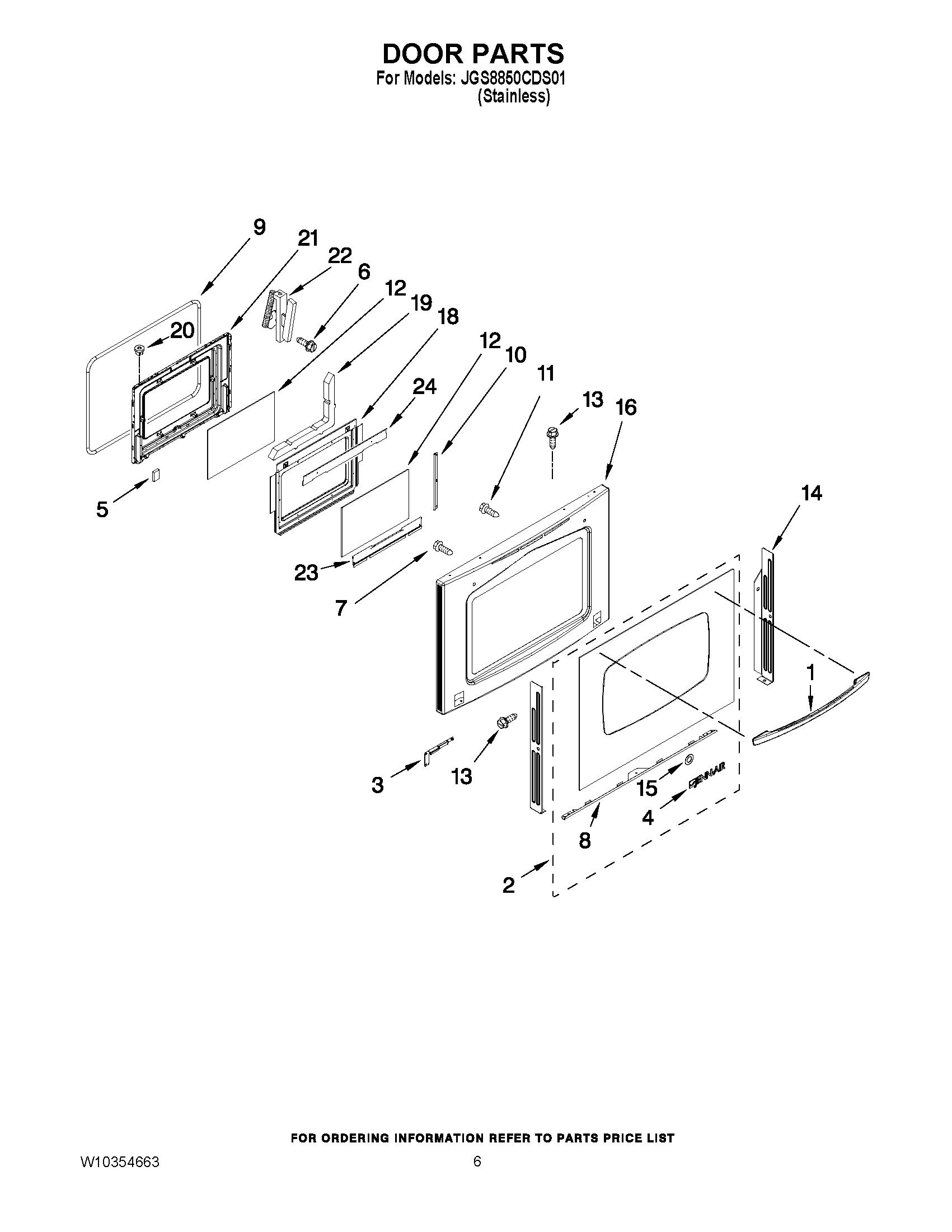

04 - DOOR PARTS

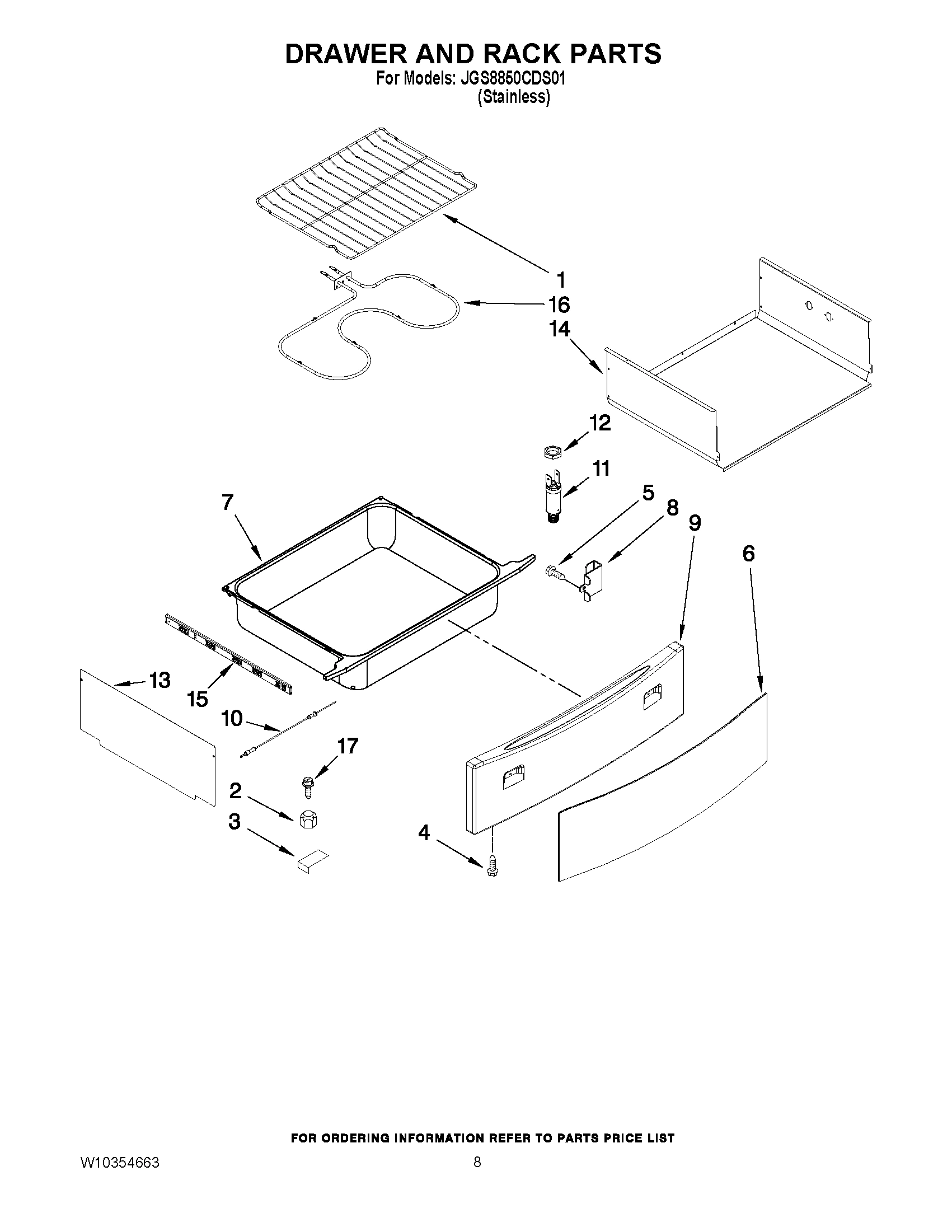

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS8850CDS01 GAS RANGE
1
OWNERS MANUAL MAY W10235526 Contact Us For Availability
1
MAY W10235693 MAY W10235693 Contact Us For Availability
1
MAY W10253459 MAY W10253459 Contact Us For Availability
1
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
1
MAY 4005F638-51 MAY 4005F638-51 Contact Us For Availability
1
MAY W10223152 MAY W10223152 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY 7506P489-60 MAY 7506P489-60 Contact Us For Availability
2
GLASS, DOOR ASSEMBLY MAY W10301578 Contact Us For Availability
3
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
3
MAY 3804F245-51 MAY 3804F245-51 Contact Us For Availability
3
MAY 7506P536-60 MAY 7506P536-60 Contact Us For Availability
3
RETAINER, GLASS (RIGHT HAND) MAY 3804F307-51 Contact Us For Availability
3
RETAINER, GLASS (LEFT HAND) MAY 3804F308-51 Contact Us For Availability
3
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
4
MAY 3604F326-45 MAY 3604F326-45 Contact Us For Availability
4
SCREW, PANEL MAY 7101P375-60 Contact Us For Availability
4
INCLUDES SWITCHES (LF/LR) MAY 7450P003-60 Contact Us For Availability
4
INCLUDES SWITCHES (RF/RR) MAY 7450P004-60 Contact Us For Availability
4
BADGE, NAMEPLATE MAY W10214168 Contact Us For Availability
5
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
ORIFICE, HOLDER (9.2K,RR/LF) MAY 7527P002-60 Contact Us For Availability
5
ORIFICE, HOLDER (16K,RF) MAY 7527P004-60 Contact Us For Availability
5
ORIFICE, HOLDER (5K,LR) MAY 7527P042-60 Contact Us For Availability
5
SPACER, RUBBER MAY 7109P082-60 Contact Us For Availability
6
COOKTOP (STAINLESS) MAY 2001D312-50 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
SPARK MODULE MAY 7431P038-60 Contact Us For Availability
6
SCREW MAY 7103P176-60 Contact Us For Availability
6
OVERLAY, SS MAY W10184467 Contact Us For Availability
7
SHIELD, CONTROL MAY 7003P154-60 Contact Us For Availability
7
OVEN, FRONT LOWER MAY W10271711 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P426-60 Contact Us For Availability
7
IGNITOR MAY 7432P121-60 Contact Us For Availability
7
DRAWER, WARMING MAY 3405W043-19 Contact Us For Availability
8
SCREW, IGNITOR MAY 7101P606-60 Contact Us For Availability
8
MAY W10314414 MAY W10314414 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
MAY W10331048 MAY W10331048 Contact Us For Availability
8
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
9
MAY 7724P200-60 MAY 7724P200-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
MAY 7101P360-60 MAY 7101P360-60 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
PANEL, DRAWER (BLACK) MAY 2416F086-70 Contact Us For Availability
10
KNOB, VALVE (STAINLESS) MAY W10255425 Contact Us For Availability
10
EXTENTION, BACK MAY 3826F066-51 Contact Us For Availability
10
PLATE, BROIL MAY 3605F269-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
11
GRATE, BURNER MAY 7518P358-60 Contact Us For Availability
11
MAY 7101P660-60 MAY 7101P660-60 Contact Us For Availability
11
MAY 7506P445-60 MAY 7506P445-60 Contact Us For Availability
11
MAY 7506P447-60 MAY 7506P447-60 Contact Us For Availability
11
MAY 7506P448-60 MAY 7506P448-60 Contact Us For Availability
11
MAY 7506P469-60 MAY 7506P469-60 Contact Us For Availability
11
MAY 7506P470-60 MAY 7506P470-60 Contact Us For Availability
11
TUBE, BURNER (TUBING, CROSSOVER) MAY 7506P482-60 Contact Us For Availability
11
MAY 7408P086-60 MAY 7408P086-60 Contact Us For Availability
12
MAY 7504P165-60 MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (BLACK 5K) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (BLACK 16K) MAY 7504P204-60 Contact Us For Availability
12
CAP, BURNER (DUAL INNER) MAY 7504P242-60 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
12
NUT MAY 7103P177-60 Contact Us For Availability
13
BASE, BURNER (DUAL OUTER) MAY 7504P243-60 Contact Us For Availability
13
BASE, BURNER (RR) MAY 7505P304-60 Contact Us For Availability
13
BASE, BURNER (LR) MAY 7505P305-60 Contact Us For Availability
13
BASE, BURNER (RF) MAY 7505P306-60 Contact Us For Availability
13
BASE, BURNER (LF - DUAL) MAY 7505P349-60 Contact Us For Availability
13
MAY 7507P407-60 MAY 7507P407-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 3604F435-51 MAY 3604F435-51 Contact Us For Availability
14
MAY 3807F751-51 MAY 3807F751-51 Contact Us For Availability
14
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
14
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
14
NUT, WING MAY 7103P030-60 Contact Us For Availability
14
BODY, WARM DRAWER MAY 2206F087-45 Contact Us For Availability
15
MAY 8507P228-60 MAY 8507P228-60 Contact Us For Availability
15
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
15
MAY 7109P084-60 MAY 7109P084-60 Contact Us For Availability
15
MAY W10293200 MAY W10293200 Contact Us For Availability
16
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY W10310262 MAY W10310262 Contact Us For Availability
17
MAY 7430P041-60 MAY 7430P041-60 Contact Us For Availability
17
MAY 3807F480-45 MAY 3807F480-45 Contact Us For Availability
18
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 3804F300-51 MAY 3804F300-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY W10256425 MAY W10256425 Contact Us For Availability
20
MAY 7510P079-60 MAY 7510P079-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
MAY 7432P106-60 MAY 7432P106-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
22
SUPPORT, OVEN BTM. MAY 3807F727-45 Contact Us For Availability
22
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
23
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
23
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
24
MAY 4005F810-51 MAY 4005F810-51 Contact Us For Availability
24
VALVE, TOP BURNER (LR 5K) MAY 7502P470-60 Contact Us For Availability
24
VALVE, TOP BURNER (RR/LF 9.2K) MAY 7502P471-60 Contact Us For Availability
24
VALVE, TOP BURNER (DUAL RING) MAY 7502P493-60 Contact Us For Availability
24
MAY 7502P548-60 MAY 7502P548-60 Contact Us For Availability
24
MAY 3604F418-51 MAY 3604F418-51 Contact Us For Availability
25
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
25
SUPPORT, SCREW MAY 7101P338-60 Contact Us For Availability
26
MAY 3804F313-51 MAY 3804F313-51 Contact Us For Availability
26
BAFFLE, BAKE (BAKE) MAY 3601F239-45 Contact Us For Availability
26
BAFFLE, BAKE (BROIL) MAY 3601F307-45 Contact Us For Availability
27
MAY 4011F496-51 MAY 4011F496-51 Contact Us For Availability
27
MAY 7501P232-60 MAY 7501P232-60 Contact Us For Availability
28
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
29
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
30
MAY 8026P095-60 MAY 8026P095-60 Contact Us For Availability
31
FAN, COVECTION MAY W10206590 Contact Us For Availability
32
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
34
COVER, FAN MAY 3605F350-19 Contact Us For Availability
35
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
36
MAY 3604F327-51 MAY 3604F327-51 Contact Us For Availability
37
SWITCH, HI-LIMIT MAY 7403P657-60 Contact Us For Availability
38
MAY W10256422 MAY W10256422 Contact Us For Availability
39
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
41
COVER,BURNER BOX (DUAL RING BNR) MAY 4005F807-51 Contact Us For Availability
42
EXTENSION, HEAT SHIELD MAY 3826F034-51 Contact Us For Availability
NI
WOK MAY AO142 Contact Us For Availability
NI
INSULATION, LOWER SIDES MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
MAY 7002P474-60 MAY 7002P474-60 Contact Us For Availability
NI
MAY W10160396 MAY W10160396 Contact Us For Availability
NI
MAY W10258120 MAY W10258120 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
STAINLESS STEEL CLEANER & POLISH MAY 31462 Contact Us For Availability
NI
GAS GRATE & DRIP PAN CLEANER MAY 31617 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
HARNESS, SENSOR MAY 5171P537-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAGNETIC DOOR SPACER MAY 8010P146-60 Contact Us For Availability
NI
MAY 8212471 MAY 8212471 Contact Us For Availability
NI
MAY DRYINGRACK MAY DRYINGRACK Contact Us For Availability
NI
HARNESS, RE-IGN. MAY W10173471 Contact Us For Availability
NI
HARNESS, SPARK MAY W10250350 Contact Us For Availability
NI
MAY W10250351 MAY W10250351 Contact Us For Availability
× ![]()
