Model Maytag JGS8750CDS00 GAS RANGE – Common Parts & Diagrams

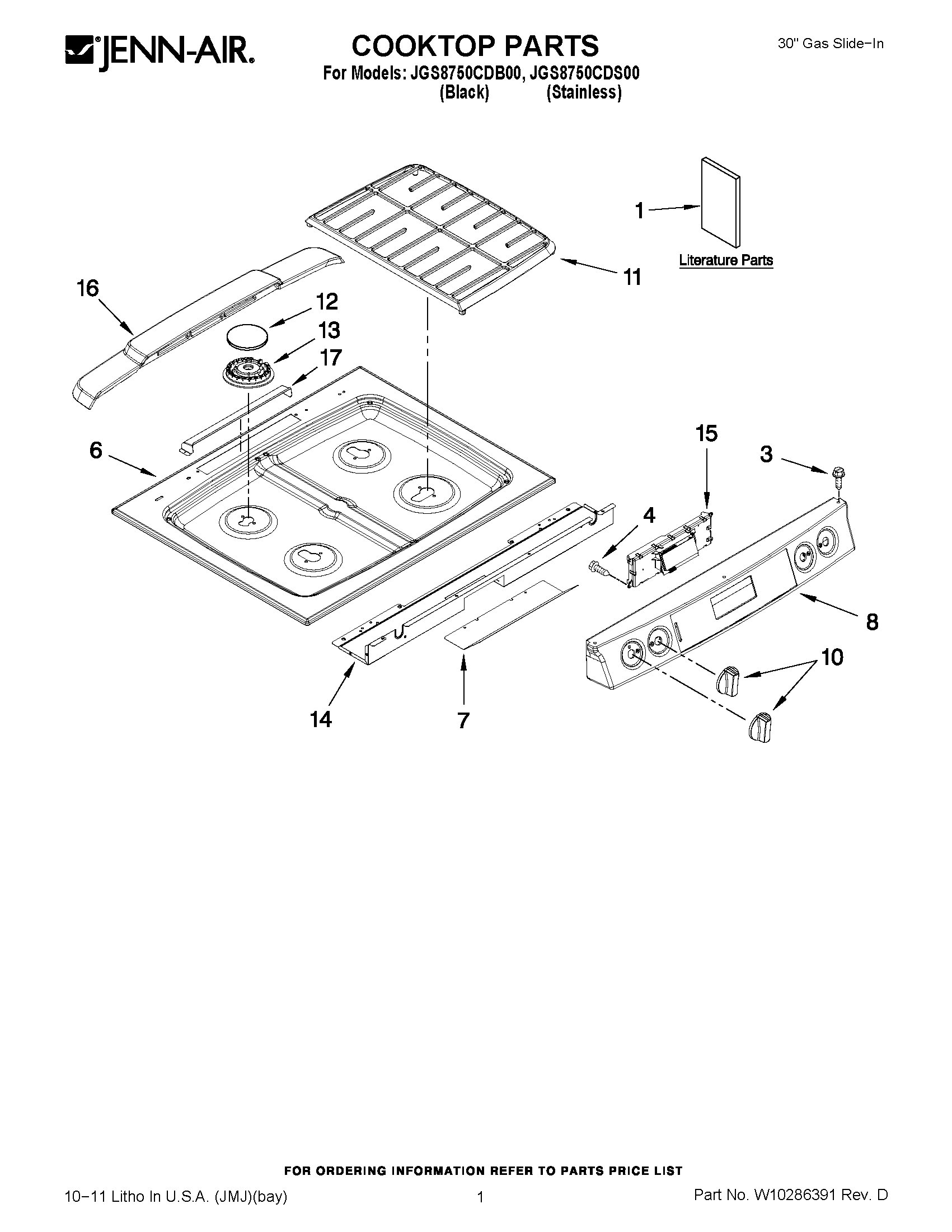

01 - COOKTOP PARTS

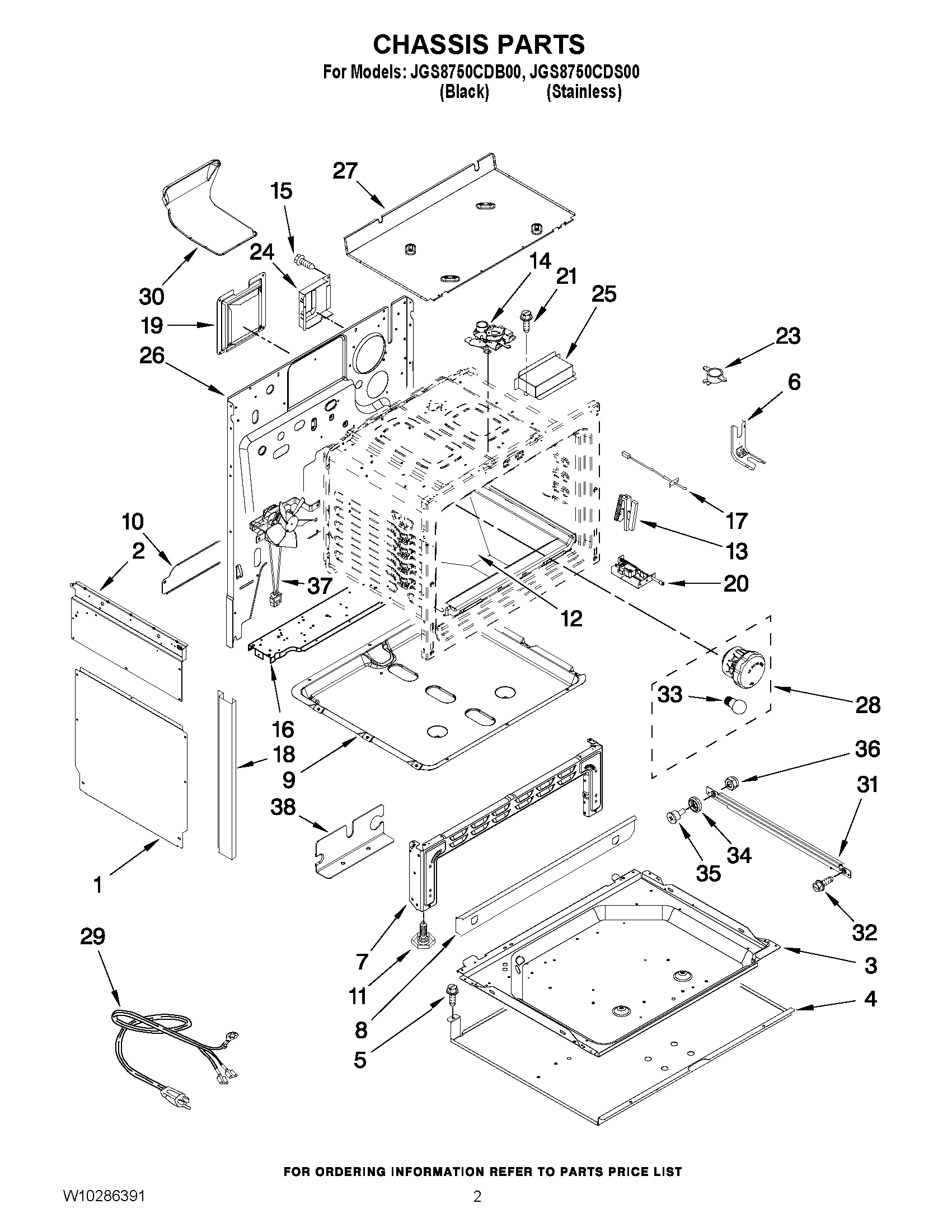

02 - CHASSIS PARTS

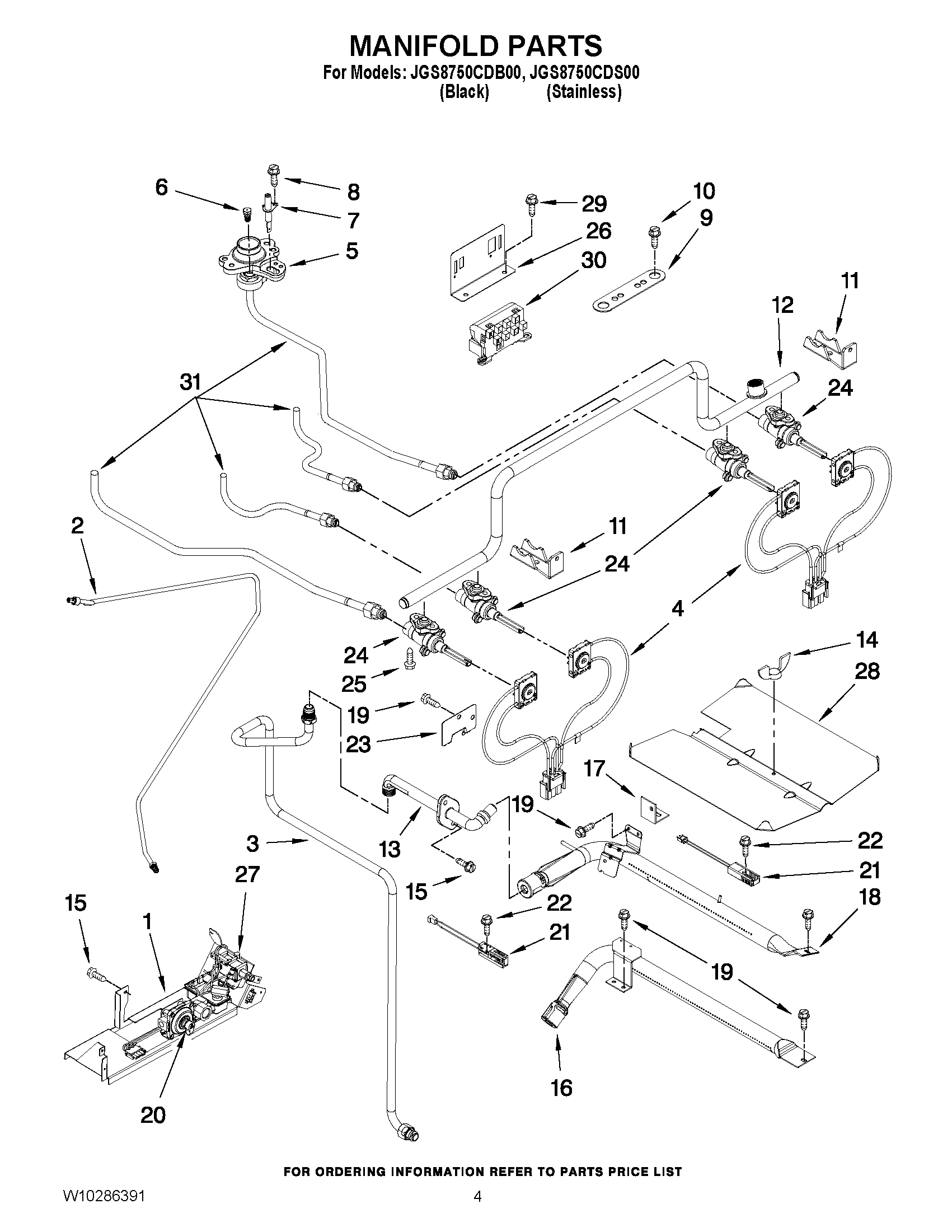

03 - MANIFOLD PARTS

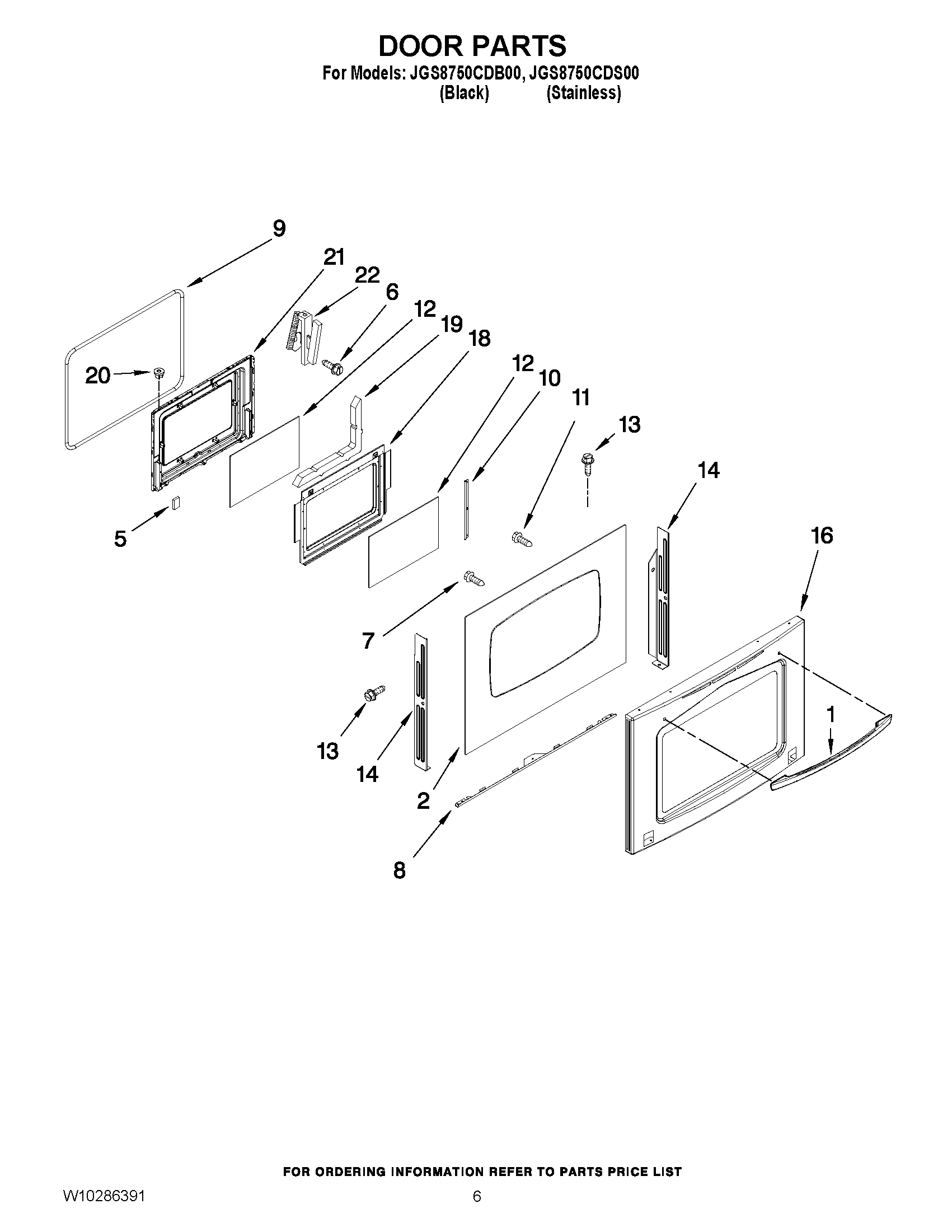

04 - DOOR PARTS

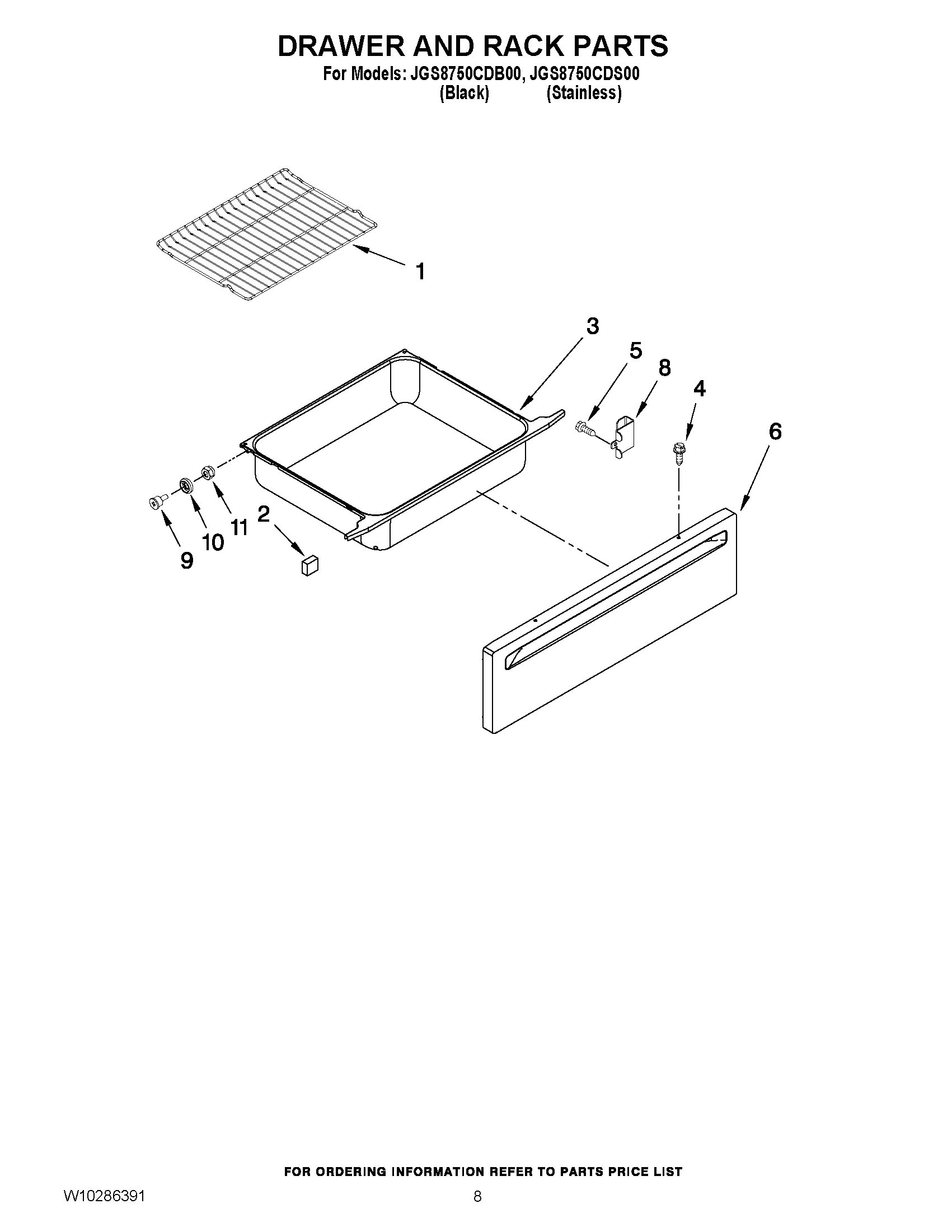

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS8750CDS00 GAS RANGE
1
SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10235526 MAY W10235526 Contact Us For Availability
1
MAY W10253459 MAY W10253459 Contact Us For Availability
1
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
1
MAY 4005F620-51 MAY 4005F620-51 Contact Us For Availability
1
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
1
RACK, OVEN (2) MAY 7801P173-60 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY 7506P489-60 MAY 7506P489-60 Contact Us For Availability
2
MAY 7922P051-60 MAY 7922P051-60 Contact Us For Availability
3
MAY 7506P536-60 MAY 7506P536-60 Contact Us For Availability
3
MAY 3405F033-80 MAY 3405F033-80 Contact Us For Availability
4
MAY 3604F326-45 MAY 3604F326-45 Contact Us For Availability
4
HARNESS, VALVE (LF/LR) MAY 7450P003-60 Contact Us For Availability
4
HARNESS, VALVE (RF/RR) MAY 7450P004-60 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
ORIFICE, HOLDER (9.2K,RR/LF) MAY 7527P002-60 Contact Us For Availability
5
ORIFICE, HOLDER (16K,RF) MAY 7527P004-60 Contact Us For Availability
5
ORIFICE, HOLDER (5K,LR) MAY 7527P042-60 Contact Us For Availability
5
SPACER, RUBBER MAY 7109P082-60 Contact Us For Availability
6
MAY 2001D311-50 MAY 2001D311-50 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
ORIFICE (RF) MAY 7527P081-60 Contact Us For Availability
6
ORIFICE (LF,RR) MAY 7527P083-60 Contact Us For Availability
6
ORIFICE (LR) MAY 7527P084-60 Contact Us For Availability
6
SCREW MAY 7103P176-60 Contact Us For Availability
6
PANEL,DRAWER FRNT MAY N/P Contact Us For Availability
7
SCREW, HANDLE MAY 7101P426-60 Contact Us For Availability
7
SHIELD, CONTROL MAY 7003P154-60 Contact Us For Availability
7
MAY 4020F036-80 MAY 4020F036-80 Contact Us For Availability
7
IGNITOR (4) MAY 7432P121-60 Contact Us For Availability
8
MAY W10236206 MAY W10236206 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
SCREW, IGNITOR MAY 7101P606-60 Contact Us For Availability
8
MAY 8020P074-60 MAY 8020P074-60 Contact Us For Availability
8
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
9
MAY W10236220 MAY W10236220 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
ROLLER DRAWER (2) MAY 8014P022-60 Contact Us For Availability
9
MAY W10160530 MAY W10160530 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
KNOB, VALVE (4) MAY W10255424 Contact Us For Availability
10
EXTENTION, BACK MAY 3826F066-51 Contact Us For Availability
10
SHAFT, ROLLER (2) MAY 7118P032-60 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7518P358-60 MAY 7518P358-60 Contact Us For Availability
11
FOOT, LEVELER (4) MAY 7101P660-60 Contact Us For Availability
11
MAY W10160655 MAY W10160655 Contact Us For Availability
12
CAP, BURNER (BLACK 12.5K (2)) MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (BLACK 5K (1)) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (BLACK 16K (1)) MAY 7504P204-60 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
MAY 7540P036-60 MAY 7540P036-60 Contact Us For Availability
13
MAY 7540P037-60 MAY 7540P037-60 Contact Us For Availability
13
MAY 7540P038-60 MAY 7540P038-60 Contact Us For Availability
13
MAY 7507P407-60 MAY 7507P407-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
14
SUPPORT, CNTL PNL MAY 3807F731-51 Contact Us For Availability
14
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
14
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
14
NUT, WING MAY 7103P030-60 Contact Us For Availability
15
MAY 8507P227-60 MAY 8507P227-60 Contact Us For Availability
15
SCREW, LATCH LEVER MAY 7101P375-60 Contact Us For Availability
15
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
16
MAY 7724P200-60 MAY 7724P200-60 Contact Us For Availability
16
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
FRAME, DOOR (STAINLESS) MAY W10185621 Contact Us For Availability
17
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
17
MAY 7430P041-60 MAY 7430P041-60 Contact Us For Availability
17
MAY 3807F480-45 MAY 3807F480-45 Contact Us For Availability
18
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
RETAINER, CONV INSULATION MAY 3804F245-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
LIGHT SWITCH ASSY MAY 7450P109-60 Contact Us For Availability
20
MAY 7510P079-60 MAY 7510P079-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
MAY 7432P106-60 MAY 7432P106-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
22
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
23
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
24
MAY 4005F810-51 MAY 4005F810-51 Contact Us For Availability
24
VALVE, TOP BURNER (LR 5K) MAY 7502P470-60 Contact Us For Availability
24
VALVE, TOP BURNER (RR/LF 9.2K) MAY 7502P471-60 Contact Us For Availability
24
MAY 7502P548-60 MAY 7502P548-60 Contact Us For Availability
25
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
25
SUPPORT, SCREW (4) MAY 7101P338-60 Contact Us For Availability
26
MAY 3804F313-51 MAY 3804F313-51 Contact Us For Availability
26
MAY 3807F752-45 MAY 3807F752-45 Contact Us For Availability
27
MAY 4011F475-51 MAY 4011F475-51 Contact Us For Availability
27
MAY 7501P232-60 MAY 7501P232-60 Contact Us For Availability
28
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
28
BAFFLE, BAKE (BAKE) MAY 3601F239-45 Contact Us For Availability
28
BAFFLE, BAKE (BROIL) MAY 3601F307-45 Contact Us For Availability
29
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
29
MAY 7101P346-60 MAY 7101P346-60 Contact Us For Availability
30
MAY 8026P095-60 MAY 8026P095-60 Contact Us For Availability
30
SPARK MODULE MAY 7431P038-60 Contact Us For Availability
31
RUNNER, DRAWER (2) MAY W10182835 Contact Us For Availability
31
MAY 7506P445-60 MAY 7506P445-60 Contact Us For Availability
31
MAY 7506P486-60 MAY 7506P486-60 Contact Us For Availability
31
TUBE, BURNER (LR) MAY 7506P487-60 Contact Us For Availability
31
MAY 7506P488-60 MAY 7506P488-60 Contact Us For Availability
32
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
36
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
37
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
38
MAY 3801F951-51 MAY 3801F951-51 Contact Us For Availability
NI
INSULATION, LOWER SIDES MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
MAY W10258117 MAY W10258117 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P560-60 MAY 5171P560-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY W10160395 MAY W10160395 Contact Us For Availability
NI
MAY W10160396 MAY W10160396 Contact Us For Availability
NI
HARNESS, SPARK MAY W10173467 Contact Us For Availability
× ![]()
