Model Maytag JGS8750BDB16 GAS RANGE – Common Parts & Diagrams

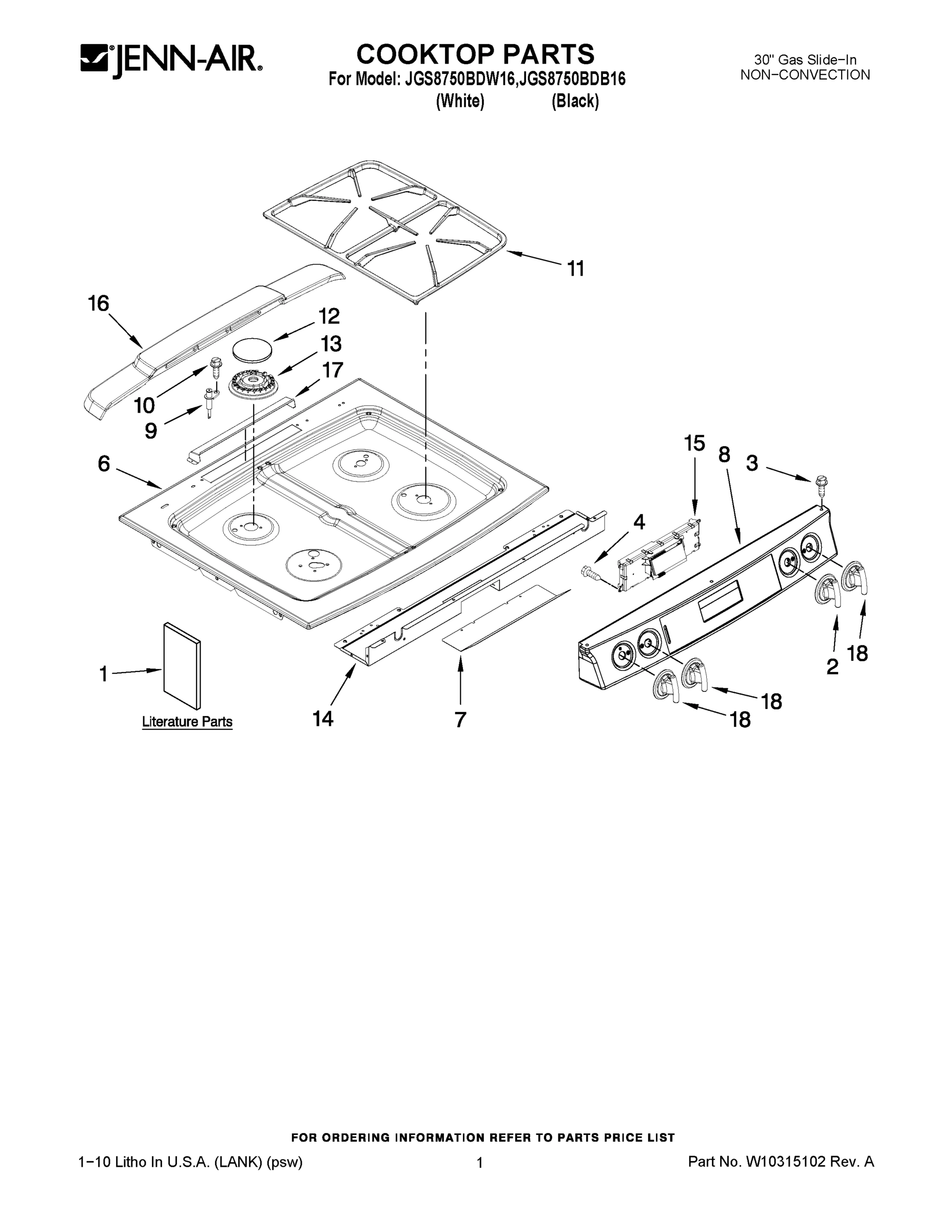

01 - COOKTOP PARTS

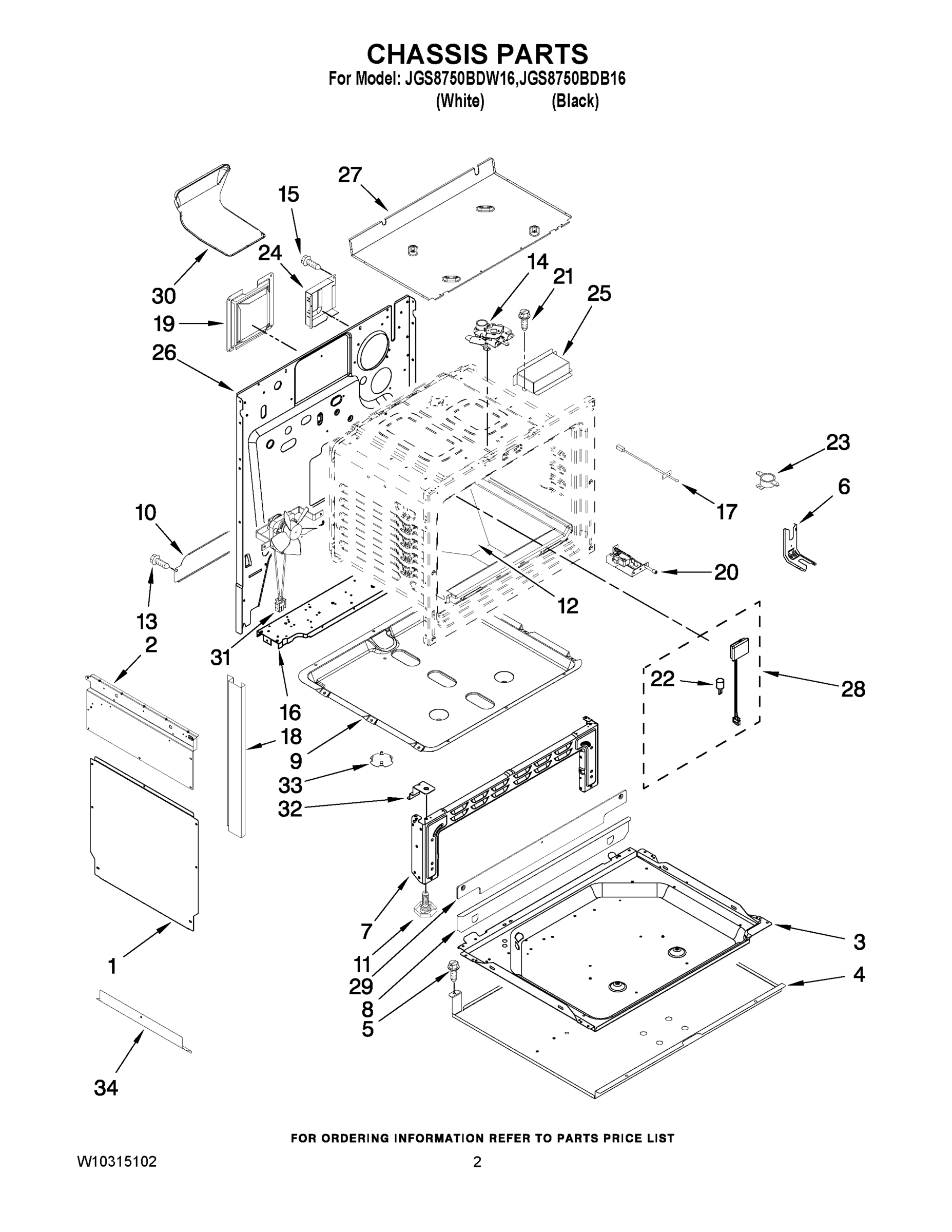

02 - CHASSIS PARTS

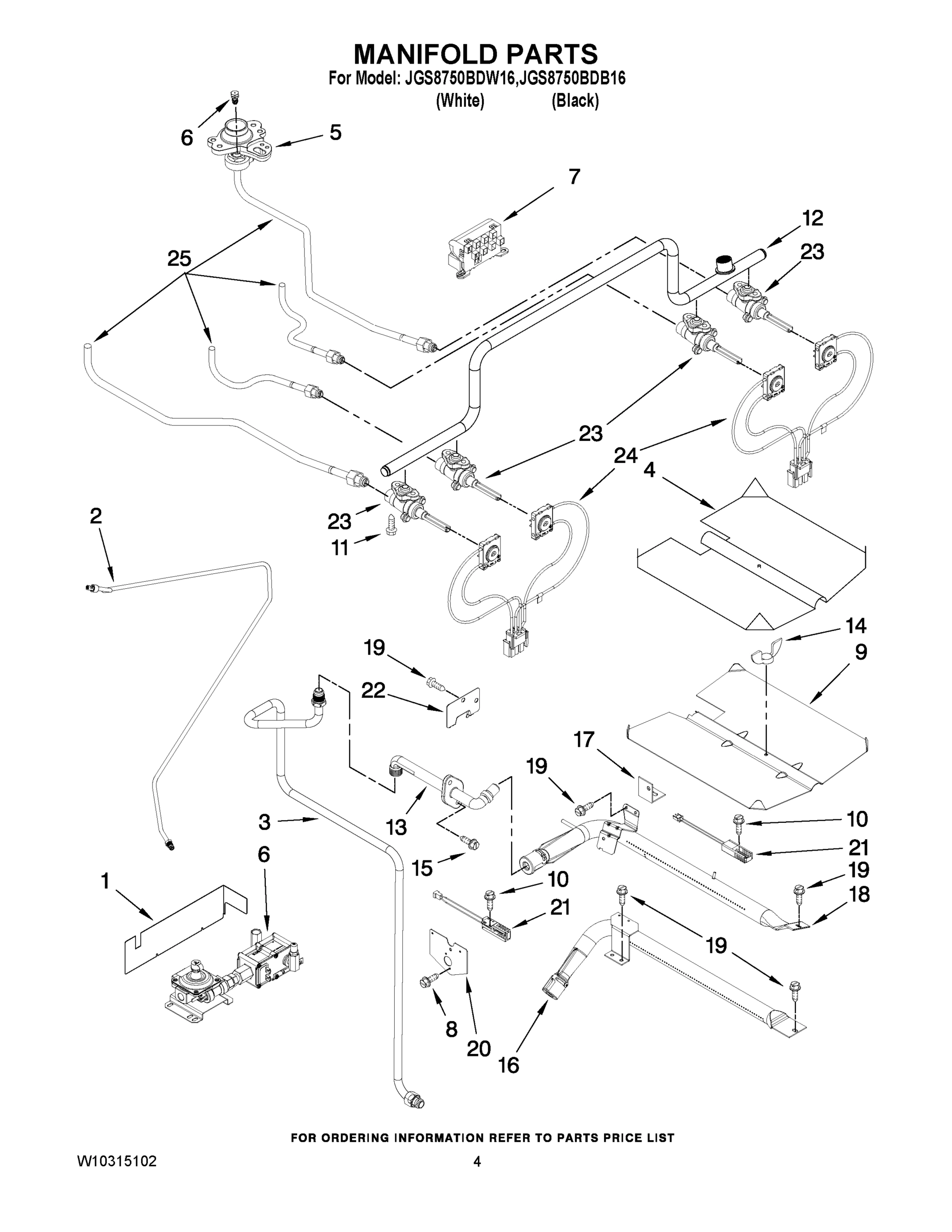

03 - MANIFOLD PARTS

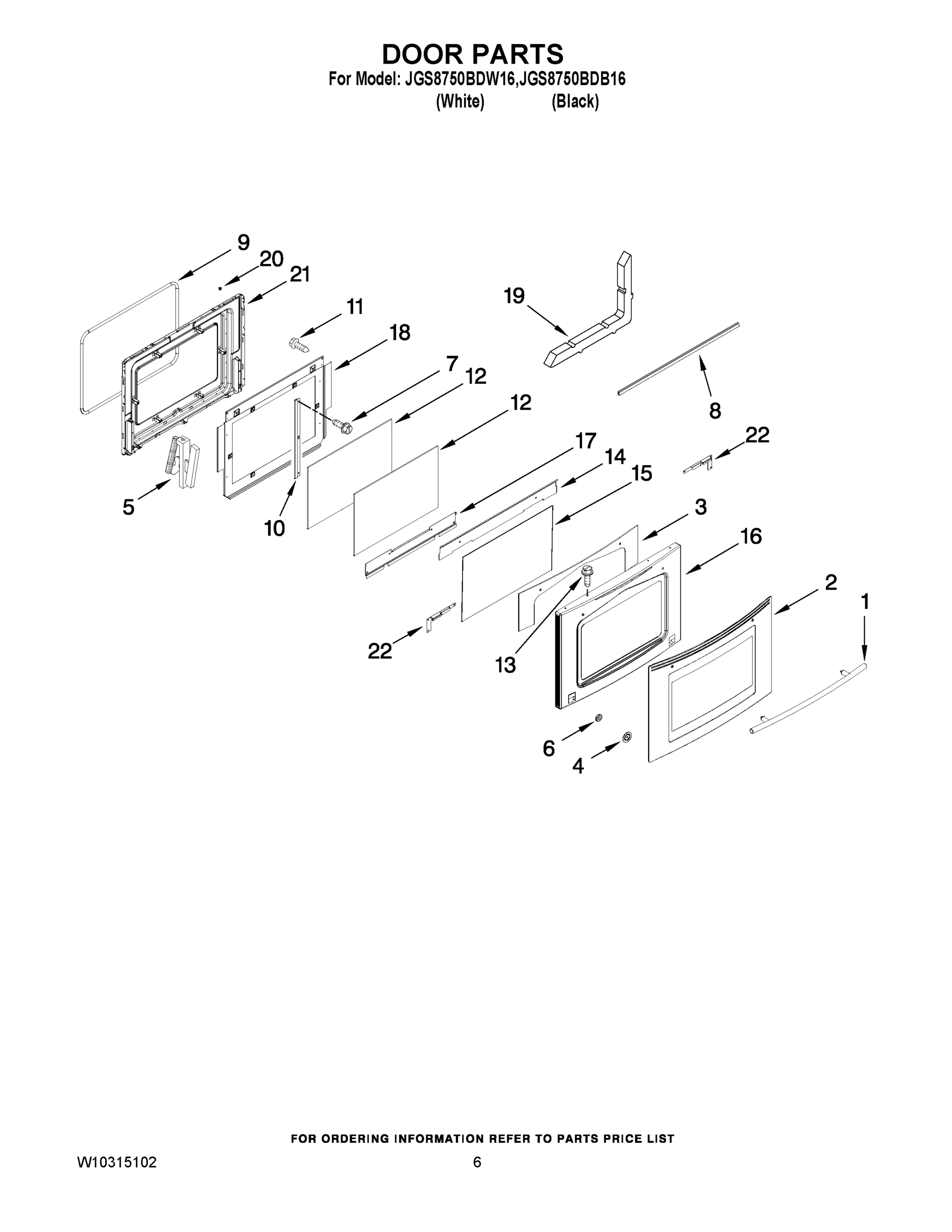

04 - DOOR PARTS

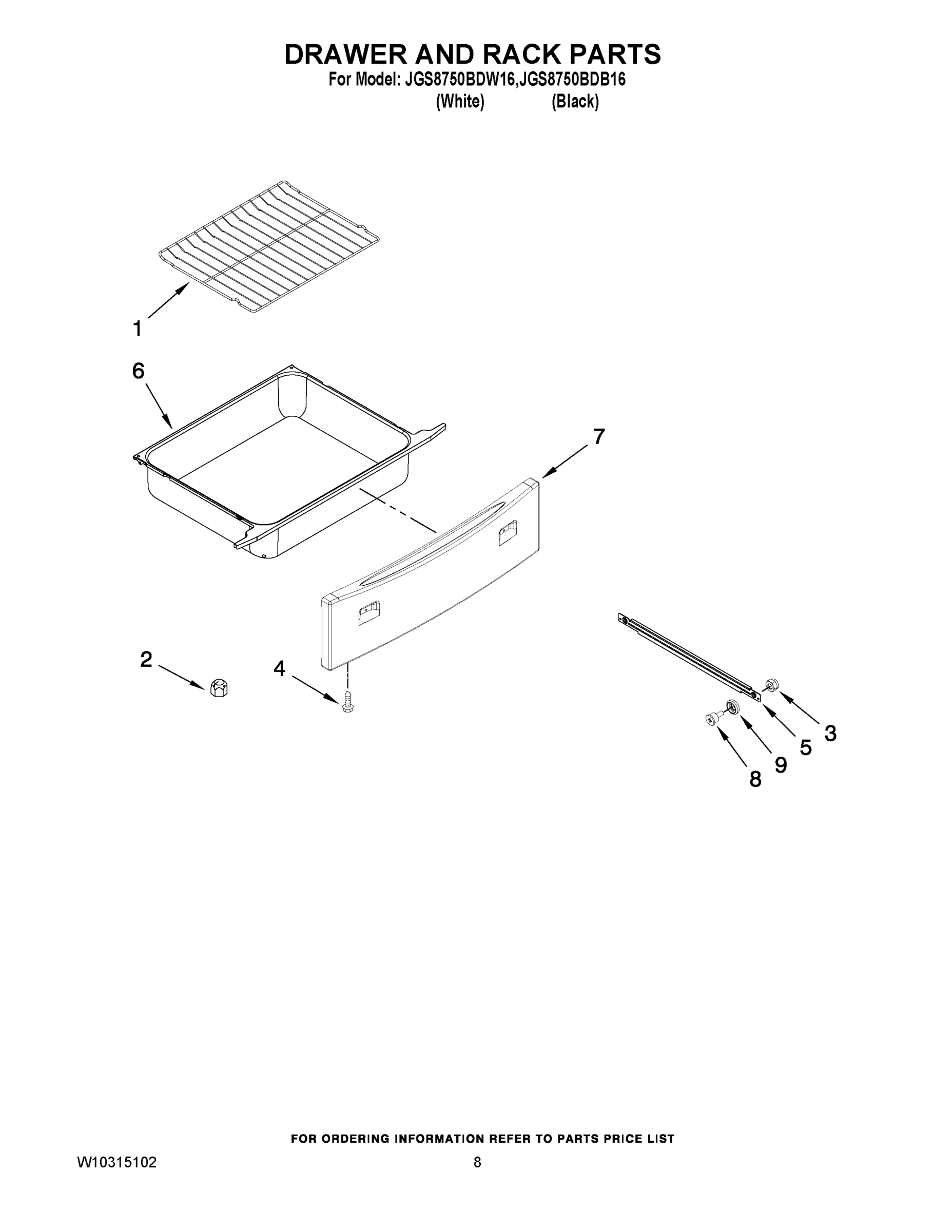

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS8750BDB16 GAS RANGE
1
MAY 8101P697-60 MAY 8101P697-60 Contact Us For Availability
1
OWNERS MANUAL MAY 8113P759-60 Contact Us For Availability
1
MAY 8119P165-60 MAY 8119P165-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
1
COVER, BNR VALVE MAY W10271712 Contact Us For Availability
1
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
1
RACK, OVEN (3) MAY 7801P173-60 Contact Us For Availability
2
KNOB, SIMMER MAY 7733P480-60 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY 7506P489-60 MAY 7506P489-60 Contact Us For Availability
2
MAY 7922P050-60 MAY 7922P050-60 Contact Us For Availability
2
MAY 7922P051-60 MAY 7922P051-60 Contact Us For Availability
3
TUBING, BROILER MAY 7506P301-60 Contact Us For Availability
3
MAY 7002P465-60 MAY 7002P465-60 Contact Us For Availability
4
MAY 3604F326-45 MAY 3604F326-45 Contact Us For Availability
4
SCREW, PANEL MAY 7101P375-60 Contact Us For Availability
4
BAFFLE, BROIL MAY 3601F307-45 Contact Us For Availability
4
WASHER (HANDLE) MAY 7109P082-60 Contact Us For Availability
5
ORIFICE, HOLDER (9.2K, RR) MAY 7527P002-60 Contact Us For Availability
5
ORIFICE, HOLDER (15K, RF) MAY 7527P004-60 Contact Us For Availability
5
ORIFICE, HOLDER (5K,LR) MAY 7527P042-60 Contact Us For Availability
5
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
5
MAY W10182835 MAY W10182835 Contact Us For Availability
6
MAY W10202581 MAY W10202581 Contact Us For Availability
6
MAY W10204422 MAY W10204422 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
VAVLE, SAFETY MAY 7501P231-60 Contact Us For Availability
6
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
6
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
MAY 7003P154-60 MAY 7003P154-60 Contact Us For Availability
7
OVEN, FRONT LOWER MAY W10271711 Contact Us For Availability
7
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
7
PANEL, DRAWER MAY 2416F086-71 Contact Us For Availability
8
MAY W10206075 MAY W10206075 Contact Us For Availability
8
MAY W10206076 MAY W10206076 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
MAY 7101P346-60 MAY 7101P346-60 Contact Us For Availability
8
GASKET, DOOR TOP MAY 7201P143-60 Contact Us For Availability
8
SHAFT, ROLLER MAY 8014P022-60 Contact Us For Availability
9
IGNITOR MAY 7432P121-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
BAFFLE, BAKE MAY 3601F239-45 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
ROLLER, DRAWER MAY 7118P032-60 Contact Us For Availability
10
SCREW, IGNITOR MAY 7101P606-60 Contact Us For Availability
10
EXTENTION, BACK MAY 3826F066-51 Contact Us For Availability
10
Screw MAY 7101P282-60 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7518P358-60 MAY 7518P358-60 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
11
FOOT, LEVELER (4) MAY 7101P660-60 Contact Us For Availability
11
SCREW, SUPPORT (4) MAY 7101P338-60 Contact Us For Availability
12
CAP, BURNER (12.5K (2)) MAY 7504P165-60 Contact Us For Availability
12
CAP, BURNER (5K) MAY 7504P202-60 Contact Us For Availability
12
CAP, BURNER (15K) MAY 7504P204-60 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
BURNER, ASSEMBLY (15K, LR) MAY 7505P304-60 Contact Us For Availability
13
BURNER, ASSEMBLY (12.5K, LF/RR) MAY 7505P305-60 Contact Us For Availability
13
BURNER, ASSEMBLY (15K, RF) MAY 7505P306-60 Contact Us For Availability
13
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
13
MAY 7507P407-60 MAY 7507P407-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
14
SUPPORT, CNTL PNL MAY 3807F731-51 Contact Us For Availability
14
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
14
NUT, WING MAY 7103P030-60 Contact Us For Availability
14
MAY 3604F418-51 MAY 3604F418-51 Contact Us For Availability
15
MAY 8507P227-60 MAY 8507P227-60 Contact Us For Availability
15
MAY 7101P676-60 MAY 7101P676-60 Contact Us For Availability
15
GLASS, DOOR (INNER COATED) MAY 7902P768-60 Contact Us For Availability
16
MAY 7724P200-60 MAY 7724P200-60 Contact Us For Availability
16
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
MAY 3603F075-71 MAY 3603F075-71 Contact Us For Availability
17
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
17
PROBE, SHORT MAY 7430P041-60 Contact Us For Availability
17
MAY 3807F480-45 MAY 3807F480-45 Contact Us For Availability
17
RETAINER, GLASS MAY 3804F317-80 Contact Us For Availability
18
KNOB, GAS (3) MAY 7733P482-60 Contact Us For Availability
18
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
18
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
18
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
RETAINER, CONV INSULATION MAY 3804F245-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
LIGHT SWITCH ASSY MAY 7450P109-60 Contact Us For Availability
20
MAY 3605F269-45 MAY 3605F269-45 Contact Us For Availability
20
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
21
IGNITOR, ELECTRIC IGNITION MAY 7432P106-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
BULB, OVEN MAY 899138-001 Contact Us For Availability
22
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
22
RETAINER, GLASS (RIGHT SIDE) MAY 3804F307-51 Contact Us For Availability
22
RETAINER, GLASS (LEFT SIDE) MAY 3804F308-51 Contact Us For Availability
23
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
23
VALVE, TOP BURNER (5K, LR) MAY 7502P470-60 Contact Us For Availability
23
VALVE, TOP BURNER (9.2K, RR) MAY 7502P471-60 Contact Us For Availability
23
VALVE, TOP BURNER (15K, RF) MAY 7502P548-60 Contact Us For Availability
24
MAY 4005F810-51 MAY 4005F810-51 Contact Us For Availability
24
SWITCH, REIGNITION (LF/LR) MAY 7450P003-60 Contact Us For Availability
24
SWITCH, REIGNITION (RF/RR) MAY 7450P004-60 Contact Us For Availability
25
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
25
MAY 7506P445-60 MAY 7506P445-60 Contact Us For Availability
25
MAY 7506P486-60 MAY 7506P486-60 Contact Us For Availability
25
MAY 7506P487-60 MAY 7506P487-60 Contact Us For Availability
26
RETAINER, REAR MAY 3804F313-51 Contact Us For Availability
27
MAY 4011F475-51 MAY 4011F475-51 Contact Us For Availability
28
LIGHT ASSEMBLY MAY 7407P180-60 Contact Us For Availability
29
MAY 7713P054-60 MAY 7713P054-60 Contact Us For Availability
30
VENT, GAS MAY 8026P095-60 Contact Us For Availability
31
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
32
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
33
MAY 7718P034-60 MAY 7718P034-60 Contact Us For Availability
34
EXT., HEAT SHIELD MAY 3826F034-51 Contact Us For Availability
NI
INSULATION, DRAWER & SHIELD MAY 7002P078-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P451-60 MAY 7002P451-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
MAY 7002P474-60 MAY 7002P474-60 Contact Us For Availability
NI
MAY 7507P405-60 MAY 7507P405-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
HARNESS, WIRE (SENSOR W/O PROBE) MAY 5171P538-60 Contact Us For Availability
NI
MAY 5171P558-60 MAY 5171P558-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 7111P009-60 MAY 7111P009-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
HARNESS, WIRE (SPARK) MAY W10173471 Contact Us For Availability
× ![]()
