Model Maytag JGS1450DB0 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

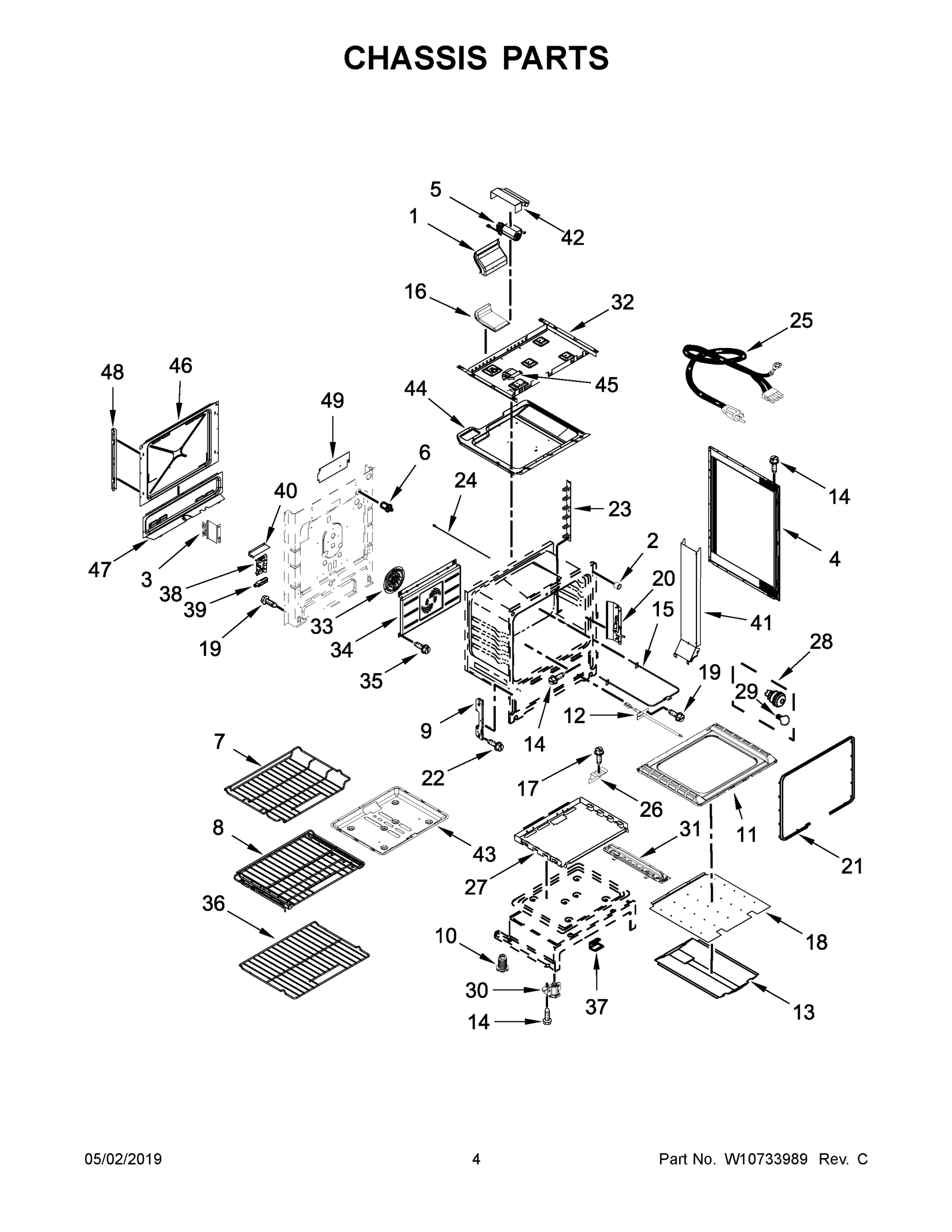

03 - CHASSIS PARTS

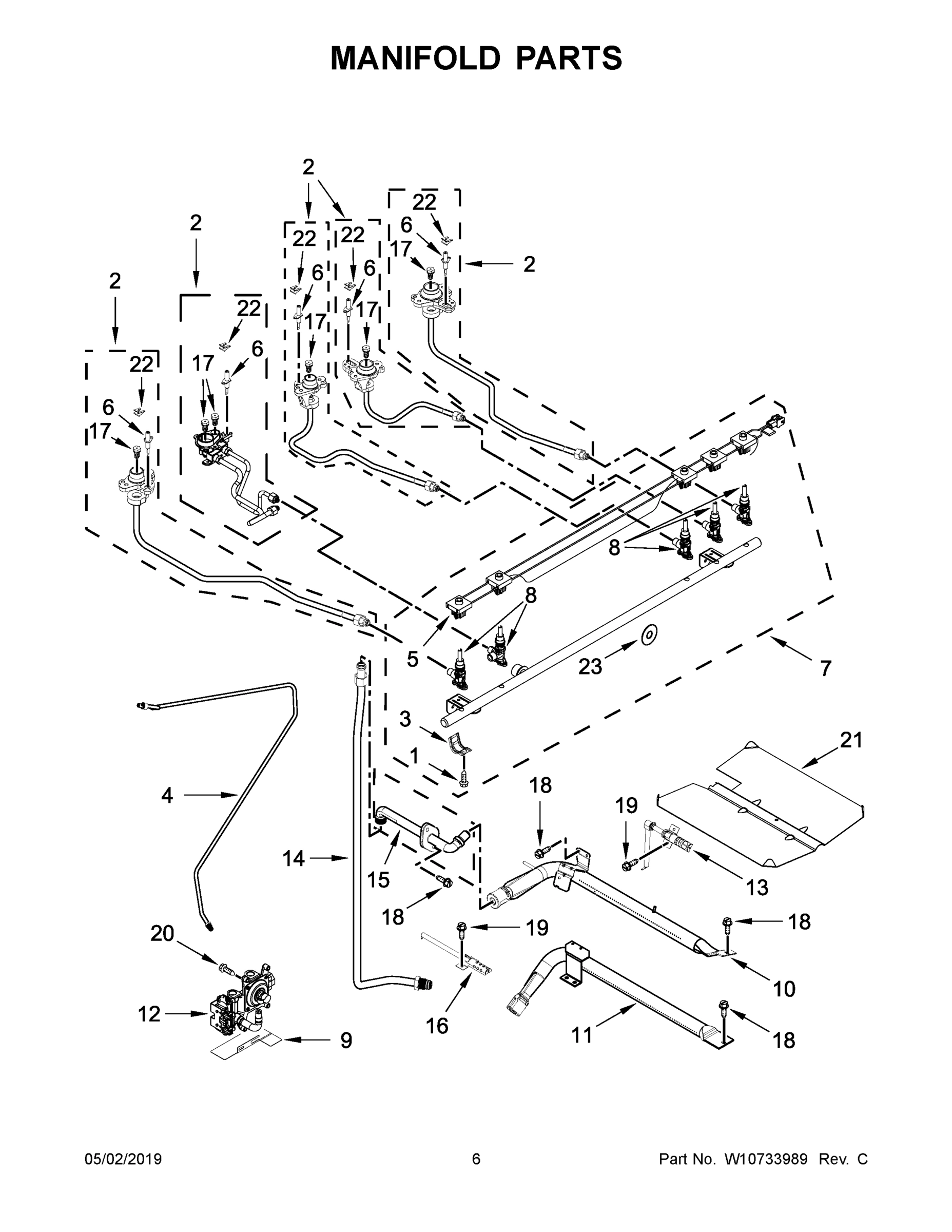

04 - MANIFOLD PARTS

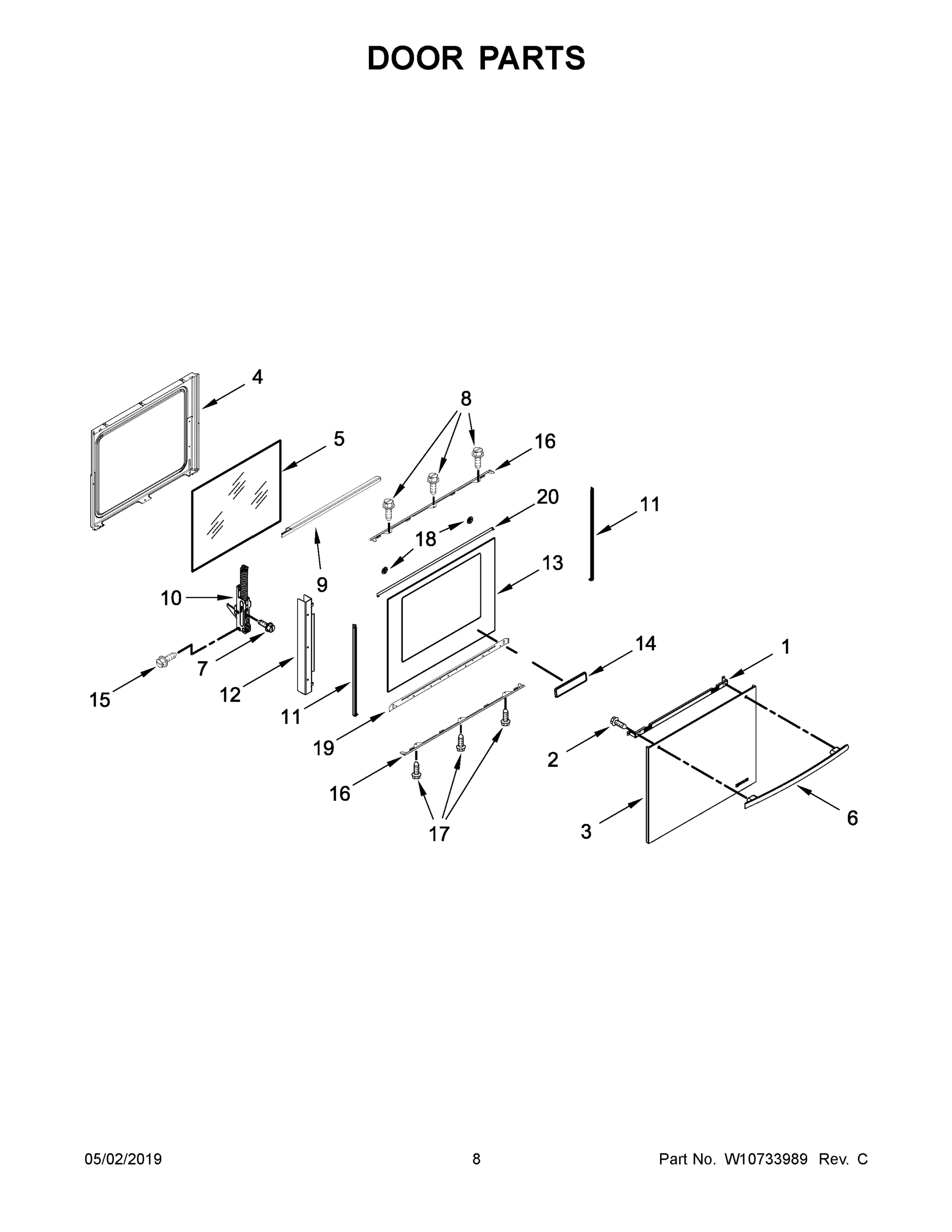

05 - DOOR PARTS

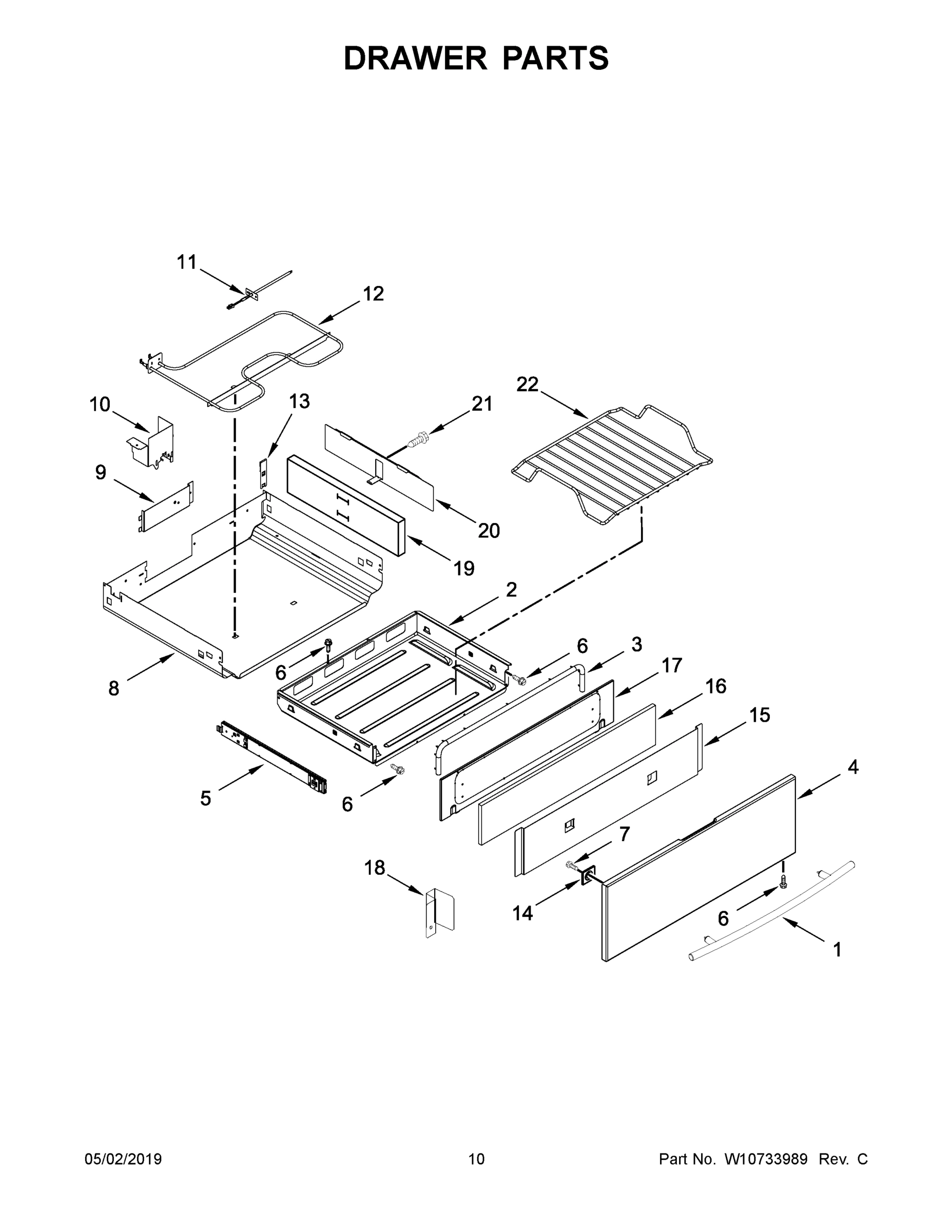

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS1450DB0 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10665256 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10614920 Contact Us For Availability
1
SCREW MAY W10246216 Contact Us For Availability
1
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
1
HANDLE, DRAWER (BLACK) MAY W10550998 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10665265 Contact Us For Availability
1A
HANDLE, DRAWER (STAINLESS) MAY W10551013 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
WIRING DIAGRAM MAY W10665235 Contact Us For Availability
1D
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
1E
GUIDE, QUICK START (FRENCH) MAY W10400067 Contact Us For Availability
2
KIT, BURNER CAP (BLACK) MAY W10432498 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
ASSEMBLY, ORIFICE (19K) (LEFT FRONT) MAY W10552135 Contact Us For Availability
2
DRAWER, BAKE MAY W10757442 Contact Us For Availability
2A
ASSEMBLY, ORIFICE (5K) (LEFT REAR) MAY W10552132 Contact Us For Availability
2B
ASSEMBLY, ORIFICE (15K) (RIGHT FRONT) MAY W10552131 Contact Us For Availability
2C
ASSEMBLY, ORIFICE (9.2K) (RIGHT REAR) MAY W10552130 Contact Us For Availability
2D
ASSEMBLY, ORIFICE (8K) (CENTER) MAY W10552137 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10676654 Contact Us For Availability
3
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10541871 Contact Us For Availability
3
SEAL, DRAWER MAY W10550987 Contact Us For Availability
3A
CONSOLE (STAINLESS) MAY W10676656 Contact Us For Availability
4
SPREADER, FLAME (LEFT FRONT) MAY W10556380 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
TUBE, GAS SUPPLY MAY W10432252 Contact Us For Availability
4
LINER, DOOR MAY W10541882 Contact Us For Availability
4
PANEL, DRAWER FRONT (BLACK) MAY W10541957 Contact Us For Availability
4A
SPREADER, FLAME (LEFT REAR) MAY W10556379 Contact Us For Availability
4A
PANEL, DRAWER FRONT (STAINLESS) MAY W10541958 Contact Us For Availability
4B
SPREADER, FLAME (RIGHT FRONT) MAY W10556378 Contact Us For Availability
4C
SPREADER, FLAME (RIGHT REAR) MAY W10556377 Contact Us For Availability
5
COOKTOP (BLACK) MAY W10474663 Contact Us For Availability
5
ASSEMBLY, COOLING FAN MAY W10877642 Contact Us For Availability
5
HARNESS, SPARK SWITCH MAY W10468433 Contact Us For Availability
5
GLASS, INNER MAY W10541888 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10921904 Contact Us For Availability
5A
COOKTOP (STAINLESS) MAY W10474665 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10921905 Contact Us For Availability
6
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
6
SCREW MAY 3196169 Contact Us For Availability
6
SWITCH, DOOR MAY W10627802 Contact Us For Availability
6
ELECTRODE (LEFT FRONT) MAY W10496874 Contact Us For Availability
6A
ELECTRODE (LEFT REAR) MAY W10464799 Contact Us For Availability
6B
ELECTRODE (RIGHT FRONT & CENTER) MAY W10496870 Contact Us For Availability
6C
ELECTRODE (RIGHT REAR) MAY W10496872 Contact Us For Availability
7
KNOB (BLACK) MAY W10505765 Contact Us For Availability
7
RACK, MAXIMUM CAPACITY MAY W10554006 Contact Us For Availability
7
SCREW MAY W10031780 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10790618 Contact Us For Availability
7
SCREW MAY 8533988 Contact Us For Availability
7A
KNOB (STAINLESS) MAY W10505764 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10432535 Contact Us For Availability
8
RACK, SLIDING MAY W10554008 Contact Us For Availability
8
VALVE, GAS (DUAL) (LEFT FRONT) MAY W10566038 Contact Us For Availability
8
SCREW MAY 9780274 Contact Us For Availability
8
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10831589 Contact Us For Availability
8B
VALVE, GAS (RIGHT FRONT) MAY W10566042 Contact Us For Availability
8C
VALVE, GAS (RIGHT REAR & CENTER) MAY W10566050 Contact Us For Availability
9
SCREW MAY W10673618 Contact Us For Availability
9
HINGE, RECEIVER MAY W10634238 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
9
COVER, GAS VALVE MAY W10551025 Contact Us For Availability
9A
SCOOP, DOOR (STAINLESS) MAY W10551024 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
HINGE, SLOW CLOSE (BLACK MODELS) MAY W10541887 Contact Us For Availability
10
COVER, WIRE MAY W10634259 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
10A
HINGE, SLOW CLOSE (STAINLESS MODELS) MAY W10541886 Contact Us For Availability
10B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
11
GLIDE, MAIN TOP MAY 8016P022-60 Contact Us For Availability
11
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
11
SENSOR MAY W10586204 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
TRIM, DOOR SIDE (BLACK) MAY W10634236 Contact Us For Availability
12
ENDCAP (BLACK (LEFT)) MAY W10557750 Contact Us For Availability
12
VALVE, REGULATOR MAY W10554066 Contact Us For Availability
12
HINGE, SUPPORT RAIL MAY W10541883 Contact Us For Availability
12
ELEMENT, BAKE MAY W10541944 Contact Us For Availability
12A
ENDCAP (BLACK (RIGHT)) MAY W10557753 Contact Us For Availability
12B
ENDCAP (STAINLESS (LEFT)) MAY W10557751 Contact Us For Availability
12C
ENDCAP (STAINLESS (RIGHT)) MAY W10557754 Contact Us For Availability
13
TRIM, VENT (BLACK) MAY W10577781 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
13
ASSEMBLY, OUTER DOOR (BLACK) MAY W10541892 Contact Us For Availability
13
COVER, SIDE MAY W10551019 Contact Us For Availability
13A
TRIM, VENT (STAINLESS) MAY W10577782 Contact Us For Availability
14
MAY W11254196 MAY W11254196 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
BADGE (BLACK) MAY W10190724 Contact Us For Availability
14
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
14A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
15
ASSEMBLY, DISPLAY MAY W10603095 Contact Us For Availability
15
ELEMENT, BROIL ASSIST MAY W10552502 Contact Us For Availability
15
FITTING, BROIL BURNER MAY W10583216 Contact Us For Availability
15
SCREW MAY W10327235 Contact Us For Availability
15
INSULATION, DRAWER FRONT MAY W10551018 Contact Us For Availability
16
BRACKET , CONTROL MAY W10557780 Contact Us For Availability
16
ASSEMBLY, FLUE (UPPER) MAY W11040249 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16
SUPPORT, GLASS MAY W10541885 Contact Us For Availability
16
INSULATION, DRAWER MAY W10550982 Contact Us For Availability
17
BEZEL (BLACK) MAY W10490680 Contact Us For Availability
17
ORIFICE (19K) (LEFT FRONT) MAY W10566082 Contact Us For Availability
17
SCREW MAY W10031790 Contact Us For Availability
17
PANEL, FRONT INNER MAY W10541947 Contact Us For Availability
17A
BEZEL (STAINLESS) MAY W10490679 Contact Us For Availability
17A
ORIFICE (1.2K) (LEFT FRONT) MAY W10256132 Contact Us For Availability
17B
ORIFICE (5K) (LEFT REAR) MAY W10515054 Contact Us For Availability
17C
ORIFICE (1.8MM) (RIGHT FRONT) MAY W10434277 Contact Us For Availability
17D
ORIFICE (9.2K) (RIGHT REAR) MAY W10657949 Contact Us For Availability
17E
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
18
GROMMET MAY W10645947 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
18
SCREW MAY 3196178 Contact Us For Availability
18
WASHER, DOOR MAY W10319024 Contact Us For Availability
18
SHIELD, CORNER MAY W10655446 Contact Us For Availability
19
BUMPER MAY W10664705 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
19
BRACKET, LOWER GLASS MAY W10541912 Contact Us For Availability
19
INSULATION, DRAWER SIDE MAY W10550984 Contact Us For Availability
20
CONSOLE LOWER, PANEL (BLACK) MAY W10565660 Contact Us For Availability
20
RECEIVER, SLOW CLOSE HINGE MAY W10605411 Contact Us For Availability
20
SCREW MAY 3400016 Contact Us For Availability
20
DOOR, TRIM TOP MAY W10634234 Contact Us For Availability
20
RETAINER, SIDE INSULATION MAY W10550985 Contact Us For Availability
20A
CONSOLE LOWER, PANEL (STAINLESS) MAY W10565662 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
21
GASKET, DOOR MAY W10162385 Contact Us For Availability
21
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
21
SCREW MAY 3196560 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
CLIP, SPRING (ELECTRODE) MAY W10575401 Contact Us For Availability
22
RACK, BAKE DRAWER MAY W10602493 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
SPREADER, FLAME (FISH) (CENTER) MAY W10556376 Contact Us For Availability
23
RACK, LADDER MAY W10603482 Contact Us For Availability
23
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
24
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
24
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
25
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
25
CORD, POWER MAY W10889764 Contact Us For Availability
26
GASKET, CONSOLE/COOKTOP MAY W10612719 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
27
GRIDDLE MAY W10432544 Contact Us For Availability
27
SHIELD, BAKE MAY W10541959 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
30
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
31
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
32
BURNER, BOX GAS MAY W10558276 Contact Us For Availability
33
ASSEMBLY, CONVECTION MAY W10874477 Contact Us For Availability
34
BAFFLE, FULL CONVECTION MAY W10554262 Contact Us For Availability
35
SCREW MAY W10362924 Contact Us For Availability
36
RACK, HEAVY DUTY MAY W10554005 Contact Us For Availability
37
CLIP, PANEL MAY W10137382 Contact Us For Availability
38
MODULE, SPARK (0+2) MAY W10457998 Contact Us For Availability
39
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
40
GUARD, SPLASH MAY W11206138 Contact Us For Availability
41
DUCT, COOLING MAY W10162254 Contact Us For Availability
42
DUCT, COVER MAY W10162255 Contact Us For Availability
43
PAN, BAKE MAY W10273204 Contact Us For Availability
44
BOX, BURNER SI MAY W10289168 Contact Us For Availability
45
DUCT, COOKTOP MAY W10162257 Contact Us For Availability
46
COVER, BACK MAY W10289172 Contact Us For Availability
47
COVER, WIRE MAY W10162249 Contact Us For Availability
48
CHANNEL, REAR MAY W10162241 Contact Us For Availability
49
SHIELD, WIRE MAY W11117035 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, K MAY W10575120 Contact Us For Availability
NI
MAY W10580229 MAY W10580229 Contact Us For Availability
NI
MAY W10580232 MAY W10580232 Contact Us For Availability
NI
MAY W10580265 MAY W10580265 Contact Us For Availability
NI
MAY W10598169 MAY W10598169 Contact Us For Availability
NI
MAY W10701082 MAY W10701082 Contact Us For Availability
NI
MAY W10754419 MAY W10754419 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, BACK MAY W10162240 Contact Us For Availability
NI
INSULATION, WRAP MAY W10289173 Contact Us For Availability
NI
SPUDS, LP GAS MAY W10170531 Contact Us For Availability
NI
TIE, MANIFOLD WIRE MAY W10182767 Contact Us For Availability
NI
KIT, LP CONVERSION (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
KIT, LP BAKE AND BROIL MAY W10566537 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10681410 Contact Us For Availability
NI
INSULATION, DRAWER TOP MAY W10541960 Contact Us For Availability
NI
INSULATION, RETAINER BAKE DRAWER MAY W10550983 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STA MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY W10731885 MAY W10731885 Contact Us For Availability
NI
MAY W10731886 MAY W10731886 Contact Us For Availability
NI
MAY W10731887 MAY W10731887 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
