Model Maytag JGRP548WP00 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP, BURNER AND GRATE PARTS
02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - 30`` OVEN PARTS

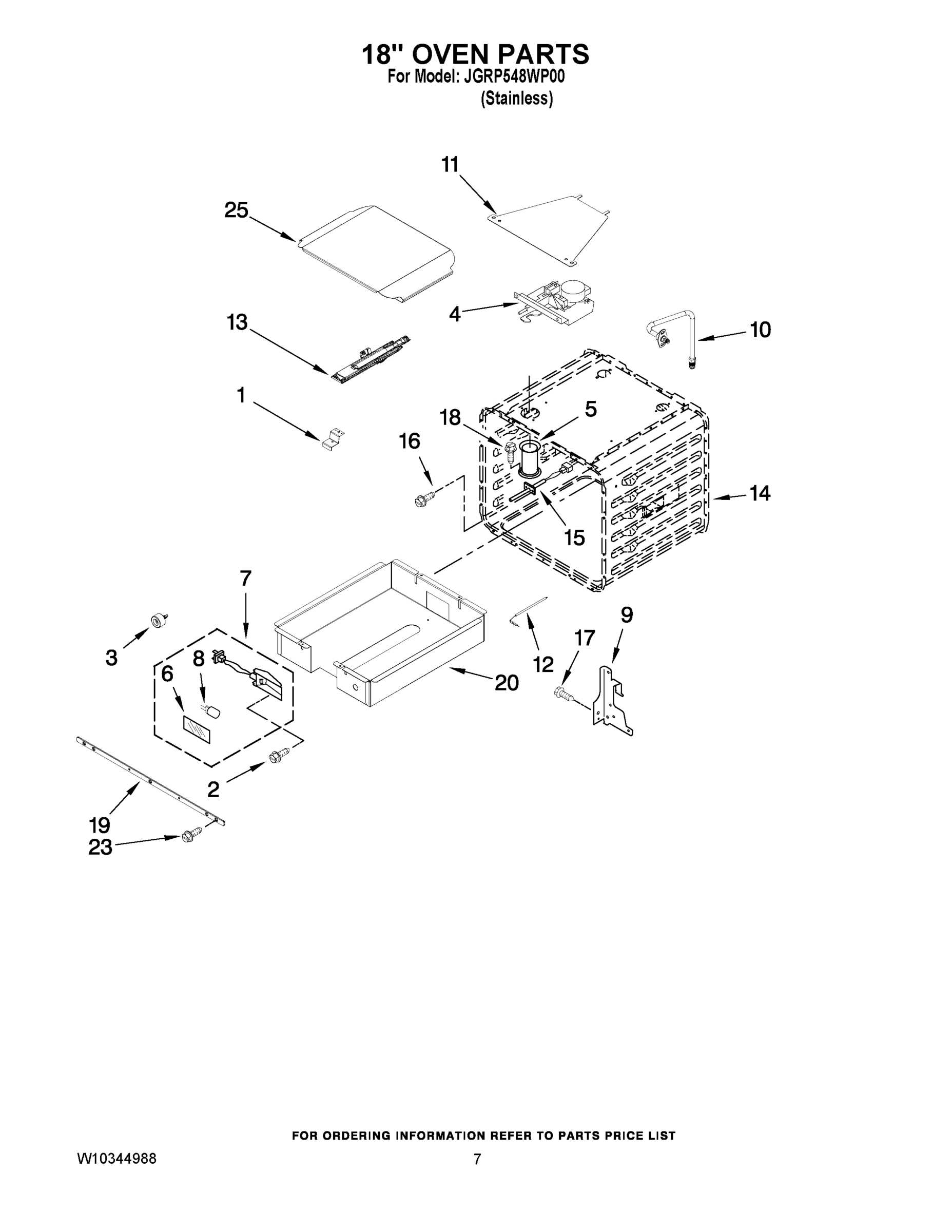

04 - 18`` OVEN PARTS

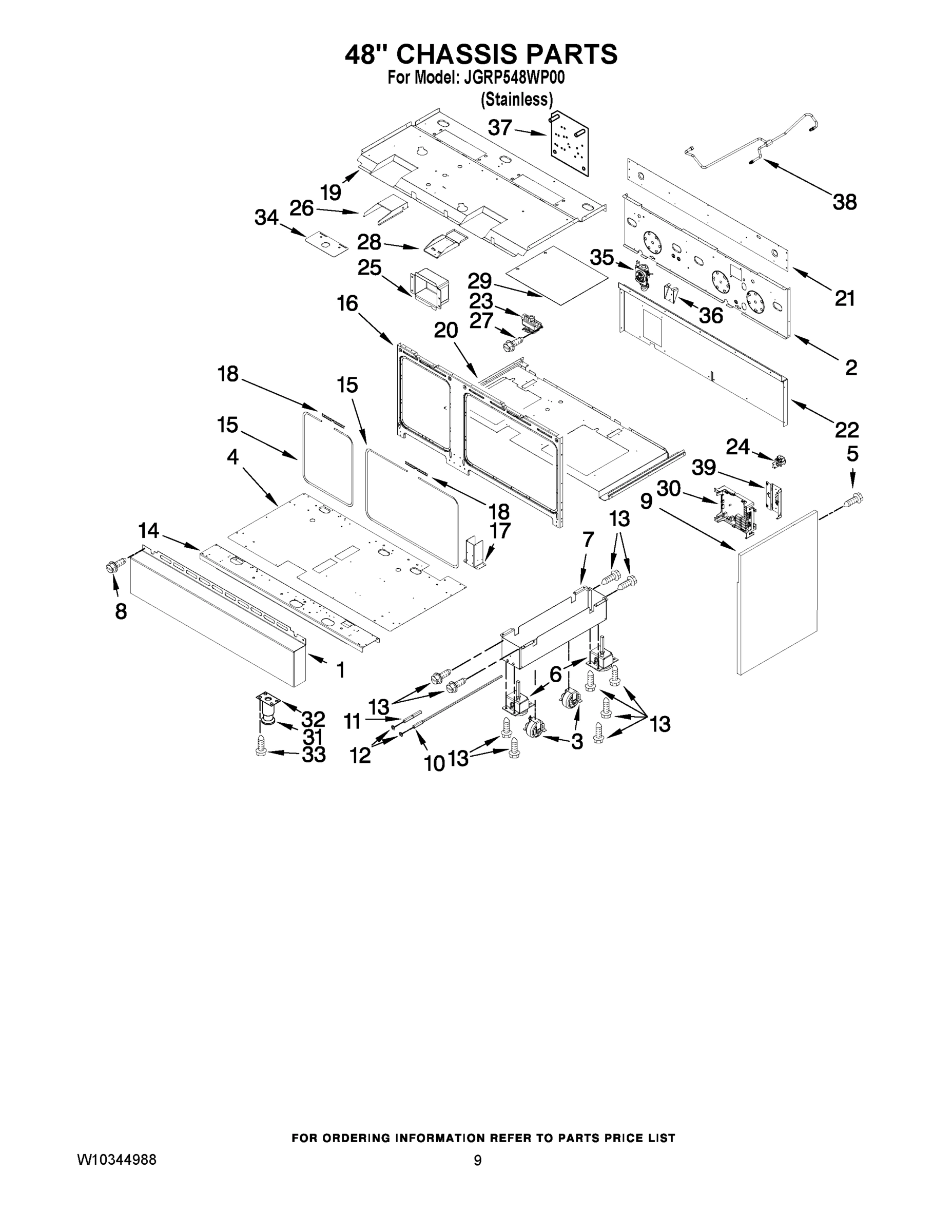

05 - 48`` CHASSIS PARTS

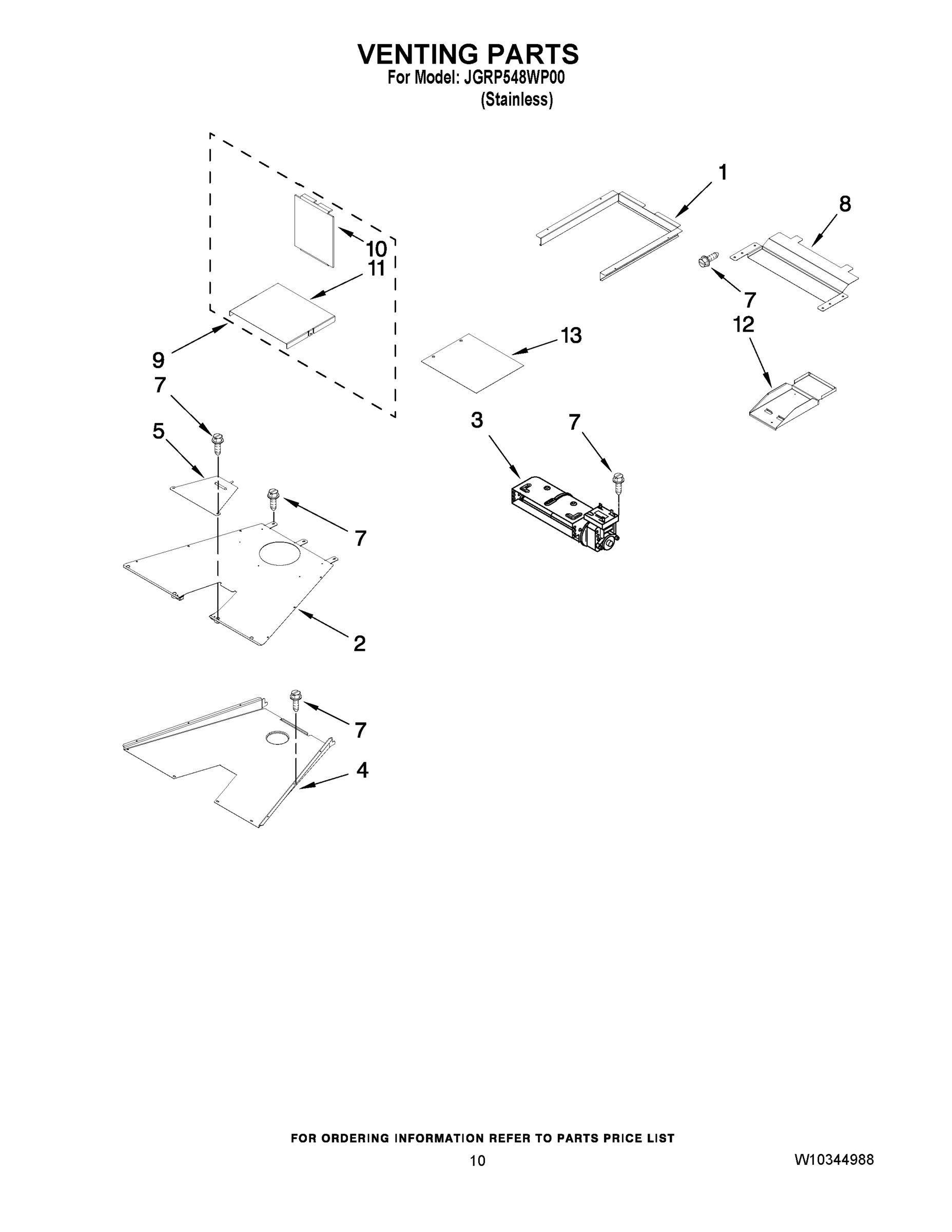

06 - VENTING PARTS

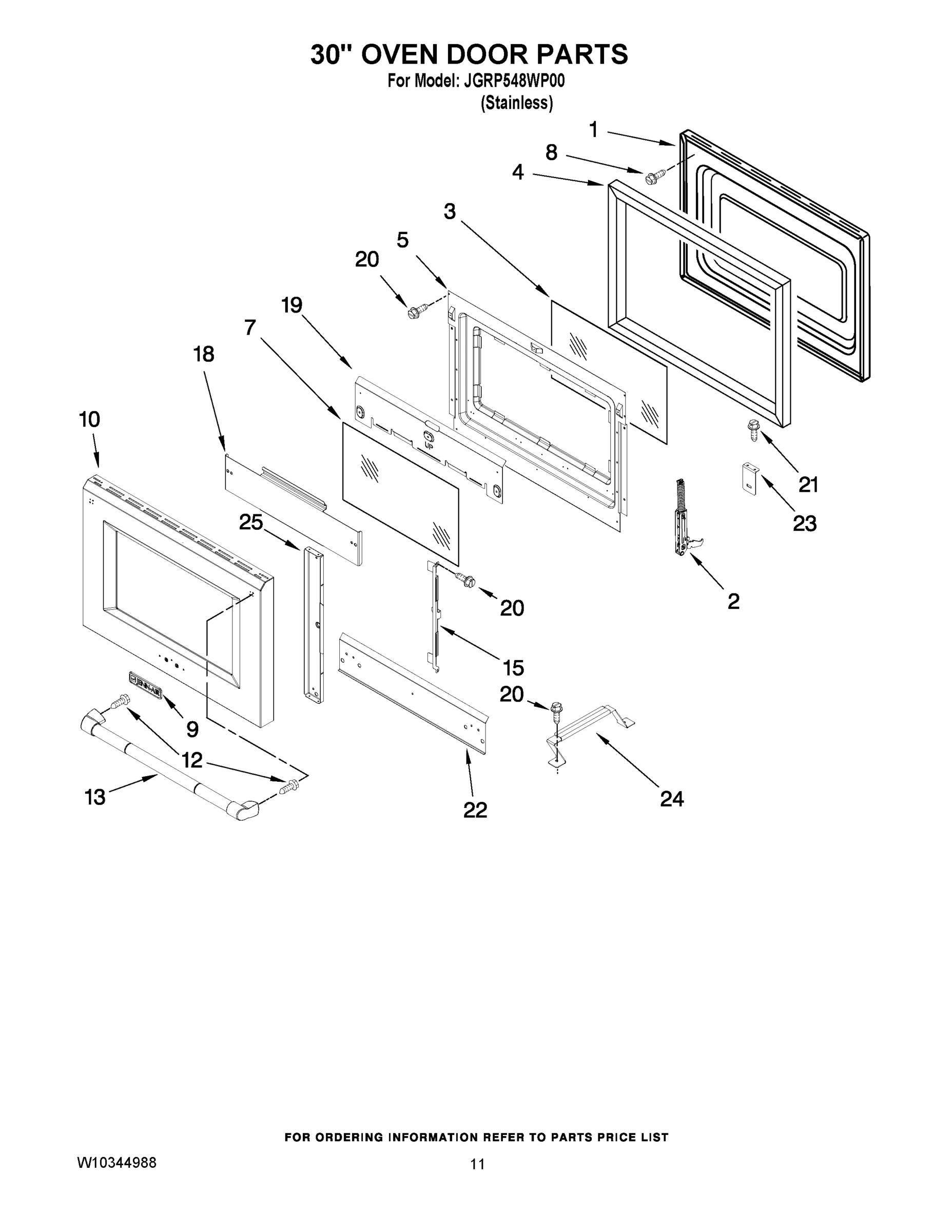

07 - 30`` OVEN DOOR PARTS

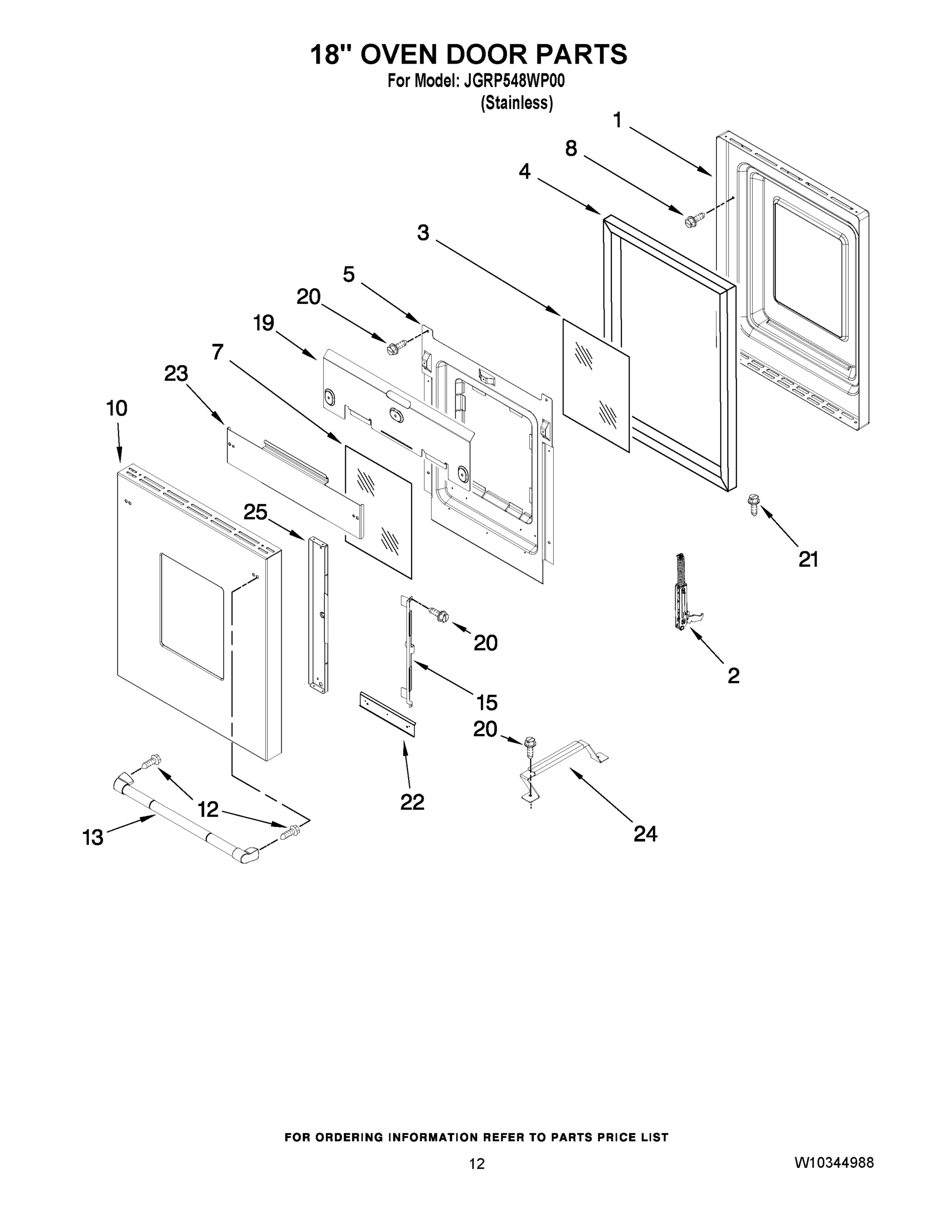

08 - 18`` OVEN DOOR PARTS

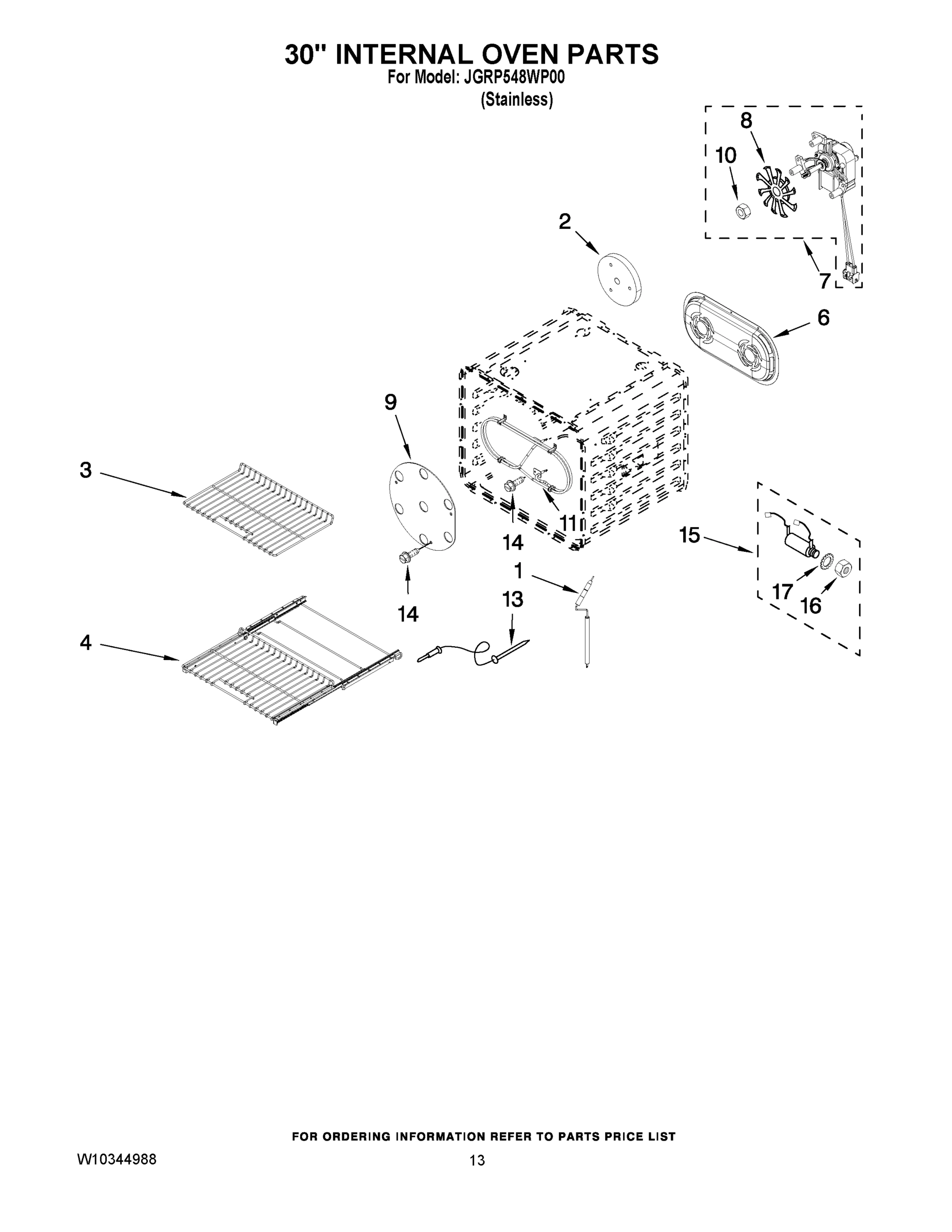

09 - 30`` INTERNAL OVEN PARTS
10 - 18`` INTERNAL OVEN PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JGRP548WP00 GAS RANGE
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10322719 MAY W10322719 Contact Us For Availability
1
MAY W10322721 MAY W10322721 Contact Us For Availability
1
MAY W10323236 MAY W10323236 Contact Us For Availability
1
MAY W10323237 MAY W10323237 Contact Us For Availability
1
MAY W10193014 MAY W10193014 Contact Us For Availability
1
MAY W10308041 MAY W10308041 Contact Us For Availability
1
MAY W10145767 MAY W10145767 Contact Us For Availability
1
DUCT, PRIMARY AIR (30``) MAY W10145363 Contact Us For Availability
1
MAY W10145364 MAY W10145364 Contact Us For Availability
1
MAY W10226001 MAY W10226001 Contact Us For Availability
1
MAY W10188323 MAY W10188323 Contact Us For Availability
1
MAY W10332287 MAY W10332287 Contact Us For Availability
1
MAY W10282821 MAY W10282821 Contact Us For Availability
2
ORIFICE (LF & RF - HIGH) MAY W10160179 Contact Us For Availability
2
ORIFICE (LF & RF - LOW) MAY W10160185 Contact Us For Availability
2
ORIFICE (LR & CF & RR) MAY W10160232 Contact Us For Availability
2
ORIFICE (CR) MAY W10282663 Contact Us For Availability
2
MAY W10145620 MAY W10145620 Contact Us For Availability
2
MAY 4449748 MAY 4449748 Contact Us For Availability
2
MAY W10145354 MAY W10145354 Contact Us For Availability
2
MAY W10246081 MAY W10246081 Contact Us For Availability
2
VENT, COOLING TOP (30``) MAY W10299182 Contact Us For Availability
2
MAY W10269201 MAY W10269201 Contact Us For Availability
2
MAY W10269202 MAY W10269202 Contact Us For Availability
2
MAY W10145813 MAY W10145813 Contact Us For Availability
2
MAY W10145814 MAY W10145814 Contact Us For Availability
3
ORIFICE HOLDER (DUAL - LF & RF) MAY W10160187 Contact Us For Availability
3
MAY W10115953 MAY W10115953 Contact Us For Availability
3
ASSEMBLY, BUMPER MAY W10105790 Contact Us For Availability
3
ROLLER, ASSEMBLY MAY W10138054 Contact Us For Availability
3
BLOWER MAY W10245511 Contact Us For Availability
3
MAY 4449259 MAY 4449259 Contact Us For Availability
3
MAY W10115693 MAY W10115693 Contact Us For Availability
3
URSO, WIRE RACK MAY W10284950 Contact Us For Availability
3
RACK, OVEN (18``) MAY W10277391 Contact Us For Availability
4
ORIFICE HOLDER (LR & CF & RR) MAY W10160234 Contact Us For Availability
4
ORIFICE HOLDER (CR) MAY W10282659 Contact Us For Availability
4
MAY W10189107 MAY W10189107 Contact Us For Availability
4
MAY W10195935 MAY W10195935 Contact Us For Availability
4
MAY W10145378 MAY W10145378 Contact Us For Availability
4
MAY W10246076 MAY W10246076 Contact Us For Availability
4
VENT, COOLING BOTTOM (30``) MAY W10299183 Contact Us For Availability
4
MAY 4451722 MAY 4451722 Contact Us For Availability
4
MAY W10115737 MAY W10115737 Contact Us For Availability
4
MAY W10208155 MAY W10208155 Contact Us For Availability
4
MAY W10314406 MAY W10314406 Contact Us For Availability
5
MAY W10276551 MAY W10276551 Contact Us For Availability
5
MAY 7431P039-60 MAY 7431P039-60 Contact Us For Availability
5
MAY W10145743 MAY W10145743 Contact Us For Availability
5
MAY W10160875 MAY W10160875 Contact Us For Availability
5
MAY W10226002 MAY W10226002 Contact Us For Availability
5
MAY W10188325 MAY W10188325 Contact Us For Availability
5
MAY W10116351 MAY W10116351 Contact Us For Availability
6
MAY W10323251 MAY W10323251 Contact Us For Availability
6
MAY W10246074 MAY W10246074 Contact Us For Availability
6
MAY W10169756 MAY W10169756 Contact Us For Availability
6
FOOT MAY 9760860 Contact Us For Availability
6
MAY W10246060 MAY W10246060 Contact Us For Availability
6
MAY W10160821 MAY W10160821 Contact Us For Availability
7
CLIP, ELECTRODE MAY W10160825 Contact Us For Availability
7
MAY W10145509 MAY W10145509 Contact Us For Availability
7
OVEN LIGHT ASSY MAY W10307114 Contact Us For Availability
7
MAY W10249333 MAY W10249333 Contact Us For Availability
7
MAY 9759225 MAY 9759225 Contact Us For Availability
7
MAY W10115695 MAY W10115695 Contact Us For Availability
7
MAY W10116349 MAY W10116349 Contact Us For Availability
8
MAY 8286695 MAY 8286695 Contact Us For Availability
8
VALVE, GAS (LR & CF & RR) MAY W10326645 Contact Us For Availability
8
MAY W10292297 MAY W10292297 Contact Us For Availability
8
MAY W10169757 MAY W10169757 Contact Us For Availability
8
MAY 4449154 MAY 4449154 Contact Us For Availability
8
BRACKET, BLOWER (30``) MAY W10145748 Contact Us For Availability
8
BRACKET, BLOWER (18``) MAY W10160844 Contact Us For Availability
9
MAY W10323252 MAY W10323252 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
9
MAY 4455605 MAY 4455605 Contact Us For Availability
9
MAY 4455606 MAY 4455606 Contact Us For Availability
9
MAY W10250466 MAY W10250466 Contact Us For Availability
9
MAY W10250467 MAY W10250467 Contact Us For Availability
9
CHIMNEY, BOX ASSEMBLY (30``) MAY W10145684 Contact Us For Availability
9
MAY W10145740 MAY W10145740 Contact Us For Availability
9
MAY W10159578 MAY W10159578 Contact Us For Availability
9
COVER, FAN MAY W10261523 Contact Us For Availability
10
SCREW, VALVE MTG MAY W10189140 Contact Us For Availability
10
MAY W10145706 MAY W10145706 Contact Us For Availability
10
MAY W10115869 MAY W10115869 Contact Us For Availability
10
MAY W10246087 MAY W10246087 Contact Us For Availability
10
MAY W10322618 MAY W10322618 Contact Us For Availability
10
MAY W10322615 MAY W10322615 Contact Us For Availability
11
MAY W10276494 MAY W10276494 Contact Us For Availability
11
MAY W10160202 MAY W10160202 Contact Us For Availability
11
MAY W10160858 MAY W10160858 Contact Us For Availability
11
MAY W10115876 MAY W10115876 Contact Us For Availability
11
MAY W10115877 MAY W10115877 Contact Us For Availability
11
MAY W10115793 MAY W10115793 Contact Us For Availability
11
RETAINER, CHIMNEY INSULATION MAY W10246086 Contact Us For Availability
11
MAY W10145949 MAY W10145949 Contact Us For Availability
12
MAY W10272893 MAY W10272893 Contact Us For Availability
12
SIDE, CHASSIS (RIGHT) MAY W10269205 Contact Us For Availability
12
SIDE, CHASSIS (LEFT) MAY W10269206 Contact Us For Availability
12
MAY W10332290 MAY W10332290 Contact Us For Availability
12
MAY 489504 MAY 489504 Contact Us For Availability
12
MAY W10249337 MAY W10249337 Contact Us For Availability
12
SCREW, HANDLE MAY W10276043 Contact Us For Availability
13
CAP, BURNER (CR) MAY 8286816 Contact Us For Availability
13
CAP, BURNER (LF & RF) MAY W10115952 Contact Us For Availability
13
CAP, BURNER (LR & CF & RR) MAY W10160229 Contact Us For Availability
13
SENSOR, GRIDDLE MAY W10319835 Contact Us For Availability
13
MAY W10337289 MAY W10337289 Contact Us For Availability
13
MAY W10239444 MAY W10239444 Contact Us For Availability
13
MAY 7701P475-60 MAY 7701P475-60 Contact Us For Availability
13
MAY W10145768 MAY W10145768 Contact Us For Availability
13
MAY 9755542 MAY 9755542 Contact Us For Availability
14
BASE, BURNER (LR & CF & RR) MAY W10189082 Contact Us For Availability
14
BASE, BURNER (LF & RF) MAY W10320937 Contact Us For Availability
14
VALVE, GAS (CR) MAY W10305286 Contact Us For Availability
14
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
14
MAY W10145375 MAY W10145375 Contact Us For Availability
15
SPRING, ELECTRODE MAY W10160826 Contact Us For Availability
15
MAY W10145621 MAY W10145621 Contact Us For Availability
15
MAY W10131825 MAY W10131825 Contact Us For Availability
15
MAY W10116039 MAY W10116039 Contact Us For Availability
15
MAY W10160890 MAY W10160890 Contact Us For Availability
15
BRACKET, SIDE 2ND GLASS MAY 9759229 Contact Us For Availability
15
MAY 9755543 MAY 9755543 Contact Us For Availability
16
ELECTRODE (CR) MAY W10145991 Contact Us For Availability
16
ELECTRODE (LR, CF & RR) MAY W10160235 Contact Us For Availability
16
ELECTRODE (LF & RF (DUAL)) MAY W10250406 Contact Us For Availability
16
ADAPTER, 1/2`` FEMALE MAY 4453115 Contact Us For Availability
16
MAY W10160895 MAY W10160895 Contact Us For Availability
16
NUT MAY 9755546 Contact Us For Availability
17
DRIP, TRAY GRIDDLE MAY W10276497 Contact Us For Availability
17
MAY 4449040 MAY 4449040 Contact Us For Availability
17
MAY W10115819 MAY W10115819 Contact Us For Availability
17
WASHER MAY 9755547 Contact Us For Availability
18
MAY W10189098 MAY W10189098 Contact Us For Availability
18
MAY W10189104 MAY W10189104 Contact Us For Availability
18
COOKTOP (CENTER) MAY W10272902 Contact Us For Availability
18
BRACKET, BURNER (LF,LR,CF,RF & RR) MAY W10115929 Contact Us For Availability
18
BRACKET, BURNER (CR) MAY W10280796 Contact Us For Availability
18
Screw MAY 3196176 Contact Us For Availability
18
RETAINER, SS GASKET (30``) MAY W10157511 Contact Us For Availability
18
MAY W10216520 MAY W10216520 Contact Us For Availability
18
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
19
BURNER HEAD (LR & CF & RR) MAY W10250458 Contact Us For Availability
19
BURNER HEAD (LF & RF) MAY W10250459 Contact Us For Availability
19
BURNER HEAD (CR) MAY W10282515 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4450249 Contact Us For Availability
19
MAY W10340435 MAY W10340435 Contact Us For Availability
19
MAY W10145372 MAY W10145372 Contact Us For Availability
19
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
19
MAY W10115700 MAY W10115700 Contact Us For Availability
20
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
20
VALVE, GAS (LF & RF) MAY W10305287 Contact Us For Availability
20
MAY W10145651 MAY W10145651 Contact Us For Availability
20
Screw MAY 3196537 Contact Us For Availability
20
MAY W10145369 MAY W10145369 Contact Us For Availability
21
MAY W10130759 MAY W10130759 Contact Us For Availability
21
MAY W10130760 MAY W10130760 Contact Us For Availability
21
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
21
MAY W10115843 MAY W10115843 Contact Us For Availability
21
MAY W10321816 MAY W10321816 Contact Us For Availability
22
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
22
INSULATION, SPARK MODULE MAY 8287102 Contact Us For Availability
22
MAY W10145390 MAY W10145390 Contact Us For Availability
22
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
22
MAY W10115708 MAY W10115708 Contact Us For Availability
23
MAY W10295787 MAY W10295787 Contact Us For Availability
23
MAY W10189177 MAY W10189177 Contact Us For Availability
23
MAY W10145680 MAY W10145680 Contact Us For Availability
23
MAY W10115715 MAY W10115715 Contact Us For Availability
23
MAY W10145762 MAY W10145762 Contact Us For Availability
24
KNOB, CONTROL (DUAL - LF & RF) MAY W10145568 Contact Us For Availability
24
MAY W10145715 MAY W10145715 Contact Us For Availability
24
MAY W10311268 MAY W10311268 Contact Us For Availability
24
BRACKET, CENTRAL 3RD GLASS MAY 9759230 Contact Us For Availability
25
MAY W10145716 MAY W10145716 Contact Us For Availability
25
MAY W10246100 MAY W10246100 Contact Us For Availability
25
MAY W10308051 MAY W10308051 Contact Us For Availability
25
BRACKET, SIDE OUTER GLASS MAY W10145761 Contact Us For Availability
26
MAY W10145453 MAY W10145453 Contact Us For Availability
26
MAY W10325491 MAY W10325491 Contact Us For Availability
26
SUPPORT, BAKE PAN MAY W10145744 Contact Us For Availability
26
DRAWER MAY W10235557 Contact Us For Availability
27
MAY 8286921 MAY 8286921 Contact Us For Availability
27
MAY W10311009 MAY W10311009 Contact Us For Availability
28
KNOB, CONTROL (4) MAY W10145454 Contact Us For Availability
28
BROIL COVER MAY W10310985 Contact Us For Availability
29
SCREW MAY W10078270 Contact Us For Availability
29
BOTTOM, GAS OVEN MAY W10272546 Contact Us For Availability
30
MAY W10116114 MAY W10116114 Contact Us For Availability
30
MAY W10311335 MAY W10311335 Contact Us For Availability
30
MAY W10335645 MAY W10335645 Contact Us For Availability
31
LENS, INDICATOR LIGHT MAY W10294500 Contact Us For Availability
31
MAY W10308040 MAY W10308040 Contact Us For Availability
31
MAY 9759117 MAY 9759117 Contact Us For Availability
32
TRIM, L-STRIP MAY W10291193 Contact Us For Availability
32
MAY W10311409 MAY W10311409 Contact Us For Availability
32
PLATE, MOUNTING FOOT MAY 9759118 Contact Us For Availability
33
MAY 3400518 MAY 3400518 Contact Us For Availability
34
MAY W10116113 MAY W10116113 Contact Us For Availability
34
MAY W10115855 MAY W10115855 Contact Us For Availability
35
TRIM, T-STRIP MAY W10271524 Contact Us For Availability
35
MAY W10145584 MAY W10145584 Contact Us For Availability
36
MAY W10145566 MAY W10145566 Contact Us For Availability
36
MAY W10308042 MAY W10308042 Contact Us For Availability
37
MODULE, GRIDDLE MAY W10276498 Contact Us For Availability
37
MAY 9758080 MAY 9758080 Contact Us For Availability
38
USER INTERFACE MAY W10145531 Contact Us For Availability
38
MAY W10145704 MAY W10145704 Contact Us For Availability
39
MAY W10335684 MAY W10335684 Contact Us For Availability
39
BRACKET, BOARD DSI MAY W10145362 Contact Us For Availability
40
ELECTRODE, WIRE MAY 8286725 Contact Us For Availability
41
GASKET, ORIFICE HOLDER MAY 8286930 Contact Us For Availability
42
MAY 8286863 MAY 8286863 Contact Us For Availability
43
MAY 3196160 MAY 3196160 Contact Us For Availability
44
BRACKET, ORIFICE SUPPORT MAY 3801F946-51 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY W10145491 MAY W10145491 Contact Us For Availability
NI
MAY W10145492 MAY W10145492 Contact Us For Availability
NI
MAY W10145493 MAY W10145493 Contact Us For Availability
NI
MAY W10145494 MAY W10145494 Contact Us For Availability
NI
MAY W10145496 MAY W10145496 Contact Us For Availability
NI
MAY W10145497 MAY W10145497 Contact Us For Availability
NI
MAY W10145498 MAY W10145498 Contact Us For Availability
NI
MAY W10145499 MAY W10145499 Contact Us For Availability
NI
INSULATION, WRAP, 30`` MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30`` MAY W10299350 Contact Us For Availability
NI
MAY W10299354 MAY W10299354 Contact Us For Availability
NI
MAY W10282820 MAY W10282820 Contact Us For Availability
NI
MAY W10299353 MAY W10299353 Contact Us For Availability
NI
MAY W10299355 MAY W10299355 Contact Us For Availability
NI
COOKTOP CLEANER MAY 31464 Contact Us For Availability
NI
STAINLESS STEEL CLEANER AND POLISH MAY 4396920 Contact Us For Availability
NI
ADJUSTABLE BACKSPLASH MAY 8284755 Contact Us For Availability
NI
MAY 9758677 MAY 9758677 Contact Us For Availability
NI
MAY JXA9001CDP MAY JXA9001CDP Contact Us For Availability
NI
MAY W10116145 MAY W10116145 Contact Us For Availability
NI
MAY W10116146 MAY W10116146 Contact Us For Availability
NI
MAY W10116169 MAY W10116169 Contact Us For Availability
NI
BROIL PAN KIT MAY W10123240 Contact Us For Availability
NI
MAY W10146018 MAY W10146018 Contact Us For Availability
NI
MAY W10146036 MAY W10146036 Contact Us For Availability
NI
WIRE, ELECTRODE (YELLOW) MAY W10146037 Contact Us For Availability
NI
MAY W10146041 MAY W10146041 Contact Us For Availability
NI
STAINLESS STEEL GRIDDLE COVER MAY W10160195 Contact Us For Availability
NI
MAY W10216179 MAY W10216179 Contact Us For Availability
NI
MAY W10231531 MAY W10231531 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
BACKSPLASH, DUAL POSITION MAY W10285449 Contact Us For Availability
NI
CONVERSION KIT (LP CONVERSION KIT) MAY W10323791 Contact Us For Availability
× ![]()
