Model GE JGRC16GEL1 Gas Range Or Dual Fuel – Common Parts & Diagrams
0
1
2
3
Common parts from model GE JGRC16GEL1 Gas Range Or Dual Fuel

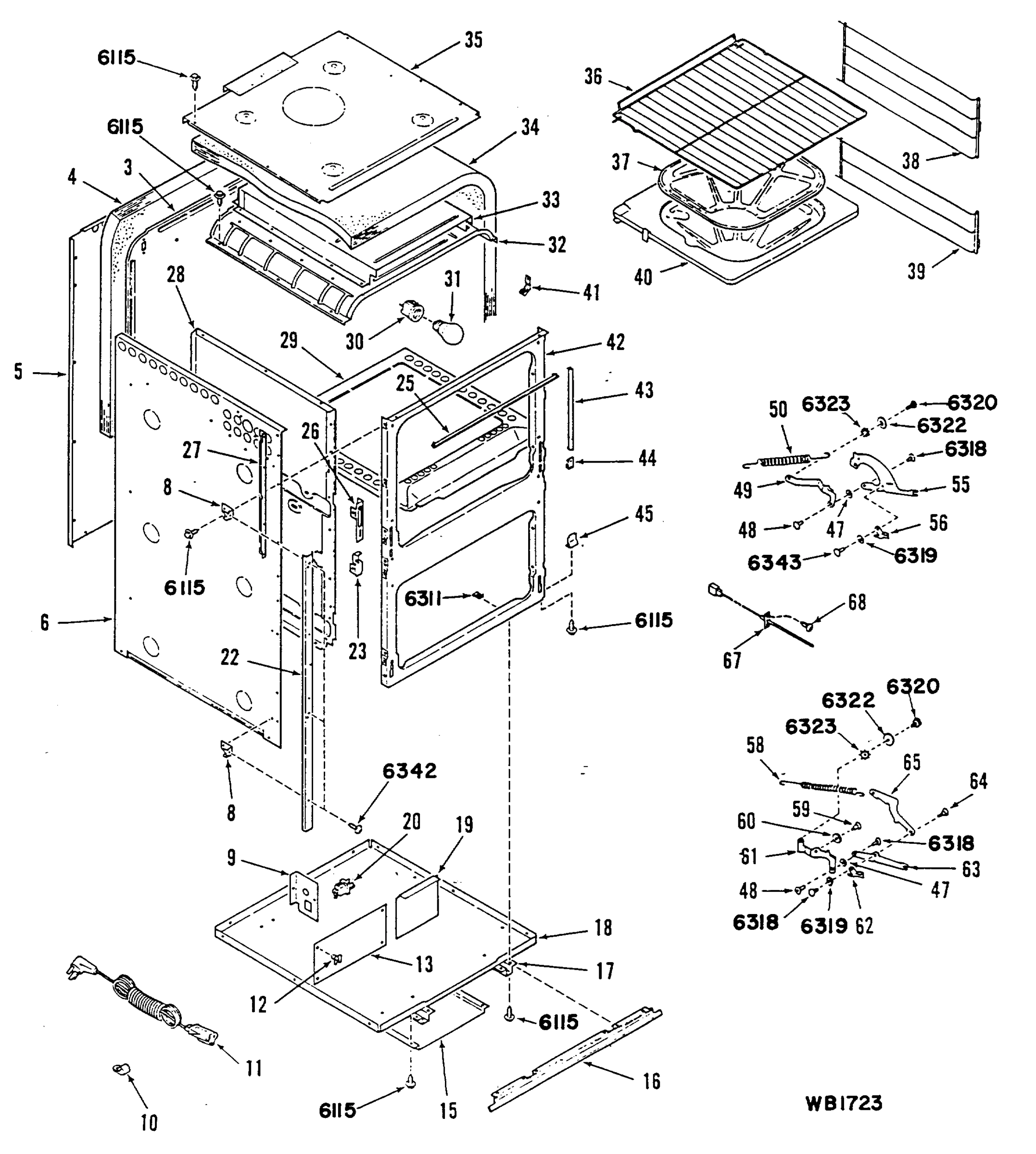

3
GEN WB63X0433 GEN WB63X0433 Contact Us For Availability
4
GEN WB02X9701 GEN WB02X9701 Contact Us For Availability
5
GEN WB02X9702 GEN WB02X9702 Contact Us For Availability
6
GEN WB63X0399 GEN WB63X0399 Contact Us For Availability
6
GEN WB63X0410 GEN WB63X0410 Contact Us For Availability
8
GEN WB06X0111 GEN WB06X0111 Contact Us For Availability
9
GEN WB02X9703 GEN WB02X9703 Contact Us For Availability
10
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
11
CORD-POWER SUPPLY GEN WB18X0370 Contact Us For Availability
13
GEN WB02X9716 GEN WB02X9716 Contact Us For Availability
15
GEN WB63X0400 GEN WB63X0400 Contact Us For Availability
16
GEN WB07X1829 GEN WB07X1829 Contact Us For Availability
17
BOTTOM CHANNEL-R/L GEN WB02X9634 Contact Us For Availability
18
GEN WB63X0401 GEN WB63X0401 Contact Us For Availability
19
GEN WB02X9704 GEN WB02X9704 Contact Us For Availability
20
DISCONNECT GEN WB17X0207 Contact Us For Availability
22
GEN WB07X1825 GEN WB07X1825 Contact Us For Availability
22
GEN WB07X1826 GEN WB07X1826 Contact Us For Availability
23
GEN WB02X9600 GEN WB02X9600 Contact Us For Availability
25
GEN WB02X9595 GEN WB02X9595 Contact Us For Availability
26
GEN WB02X9705 GEN WB02X9705 Contact Us For Availability
26
GEN WB02X9706 GEN WB02X9706 Contact Us For Availability
27
GEN WB07X1827 GEN WB07X1827 Contact Us For Availability
27
GEN WB07X1828 GEN WB07X1828 Contact Us For Availability
28
GEN WB63X0434 GEN WB63X0434 Contact Us For Availability
28
GEN WB63X0435 GEN WB63X0435 Contact Us For Availability
29
GEN WB53X0293 GEN WB53X0293 Contact Us For Availability
31
OVEN LAMP-40 WATT GEN BUY LOCAL Contact Us For Availability
32
GEN WB63X0436 GEN WB63X0436 Contact Us For Availability
33
GEN WB38X0120 GEN WB38X0120 Contact Us For Availability
34
INSULATION-TOP AND SIDES GEN WB02X9631 Contact Us For Availability
35
GEN WB63X0406 GEN WB63X0406 Contact Us For Availability
36
GEN WB48X0217 GEN WB48X0217 Contact Us For Availability
37
GEN WB49X0650 GEN WB49X0650 Contact Us For Availability
38
GEN WB02X9707 GEN WB02X9707 Contact Us For Availability
39
GEN WB02X9708 GEN WB02X9708 Contact Us For Availability
39
GEN WB02X9709 GEN WB02X9709 Contact Us For Availability
40
GEN WB49X0657 GEN WB49X0657 Contact Us For Availability
42
GEN WB63X0407 GEN WB63X0407 Contact Us For Availability
43
GEN WB02X9596 GEN WB02X9596 Contact Us For Availability
44
GEN WB02X9710 GEN WB02X9710 Contact Us For Availability
44
GEN WB02X9711 GEN WB02X9711 Contact Us For Availability
45
GEN WB02X9601 GEN WB02X9601 Contact Us For Availability
47
GEN WB01X1303 GEN WB01X1303 Contact Us For Availability
48
GEN WB02X9626 GEN WB02X9626 Contact Us For Availability
49
GEN WB10X0275 GEN WB10X0275 Contact Us For Availability
49
GEN WB10X0276 GEN WB10X0276 Contact Us For Availability
50
GEN WB09X0262 GEN WB09X0262 Contact Us For Availability
55
GEN WB10X0269 GEN WB10X0269 Contact Us For Availability
55
GEN WB10X0270 GEN WB10X0270 Contact Us For Availability
56
GEN WB02X9712 GEN WB02X9712 Contact Us For Availability
56
GEN WB02X9713 GEN WB02X9713 Contact Us For Availability
58
GEN WB09X0263 GEN WB09X0263 Contact Us For Availability
59
GEN WB01X1326 GEN WB01X1326 Contact Us For Availability
60
GEN WB02X9583 GEN WB02X9583 Contact Us For Availability
61
GEN WB14X0138 GEN WB14X0138 Contact Us For Availability
61
GEN WB14X0139 GEN WB14X0139 Contact Us For Availability
62
GEN WB10X0263 GEN WB10X0263 Contact Us For Availability
62
GEN WB10X0264 GEN WB10X0264 Contact Us For Availability
63
GEN WB10X0265 GEN WB10X0265 Contact Us For Availability
63
GEN WB10X0266 GEN WB10X0266 Contact Us For Availability
64
GEN WB02X9548 GEN WB02X9548 Contact Us For Availability
65
GEN WB10X0267 GEN WB10X0267 Contact Us For Availability

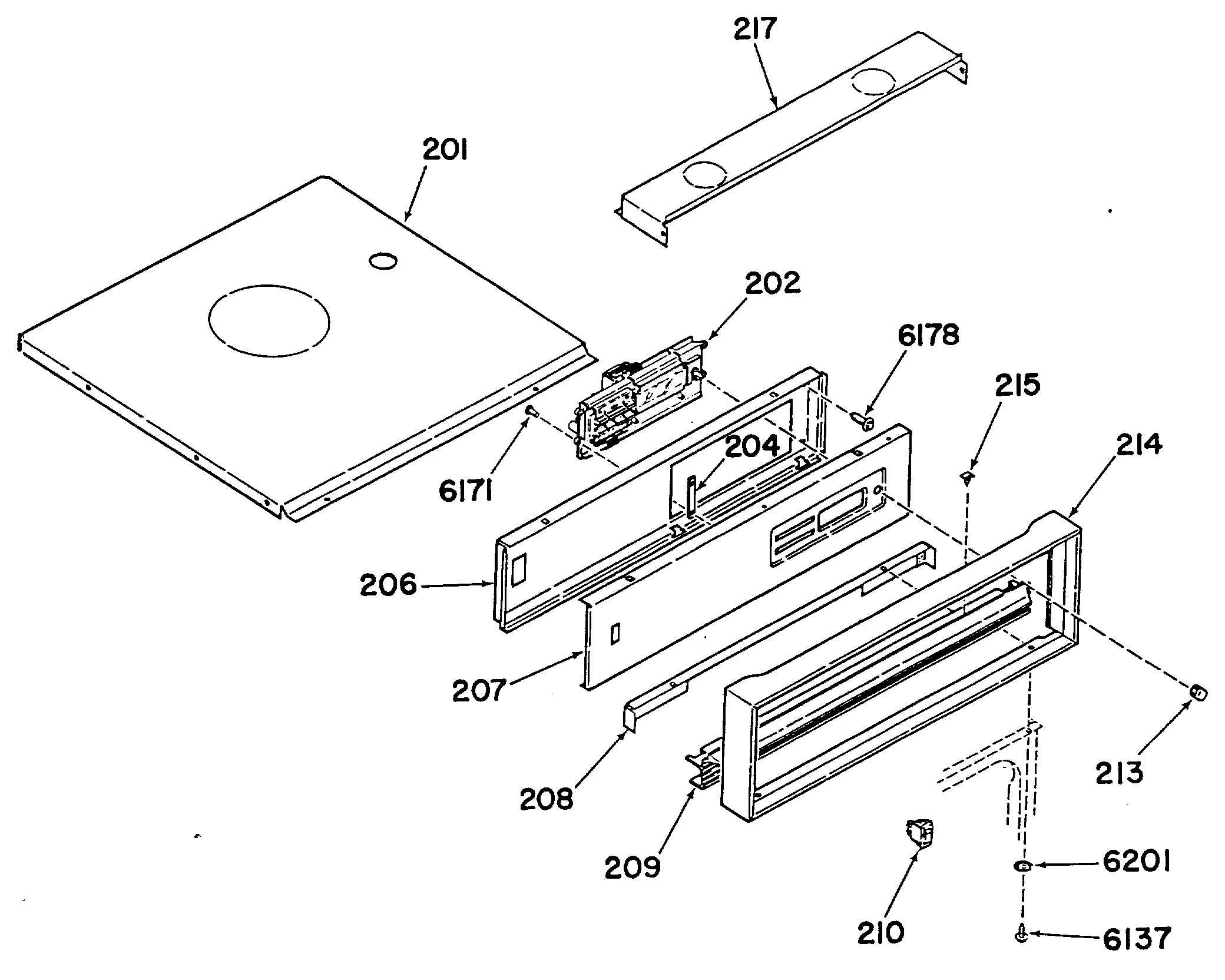

201
GEN WB02X9579 GEN WB02X9579 Contact Us For Availability
202
GEN WB19X0266 GEN WB19X0266 Contact Us For Availability
204
GEN WB06X0107 GEN WB06X0107 Contact Us For Availability
206
GEN WB06X0108 GEN WB06X0108 Contact Us For Availability
207
GEN WB07X1821 GEN WB07X1821 Contact Us For Availability
208
GEN WB06X0109 GEN WB06X0109 Contact Us For Availability
209
GEN WB07X1823 GEN WB07X1823 Contact Us For Availability
210
SWITCH-OVEN LIGHT GEN WB24X0479 Contact Us For Availability
213
KNOB-CLOCK GEN WB03X0770 Contact Us For Availability
214
GEN WB07X1824 GEN WB07X1824 Contact Us For Availability
217
GEN WB06X0110 GEN WB06X0110 Contact Us For Availability

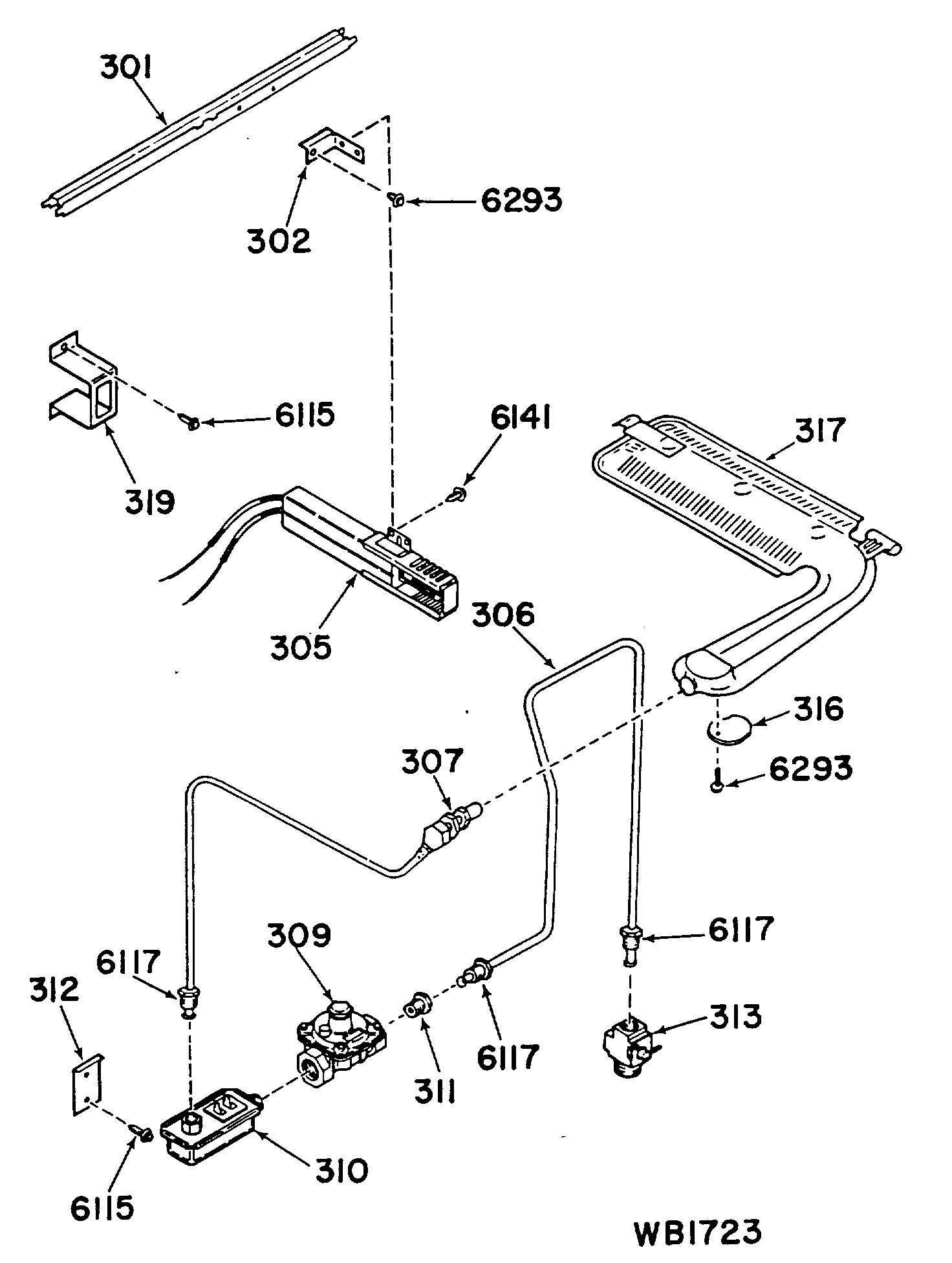

301
GEN WB02X9695 GEN WB02X9695 Contact Us For Availability
302
GEN WB02X9696 GEN WB02X9696 Contact Us For Availability
305
GEN WB02X9157 GEN WB02X9157 Contact Us For Availability
305
GEN WB02X9697 GEN WB02X9697 Contact Us For Availability
307
GEN WB02X9715 GEN WB02X9715 Contact Us For Availability
309
GEN WB20X0123 GEN WB20X0123 Contact Us For Availability
310
GEN WB20X0129 GEN WB20X0129 Contact Us For Availability
311
GEN WB02X9698 GEN WB02X9698 Contact Us For Availability
312
GEN WB02X9699 GEN WB02X9699 Contact Us For Availability
313
SHUT-OFF VALVE GEN WB21X0520 Contact Us For Availability
316
GEN WB02X9622 GEN WB02X9622 Contact Us For Availability
317
GEN WB28X0110 GEN WB28X0110 Contact Us For Availability
319
GEN WB02X9700 GEN WB02X9700 Contact Us For Availability

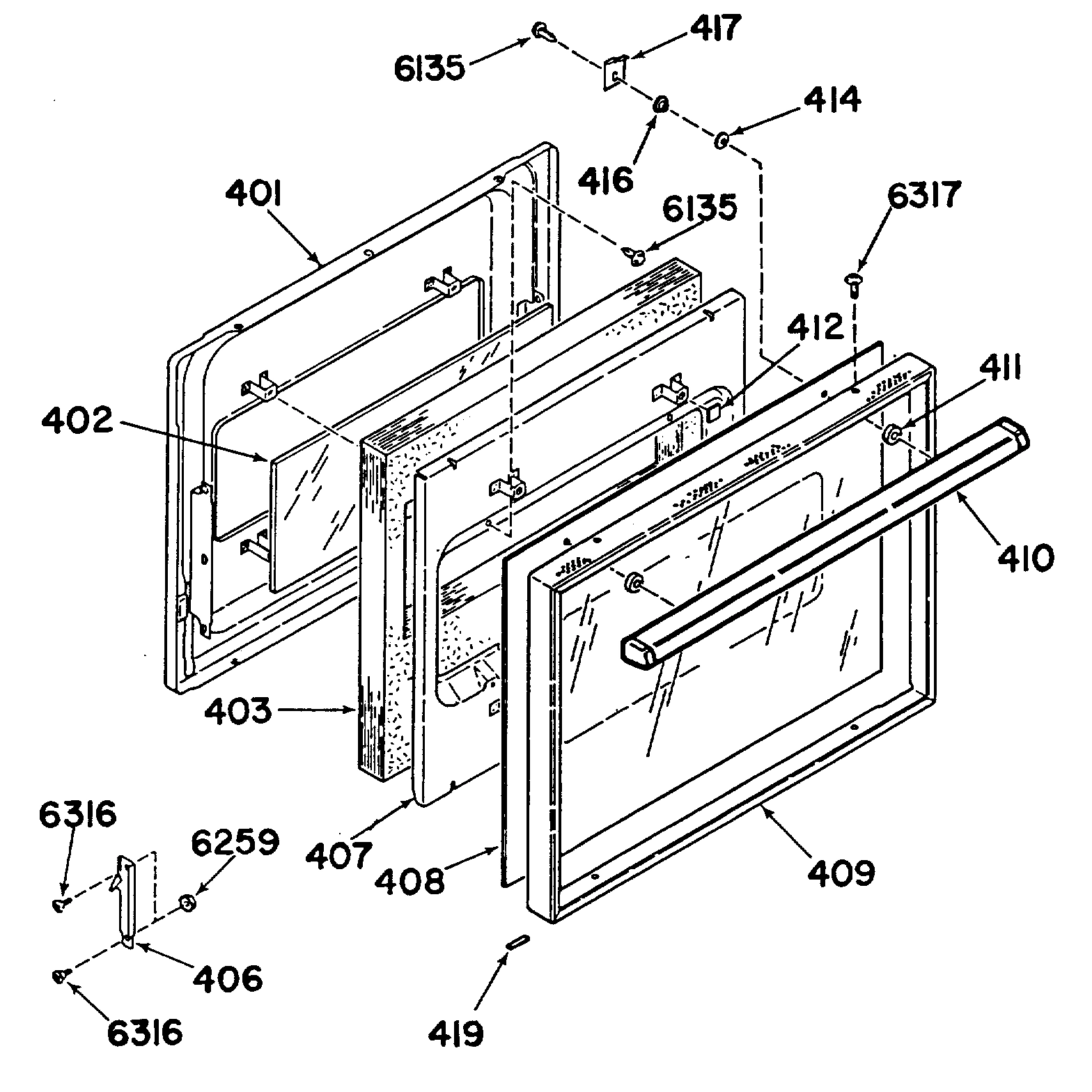

401
GEN WB55X0711 GEN WB55X0711 Contact Us For Availability
401
GEN WB55X0713 GEN WB55X0713 Contact Us For Availability
402
GEN WB36X0772 GEN WB36X0772 Contact Us For Availability
403
INSULATION-UPPER/LOWER GEN WB02X9652 Contact Us For Availability
406
GEN WB10X0261 GEN WB10X0261 Contact Us For Availability
406
GEN WB10X0262 GEN WB10X0262 Contact Us For Availability
407
GEN WB56X1994 GEN WB56X1994 Contact Us For Availability
407
GEN WB56X2012 GEN WB56X2012 Contact Us For Availability
408
GEN WB36X0771 GEN WB36X0771 Contact Us For Availability
408
GEN WB36X0786 GEN WB36X0786 Contact Us For Availability
409
GEN WB07X1767 GEN WB07X1767 Contact Us For Availability
409
GEN WB07X1809 GEN WB07X1809 Contact Us For Availability
410
GEN WB15X0286 GEN WB15X0286 Contact Us For Availability
411
GEN WB02X9037 GEN WB02X9037 Contact Us For Availability
412
GEN WB02X9624 GEN WB02X9624 Contact Us For Availability
414
FIBER WASHER GEN WB01X1138 Contact Us For Availability
416
SPACER GEN WB02X9039 Contact Us For Availability
417
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
6117
INVVERTED NUT GEN WB01X1117 Contact Us For Availability
6171
SCREW 6-32X5/16" GEN WB01X1171 Contact Us For Availability
6178
SCREW 6-32X1/4" GEN WB01X1178 Contact Us For Availability
6201
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
6311
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
6316
GEN WB01X1316 GEN WB01X1316 Contact Us For Availability
6317
SCREW GEN WB01X1317 Contact Us For Availability
6318
GEN WB01X1318 GEN WB01X1318 Contact Us For Availability
6319
GEN WB01X1319 GEN WB01X1319 Contact Us For Availability
6320
GEN WB01X1320 GEN WB01X1320 Contact Us For Availability
6323
GEN WB01X1323 GEN WB01X1323 Contact Us For Availability
6342
GEN WB01X1342 GEN WB01X1342 Contact Us For Availability
6343
GEN WB01X1343 GEN WB01X1343 Contact Us For Availability
32767
GEN 49-8005 GEN 49-8005 Contact Us For Availability
× ![]()
