Model Maytag JGR8895BDS12 GAS RANGE – Common Parts & Diagrams

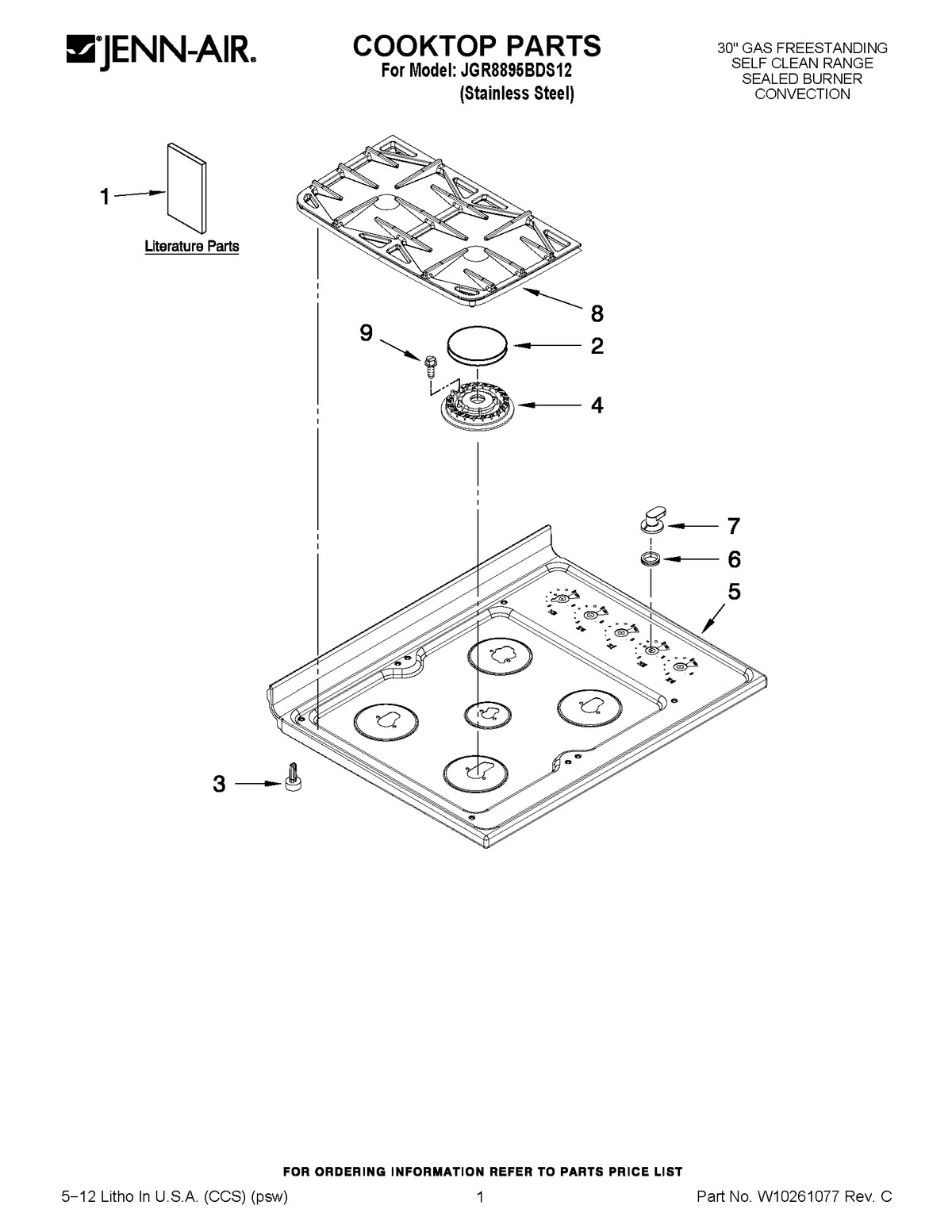

01 - COOKTOP PARTS

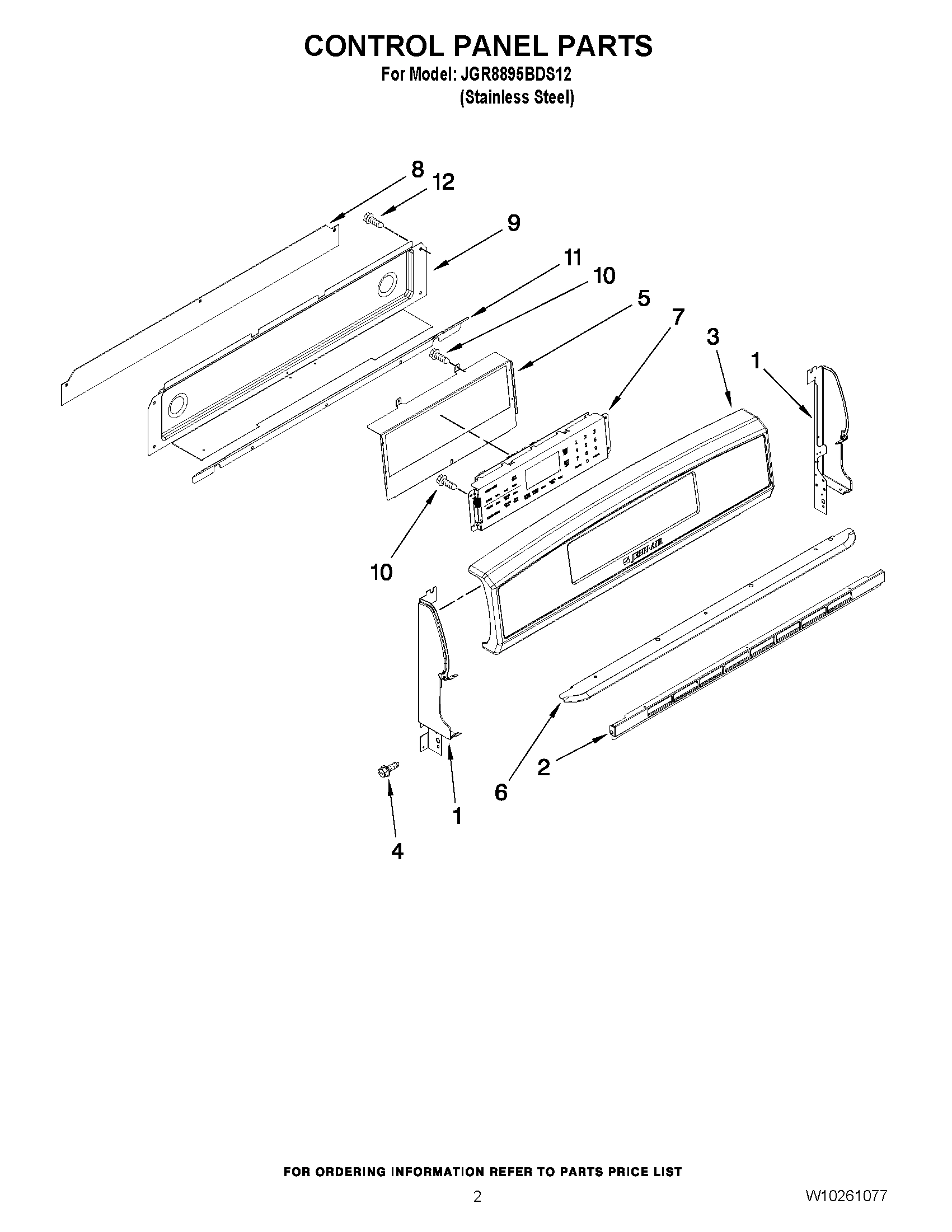

02 - CONTROL PANEL PARTS

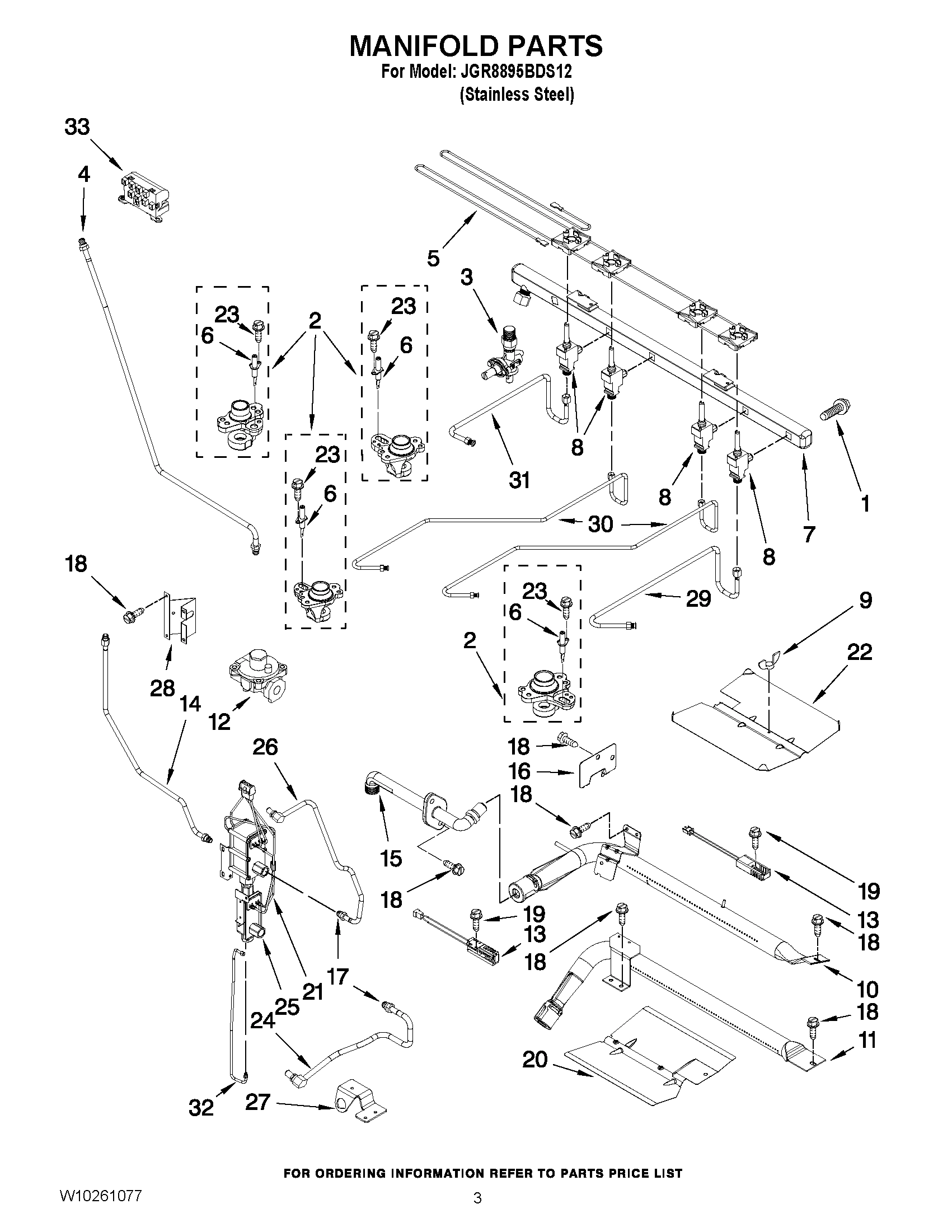

03 - MANIFOLD PARTS

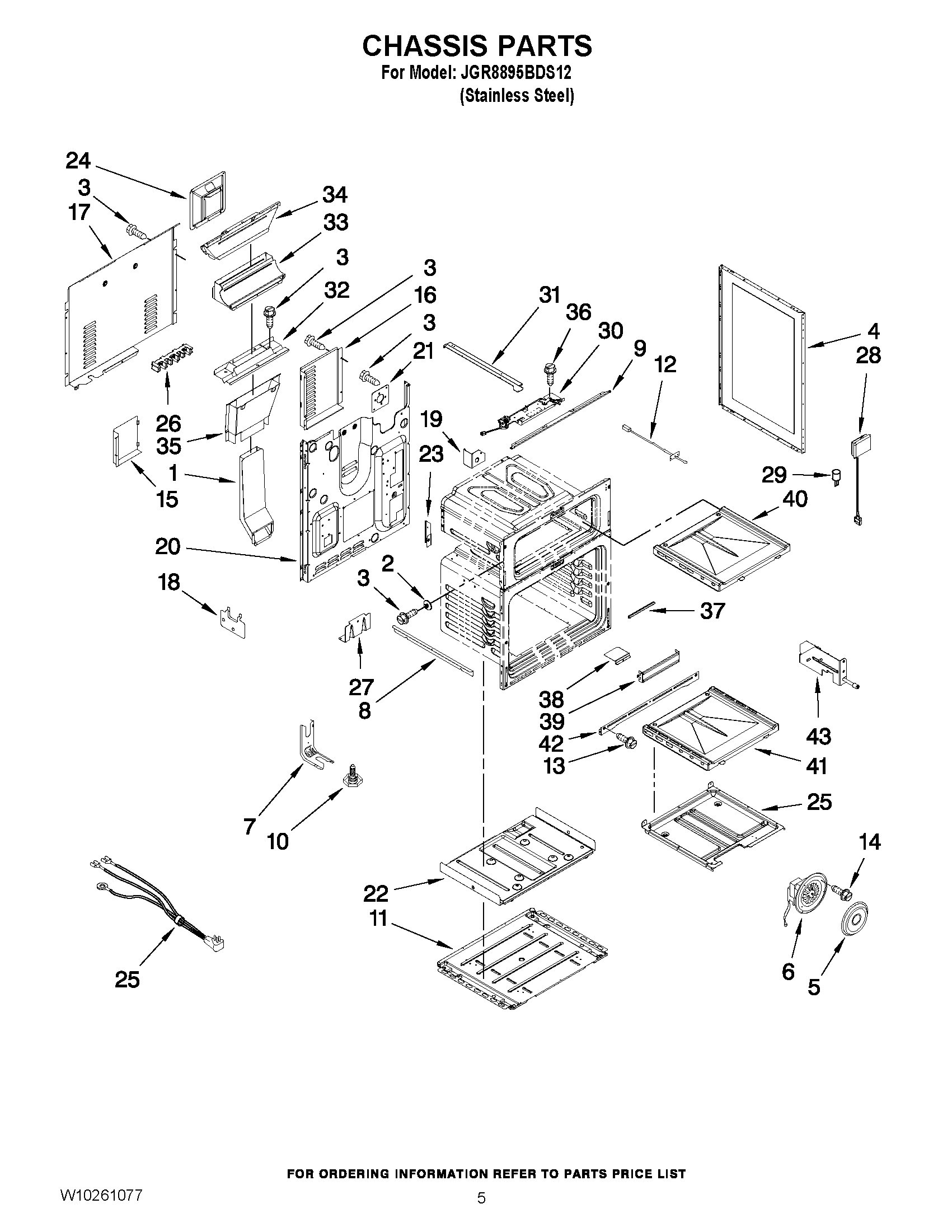

04 - CHASSIS PARTS

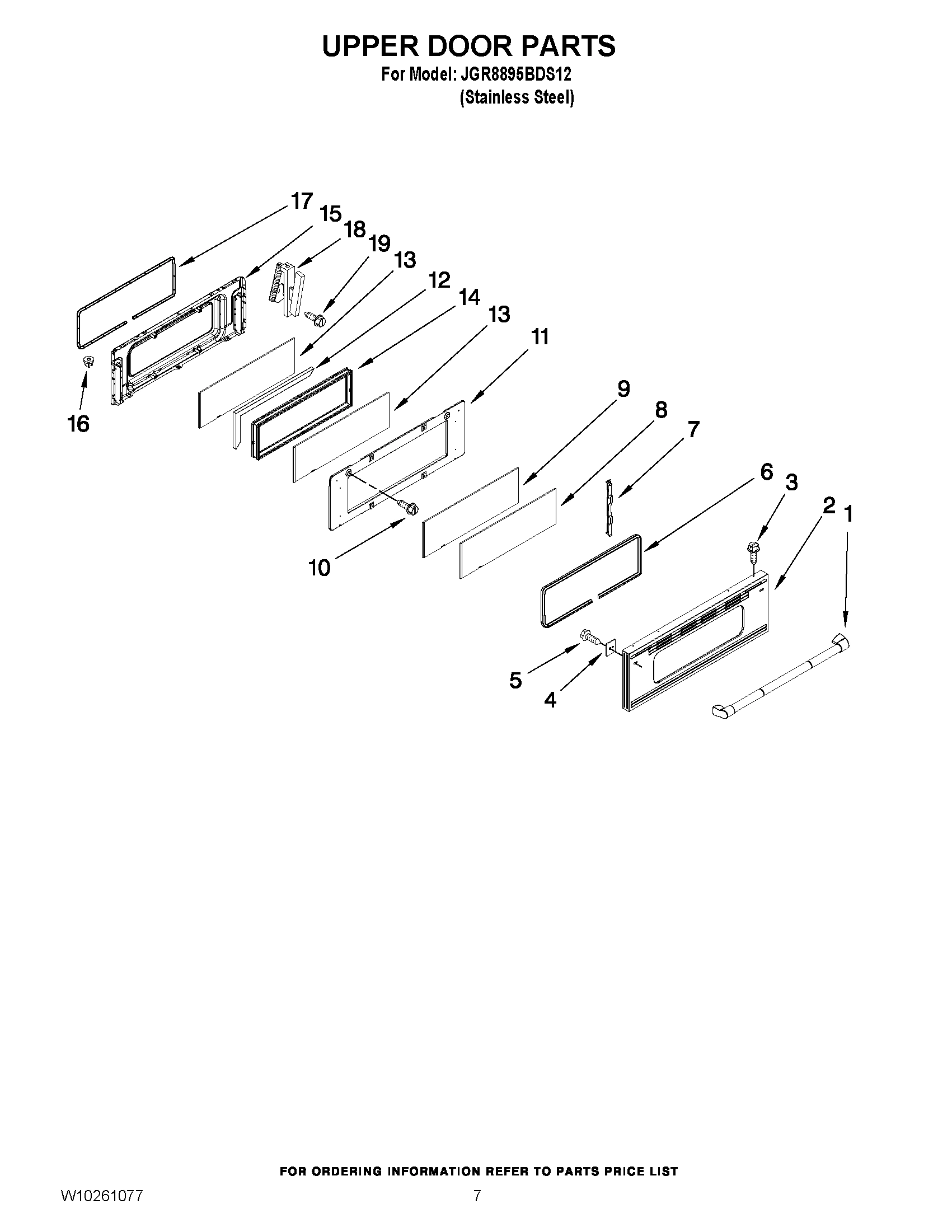

05 - UPPER DOOR PARTS

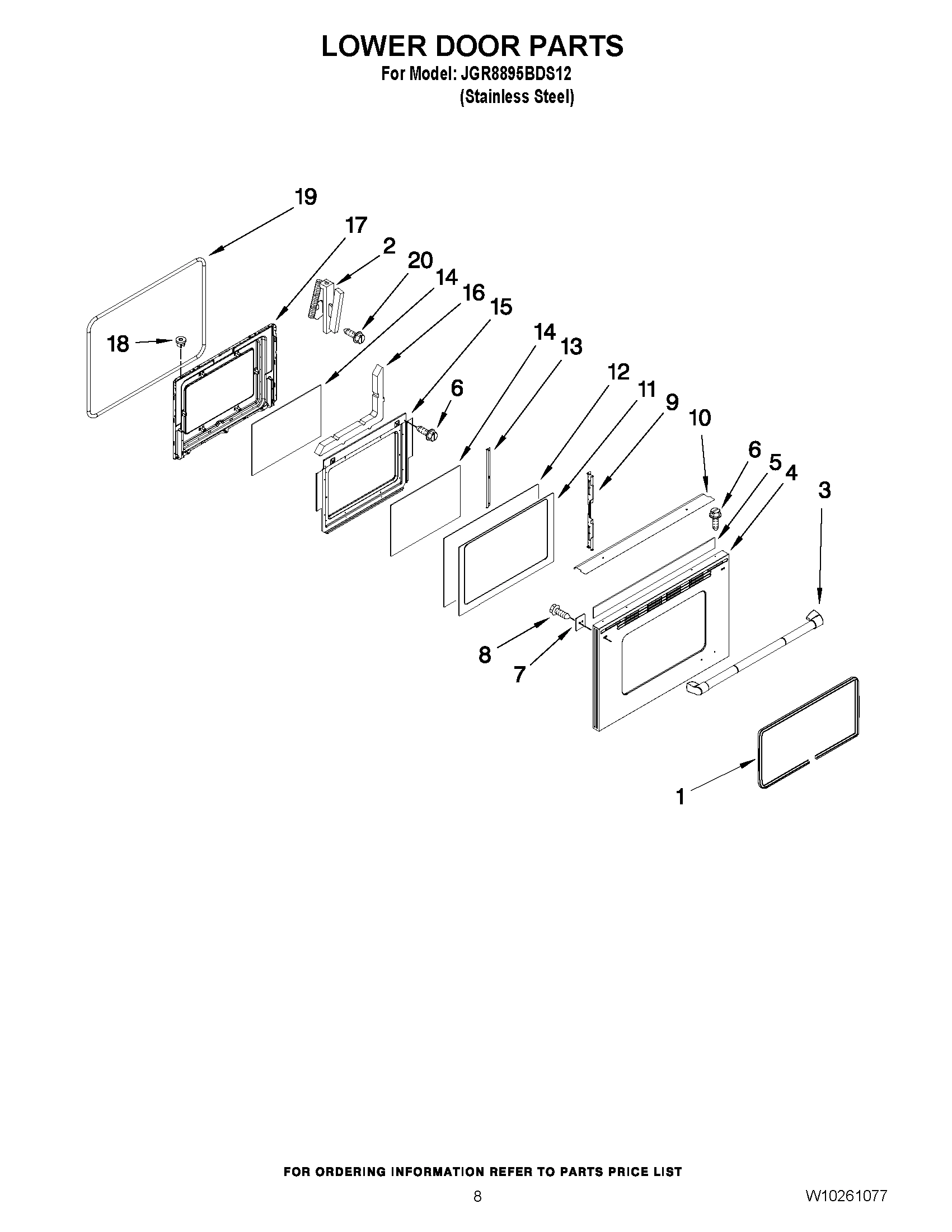

06 - LOWER DOOR PARTS

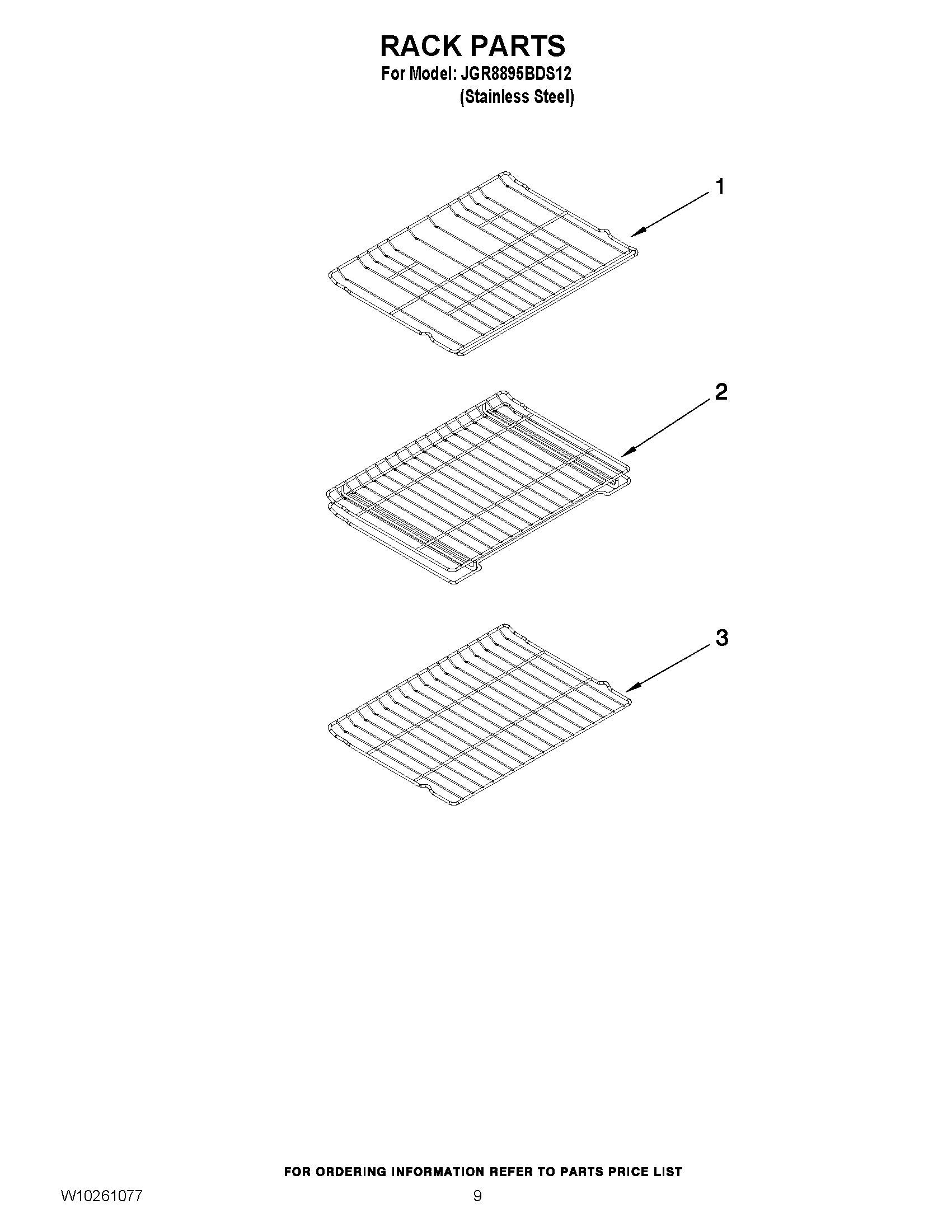

07 - RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGR8895BDS12 GAS RANGE
1
SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10162492 MAY W10162492 Contact Us For Availability
1
MAY W10162494 MAY W10162494 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 7101P639-60 MAY 7101P639-60 Contact Us For Availability
1
MAY 3826W047-45 MAY 3826W047-45 Contact Us For Availability
1
MAY 7201P141-60 MAY 7201P141-60 Contact Us For Availability
1
RACK, UPPER OVEN MAY W10273862 Contact Us For Availability
2
CAP, BURNER (RF) MAY 7504P165-60 Contact Us For Availability
2
CAP, BURNER (CENTER) MAY 7504P202-60 Contact Us For Availability
2
CAP, BURNER ((LF)) MAY 7504P204-60 Contact Us For Availability
2
CAP, BURNER ((LR & RR)) MAY 7504P241-60 Contact Us For Availability
2
MAY 3608F121-09 MAY 3608F121-09 Contact Us For Availability
2
HOLDER, ORIFICE ((LF)) MAY 7527P021-60 Contact Us For Availability
2
HOLDER, ORIFICE ((LR & RF)) MAY 7527P022-60 Contact Us For Availability
2
HOLDER, ORIFICE ((RR)) MAY 7527P023-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
Panel, Door MAY 7760P149-60 Contact Us For Availability
2
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
2
MAY W10251904 MAY W10251904 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
MAY W10172705 MAY W10172705 Contact Us For Availability
3
MAY 7502P565-60 MAY 7502P565-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7701P467-60 MAY 7701P467-60 Contact Us For Availability
3
RACK, LWR OVEN MAY 7801P173-60 Contact Us For Availability
4
BURNER (6K, CENTER) MAY 8286181 Contact Us For Availability
4
BURNER (12K, RF) MAY 8286182 Contact Us For Availability
4
BURNER (17K, LF) MAY 8286183 Contact Us For Availability
4
BURNER (LR/RR) MAY W10194076 Contact Us For Availability
4
MAY 7506P422-60 MAY 7506P422-60 Contact Us For Availability
4
Panel, Side MAY 2618F194-70 Contact Us For Availability
4
Panel, Door MAY 7760P148-60 Contact Us For Availability
5
MAY W10191074 MAY W10191074 Contact Us For Availability
5
MAY 3801F926-51 MAY 3801F926-51 Contact Us For Availability
5
MAY 7450P106-60 MAY 7450P106-60 Contact Us For Availability
5
MAY 3605F338-19 MAY 3605F338-19 Contact Us For Availability
5
Insulation, Foil MAY 7002P427-60 Contact Us For Availability
6
GROMMET, KNOB MAY 8285469 Contact Us For Availability
6
MAY 3604F398-09 MAY 3604F398-09 Contact Us For Availability
6
Ignitor, Top Burner (5) MAY 7432M126-60 Contact Us For Availability
6
MAY W10206589 MAY W10206589 Contact Us For Availability
7
MAY W10183665 MAY W10183665 Contact Us For Availability
7
MAY 7450P073-60 MAY 7450P073-60 Contact Us For Availability
7
MAY 7513P529-60 MAY 7513P529-60 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
7
RETAINER, GLASS SUPPORT MAY 3804F184-45 Contact Us For Availability
8
GRATE, BURNER (INCL. BUMPERS) MAY 7518P455-60 Contact Us For Availability
8
MAY 8036P025-60 MAY 8036P025-60 Contact Us For Availability
8
VALVE ((CENTER)) MAY 7502P561-60 Contact Us For Availability
8
VALVE ((LR/RF/RR)) MAY 7502P562-60 Contact Us For Availability
8
VALVE ((LF)) MAY 7502P564-60 Contact Us For Availability
8
MAY 3823F015-51 MAY 3823F015-51 Contact Us For Availability
8
Glass, Outer Door MAY 7902P753-60 Contact Us For Availability
8
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
9
SCREW MAY 3368921 Contact Us For Availability
9
MAY 4005F804-51 MAY 4005F804-51 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
9
MAY 7902P542-60 MAY 7902P542-60 Contact Us For Availability
9
RETAINER, GLASS SUPPORT MAY 3804F265-45 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7505P323-60 MAY 7505P323-60 Contact Us For Availability
10
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
10
MAY 3604F441-51 MAY 3604F441-51 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 7505P324-60 MAY 7505P324-60 Contact Us For Availability
11
MAY W10312768 MAY W10312768 Contact Us For Availability
11
Baffle, Door MAY 3601F354-45 Contact Us For Availability
11
Glass, Outer Door MAY 7902P754-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7510P089-60 MAY 7510P089-60 Contact Us For Availability
12
SENSOR, OVEN (LOWER OVEN) MAY 7430P041-60 Contact Us For Availability
12
Sensor, Oven (Upper Oven) MAY 7430P045-60 Contact Us For Availability
12
INSULATION MAY 7002P488-60 Contact Us For Availability
12
Glass, Door MAY 7902P468-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 7432P130-60 MAY 7432P130-60 Contact Us For Availability
13
Igniter (Bake) MAY 7432P143-60 Contact Us For Availability
13
GLASS, INNER MAY 7902P521-60 Contact Us For Availability
13
BRACKET, INNER GLASS MAY 3801F886-51 Contact Us For Availability
14
MAY 7506P429-60 MAY 7506P429-60 Contact Us For Availability
14
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
14
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
14
Glass, Inner MAY 7902P436-60 Contact Us For Availability
15
MAY 4005F741-51 MAY 4005F741-51 Contact Us For Availability
15
Liner, Door MAY 2402W248-19 Contact Us For Availability
15
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
16
Cover, Igniter MAY 7507P400-60 Contact Us For Availability
16
MAY 4005F743-51 MAY 4005F743-51 Contact Us For Availability
16
Insulation MAY 7002P246-60 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
MAY W10210727 MAY W10210727 Contact Us For Availability
17
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
17
Liner, Door MAY 2402W312-19 Contact Us For Availability
18
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
18
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
18
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
19
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
19
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
19
MAY W10162384 MAY W10162384 Contact Us For Availability
20
Screw MAY 7101P282-60 Contact Us For Availability
20
MAY 3601F339-45 MAY 3601F339-45 Contact Us For Availability
20
MAY W10180198 MAY W10180198 Contact Us For Availability
21
MAY 5171P603-60 MAY 5171P603-60 Contact Us For Availability
21
MAY 3807F647-45 MAY 3807F647-45 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY 3804F212-45 MAY 3804F212-45 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
23
MAY 3807F643-45 MAY 3807F643-45 Contact Us For Availability
23
MAY 3807F644-45 MAY 3807F644-45 Contact Us For Availability
24
MAY 7507P395-60 MAY 7507P395-60 Contact Us For Availability
24
MAY 3804F270-45 MAY 3804F270-45 Contact Us For Availability
25
MAY 7501P221-60 MAY 7501P221-60 Contact Us For Availability
25
MAY 3401F090-45 MAY 3401F090-45 Contact Us For Availability
25
MAY 3401F091-45 MAY 3401F091-45 Contact Us For Availability
26
MAY 7507P396-60 MAY 7507P396-60 Contact Us For Availability
27
MAY 3801F681-45 MAY 3801F681-45 Contact Us For Availability
27
SUPPORT, LWR OVEN MAY W10260703 Contact Us For Availability
28
MAY 3801F691-51 MAY 3801F691-51 Contact Us For Availability
28
LIGHT ASSY. MAY 7407P179-60 Contact Us For Availability
29
Tubing (RF & RR) MAY 7506P378-60 Contact Us For Availability
29
BULB, LIGHT MAY 899138-001 Contact Us For Availability
30
Tubing (LF & LR) MAY 7506P379-60 Contact Us For Availability
30
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
31
TUBING (CENTER) MAY 7506P417-60 Contact Us For Availability
31
BOTTOM, BURNER BOX (RIGHT) MAY W10283688 Contact Us For Availability
31
BOTTOM, BURNER BOX (LEFT) MAY W10283722 Contact Us For Availability
32
MAY 7506P428-60 MAY 7506P428-60 Contact Us For Availability
32
MAY 3601F321-50 MAY 3601F321-50 Contact Us For Availability
33
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
33
MAY 3826W042-45 MAY 3826W042-45 Contact Us For Availability
34
MAY 4022W055-45 MAY 4022W055-45 Contact Us For Availability
35
MAY 3826W052-45 MAY 3826W052-45 Contact Us For Availability
36
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
37
Seal, Front Frame MAY 7212P066-60 Contact Us For Availability
38
COVER, BURNER OPENING MAY 4005F736-45 Contact Us For Availability
39
MAY 3601F308-19 MAY 3601F308-19 Contact Us For Availability
40
MAY 2205F055-19 MAY 2205F055-19 Contact Us For Availability
41
MAY 2205F051-19 MAY 2205F051-19 Contact Us For Availability
42
MAY 3608F088-70 MAY 3608F088-70 Contact Us For Availability
43
Switch, Light Assembly MAY 7450P108-60 Contact Us For Availability
NI
MAY W10191081 MAY W10191081 Contact Us For Availability
NI
MAY 7002P310-60 MAY 7002P310-60 Contact Us For Availability
NI
MAY 7002P413-60 MAY 7002P413-60 Contact Us For Availability
NI
MAY 7002P415-60 MAY 7002P415-60 Contact Us For Availability
NI
MAY 7002P419-60 MAY 7002P419-60 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25’) MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P360-60 MAY 5171P360-60 Contact Us For Availability
NI
Harness, Gas MAY 5171P467-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10202387 MAY W10202387 Contact Us For Availability
× ![]()
