Model Whirlpool JGR8855ADS GAS RANGE – Common Parts & Diagrams

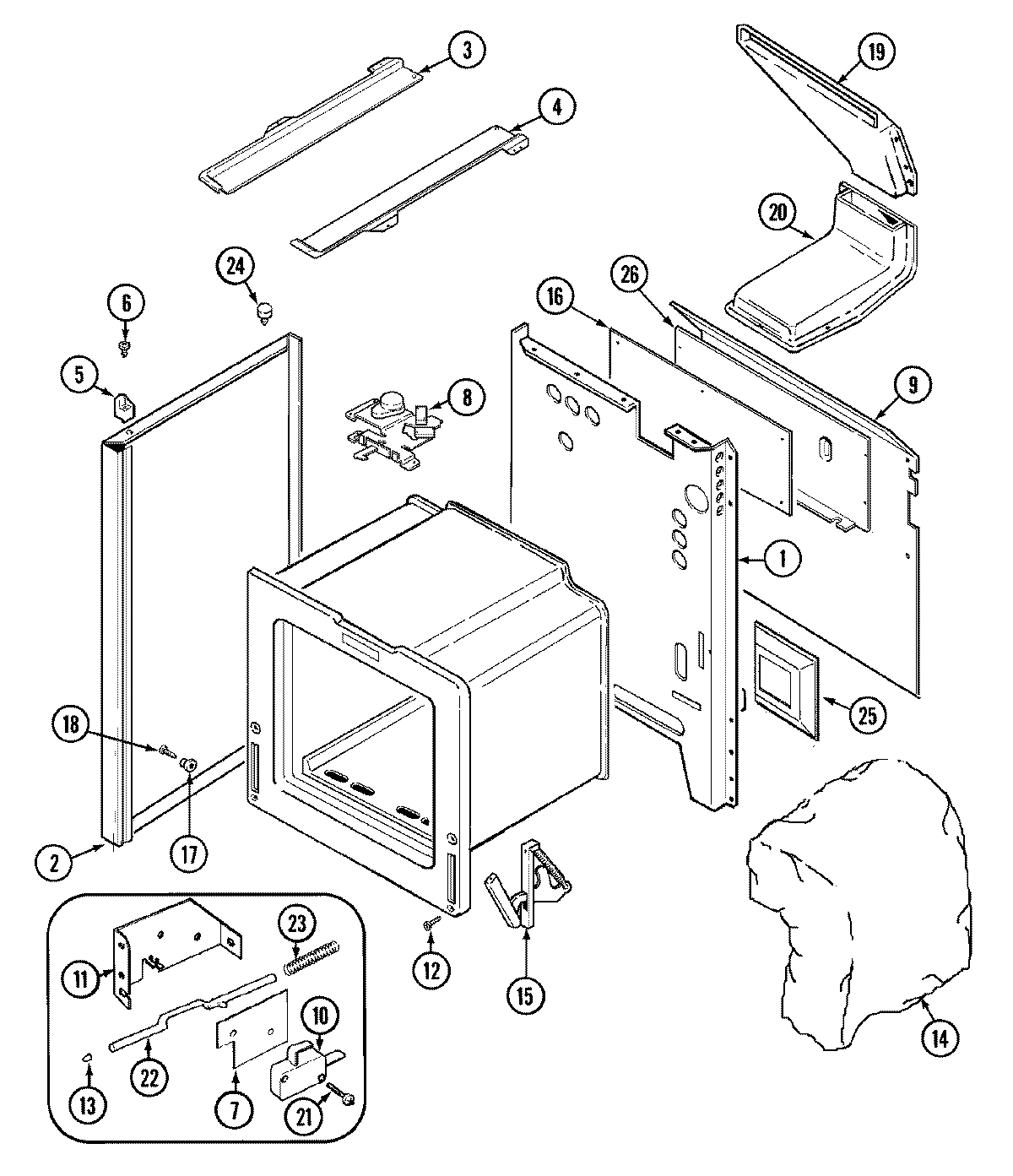

01 - BODY

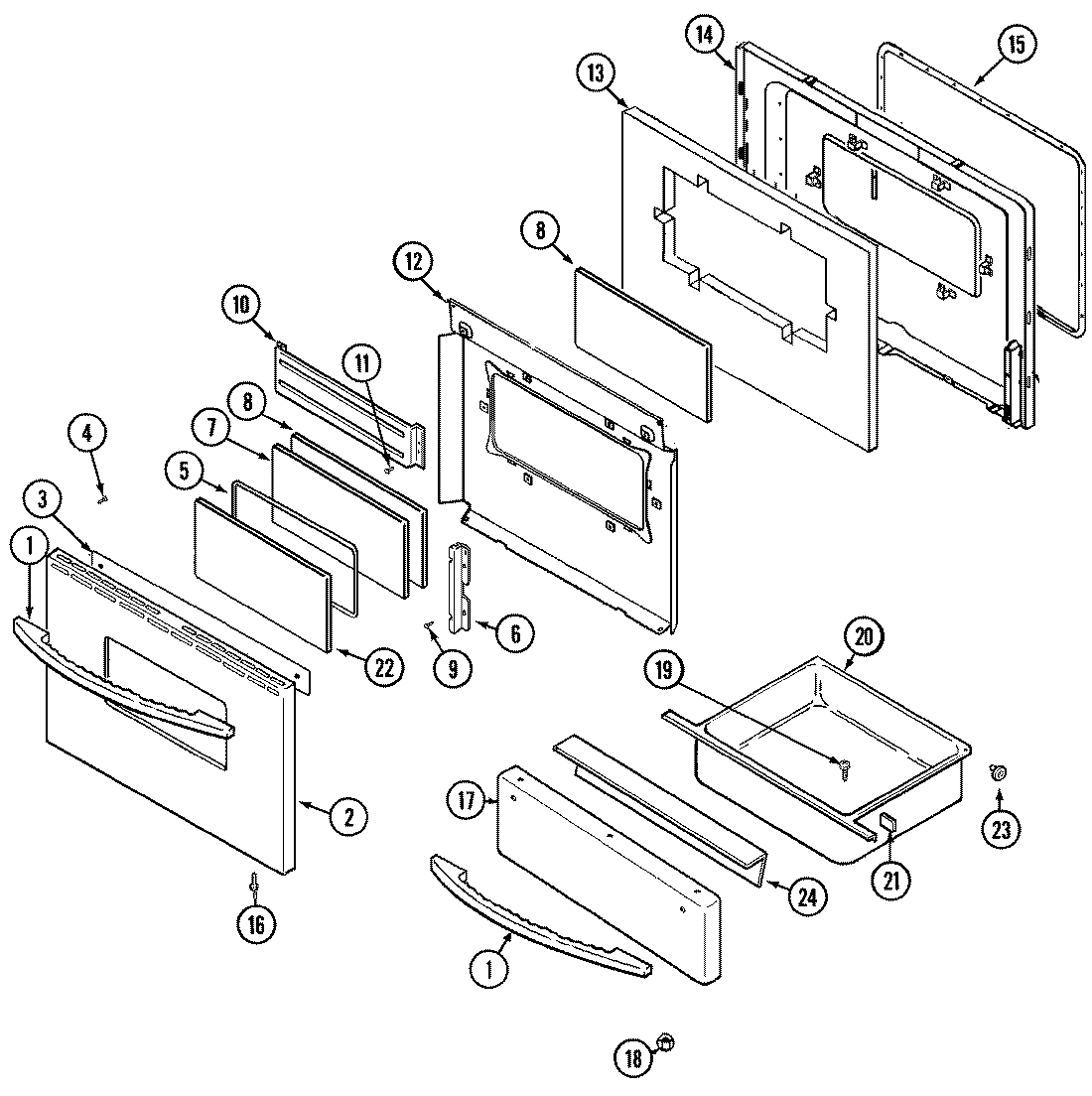

03 - DOOR/DRAWER

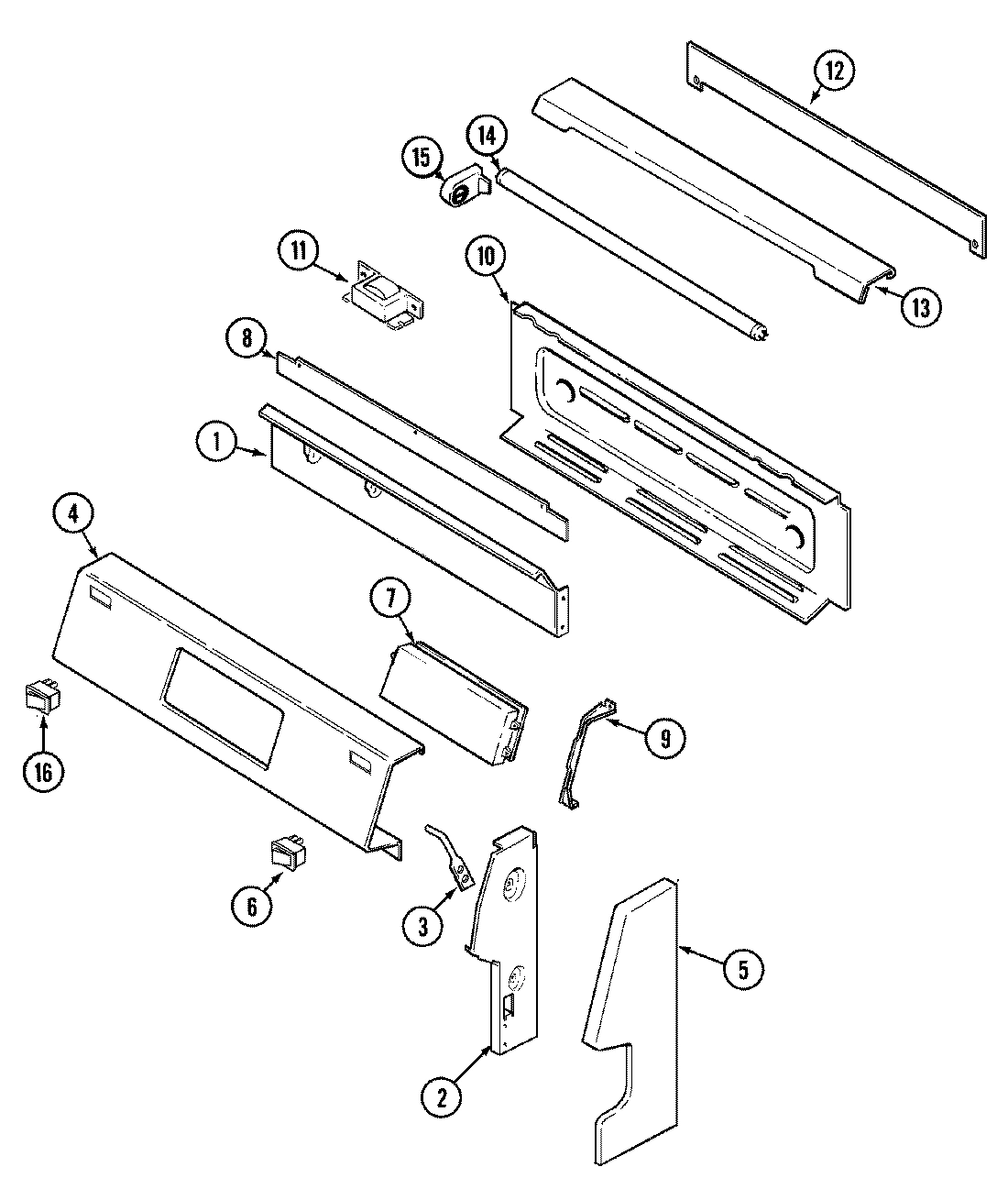

02 - CONTROL PANEL

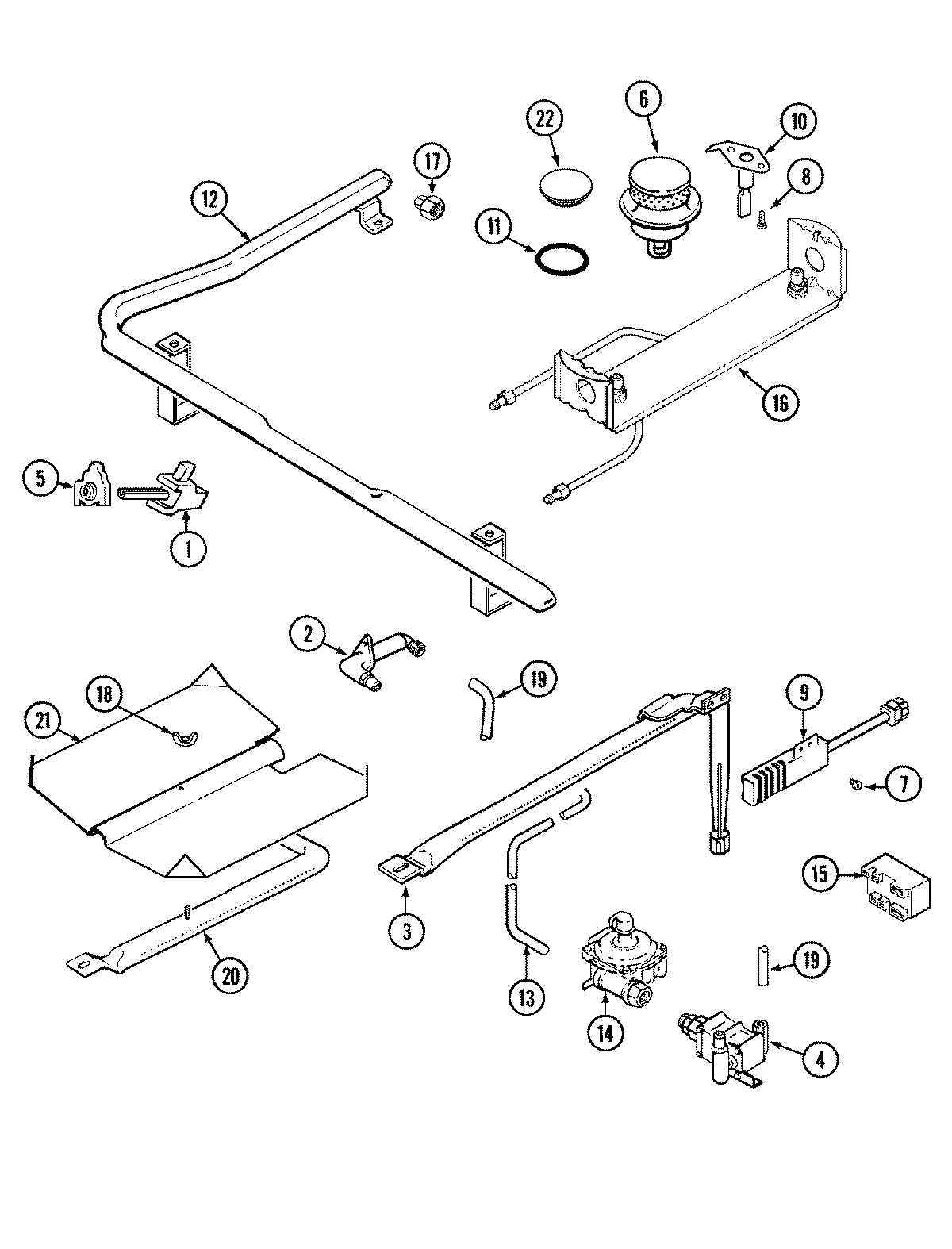

04 - GAS CONTROLS

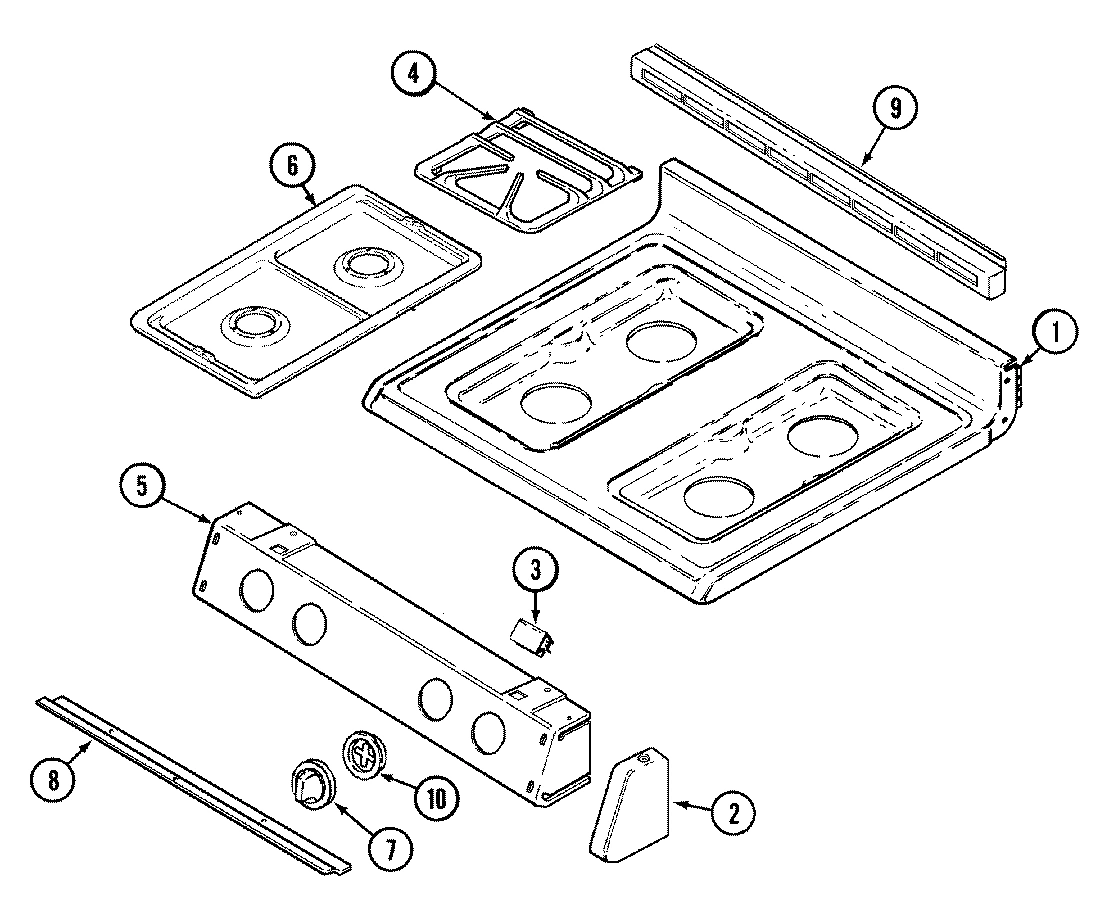

06 - TOP ASSEMBLY

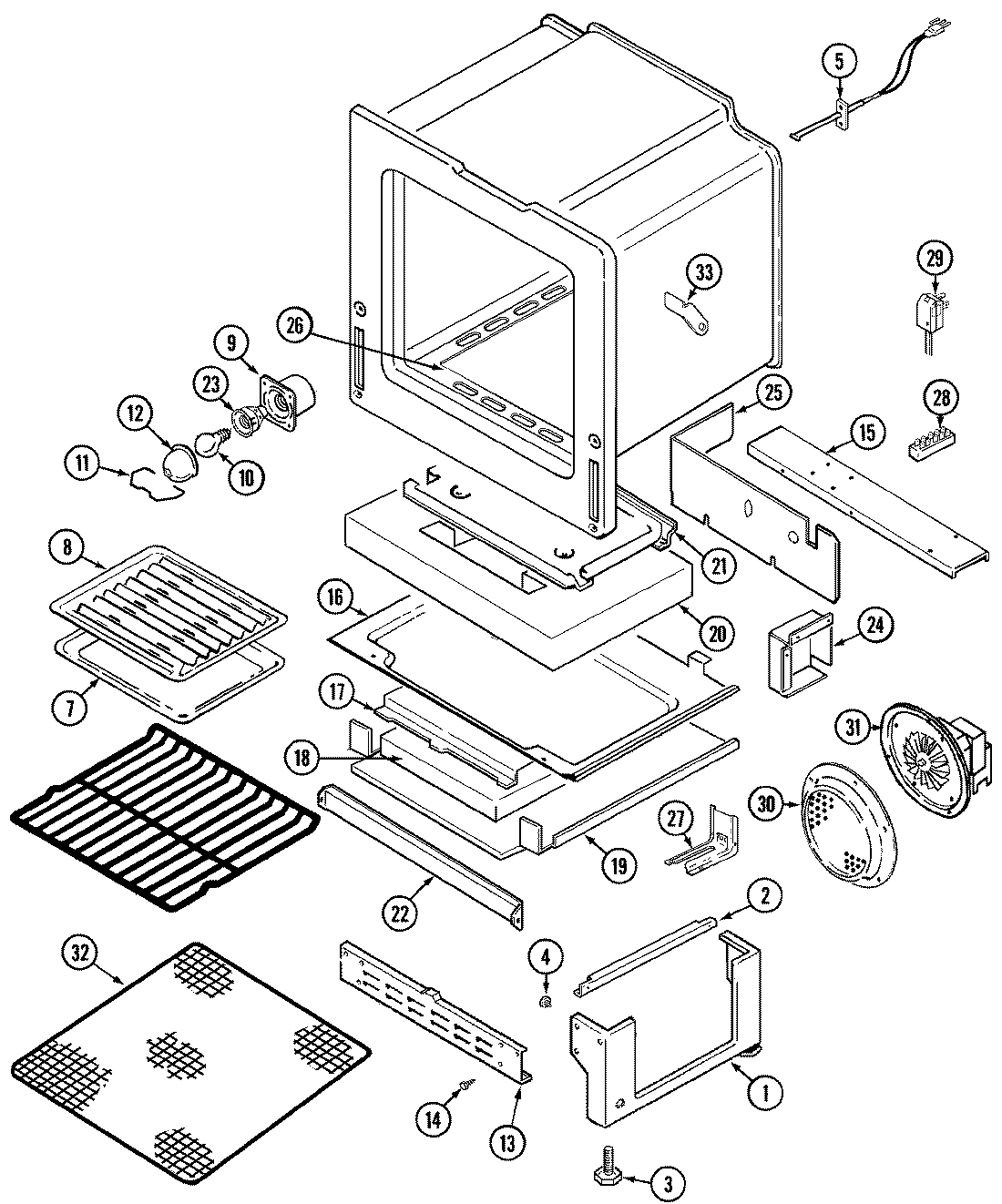

05 - OVEN/BASE

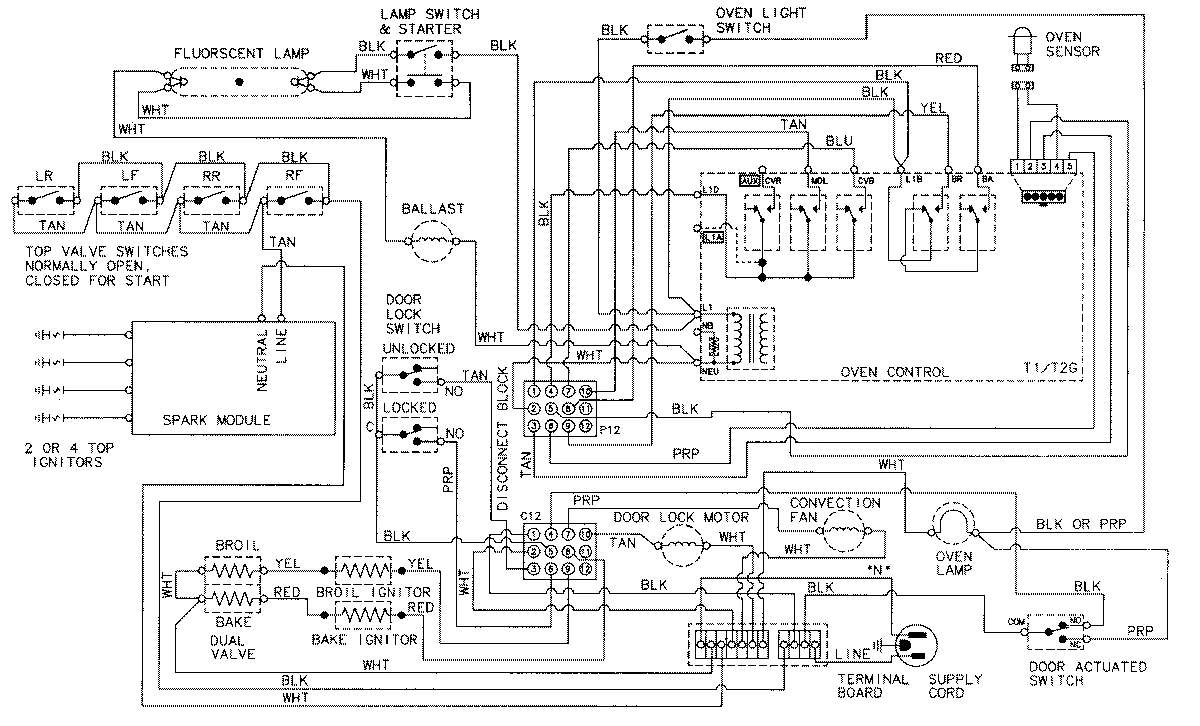

07 - WIRING INFORMATION

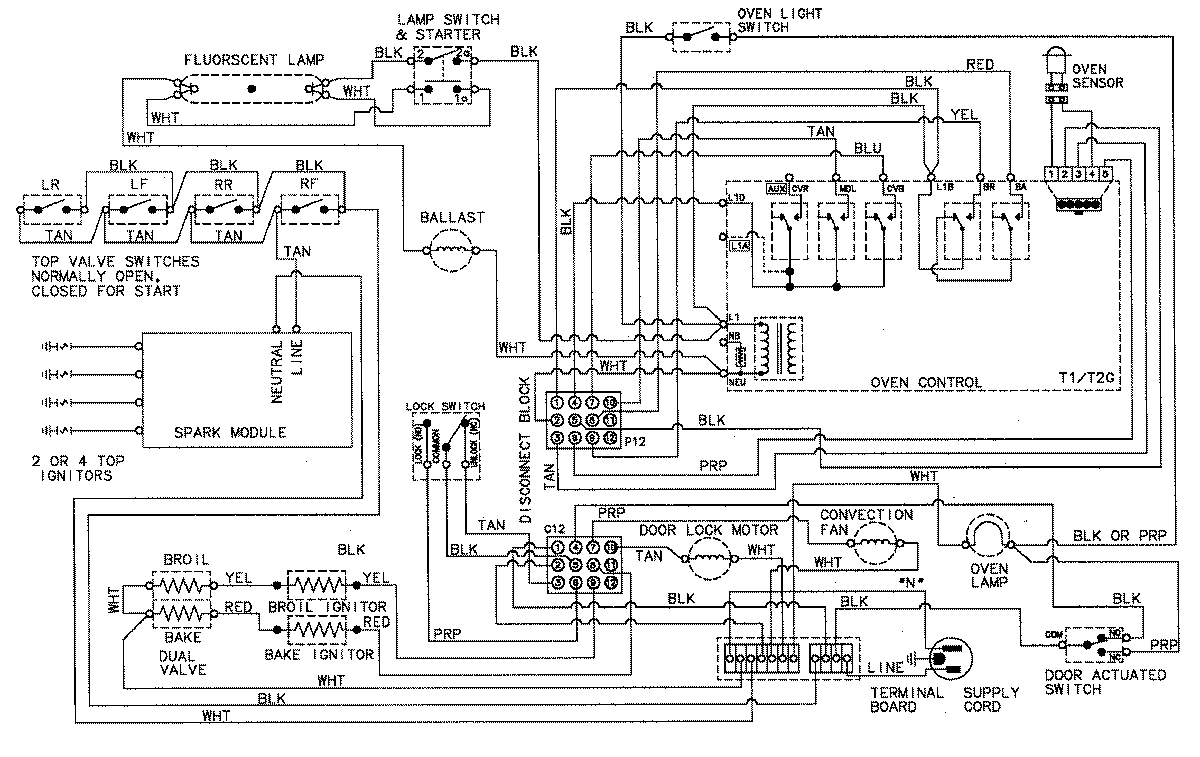

08 - WIRING INFORMATION
Common parts from model Whirlpool JGR8855ADS GAS RANGE
1
HANDLE, DOOR (BLK) WPL 71003204 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
1
SCREW, VALVE WPL 71003231 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, BURNER WPL 74003924 Contact Us For Availability
1
VALVE, TOP BURNER WPL 74004303 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
TOP, MAIN (BLK) WPL 71003047 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
2
PANEL, DOOR (STNLS) WPL 74003698 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
END CAP, PANEL (RT-BLK) WPL 74003497 Contact Us For Availability
2
END CAP, PANEL (LT-BLK) WPL 74003498 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
3
INSULATION, FOIL BACK WPL 74003146 Contact Us For Availability
3
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BURNER, BAKE WPL 74003960 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
4
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
NUT WPL 7103P08260 Contact Us For Availability
4
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
4
PANEL, CONTROL WPL 74004044 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
4
GRATE (BLK) WPL 71003048 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
5
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
END CAP, CONTROL PNL (RT-BLK) WPL 74003574 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-BLK) WPL 74003575 Contact Us For Availability
5
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
PANEL, MANIFOLD----NA WPL 74004043 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
RETAINER, GLASS WPL 74003048 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability
6
BOWL, DRIP (DBL-BLK) WPL 74003186 Contact Us For Availability
7
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
7
GLASS, INNER WPL 74002002 Contact Us For Availability
7
CLOCK (BLK) WPL 71003114 Contact Us For Availability
7
SCREW WPL 7101P32860 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 74005689 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
LATCH, DOOR LOCK WPL 74003559 Contact Us For Availability
8
INSULATION, LATCH WPL 74003560 Contact Us For Availability
8
RETAINER, INSULATION WPL 74003561 Contact Us For Availability
8
DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability
8
GLASS, INNER WPL 74001841 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74003321 Contact Us For Availability
9
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74003550 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SHIELD, HEAT (BLK) WPL 74002199 Contact Us For Availability
9
TRIM, VENT (BLK) WPL 74003501 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
10
SWITCH WPL 74001802 Contact Us For Availability
10
BAFFLE, OVEN DOOR SECONDARY WPL 74003050 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74003493 Contact Us For Availability
10
BEZEL, KNOB (BLK) WPL 74005690 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
11
SCREW WPL 7101P35660 Contact Us For Availability
11
BALLAST WPL 74003033 Contact Us For Availability
11
GASKET, BURNER WPL 74002745 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
12
SHIELD, LIGHT WPL 74003558 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74003504 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74005681 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
13
BUMPER, ROD WPL 74001631 Contact Us For Availability
13
INSULATION, DOOR WPL 74001842 Contact Us For Availability
13
COVER, LIGHT (BLK) WPL 74003573 Contact Us For Availability
13
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
STRAP, INSULATION WPL 74003385 Contact Us For Availability
14
LINING, DOOR WPL 74003244 Contact Us For Availability
14
BULB, FLUORESCENT LI WPL 7407P03760 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
15
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
SWITCH, FLRSCENT LIGHT (BLK) WPL 74003571 Contact Us For Availability
16
FITTING ASSY., ORIFICE (LT) WPL 74003506 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
PANEL, DRAWER (CHR) WPL 74004045 Contact Us For Availability
17
HARNESS, SENSOR/LOCK WPL 71003046 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
18
MANUAL, USE & CARE WPL 74004042 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SCREW WPL 7101P07260 Contact Us For Availability
19
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
19
TUBING, BROIL FITTING (3/8``) WPL 74002592 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
20
BOX, VENT WPL 74002367 Contact Us For Availability
20
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
20
INSULATION, OVEN WPL 74003503 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
21
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
21
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
22
GLASS, OUTER DOOR (BLK) WPL 74001072 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
23
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
23
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
23
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
23
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
24
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
24
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
24
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
25
RETAINER, INSUL. (BACK) WPL 74001801 Contact Us For Availability
25
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
26
COVER, CONVECT WIRE WPL 74002598 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
30
COVER, CONVECT FAN WPL 74002943 Contact Us For Availability
31
FAN ASSY. (CONVECT) WPL 74002596 Contact Us For Availability
31
FAN ASSY. (GAS-CONVECTION) WPL 74005676 Contact Us For Availability
32
RACK, DEHYDRATION WPL 74003595 Contact Us For Availability
33
SCREW, SHOULDER WPL 74003640 Contact Us For Availability
33
SPACER, DOOR DEHYDRATION WPL 74003639 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002275 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002806 Contact Us For Availability
× ![]()
