Model Maytag JGR8750ADQ GAS RANGE – Common Parts & Diagrams

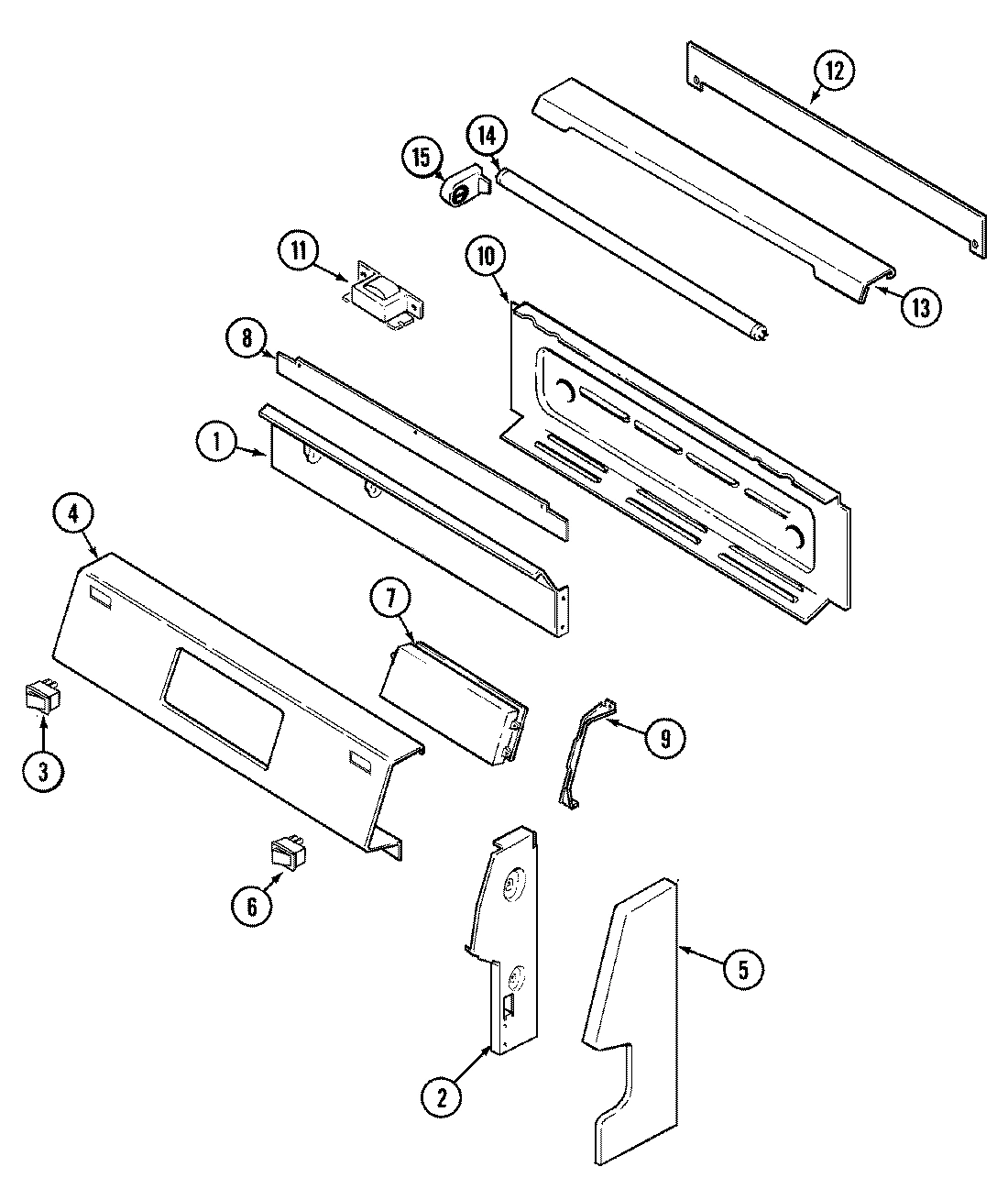

01 - CONTROL PANEL

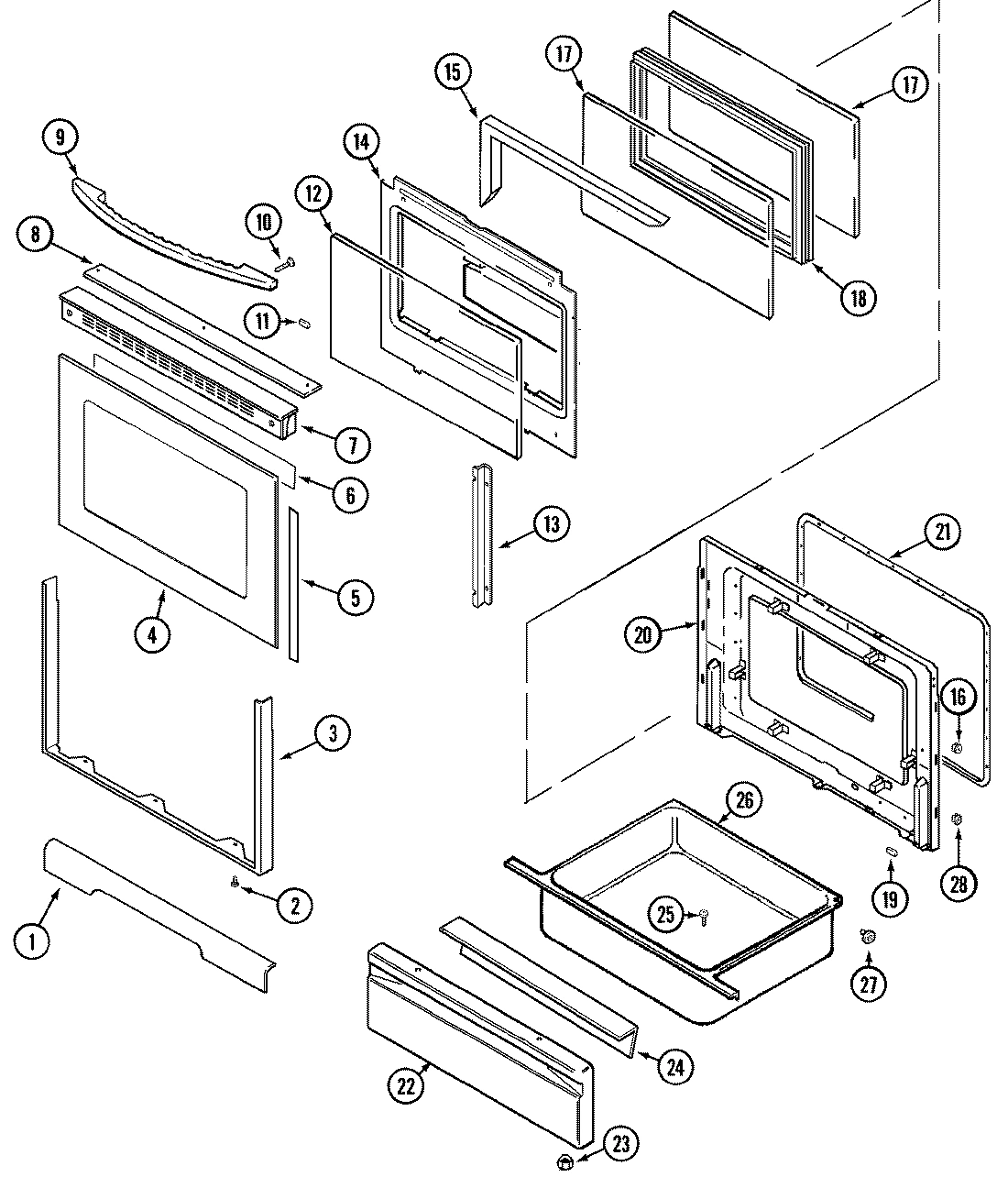

02 - DOOR/DRAWER

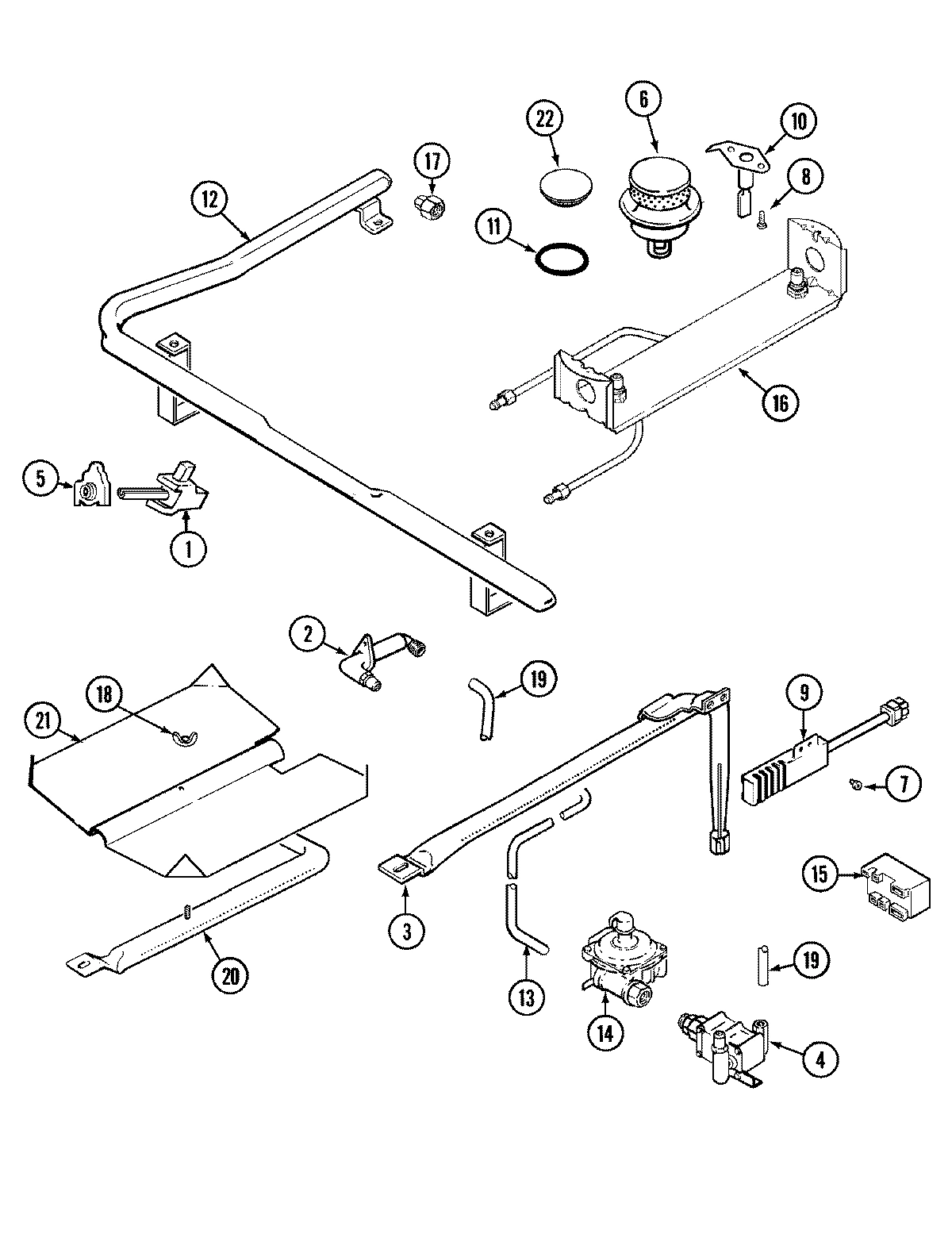

03 - GAS CONTROLS

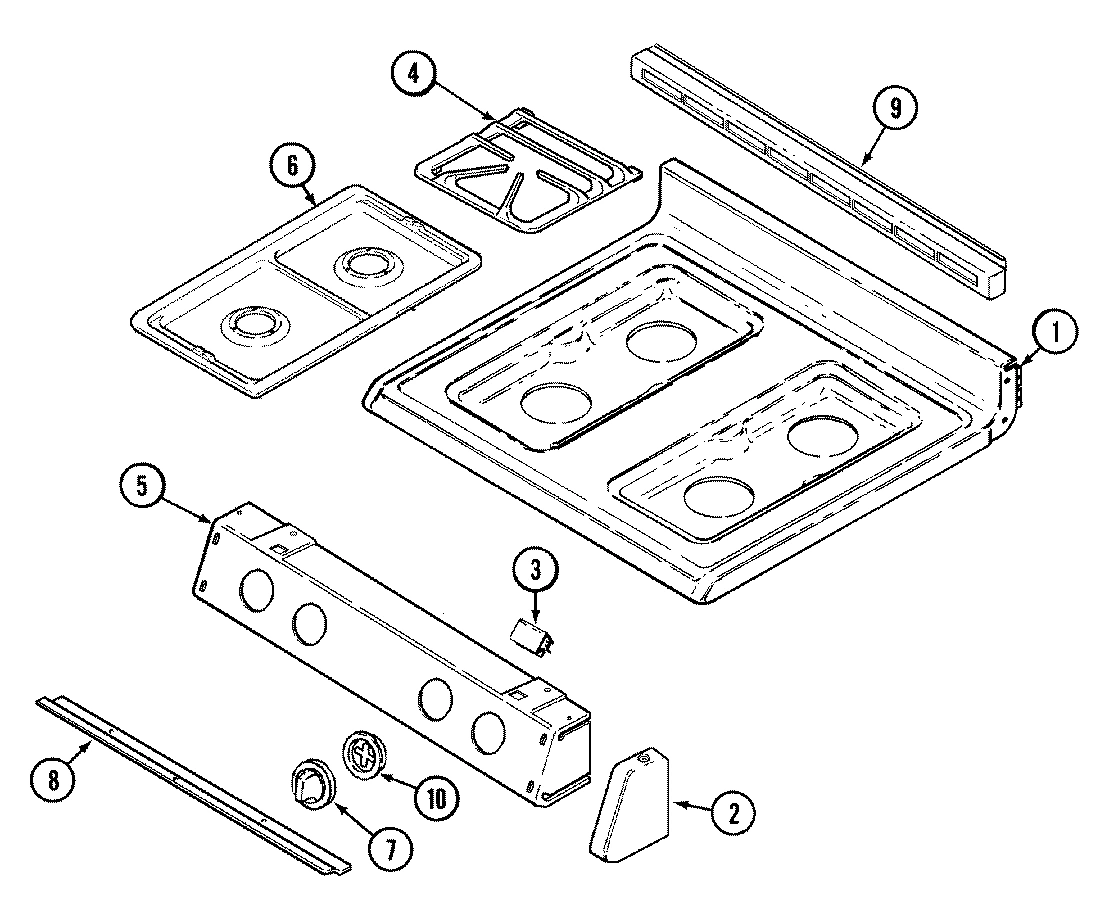

04 - TOP ASSEMBLY

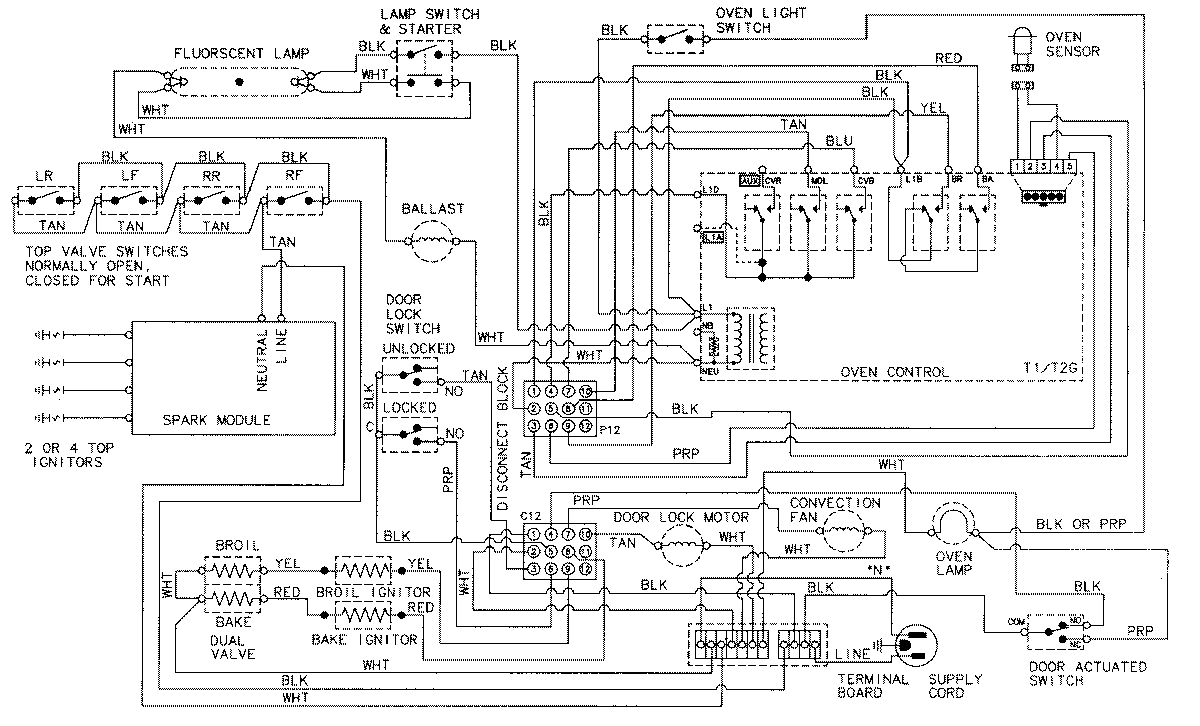

05 - WIRING INFORMATION

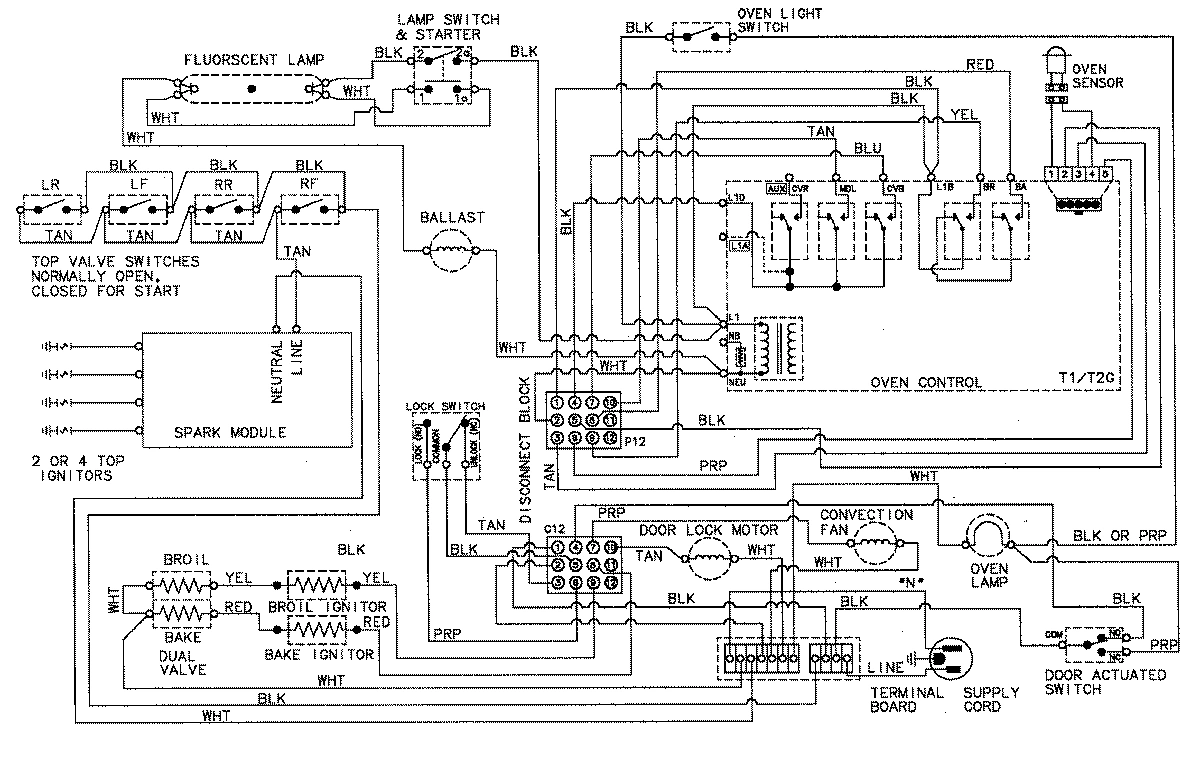

06 - WIRING INFORMATION
Common parts from model Maytag JGR8750ADQ GAS RANGE
1
MAY 74003924 MAY 74003924 Contact Us For Availability
1
MAY 71003594 MAY 71003594 Contact Us For Availability
1
MAY 71003231 MAY 71003231 Contact Us For Availability
1
MAY 74004303 MAY 74004303 Contact Us For Availability
1
MAY 74004964 MAY 74004964 Contact Us For Availability
2
MAY 74004307 MAY 74004307 Contact Us For Availability
2
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
2
MAY 74003860 MAY 74003860 Contact Us For Availability
2
MAY 74004967 MAY 74004967 Contact Us For Availability
2
MAY 74004968 MAY 74004968 Contact Us For Availability
3
MAY 74003960 MAY 74003960 Contact Us For Availability
3
MAY 74005007 MAY 74005007 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
3
MAY 74004827 MAY 74004827 Contact Us For Availability
4
MAY 71003595 MAY 71003595 Contact Us For Availability
4
MAY 71003049 MAY 71003049 Contact Us For Availability
5
MAY 71003586 MAY 71003586 Contact Us For Availability
5
MAY 71003587 MAY 71003587 Contact Us For Availability
5
MAY 74004982 MAY 74004982 Contact Us For Availability
5
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
5
MAY 74003660 MAY 74003660 Contact Us For Availability
5
MAY 74002533 MAY 74002533 Contact Us For Availability
5
MAY 74004986 MAY 74004986 Contact Us For Availability
5
MAY 71003592 MAY 71003592 Contact Us For Availability
6
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
6
MAY 74003966 MAY 74003966 Contact Us For Availability
6
MAY 74004996 MAY 74004996 Contact Us For Availability
7
MAY 71003599 MAY 71003599 Contact Us For Availability
7
MAY 74005006 MAY 74005006 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY 71003593 MAY 71003593 Contact Us For Availability
7
MAY 74005764 MAY 74005764 Contact Us For Availability
8
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
8
MAY 74004978 MAY 74004978 Contact Us For Availability
8
MAY Y707113 MAY Y707113 Contact Us For Availability
8
MAY 74002447 MAY 74002447 Contact Us For Availability
9
MAY 74003550 MAY 74003550 Contact Us For Availability
9
MAY 74004985 MAY 74004985 Contact Us For Availability
9
MAY 71003596 MAY 71003596 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 7432P075-60 MAY 7432P075-60 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
9
MAY 74003520 MAY 74003520 Contact Us For Availability
9
MAY 74005636 MAY 74005636 Contact Us For Availability
10
MAY 74004963 MAY 74004963 Contact Us For Availability
10
MAY 71003598 MAY 71003598 Contact Us For Availability
10
MAY 74005437 MAY 74005437 Contact Us For Availability
11
MAY 7101P147-60 MAY 7101P147-60 Contact Us For Availability
11
MAY 74003033 MAY 74003033 Contact Us For Availability
11
MAY 74002745 MAY 74002745 Contact Us For Availability
12
MAY 74003558 MAY 74003558 Contact Us For Availability
12
GLASS, DOOR MAY 74003649 Contact Us For Availability
12
MAY 74003504 MAY 74003504 Contact Us For Availability
12
MAY 74005681 MAY 74005681 Contact Us For Availability
13
MAY 71003589 MAY 71003589 Contact Us For Availability
13
MAY 74003650 MAY 74003650 Contact Us For Availability
13
MAY 74002553 MAY 74002553 Contact Us For Availability
14
MAY 74003648 MAY 74003648 Contact Us For Availability
15
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
15
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
16
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
16
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
16
MAY 74003506 MAY 74003506 Contact Us For Availability
17
MAY 71003046 MAY 71003046 Contact Us For Availability
17
MAY 7103P121-60 MAY 7103P121-60 Contact Us For Availability
18
MAY 16008701 MAY 16008701 Contact Us For Availability
18
MAY 74004682 MAY 74004682 Contact Us For Availability
18
FRAME, GLASS MAY 74003644 Contact Us For Availability
18
NUT, WING MAY 7103P030-60 Contact Us For Availability
19
MAY 71002782 MAY 71002782 Contact Us For Availability
19
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
19
MAY 1555258K MAY 1555258K Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
20
MAY 12001323 MAY 12001323 Contact Us For Availability
20
MAY 74003642 MAY 74003642 Contact Us For Availability
20
MAY 74004076 MAY 74004076 Contact Us For Availability
21
MAY 16010161 MAY 16010161 Contact Us For Availability
21
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
22
MAY 71003597 MAY 71003597 Contact Us For Availability
22
MAY 71003054 MAY 71003054 Contact Us For Availability
23
MAY 5120D019-60 MAY 5120D019-60 Contact Us For Availability
23
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
23
MAY 71003540 MAY 71003540 Contact Us For Availability
24
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
24
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
26
MAY 71003042 MAY 71003042 Contact Us For Availability
27
MAY 74004079 MAY 74004079 Contact Us For Availability
28
MAY 74003643 MAY 74003643 Contact Us For Availability
NI
MAY 15002275 MAY 15002275 Contact Us For Availability
NI
MAY 15002784 MAY 15002784 Contact Us For Availability
× ![]()
