Model GE JGP970TEK2WW Gas Range Or Dual Fuel – Common Parts & Diagrams

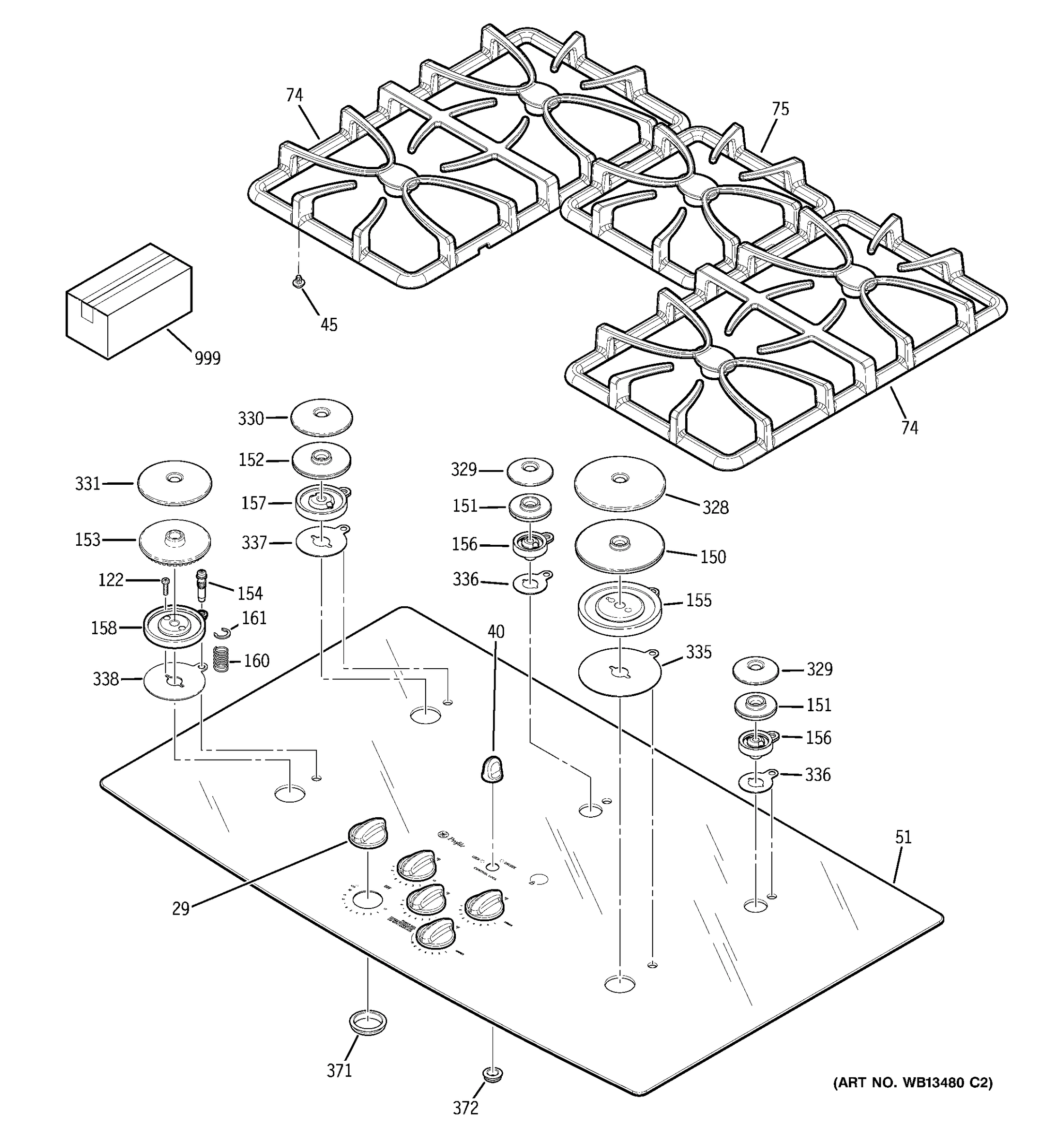

CONTROL PANEL & COOKTOP

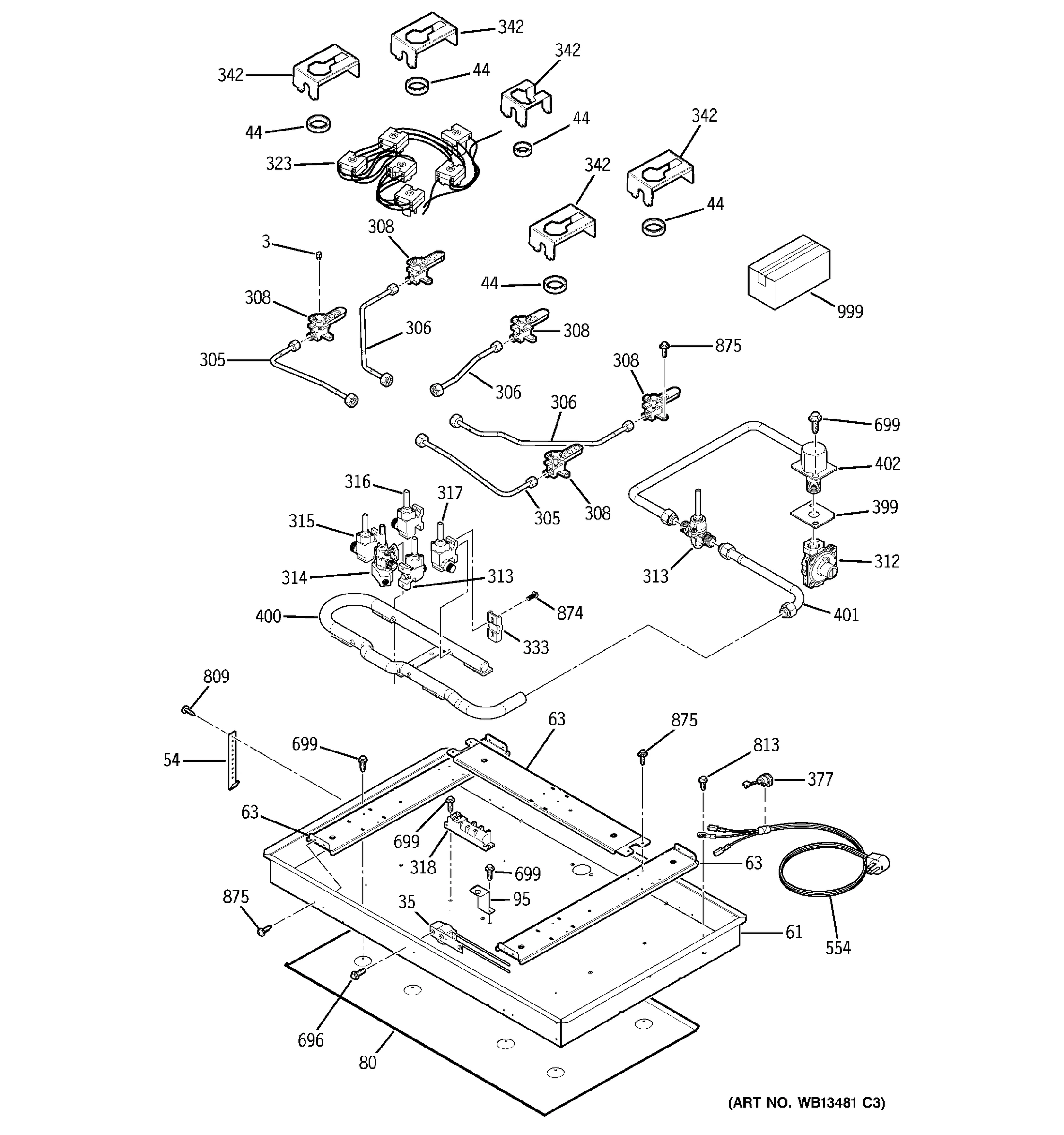

GAS & BURNER PARTS
Common parts from model GE JGP970TEK2WW Gas Range Or Dual Fuel
3
ORIFICE SPUD RT FRT -LP GEN WB28T10033 Contact Us For Availability
3
ORIFICE SPUD ASSY-LP GEN WB28T10017 Contact Us For Availability
3
ORIFICE SPUD LT FRT GEN WB28T10014 Contact Us For Availability
3
ORIFICE SPUD ASSY GEN WB28T10028 Contact Us For Availability
3
ORIFICE SPUD RT FR-NG GEN WB28T10027 Contact Us For Availability
3
ORIFICE SPUD ASSY-NAT GEN WB28T10015 Contact Us For Availability
3
ORIFICE SPUD LP LR GEN WB28T10151 Contact Us For Availability
3
ORIFICE SPUD LP 1 06MM GEN WB28K10086 Contact Us For Availability
29
KNOB GAS VLV (PRF-WH) GEN WB03T10241 Contact Us For Availability
35
BUZZER (120V) GEN WB08T10039 Contact Us For Availability
40
KNOB SEL (WH GEN WB03T10034 Contact Us For Availability
44
BURNER GROMMET-LGE GEN WB02T10095 Contact Us For Availability
44
BURNER GROMMET-SM GEN WB02T10096 Contact Us For Availability
74
GRATE ASM GEN WB31T10083 Contact Us For Availability
122
SCREW 6-32 MCH FHT15 984 GEN WB01T10049 Contact Us For Availability
150
HEAD BURNER D GEN WB16T10037 Contact Us For Availability
151
HEAD BURNER H GEN WB16T10034 Contact Us For Availability
152
HEAD BURNER B GEN WB16T10035 Contact Us For Availability
153
HEAD BURNER C GEN WB16T10036 Contact Us For Availability
154
IGNITER GEN WB13T10073 Contact Us For Availability
155
BASE BURNER RT FRT GEN WB16T10032 Contact Us For Availability
156
BURNER BASE SMALL GEN WB16T10031 Contact Us For Availability
157
BASE BURNER MED GEN WB16T10030 Contact Us For Availability
158
BASE BURNER LARGE GEN WB16T10033 Contact Us For Availability
161
CLIP RING GEN WB02T10304 Contact Us For Availability
305
TUBE BURNER LT FRT GEN WB28T10060 Contact Us For Availability
305
TUBE BURNER RT FRT GEN WB28T10058 Contact Us For Availability
308
ORIFICE HOLDER BKT LARGE GEN WB28K10143 Contact Us For Availability
308
BURNER HOLDER BKT SMALL GEN WB28K10141 Contact Us For Availability
308
BURNER INJET ASM GEN WB28T10092 Contact Us For Availability
312
REGULATOR CONVERT PRESS GEN WB19T10078 Contact Us For Availability
313
VALVE LOCKOUT GEN WB19T10039 Contact Us For Availability
313
VALVE GAS RT FRT GEN WB19T10047 Contact Us For Availability
314
VALVE GAS RR GEN WB19T10035 Contact Us For Availability
316
VALVE GAS LT RR GEN WB19T10044 Contact Us For Availability
317
VALVE GAS CENTER GEN WB19T10045 Contact Us For Availability
329
CAP BURNER H (GY) GEN WB13T10056 Contact Us For Availability
330
CAP BURNER B (GY) GEN WB13T10057 Contact Us For Availability
331
CAP BURNER C (GY) GEN WB13T10058 Contact Us For Availability
335
BURNER GASKET D GEN WB04T10014 Contact Us For Availability
336
BURNER GASKET RTR CENT GEN WB16T10011 Contact Us For Availability
337
BURNER GASKET LT RR GEN WB04T10011 Contact Us For Availability
338
BURNER GASKET LT RR GEN WB04T10012 Contact Us For Availability
400
PIPE MANIFOLD GEN WB28T10122 Contact Us For Availability
402
TUBE (7/16) GEN WB28T10121 Contact Us For Availability
554
CORD RANGE GEN WB08T10015 Contact Us For Availability
× ![]()
