Model GE JGHP66GEN5 Electric Range – Common Parts & Diagrams

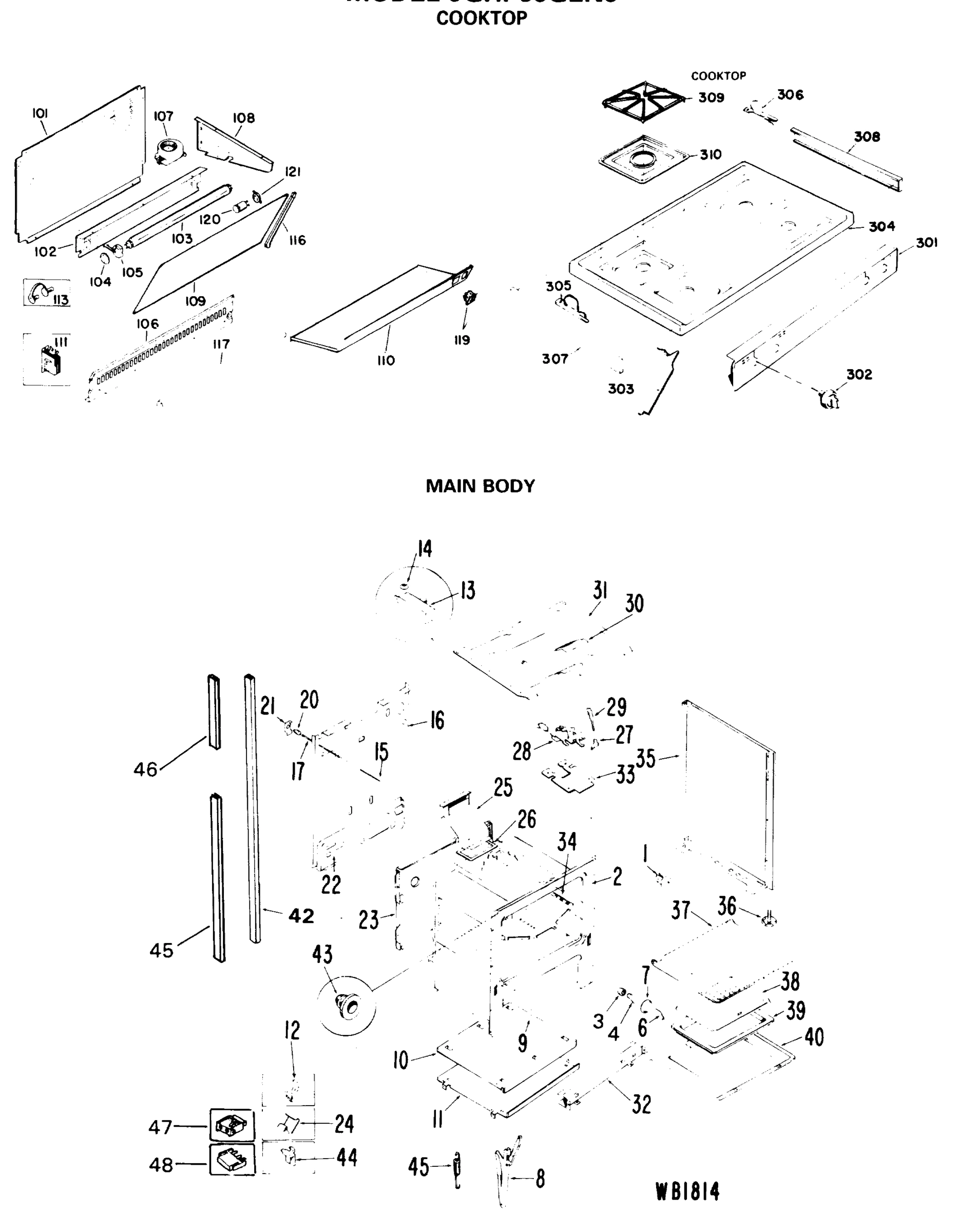

COOKTOP

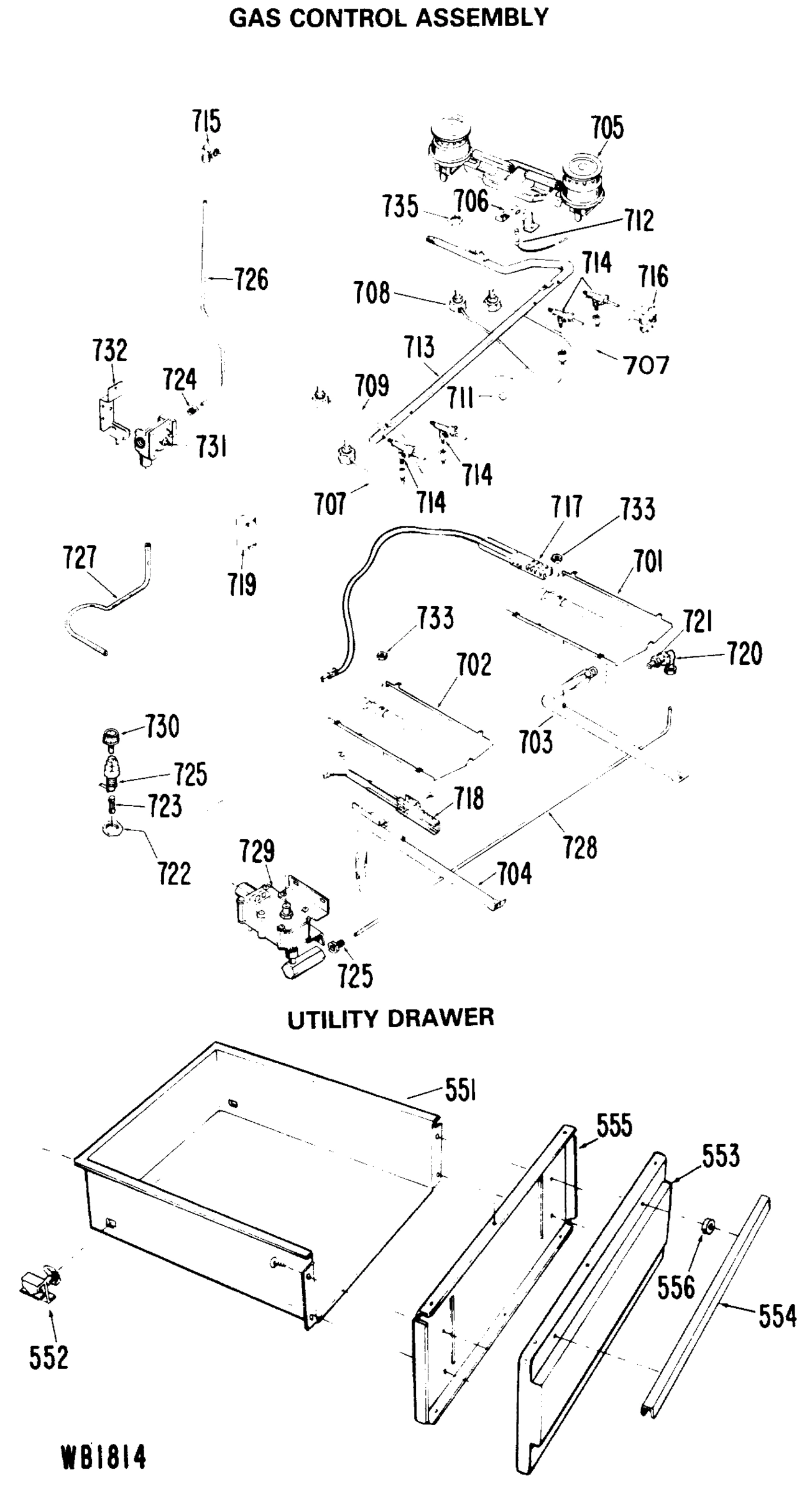

GAS CONTROL ASSEMBLY

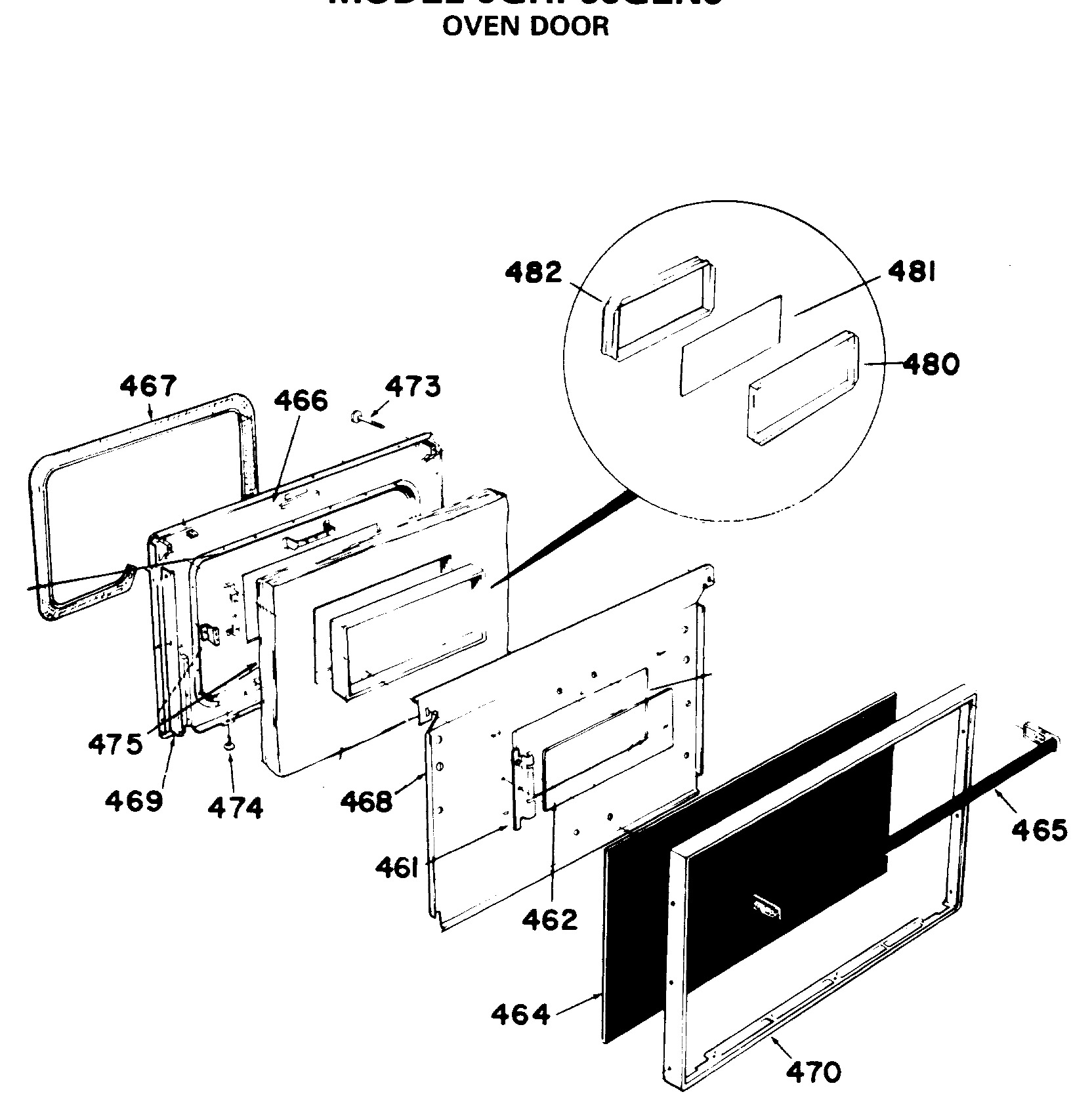

OVEN DOOR

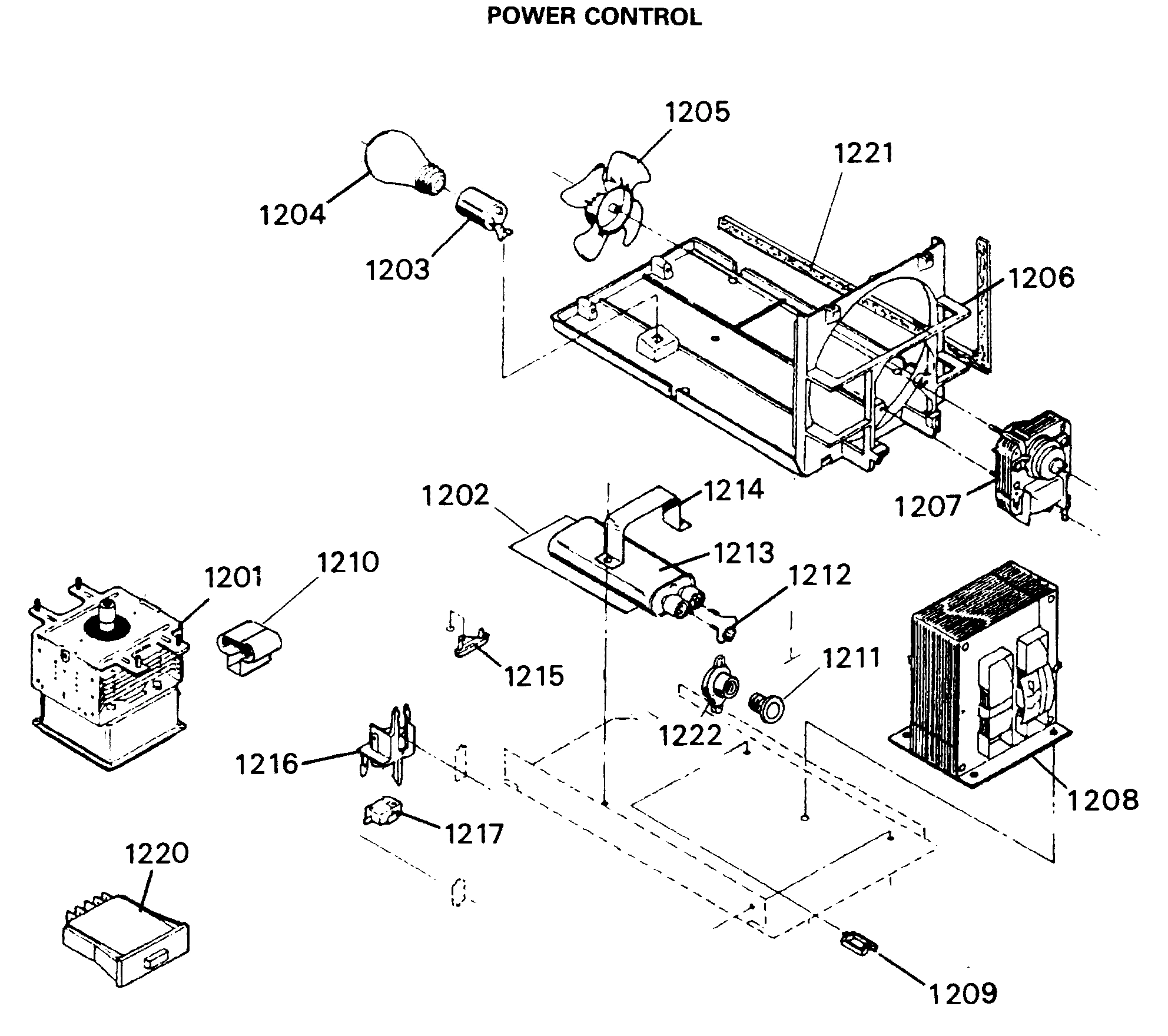

POWER CONTROL

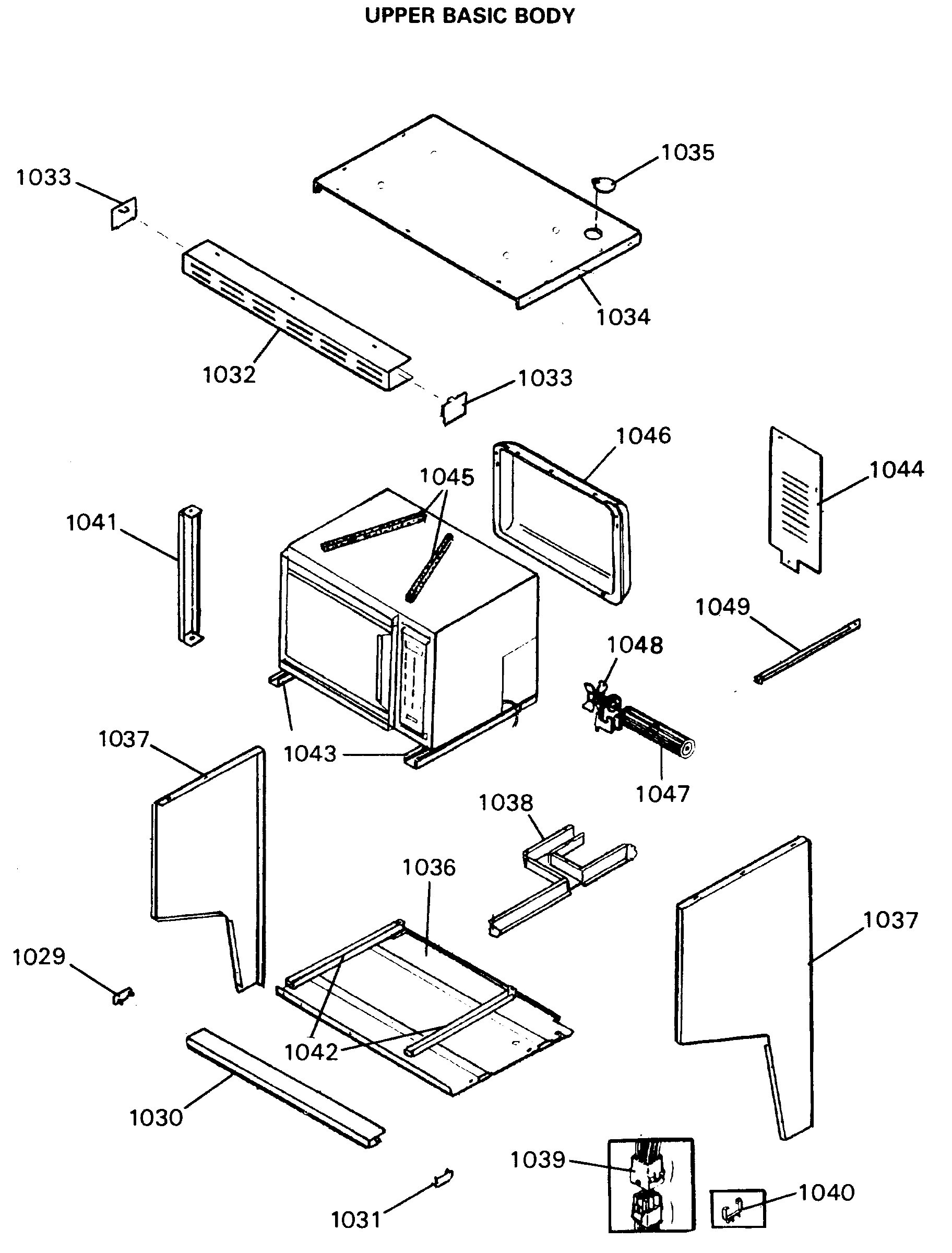

UPPER BASIC BODY

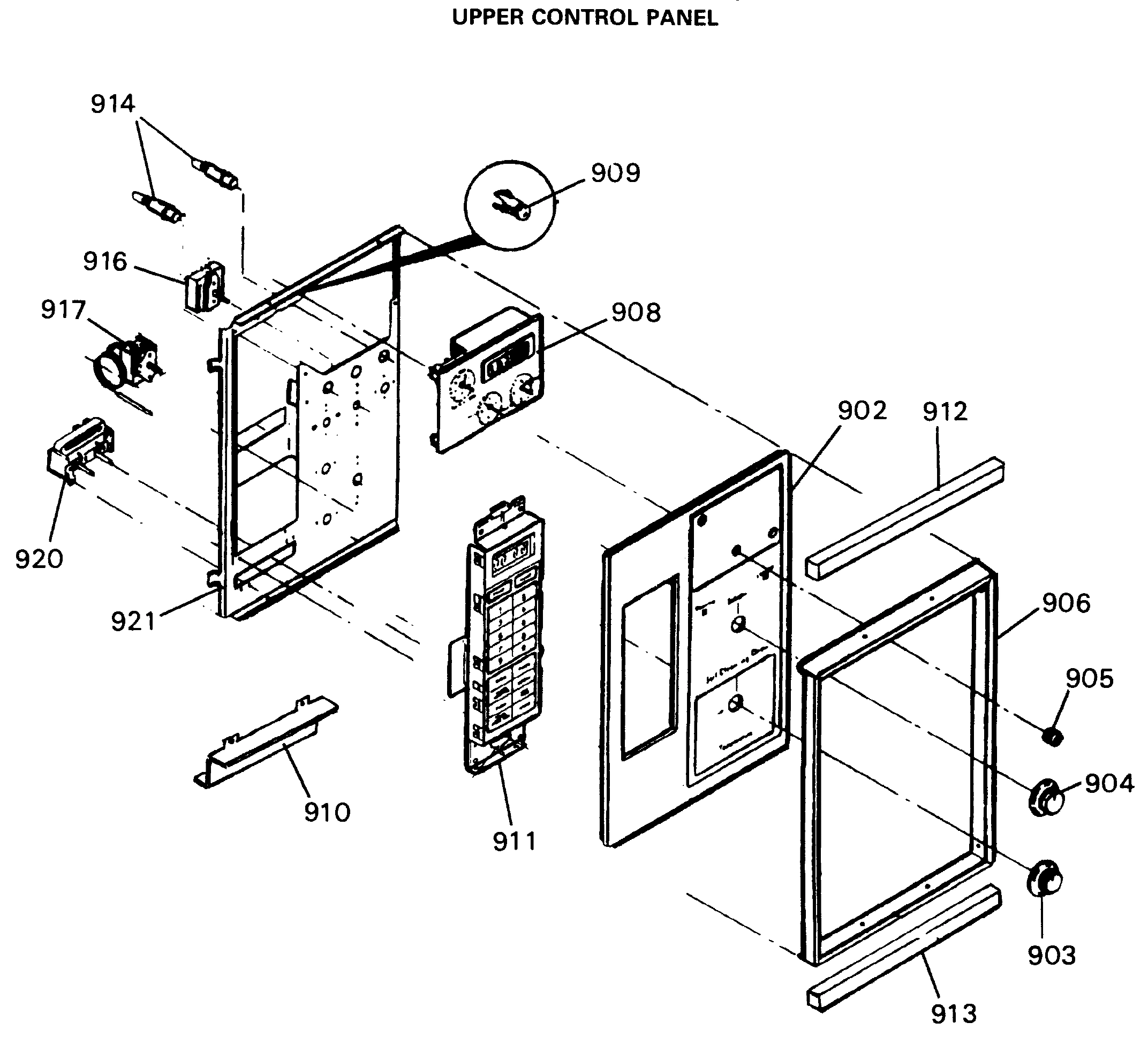

UPPER CONTROL PANEL

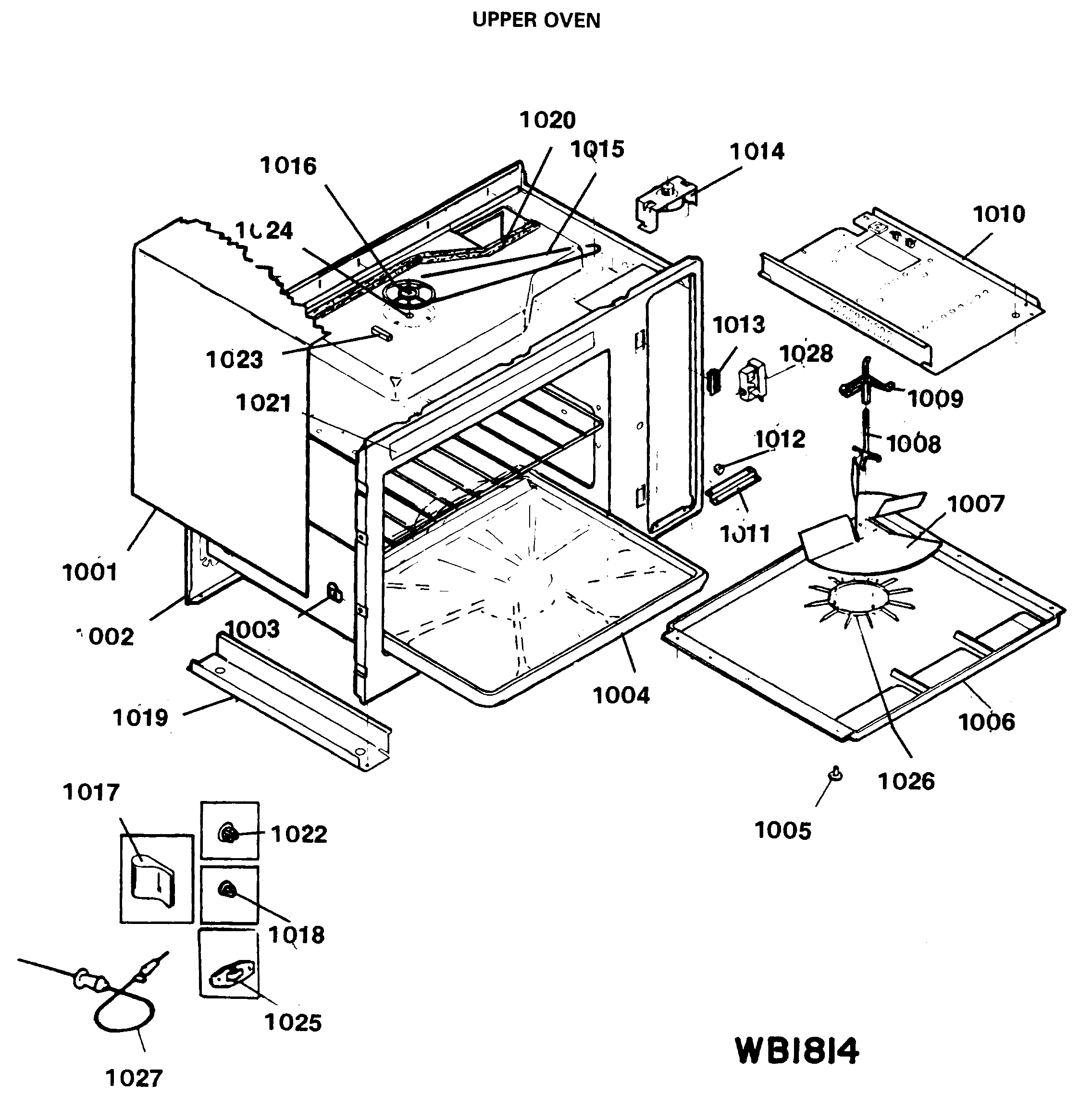

UPPER OVEN

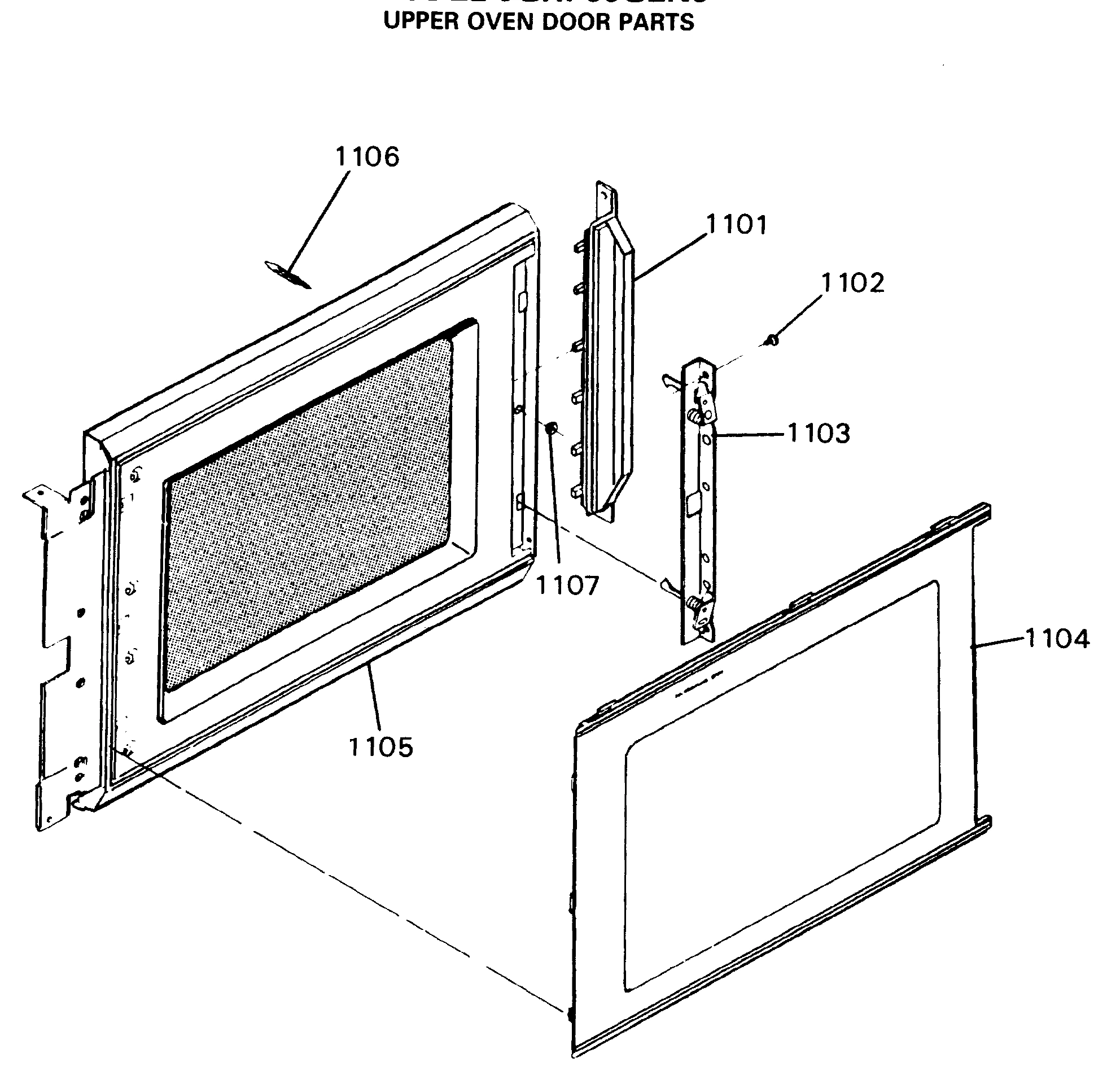

UPPER OVEN DOOR PARTS
Common parts from model GE JGHP66GEN5 Electric Range
2
INSULATION OVEN TOP GEN WB02X4961 Contact Us For Availability
2
INSULATION FRONT FRAME GEN WB02X7959 Contact Us For Availability
2
INSULATION WRAPPER GEN WB02X7960 Contact Us For Availability
2
BUMPER-FRONT MAIN GEN WB02X9044 Contact Us For Availability
3
SOCKET-OVEN LIGHT GEN WB08X0262 Contact Us For Availability
6
WIRE-GLASS RETAINER GEN WB02X9965 Contact Us For Availability
7
GLASS-OVEN LIGHT LENS GEN WB36X5540 Contact Us For Availability
8
CHANNEL DOOR HINGE GEN WB10X0236 Contact Us For Availability
9
GEN WB02X4763 GEN WB02X4763 Contact Us For Availability
10
GEN WB63X5225 GEN WB63X5225 Contact Us For Availability
11
SHIELD WOOL GEN WB02X4766 Contact Us For Availability
11
SHIELD-LOWER GEN WB63X0274 Contact Us For Availability
12
CLIP-THERMO BULB GEN WB01X0706 Contact Us For Availability
13
SWITCH LATCHINGB GEN WB24X0380 Contact Us For Availability
14
GEN WB01X0933 GEN WB01X0933 Contact Us For Availability
14
GEN WB01X0942 GEN WB01X0942 Contact Us For Availability
15
FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
15
GEN WB18X5111 GEN WB18X5111 Contact Us For Availability
15
RECEPTACLE GEN WB2X10268 Contact Us For Availability
15
PLATE WALL GEN WB2X10269 Contact Us For Availability
16
BACK-MAIN GEN WB63X0424 Contact Us For Availability
17
GEN WB02X7955 GEN WB02X7955 Contact Us For Availability
20
GEN WB24X0381 GEN WB24X0381 Contact Us For Availability
21
GEN WB02X4958 GEN WB02X4958 Contact Us For Availability
22
GEN WB2X10053 GEN WB2X10053 Contact Us For Availability
22
SHIELD-WALL REAR GEN WB63X5216 Contact Us For Availability
23
SHIELD-HEAT GEN WB63X0275 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
25
GEN WB27X0106 GEN WB27X0106 Contact Us For Availability
26
SCREW-SET KNOB MTG GEN WB01X0734 Contact Us For Availability
26
SHIELD LATCH GEN WB02X4774 Contact Us For Availability
26
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
27
GEN WB03X5779 GEN WB03X5779 Contact Us For Availability
28
LATCH-DOOR BI-METAL GEN WB14X0067 Contact Us For Availability
29
GEN WB15X0234 GEN WB15X0234 Contact Us For Availability
30
GEN WB2X10084 GEN WB2X10084 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
32
GEN WB63X5224 GEN WB63X5224 Contact Us For Availability
33
SHIELD BI-METAL LATCH GEN WB02X9043 Contact Us For Availability
33
GEN WB63X0279 GEN WB63X0279 Contact Us For Availability
34
GEN WB63X0346 GEN WB63X0346 Contact Us For Availability
35
SHIELD HEAT-BODYSIDE GEN WB63X0344 Contact Us For Availability
35
PANEL BODYSIDE-RH-WHITE GEN WB63X5217 Contact Us For Availability
35
PANEL BODYSIDE-LH-WHITE GEN WB63X5219 Contact Us For Availability
36
SCREW-LEVELINGDRAWER GEN WB01X5823 Contact Us For Availability
37
GEN WB48X0190 GEN WB48X0190 Contact Us For Availability
40
SCREW-BOTTOM GEN WB01X1094 Contact Us For Availability
40
SUPPORT-OVEN BOTTOM GEN WB02X4776 Contact Us For Availability
40
GEN WB53X0266 GEN WB53X0266 Contact Us For Availability
42
TUBE-POST RH GEN WB02X7974 Contact Us For Availability
43
SHIELD-WIRE GEN WB02X4791 Contact Us For Availability
44
GLIDE-UTILITY DRAWER GEN WB39X0064 Contact Us For Availability
45
TUBE-POST LH GEN WB02X7975 Contact Us For Availability
46
TUBE EXTENSION LH GEN WB02X7976 Contact Us For Availability
46
GEN WB02X7977 GEN WB02X7977 Contact Us For Availability
47
GEN WB01X5828 GEN WB01X5828 Contact Us For Availability
48
GEN WB01X5829 GEN WB01X5829 Contact Us For Availability
101
BACK-BACKSPLASH GEN WB61X6056 Contact Us For Availability
102
GEN WB02X7910 GEN WB02X7910 Contact Us For Availability
103
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
104
INSULATOR-LIGHT RECEPT GEN WB2X10079 Contact Us For Availability
105
RECEPTACLE-FLUOR. LIGHT GEN WB08X0252 Contact Us For Availability
106
GEN WB07X7086 GEN WB07X7086 Contact Us For Availability
107
GEN WB26X75 GEN WB26X75 Contact Us For Availability
108
GUSSET SUPPORT-LH GEN WB61X6057 Contact Us For Availability
108
GUSSET SUPPORT-RH GEN WB61X6058 Contact Us For Availability
109
GLASS SPLASHER GEN WB36X0687 Contact Us For Availability
110
GEN WB61X0374 GEN WB61X0374 Contact Us For Availability
111
BALLAST GEN WB20X0087 Contact Us For Availability
113
FASTENER-PURSE LOCK GEN WB02X8362 Contact Us For Availability
116
TRIM O/U SPLASHER-LEFT GEN WB07X1385 Contact Us For Availability
116
TRIM O/U SPLASHER-RIGHT GEN WB07X1386 Contact Us For Availability
117
GEN WB07X7078 GEN WB07X7078 Contact Us For Availability
119
SWITCH ROCKER GEN WB24X5259 Contact Us For Availability
120
STARTER GEN WB02X7914 Contact Us For Availability
121
RECPT STARTER GEN WB02X7913 Contact Us For Availability
301
PANEL-MANIFOLD GEN WB07X1553 Contact Us For Availability
302
KNOB TOP VALVE GEN WB03X0712 Contact Us For Availability
303
ROD TOP SUPPORT GEN WB02X7968 Contact Us For Availability
304
MAIN-TOP CHROME GEN WB62X1643 Contact Us For Availability
305
BRAKET-MAIN TOP HINGE LH GEN WB10X5201 Contact Us For Availability
306
BRAKET-MAIN TOP HINGE GEN WB10X5200 Contact Us For Availability
307
GEN WB07X1362 GEN WB07X1362 Contact Us For Availability
308
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
309
GEN WB32X0089 GEN WB32X0089 Contact Us For Availability
310
GEN WB32X0090 GEN WB32X0090 Contact Us For Availability
461
BRACKER-GLASSER GEN WB02X7919 Contact Us For Availability
462
GEN WB36X5648 GEN WB36X5648 Contact Us For Availability
464
BLACK GLASS DOOR GEN WB55X0600 Contact Us For Availability
465
HANDLE GEN WB15X0245 Contact Us For Availability
466
LINER GEN WB56X7020 Contact Us For Availability
467
SEAL-DOOR GEN WB55X0602 Contact Us For Availability
468
GEN WB55X5348 GEN WB55X5348 Contact Us For Availability
470
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
473
GEN WB01X5818 GEN WB01X5818 Contact Us For Availability
474
GEN WB01X5824 GEN WB01X5824 Contact Us For Availability
475
GEN WB02X7958 GEN WB02X7958 Contact Us For Availability
480
GEN WB02X7921 GEN WB02X7921 Contact Us For Availability
481
GLASS-WINDOW GEN WB36X5649 Contact Us For Availability
482
GEN WB02X7920 GEN WB02X7920 Contact Us For Availability
483
GEN WB01X5819 GEN WB01X5819 Contact Us For Availability
483
GEN WB02X7923 GEN WB02X7923 Contact Us For Availability
551
DRAWER-BODY GEN WB58X0056 Contact Us For Availability
552
GLIDE DRAWER GEN WB39X0060 Contact Us For Availability
553
PANEL BLACK GEN WB56X1855 Contact Us For Availability
554
HANDLE GEN WB15X0233 Contact Us For Availability
555
SHIELD-PANEL GEN WB56X1887 Contact Us For Availability
556
SCREW-HANDLE GEN WB01X1024 Contact Us For Availability
556
FASTENER-SPACER GEN WB02X9052 Contact Us For Availability
701
BAFFLE-BROILER GEN WB49X5473 Contact Us For Availability
702
GEN WB49X0592 GEN WB49X0592 Contact Us For Availability
703
BURNER-BROILER GEN WB28X0065 Contact Us For Availability
704
GEN WB28X0066 GEN WB28X0066 Contact Us For Availability
705
BURNER-TOP DOUBLE GEN WB28X0067 Contact Us For Availability
706
RETAINER IGNITER GEN WB02X9364 Contact Us For Availability
706
BRKT-BURNER MOUNTING GEN WB02X9365 Contact Us For Availability
707
BURNER TUBE (R.F.) GEN WB02X8012 Contact Us For Availability
707
BURNER TUBE (L.F.) GEN WB02X8013 Contact Us For Availability
708
BURNER TUBE (R.R.) GEN WB02X8014 Contact Us For Availability
709
BURNER TUBE (L.R.) GEN WB02X8015 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
712
IGNITER TOP BURNER GEN WB02X9366 Contact Us For Availability
713
MANIFOLD-PIPE GEN WB02X8016 Contact Us For Availability
714
SCREW VALVES TOP BURNER GEN WB01X5831 Contact Us For Availability
714
GEN WB21X5297 GEN WB21X5297 Contact Us For Availability
715
ELBOW GEN WB02X4750 Contact Us For Availability
716
SWITCH-IGNITOR GEN WB24X5284 Contact Us For Availability
717
GEN WB02X7954 GEN WB02X7954 Contact Us For Availability
719
SPARK MODULE GEN WB21X5265 Contact Us For Availability
720
MIXER ELBOW BROILER GEN WB02X7918 Contact Us For Availability
721
GEN WB01X1048 GEN WB01X1048 Contact Us For Availability
726
TUBE ALUM-REGULATOR-ELBO GEN WB02X7956 Contact Us For Availability
727
TUBE ALUM VALVE-REGULATO GEN WB02X4760 Contact Us For Availability
728
TUBE ALUM VALVE-MIXR ELB GEN WB02X7957 Contact Us For Availability
729
VALVE SAFETY GEN WB21X0423 Contact Us For Availability
731
CONTROL REGULATOR GEN WB21X0424 Contact Us For Availability
732
GEN WB02X4772 GEN WB02X4772 Contact Us For Availability
733
NUT GEN WB01X0694 Contact Us For Availability
735
NUT SPECIAL GEN WB01X0928 Contact Us For Availability
902
GEN WB02X7979 GEN WB02X7979 Contact Us For Availability
902
GEN WB02X7980 GEN WB02X7980 Contact Us For Availability
902
GEN WB02X7981 GEN WB02X7981 Contact Us For Availability
902
GEN WB07X7087 GEN WB07X7087 Contact Us For Availability
903
GEN WB03X5780 GEN WB03X5780 Contact Us For Availability
904
GEN WB03X5781 GEN WB03X5781 Contact Us For Availability
905
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
906
TRIM GEN WB07X7088 Contact Us For Availability
908
CLOCK DIGITAL GEN WB19X0240 Contact Us For Availability
909
FASTENER-CLOCK GEN WB01X0774 Contact Us For Availability
910
GEN WB02X7978 GEN WB02X7978 Contact Us For Availability
911
TOUCH CONTROL GEN WB27X5477 Contact Us For Availability
912
GEN WB07X7090 GEN WB07X7090 Contact Us For Availability
913
GEN WB07X7091 GEN WB07X7091 Contact Us For Availability
914
GEN WB02X4735 GEN WB02X4735 Contact Us For Availability
916
GEN WB24X5268 GEN WB24X5268 Contact Us For Availability
917
GEN WB21X5284 GEN WB21X5284 Contact Us For Availability
920
SWITCH-ON/OFF GEN WB24X0343 Contact Us For Availability
921
CONTROL-PANEL GEN WB07X7089 Contact Us For Availability
1001
GEN WB63X5221 GEN WB63X5221 Contact Us For Availability
1002
LINER AND FRAME GEN NOT AVAIL Contact Us For Availability
1003
CLIP-HINGE GEN WB01X1015 Contact Us For Availability
1004
GEN WB49X5480 GEN WB49X5480 Contact Us For Availability
1005
RIVET COVER GEN WB01X0926 Contact Us For Availability
1006
GEN WB56X7028 GEN WB56X7028 Contact Us For Availability
1007
GEN WB02X7989 GEN WB02X7989 Contact Us For Availability
1008
GEN WB02X7990 GEN WB02X7990 Contact Us For Availability
1009
GEN WB02X7991 GEN WB02X7991 Contact Us For Availability
1010
GEN WB02X7992 GEN WB02X7992 Contact Us For Availability
1011
BRKT CONTROL PANEL SUPT GEN WB02X7993 Contact Us For Availability
1013
BEZEL-LATCH GEN WB07X7092 Contact Us For Availability
1014
MOTOR-STIRRER GEN WB26X5092 Contact Us For Availability
1015
GEN WB02X7994 GEN WB02X7994 Contact Us For Availability
1016
GEN WB02X7995 GEN WB02X7995 Contact Us For Availability
1017
GEN WB02X7996 GEN WB02X7996 Contact Us For Availability
1018
GEN WB02X7997 GEN WB02X7997 Contact Us For Availability
1019
GEN WB02X7998 GEN WB02X7998 Contact Us For Availability
1020
GEN WB02X7999 GEN WB02X7999 Contact Us For Availability
1021
LABEL-COOKING GUIDE GEN WB02X8000 Contact Us For Availability
1022
PLUG-BUTTON GEN WB02X7967 Contact Us For Availability
1023
SPACER-WRAPPER GEN WB2X10124 Contact Us For Availability
1024
GEN WB01X5830 GEN WB01X5830 Contact Us For Availability
1025
GEN WB02X8001 GEN WB02X8001 Contact Us For Availability
1026
GEN WB02X8002 GEN WB02X8002 Contact Us For Availability
1027
GEN WB20X0081 GEN WB20X0081 Contact Us For Availability
1028
SCREW-WRAPPER GEN WB01X0819 Contact Us For Availability
1028
GEN WB02X8003 GEN WB02X8003 Contact Us For Availability
1028
GEN WB02X8004 GEN WB02X8004 Contact Us For Availability
1028
GEN WB02X8005 GEN WB02X8005 Contact Us For Availability
1028
GEN WB02X8006 GEN WB02X8006 Contact Us For Availability
1028
RECEPTACLE ASSY GEN WB20X5059 Contact Us For Availability
1029
GEN WB07X7093 GEN WB07X7093 Contact Us For Availability
1030
GEN WB07X7094 GEN WB07X7094 Contact Us For Availability
1031
GEN WB07X7095 GEN WB07X7095 Contact Us For Availability
1032
GEN WB07X7096 GEN WB07X7096 Contact Us For Availability
1033
TRIM-VENT END CAP GEN WB07X7097 Contact Us For Availability
1034
GEN WB63X5222 GEN WB63X5222 Contact Us For Availability
1035
COVER OUTLET GEN WB2X10111 Contact Us For Availability
1037
PANEL RIGHT WHITE GEN WB63X5223 Contact Us For Availability
1037
GEN WB63X0301 GEN WB63X0301 Contact Us For Availability
1039
PLUG KIT GEN WB18X5112 Contact Us For Availability
1040
FASTENER GEN WB2X10080 Contact Us For Availability
1041
GEN WB07X7098 GEN WB07X7098 Contact Us For Availability
1042
CHANNEL-SLIDE GEN WB02X8007 Contact Us For Availability
1043
GEN WB02X8008 GEN WB02X8008 Contact Us For Availability
1044
GEN WB07X7099 GEN WB07X7099 Contact Us For Availability
1045
GEN WB02X8009 GEN WB02X8009 Contact Us For Availability
1046
GEN WB07X7100 GEN WB07X7100 Contact Us For Availability
1047
GEN WB26X5093 GEN WB26X5093 Contact Us For Availability
1048
GEN WB02X8010 GEN WB02X8010 Contact Us For Availability
1049
SUPPORT-TOP CORNER GEN WB02X8011 Contact Us For Availability
1049
FAN RELAY GEN WB27X0417 Contact Us For Availability
1101
GEN WB15X5184 GEN WB15X5184 Contact Us For Availability
1102
GEN WB01X5825 GEN WB01X5825 Contact Us For Availability
1103
GEN WB10X5203 GEN WB10X5203 Contact Us For Availability
1104
GEN WB55X5350 GEN WB55X5350 Contact Us For Availability
1105
GEN WB55X5351 GEN WB55X5351 Contact Us For Availability
1106
GEN WB01X5826 GEN WB01X5826 Contact Us For Availability
1107
HEX NUT-DOOR STRIKE GEN WB01X1035 Contact Us For Availability
1107
GEN WB01X5827 GEN WB01X5827 Contact Us For Availability
1201
GEN WB27X5478 GEN WB27X5478 Contact Us For Availability
1202
GEN WB02X7982 GEN WB02X7982 Contact Us For Availability
1203
SOCKET-LIGHT GEN WB08X0245 Contact Us For Availability
1204
BULB-OVEN LIGHT-40 WATT GEN BUY LOCAL Contact Us For Availability
1205
GEN WB02X7983 GEN WB02X7983 Contact Us For Availability
1206
GEN WB49X5479 GEN WB49X5479 Contact Us For Availability
1207
GEN WB26X5091 GEN WB26X5091 Contact Us For Availability
1208
GEN WB27X5484 GEN WB27X5484 Contact Us For Availability
1209
GEN WB02X7984 GEN WB02X7984 Contact Us For Availability
1210
GEN WB02X7985 GEN WB02X7985 Contact Us For Availability
1211
FUSE-20 AMP GEN WB27X0303 Contact Us For Availability
1212
GEN WB27X5479 GEN WB27X5479 Contact Us For Availability
1213
CAPACITOR-HIGH V GEN WB27X0321 Contact Us For Availability
1214
GEN WB02X7986 GEN WB02X7986 Contact Us For Availability
1215
GEN WB27X5480 GEN WB27X5480 Contact Us For Availability
1216
GEN WB02X7987 GEN WB02X7987 Contact Us For Availability
1217
SWITCH UPPER & LOWER GEN WB24X5269 Contact Us For Availability
1220
GEN WB24X5270 GEN WB24X5270 Contact Us For Availability
1221
GEN WB02X7988 GEN WB02X7988 Contact Us For Availability
1222
SOCKET-FUSE GEN WB08X0246 Contact Us For Availability
9999
GEN 49-4706 GEN 49-4706 Contact Us For Availability
9999
GEN 49-8161 GEN 49-8161 Contact Us For Availability
9999
GEN WB02X9804 GEN WB02X9804 Contact Us For Availability
32767
GEN 31-0643 GEN 31-0643 Contact Us For Availability
× ![]()
