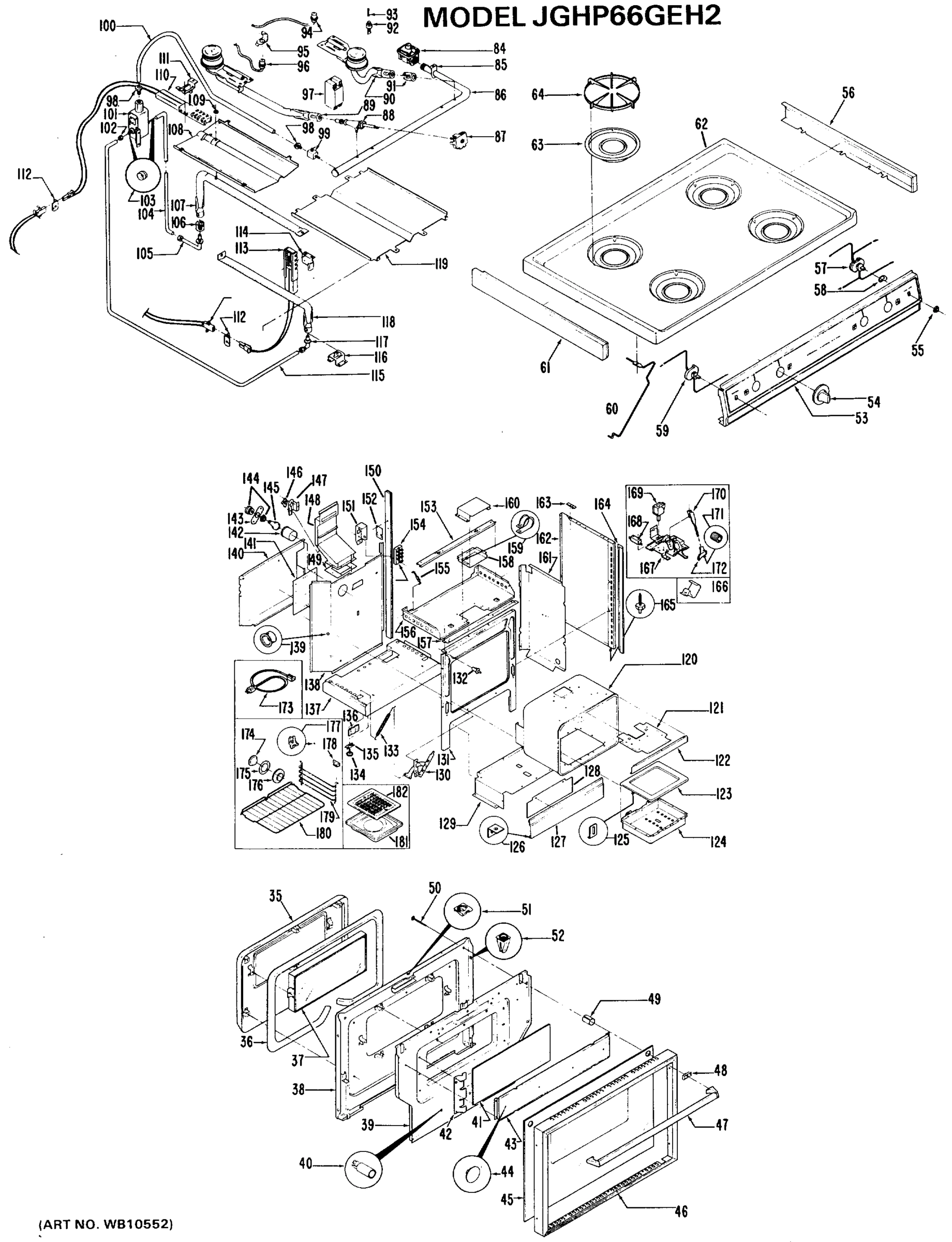

Model GE JGHP66GEH2 Gas Range Or Dual Fuel – Common Parts & Diagrams
0
1
Common parts from model GE JGHP66GEH2 Gas Range Or Dual Fuel
1
SHIELD REAR WALL GEN WB55X0537 Contact Us For Availability
2
GEN WB02X4363 GEN WB02X4363 Contact Us For Availability
3
INSULATOR-FLUOR. LT. REC GEN WB02X4294 Contact Us For Availability
4
RECEPTACLE-FLUOR LIGHT GEN WB08X0242 Contact Us For Availability
5
FLUORESCENT LIGHT BULB GEN WB02X4666 Contact Us For Availability
6
GEN WB36X0687 GEN WB36X0687 Contact Us For Availability
7
GEN WB07X1382 GEN WB07X1382 Contact Us For Availability
8
BLOWER MOTOR ASSEMBLY GEN WB26X0075 Contact Us For Availability
9
GUSSET MICRO-SUPPORT L/H GEN WB02X4392 Contact Us For Availability
9
GUSSET-MICROSUPPORT R/H GEN WB02X4393 Contact Us For Availability
10
GEN WB02X4364 GEN WB02X4364 Contact Us For Availability
11
PANEL-SPLASHER (UPPER) GEN WB56X1716 Contact Us For Availability
12
GEN WB27X0299 GEN WB27X0299 Contact Us For Availability
13
GEN WB19X1211 GEN WB19X1211 Contact Us For Availability
14
TRIM GEN WB07X1394 Contact Us For Availability
15
KNOB CLOCK GEN WB03X0628 Contact Us For Availability
16
GEN WB03X0642 GEN WB03X0642 Contact Us For Availability
17
GEN WB03X0643 GEN WB03X0643 Contact Us For Availability
18
BUTTON GEN WB03X0640 Contact Us For Availability
19
BEZEL GEN WB04X0102 Contact Us For Availability
20
GEN WB36X0693 GEN WB36X0693 Contact Us For Availability
21
GEN WB02X4422 GEN WB02X4422 Contact Us For Availability
22
PANEL-SWITCH MOUNTING GEN WB02X4423 Contact Us For Availability
23
KEYPANEL GEN WB27X0300 Contact Us For Availability
24
SMARTBOARD GEN WB27X0301 Contact Us For Availability
25
GEN WB02X4424 GEN WB02X4424 Contact Us For Availability
26
FASTENER GEN WB01X0782 Contact Us For Availability
27
GEN WB02X4433 GEN WB02X4433 Contact Us For Availability
28
GEN WB02X4434 GEN WB02X4434 Contact Us For Availability
29
SWITCH-SELECTOR GEN WB24X0331 Contact Us For Availability
30
GEN WB21X0405 GEN WB21X0405 Contact Us For Availability
31
SWITCH-ON/OFF GEN WB24X0343 Contact Us For Availability
32
PLUG-9 PIN GEN WB17X0192 Contact Us For Availability
33
GEN WB02X4425 GEN WB02X4425 Contact Us For Availability
34
COVE-SEAL GEN WB02X4426 Contact Us For Availability
35
LINER-SHIELD GEN WB55X0519 Contact Us For Availability
36
SEAL-DOOR GEN WB02X4296 Contact Us For Availability
37
GLASS PACKAGE (VIS. S/C) GEN WB36X0683 Contact Us For Availability
38
LINER-OVEN DOOR GEN WB55X0520 Contact Us For Availability
39
GEN WB55X5211 GEN WB55X5211 Contact Us For Availability
40
FASTENER-NYLON SPACER (1/2 BLK.) GEN WB01X0730 Contact Us For Availability
40
FASTENER-NYLON SPACER (5/8 RED) GEN WB01X0731 Contact Us For Availability
41
GLASS-OVEN DOOR-MIDDLE GEN WB36X0679 Contact Us For Availability
42
BRACKET-GLASS GEN WB02X4297 Contact Us For Availability
43
SHIELD-HEAT GEN WB55X0522 Contact Us For Availability
44
GEN WB02X4299 GEN WB02X4299 Contact Us For Availability
45
GLASS-OVEN DOOR (BLACK VIS.) GEN WB36X0684 Contact Us For Availability
46
TRIM-OVEN DOOR FRAME GEN WB07X1396 Contact Us For Availability
47
HANDLE-OVEN DOOR GEN WB15X0208 Contact Us For Availability
48
SPACER-OVEN DR. HANDLE W/POST. GEN WB02X4285 Contact Us For Availability
50
SCREW-HANDLE MTG.(10-24X2'FL.WSH.HD) GEN WB01X0797 Contact Us For Availability
51
FASTENER-CLIP (8A U-TYPE) GEN WB01X0732 Contact Us For Availability
52
FASTENER-NYLON SPACER(3/32" BLACK) GEN WB01X0705 Contact Us For Availability
53
GEN WB07X1417 GEN WB07X1417 Contact Us For Availability
54
KNOB-TOP BURNERS GEN WB03X0631 Contact Us For Availability
55
GEN WB01X0726 GEN WB01X0726 Contact Us For Availability
56
TRIM-MAIN TOP R.H. GEN WB07X1363 Contact Us For Availability
57
SWITCH-FLUOR. LIGHT GEN WB24X0333 Contact Us For Availability
58
GEN WB01X0725 GEN WB01X0725 Contact Us For Availability
59
SWITCH-OVEN LIGHT GEN WB24X0332 Contact Us For Availability
60
ROD-MAIN TOP SUPPORT GEN WB02X4280 Contact Us For Availability
61
TRIM-MAIN TOP L.H. GEN WB07X1362 Contact Us For Availability
62
PANEL-MAIN TOP (LUSTERLOY) GEN WB62X1609 Contact Us For Availability
63
GEN WB32X0084 GEN WB32X0084 Contact Us For Availability
64
GRATE-TOP BURNER GEN WB32X0083 Contact Us For Availability
65
GEN WB02X4414 GEN WB02X4414 Contact Us For Availability
66
GLASS-DOOR GEN WB36X0691 Contact Us For Availability
67
CHANNEL GEN WB02X4415 Contact Us For Availability
68
GEN WB02X4416 GEN WB02X4416 Contact Us For Availability
69
FRAME-DOOR GEN WB55X0538 Contact Us For Availability
70
HINGE-DOOR GEN WB14X0055 Contact Us For Availability
71
GASKET-DOOR GEN WB02X4417 Contact Us For Availability
72
PANEL-DOOR GEN WB55X0539 Contact Us For Availability
73
LINER-DOOR GEN WB36X0692 Contact Us For Availability
74
SEAL GEN WB02X4418 Contact Us For Availability
75
CHANNEL GEN WB02X4419 Contact Us For Availability
76
SCREW DOOR STRIKE GEN WB01X0778 Contact Us For Availability
78
INSERT GEN WB02X4420 Contact Us For Availability
79
EXTRUSION GEN WB02X4421 Contact Us For Availability
80
GEN WB01X0780 GEN WB01X0780 Contact Us For Availability
81
SPRING GEN WB09X0202 Contact Us For Availability
82
GEN WB15X0211 GEN WB15X0211 Contact Us For Availability
83
HOOK-HANDLE GEN WB10X0227 Contact Us For Availability
84
CONTROL PRESSURE REGULATOR GEN WB21X0395 Contact Us For Availability
85
ANGLE-MANIFOLD PIPE SUPPORT GEN WB02X4188 Contact Us For Availability
86
MANIFOLD PIPE GEN WB02X4298 Contact Us For Availability
87
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
88
VALVE-TOP BURNERS (3 POS. LOCK TYPE) GEN WB21X0397 Contact Us For Availability
89
BURNER TOP (REAR) GEN WB28X0062 Contact Us For Availability
90
BURNER TOP (FRONT) GEN WB28X0061 Contact Us For Availability
91
MIXER-AIR (TOP BURNER) GEN WB02X4191 Contact Us For Availability
92
RECEPTACLE-FUSE HOLDER GEN WB02X4213 Contact Us For Availability
93
GEN WB01X0809 GEN WB01X0809 Contact Us For Availability
93
FUSE (5A 250V) GEN WB27X0277 Contact Us For Availability
94
BASE-IGNITER R.H. GEN WB02X4215 Contact Us For Availability
95
RETAINER-TOP IGN. HARNESS ASSY. GEN WB02X4214 Contact Us For Availability
96
BASE-IGNITER GEN WB02X4216 Contact Us For Availability
97
IGNITOR MODULE BOARD GEN WB21X0389 Contact Us For Availability
98
LOXIT NUT SHUT OFF & SAFETY VALVE (7/16") GEN WB01X0713 Contact Us For Availability
99
VALVE-SHUT OFF (MANUAL) GEN WB21X0390 Contact Us For Availability
100
TUBE-VALVE SUPPLY (7/16" X 26 1/2") GEN WB02X4300 Contact Us For Availability
101
VALVE-OVEN SAFETY (DUAL) GEN WB21X0398 Contact Us For Availability
102
COMPRESION NUT (3/8") GEN WB02X4301 Contact Us For Availability
103
FERRULE (3/8") GEN WB02X4302 Contact Us For Availability
104
TUBE-BROILER SUPPLY (3/8 X 14") GEN WB02X4303 Contact Us For Availability
105
GEN WB02X4304 GEN WB02X4304 Contact Us For Availability
106
GEN WB02X4305 GEN WB02X4305 Contact Us For Availability
107
GEN WB28X0046 GEN WB28X0046 Contact Us For Availability
108
GEN WB49X0526 GEN WB49X0526 Contact Us For Availability
109
GEN WB01X0694 GEN WB01X0694 Contact Us For Availability
111
GEN WB02X4307 GEN WB02X4307 Contact Us For Availability
112
GEN WB02X4308 GEN WB02X4308 Contact Us For Availability
113
GEN WB02X4309 GEN WB02X4309 Contact Us For Availability
114
GEN WB02X4310 GEN WB02X4310 Contact Us For Availability
115
GEN WB02X4485 GEN WB02X4485 Contact Us For Availability
116
GEN WB02X4311 GEN WB02X4311 Contact Us For Availability
117
GEN WB02X4312 GEN WB02X4312 Contact Us For Availability
118
GEN WB28X0047 GEN WB28X0047 Contact Us For Availability
119
GEN WB49X0527 GEN WB49X0527 Contact Us For Availability
121
GEN WB55X0525 GEN WB55X0525 Contact Us For Availability
122
GEN WB55X0527 GEN WB55X0527 Contact Us For Availability
123
GEN WB55X0526 GEN WB55X0526 Contact Us For Availability
124
GEN WB49X0528 GEN WB49X0528 Contact Us For Availability
125
GEN WB02X4313 GEN WB02X4313 Contact Us For Availability
126
GEN WB02X4314 GEN WB02X4314 Contact Us For Availability
127
GEN WB56X1691 GEN WB56X1691 Contact Us For Availability
128
GEN WB55X0528 GEN WB55X0528 Contact Us For Availability
129
GEN WB55X0529 GEN WB55X0529 Contact Us For Availability
130
GEN WB14X0044 GEN WB14X0044 Contact Us For Availability
130
GEN WB14X0045 GEN WB14X0045 Contact Us For Availability
132
GEN WB24X0335 GEN WB24X0335 Contact Us For Availability
133
GEN WB09X0201 GEN WB09X0201 Contact Us For Availability
134
GEN WB01X0711 GEN WB01X0711 Contact Us For Availability
135
GEN WB01X0710 GEN WB01X0710 Contact Us For Availability
136
GEN WB02X4315 GEN WB02X4315 Contact Us For Availability
137
GEN WB49X0529 GEN WB49X0529 Contact Us For Availability
138
GEN WB49X0530 GEN WB49X0530 Contact Us For Availability
139
GEN WB02X4316 GEN WB02X4316 Contact Us For Availability
140
GEN WB55X0530 GEN WB55X0530 Contact Us For Availability
141
GEN WB55X0531 GEN WB55X0531 Contact Us For Availability
142
GEN WB02X4317 GEN WB02X4317 Contact Us For Availability
143
GEN WB02X4318 GEN WB02X4318 Contact Us For Availability
144
GEN WB08X0243 GEN WB08X0243 Contact Us For Availability
146
GEN WB24X0336 GEN WB24X0336 Contact Us For Availability
146
GEN WB24X0337 GEN WB24X0337 Contact Us For Availability
147
GEN WB32X4319 GEN WB32X4319 Contact Us For Availability
148
GEN WB49X0545 GEN WB49X0545 Contact Us For Availability
149
GEN WB02X4320 GEN WB02X4320 Contact Us For Availability
150
GEN WB02X4367 GEN WB02X4367 Contact Us For Availability
151
GEN WB02X4211 GEN WB02X4211 Contact Us For Availability
152
GEN WB02X4368 GEN WB02X4368 Contact Us For Availability
153
GEN WB02X4275 GEN WB02X4275 Contact Us For Availability
154
GEN WB17X0189 GEN WB17X0189 Contact Us For Availability
155
GEN WB14 GEN WB14 Contact Us For Availability
183
GEN WB27X0302 GEN WB27X0302 Contact Us For Availability
184
GEN WB21X0404 GEN WB21X0404 Contact Us For Availability
185
FUSE GEN WB27X0303 Contact Us For Availability
186
SOCKET-FUSE GEN WB08X0246 Contact Us For Availability
187
FAN BLADE-MAGNETRON GEN WB02X4427 Contact Us For Availability
188
FAN MOTOR GEN WB26X0077 Contact Us For Availability
189
ROD-FAN SUPPORT GEN WB02X4428 Contact Us For Availability
190
BRACKET GEN WB02X4429 Contact Us For Availability
191
DIODE-HV GEN WB27X0304 Contact Us For Availability
192
TRANSFORMER-HV GEN WB27X0305 Contact Us For Availability
193
RETAINER GEN WB02X4430 Contact Us For Availability
194
SHIELD GEN WB02X4431 Contact Us For Availability
195
CAPACITOR HIGH VOLTAGE GEN WB27X0306 Contact Us For Availability
196
TRANSFORMER-LV GEN WB27X0307 Contact Us For Availability
197
GEN WB24X0344 GEN WB24X0344 Contact Us For Availability
198
TRIAC HEAT SINK ASM GEN WB27X0308 Contact Us For Availability
199
GEN WB02X4432 GEN WB02X4432 Contact Us For Availability
200
NUT-HEX GEN WB01X0779 Contact Us For Availability
201
GEN WB18X0220 GEN WB18X0220 Contact Us For Availability
203
GEN WB02X4394 GEN WB02X4394 Contact Us For Availability
204
COVER GEN WB02X4395 Contact Us For Availability
205
END CAP GEN WB07X1388 Contact Us For Availability
206
TRIM-BOTTOM GEN WB07X1389 Contact Us For Availability
207
STRIKE-DOOR GEN WB14X0054 Contact Us For Availability
208
GROMMET-DOOR GEN WB02X4396 Contact Us For Availability
209
TRIM-FRONT GEN WB07X1390 Contact Us For Availability
210
TRAY-GLASS GEN WB48X0174 Contact Us For Availability
211
CLIP-TRAY GEN WB01X0775 Contact Us For Availability
212
GLIDE-TRAY GEN WB02X4397 Contact Us For Availability
213
COVER-STIRRER GEN WB02X4398 Contact Us For Availability
214
FAN-STIRRER GEN WB02X4399 Contact Us For Availability
215
NUT GEN WB01X0776 Contact Us For Availability
216
GEN WB20X0080 GEN WB20X0080 Contact Us For Availability
217
ANGLE-AIR BAFFLE GEN WB02X4400 Contact Us For Availability
218
ANGLE-AIR BAFFLE GEN WB02X4401 Contact Us For Availability
219
CHANNEL GEN WB02X4402 Contact Us For Availability
220
COVER GEN WB02X4403 Contact Us For Availability
221
COVER-DUCT GEN WB02X4404 Contact Us For Availability
222
BRACKET MAG. SUPT. GEN WB02X4405 Contact Us For Availability
223
GEN WB02X4406 GEN WB02X4406 Contact Us For Availability
224
SOCKRT-LIGHT GEN WB08X0245 Contact Us For Availability
226
MOTOR-STIRRER GEN WB26X0076 Contact Us For Availability
227
WASHER GEN WB01X0777 Contact Us For Availability
228
RETAINER-TRIM GEN WB02X4407 Contact Us For Availability
229
TRIM GEN WB07X1391 Contact Us For Availability
230
END CAP-LEFT GEN WB07X1392 Contact Us For Availability
230
END CAP-RIGHT GEN WB07X1393 Contact Us For Availability
231
GEN WB02 GEN WB02 Contact Us For Availability
× ![]()
