Model GE JGHP57GEJG Electric Range – Common Parts & Diagrams

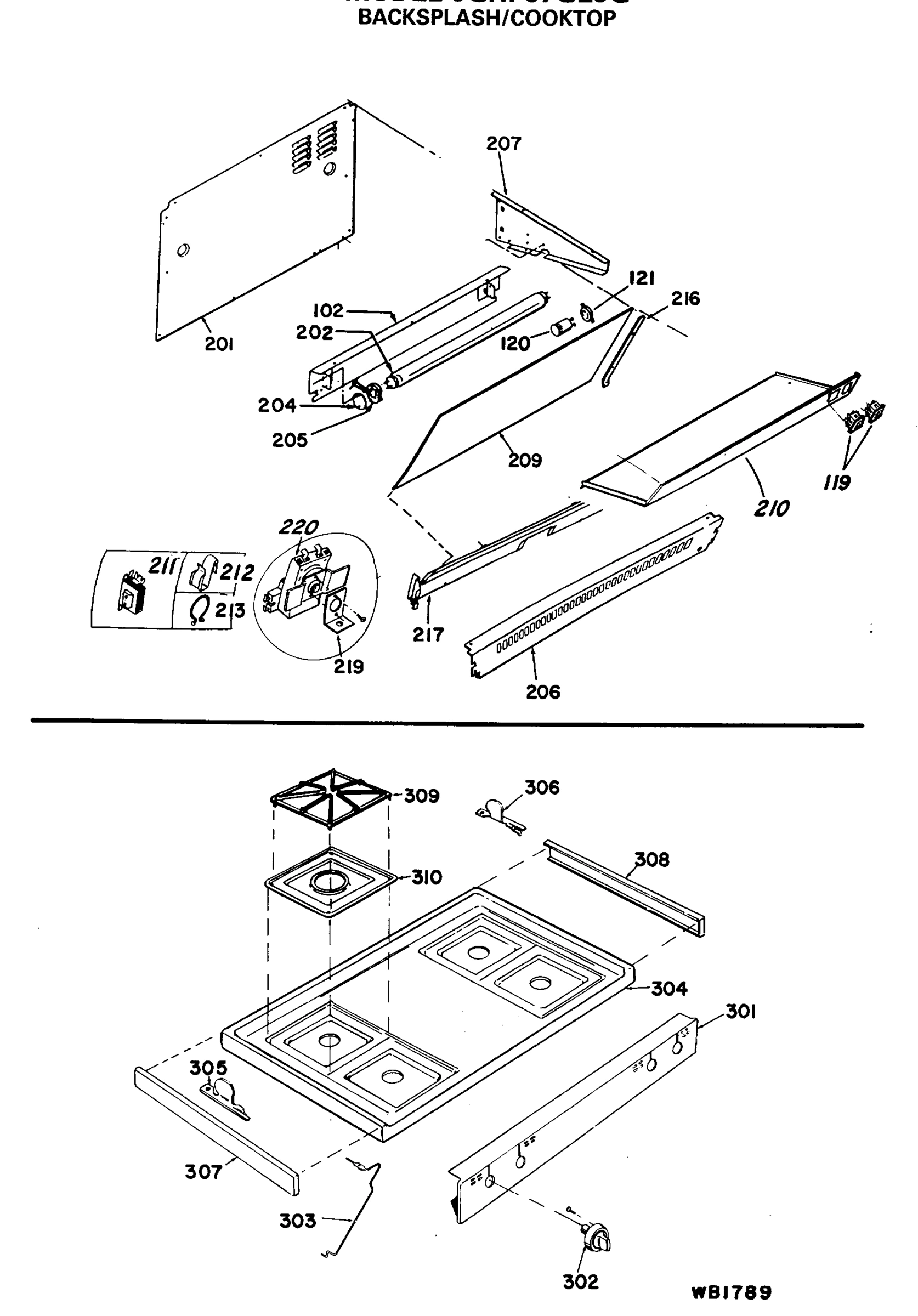

BACKSPLASH/COOKTOP

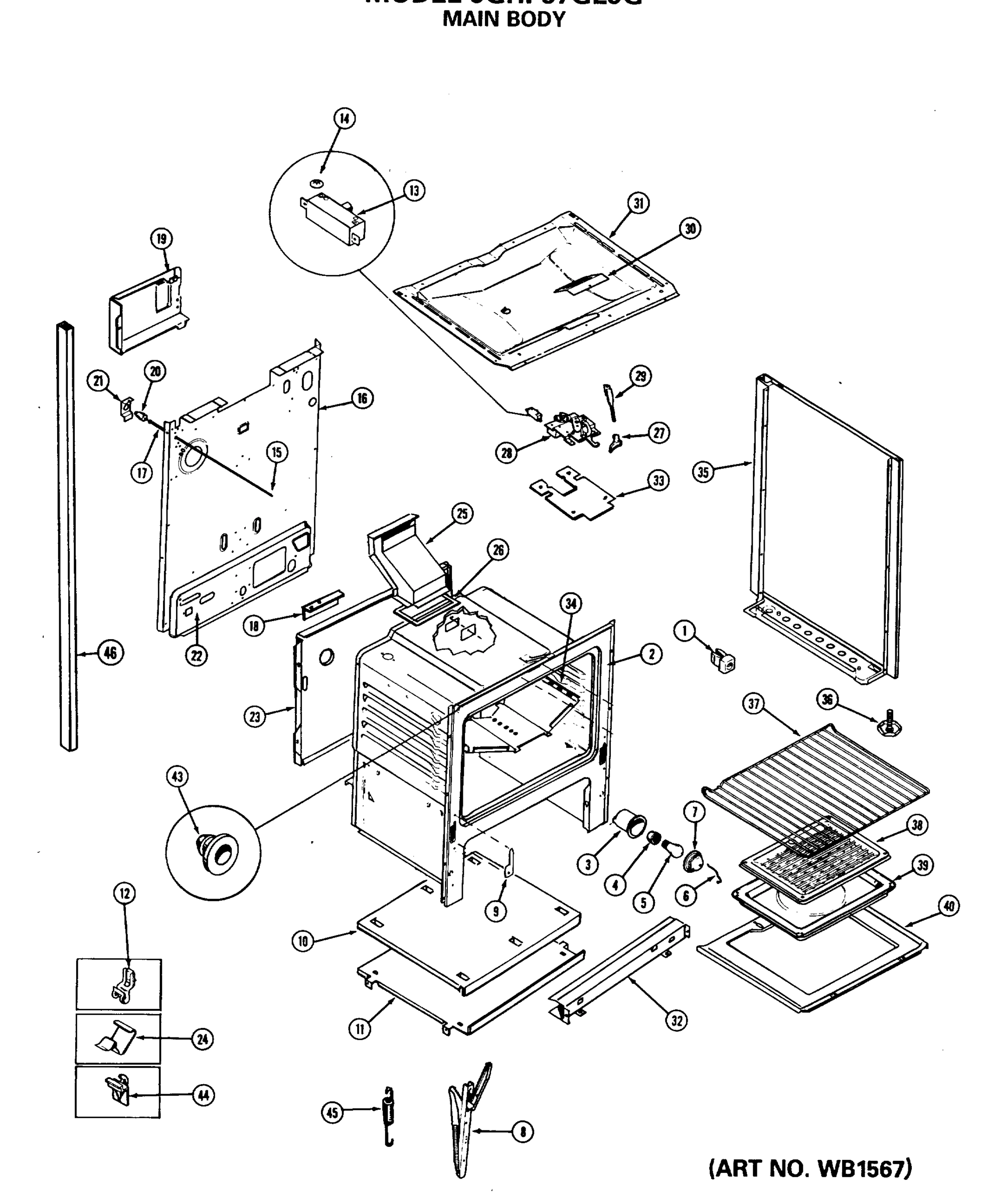

MAIN BODY
UPPER OVEN BODY/CONTROL PANEL
UPPER OVEN DOOR/LOWER OVEN DOOR
UTILITY DRAWER/GAS CONTROL SYSTEM
Common parts from model GE JGHP57GEJG Electric Range
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
SCREW-HINGE PIN GEN WB01X0769 Contact Us For Availability
2
FASTENER-POWER CORD . GEN WB01X0925 Contact Us For Availability
2
SHIELD-WIRE GEN WB02X4791 Contact Us For Availability
2
GEN WB18X0255 GEN WB18X0255 Contact Us For Availability
3
GEN WB02X10083 GEN WB02X10083 Contact Us For Availability
4
CHANNEL-LIGHT SHIELD GEN WB02X4967 Contact Us For Availability
4
LIGHT SOCKET GEN WB08X0262 Contact Us For Availability
6
WIRE-GLASS RETAINER GEN WB02X9965 Contact Us For Availability
6
FLUE-BACK GEN WB49X0543 Contact Us For Availability
8
HINGE GEN WB10X0236 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB63X5228 GEN WB63X5228 Contact Us For Availability
11
SHIELD-INSULATION GEN WB02X4766 Contact Us For Availability
11
TRIM-SIDE-RH GEN WB07X1386 Contact Us For Availability
11
GEN WB63X0274 GEN WB63X0274 Contact Us For Availability
12
GEN WB01X0941 GEN WB01X0941 Contact Us For Availability
13
GEN WB24X0380 GEN WB24X0380 Contact Us For Availability
14
GEN WB01X0933 GEN WB01X0933 Contact Us For Availability
14
GEN WB01X0942 GEN WB01X0942 Contact Us For Availability
14
GEN WB10X0226 GEN WB10X0226 Contact Us For Availability
15
COVER-LIGHT ROD GEN WB02X4767 Contact Us For Availability
16
BACK-MAIN GEN WB63X0424 Contact Us For Availability
17
GEN WB02X8217 GEN WB02X8217 Contact Us For Availability
18
GEN WB02X4753 GEN WB02X4753 Contact Us For Availability
18
ANGLE-LIGHT SHIELD GEN WB02X4962 Contact Us For Availability
20
GEN WB02X8218 GEN WB02X8218 Contact Us For Availability
21
GEN WB02X4958 GEN WB02X4958 Contact Us For Availability
22
RETAINER-OVEN BURNER GEN WB02X4372 Contact Us For Availability
22
SHIELD-HEAT- REAR WALL GEN WB63X0275 Contact Us For Availability
22
GEN WB63X5216 GEN WB63X5216 Contact Us For Availability
23
TRIM-CONTROL PANEL GEN WB07X7173 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
24
COVER-OVEN LIGHT GEN WB02X4375 Contact Us For Availability
25
GASKET-OVEN LIGHT LENS GEN WB02X4373 Contact Us For Availability
25
GEN WB38X0092 GEN WB38X0092 Contact Us For Availability
26
GLASS-OVEN LIGHT LENS GEN WB02X4374 Contact Us For Availability
26
SHIELD-LATCH GEN WB02X4774 Contact Us For Availability
26
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
27
SET SCREW-KNOB-LATCH GEN WB01X0734 Contact Us For Availability
27
GEN WB03X0632 GEN WB03X0632 Contact Us For Availability
28
GEN WB14X0067 GEN WB14X0067 Contact Us For Availability
28
GEN WB48X0172 GEN WB48X0172 Contact Us For Availability
29
GEN WB15X0260 GEN WB15X0260 Contact Us For Availability
30
COVER-PLATE GEN WB02X10084 Contact Us For Availability
30
SEAL-DOOR-SIDES GEN WB02X4376 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
32
GEN WB55X0581 GEN WB55X0581 Contact Us For Availability
32
GEN WB63X5224 GEN WB63X5224 Contact Us For Availability
33
GEN WB63X0279 GEN WB63X0279 Contact Us For Availability
34
GEN WB63X0346 GEN WB63X0346 Contact Us For Availability
35
SHIELD-HEAT-BODY-SIDE GEN WB63X0344 Contact Us For Availability
35
PANEL BODYSIDE (WH-R.H.) GEN WB63X5217 Contact Us For Availability
35
PANEL BODYSIDE (AD-R.H.) GEN WB63X5218 Contact Us For Availability
35
PANEL BODYSIDE (WH-L.H.) GEN WB63X5219 Contact Us For Availability
35
PANEL BODYSIDE (AD-L.H.) GEN WB63X5220 Contact Us For Availability
36
LEVELING LEG GEN WB01X0711 Contact Us For Availability
36
GLASS-DOOR-OUTER GEN WB36X0689 Contact Us For Availability
37
FASTENER-CABLE CLAMP GEN WB02X10053 Contact Us For Availability
37
GEN WB48X5100 GEN WB48X5100 Contact Us For Availability
38
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
40
SUPPORT-OVEN BOTTOM GEN WB02X4776 Contact Us For Availability
40
BUMPER-FRONT MAIN GEN WB02X4777 Contact Us For Availability
40
GEN WB53X0266 GEN WB53X0266 Contact Us For Availability
42
BRACKET-DOOR FRAME-L END GEN WB02X4366 Contact Us For Availability
42
INSULATION-BACK GEN WB02X4959 Contact Us For Availability
42
INSULATION-TOP GEN WB02X4961 Contact Us For Availability
43
BUTTON-REMOTE LIGHT SW. GEN WB03X0688 Contact Us For Availability
44
GLIDE-UTILITY DRAWER GEN WB39X0064 Contact Us For Availability
45
GEN WB02X0229 GEN WB02X0229 Contact Us For Availability
46
GEN WB02X10086 GEN WB02X10086 Contact Us For Availability
46
GEN WB02X10087 GEN WB02X10087 Contact Us For Availability
63
GEN WB36X0687 GEN WB36X0687 Contact Us For Availability
73
GEN WB02X4385 GEN WB02X4385 Contact Us For Availability
78
GEN WB28X0051 GEN WB28X0051 Contact Us For Availability
87
NUT GEN WB01X0694 Contact Us For Availability
102
GEN WB02X7910 GEN WB02X7910 Contact Us For Availability
102
VALVE-SHUT-OFF GEN WB21X5307 Contact Us For Availability
104
GEN WB02X10079 GEN WB02X10079 Contact Us For Availability
111
BALLAST GEN WB20X0087 Contact Us For Availability
113
GEN WB02X10080 GEN WB02X10080 Contact Us For Availability
113
FASTENER GEN WB2X10080 Contact Us For Availability
116
TRIM-SIDE-LH GEN WB07X1385 Contact Us For Availability
117
GEN WB07X1552 GEN WB07X1552 Contact Us For Availability
119
SWITCH-OVENLIGHT ROCKER GEN WB24X5259 Contact Us For Availability
120
STARTER-FLUOR LT GEN WB02X7914 Contact Us For Availability
121
RECEPT-STARTER FLUOR LT GEN WB02X7913 Contact Us For Availability
167
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
179
THERMOSTAT-S/C OVEN GEN WB21X0421 Contact Us For Availability
183
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
201
BACK-BACKSPLASH GEN WB61X0341 Contact Us For Availability
204
GEN WB08X5101 GEN WB08X5101 Contact Us For Availability
205
GEN WB02X8199 GEN WB02X8199 Contact Us For Availability
206
GEN WB07X1482 GEN WB07X1482 Contact Us For Availability
207
GEN WB02X8200 GEN WB02X8200 Contact Us For Availability
207
GEN WB02X8201 GEN WB02X8201 Contact Us For Availability
209
GEN WB61X6059 GEN WB61X6059 Contact Us For Availability
210
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
219
GEN WB02X10118 GEN WB02X10118 Contact Us For Availability
257
BULB-OVEN LIGHT-40WATT GEN BUY LOCAL Contact Us For Availability
301
GEN WB07X1553 GEN WB07X1553 Contact Us For Availability
302
KNOB-TOP BURNER VALVE GEN WB03X0712 Contact Us For Availability
303
ROD MAIN TOP SUPPORT GEN WB02X7968 Contact Us For Availability
303
GLASS-OVEN LIGHT LENS GEN WB36X5540 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
307
GEN WB07X1526 GEN WB07X1526 Contact Us For Availability
309
GRATE - TOP GEN WB32X5087 Contact Us For Availability
310
GEN WB32X5082 GEN WB32X5082 Contact Us For Availability
332
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
333
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
461
BRACKET GEN WB02X4980 Contact Us For Availability
461
BRACKET GLASS GEN WB02X7919 Contact Us For Availability
462
GEN WB36X5649 GEN WB36X5649 Contact Us For Availability
464
GEN WB02X8206 GEN WB02X8206 Contact Us For Availability
464
GEN WB02X8207 GEN WB02X8207 Contact Us For Availability
465
HANDLE GEN WB15X0245 Contact Us For Availability
466
SCREW-DOOR MOUNTING GEN WB01X1060 Contact Us For Availability
466
LINER-OVEN DOOR GEN WB56X7020 Contact Us For Availability
467
GEN WB55X0602 GEN WB55X0602 Contact Us For Availability
468
GEN WB55X5348 GEN WB55X5348 Contact Us For Availability
470
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
473
GEN WB01X5869 GEN WB01X5869 Contact Us For Availability
475
GEN WB02X7922 GEN WB02X7922 Contact Us For Availability
476
SCREW-DOOR ASSEMBLY GEN WB01X0786 Contact Us For Availability
477
SCREW-DOOR ASSEMBLY GEN WB01X1063 Contact Us For Availability
480
GEN WB02X7920 GEN WB02X7920 Contact Us For Availability
481
GLASS- OVEN DOOR GEN WB36X5648 Contact Us For Availability
482
GEN WB02X7921 GEN WB02X7921 Contact Us For Availability
483
GEN WB01X0727 GEN WB01X0727 Contact Us For Availability
483
SEAL-ROPE GEN WB02X7923 Contact Us For Availability
502
CLIP-FASTENER GEN WB01X1059 Contact Us For Availability
551
GEN WB58X5014 GEN WB58X5014 Contact Us For Availability
552
GEN WB39X0060 GEN WB39X0060 Contact Us For Availability
553
PANEL-DRAWER FRONT GEN WB56X1855 Contact Us For Availability
554
GEN WB02X8205 GEN WB02X8205 Contact Us For Availability
554
GEN WB15X5197 GEN WB15X5197 Contact Us For Availability
555
GEN WB56X1856 GEN WB56X1856 Contact Us For Availability
556
SPACER-HANDLE ASSEMBLY GEN WB01X1025 Contact Us For Availability
701
GEN WB49X5473 GEN WB49X5473 Contact Us For Availability
702
GEN WB49X0592 GEN WB49X0592 Contact Us For Availability
703
BURNER-BROILER GEN WB28X0065 Contact Us For Availability
704
GEN WB28X0066 GEN WB28X0066 Contact Us For Availability
705
BURNER TOP GEN WB28X0067 Contact Us For Availability
706
NUT GEN WB01X0918 Contact Us For Availability
706
BRACKET-BURNER MOUNTING GEN WB02X4741 Contact Us For Availability
707
GEN WB02X8209 GEN WB02X8209 Contact Us For Availability
708
GEN WB02X8210 GEN WB02X8210 Contact Us For Availability
709
GEN WB02X8211 GEN WB02X8211 Contact Us For Availability
710
GEN WB02X8208 GEN WB02X8208 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
713
GEN WB02X8026 GEN WB02X8026 Contact Us For Availability
714
SCREWS VALVES TOP BURNER GEN WB01X5831 Contact Us For Availability
714
VALVE-TOP BURNER GEN WB21X5285 Contact Us For Availability
715
NUT-COMPRESSION GEN WB01X1027 Contact Us For Availability
716
GEN WB24X0379 GEN WB24X0379 Contact Us For Availability
720
GEN WB02X7918 GEN WB02X7918 Contact Us For Availability
721
GEN WB01X1048 GEN WB01X1048 Contact Us For Availability
723
FITTING-LOXIT GEN WB02X10012 Contact Us For Availability
724
GEN WB02X10116 GEN WB02X10116 Contact Us For Availability
727
TUBE GEN WB02X4759 Contact Us For Availability
727
SAFETY VALVE GEN WB21X0423 Contact Us For Availability
728
SUPPLY TUBE GEN WB02X4760 Contact Us For Availability
728
GEN WB02X8213 GEN WB02X8213 Contact Us For Availability
729
GEN WB02X8214 GEN WB02X8214 Contact Us For Availability
732
GEN WB02X8215 GEN WB02X8215 Contact Us For Availability
732
REGULATOR GEN WB21X0424 Contact Us For Availability
733
GEN WB01X10110 GEN WB01X10110 Contact Us For Availability
734
GEN WB21X0624 GEN WB21X0624 Contact Us For Availability
735
GEN WB02X8216 GEN WB02X8216 Contact Us For Availability
738
BRACKET-BURNER MOUNTING GEN WB02X9364 Contact Us For Availability
738
RETAINER-IGNITER GEN WB02X9365 Contact Us For Availability
748
TUBE GEN WB02X4758 Contact Us For Availability
901
GEN WB36X0744 GEN WB36X0744 Contact Us For Availability
902
GEN WB02X8025 GEN WB02X8025 Contact Us For Availability
902
THERMOSTAT-OVEN UPPER GEN WB21X5281 Contact Us For Availability
903
KNOB-SELECTOR GEN WB03X0732 Contact Us For Availability
906
GEN WB21X5283 GEN WB21X5283 Contact Us For Availability
907
GEN WB02X4735 GEN WB02X4735 Contact Us For Availability
908
CLOCK 3 STEM GEN WB19X5304 Contact Us For Availability
910
GEN WB03X5803 GEN WB03X5803 Contact Us For Availability
911
GEN WB03X0792 GEN WB03X0792 Contact Us For Availability
912
GEN WB03X0731 GEN WB03X0731 Contact Us For Availability
916
GEN WB24X0396 GEN WB24X0396 Contact Us For Availability
924
SCREW-CATCH ASSEMBLY GEN WB01X0801 Contact Us For Availability
1004
GEN WB02X4371 GEN WB02X4371 Contact Us For Availability
1012
SEAL-DOOR-TOP/BOTTOM GEN WB2X4377 Contact Us For Availability
1013
GEN WB39X0067 GEN WB39X0067 Contact Us For Availability
1015
RACK-OVEN FLAT GEN WB48X0173 Contact Us For Availability
1019
GEN WB63X0304 GEN WB63X0304 Contact Us For Availability
1024
GEN WB02X8238 GEN WB02X8238 Contact Us For Availability
1027
PANEL-TOP GEN WB63X0305 Contact Us For Availability
1031
GEN WB63X1341 GEN WB63X1341 Contact Us For Availability
1035
COVER-OUTLET-HOOD GEN WB02X10111 Contact Us For Availability
1035
PANEL-SIDE-LH-WHITE GEN WB63X0299 Contact Us For Availability
1035
PANEL-SIDE-LH-ALMOND GEN WB63X0300 Contact Us For Availability
1037
PANEL-SIDE-RH-WHITE GEN WB63X0301 Contact Us For Availability
1037
PANEL-SIDE-RH-ALMOND GEN WB63X0302 Contact Us For Availability
1101
GEN WB02X8234 GEN WB02X8234 Contact Us For Availability
1102
GLASS - REAR GEN WB36X0688 Contact Us For Availability
1103
GLASS DR FRONT GEN WB36X5674 Contact Us For Availability
1104
GEN WB02X8235 GEN WB02X8235 Contact Us For Availability
1106
GEN WB07X7178 GEN WB07X7178 Contact Us For Availability
1108
GEN WB07X7179 GEN WB07X7179 Contact Us For Availability
1109
GEN WB15X5201 GEN WB15X5201 Contact Us For Availability
1111
SPACER DOOR GEN WB01X0806 Contact Us For Availability
32767
GEN 31-0642 GEN 31-0642 Contact Us For Availability
32767
GEN 49-4816 GEN 49-4816 Contact Us For Availability
32767
GEN WB02X9804 GEN WB02X9804 Contact Us For Availability
× ![]()
