Model GE JGHC60GEN7 Gas Range Or Dual Fuel – Common Parts & Diagrams
BACKSPLASH
BROILER UNIT

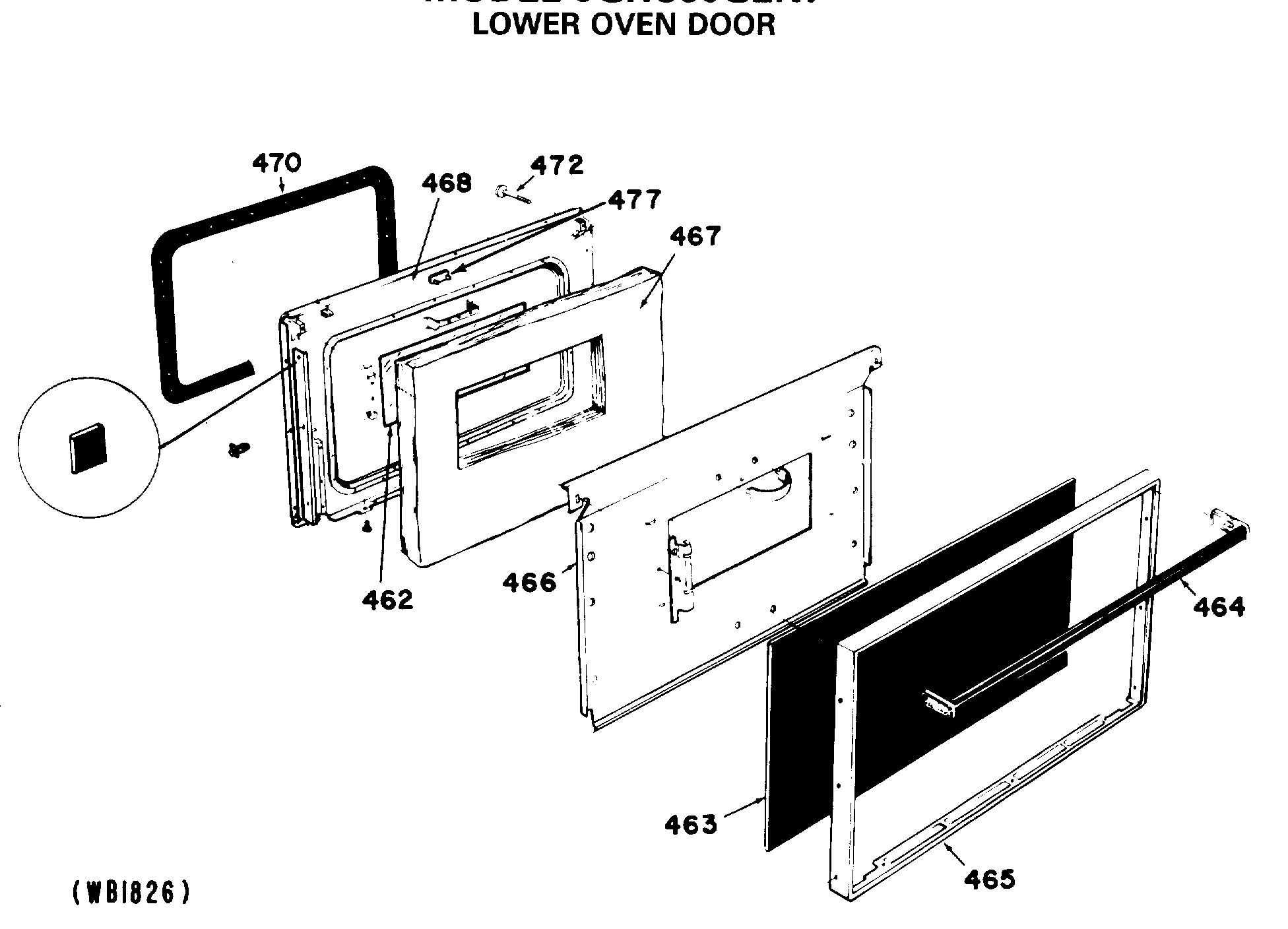

LOWER OVEN DOOR

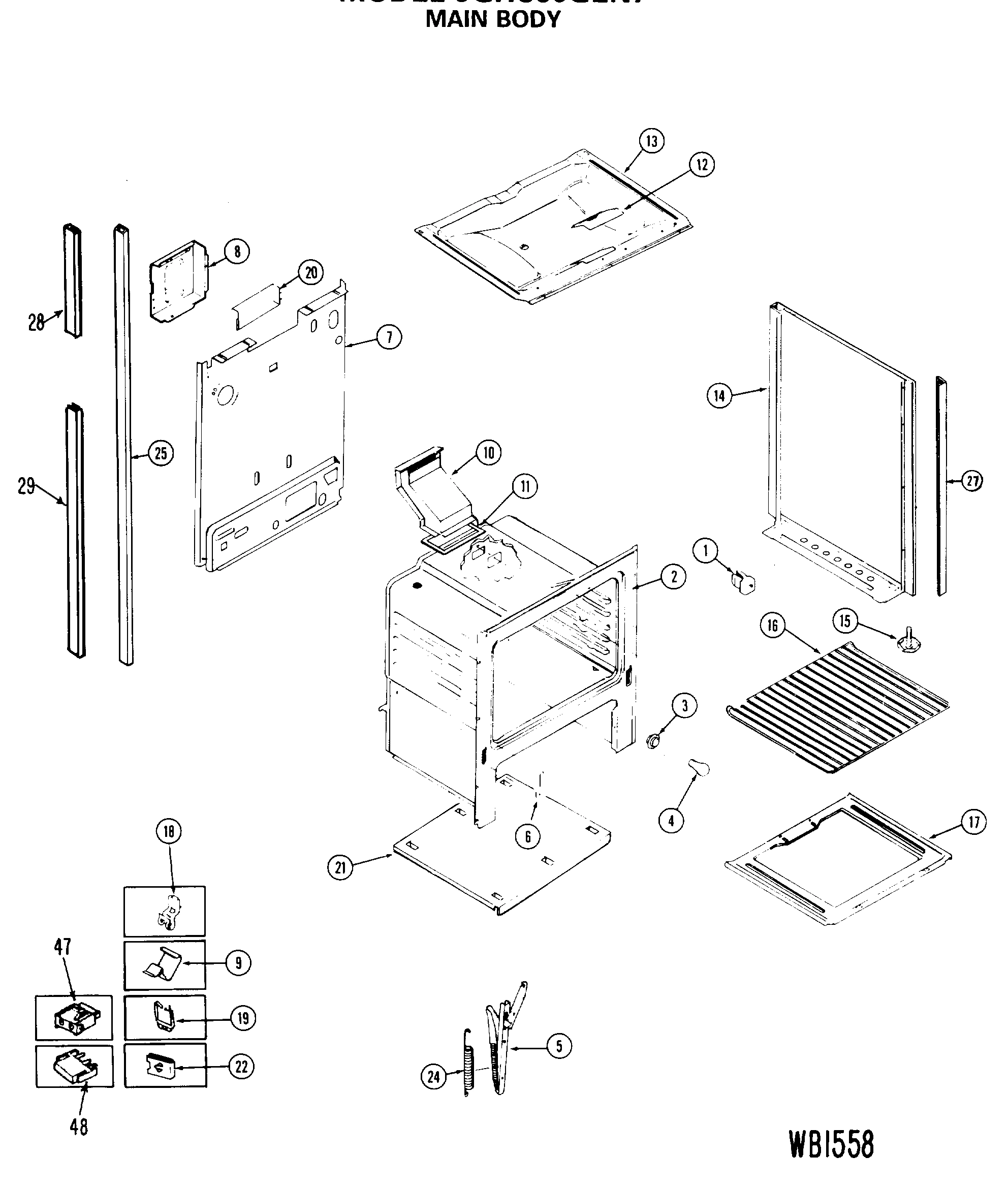

MAIN BODY

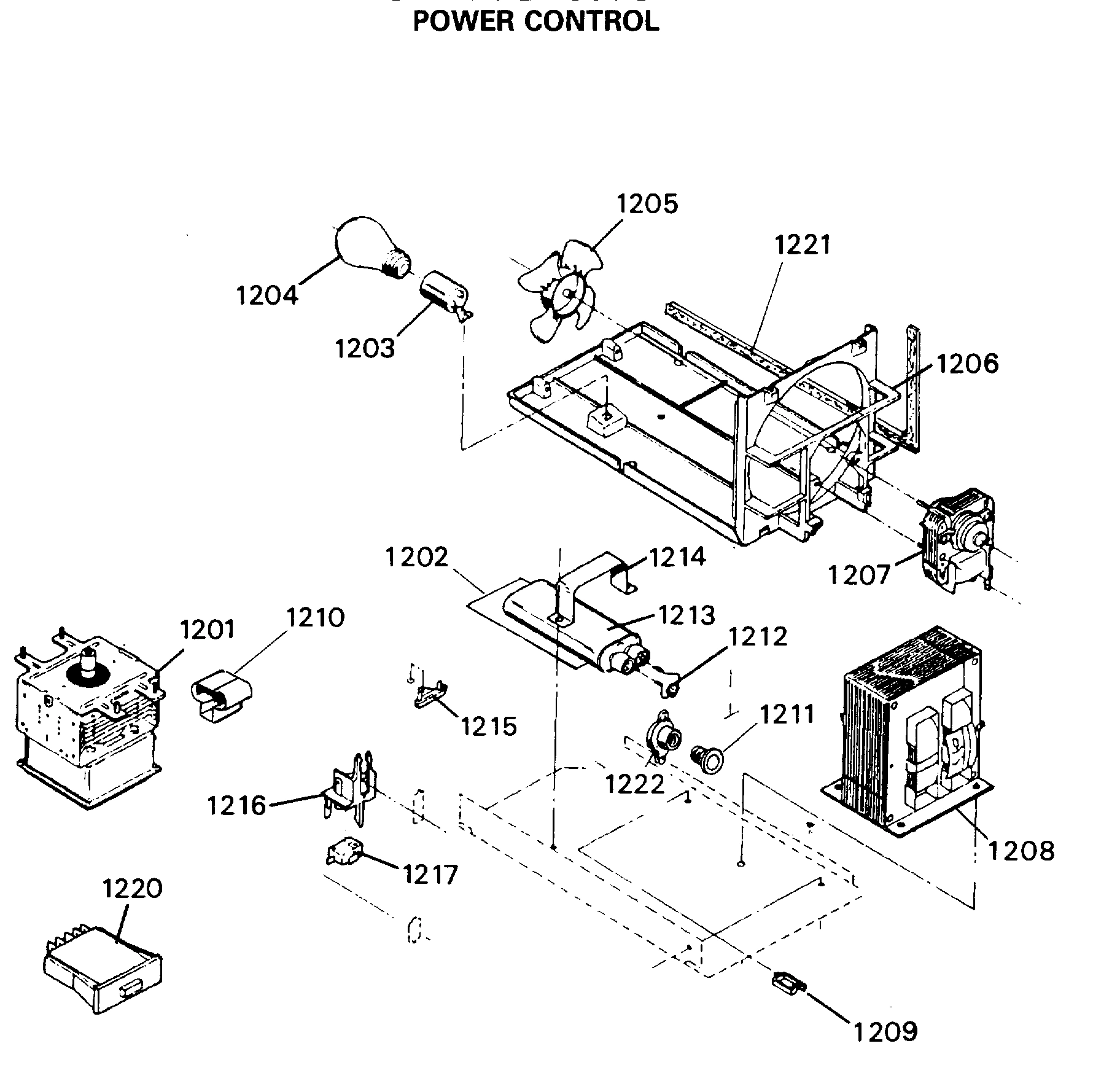

POWER CONTROL

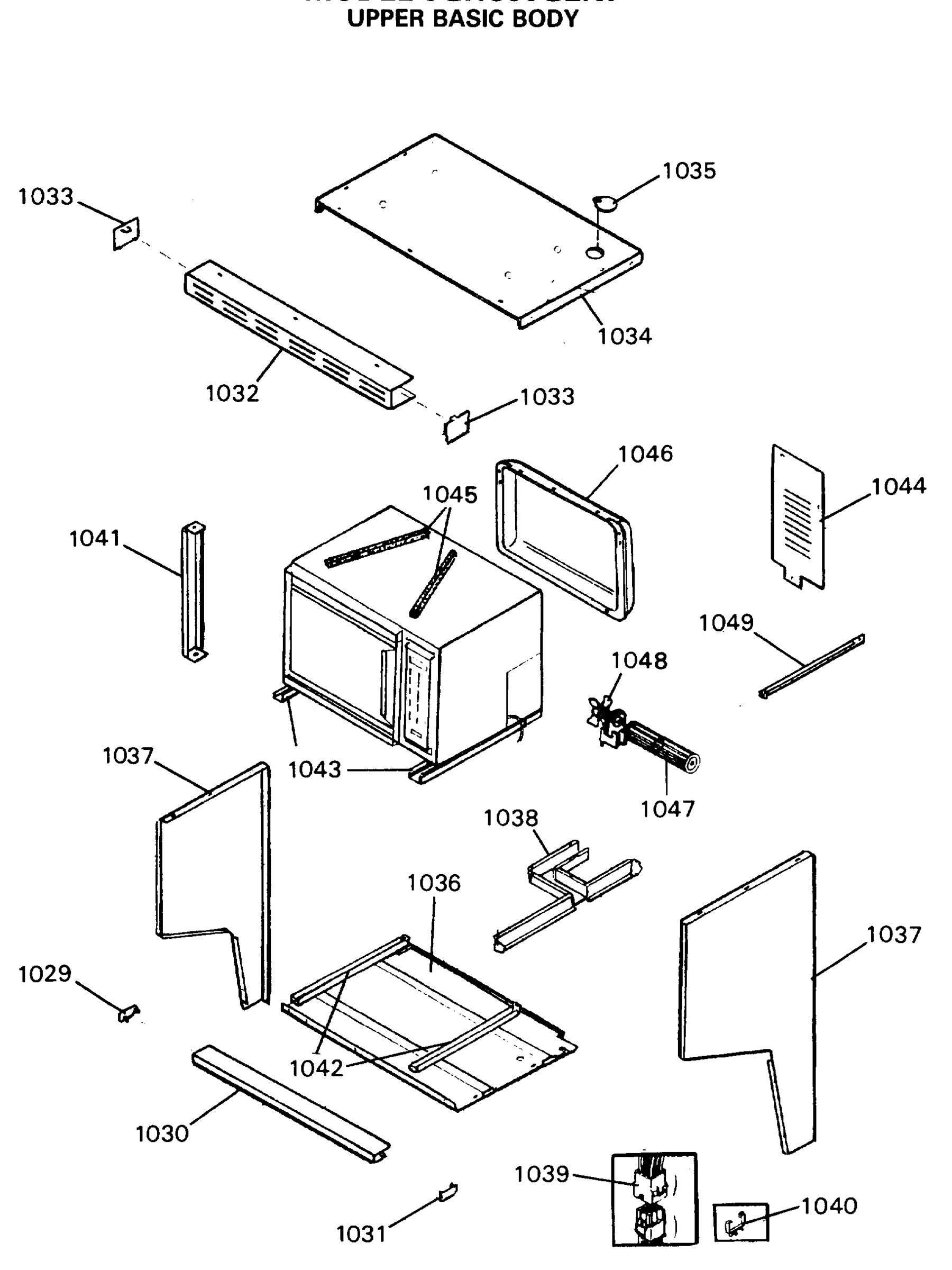

UPPER BASIC BODY

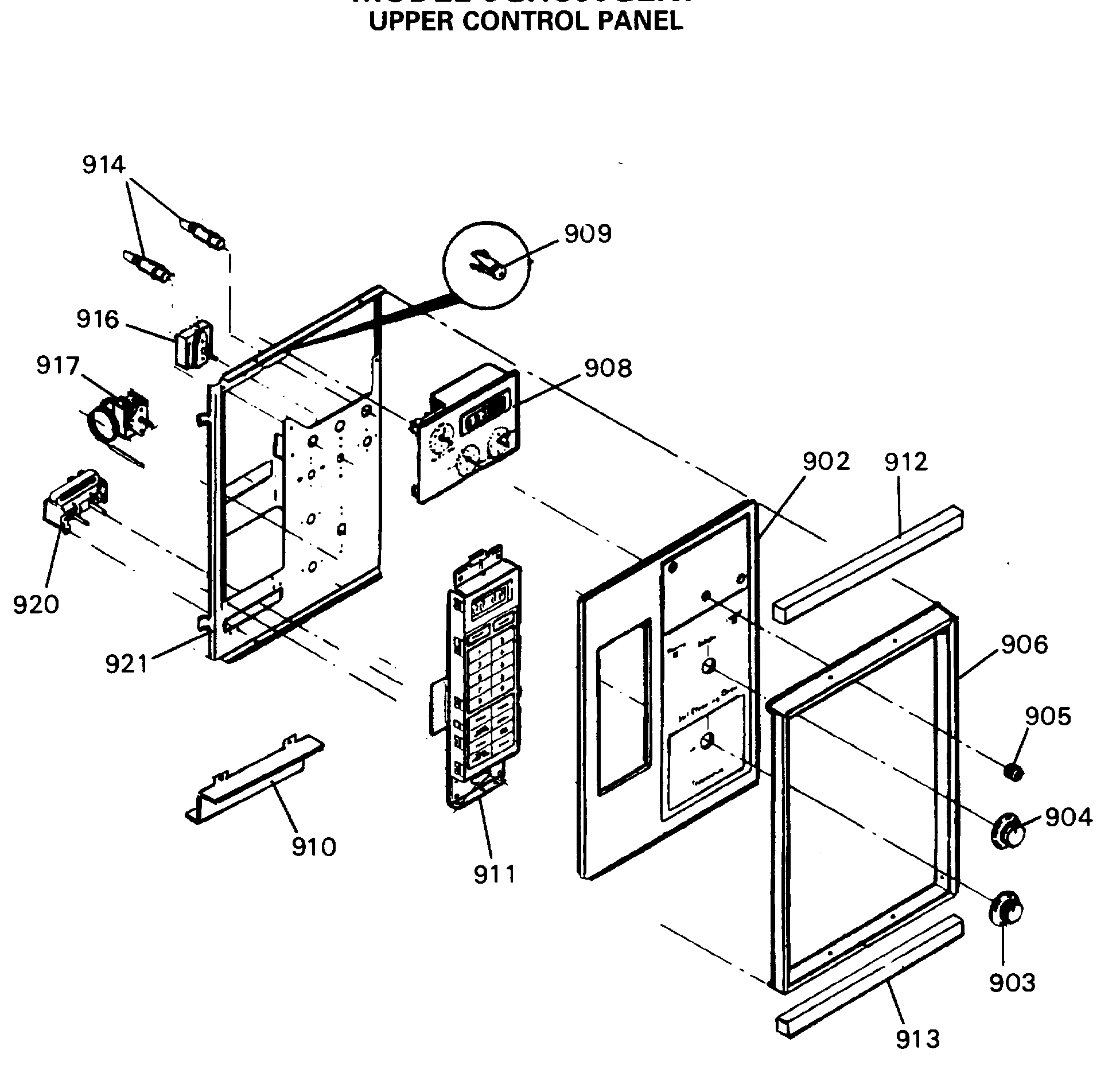

UPPER CONTROL PANEL

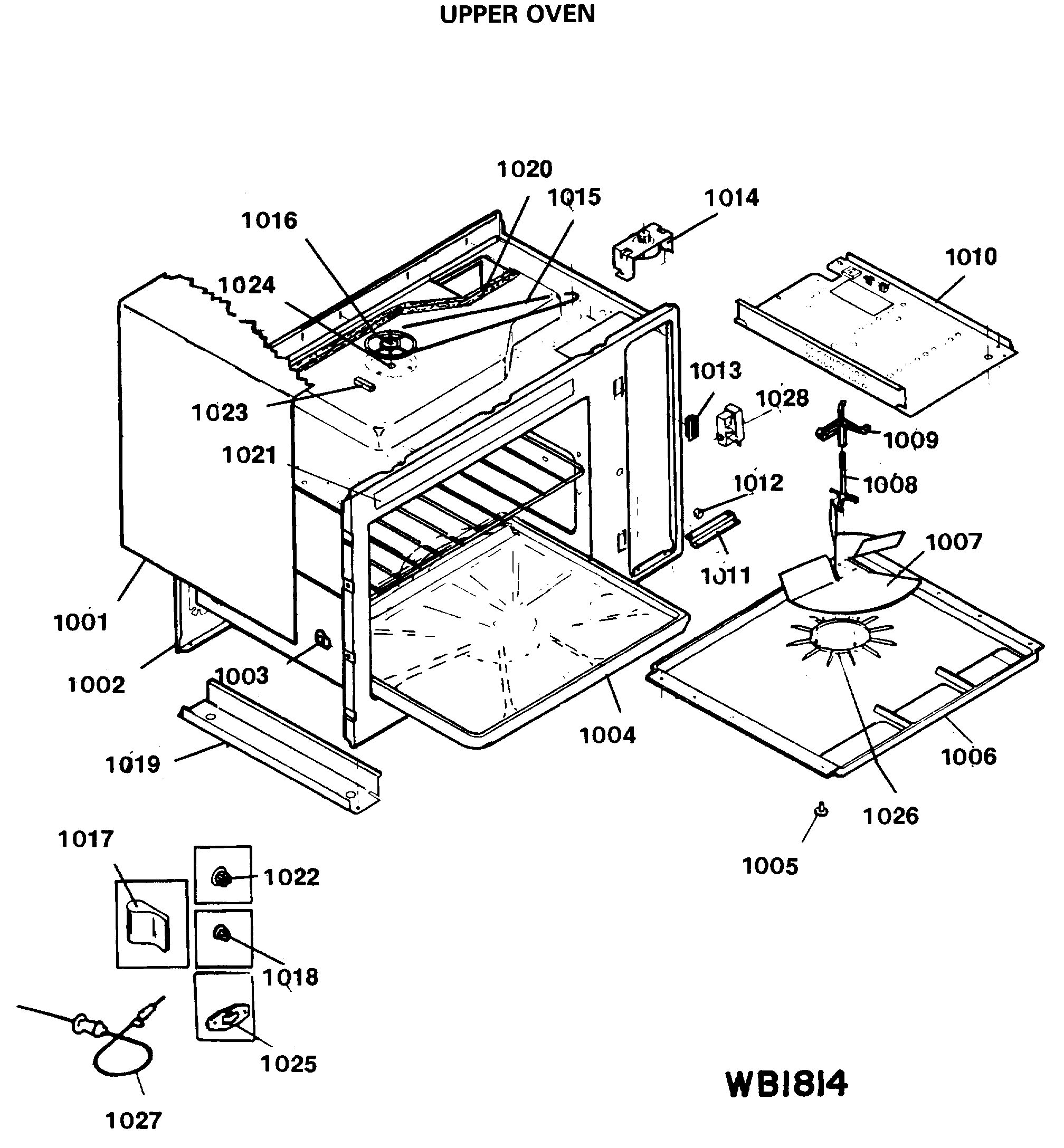

UPPER OVEN

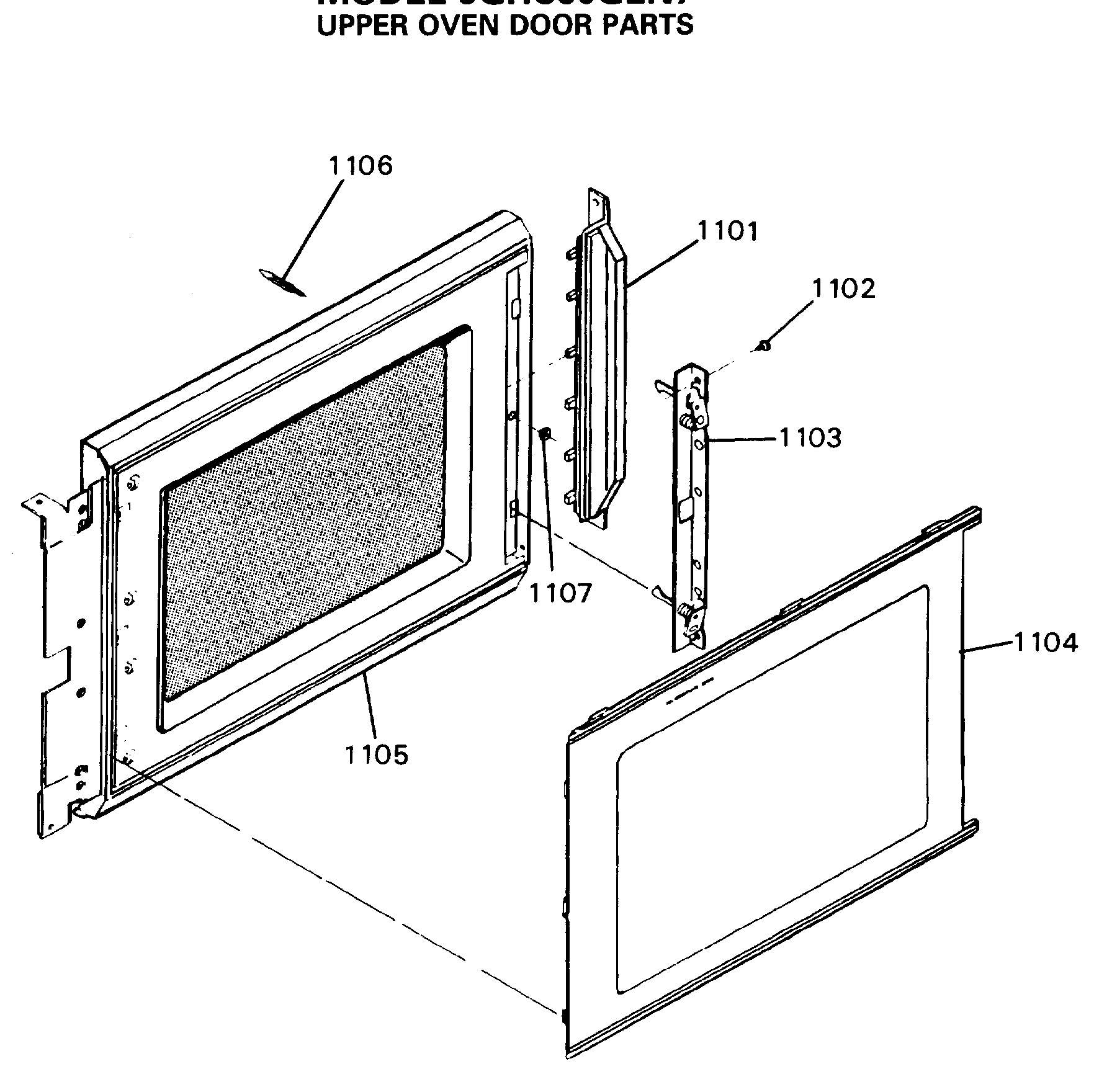

UPPER OVEN DOOR PARTS
Common parts from model GE JGHC60GEN7 Gas Range Or Dual Fuel
1
GEN WB02X8355 GEN WB02X8355 Contact Us For Availability
2
GEN BUMPER-FRONT MAIN GEN BUMPER-FRONT MAIN Contact Us For Availability
2
FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
2
GEN WB02X4964 GEN WB02X4964 Contact Us For Availability
2
INSULATION-OVEN-BACK GEN WB02X4965 Contact Us For Availability
3
GEN WB02X8361 GEN WB02X8361 Contact Us For Availability
3
SOCKET-OVEN LIGHT GEN WB08X0262 Contact Us For Availability
4
GEN WB02X4967 GEN WB02X4967 Contact Us For Availability
5
HINGE-OVEN DOORT GEN WB10X0245 Contact Us For Availability
7
BACK-MAIN GEN WB63X0424 Contact Us For Availability
9
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB38X0094 GEN WB38X0094 Contact Us For Availability
11
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
13
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
14
PANEL B/S RH-WHITE GEN WB63X5217 Contact Us For Availability
14
PANEL B/S RH-ALMOND GEN WB63X5218 Contact Us For Availability
14
PANEL B/S LH-WHITE GEN WB63X5219 Contact Us For Availability
14
PANEL B/S LH-ALMOND GEN WB63X5220 Contact Us For Availability
15
FSTNR TEE NUT GEN WB01X0710 Contact Us For Availability
15
LEVELING LEG GEN WB01X5823 Contact Us For Availability
15
GEN WB02X8357 GEN WB02X8357 Contact Us For Availability
15
GEN WB18X0271 GEN WB18X0271 Contact Us For Availability
16
OVEN RACK GEN WB48X0190 Contact Us For Availability
17
GEN SUPPORT-OVEN BOTTOM GEN SUPPORT-OVEN BOTTOM Contact Us For Availability
17
SCREW BTTM GEN WB01X1094 Contact Us For Availability
17
GEN WB53X0266 GEN WB53X0266 Contact Us For Availability
18
GEN COVER-POWER CORD GEN COVER-POWER CORD Contact Us For Availability
18
GEN RECEPTACLE-WALL-20 AMP GEN RECEPTACLE-WALL-20 AMP Contact Us For Availability
18
GEN WB02X10269 GEN WB02X10269 Contact Us For Availability
18
GEN WB02X8358 GEN WB02X8358 Contact Us For Availability
19
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
19
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
20
GEN WB38X5070 GEN WB38X5070 Contact Us For Availability
21
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
22
GEN WB01X1105 GEN WB01X1105 Contact Us For Availability
25
GEN WB02X7974 GEN WB02X7974 Contact Us For Availability
26
GEN WB02X10119 GEN WB02X10119 Contact Us For Availability
28
GEN WB02X7975 GEN WB02X7975 Contact Us For Availability
29
GEN WB02X7976 GEN WB02X7976 Contact Us For Availability
30
COVER-PLATE GEN WB02X10084 Contact Us For Availability
35
GEN TRIM-SIDE-VERTICAL GEN TRIM-SIDE-VERTICAL Contact Us For Availability
47
GEN WB01X5828 GEN WB01X5828 Contact Us For Availability
48
GEN WB01X5829 GEN WB01X5829 Contact Us For Availability
103
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
104
INSULATOR-LIGHT RECEPT. GEN WB02X10079 Contact Us For Availability
105
RECEPTACLE-FLUOR. LIGHT GEN WB08X0252 Contact Us For Availability
106
GEN WB07X7086 GEN WB07X7086 Contact Us For Availability
107
BLOWER MOTOR ASSEMBLY GEN WB26X0075 Contact Us For Availability
108
GEN WB61X6057 GEN WB61X6057 Contact Us For Availability
108
GEN WB61X6058 GEN WB61X6058 Contact Us For Availability
109
GEN WB36X0687 GEN WB36X0687 Contact Us For Availability
110
GEN WB61X0374 GEN WB61X0374 Contact Us For Availability
111
BALLAST-FLUOR. LIGHT GEN WB20X0087 Contact Us For Availability
112
FASTENER-CABLE CLAMP GEN WB02X10053 Contact Us For Availability
113
GEN WB02X10080 GEN WB02X10080 Contact Us For Availability
116
TRIM-BACKSPLASH-SIDE-LH GEN WB07X1385 Contact Us For Availability
116
TRIM-BACKSPLASH-SIDE-RH GEN WB07X1386 Contact Us For Availability
117
GEN WB07X1552 GEN WB07X1552 Contact Us For Availability
119
SWITCH-OVENLIGHT ROCKER GEN WB24X5259 Contact Us For Availability
120
RECEPT-STARTER FLUOR LT GEN WB02X7913 Contact Us For Availability
121
RECEPTACLE-STARTER GEN WB02X8354 Contact Us For Availability
128
SCREW-DOOR KNOB & HINGE GEN WB01X0802 Contact Us For Availability
301
CONTROL PANEL GEN WB07X1556 Contact Us For Availability
302
KNOB-TOP BURNER VALVE GEN WB03X0712 Contact Us For Availability
303
ROD TOP SUPPORT GEN WB02X7968 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
305
HINGE-COOKTOP-LEFT GEN WB10X5201 Contact Us For Availability
306
HINGE-COOKTOP-RIGHT GEN WB10X5200 Contact Us For Availability
307
TRIM-COOKTOP-LEFT GEN WB07X1362 Contact Us For Availability
308
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
309
GRATE-TOP GEN WB32X0089 Contact Us For Availability
310
PAN-BURNER GEN WB32X0090 Contact Us For Availability
462
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
463
GLASS-OVEN DOOR-OUTER GEN WB56X1883 Contact Us For Availability
464
GEN WB15X0245 GEN WB15X0245 Contact Us For Availability
465
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
466
GEN WB56X7027 GEN WB56X7027 Contact Us For Availability
467
INSULATION-OVEN DOOR GEN WB02X7916 Contact Us For Availability
468
LINER-OVEN DOOR GEN WB56X7020 Contact Us For Availability
470
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
472
SVREW-HANDLE GEN WB01X1016 Contact Us For Availability
477
COVER-DOOR LINER GEN WB55X0636 Contact Us For Availability
501
BRACKET-BROILER HINGE-LH GEN WB10X0246 Contact Us For Availability
501
BRACKET-BROILER HINGE-RH GEN WB10X0247 Contact Us For Availability
503
INSULATION-BROILER DRWR GEN WB02X4995 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
GEN WB01X0698 GEN WB01X0698 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
506
GEN SCREW-BROILER ASSEMBLY GEN SCREW-BROILER ASSEMBLY Contact Us For Availability
506
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
507
PANEL-BROILER-WHITE GEN WB56X1777 Contact Us For Availability
507
PANEL-BROILER-ALMOND GEN WB56X1778 Contact Us For Availability
508
HANDLE GEN WB15X0233 Contact Us For Availability
509
FASTNER-SPACER GEN WB02X9052 Contact Us For Availability
510
GLIDE-BROILER GEN WB39X0065 Contact Us For Availability
513
GEN SCREW GEN SCREW Contact Us For Availability
513
BUTTON-GLIDE GEN WB01X0702 Contact Us For Availability
513
TRACK-DRAWER GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
701
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
703
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
704
GEN WB02X9365 GEN WB02X9365 Contact Us For Availability
704
GEN WB28X0076 GEN WB28X0076 Contact Us For Availability
705
BURNER TUBE (LF) GEN WB02X8013 Contact Us For Availability
706
SCREW GEN WB01X0918 Contact Us For Availability
706
BURNER TUBE (RR) GEN WB02X8014 Contact Us For Availability
707
BURNER TUBE (LR) GEN WB02X8015 Contact Us For Availability
708
BURNER TUBE (RF) GEN WB02X8012 Contact Us For Availability
709
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
710
GEN RETAINER-IGNITER/GROUND GEN RETAINER-IGNITER/GROUND Contact Us For Availability
710
GEN WB02X9366 GEN WB02X9366 Contact Us For Availability
711
MANIFOLD-PIPE GEN WB02X8016 Contact Us For Availability
712
SCREW BURNER MTG GEN WB01X5831 Contact Us For Availability
713
ELBOW GEN WB02X4750 Contact Us For Availability
714
GEN WB21X5297 GEN WB21X5297 Contact Us For Availability
714
SWITCH-IGNITER GEN WB24X5284 Contact Us For Availability
715
GEN WB2X10016 GEN WB2X10016 Contact Us For Availability
716
SPARK-MODULE GEN WB21X5265 Contact Us For Availability
721
TUBING-REG/MANIFOLD PIPE GEN WB02X7956 Contact Us For Availability
723
GEN WB21X5288 GEN WB21X5288 Contact Us For Availability
729
BRKT OVEN BURNER MTG GEN WB02X10010 Contact Us For Availability
729
GEN WB02X10123 GEN WB02X10123 Contact Us For Availability
732
GEN WB02X4772 GEN WB02X4772 Contact Us For Availability
732
GEN WB21X0424 GEN WB21X0424 Contact Us For Availability
735
NUT GEN WB01X0928 Contact Us For Availability
903
GEN WB03X5783 GEN WB03X5783 Contact Us For Availability
904
GEN WB03X5784 GEN WB03X5784 Contact Us For Availability
905
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
906
GEN WB07X7088 GEN WB07X7088 Contact Us For Availability
907
GEN WB02X7980 GEN WB02X7980 Contact Us For Availability
907
GEN WB02X7981 GEN WB02X7981 Contact Us For Availability
907
GEN WB07X7107 GEN WB07X7107 Contact Us For Availability
908
GEN WB19X0240 GEN WB19X0240 Contact Us For Availability
909
FSTNR-CLOCK GEN WB01X0774 Contact Us For Availability
910
GEN WB02X7978 GEN WB02X7978 Contact Us For Availability
911
GEN WB27X5477 GEN WB27X5477 Contact Us For Availability
912
GEN WB07X7090 GEN WB07X7090 Contact Us For Availability
913
GEN WB07X7091 GEN WB07X7091 Contact Us For Availability
914
GEN WB02X4735 GEN WB02X4735 Contact Us For Availability
916
SWITCH-2 POSITION GEN WB22X0113 Contact Us For Availability
917
OVEN-THERMOSTAT GEN WB21X5277 Contact Us For Availability
921
GEN WB07X7089 GEN WB07X7089 Contact Us For Availability
1001
GEN WB63X5221 GEN WB63X5221 Contact Us For Availability
1002
LINER AND FRAME GEN NOT AVAIL Contact Us For Availability
1003
CLIP-HINGE GEN WB01X1015 Contact Us For Availability
1004
GEN WB49X5480 GEN WB49X5480 Contact Us For Availability
1005
RIVET COVER GEN WB01X0926 Contact Us For Availability
1006
GEN WB56X7028 GEN WB56X7028 Contact Us For Availability
1007
GEN WB02X7989 GEN WB02X7989 Contact Us For Availability
1008
GEN WB02X7990 GEN WB02X7990 Contact Us For Availability
1009
GEN WB02X7991 GEN WB02X7991 Contact Us For Availability
1010
GEN WB02X7992 GEN WB02X7992 Contact Us For Availability
1011
GEN WB02X7993 GEN WB02X7993 Contact Us For Availability
1012
GEN WB01X5833 GEN WB01X5833 Contact Us For Availability
1013
GEN WB07X7092 GEN WB07X7092 Contact Us For Availability
1014
GEN WB26X5092 GEN WB26X5092 Contact Us For Availability
1015
GEN WB02X7994 GEN WB02X7994 Contact Us For Availability
1016
GEN WB02X7995 GEN WB02X7995 Contact Us For Availability
1017
GEN WB02X7996 GEN WB02X7996 Contact Us For Availability
1018
GEN WB02X7997 GEN WB02X7997 Contact Us For Availability
1019
GEN WB02X7998 GEN WB02X7998 Contact Us For Availability
1020
GEN WB02X7999 GEN WB02X7999 Contact Us For Availability
1021
GEN WB02X8000 GEN WB02X8000 Contact Us For Availability
1022
PLUG-BUTTON GEN WB02X7967 Contact Us For Availability
1023
SPACER-WRAPPER GEN WB2X10124 Contact Us For Availability
1024
GEN WB01X5830 GEN WB01X5830 Contact Us For Availability
1025
GEN WB02X8001 GEN WB02X8001 Contact Us For Availability
1026
GEN WB02X8002 GEN WB02X8002 Contact Us For Availability
1027
GEN WB20X0081 GEN WB20X0081 Contact Us For Availability
1028
SCREW-WARPPER GEN WB01X0819 Contact Us For Availability
1028
GEN WB02X8003 GEN WB02X8003 Contact Us For Availability
1028
GEN WB02X8004 GEN WB02X8004 Contact Us For Availability
1028
GEN WB02X8005 GEN WB02X8005 Contact Us For Availability
1028
GEN WB02X8006 GEN WB02X8006 Contact Us For Availability
1028
GEN WB20X5059 GEN WB20X5059 Contact Us For Availability
1029
GEN WB07X7093 GEN WB07X7093 Contact Us For Availability
1030
GEN WB07X7094 GEN WB07X7094 Contact Us For Availability
1031
GEN WB07X7095 GEN WB07X7095 Contact Us For Availability
1032
GEN WB07X7096 GEN WB07X7096 Contact Us For Availability
1033
GEN WB07X7097 GEN WB07X7097 Contact Us For Availability
1034
GEN WB63X5222 GEN WB63X5222 Contact Us For Availability
1035
COVER OUTLET GEN WB02X10111 Contact Us For Availability
1036
GEN WB63X5223 GEN WB63X5223 Contact Us For Availability
1037
PNL SIDE UPPER RH-WHITE GEN WB63X0301 Contact Us For Availability
1037
GEN WB63X0302 GEN WB63X0302 Contact Us For Availability
1037
GEN WB63X5226 GEN WB63X5226 Contact Us For Availability
1037
GEN WB63X5227 GEN WB63X5227 Contact Us For Availability
1039
GEN WB18X5112 GEN WB18X5112 Contact Us For Availability
1040
GEN WB02X8362 GEN WB02X8362 Contact Us For Availability
1041
GEN WB07X7098 GEN WB07X7098 Contact Us For Availability
1042
CHANNEL-SLIDE GEN WB02X8007 Contact Us For Availability
1043
GEN WB02X8008 GEN WB02X8008 Contact Us For Availability
1044
GEN WB07X7099 GEN WB07X7099 Contact Us For Availability
1045
GEN WB02X8009 GEN WB02X8009 Contact Us For Availability
1046
GEN WB07X7100 GEN WB07X7100 Contact Us For Availability
1047
GEN WB26X5093 GEN WB26X5093 Contact Us For Availability
1048
GEN WB02X8010 GEN WB02X8010 Contact Us For Availability
1049
DUCT-AIR INTAKE GEN WB02X8024 Contact Us For Availability
1049
GEN WB02X8011 GEN WB02X8011 Contact Us For Availability
1101
GEN WB15X5184 GEN WB15X5184 Contact Us For Availability
1102
GEN WB01X5825 GEN WB01X5825 Contact Us For Availability
1103
GEN WB10X5203 GEN WB10X5203 Contact Us For Availability
1104
GEN WB55X5350 GEN WB55X5350 Contact Us For Availability
1105
GEN WB55X5351 GEN WB55X5351 Contact Us For Availability
1106
GEN WB01X5826 GEN WB01X5826 Contact Us For Availability
1106
GEN WB01X5827 GEN WB01X5827 Contact Us For Availability
1107
HEX NUT-DOOR STRIKE GEN WB01X1035 Contact Us For Availability
1201
GEN WB27X5478 GEN WB27X5478 Contact Us For Availability
1202
GEN WB02X7982 GEN WB02X7982 Contact Us For Availability
1203
SOCKRT-LIGHT GEN WB08X0245 Contact Us For Availability
1204
40 WATT BULB GEN BUY LOCAL Contact Us For Availability
1205
GEN WB02X7983 GEN WB02X7983 Contact Us For Availability
1206
GEN WB49X5479 GEN WB49X5479 Contact Us For Availability
1207
GEN WB26X5091 GEN WB26X5091 Contact Us For Availability
1208
GEN WB27X5484 GEN WB27X5484 Contact Us For Availability
1209
GEN WB02X7984 GEN WB02X7984 Contact Us For Availability
1210
GEN WB02X7985 GEN WB02X7985 Contact Us For Availability
1211
FUSE-20 AMP GEN WB27X0303 Contact Us For Availability
1212
GEN WB27X5479 GEN WB27X5479 Contact Us For Availability
1213
CAPACITOR-HIGH V GEN WB27X0321 Contact Us For Availability
1214
GEN WB02X7986 GEN WB02X7986 Contact Us For Availability
1215
GEN WB27X5480 GEN WB27X5480 Contact Us For Availability
1216
GEN WB02X7987 GEN WB02X7987 Contact Us For Availability
1217
GEN WB24X5269 GEN WB24X5269 Contact Us For Availability
1220
GEN WB24X5270 GEN WB24X5270 Contact Us For Availability
1221
GEN WB02X7988 GEN WB02X7988 Contact Us For Availability
1222
SOCKET-FUSE GEN WB08X0246 Contact Us For Availability
32767
GEN 31-0643 GEN 31-0643 Contact Us For Availability
32767
GEN 49-4664 GEN 49-4664 Contact Us For Availability
32767
GEN 49-4812 GEN 49-4812 Contact Us For Availability
32767
GEN WB02X9804 GEN WB02X9804 Contact Us For Availability
× ![]()
