Model GE JGHC56GEJD Electric Range – Common Parts & Diagrams

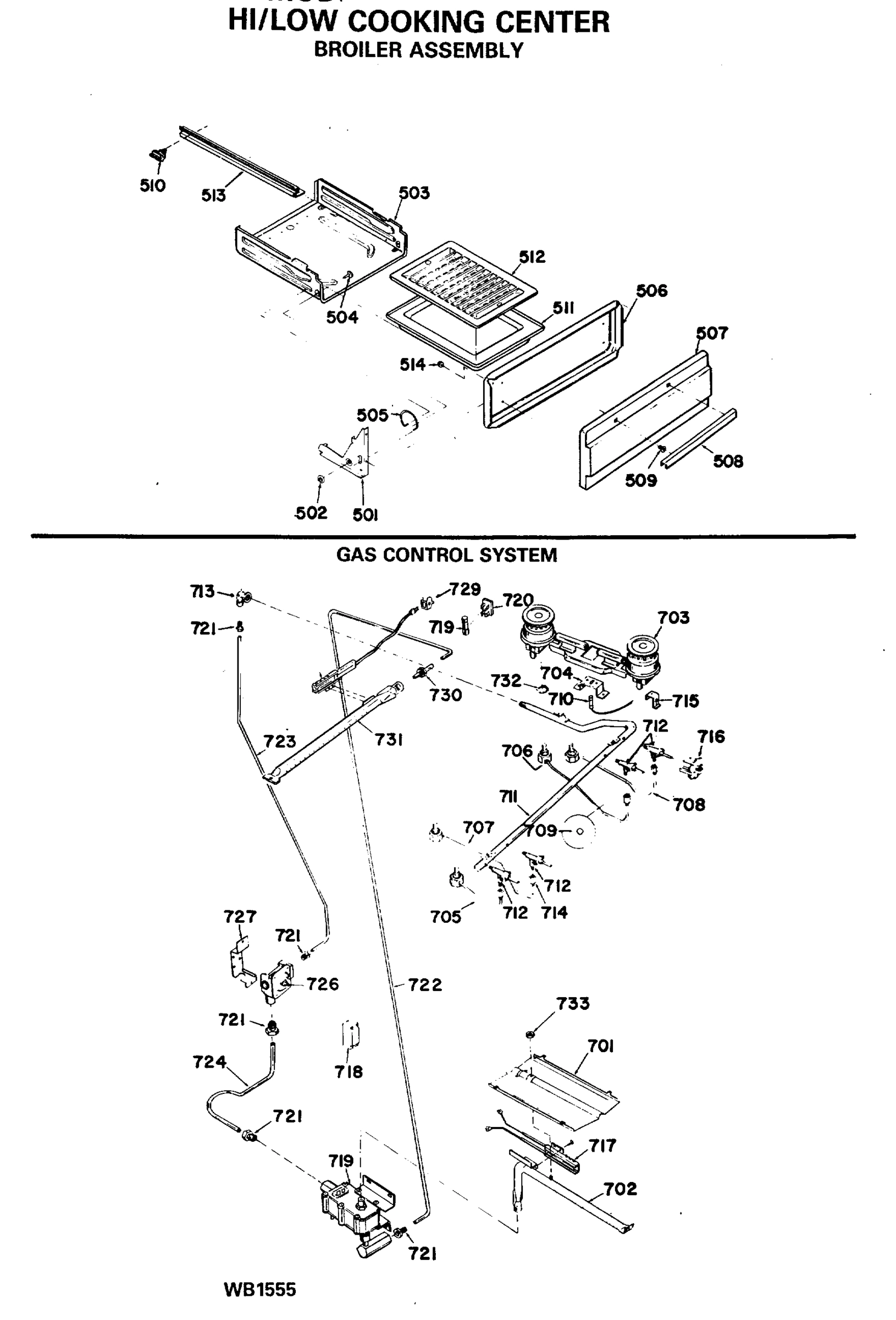

HI/LOW COOKING CENTER

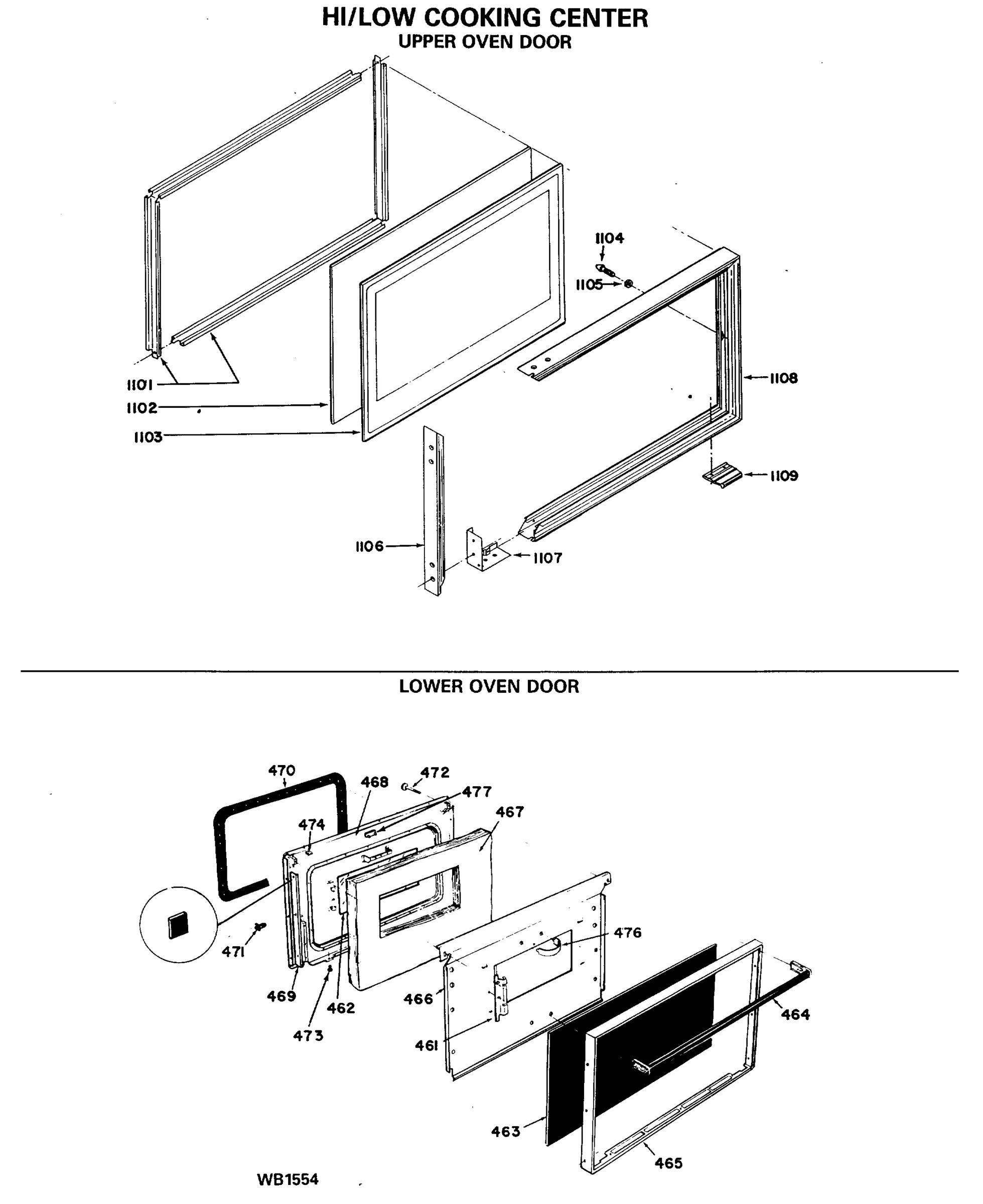

HI/LOW COOKING CENTER

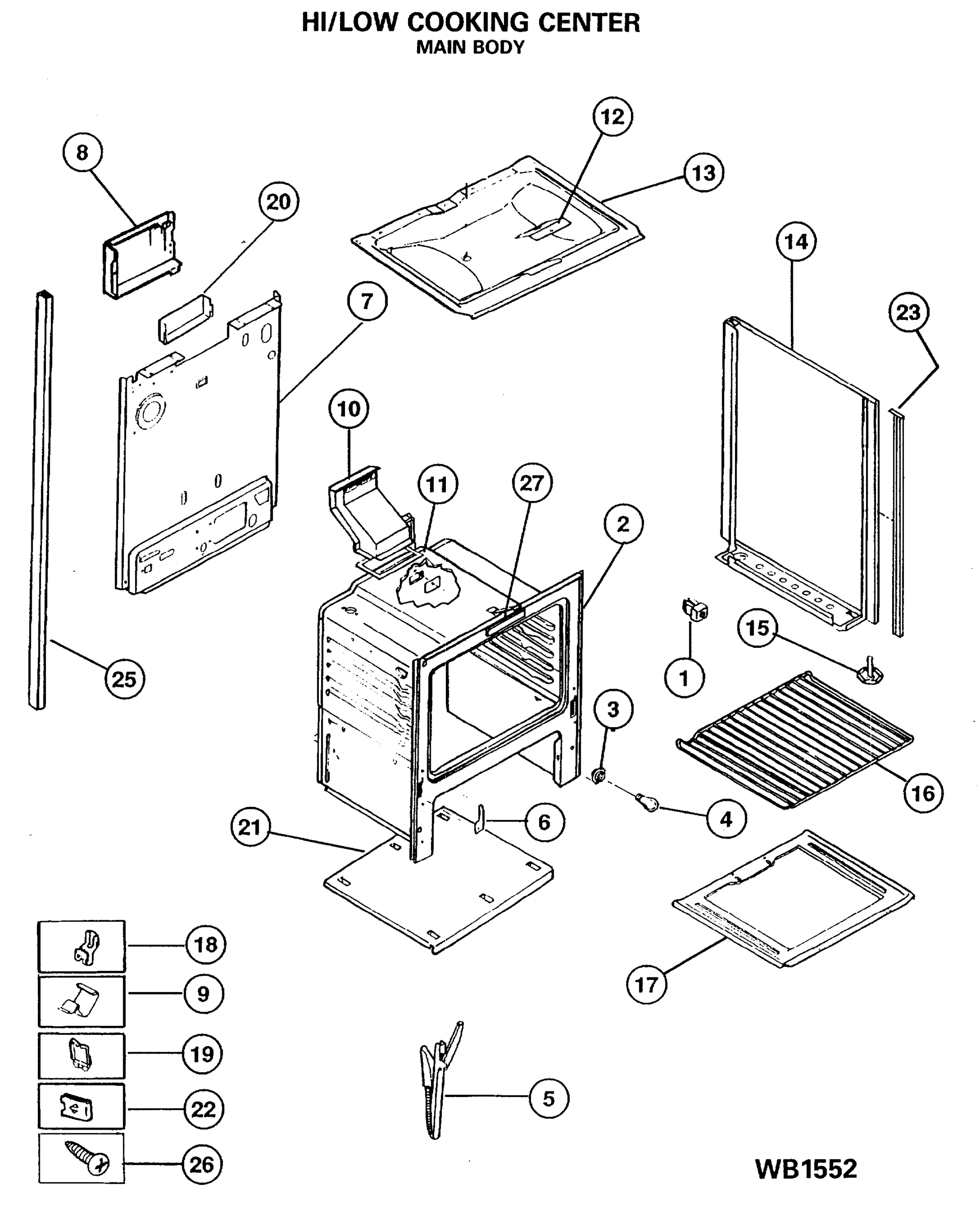

HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
Common parts from model GE JGHC56GEJD Electric Range
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
BUMPER-FRONT MAIN GEN WB02X4777 Contact Us For Availability
2
INSULATION-OVEN WRAP GEN WB02X4964 Contact Us For Availability
2
INSULATION-OVEN BACK GEN WB02X4965 Contact Us For Availability
3
HOUSING-OVEN LIGHT GEN WB02X7969 Contact Us For Availability
4
SOCKET-OVEN LIGHT GEN WB08X0262 Contact Us For Availability
5
HINGE-OVEN DOOR GEN WB10X0245 Contact Us For Availability
8
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
9
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB38X0101 GEN WB38X0101 Contact Us For Availability
11
GEN WB38X0085 GEN WB38X0085 Contact Us For Availability
12
GEN WB02X8231 GEN WB02X8231 Contact Us For Availability
14
CATCH ASSEMBLY-DOOR GEN WB10X0226 Contact Us For Availability
16
GEN WB48X0202 GEN WB48X0202 Contact Us For Availability
16
BACK-MAIN GEN WB63X0424 Contact Us For Availability
17
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
18
CLIP-THERMO BULB GEN WB01X0706 Contact Us For Availability
18
GEN WB02X4968 GEN WB02X4968 Contact Us For Availability
18
GEN WB18X0255 GEN WB18X0255 Contact Us For Availability
20
SHIELD-FLUE GEN WB38X0099 Contact Us For Availability
21
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
22
GEN WB01X1105 GEN WB01X1105 Contact Us For Availability
24
SPRING-OVEN DOOR GEN WB09X0228 Contact Us For Availability
25
GEN WB02X7911 GEN WB02X7911 Contact Us For Availability
25
GEN WB02X7912 GEN WB02X7912 Contact Us For Availability
28
GEN WB02X8233 GEN WB02X8233 Contact Us For Availability
30
GEN WB02X10084 GEN WB02X10084 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
35
TRIM-SIDE-VERTICAL GEN WB07X1532 Contact Us For Availability
35
PANEL-SIDE-RIGHT-WH GEN WB63X5217 Contact Us For Availability
35
PANEL-SIDE-RIGHT-AD GEN WB63X5218 Contact Us For Availability
35
PANEL-SIDE-LEFT-WH GEN WB63X5219 Contact Us For Availability
35
PANEL-SIDE-LEFT-AD GEN WB63X5220 Contact Us For Availability
36
LEVELING SCREW GEN WB01X0711 Contact Us For Availability
36
GLASS DOOR INNER GEN WB36X0689 Contact Us For Availability
40
SUPPORT-OVEN BOTTOM GEN WB02X4776 Contact Us For Availability
88
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
102
GEN WB02X7910 GEN WB02X7910 Contact Us For Availability
104
GEN WB02X10079 GEN WB02X10079 Contact Us For Availability
119
GEN WB24X5259 GEN WB24X5259 Contact Us For Availability
120
GEN WB02X7914 GEN WB02X7914 Contact Us For Availability
121
GEN WB02X7913 GEN WB02X7913 Contact Us For Availability
128
SCREW-COVER MOUNTING GEN WB01X0802 Contact Us For Availability
167
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
183
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
201
BACK-BACKSPLASH GEN WB61X0341 Contact Us For Availability
205
RECEPTACLE-FLUOR. LIGHT GEN WB08X0242 Contact Us For Availability
206
GEN WB07X1482 GEN WB07X1482 Contact Us For Availability
207
GUSSET-SUPPORT-LH GEN WB02X4369 Contact Us For Availability
207
GUSSET-SUPPORT-RH GEN WB02X4370 Contact Us For Availability
208
GEN WB36X0741 GEN WB36X0741 Contact Us For Availability
209
GEN WB61X0375 GEN WB61X0375 Contact Us For Availability
211
BALLAST GEN WB20X0087 Contact Us For Availability
212
FASTENER-CABLE CLAMP GEN WB02X10053 Contact Us For Availability
216
TRIM-SIDE-LH GEN WB07X1385 Contact Us For Availability
216
GEN WB07X7177 GEN WB07X7177 Contact Us For Availability
217
GEN WB07X1552 GEN WB07X1552 Contact Us For Availability
218
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
257
BULB-40 WATT APPLIANCE GEN BUY LOCAL Contact Us For Availability
301
CONTROL PANEL GEN WB07X1556 Contact Us For Availability
302
KNOB-TOP BURNER VALVE GEN WB03X0712 Contact Us For Availability
303
ROD-MAIN TOP SUPPORT GEN WB02X7968 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
307
GEN WB07X1526 GEN WB07X1526 Contact Us For Availability
309
GEN WB32X5065 GEN WB32X5065 Contact Us For Availability
310
GEN WB32X5066 GEN WB32X5066 Contact Us For Availability
332
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
333
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
462
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
463
GLASS-OVEN DOOR-OUTER GEN WB56X1883 Contact Us For Availability
464
GLASS-DOOR-OUTER GEN WB36X5674 Contact Us For Availability
464
GEN WB15X5199 GEN WB15X5199 Contact Us For Availability
466
LINER-OVEN DOOR GEN WB56X7020 Contact Us For Availability
467
GEN WB02X7916 GEN WB02X7916 Contact Us For Availability
468
GEN WB56X7021 GEN WB56X7021 Contact Us For Availability
470
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
470
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
472
GEN WB01X1016 GEN WB01X1016 Contact Us For Availability
474
SCREW GEN WB01X0474 Contact Us For Availability
477
GEN WB55X5369 GEN WB55X5369 Contact Us For Availability
501
BRACKET-BROILER HINGE-LH GEN WB10X0246 Contact Us For Availability
501
BRACKET-BROILER HINGE-RH GEN WB10X0247 Contact Us For Availability
502
FASTENER-PUSH NUT GEN WB01X1059 Contact Us For Availability
503
INSULATION-DRAWER GEN WB02X4995 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
SPRING-BROILER HINGE GEN WB09X0200 Contact Us For Availability
506
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
507
GEN WB56X1853 GEN WB56X1853 Contact Us For Availability
507
GEN WB56X1854 GEN WB56X1854 Contact Us For Availability
508
GEN WB02X8354 GEN WB02X8354 Contact Us For Availability
509
GEN WB01X1025 GEN WB01X1025 Contact Us For Availability
510
GLIDE-BROILER GEN WB39X0065 Contact Us For Availability
513
TRACK-DRAWER GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
556
SCREW-BROILER ASSEMBLY GEN WB01X0786 Contact Us For Availability
556
SCREW-HANDLE GEN WB01X1024 Contact Us For Availability
701
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
702
GEN WB28X0074 GEN WB28X0074 Contact Us For Availability
703
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
707
BURNER TUBE (RF) GEN WB02X8012 Contact Us For Availability
707
BURNER TUBE (LF) GEN WB02X8013 Contact Us For Availability
708
BURNER TUBE (RR) GEN WB02X8014 Contact Us For Availability
709
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
709
BURNER TUBE (LR) GEN WB02X8015 Contact Us For Availability
711
GEN WB02X8016 GEN WB02X8016 Contact Us For Availability
712
GEN WB02X9366 GEN WB02X9366 Contact Us For Availability
713
ELBOW GEN WB02X4750 Contact Us For Availability
714
GEN WB01X5831 GEN WB01X5831 Contact Us For Availability
714
VALVE TOP (3 POS) GEN WB21X5285 Contact Us For Availability
715
GEN WB24X0379 GEN WB24X0379 Contact Us For Availability
716
GEN WB02X4753 GEN WB02X4753 Contact Us For Availability
722
GEN WB02X8229 GEN WB02X8229 Contact Us For Availability
723
FITTING-LOXIT GEN WB02X10012 Contact Us For Availability
725
GEN WB21X0424 GEN WB21X0424 Contact Us For Availability
727
GEN WB21X0423 GEN WB21X0423 Contact Us For Availability
728
TUBE-ALUMINUM GEN WB02X4760 Contact Us For Availability
728
BRACKET-REGULATOR GEN WB02X4774 Contact Us For Availability
729
BRACKET-CONNECTOR MOUNT GEN WB02X4308 Contact Us For Availability
730
GEN WB02X8230 GEN WB02X8230 Contact Us For Availability
731
IGNITER-OVEN BURNER GEN WB02X4385 Contact Us For Availability
731
GEN WB28X0051 GEN WB28X0051 Contact Us For Availability
732
NUT-SPECIAL GEN WB01X0928 Contact Us For Availability
733
NUT-SPECIAL GEN WB01X0694 Contact Us For Availability
736
TUBE-ALUMINUM GEN WB02X4758 Contact Us For Availability
738
RETAINER-IGNITER/GROUND GEN WB02X9364 Contact Us For Availability
738
GEN WB02X9365 GEN WB02X9365 Contact Us For Availability
902
GEN WB21X5281 GEN WB21X5281 Contact Us For Availability
904
GEN WB19X0241 GEN WB19X0241 Contact Us For Availability
905
FASTENER-CLOCK-TUBULAR GEN WB01X0774 Contact Us For Availability
907
FASTENER-C/P FRAME GEN WB02X4390 Contact Us For Availability
907
BUSHING-C/P GLASS GEN WB02X4391 Contact Us For Availability
907
GEN WB07X7173 GEN WB07X7173 Contact Us For Availability
909
GEN WB03X0738 GEN WB03X0738 Contact Us For Availability
910
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
911
GEN WB03X0792 GEN WB03X0792 Contact Us For Availability
911
GEN WB03X0793 GEN WB03X0793 Contact Us For Availability
912
GEN WB21X5277 GEN WB21X5277 Contact Us For Availability
913
GEN WB24X5293 GEN WB24X5293 Contact Us For Availability
920
SCREW-CATCH ASSEMBLY GEN WB01X0801 Contact Us For Availability
1003
GEN WB14X0088 GEN WB14X0088 Contact Us For Availability
1004
GEN WB02X4371 GEN WB02X4371 Contact Us For Availability
1005
GEN WB01X1061 GEN WB01X1061 Contact Us For Availability
1006
RETAINER-OVEN BURNER GEN WB02X4372 Contact Us For Availability
1008
GLASS-OVEN LIGHT LENS GEN WB02X4374 Contact Us For Availability
1009
GEN WB02X4373 GEN WB02X4373 Contact Us For Availability
1010
GEN WB36X5675 GEN WB36X5675 Contact Us For Availability
1011
GASKET-OEVN DOOR-SIDE GEN WB02X4376 Contact Us For Availability
1012
GASKET-DOOR-TOP & BOTTOM GEN WB02X4377 Contact Us For Availability
1013
GEN WB39X0067 GEN WB39X0067 Contact Us For Availability
1014
OVEN BOTTOM GEN WB55X0581 Contact Us For Availability
1015
GEN WB02X8236 GEN WB02X8236 Contact Us For Availability
1016
OVEN RACK GEN WB48X0173 Contact Us For Availability
1019
GEN WB02X4531 GEN WB02X4531 Contact Us For Availability
1019
GEN WB02X8237 GEN WB02X8237 Contact Us For Availability
1020
PANEL-SIDE-WHITE-LH GEN WB63X0299 Contact Us For Availability
1020
PANEL-SIDE-ALMOND-LH GEN WB63X0300 Contact Us For Availability
1020
PANEL-SIDE-WHITE-RH GEN WB63X0301 Contact Us For Availability
1020
PANEL-SIDE-ALMOND-RH GEN WB63X0302 Contact Us For Availability
1021
GEN WB63X0304 GEN WB63X0304 Contact Us For Availability
1022
GEN WB14X0090 GEN WB14X0090 Contact Us For Availability
1025
GEN WB02X8238 GEN WB02X8238 Contact Us For Availability
1026
INSULATION-VENT GEN WB02X4532 Contact Us For Availability
1027
GEN WB63X0305 GEN WB63X0305 Contact Us For Availability
1028
GEN WB02X10111 GEN WB02X10111 Contact Us For Availability
1029
FLUE BACK GEN WB49X0543 Contact Us For Availability
1030
SCREW-HINGE PIN GEN WB01X0769 Contact Us For Availability
1030
GEN WB14X0089 GEN WB14X0089 Contact Us For Availability
1031
FASTENER-HINGE GEN WB01X1015 Contact Us For Availability
1032
INSULATION-REAR GEN WB02X4381 Contact Us For Availability
1101
GEN WB02X8234 GEN WB02X8234 Contact Us For Availability
1102
GLASS-DOOR-INNER GEN WB36X0688 Contact Us For Availability
1104
GEN WB02X8235 GEN WB02X8235 Contact Us For Availability
1106
GEN WB07X7178 GEN WB07X7178 Contact Us For Availability
1107
BRACKET-DOOR FRAME-L END GEN WB02X4366 Contact Us For Availability
1108
GEN WB07X7179 GEN WB07X7179 Contact Us For Availability
1109
GEN WB15X5201 GEN WB15X5201 Contact Us For Availability
1110
GEN WB01X1062 GEN WB01X1062 Contact Us For Availability
1111
GEN WB01X0806 GEN WB01X0806 Contact Us For Availability
1111
GEN WB02X4365 GEN WB02X4365 Contact Us For Availability
32767
GEN 31-0642 GEN 31-0642 Contact Us For Availability
32767
GEN 49-4811 GEN 49-4811 Contact Us For Availability
32767
ANTI-TIP BRKT KIT GEN WB02X9804 Contact Us For Availability
× ![]()
