Model GE JGHC56GEJC Electric Range – Common Parts & Diagrams
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
HI/LOW COOKING CENTER
Common parts from model GE JGHC56GEJC Electric Range
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
GEN INSULATION-OVEN WRAP GEN INSULATION-OVEN WRAP Contact Us For Availability
2
GEN WB01X0769 GEN WB01X0769 Contact Us For Availability
2
INSULATION-OVEN-BACK GEN WB02X4965 Contact Us For Availability
2
CORD POWER GEN WB18X0255 Contact Us For Availability
3
HOUSING-OVEN LIGHT GEN WB02X7969 Contact Us For Availability
3
SPRING-OVEN DOOR HINGE GEN WB09X0228 Contact Us For Availability
4
BULB-40 WATT APPLIANCE GEN BUY LOCAL Contact Us For Availability
4
GEN WB08X0262 GEN WB08X0262 Contact Us For Availability
5
HINGE-OVEN DOOR GEN WB10X0245 Contact Us For Availability
6
GEN WB49X0543 GEN WB49X0543 Contact Us For Availability
7
BACK-MAIN GEN WB63X0424 Contact Us For Availability
8
BOX-OVEN LIGHT GEN WB2X4379 Contact Us For Availability
8
GASKET-FLUE GEN WB38X0099 Contact Us For Availability
8
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB02X4968 GEN WB02X4968 Contact Us For Availability
10
GEN WB38X0101 GEN WB38X0101 Contact Us For Availability
11
KNOB CLOCK GEN WB03X0628 Contact Us For Availability
11
TRIM-UPPER-RIGHT GEN WB7X1386 Contact Us For Availability
12
GEN WB02X10084 GEN WB02X10084 Contact Us For Availability
12
GEN WB02X4381 GEN WB02X4381 Contact Us For Availability
13
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
14
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
14
PANEL-SIDE-RIGHT-WH GEN WB63X5217 Contact Us For Availability
14
PANEL-SIDE-RIGHT-AD GEN WB63X5218 Contact Us For Availability
14
PANEL-SIDE-LEFT-WH GEN WB63X5219 Contact Us For Availability
14
PANEL-SIDE-LEFT-AD GEN WB63X5220 Contact Us For Availability
16
GEN WB48X0202 GEN WB48X0202 Contact Us For Availability
17
GEN WB02X4369 GEN WB02X4369 Contact Us For Availability
17
GEN WB02X4370 GEN WB02X4370 Contact Us For Availability
17
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
18
GEN WB02X4753 GEN WB02X4753 Contact Us For Availability
22
GEN WB01X1105 GEN WB01X1105 Contact Us For Availability
22
RETAINER-OVEN BURNER GEN WB02X4372 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
24
LENS COVER-OVEN LIGHT GEN WB2X4375 Contact Us For Availability
25
GEN WB02X4373 GEN WB02X4373 Contact Us For Availability
25
GEN WB02X7911 GEN WB02X7911 Contact Us For Availability
25
GEN WB02X7912 GEN WB02X7912 Contact Us For Availability
26
GEN WB02X4374 GEN WB02X4374 Contact Us For Availability
26
GEN WB38X0085 GEN WB38X0085 Contact Us For Availability
28
GEN WB48X172 GEN WB48X172 Contact Us For Availability
32
GEN WB55X0581 GEN WB55X0581 Contact Us For Availability
34
GEN WB02X4365 GEN WB02X4365 Contact Us For Availability
35
GEN TRIM-SIDE-VERTICAL GEN TRIM-SIDE-VERTICAL Contact Us For Availability
35
GEN WB36X0688 GEN WB36X0688 Contact Us For Availability
36
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
36
GEN WB36X0689 GEN WB36X0689 Contact Us For Availability
38
CLIP-THERM BULB GEN WB01X0706 Contact Us For Availability
39
CHANNEL-FRAME GEN WB7X1384 Contact Us For Availability
40
GEN BUMPER-FRONT MAIN BODY GEN BUMPER-FRONT MAIN BODY Contact Us For Availability
40
GEN SUPPORT-OVEN BOTTOM GEN SUPPORT-OVEN BOTTOM Contact Us For Availability
40
HANDLE GEN WB15X210 Contact Us For Availability
42
GEN WB02X4366 GEN WB02X4366 Contact Us For Availability
49
GEN WB01X0774 GEN WB01X0774 Contact Us For Availability
51
GEN WB36X690 GEN WB36X690 Contact Us For Availability
52
TRIMM-FRAME GEN WB7X1387 Contact Us For Availability
58
GEN WB02X4390 GEN WB02X4390 Contact Us For Availability
61
RECEPTACLE-FLUOR LIGHT GEN WB08X0242 Contact Us For Availability
72
GEN WB02X4308 GEN WB02X4308 Contact Us For Availability
73
GEN WB02X4385 GEN WB02X4385 Contact Us For Availability
78
GEN WB28X0051 GEN WB28X0051 Contact Us For Availability
87
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
88
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
111
BALLAST-FLUOR. LIGHT GEN WB20X0087 Contact Us For Availability
116
TRIM O/U SPLASHER-LEFT GEN WB07X1385 Contact Us For Availability
116
TRIM O/U SPLASHER-LEFT GEN WB7X1385 Contact Us For Availability
117
GEN WB07X1552 GEN WB07X1552 Contact Us For Availability
119
GEN WB24X5259 GEN WB24X5259 Contact Us For Availability
120
GEN WB02X7913 GEN WB02X7913 Contact Us For Availability
121
GEN WB02X7914 GEN WB02X7914 Contact Us For Availability
128
SCREW-DOOR KNOB & HINGE GEN WB01X0802 Contact Us For Availability

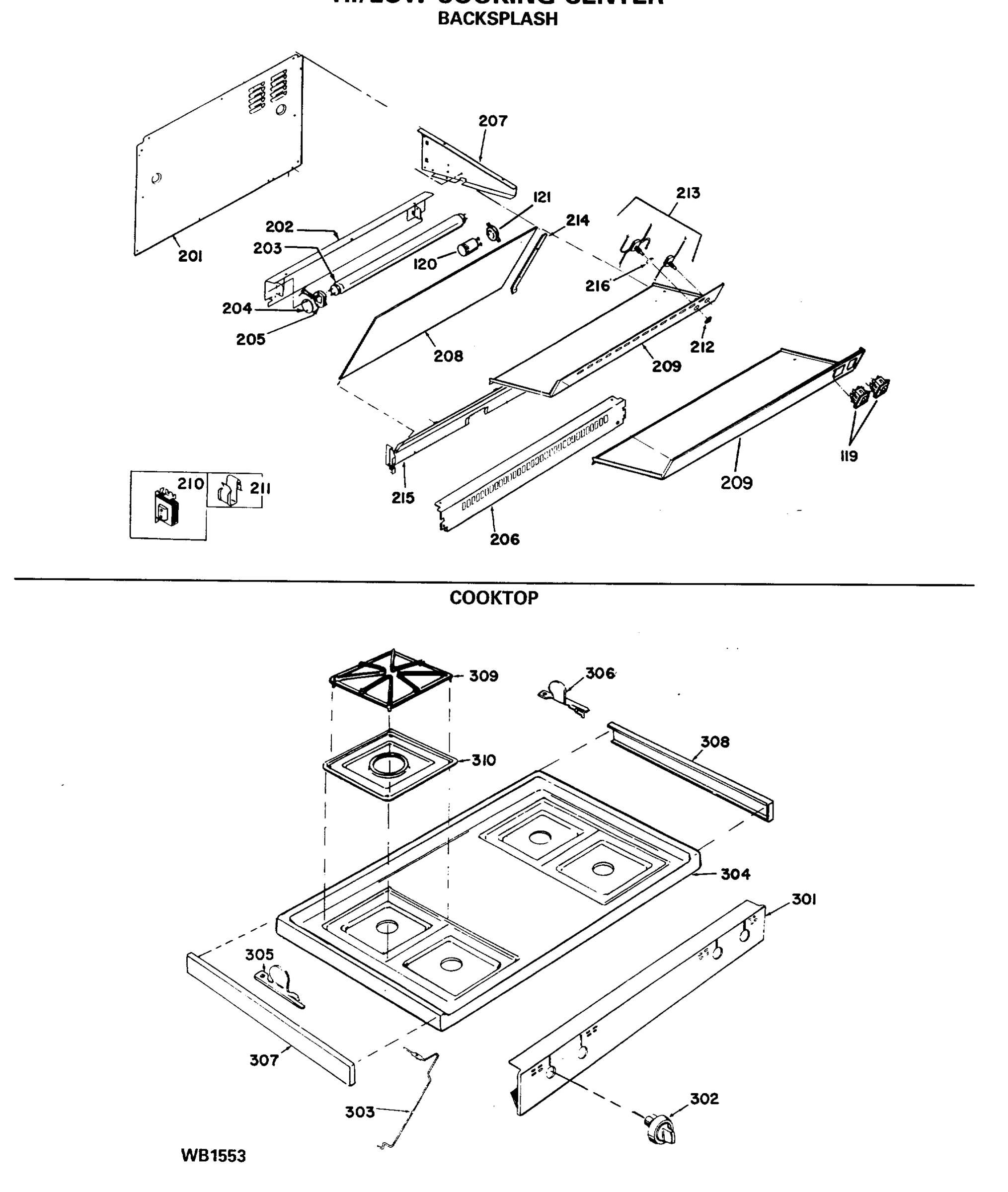

201
BACK-BACKSPLASH GEN WB61X0341 Contact Us For Availability
202
GEN WB02X7910 GEN WB02X7910 Contact Us For Availability
203
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
204
GEN WB02X10079 GEN WB02X10079 Contact Us For Availability
206
GEN WB07X1482 GEN WB07X1482 Contact Us For Availability
208
GEN WB36X0741 GEN WB36X0741 Contact Us For Availability
209
GEN WB61X0375 GEN WB61X0375 Contact Us For Availability
210
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
211
FASTENER-CABLE CLAMP GEN WB02X10053 Contact Us For Availability
301
CONTROL PANEL GEN WB07X1556 Contact Us For Availability
302
KNOB TOP VALVE GEN WB03X0712 Contact Us For Availability
303
ROD-MAIN TOP SUPPORT GEN WB02X7968 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
305
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
306
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
307
GEN WB07X1526 GEN WB07X1526 Contact Us For Availability
308
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
309
GEN WB32X5065 GEN WB32X5065 Contact Us For Availability
310
GEN WB32X5066 GEN WB32X5066 Contact Us For Availability
462
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
463
GLASS-OVEN DOOR-OUTER GEN WB56X1883 Contact Us For Availability
465
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
465
HANDLE GEN WB15X0245 Contact Us For Availability
466
GEN WB01X0474 GEN WB01X0474 Contact Us For Availability
466
GEN WB56X7021 GEN WB56X7021 Contact Us For Availability
467
GEN WB02X7916 GEN WB02X7916 Contact Us For Availability
468
LINER-OVEN DOOR GEN WB56X7020 Contact Us For Availability
470
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
473
SCREW-HANDLE MOUNTING GEN WB01X1016 Contact Us For Availability
476
SCREW GEN WB01X0786 Contact Us For Availability
477
COVER-DOOR LINER GEN WB55X0636 Contact Us For Availability
501
GEN WB10X0246 GEN WB10X0246 Contact Us For Availability
501
GEN WB10X0247 GEN WB10X0247 Contact Us For Availability
501
GEN WB55X0569 GEN WB55X0569 Contact Us For Availability
502
FASTENER-PUSH NUT GEN WB01X1059 Contact Us For Availability
503
INSULATION-BROILER DRAWR GEN WB02X4995 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
506
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
507
GEN WB56X1853 GEN WB56X1853 Contact Us For Availability
507
GEN WB56X1854 GEN WB56X1854 Contact Us For Availability
510
GLIDE-BROILERER GEN WB39X0065 Contact Us For Availability
513
GEN WB39X0066 GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
554
SCREW-HANDLE GEN WB01X1024 Contact Us For Availability
554
HANDLE GEN WB15X0233 Contact Us For Availability
556
SPACER-HANDLE ASSEMBLY GEN WB01X1025 Contact Us For Availability
704
GEN WB02X9365 GEN WB02X9365 Contact Us For Availability
704
GEN WB28X0074 GEN WB28X0074 Contact Us For Availability
705
BURNER TUBE (LF) GEN WB02X8013 Contact Us For Availability
705
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
706
BURNER TUBE (RR) GEN WB02X8014 Contact Us For Availability
707
BURNER TUBE (LR) GEN WB02X8015 Contact Us For Availability
708
BURNER TUBE (RF) GEN WB02X8012 Contact Us For Availability
710
GEN WB02X9366 GEN WB02X9366 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
711
GEN WB02X8016 GEN WB02X8016 Contact Us For Availability
712
GEN WB01X5831 GEN WB01X5831 Contact Us For Availability
715
ELBOW GEN WB02X4750 Contact Us For Availability
715
RETAINER-IGNITER/GROUND GEN WB02X9364 Contact Us For Availability
716
SWITCH-IGNITER GEN WB24X5284 Contact Us For Availability
716
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
721
FITTING-LOXIT GEN WB02X10012 Contact Us For Availability
722
GEN WB2X10109 GEN WB2X10109 Contact Us For Availability
728
TUBE-ALUMINUM GEN WB02X4760 Contact Us For Availability
729
SAFETY VALVE GEN WB21X0423 Contact Us For Availability
730
GEN WB2X10110 GEN WB2X10110 Contact Us For Availability
732
BRACKET-REGULATOR GEN WB02X4774 Contact Us For Availability
732
GEN WB21X0424 GEN WB21X0424 Contact Us For Availability
735
NUT GEN WB01X0928 Contact Us For Availability
748
TUBE-REGULATOR/ELBOW GEN WB02X4758 Contact Us For Availability

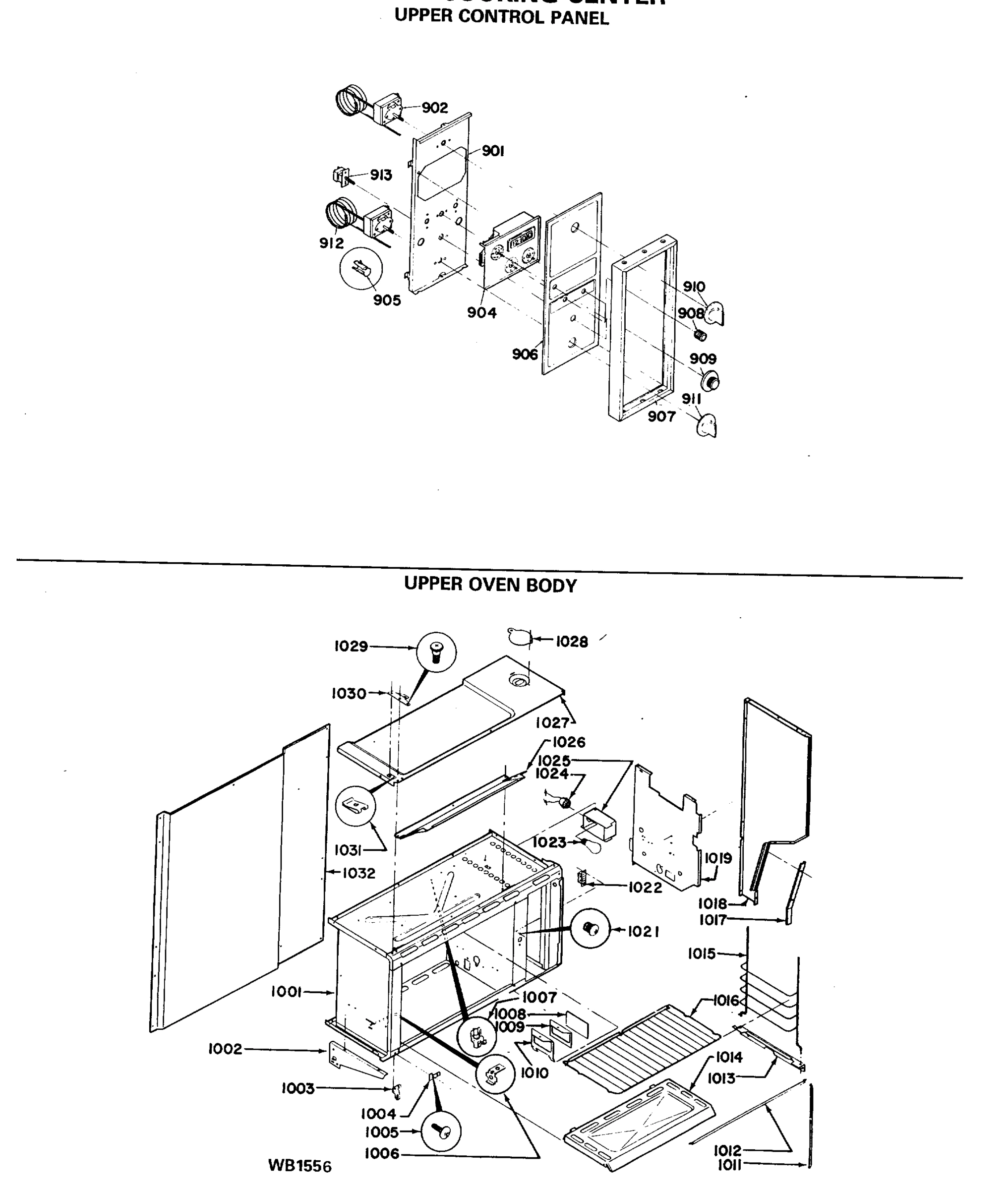

902
GEN WB21X5281 GEN WB21X5281 Contact Us For Availability
904
GEN WB19X0241 GEN WB19X0241 Contact Us For Availability
909
GEN WB03X0738 GEN WB03X0738 Contact Us For Availability
910
GEN WB03X0792 GEN WB03X0792 Contact Us For Availability
911
GEN WB03X0793 GEN WB03X0793 Contact Us For Availability
912
GEN WB21X5277 GEN WB21X5277 Contact Us For Availability
916
SWITCH-2 POSITION GEN WB22X113 Contact Us For Availability
924
GEN WB01X0801 GEN WB01X0801 Contact Us For Availability
924
*BUSHING-GLASS GEN WB02X4391 Contact Us For Availability
1003
CLIP-HINGE GEN WB01X1015 Contact Us For Availability
1003
GEN WB14X0088 GEN WB14X0088 Contact Us For Availability
1004
GEN WB02X4371 GEN WB02X4371 Contact Us For Availability
1005
GEN WB01X1061 GEN WB01X1061 Contact Us For Availability
1011
GASKET-OVEN DOOR SIDES GEN WB02X4376 Contact Us For Availability
1012
GASKET-DOOR TOP & BOTTOM GEN WB02X4377 Contact Us For Availability
1013
GEN WB39X0067 GEN WB39X0067 Contact Us For Availability
1016
GEN WB48X0173 GEN WB48X0173 Contact Us For Availability
1019
GEN INSULATION-SIDE GEN INSULATION-SIDE Contact Us For Availability
1019
GEN WB63X0304 GEN WB63X0304 Contact Us For Availability
1022
GEN STRIKE-OVEN DOOR GEN STRIKE-OVEN DOOR Contact Us For Availability
1022
CATCH ASSEMBLY-DOOR GEN WB10X0226 Contact Us For Availability
1026
GEN INSULATION-VENT GEN INSULATION-VENT Contact Us For Availability
1027
GEN WB63X0305 GEN WB63X0305 Contact Us For Availability
1028
GEN WB02X10111 GEN WB02X10111 Contact Us For Availability
1030
GEN WB14X0089 GEN WB14X0089 Contact Us For Availability
1035
GEN WB63X0299 GEN WB63X0299 Contact Us For Availability
1035
GEN WB63X0300 GEN WB63X0300 Contact Us For Availability
1037
GEN WB63X0301 GEN WB63X0301 Contact Us For Availability
1037
GEN WB63X0302 GEN WB63X0302 Contact Us For Availability
1104
GEN WB14X91 GEN WB14X91 Contact Us For Availability
1106
GEN WB7X1383 GEN WB7X1383 Contact Us For Availability
1108
GEN SCREW-DOOR FRAME GEN SCREW-DOOR FRAME Contact Us For Availability
1110
GEN WB01X1062 GEN WB01X1062 Contact Us For Availability
1111
GEN WB01X0806 GEN WB01X0806 Contact Us For Availability
9999
GEN 49-4811 GEN 49-4811 Contact Us For Availability
32767
GEN 31-0642 GEN 31-0642 Contact Us For Availability
32767
ANTI-TIP BRKT KIT GEN WB02X9804 Contact Us For Availability
× ![]()
