Model Whirlpool JGD8430ADF15 GAS COOK-TOP – Common Parts & Diagrams

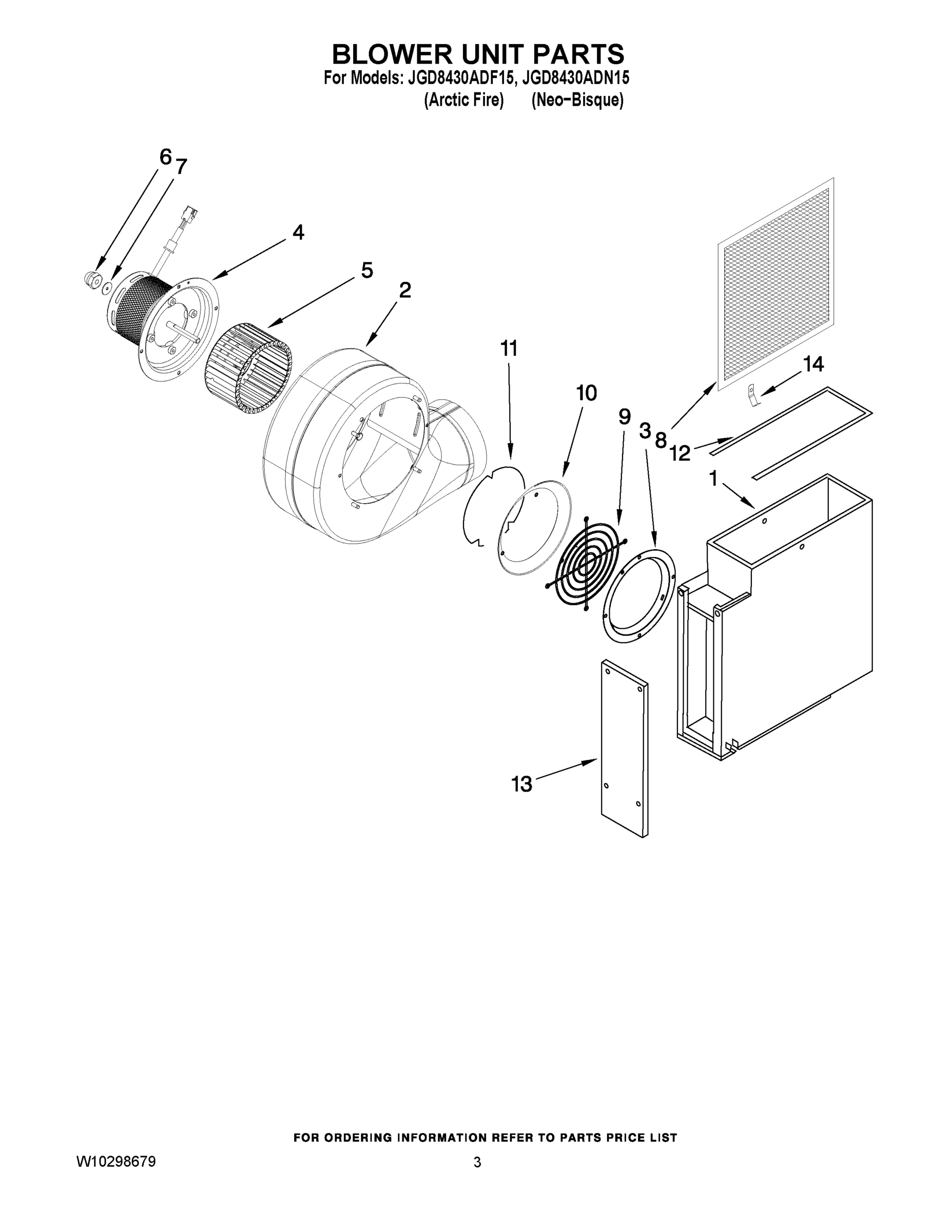

02 - BLOWER UNIT PARTS

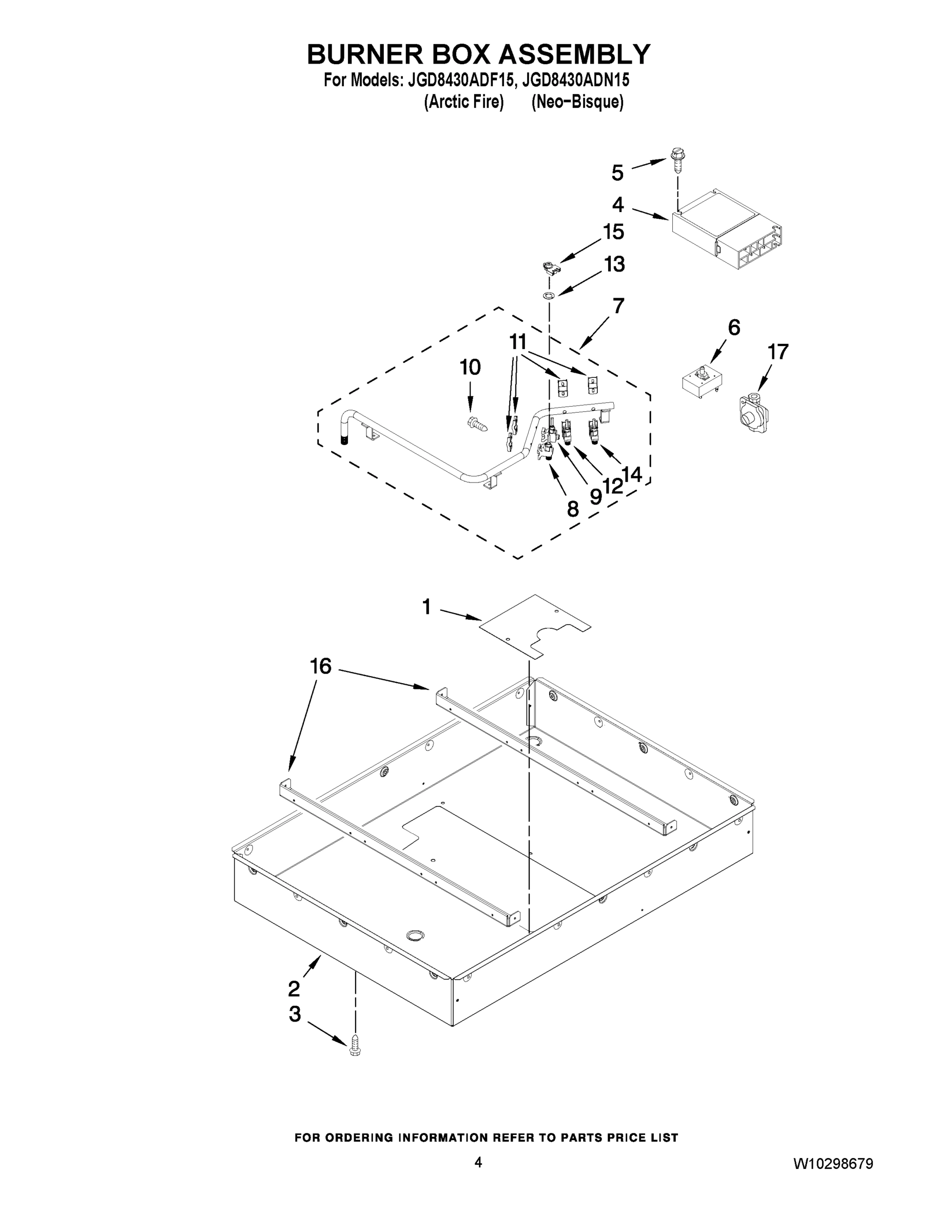

03 - BURNER BOX ASSEMBLY
04 - OPTIONAL PARTS

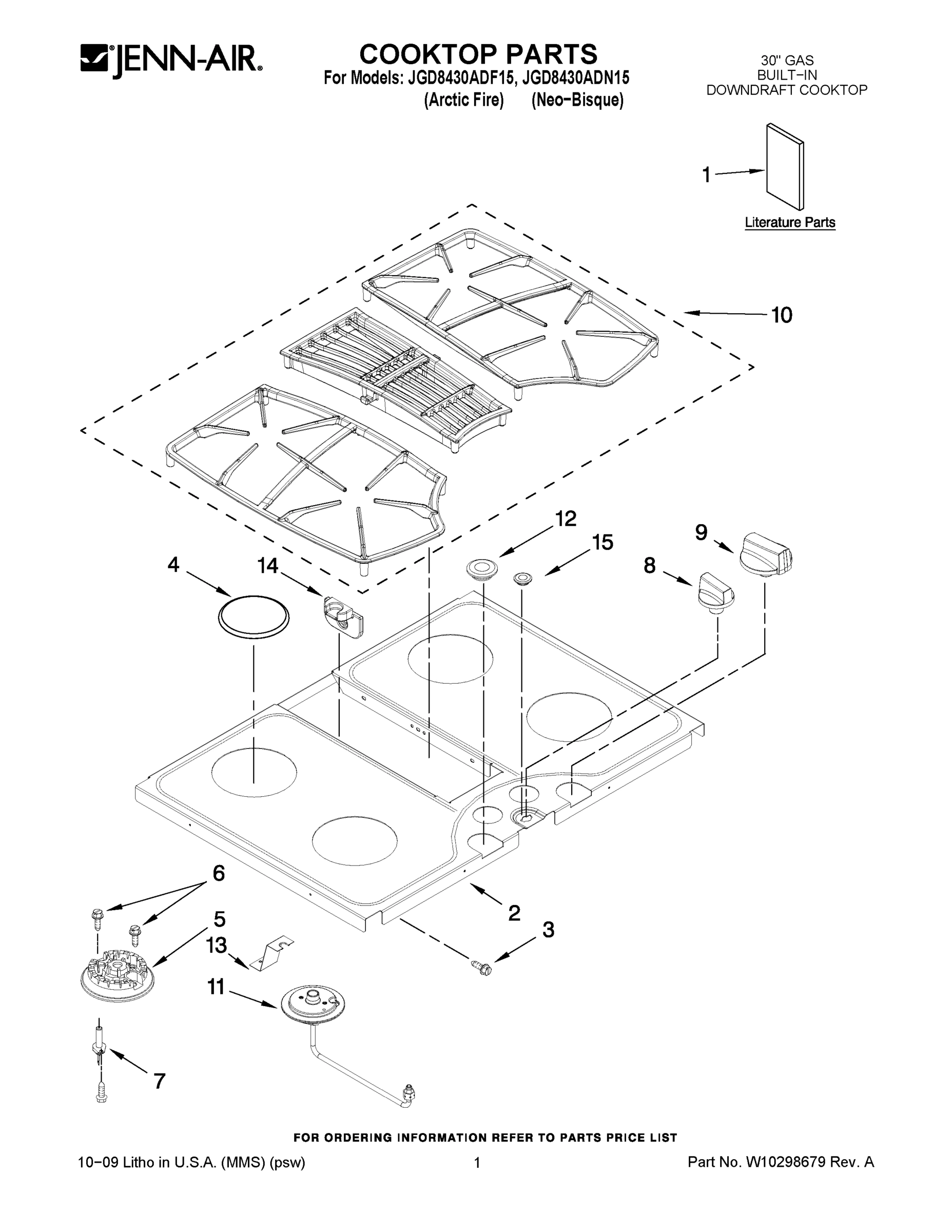

01 - COOKTOP PARTS
Common parts from model Whirlpool JGD8430ADF15 GAS COOK-TOP
1
INSULATOR, BAFFLE WPL 7003P14960 Contact Us For Availability
1
INSTRUCTIONS, DUCTING WPL 8101P18360 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P65360 Contact Us For Availability
1
INSTRUCTIONS LP CONVERSION WPL 8101P66360 Contact Us For Availability
1
CARD, FLOW TESTER WPL 8106P06860 Contact Us For Availability
1
USE & CARE GUIDE WPL 8112P34060 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P13460 Contact Us For Availability
1
Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
2
BLOWER, SCROLL WPL 2822W00180 Contact Us For Availability
2
BOTTOM, BURNER MOTOR HARNESS WPL 4011F52351 Contact Us For Availability
2
TOP, MAIN (ARCTIC FIRE) WPL 7920P18860 Contact Us For Availability
2
TOP, MAIN (NEO-BISQUE) WPL 7920P18960 Contact Us For Availability
3
RING, INLET WPL 4026F00851 Contact Us For Availability
4
MOTOR, BLOWER WPL 7409P02960 Contact Us For Availability
4
MODULE, SPARK WPL 7431P05760 Contact Us For Availability
4
CAP, BURNER (BLACK(LF)) WPL 7504P13660 Contact Us For Availability
4
CAP, BURNER (BLACK(RF)) WPL 7504P13860 Contact Us For Availability
4
CAP, BURNER (BLACK(LR/RR)) WPL 7504P21960 Contact Us For Availability
5
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
5
BURNER, HEAD (LR/RR) WPL 7505P30560 Contact Us For Availability
5
BURNER, HEAD (RF) WPL 7505P30660 Contact Us For Availability
5
BURNER, HEAD (LF) WPL 7505P33960 Contact Us For Availability
6
NUT WPL 7103P19260 Contact Us For Availability
6
SWITCH, ROTARY WPL 7450P02860 Contact Us For Availability
6
SCREW WPL 7101P60660 Contact Us For Availability
7
WASHER WPL 7109P08660 Contact Us For Availability
7
SEAL, MANIFOLD WPL 7208P02460 Contact Us For Availability
7
PIPE,MANIFOLD ASY. WPL 7513P42160 Contact Us For Availability
7
IGNITOR, COOKTOP WPL 7432P12160 Contact Us For Availability
8
FILTER, GREASE WPL 8312P24060 Contact Us For Availability
8
VALVE, 9.2K WPL 7502P50760 Contact Us For Availability
8
KNOB, FAN (BLACK) WPL 7737P24560 Contact Us For Availability
8
KNOB, FAN (NEO-BISQUE) WPL 7737P34860 Contact Us For Availability
9
GUARD, BLOWER WPL 8312P15160 Contact Us For Availability
9
VALVE, 5K WPL 7502P52160 Contact Us For Availability
9
KNOB, CONTROL (BLACK) WPL 7733P41060 Contact Us For Availability
9
KNOB, CONTROL (NEO-BISQUE) WPL 7733P41560 Contact Us For Availability
10
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
10
SCREW WPL 7101P55060 Contact Us For Availability
10
GRATE (L/R/C) WPL 7518P37960 Contact Us For Availability
11
RETAINER WPL 8038P00360 Contact Us For Availability
11
BRACKET, VALVE WPL 8405P02860 Contact Us For Availability
11
HOLDER, ORIFICE (RF) WPL 7527P06660 Contact Us For Availability
11
HOLDER, ORIFICE (LF) WPL 7527P06860 Contact Us For Availability
12
GASKET, PLENUM WPL 7201P14660 Contact Us For Availability
12
VALVE, 9.2K WPL 7502P52060 Contact Us For Availability
12
GROMMET WPL 8008P07160 Contact Us For Availability
13
COVER, PLENUM WPL 4005F64880 Contact Us For Availability
13
GASKET (LEFT) WPL 7201P13560 Contact Us For Availability
13
GASKET (RIGHT) WPL 7201P14460 Contact Us For Availability
13
BRACKET, ORIFICE WPL 3801F94651 Contact Us For Availability
14
RETAINER, FILTER WPL 3804F18850 Contact Us For Availability
14
VALVE, 17K WPL 7502P50560 Contact Us For Availability
14
LOCATOR, GRATE WPL 8008P07560 Contact Us For Availability
15
SWITCH, SPARK (RIGHT) WPL 7403P99860 Contact Us For Availability
15
SWITCH, SPARK (LEFT) WPL 7403P99960 Contact Us For Availability
15
GROMMET WPL 8008P07660 Contact Us For Availability
16
BRACKET, BRACE WPL 8405P08760 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
NI
HARNESS, SPARK WPL W10173472 Contact Us For Availability
NI
WIRE, 16 GRN WPL 5112P84260 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P50060 Contact Us For Availability
NI
INSULATION, BAFFLE WPL 7002P46260 Contact Us For Availability
NI
Cord, Power WPL 7402P08760 Contact Us For Availability
NI
ORIFICE, KIT LP WPL 7509P15360 Contact Us For Availability
NI
RELIEF, STRAIN WPL 8019P01860 Contact Us For Availability
× ![]()
