Model Maytag JGD8345ADB22 GAS COOKTOP – Common Parts & Diagrams

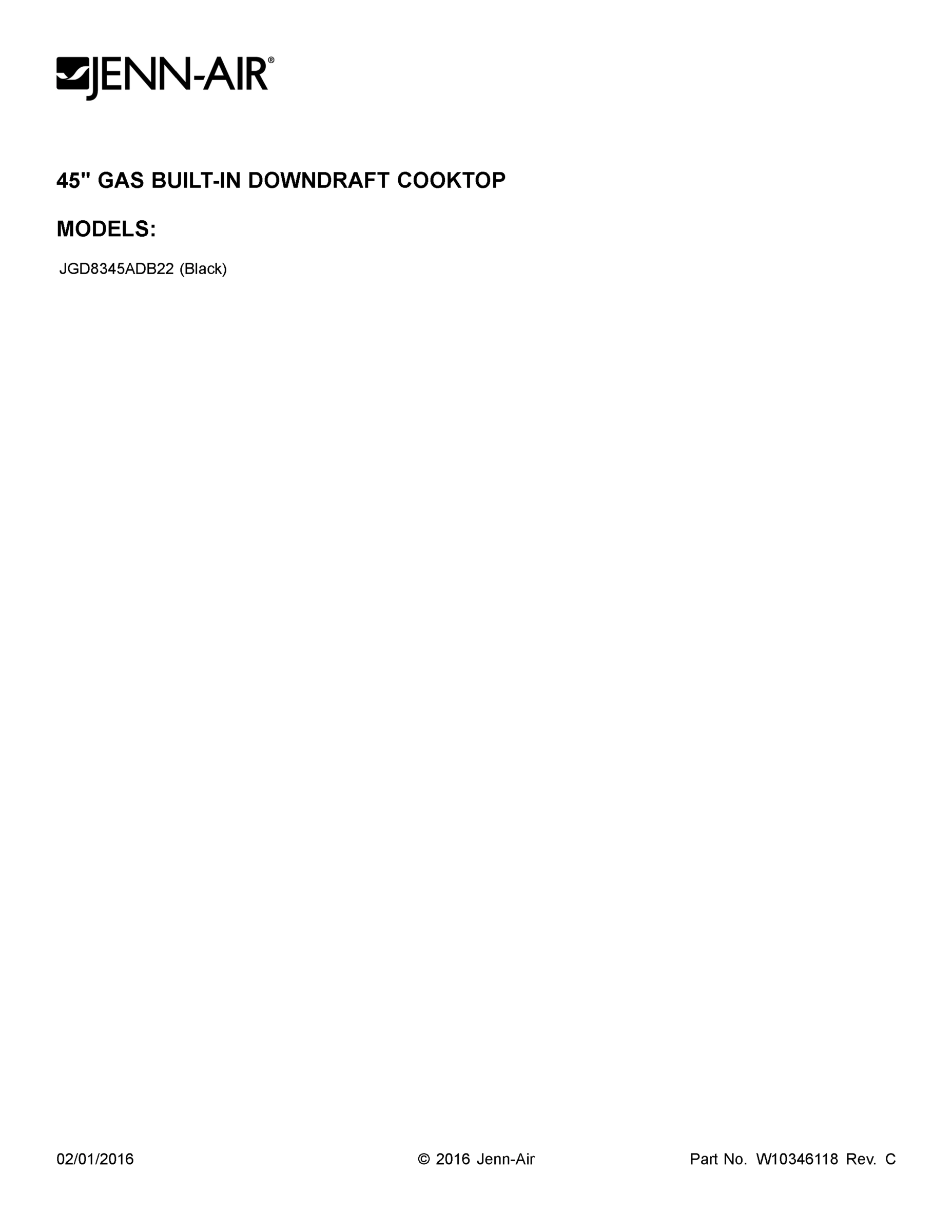

01 - COVER SHEET

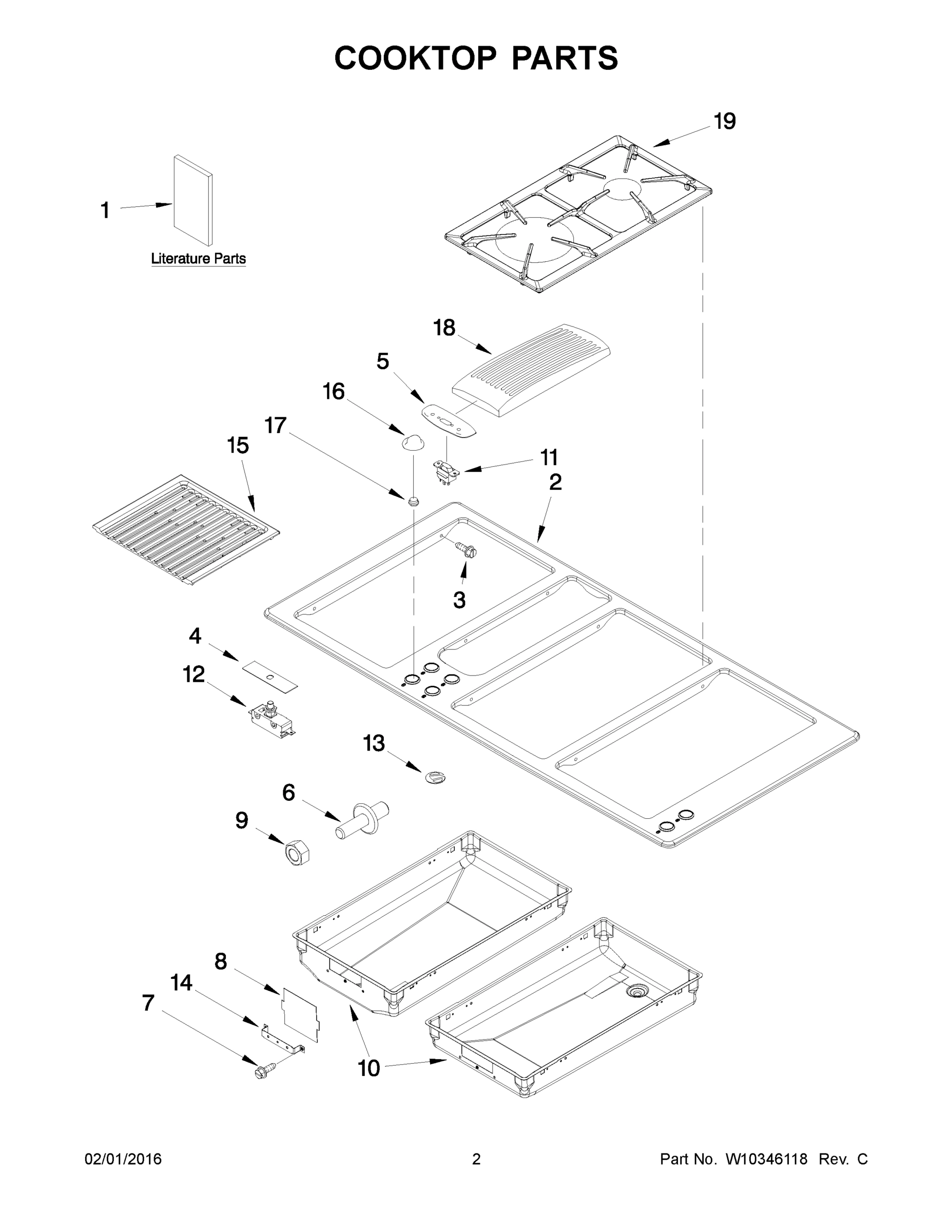

02 - COOKTOP PARTS
03 - BLOWER PLENUM PARTS
04 - BURNER BOX ASSEMBLY PARTS
05 - GAS CONTROL PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag JGD8345ADB22 GAS COOKTOP
1
MAY W10777873 MAY W10777873 Contact Us For Availability
1
MAY 4005F647-51 MAY 4005F647-51 Contact Us For Availability
1
ASSEMBLY, GRILLE BURNER MAY 7505P290-60 Contact Us For Availability
1A
GUIDE, USE & CARE MAY 8111P530-60 Contact Us For Availability
1B
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1D
INSTRUCTIONS, DUCTING MAY 8101P183-60 Contact Us For Availability
1E
INSTRUCTIONS, FRENCH MAY 8101P189-60 Contact Us For Availability
1F
MAY 8101P405-60 MAY 8101P405-60 Contact Us For Availability
2
TOP, MAIN MAY 2001F155-09 Contact Us For Availability
2
MAY W10777874 MAY W10777874 Contact Us For Availability
2
LID, JAR MAY 8312P150-60 Contact Us For Availability
2
ASSEMBLY, E-BURNER IGNITOR MAY 7432P112-60 Contact Us For Availability
3
MAY 7101P342-60 MAY 7101P342-60 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10635792 MAY W10635792 Contact Us For Availability
3
ASSEMBLY, GROUND IGNITOR MAY 7432P116-60 Contact Us For Availability
4
MAY 7003P129-60 MAY 7003P129-60 Contact Us For Availability
4
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
4
MAY 8312P120-60 MAY 8312P120-60 Contact Us For Availability
4
MAY 3604F337-50 MAY 3604F337-50 Contact Us For Availability
5
TRIM, CONTROL FAN MAY W10326967 Contact Us For Availability
5
MAY 7104P007-60 MAY 7104P007-60 Contact Us For Availability
5
MAY 8401P005-60 MAY 8401P005-60 Contact Us For Availability
5
MANIFOLD, (4-BURNER) MAY 7513P489-60 Contact Us For Availability
6
PIN, LOCATOR MAY 7113P020-60 Contact Us For Availability
6
MAY W10241953 MAY W10241953 Contact Us For Availability
6
SCREW, SUPPORT MAY 7101P472-60 Contact Us For Availability
6
VALVE, TOP BURNER (4-BURNER, LEFT) MAY 7502P371-60 Contact Us For Availability
6A
VALVE, TOP BURNER (4-BURNER, RIGHT) MAY 7502P372-60 Contact Us For Availability
7
MAY 7101P451-60 MAY 7101P451-60 Contact Us For Availability
7
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
7
NUT, SQUARE MAY 7103P153-60 Contact Us For Availability
7
MAY 7403P692-60 MAY 7403P692-60 Contact Us For Availability
7A
MAY 7403P691-60 MAY 7403P691-60 Contact Us For Availability
8
MAY 7003P130-60 MAY 7003P130-60 Contact Us For Availability
8
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
8
MAY W10414473 MAY W10414473 Contact Us For Availability
8
TUBE (RIGHT FRONT) MAY 7506P254-60 Contact Us For Availability
8A
TUBE (RIGHT REAR) MAY 7506P255-60 Contact Us For Availability
8B
TUBE (LEFT FRONT) MAY 7506P256-60 Contact Us For Availability
8C
TUBE (LEFT REAR) MAY 7506P257-60 Contact Us For Availability
8D
TUBE (CROSSOVER) MAY 7506P309-60 Contact Us For Availability
8E
TUBE (CENTER FRONT) MAY 7506P280-60 Contact Us For Availability
8F
TUBE (CENTER REAR) MAY 7506P281-60 Contact Us For Availability
9
MAY 7103P160-60 MAY 7103P160-60 Contact Us For Availability
9
MAY 7101P460-60 MAY 7101P460-60 Contact Us For Availability
9
TEE, ADAPTER MAY 7507P227-60 Contact Us For Availability
10
MAY 3401F066-19 MAY 3401F066-19 Contact Us For Availability
10
MAY 4005F648-80 MAY 4005F648-80 Contact Us For Availability
10
CARTRIDGE, TOP MAY 2001F175-09 Contact Us For Availability
10A
PAN, GRILL (LEFT) MAY 3401F099-19 Contact Us For Availability
11
SWITCH, FAN MAY W10331927 Contact Us For Availability
11
MAY 8312P121-60 MAY 8312P121-60 Contact Us For Availability
11
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
12
MAY 7403P654-60 MAY 7403P654-60 Contact Us For Availability
12
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
12
MAY 7538P008-60 MAY 7538P008-60 Contact Us For Availability
12A
MAY 7538P009-60 MAY 7538P009-60 Contact Us For Availability
13
MAY 7212P053-60 MAY 7212P053-60 Contact Us For Availability
13
RELAY, FAN MAY 7428P030-60 Contact Us For Availability
13
ELECTRODE MAY 7432P100-60 Contact Us For Availability
14
MAY 7112P150-60 MAY 7112P150-60 Contact Us For Availability
14
MODULE, SPARK (4+0) MAY 7431P060-60 Contact Us For Availability
14
MAY 3403D075-10 MAY 3403D075-10 Contact Us For Availability
14A
MODULE, SPARK (2+0) MAY 7431P059-60 Contact Us For Availability
15
MAY 7518P070-60 MAY 7518P070-60 Contact Us For Availability
15
MAY 8019P018-60 MAY 8019P018-60 Contact Us For Availability
15
REGULATOR, PRESSURE MAY 7510P075-60 Contact Us For Availability
16
MAY 7733P314-60 MAY 7733P314-60 Contact Us For Availability
16
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
16
MAY 7212P067-60 MAY 7212P067-60 Contact Us For Availability
16A
KNOB, CONTROL (BLACK (DOWNDRAFT)) MAY 7733P313-60 Contact Us For Availability
17
MAY 7103P164-60 MAY 7103P164-60 Contact Us For Availability
17
MAY 4005F791-80 MAY 4005F791-80 Contact Us For Availability
18
GRILLE, AIR MAY 7772P046-60 Contact Us For Availability
18
MAY 4001F155-80 MAY 4001F155-80 Contact Us For Availability
19
GRATE, BURNER MAY 7518P483-60 Contact Us For Availability
19
BRACKET, VENTURI ALIGN MAY 3801F704-51 Contact Us For Availability
20
ASSEMBLY, IGNITOR MAY 7432P120-60 Contact Us For Availability
21
MAY 7724P179-60 MAY 7724P179-60 Contact Us For Availability
22
PIPE, MANIFOLD (2-BURNER) MAY 7513P264-60 Contact Us For Availability
23
VALVE MAY 7502P384-60 Contact Us For Availability
24
SCREW MAY 7101P044-60 Contact Us For Availability
NI
WOK MAY AO142 Contact Us For Availability
NI
SEAL, LIMITER MAY 3192439 Contact Us For Availability
NI
WIRE (YELLOW) MAY 5112P331-60 Contact Us For Availability
NI
WIRE (BLUE) MAY 5112P754-60 Contact Us For Availability
NI
MAY 5170P922-60 MAY 5170P922-60 Contact Us For Availability
NI
MAY 5170P925-60 MAY 5170P925-60 Contact Us For Availability
NI
MAY 5170P926-60 MAY 5170P926-60 Contact Us For Availability
NI
MAY 5170P966-60 MAY 5170P966-60 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
NI
FOLLOWING ACCESSORIES NOT INCLUDED MAY N/P Contact Us For Availability
NI
MAY 5700A881-60 MAY 5700A881-60 Contact Us For Availability
× ![]()
