Model Maytag JGD3536WW01 GAS COOKTOP – Common Parts & Diagrams

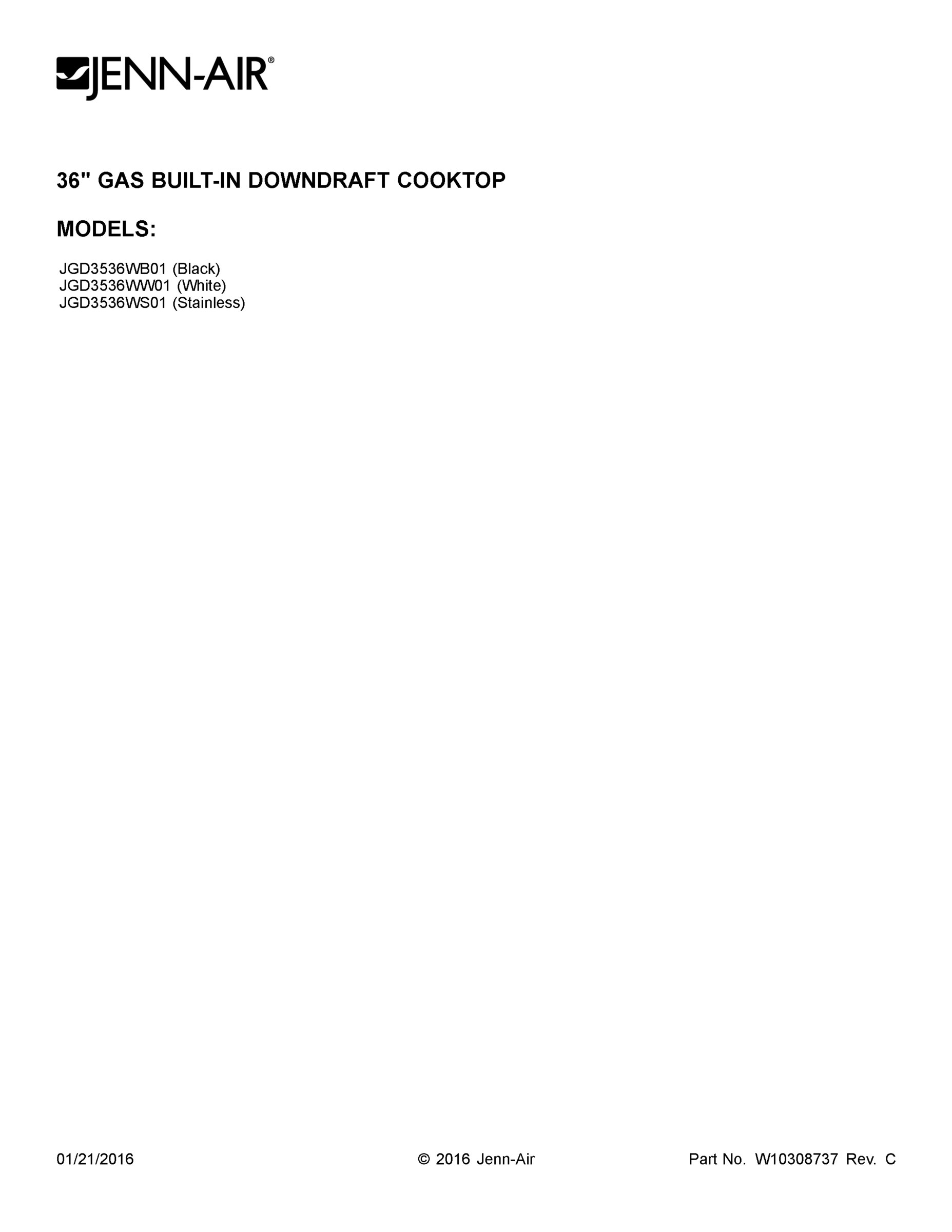

01 - COVER SHEET

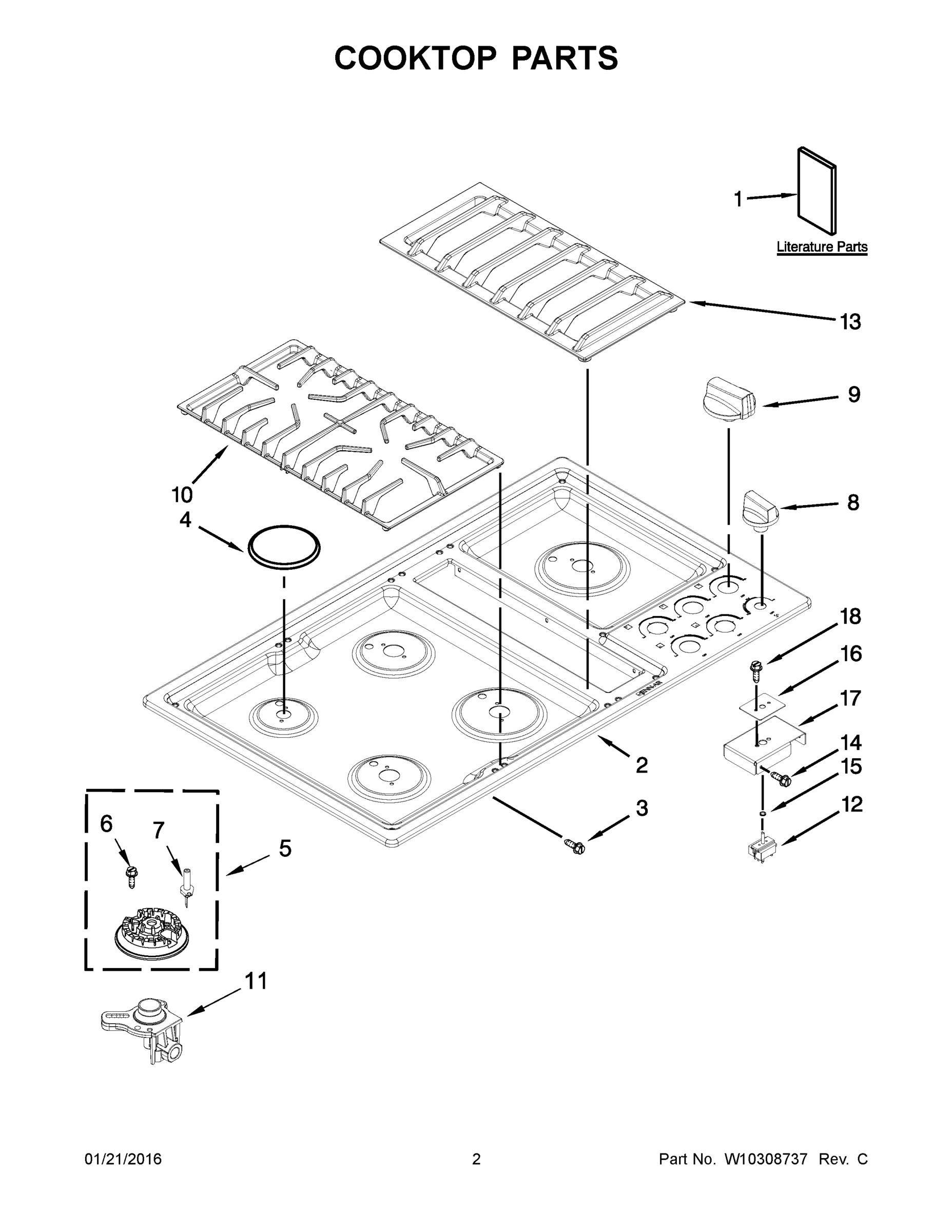

02 - COOKTOP PARTS

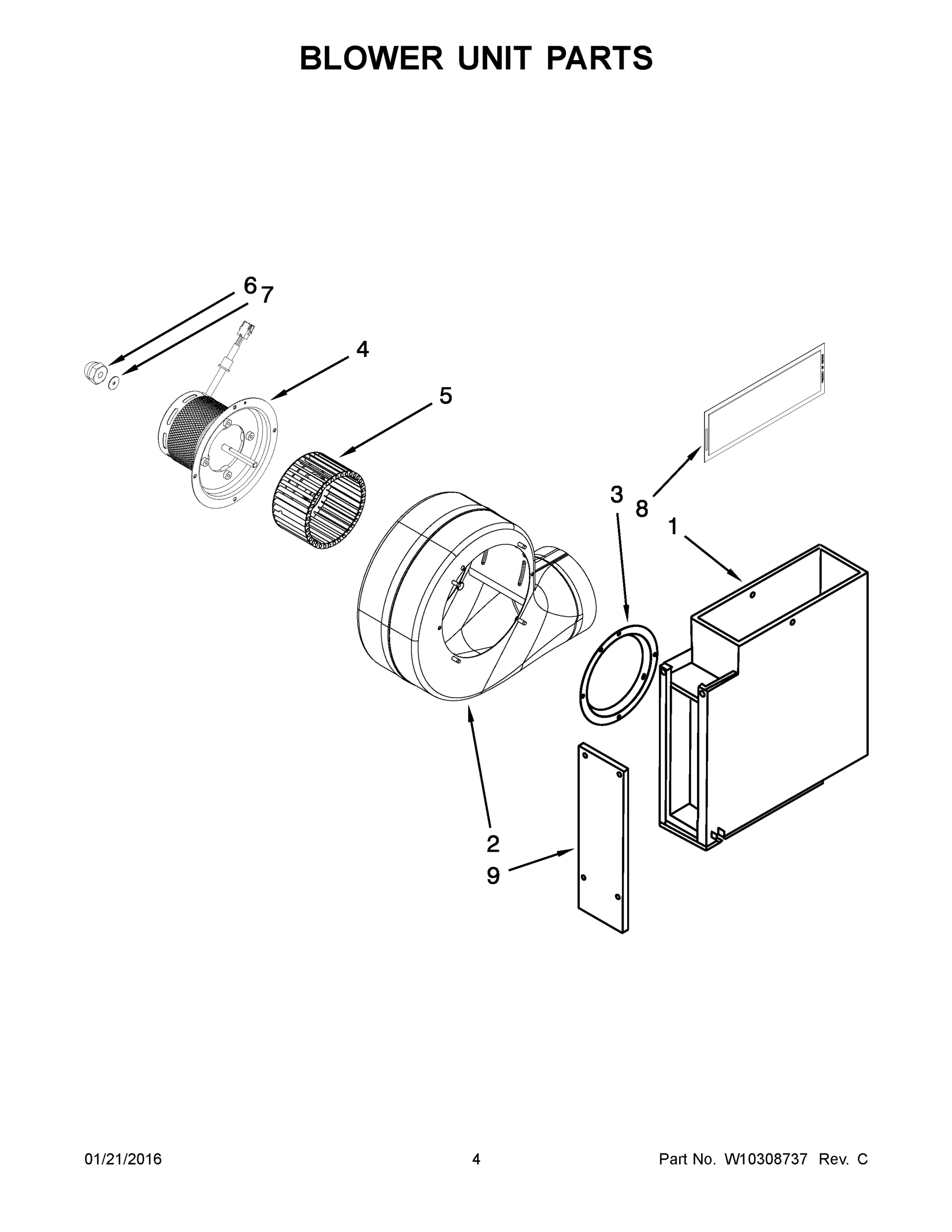

03 - BLOWER UNIT PARTS

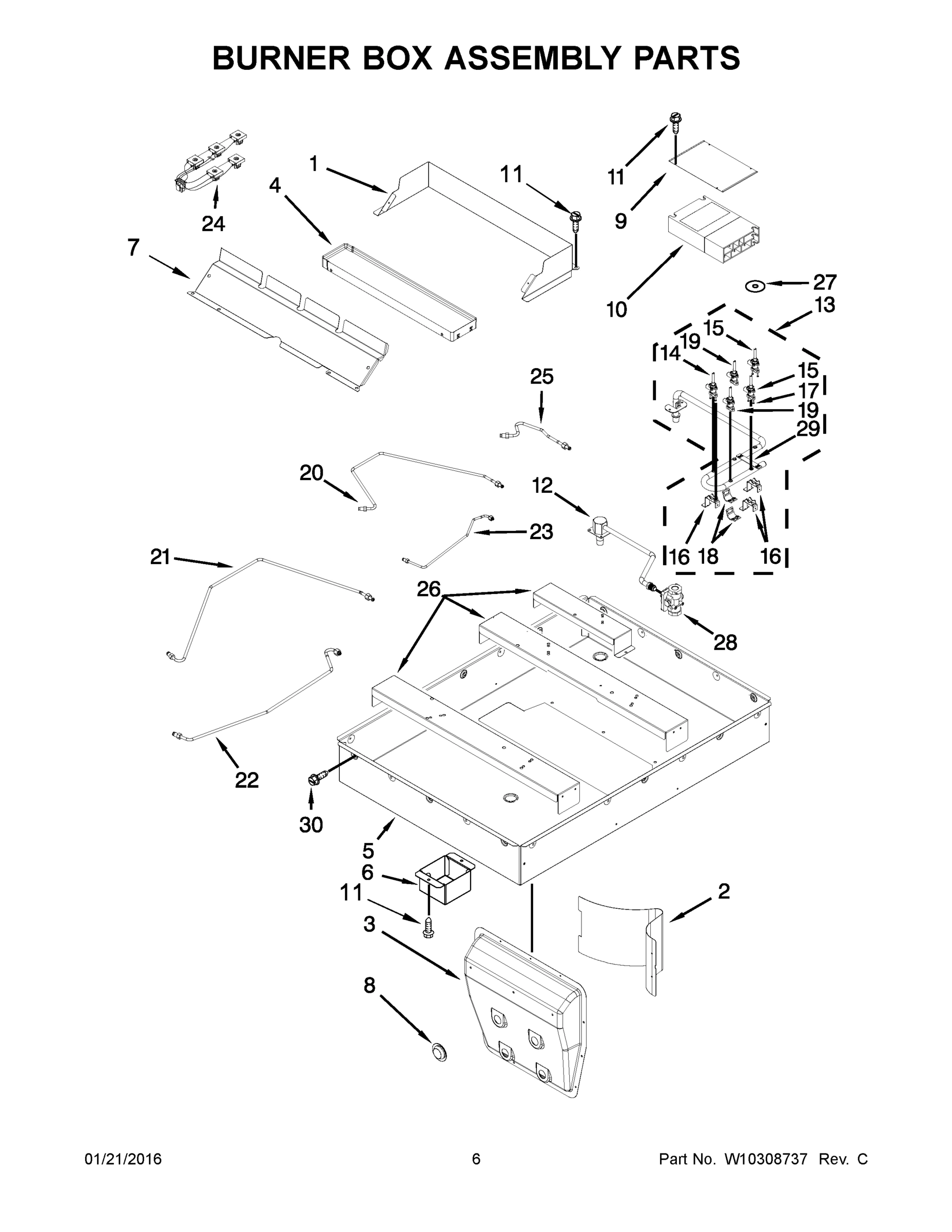

04 - BURNER BOX ASSEMBLY PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JGD3536WW01 GAS COOKTOP
1
MAY W10197058 MAY W10197058 Contact Us For Availability
1
ASSEMBLY, PLENUM MAY W10184122 Contact Us For Availability
1
BRACKET, BURNER BOX SHIELD (LEFT) MAY W10269712 Contact Us For Availability
1A
SHEET, TECH (ENGLISH) MAY W10222824 Contact Us For Availability
1B
SHEET, TECH (FRENCH) MAY W10222823 Contact Us For Availability
1C
GUIDE, USE & CARE MAY W10233478 Contact Us For Availability
1D
INSTRUCTIONS, LP CONVERSION MAY W10240007 Contact Us For Availability
1E
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1F
MAY 9762761 MAY 9762761 Contact Us For Availability
1G
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10185525 MAY W10185525 Contact Us For Availability
2
ASSEMBLY, SCROLL MAY 2822W001-80 Contact Us For Availability
2
MAY W10184137 MAY W10184137 Contact Us For Availability
2A
MAY W10185527 MAY W10185527 Contact Us For Availability
2B
MAY W10185540 MAY W10185540 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10184125 MAY W10184125 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT FRONT & CENTER REAR) MAY 7504P299-60 Contact Us For Availability
4
MAY W10247586 MAY W10247586 Contact Us For Availability
4
MAY W10235990 MAY W10235990 Contact Us For Availability
4A
CAP, BURNER (BLACK (LEFT REAR)) MAY 7504P298-60 Contact Us For Availability
4B
CAP, BURNER (BLACK (RIGHT REAR & CENTER FRONT MAY 7504P300-60 Contact Us For Availability
4C
CAP, BURNER (WETSTONE (LEFT FRONT & CENTER RE MAY 7504P295-60 Contact Us For Availability
4D
CAP, BURNER (WETSTONE (LEFT REAR)) MAY 7504P294-60 Contact Us For Availability
4E
CAP, BURNER (WETSTONE (RIGHT REAR & CENTER FR MAY 7504P296-60 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT FRONT & CENTER REAR)) MAY 7505P305-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
MAY W10300435 MAY W10300435 Contact Us For Availability
5A
ASSEMBLY, BURNER (5K) (LEFT REAR) MAY 7505P304-60 Contact Us For Availability
5B
ASSEMBLY, BURNER (RIGHT REAR & CENTER FRONT) MAY 7505P306-60 Contact Us For Availability
6
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
6
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
6
MAY W10258697 MAY W10258697 Contact Us For Availability
7
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
7
MAY 7109P086-60 MAY 7109P086-60 Contact Us For Availability
7
BRACKET, BURNER BOX SHIELD (RIGHT) MAY W10269705 Contact Us For Availability
8
KNOB, FAN (BLACK) MAY W10209700 Contact Us For Availability
8
PLUG, HOLE MAY 7718P023-60 Contact Us For Availability
8A
KNOB, FAN (WHITE) MAY W10209701 Contact Us For Availability
8B
KNOB, FAN (STAINLESS) MAY W10207833 Contact Us For Availability
9
MAY W10236134 MAY W10236134 Contact Us For Availability
9
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
9
MAY W10253448 MAY W10253448 Contact Us For Availability
9A
MAY W10236135 MAY W10236135 Contact Us For Availability
9B
MAY W10236136 MAY W10236136 Contact Us For Availability
10
GRATE BLACK (LEFT) MAY W10204545 Contact Us For Availability
10
MAY W10475150 MAY W10475150 Contact Us For Availability
10A
GRATE BLACK (CENTER) MAY W10204546 Contact Us For Availability
10B
GRATE BLACK (RIGHT) MAY W10204548 Contact Us For Availability
10C
GRATE WHITE (LEFT) MAY W10203091 Contact Us For Availability
10D
GRATE WHITE (CENTER) MAY W10203092 Contact Us For Availability
10E
GRATE WHITE (RIGHT) MAY W10203094 Contact Us For Availability
11
MAY 7527P031-60 MAY 7527P031-60 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11A
HOLDER, ORIFICE (5K) (CENTER FRONT) MAY 7527P042-60 Contact Us For Availability
11B
HOLDER, ORIFICE (9.2K) (LEFT REAR) MAY 7527P002-60 Contact Us For Availability
11C
HOLDER, ORIFICE (12.5K) (CENTER REAR) MAY 7527P003-60 Contact Us For Availability
11D
HOLDER, ORIFICE (RIGHT REAR) MAY 7527P004-60 Contact Us For Availability
12
SWITCH, BLOWER MAY 4456836 Contact Us For Availability
12
FITTING, GAS SUPPLY MAY W10361756 Contact Us For Availability
13
MAY W10204547 MAY W10204547 Contact Us For Availability
13
MAY W10184143 MAY W10184143 Contact Us For Availability
13A
MAY W10203093 MAY W10203093 Contact Us For Availability
14
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
MAY W10237981 MAY W10237981 Contact Us For Availability
15
MAY 8008P065-60 MAY 8008P065-60 Contact Us For Availability
15
MAY W10237983 MAY W10237983 Contact Us For Availability
16
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
16
MAY W10221532 MAY W10221532 Contact Us For Availability
17
MAY W10235926 MAY W10235926 Contact Us For Availability
17
MAY W10246216 MAY W10246216 Contact Us For Availability
18
BRACKET, SADDLE VALVE MAY W10246217 Contact Us For Availability
19
VALVE, GAS TOP (9.2/12.5K) MAY W10259053 Contact Us For Availability
20
TUBING, GAS (CENTER REAR) MAY W10188368 Contact Us For Availability
21
TUBING, GAS (LEFT REAR) MAY W10188366 Contact Us For Availability
22
TUBING, GAS (LEFT FRONT) MAY W10188365 Contact Us For Availability
23
TUBING, GAS (CENTER FRONT) MAY W10188367 Contact Us For Availability
24
MAY W10239017 MAY W10239017 Contact Us For Availability
25
TUBING, GAS RIGHT REAR) MAY W10188369 Contact Us For Availability
26
MAY W10205612 MAY W10205612 Contact Us For Availability
26A
MAY W10205613 MAY W10205613 Contact Us For Availability
26B
MAY W10205615 MAY W10205615 Contact Us For Availability
27
SEAL, SHAFT MAY 3191387 Contact Us For Availability
28
MAY W10132345 MAY W10132345 Contact Us For Availability
29
MAY W10185534 MAY W10185534 Contact Us For Availability
30
SCREW MAY 3368921 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
RELIEF, STRAIN MAY 8019P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, MAIN MAY W10207825 Contact Us For Availability
NI
HARNESS, SPARK MAY W10207826 Contact Us For Availability
NI
KIT, LP ORIFICE MAY W10239523 Contact Us For Availability
NI
RIVET, NYLON MAY W10249271 Contact Us For Availability
NI
HARNESS, BLOWER MAY W10253222 Contact Us For Availability
NI
MAY W10240990 MAY W10240990 Contact Us For Availability
NI
MAY 31462 MAY 31462 Contact Us For Availability
× ![]()
