Model Maytag JGD3536GS00 COOKTOP, GAS, BUILT-IN, DOWNDRAFT, 36" – Common Parts & Diagrams

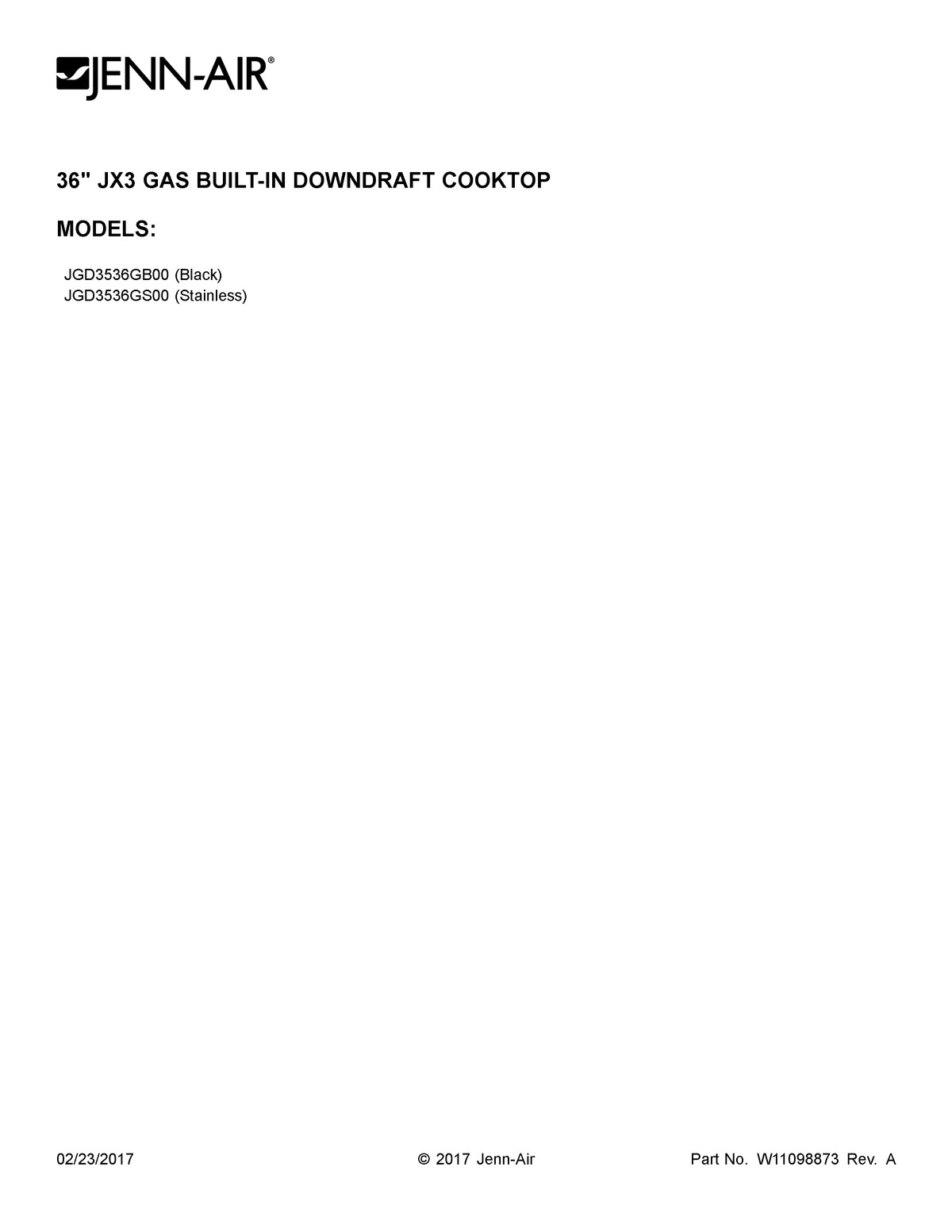

01 - COVER SHEET

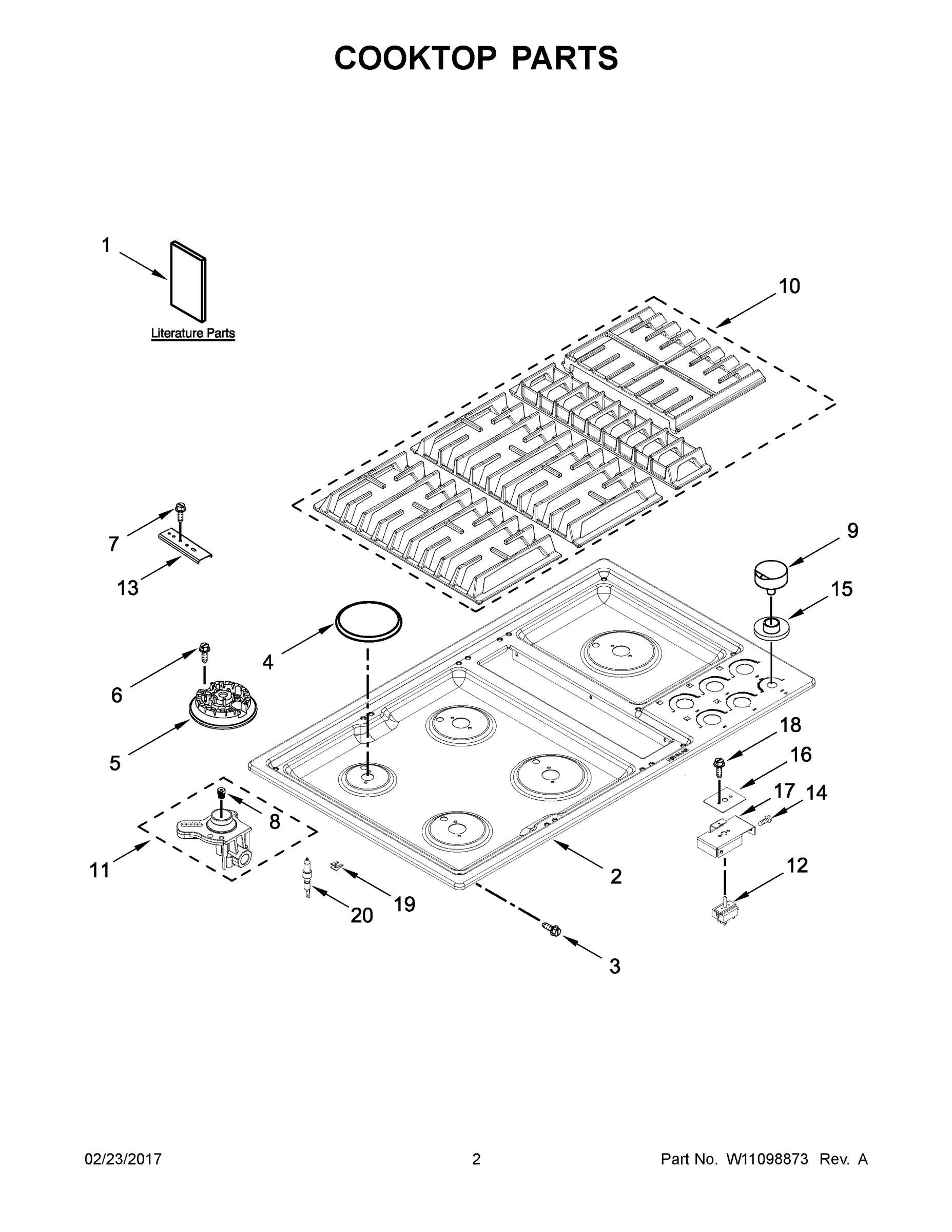

02 - COOKTOP PARTS

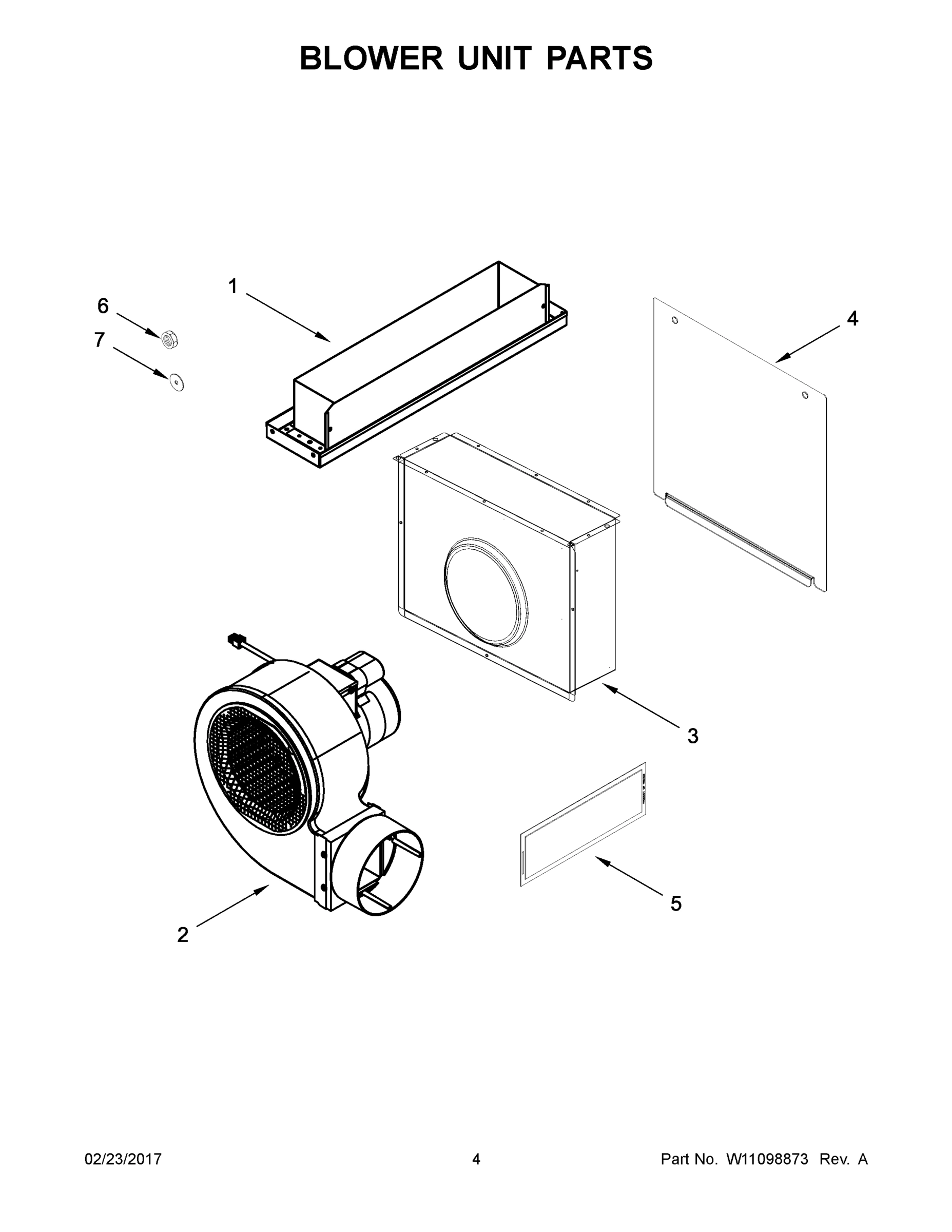

03 - BLOWER UNIT PARTS

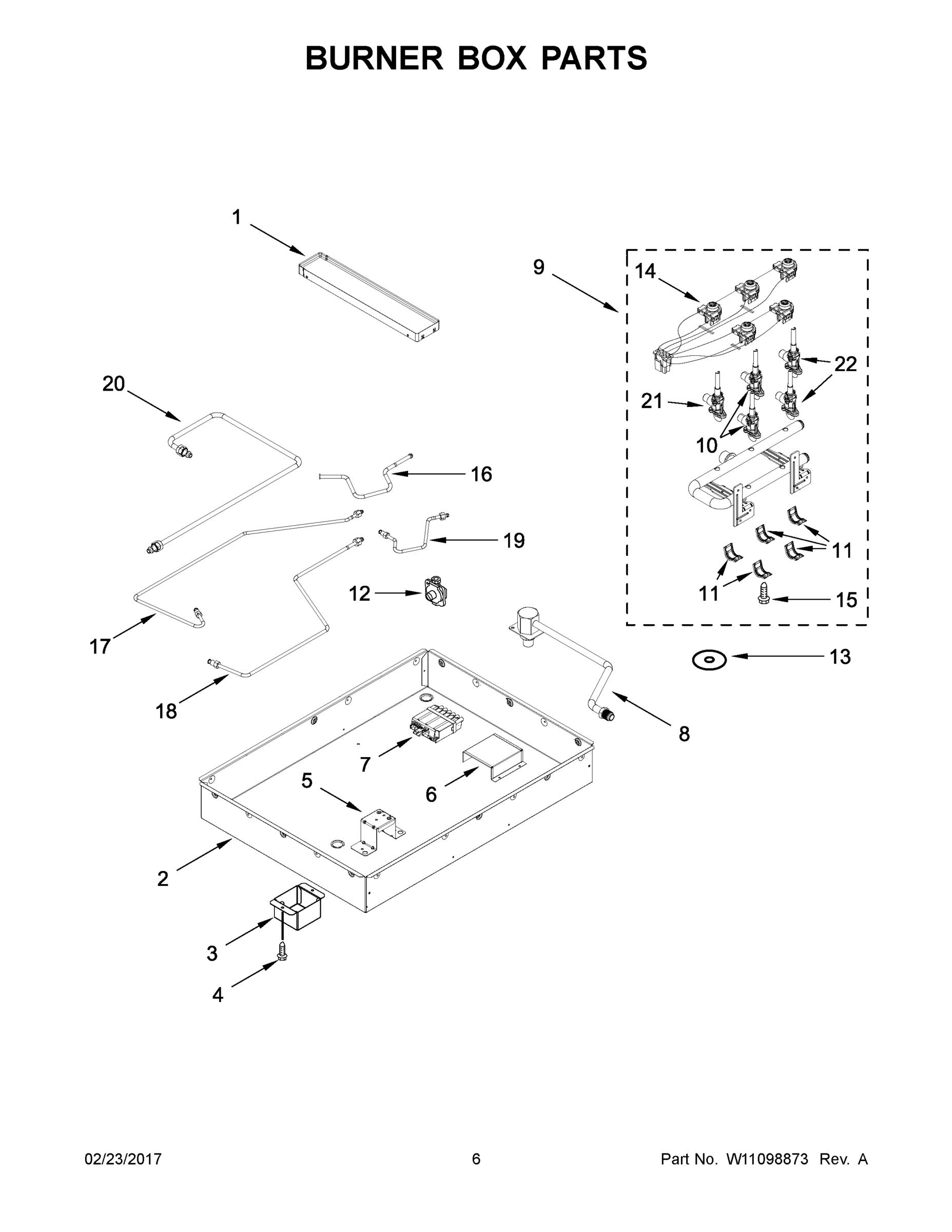

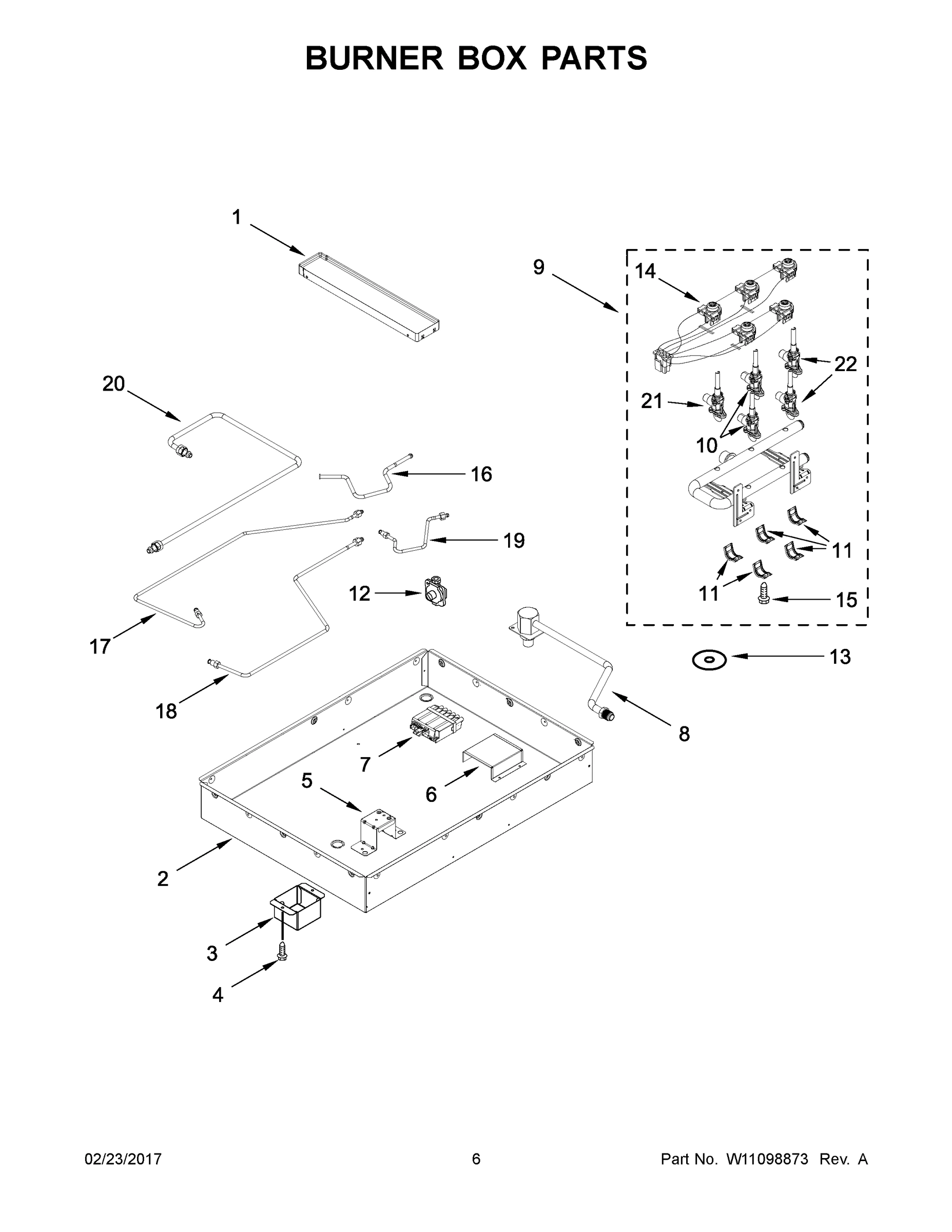

04 - BURNER BOX PARTS
05 - OPTIONAL PARTS NOT INCLUDED

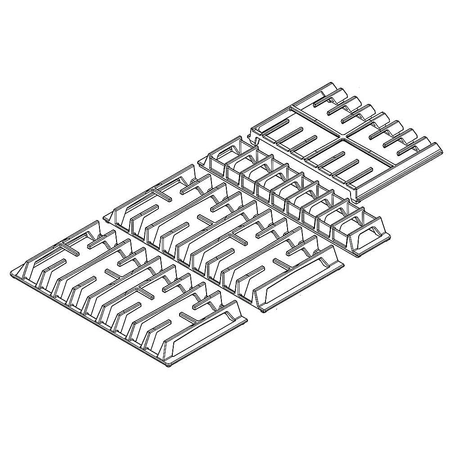

Common parts from model Maytag JGD3536GS00 COOKTOP, GAS, BUILT-IN, DOWNDRAFT, 36"
1
MAY W10848427 MAY W10848427 Contact Us For Availability
1
MAY W10836514 MAY W10836514 Contact Us For Availability
1
TRAY, SPILL MAY W10235990 Contact Us For Availability
1A
MAY W10917793 MAY W10917793 Contact Us For Availability
1B
MAY W10848425 MAY W10848425 Contact Us For Availability
1C
INSTRUCTIONS, LP CONVERSION MAY W10240007 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10842068 MAY W10842068 Contact Us For Availability
2
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
2
ASSEMBLY, DOWNDRAFT BLOWER MAY W10877782 Contact Us For Availability
2A
MAY W10842066 MAY W10842066 Contact Us For Availability
3
ASSEMBLY, LOWER PLENUM MAY W10837738 Contact Us For Availability
3
COVER, BLOWER MOTOR HARNESS MAY W10258697 Contact Us For Availability
4
MAY W10910375 MAY W10910375 Contact Us For Availability
4
SCREW MAY 7101P426-60 Contact Us For Availability
4
PANEL, LOWER PLENUM ACCESS MAY W10837737 Contact Us For Availability
5
ASSEMBLY, BURNER (SR) (LEFT FRONT) MAY W10815355 Contact Us For Availability
5
FILTER, GREASE MAY W10815866 Contact Us For Availability
5
MAY W10811211 MAY W10811211 Contact Us For Availability
5A
MAY W10815354 MAY W10815354 Contact Us For Availability
5B
ASSEMBLY, BURNER (UR) (CENTER FRONT & RIGHT R MAY W10815357 Contact Us For Availability
5C
MAY W10815356 MAY W10815356 Contact Us For Availability
6
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
6
MAY W10894861 MAY W10894861 Contact Us For Availability
7
SCREW MAY 3400093 Contact Us For Availability
7
WASHER MAY 7109P086-60 Contact Us For Availability
7
MODULE, SPARK MAY W10475150 Contact Us For Availability
8
ORIFICE (LEFT FRONT) MAY W10907868 Contact Us For Availability
8
FITTING,GAS SUPPLY MAY W10361756 Contact Us For Availability
8A
ORIFICE (LEFT REAR) MAY W10849719 Contact Us For Availability
8B
ORIFICE (CENTER FRONT) MAY W10907866 Contact Us For Availability
8C
MAY W10907867 MAY W10907867 Contact Us For Availability
8D
ORIFICE (RIGHT REAR) MAY W10907865 Contact Us For Availability
9
KNOB, CONTROL (BLACK) MAY W10559476 Contact Us For Availability
9
MAY W10907219 MAY W10907219 Contact Us For Availability
9A
KNOB, CONTROL (STAINLESS) MAY W10559475 Contact Us For Availability
10
MAY W10821817 MAY W10821817 Contact Us For Availability
10
MAY W10844472 MAY W10844472 Contact Us For Availability
11
HOLDER, ORIFICE (10K) (LEFT FRONT) MAY W10826754 Contact Us For Availability
11
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
11A
MAY W10826751 MAY W10826751 Contact Us For Availability
11B
HOLDER, ORIFICE (15K) (CENTER FRONT) MAY W10826753 Contact Us For Availability
11C
MAY W10827697 MAY W10827697 Contact Us For Availability
11D
HOLDER, ORIFICE (17K) (RIGHT REAR) MAY W10826752 Contact Us For Availability
12
MAY W10866564 MAY W10866564 Contact Us For Availability
12
REGULATOR, PRESSURE MAY W10449143 Contact Us For Availability
13
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
13
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
14
SCREW MAY 7101P427-60 Contact Us For Availability
14
MAY W10861397 MAY W10861397 Contact Us For Availability
15
BEZEL (BLACK) MAY W10559486 Contact Us For Availability
15
SCREW, VALVE MAY W10295997 Contact Us For Availability
15A
BEZEL (STAINLESS) MAY W10559494 Contact Us For Availability
16
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
16
MAY W10827689 MAY W10827689 Contact Us For Availability
17
MAY W10814795 MAY W10814795 Contact Us For Availability
17
MAY W10827690 MAY W10827690 Contact Us For Availability
18
MAY W10827691 MAY W10827691 Contact Us For Availability
19
CLIP, SPRING (ELECTRODE) MAY W10827923 Contact Us For Availability
19
MAY W10827692 MAY W10827692 Contact Us For Availability
20
MAY W10876259 MAY W10876259 Contact Us For Availability
20
MAY W10827693 MAY W10827693 Contact Us For Availability
20A
MAY W10905489 MAY W10905489 Contact Us For Availability
20B
MAY W10876260 MAY W10876260 Contact Us For Availability
20C
MAY W10876261 MAY W10876261 Contact Us For Availability
20D
MAY W10876262 MAY W10876262 Contact Us For Availability
21

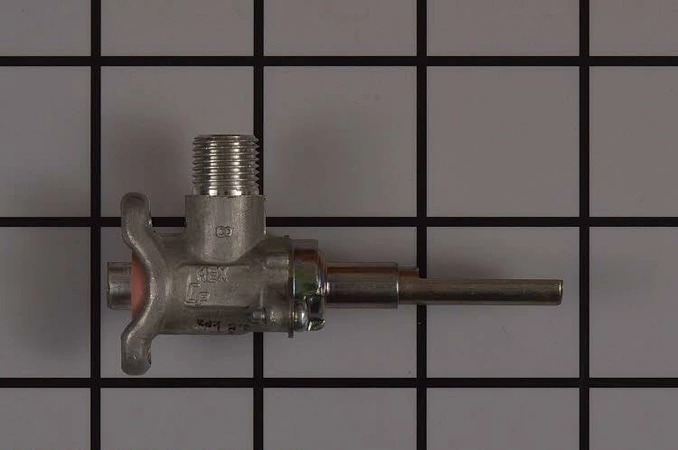

MAY W10907217 MAY W10907217 Contact Us For Availability
22
MAY W10844471 MAY W10844471 Contact Us For Availability
NI
RELIEF, STRAIN MAY W10132200 Contact Us For Availability
NI
CLIP, WIRE MAY W10183556 Contact Us For Availability
NI
MAY W10831977 MAY W10831977 Contact Us For Availability
NI
MAY W10834701 MAY W10834701 Contact Us For Availability
NI
HARNESS, BLOWER MAY W10835283 Contact Us For Availability
NI
HARNESS, JUMPER MAY W10858227 Contact Us For Availability
NI
KIT, PLENUM SCREW MAY W10909126 Contact Us For Availability
NI
MAY W11022463 MAY W11022463 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
