Model Maytag JGD3430WS00 GAS COOK-TOP – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - BLOWER UNIT PARTS

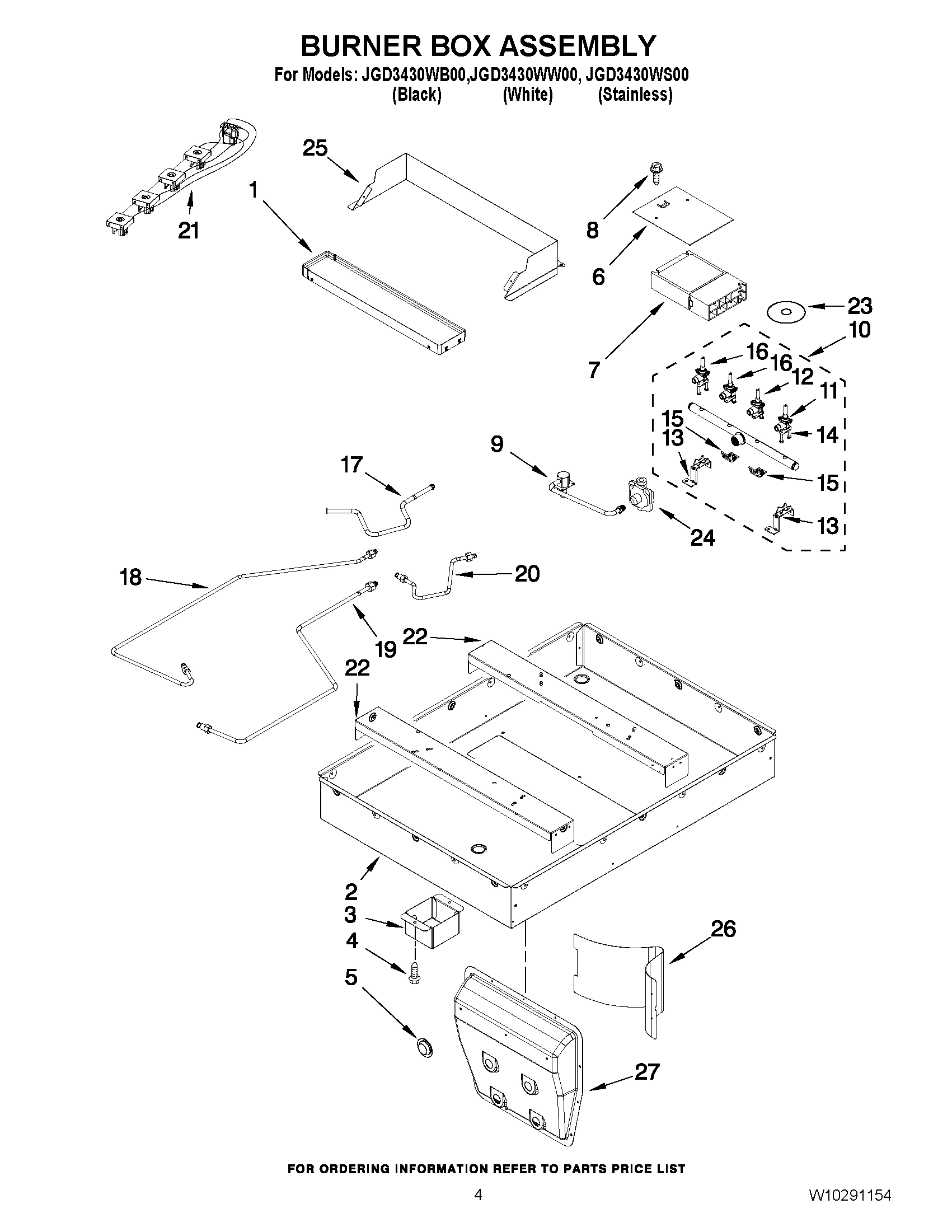

03 - BURNER BOX ASSEMBLY
04 - OPTIONAL PARTS
Common parts from model Maytag JGD3430WS00 GAS COOK-TOP
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10197058 MAY W10197058 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) MAY W10222821 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) MAY W10222822 Contact Us For Availability
1
MAY W10233478 MAY W10233478 Contact Us For Availability
1
MAY W10240007 MAY W10240007 Contact Us For Availability
1
ASSEMBLY,PLENUM (NOT SERVICED) MAY N/P Contact Us For Availability
1
MAY W10235990 MAY W10235990 Contact Us For Availability
2
MAY W10185518 MAY W10185518 Contact Us For Availability
2
MAY W10185520 MAY W10185520 Contact Us For Availability
2
MAY W10185532 MAY W10185532 Contact Us For Availability
2
MAY 2822W001-80 MAY 2822W001-80 Contact Us For Availability
2
MAY W10283964 MAY W10283964 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10258697 MAY W10258697 Contact Us For Availability
4
CAP, BURNER (GREY(RF)) MAY 7504P294-60 Contact Us For Availability
4
CAP, BURNER (GREY(LR,RR)) MAY 7504P295-60 Contact Us For Availability
4
CAP, BURNER (GREY(LF)) MAY 7504P296-60 Contact Us For Availability
4
CAP, BURNER (BLACK(RF)) MAY 7504P298-60 Contact Us For Availability
4
CAP, BURNER (BLACK(LR,RR)) MAY 7504P299-60 Contact Us For Availability
4
CAP, BURNER (BLACK(LF)) MAY 7504P300-60 Contact Us For Availability
4
MAY W10247586 MAY W10247586 Contact Us For Availability
5
BURNER, HEAD (RF) MAY 7505P304-60 Contact Us For Availability
5
MAY 7505P305-60 MAY 7505P305-60 Contact Us For Availability
5
BURNER, HEAD (LF) MAY 7505P306-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
PLUG, HOLE MAY 7718P023-60 Contact Us For Availability
6
NUT MAY 7103P162-60 Contact Us For Availability
6
MAY W10237163 MAY W10237163 Contact Us For Availability
7
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
7
MAY 7109P086-60 MAY 7109P086-60 Contact Us For Availability
7
MAY 7431P057-60 MAY 7431P057-60 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
KNOB, FAN (STAINLESS) MAY W10207833 Contact Us For Availability
8
KNOB, FAN (BLACK) MAY W10209700 Contact Us For Availability
8
KNOB, FAN (WHITE) MAY W10209701 Contact Us For Availability
8
MAY W10240990 MAY W10240990 Contact Us For Availability
9
MAY W10236134 MAY W10236134 Contact Us For Availability
9
MAY W10236135 MAY W10236135 Contact Us For Availability
9
MAY W10236136 MAY W10236136 Contact Us For Availability
9
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
9
MAY W10361754 MAY W10361754 Contact Us For Availability
10
GRATE (2) (BLACK/STAINLESS) MAY W10203095 Contact Us For Availability
10
GRATE (2) (WHITE) MAY W10204541 Contact Us For Availability
10
MAY W10184142 MAY W10184142 Contact Us For Availability
11
HOLDER, ORIFICE (LR) MAY 7527P002-60 Contact Us For Availability
11
HOLDER, ORIFICE (RR) MAY 7527P003-60 Contact Us For Availability
11
HOLDER, ORIFICE (LF) MAY 7527P031-60 Contact Us For Availability
11
HOLDER, ORIFICE (RF) MAY 7527P042-60 Contact Us For Availability
11
VALVE, TOP 5K MAY W10184130 Contact Us For Availability
12
SWITCH, BLOWER MAY 4456836 Contact Us For Availability
12
VALVE, TOP MAY W10184131 Contact Us For Availability
13
GRILLE, AIR (BLACK/STAINLESS) MAY W10203097 Contact Us For Availability
13
GRILLE, AIR (WHITE) MAY W10204544 Contact Us For Availability
13
BRACKET, VALVE MAY W10221532 Contact Us For Availability
14
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
MAY W10246216 MAY W10246216 Contact Us For Availability
15
MAY 8008P065-60 MAY 8008P065-60 Contact Us For Availability
15
BRACKET, VALVE MAY W10246217 Contact Us For Availability
16
MAY 7201P077-60 MAY 7201P077-60 Contact Us For Availability
16
VALVE, GAS TOP MAY W10259054 Contact Us For Availability
17
BRACKET, SW MOUNT MAY W10235925 Contact Us For Availability
17
TUBING,GAS(RR) MAY W10188364 Contact Us For Availability
18
TUBING,GAS(LR) MAY W10188371 Contact Us For Availability
19
MAY W10237283 MAY W10237283 Contact Us For Availability
20
TUBING,GAS(RF) MAY W10237284 Contact Us For Availability
21
MAY W10239016 MAY W10239016 Contact Us For Availability
22
BRACKET, ORIFICE (LEFT) MAY W10205616 Contact Us For Availability
22
MAY W10205617 MAY W10205617 Contact Us For Availability
23
MAY 3191387 MAY 3191387 Contact Us For Availability
24
REGULATOR,PRESSURE MAY W10132345 Contact Us For Availability
25
BRACKET, BURNER BOX SHIELD (RIGHT) MAY W10269705 Contact Us For Availability
25
BRACKET, BURNER BOX SHIELD (LEFT) MAY W10269712 Contact Us For Availability
26
MAY W10184137 MAY W10184137 Contact Us For Availability
27
MAY W10184125 MAY W10184125 Contact Us For Availability
NI
CLEANER(STAINLESS) MAY 31462 Contact Us For Availability
NI
CLEANER MAY 31682 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
RELIEF, STRAIN MAY 8019P017-60 Contact Us For Availability
NI
MAY W10177003 MAY W10177003 Contact Us For Availability
NI
HARNESS, MAIN MAY W10207828 Contact Us For Availability
NI
HARNESS, SPARK MAY W10207829 Contact Us For Availability
NI
ORIFICE, KIT LP MAY W10239523 Contact Us For Availability
NI
RIVET, NYLON MAY W10249271 Contact Us For Availability
NI
HARNESS, BLOWER MAY W10253222 Contact Us For Availability
× ![]()
