Model Maytag JGD3430BB00 COOKTOP, GAS, BUILT-IN, DOWNDRAFT, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

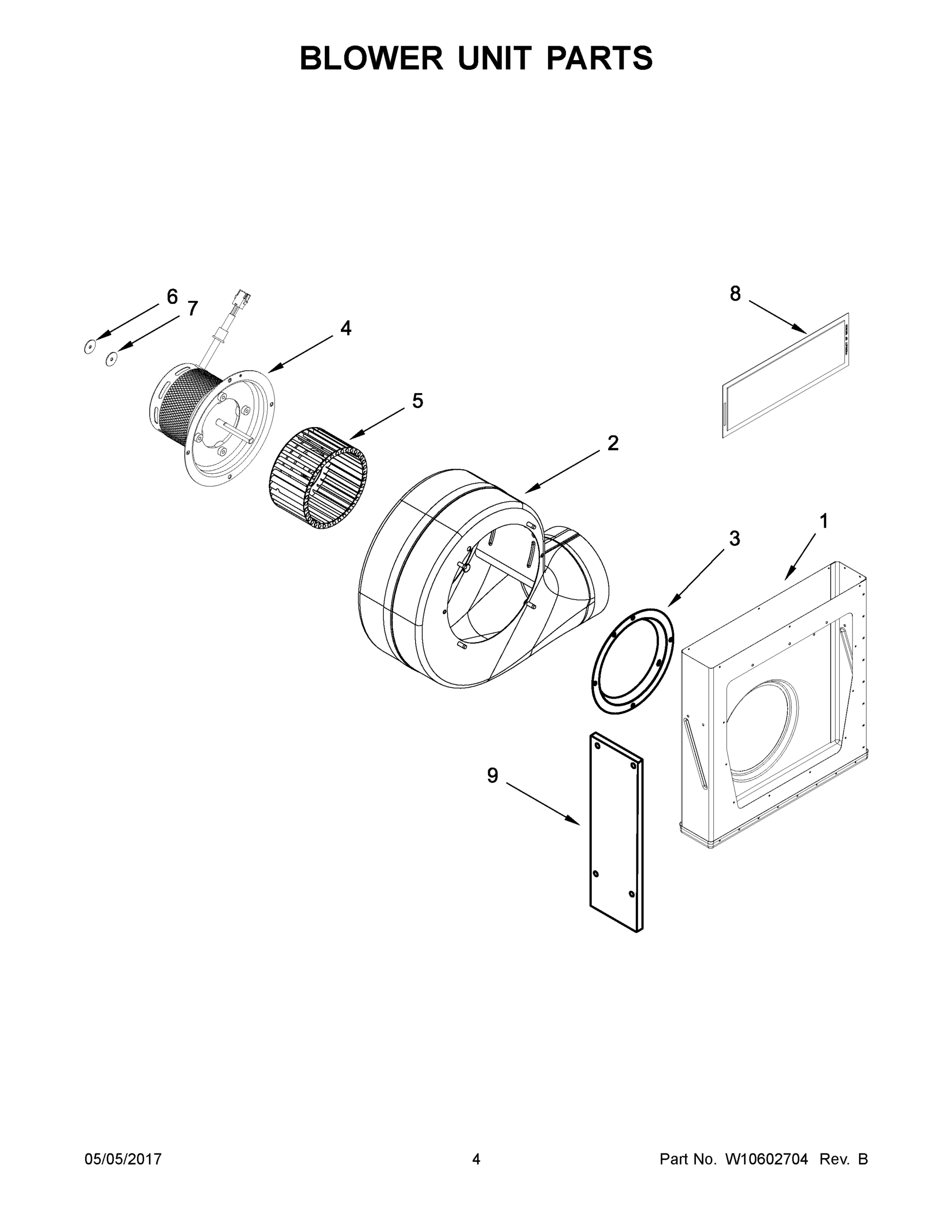

03 - BLOWER UNIT PARTS

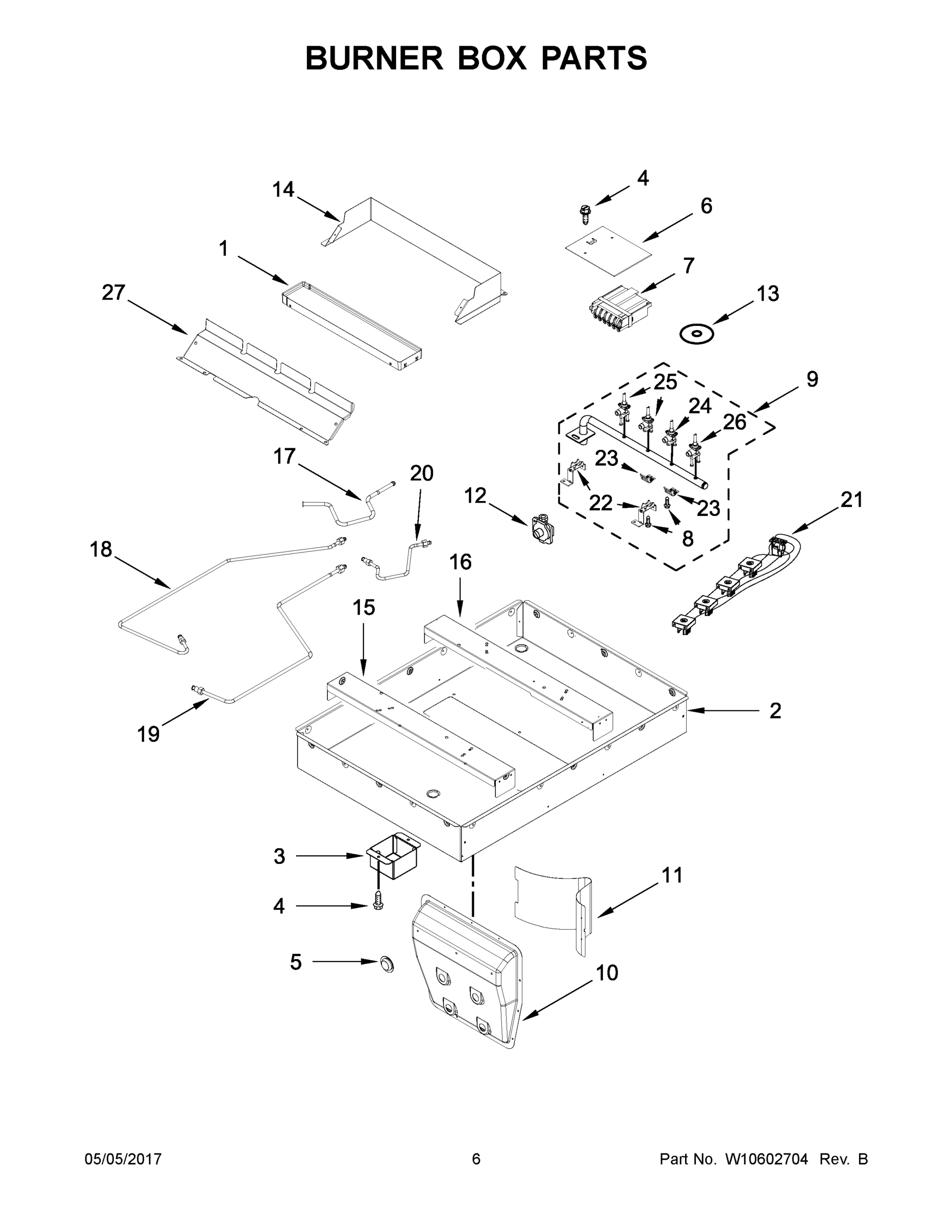

04 - BURNER BOX PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGD3430BB00 COOKTOP, GAS, BUILT-IN, DOWNDRAFT, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10574732 Contact Us For Availability
1
MAY W10777870 MAY W10777870 Contact Us For Availability
1
TRAY, SPILL MAY W10235990 Contact Us For Availability
1A
DIAGRAM, WIRING (ENGLISH) MAY W10222821 Contact Us For Availability
1B
DIAGRAM, WIRING (FRENCH) MAY W10222822 Contact Us For Availability
1C
GUIDE, USE & CARE MAY W10555863 Contact Us For Availability
1D
INSTRUCTIONS, LP CONVERSION MAY W10240007 Contact Us For Availability
1E
CARD, FLOW TESTER MAY 8106P068-60 Contact Us For Availability
1F
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1G
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
TOP, MAIN (BLACK) MAY W10555854 Contact Us For Availability
2
BOX, BURNER (NOT SERVICED) MAY N/P Contact Us For Availability
2
ASSEMBLY, SCROLL MAY W10777874 Contact Us For Availability
2A
TOP, MAIN (WHITE) MAY W10555855 Contact Us For Availability
2B
TOP, MAIN (STAINLESS) MAY W10555853 Contact Us For Availability
3
RING, INLET MAY 4026F008-51 Contact Us For Availability
3
COVER, BLOWER MOTOR HARNESS MAY W10258697 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT FRONT)) MAY 7504P300-60 Contact Us For Availability
4
SCREW MAY 7101P426-60 Contact Us For Availability
4
MOTOR, BLOWER MAY W10247586 Contact Us For Availability
4A
CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR)) MAY 7504P299-60 Contact Us For Availability
4B
CAP, BURNER (BLACK (RIGHT FRONT)) MAY 7504P298-60 Contact Us For Availability
4C
CAP, BURNER (WETSTONE (LEFT FRONT)) MAY 7504P296-60 Contact Us For Availability
4D
CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR MAY 7504P295-60 Contact Us For Availability
4E
CAP, BURNER (WETSTONE (RIGHT FRONT)) MAY 7504P294-60 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT FRONT) MAY 7505P306-60 Contact Us For Availability
5
WHEEL, BLOWER MAY 7114P005-60 Contact Us For Availability
5
PLUG, HOLE MAY 7718P023-60 Contact Us For Availability
5A
ASSEMBLY, BURNER (LEFT REAR & RIGHT REAR) MAY 7505P305-60 Contact Us For Availability
5B
ASSEMBLY, BURNER (5K) (RIGHT FRONT) MAY 7505P304-60 Contact Us For Availability
6
NUT, LOCK MAY 7103P162-60 Contact Us For Availability
6
COVER, SPARK MAY W10237163 Contact Us For Availability
7
IGNITOR, COOKTOP MAY 7432P121-60 Contact Us For Availability
7
WASHER MAY 7109P086-60 Contact Us For Availability
7
MODULE, SPARK MAY W10475147 Contact Us For Availability
8
KNOB, FAN (BLACK) MAY W10551840 Contact Us For Availability
8
FILTER, GREASE MAY W10815866 Contact Us For Availability
8
SCREW MAY W10246216 Contact Us For Availability
8A
KNOB, FAN (WHITE) MAY W10551841 Contact Us For Availability
8B
KNOB, FAN (STAINLESS) MAY W10549673 Contact Us For Availability
9
KNOB, CONTROL (BLACK) MAY W10559476 Contact Us For Availability
9
GUARD, BLOWER MAY 8312P151-60 Contact Us For Availability
9
ASSEMBLY, MANIFOLD MAY W10575616 Contact Us For Availability
9A
KNOB, CONTROL (WHITE) MAY W10559477 Contact Us For Availability
9B
KNOB, CONTROL (STAINLESS) MAY W10559475 Contact Us For Availability
10
BURNER, GRATE (INCLUDES BUMPERS) (BLACK) MAY W10203095 Contact Us For Availability
10
BYPASS, PLENUM SIDE MAY W10184125 Contact Us For Availability
10A
BURNER, GRATE (INCLUDES BUMPERS) (WETSTONE) MAY W10204541 Contact Us For Availability
11
HOLDER, ORIFICE (17K) (LEFT FRONT) MAY 7527P031-60 Contact Us For Availability
11
RAIL, PLENUM SUPPORT MAY W10184137 Contact Us For Availability
11A
HOLDER, ORIFICE (9.2K) (LEFT REAR) MAY 7527P002-60 Contact Us For Availability
11B
HOLDER, ORIFICE (5K) (RIGHT FRONT) MAY 7527P042-60 Contact Us For Availability
11C
HOLDER, ORIFICE (12.5K) (RIGHT REAR) MAY 7527P003-60 Contact Us For Availability
12
SWITCH, BLOWER MAY 4456836 Contact Us For Availability
12
REGULATOR, PRESSURE MAY W10449143 Contact Us For Availability
13
GRILLE, DOWNDRAFT (INCLUDES MAY W10203097 Contact Us For Availability
13
SEAL, SHAFT MAY 3191387 Contact Us For Availability
13A
MAY W10204544 MAY W10204544 Contact Us For Availability
14
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
MAY W10646812 MAY W10646812 Contact Us For Availability
15
MAY W10559486 MAY W10559486 Contact Us For Availability
15
BRACKET, ORIFICE HOLDER (LEFT) MAY W10205616 Contact Us For Availability
15A
MAY W10559485 MAY W10559485 Contact Us For Availability
15B
MAY W10559494 MAY W10559494 Contact Us For Availability
16
MAY 7201P077-60 MAY 7201P077-60 Contact Us For Availability
16
BRACKET, ORIFICE HOLDER (RIGHT) MAY W10581950 Contact Us For Availability
17
MAY W10235925 MAY W10235925 Contact Us For Availability
17
TUBING, GAS (LEFT FRONT) MAY W10421246 Contact Us For Availability
18
TUBING,GAS (LEFT REAR) MAY W10188371 Contact Us For Availability
19
MAY 8270P188-60 MAY 8270P188-60 Contact Us For Availability
19
TUBING,GAS (RIGHT FRONT) MAY W10237284 Contact Us For Availability
20
MAY 8003P033-60 MAY 8003P033-60 Contact Us For Availability
20
TUBING,GAS (RIGHT REAR) MAY W10188364 Contact Us For Availability
21
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
21
SWITCH, IGNITOR MAY W10239016 Contact Us For Availability
22
BRACKET, VALVE MOUNT MAY W10221532 Contact Us For Availability
23
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
24
MAY W10467730 MAY W10467730 Contact Us For Availability
25
MAY W10467728 MAY W10467728 Contact Us For Availability
26
MAY W10467729 MAY W10467729 Contact Us For Availability
27
MAY W10646811 MAY W10646811 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
MAY 8019P017-60 MAY 8019P017-60 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10207828 MAY W10207828 Contact Us For Availability
NI
MAY W10207829 MAY W10207829 Contact Us For Availability
NI
MAY W10249271 MAY W10249271 Contact Us For Availability
NI
MAY W10253222 MAY W10253222 Contact Us For Availability
NI
MAY W10815865 MAY W10815865 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
