Model GE JGCS54EH3 – Common Parts & Diagrams
BASIC BODY
GAS CONTROL ASSEMBLY

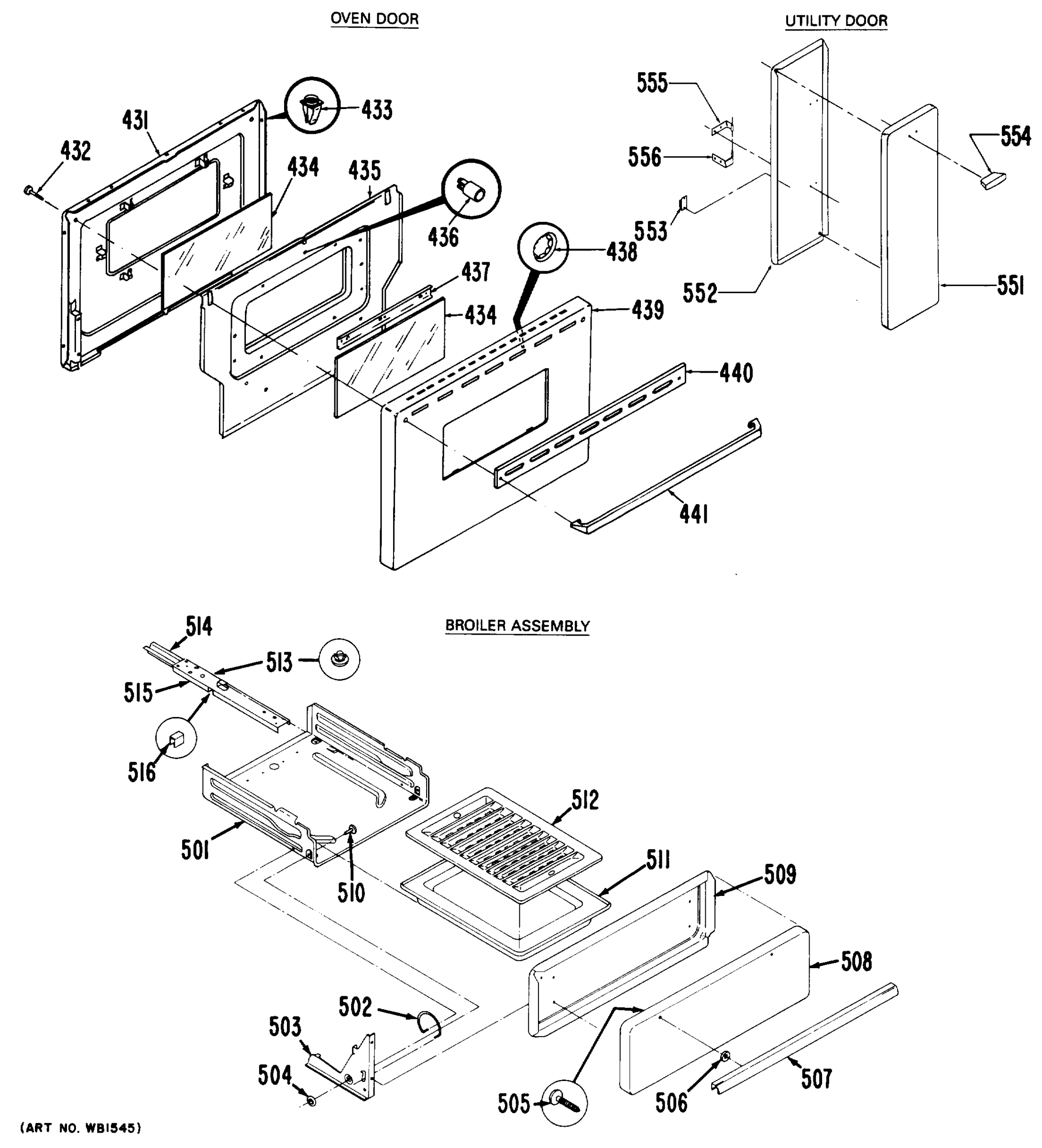

OVEN DOOR
Common parts from model GE JGCS54EH3
2
SPRING-OVEN DOOR GEN WB09X0198 Contact Us For Availability
3
GEN WB1X0704 GEN WB1X0704 Contact Us For Availability
4
SHIELD-INSUL-LOWER FRONT GEN WB49X0521 Contact Us For Availability
5
BOTTOM-OVEN GEN WB49X0570 Contact Us For Availability
6
*DOOR ADJUSTMENT KIT GEN WB02X4268 Contact Us For Availability
6
HINGE-OVEN DOOR-LH GEN WB14X0044 Contact Us For Availability
6
HINGE-OVEN DOOR-RH GEN WB14X0045 Contact Us For Availability
7
RACK-OVEN GEN WB48X0166 Contact Us For Availability
8
GEN WB01X0733 GEN WB01X0733 Contact Us For Availability
9
BULB-OVEN LIGHT GEN BUY LOCAL Contact Us For Availability
10
SOCKET-OVEN LIGHT GEN WB08X0269 Contact Us For Availability
11
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
12
SEAL-DOOR-TOP & BOTTOM GEN WB02X4206 Contact Us For Availability
13
SEAL DR SIDE GEN WB02X4207 Contact Us For Availability
14
PANEL-SIDE-ALMOND-LH GEN WB56X1695 Contact Us For Availability
14
PANEL-SIDE-WHITE-LH GEN WB56X1697 Contact Us For Availability
14
PANEL-SIDE-WHITE-RH GEN WB56X1706 Contact Us For Availability
14
PANEL-SIDE-ALMOND-RH GEN WB56X1707 Contact Us For Availability
15
BRACKET-STIFFENER-BOTTOM GEN WB02X4343 Contact Us For Availability
15
GEN WB48X171 GEN WB48X171 Contact Us For Availability
16
CHANNEL-STIFFENER-BASE GEN WB02X4344 Contact Us For Availability
17
GEN WB49X0605 GEN WB49X0605 Contact Us For Availability
18
HINGE-COOKTOP-RH GEN WB10X0239 Contact Us For Availability
18
HINGE-COOKTOP-LH GEN WB10X0240 Contact Us For Availability
19
BODY-SIDE-INNER GEN WB56X1708 Contact Us For Availability
20
SPACER-BURNER SUPPORT GEN WB02X4345 Contact Us For Availability
21
GEN WB01X1035 GEN WB01X1035 Contact Us For Availability
21
GEN WB01X1036 GEN WB01X1036 Contact Us For Availability
21
GEN WB01X1037 GEN WB01X1037 Contact Us For Availability
21
BURNER SUPPORT CHANNEL GEN WB02X4346 Contact Us For Availability
21
TERMINAL BLOCK GEN WB17X0189 Contact Us For Availability
22
FASTENER-WIRE RETAINER GEN WB01X0729 Contact Us For Availability
23
GEN WB17X189 GEN WB17X189 Contact Us For Availability
24
GEN WB02X10048 GEN WB02X10048 Contact Us For Availability
25
FLUE BOX-LOWER GEN WB49X0554 Contact Us For Availability
26
GEN WB63X0296 GEN WB63X0296 Contact Us For Availability
27
BRACKET-DISCONNECT GEN WB02X4211 Contact Us For Availability
28
GEN WB49X0555 GEN WB49X0555 Contact Us For Availability
29
GEN WB18X0269 GEN WB18X0269 Contact Us For Availability
30
FASTENER-LEVELING LEG GEN WB01X0710 Contact Us For Availability
31
LEVELING LEG GEN WB01X0711 Contact Us For Availability
32
FASTENER-U TYPE GEN WB01X1015 Contact Us For Availability
33
GEN WB01X0702 GEN WB01X0702 Contact Us For Availability
34
PLUG BUTTON--FRONT FRAME GEN WB02X4299 Contact Us For Availability
35
FASTENER-CLAMP-CORD GEN WB02X4712 Contact Us For Availability
36
GEN WB02X10049 GEN WB02X10049 Contact Us For Availability
37
GEN WB02X10052 GEN WB02X10052 Contact Us For Availability
37
*INSULATION-TOP & SIDE GEN WB02X4271 Contact Us For Availability
37
*INSULATION-BACK GEN WB02X4272 Contact Us For Availability
37
GEN WB02X4530 GEN WB02X4530 Contact Us For Availability
38
GEN WB02X4270 GEN WB02X4270 Contact Us For Availability
101
GEN WB61X0333 GEN WB61X0333 Contact Us For Availability
103
GEN WB07X1378 GEN WB07X1378 Contact Us For Availability
106
BRACKET-CLOCK MOUNTING GEN WB02X4276 Contact Us For Availability
107
GEN WB02X4278 GEN WB02X4278 Contact Us For Availability
108
END CAP GEN WB07X1374 Contact Us For Availability
109
BACKSPLASH PANEL GEN WB61X0334 Contact Us For Availability
110
GEN WB19X0208 GEN WB19X0208 Contact Us For Availability
111
GEN WB61X0335 GEN WB61X0335 Contact Us For Availability
112
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
113
GEN WB49X0533 GEN WB49X0533 Contact Us For Availability
114
GASKET-BACKSPLASH VENT GEN WB02X4277 Contact Us For Availability
115
CABLE CLAMP GEN WB02X10054 Contact Us For Availability
116
FASTENER- CABLE CLAMP GEN WB02X10053 Contact Us For Availability
116
GEN WB02X10055 GEN WB02X10055 Contact Us For Availability
201
GEN WB62X1667 GEN WB62X1667 Contact Us For Availability
201
GEN WB62X1668 GEN WB62X1668 Contact Us For Availability
202
GEN WB02X4736 GEN WB02X4736 Contact Us For Availability
203
GEN WB32X0083 GEN WB32X0083 Contact Us For Availability
204
GEN WB32X0084 GEN WB32X0084 Contact Us For Availability
205
GEN WB07X7052 GEN WB07X7052 Contact Us For Availability
206
GEN WB03X631 GEN WB03X631 Contact Us For Availability
207
GEN WB03X5755 GEN WB03X5755 Contact Us For Availability
208
GEN WB24X0395 GEN WB24X0395 Contact Us For Availability
209
BEZEL-OVEN LIGHT SWITCH GEN WB01X0726 Contact Us For Availability
210
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
431
GEN WB55X573 GEN WB55X573 Contact Us For Availability
432
SCREW-HANDLE MOUNTING GEN WB01X0832 Contact Us For Availability
432
*WASHER-HANDLE MOUNTING GEN WB01X1039 Contact Us For Availability
433
SPACER-FASTENER GEN WB01X0688 Contact Us For Availability
434
GLASS-OVEN DOOR GEN WB36X0679 Contact Us For Availability
435
*INSULATION-DOOR GEN WB02X4187 Contact Us For Availability
435
SHIELD-INSULATION GEN WB55X0644 Contact Us For Availability
436
FASTENER-SPACER GEN WB01X0689 Contact Us For Availability
437
GEN WB02X10056 GEN WB02X10056 Contact Us For Availability
439
GEN WB56X1687 GEN WB56X1687 Contact Us For Availability
439
GEN WB56X1688 GEN WB56X1688 Contact Us For Availability
440
GEN WB07X1372 GEN WB07X1372 Contact Us For Availability
441
HANDLE-OVEN DOOR GEN WB15X0208 Contact Us For Availability
501
GEN WB55X0569 GEN WB55X0569 Contact Us For Availability
502
SPRING-RIGHT GEN WB09X0197 Contact Us For Availability
502
SPRING-LEFT GEN WB09X0200 Contact Us For Availability
503
BRACKET-HINGE LEFT GEN WB02X4535 Contact Us For Availability
503
BRACKET-HINGE-RIGHT GEN WB02X4536 Contact Us For Availability
504
GEN WB01X0698 GEN WB01X0698 Contact Us For Availability
505
SCREW-HANDLE MOUNTING GEN WB01X0699 Contact Us For Availability
506
WASHER-HANDLE MOUNTING GEN WB01X0700 Contact Us For Availability
507
GEN WB15X0256 GEN WB15X0256 Contact Us For Availability
508
GEN WB56X1858 GEN WB56X1858 Contact Us For Availability
508
GEN WB56X1859 GEN WB56X1859 Contact Us For Availability
509
GEN WB02X10058 GEN WB02X10058 Contact Us For Availability
509
LINER-BROILER DRAWER GEN WB55X0570 Contact Us For Availability
510
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
513
GEN WB01X702 GEN WB01X702 Contact Us For Availability
514
CHANNEL-GLIDE GEN WB02X4286 Contact Us For Availability
515
CHANNEL-GLIDE-UPPER GEN WB02X4203 Contact Us For Availability
516
GEN WB01X0703 GEN WB01X0703 Contact Us For Availability
516
GEN WB2X4269 GEN WB2X4269 Contact Us For Availability
551
DOOR PANEL-WHITE GEN WB56X1732 Contact Us For Availability
551
DOOR PANEL-ALMOND GEN WB56X1733 Contact Us For Availability
552
*SCREW-DOOR ASSEMBLY GEN WB01X0787 Contact Us For Availability
552
LINER-COMPARTMENT DOOR GEN WB56X1734 Contact Us For Availability
553
GEN WB10X0230 GEN WB10X0230 Contact Us For Availability
554
*WASHER-KNOB MOUNTING GEN WB01X0814 Contact Us For Availability
554
GEN WB01X1038 GEN WB01X1038 Contact Us For Availability
554
GEN WB03X0635 GEN WB03X0635 Contact Us For Availability
555
*SCREW-HINGE-LOWER GEN WB01X0821 Contact Us For Availability
555
HINGE-LOWER GEN WB14X0049 Contact Us For Availability
556
GEN WB01X0813 GEN WB01X0813 Contact Us For Availability
556
HINGE-DOOR-UPPER GEN WB14X0050 Contact Us For Availability
701
NUT-HEX-BURNER BAFFLE GEN WB01X0694 Contact Us For Availability
702
GEN WB49X0606 GEN WB49X0606 Contact Us For Availability
703
GEN WB02X10059 GEN WB02X10059 Contact Us For Availability
704
BURNER-OVEN GEN WB28X0063 Contact Us For Availability
706
GEN WB02X10061 GEN WB02X10061 Contact Us For Availability
709
GEN WB21X5266 GEN WB21X5266 Contact Us For Availability
710
LOXIT FITTING GEN WB01X0713 Contact Us For Availability
711
TUBE OVEN SUPPLY-55" GEN WB02X4218 Contact Us For Availability
712
BURNER-TOP-FRONT GEN WB28X0061 Contact Us For Availability
713
GEN WB21X0397 GEN WB21X0397 Contact Us For Availability
714
BURNER-TOP-REAR GEN WB28X0062 Contact Us For Availability
715
CRONTROL-REGULATOR GEN WB21X0395 Contact Us For Availability
716
GEN WB02X10065 GEN WB02X10065 Contact Us For Availability
717
GEN WB02X7925 GEN WB02X7925 Contact Us For Availability
718
GEN WB02X7926 GEN WB02X7926 Contact Us For Availability
718
GEN WB21X5282 GEN WB21X5282 Contact Us For Availability
719
GEN WB01X1040 GEN WB01X1040 Contact Us For Availability
720
ADAPTER-TERMOSTAT GEN WB02X4190 Contact Us For Availability
721
NUT-COMPRESSION GEN WB01X0693 Contact Us For Availability
722
FERRULE GEN WB01X0692 Contact Us For Availability
723
INGNITOR MODULE GEN WB21X5265 Contact Us For Availability
724
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
725
BASE IGNITOR-TOP BURNER GEN WB02X9366 Contact Us For Availability
726
GEN WB02X42147 GEN WB02X42147 Contact Us For Availability
727
TERMINAL BLOCK IGN GEN WB02X4599 Contact Us For Availability
9999
GEN 49-4806 GEN 49-4806 Contact Us For Availability
× ![]()
