Model Maytag JGCP648HM00 COOKTOP, GAS, 48 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - BURNER BOX AND GRILL PARTS

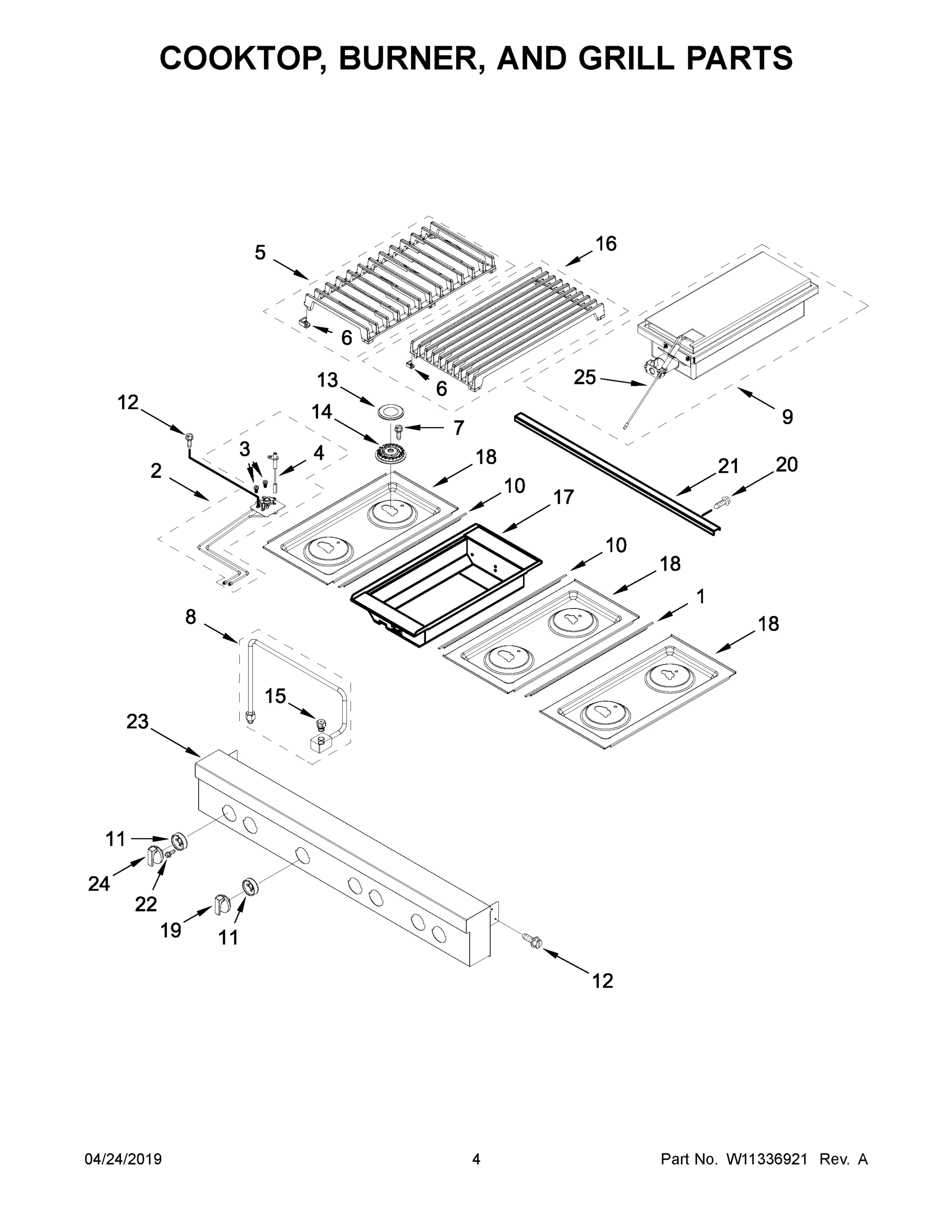

03 - COOKTOP, BURNER, AND GRILL PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP648HM00 COOKTOP, GAS, 48 INCH
1
MAY W11114328 MAY W11114328 Contact Us For Availability
1
TRIM, T-STRIP (BLACK) MAY W10271524 Contact Us For Availability
1A
MAY W11110989 MAY W11110989 Contact Us For Availability
1B
DIAGRAM, WIRING (COOKTOP) MAY W11266584 Contact Us For Availability
1C
MAY W11266565 MAY W11266565 Contact Us For Availability
2
MAY W10893056 MAY W10893056 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT, RIGHT C MAY W10892771 Contact Us For Availability
2A
ASSEMBLY, VALVE MANIFOLD (RIGHT CENTER FRONT MAY W10893062 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (LEFT REAR AND RIGHT MAY W10892486 Contact Us For Availability
2B
ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIG MAY W11183724 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR) MAY W10892772 Contact Us For Availability
3
MAY W11106304 MAY W11106304 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (ALL BUT RIGHT CENTER R MAY W10892422 Contact Us For Availability
3A
SWITCH, HARNESS (RIGHT CENTER FRONT, RIGHT CE MAY W11106300 Contact Us For Availability
3A
ORIFICE, MAIN (7.2K) (RIGHT CENTER REAR) MAY W10892440 Contact Us For Availability
3B
ORIFICE, SIMMER (2.6K) (ALL BUT RIGHT CENTER MAY W10892435 Contact Us For Availability
3C
ORIFICE, SIMMER (2.0K) (RIGHT CENTER REAR) MAY W10892429 Contact Us For Availability
4
MAY W11121199 MAY W11121199 Contact Us For Availability
4
IGNITER (ALL BUT RIGHT CENTER REAR) MAY W11238758 Contact Us For Availability
4A
IGNITER (RIGHT CENTER REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) (LEFT) MAY W11172289 Contact Us For Availability
5A
ASSEMBLY, GRATE (BLACK) (RIGHT CENTER) MAY W11172654 Contact Us For Availability
5B
ASSEMBLY, GRATE (BLACK) (RIGHT) MAY W11172625 Contact Us For Availability
6
MAY W11120957 MAY W11120957 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
7
MAY W11174414 MAY W11174414 Contact Us For Availability
7
SCREW MAY W11196257 Contact Us For Availability
8
MAY W10892476 MAY W10892476 Contact Us For Availability
8
ASSEMBLY, GRILL ORIFICE HOLDER (LEFT CENTER) MAY W11197930 Contact Us For Availability
8A
TUBE, MANIFOLD SUPPLY (RIGHT CENTER) MAY W10892445 Contact Us For Availability
8B
TUBE, MANIFOLD SUPPLY (RIGHT) MAY W10892347 Contact Us For Availability
9
MAY W11285353 MAY W11285353 Contact Us For Availability
9
MAY W11120976 MAY W11120976 Contact Us For Availability
10
MAY W11120965 MAY W11120965 Contact Us For Availability
10
TRIM, L-STRIP MAY W10291193 Contact Us For Availability
11
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
11
BEZEL, COOKTOP MAY W11090284 Contact Us For Availability
12
SCREW MAY 7101P426-60 Contact Us For Availability
13
CAP, BURNER (BLACK (SET OF 6)) MAY W11121392 Contact Us For Availability
14
MAY W11174418 MAY W11174418 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (ALL BUT RIGHT CENTER MAY W10891987 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (RIGHT CENTER REAR) MAY W10892022 Contact Us For Availability
15
MAY W11047749 MAY W11047749 Contact Us For Availability
15
ORIFICE, GRILL (18K) (LEFT CENTER) MAY W10892423 Contact Us For Availability
16
MAY W11047751 MAY W11047751 Contact Us For Availability
16
MAY W11172682 MAY W11172682 Contact Us For Availability
17
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
17
MAY W11174429 MAY W11174429 Contact Us For Availability
18
PANEL, COOKTOP (BLACK) (LEFT) MAY W11038237 Contact Us For Availability
18A
PANEL, COOKTOP (BLACK) (RIGHT CENTER) MAY W11038241 Contact Us For Availability
18B
PANEL, COOKTOP (BLACK) (RIGHT) MAY W11038254 Contact Us For Availability
19
MAY W10894926 MAY W10894926 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
21
MAY W11355761 MAY W11355761 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
23
MAY W11253794 MAY W11253794 Contact Us For Availability
24
KNOB, BURNER (STAINLESS) MAY W10887596 Contact Us For Availability
25
MAY W11174598 MAY W11174598 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
CORD, POWER MAY W10624584 Contact Us For Availability
NI
MAY W11038934 MAY W11038934 Contact Us For Availability
NI
MAY W11200330 MAY W11200330 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE BURNER CA MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
