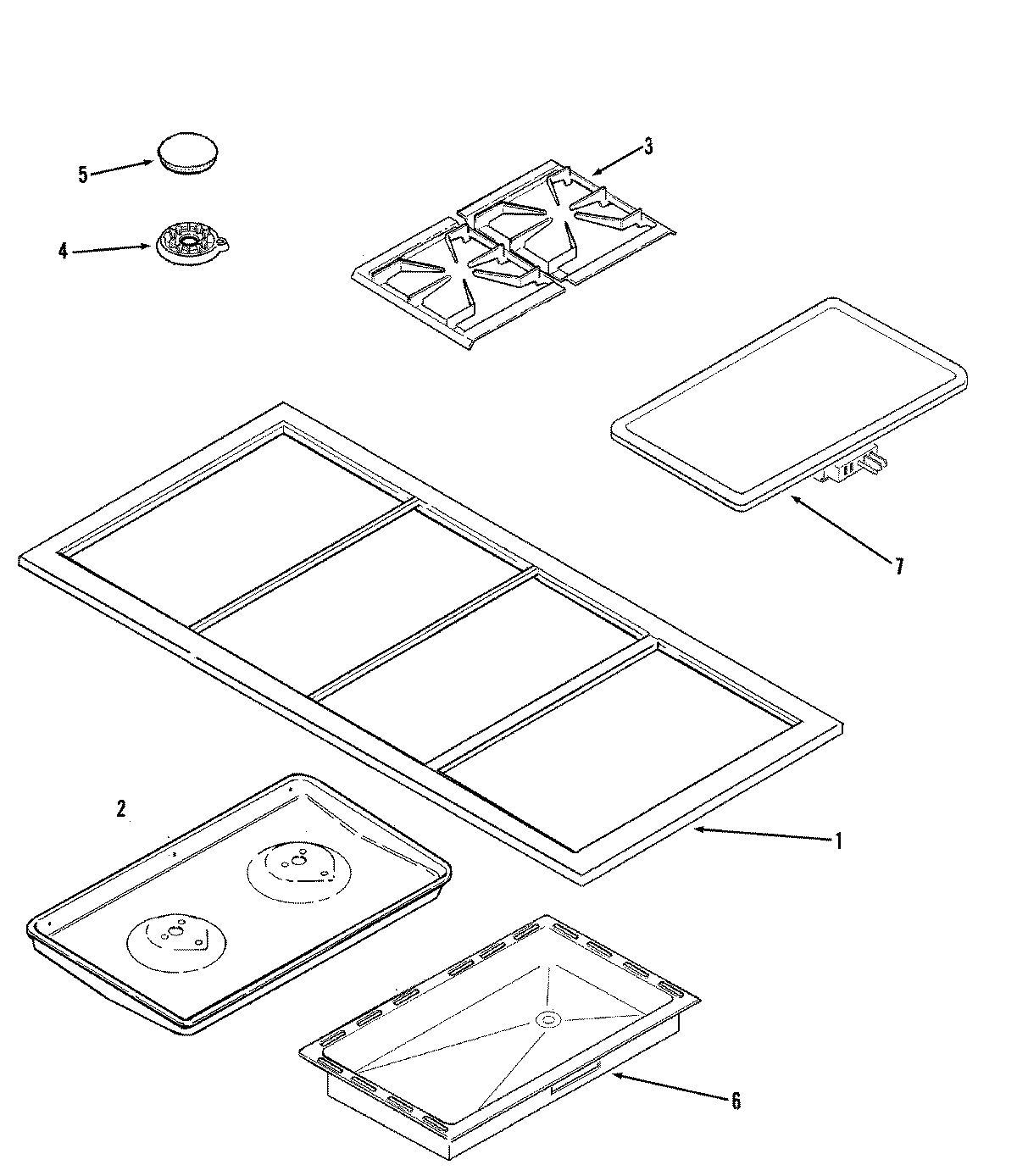

Model Whirlpool JGCP648ADP GAS COOK-TOP – Common Parts & Diagrams

1
TOP, MAIN (STNLS)
TOP, MAIN (STNLS) WPL 71003126 Contact Us For Availability
View on Model
1
NUT, RETAINER (1/4)
NUT, RETAINER (1/4) WPL 71001054 Contact Us For Availability
View on Model
1
PANEL, CONTROL
PANEL, CONTROL WPL 74009626 Contact Us For Availability
View on Model
1
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8111P45360 Contact Us For Availability
View on Model
2
PAN, DRIP (LARGE)
PAN, DRIP (LARGE) WPL 74009619 Contact Us For Availability
View on Model
2
PAN, DRIP (MED)
PAN, DRIP (MED) WPL 74009620 Contact Us For Availability
View on Model
2
PAN, DRIP (SMALL)
PAN, DRIP (SMALL) WPL 74009621 Contact Us For Availability
View on Model
2
PANEL, LOWER CONTROL----NLA
PANEL, LOWER CONTROL----NLA WPL 74007000 Contact Us For Availability
View on Model
2
HARNESS, MAIN
HARNESS, MAIN WPL 74009790 Contact Us For Availability
View on Model
3
GRATE
GRATE WPL 74009623 Contact Us For Availability
View on Model
3
NAMEPLATE (STL)
NAMEPLATE (STL) WPL 74006889 Contact Us For Availability
View on Model
3
HARNESS, SPARK
HARNESS, SPARK WPL 74009640 Contact Us For Availability
View on Model
4
BRACKET, CONTROL PANEL
BRACKET, CONTROL PANEL WPL 74007008 Contact Us For Availability
View on Model
4
HARNESS, SPARK
HARNESS, SPARK WPL 74009781 Contact Us For Availability
View on Model
5
CLIP, GROUND
CLIP, GROUND WPL Y706064 Contact Us For Availability
View on Model
5
CAP, BURNER (MED-BLK)
CAP, BURNER (MED-BLK) WPL 74007749 Contact Us For Availability
View on Model
5
CAP, BURNER (LRG-BLK)
CAP, BURNER (LRG-BLK) WPL 74007750 Contact Us For Availability
View on Model
5
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 74009785 Contact Us For Availability
View on Model
5
WIRE (BLK/5``)
WIRE (BLK/5``) WPL 74009948 Contact Us For Availability
View on Model
5
WIRE (BLK/6``)
WIRE (BLK/6``) WPL 74009949 Contact Us For Availability
View on Model
6
VALVE, BURNER (5K)
VALVE, BURNER (5K) WPL 74009786 Contact Us For Availability
View on Model
6
PAN, GRILL (BLK)
PAN, GRILL (BLK) WPL 71003157 Contact Us For Availability
View on Model
6
VALVE, BURNER (9.2K)
VALVE, BURNER (9.2K) WPL 74009787 Contact Us For Availability
View on Model
6
VALVE, BURNER (17K)
VALVE, BURNER (17K) WPL 74009788 Contact Us For Availability
View on Model
6
ORIFICE KIT (LP)
ORIFICE KIT (LP) WPL 74009821 Contact Us For Availability
View on Model
7
COVER, MODULE
COVER, MODULE WPL 71003146 Contact Us For Availability
View on Model
7
RELIEF, STRAIN
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
View on Model
7
GRIDDLE
GRIDDLE WPL 71003159 Contact Us For Availability
View on Model
7
SWITCH, VALVE
SWITCH, VALVE WPL 74009789 Contact Us For Availability
View on Model
8
KNOB
KNOB WPL 74009634 Contact Us For Availability
View on Model
8
SUPPORT, GRIDDLE----NA
SUPPORT, GRIDDLE----NA WPL 71003154 Contact Us For Availability
View on Model
9
LID, JAR
LID, JAR WPL Y707870 Contact Us For Availability
View on Model
9
BEZEL
BEZEL WPL 74009631 Contact Us For Availability
View on Model
9
BEZEL, KNOB (FAN SWITCH_
BEZEL, KNOB (FAN SWITCH_ WPL 74009632 Contact Us For Availability
View on Model
11
LENS, INDICATOR LIGHT
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
View on Model
12
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 71003151 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P10060 Contact Us For Availability
View on Model
13
SPACER, TERMINAL BLOCK
SPACER, TERMINAL BLOCK WPL 71003152 Contact Us For Availability
View on Model
13
SWITCH, INFINITE
SWITCH, INFINITE WPL 74009805 Contact Us For Availability
View on Model
14
COVER, TERMINAL BLOCK
COVER, TERMINAL BLOCK WPL 71003153 Contact Us For Availability
View on Model
