Model Maytag JGCP548HL00 COOKTOP, GAS, 48 INCH – Common Parts & Diagrams

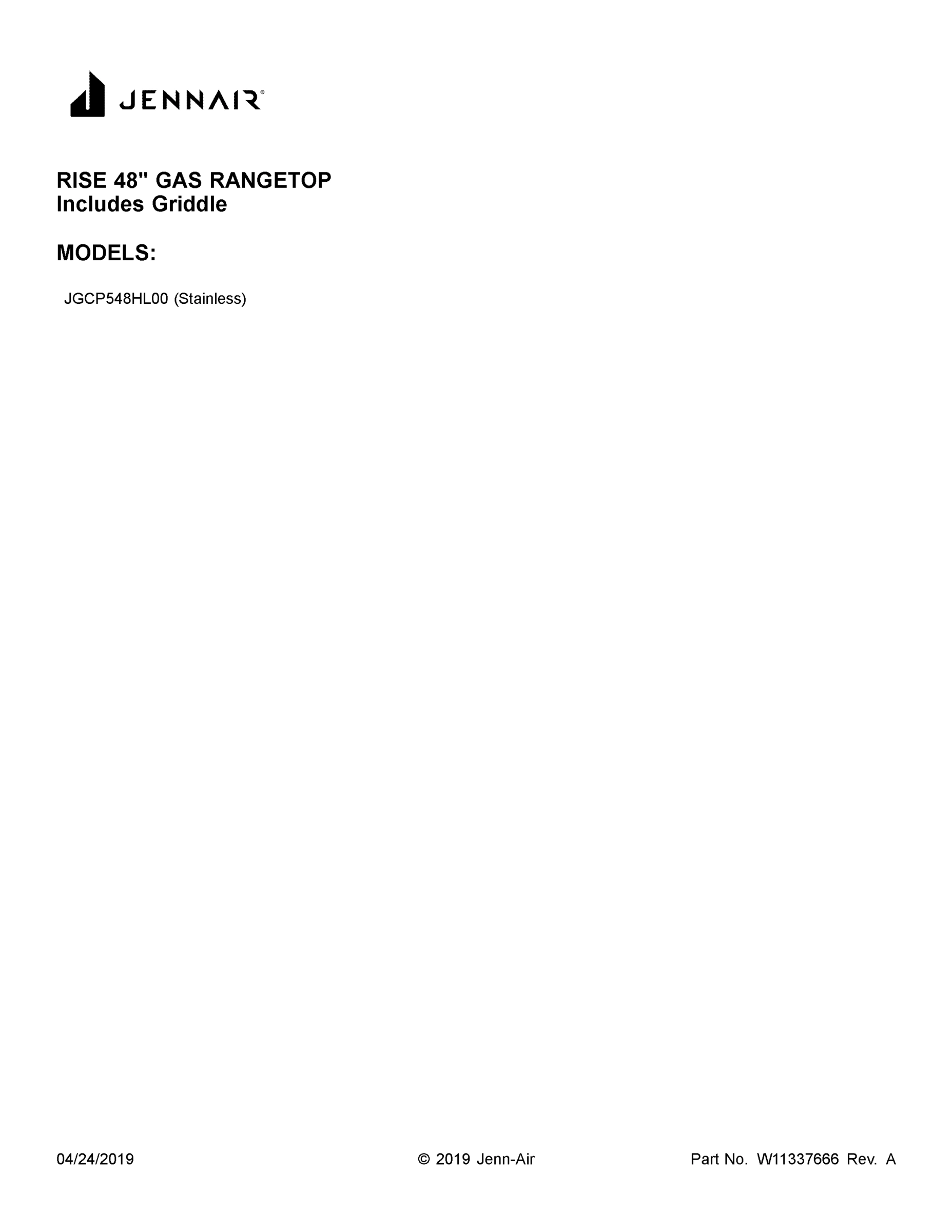

01 - COVER SHEET

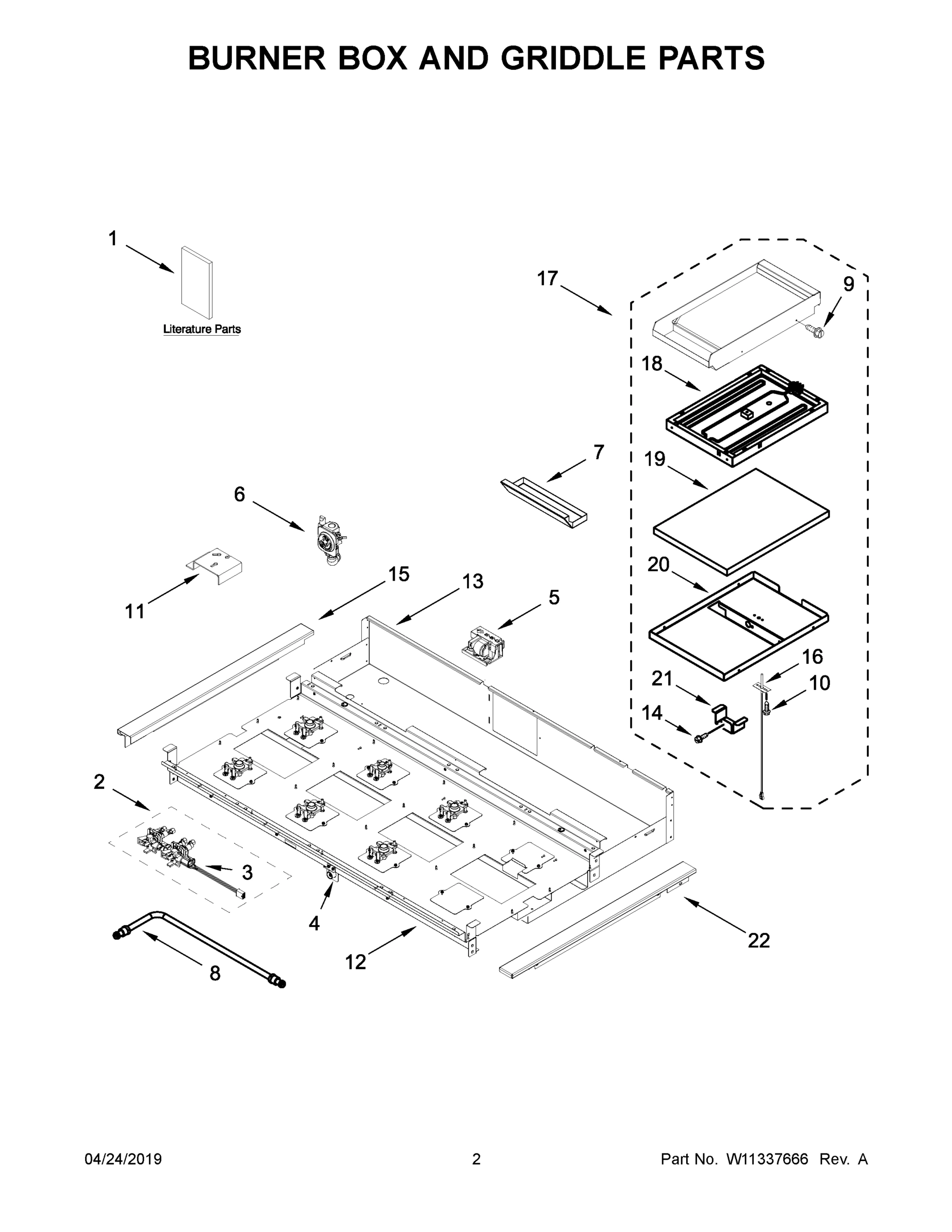

02 - BURNER BOX AND GRIDDLE PARTS
03 - COOKTOP, BURNER, AND GRIDDLE PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP548HL00 COOKTOP, GAS, 48 INCH
1
MAY W11114328 MAY W11114328 Contact Us For Availability
1
CONTROL, GRIDDLE MAY W11033497 Contact Us For Availability
1A
MAY W11110989 MAY W11110989 Contact Us For Availability
1B
DIAGRAM, WIRING (COOKTOP) MAY W11266584 Contact Us For Availability
1C
MAY W11266565 MAY W11266565 Contact Us For Availability
2
MAY W11183724 MAY W11183724 Contact Us For Availability
2
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT, LEFT CE MAY W10892771 Contact Us For Availability
2A
ASSEMBLY, VALVE MANIFOLD (LEFT CENTER FRONT A MAY W10893062 Contact Us For Availability
2A
ASSEMBLY, ORIFICE HOLDER (LEFT REAR AND RIGHT MAY W10892486 Contact Us For Availability
2B
ASSEMBLY, VALVE MANIFOLD (RIGHT CENTER FRONT MAY W10893053 Contact Us For Availability
2B
ASSEMBLY, ORIFICE HOLDER (LEFT CENTER REAR) MAY W10892772 Contact Us For Availability
3
SWITCH, HARNESS MAY W11106300 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (ALL BUT LEFT CENTER RE MAY W10892422 Contact Us For Availability
3A
ORIFICE, MAIN (7.2K) (LEFT CENTER REAR) MAY W10892440 Contact Us For Availability
3B
ORIFICE, SIMMER (2.6K) (ALL BUT LEFT CENTER R MAY W10892435 Contact Us For Availability
3C
ORIFICE, SIMMER (2.0K) (LEFT CENTER REAR) MAY W10892429 Contact Us For Availability
4
MAY W11121199 MAY W11121199 Contact Us For Availability
4
IGNITER (ALL BUT LEFT CENTER REAR) MAY W11238758 Contact Us For Availability
4A
IGNITER (LEFT CENTER REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK (SET OF 2)) MAY W11179862 Contact Us For Availability
6
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
7
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
7
SCREW MAY W11196257 Contact Us For Availability
8
MAY W10892347 MAY W10892347 Contact Us For Availability
8
SCREW MAY W10674068 Contact Us For Availability
8A
TUBE, MANIFOLD SUPPLY (LEFT CENTER) MAY W10892445 Contact Us For Availability
8B
TUBE, MANIFOLD SUPPLY (RIGHT CENTER) MAY W10892450 Contact Us For Availability
9
SCREW MAY 3196176 Contact Us For Availability
9
LIGHT, INDICATOR HOUSING MAY W10116114 Contact Us For Availability
10
SCREW MAY 3196160 Contact Us For Availability
10
LENS, INDICATOR LIGHT MAY W10294500 Contact Us For Availability
11
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
11
BEZEL, COOKTOP MAY W11090283 Contact Us For Availability
12
BEZEL, GRIDDLE MAY W11104966 Contact Us For Availability
13
CAP, BURNER (BLACK (SET OF 6)) MAY W11121392 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (ALL BUT LEFT CENTER R MAY W10891987 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (LEFT CENTER REAR) MAY W10892022 Contact Us For Availability
15
MAY W11047749 MAY W11047749 Contact Us For Availability
15
KNOB, GRIDDLE (STAINLESS) MAY W10884943 Contact Us For Availability
16
SENSOR, GRIDDLE MAY W10891584 Contact Us For Availability
16
TRIM, T-STRIP (BLACK) MAY W10271524 Contact Us For Availability
17
TRIM, L-STRIP MAY W10291193 Contact Us For Availability
18
ELEMENT, GRIDDLE MAY W10891698 Contact Us For Availability
18
PANEL, COOKTOP (BLACK) (LEFT) MAY W10803515 Contact Us For Availability
18A
PANEL, COOKTOP (BLACK) (LEFT CENTER) MAY W10803519 Contact Us For Availability
18B
PANEL, COOKTOP (BLACK) (RIGHT CENTER) MAY W10804364 Contact Us For Availability
19
SCREW MAY 7101P426-60 Contact Us For Availability
19
INSULATION, GRIDDLE MAY W11121383 Contact Us For Availability
20
MAY W11330430 MAY W11330430 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
21
BRACKET, GRIDDLE-RTD MAY W11121384 Contact Us For Availability
21
MAY W11355761 MAY W11355761 Contact Us For Availability
22
MAY W11047751 MAY W11047751 Contact Us For Availability
22
MAY W10919387 MAY W10919387 Contact Us For Availability
23
MAY W11253779 MAY W11253779 Contact Us For Availability
24
KNOB, BURNER (STAINLESS) MAY W10882958 Contact Us For Availability
25
ASSEMBLY, GRIDDLE MODULE (ASSEMBLY BREAKDOWN MAY W10891745 Contact Us For Availability
26
MAY W11238658 MAY W11238658 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
CORD, POWER MAY W10624584 Contact Us For Availability
NI
HARNESS, GRIDDLE MAY W10903727 Contact Us For Availability
NI
MAY W11038934 MAY W11038934 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W11200329 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE BURNER CA MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
