Model Maytag JGCP536WP00 GAS COOK-TOP – Common Parts & Diagrams

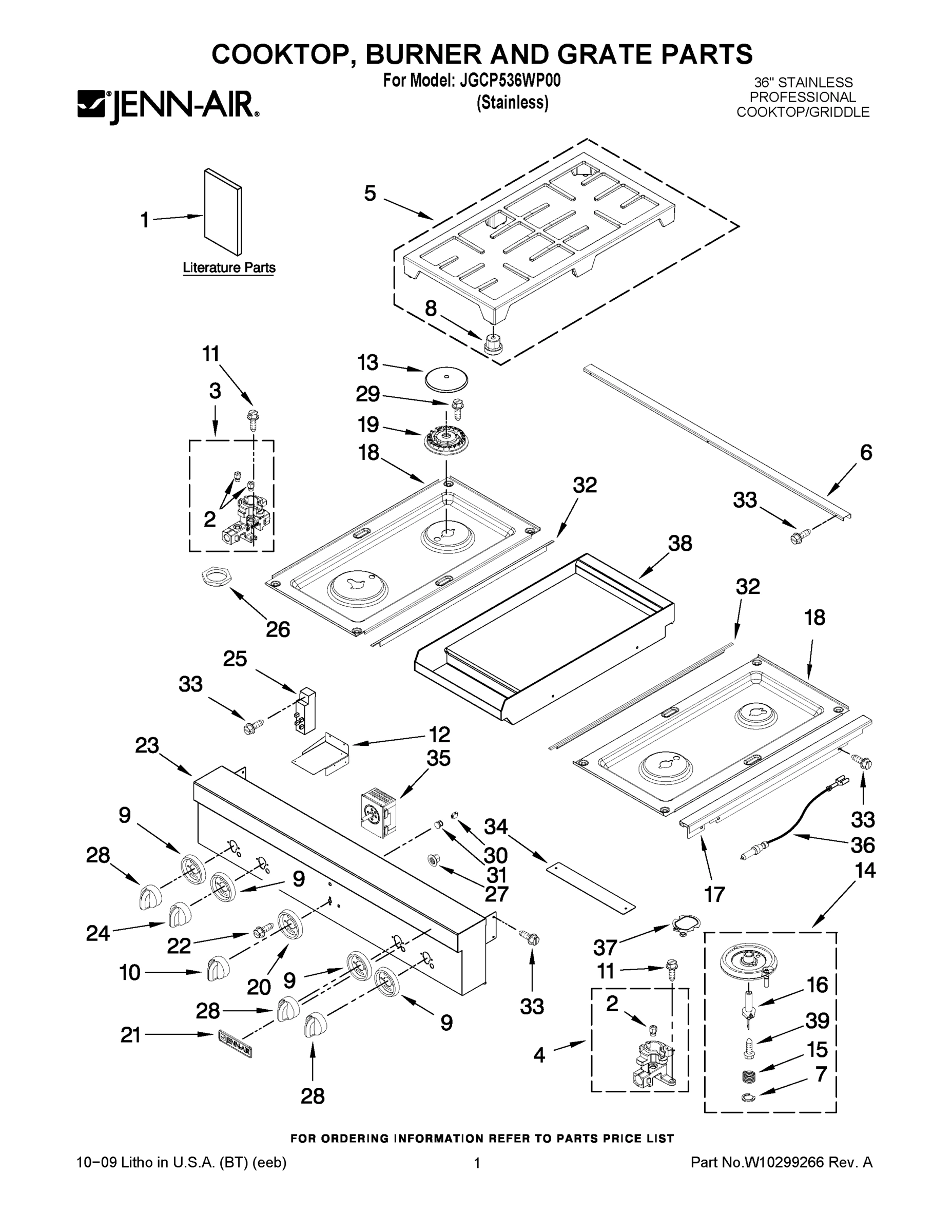

01 - COOKTOP, BURNER AND GRATE PARTS

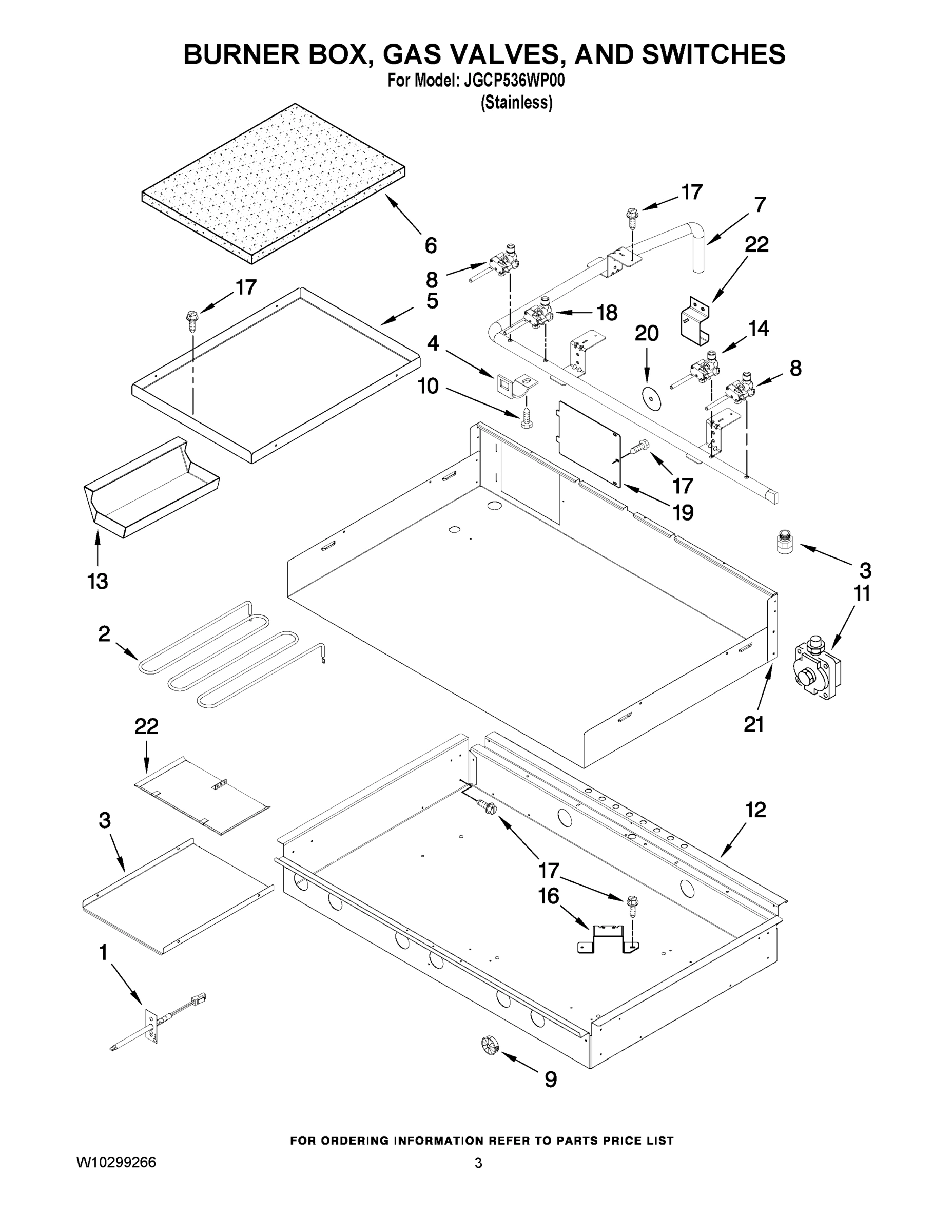

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS
Common parts from model Maytag JGCP536WP00 GAS COOK-TOP
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10145395 MAY W10145395 Contact Us For Availability
1
MAY W10221132 MAY W10221132 Contact Us For Availability
1
MAY W10286834 MAY W10286834 Contact Us For Availability
1
MAY W10131825 MAY W10131825 Contact Us For Availability
2
ORIFICE (LF - HIGH) MAY W10160179 Contact Us For Availability
2
ORIFICE (LF - LOW) MAY W10160185 Contact Us For Availability
2
ORIFICE (LR & RF) MAY W10160232 Contact Us For Availability
2
MAY W10193014 MAY W10193014 Contact Us For Availability
3
ORIFICE HOLDER DUAL - LF) MAY W10160187 Contact Us For Availability
3
MAY W10145620 MAY W10145620 Contact Us For Availability
4
ORIFICE HOLDER (LR & RF) MAY W10160234 Contact Us For Availability
4
ORIFICE HOLDER (RR) MAY W10282659 Contact Us For Availability
4
MAY W10189107 MAY W10189107 Contact Us For Availability
5
MAY W10145532 MAY W10145532 Contact Us For Availability
5
MAY W10246074 MAY W10246074 Contact Us For Availability
6
MAY W10269217 MAY W10269217 Contact Us For Availability
6
MAY W10145621 MAY W10145621 Contact Us For Availability
7
CLIP, ELECTRODE MAY W10160825 Contact Us For Availability
7
MAY W10115985 MAY W10115985 Contact Us For Availability
8
MAY 8286695 MAY 8286695 Contact Us For Availability
8
MAY W10250407 MAY W10250407 Contact Us For Availability
9
BEZEL, FRONT MAY W10276494 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
10
MAY W10145566 MAY W10145566 Contact Us For Availability
10
SCREW, VALVE MTG MAY W10189140 Contact Us For Availability
11
SCREW, BURNER RAIL (RR) MAY 8286921 Contact Us For Availability
11
REGULATOR,PRESSURE MAY 9759091 Contact Us For Availability
12
MAY W10137323 MAY W10137323 Contact Us For Availability
12
MAY W10250425 MAY W10250425 Contact Us For Availability
13
CAP, BURNER (RR) MAY 8286816 Contact Us For Availability
13
CAP, BURNER (LF) MAY W10115952 Contact Us For Availability
13
CAP, BURNER (LR & RF) MAY W10160229 Contact Us For Availability
13
DRIP, TRAY GRIDDLE MAY W10276497 Contact Us For Availability
14
BASE, BURNER (LR & RF) MAY W10189082 Contact Us For Availability
14
BASE, BURNER (LF) MAY W10250405 Contact Us For Availability
14
VALVE, SIMMER MAY W10284547 Contact Us For Availability
15
SPRING, ELECTRODE (RR) MAY 8286863 Contact Us For Availability
15
SPRING, ELECTRODE (LF, LR & RF) MAY W10160826 Contact Us For Availability
16
ELECTRODE (LR & RF) MAY W10160235 Contact Us For Availability
16
ELECTRODE (LF (DUAL)) MAY W10250406 Contact Us For Availability
16
BRACKET, BURNER (3) MAY W10115929 Contact Us For Availability
16
BRACKET, BURNER (1) MAY W10280796 Contact Us For Availability
17
MAY W10226014 MAY W10226014 Contact Us For Availability
17
MAY W10226015 MAY W10226015 Contact Us For Availability
17
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
18
MAY W10189104 MAY W10189104 Contact Us For Availability
18
MAY W10282192 MAY W10282192 Contact Us For Availability
18
MAY W10250410 MAY W10250410 Contact Us For Availability
19
BURNER HEAD (LR & RF) MAY W10250458 Contact Us For Availability
19
BURNER HEAD (LF) MAY W10250459 Contact Us For Availability
19
BURNER HEAD (RR) MAY W10282515 Contact Us For Availability
19
MAY W10115843 MAY W10115843 Contact Us For Availability
20
MAY W10145453 MAY W10145453 Contact Us For Availability
20
MAY W10189177 MAY W10189177 Contact Us For Availability
21
MAY W10159578 MAY W10159578 Contact Us For Availability
21
MAY W10189156 MAY W10189156 Contact Us For Availability
22
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
22
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
23
MAY W10145536 MAY W10145536 Contact Us For Availability
24
KNOB, CONTROL (DUAL - LF) MAY W10145568 Contact Us For Availability
25
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
26
MAY W10115953 MAY W10115953 Contact Us For Availability
27
NUT, HEX MAY 7103P166-60 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
SCREW (RR) MAY 3196160 Contact Us For Availability
30
MAY W10116114 MAY W10116114 Contact Us For Availability
31
LENS, INDICATOR LIGHT MAY W10294500 Contact Us For Availability
32
MAY W10271525 MAY W10271525 Contact Us For Availability
34
MAY W10250433 MAY W10250433 Contact Us For Availability
35
MAY W10116113 MAY W10116113 Contact Us For Availability
36
RR, ELECTRODE & WIRE MAY W10145991 Contact Us For Availability
37
GASKET, ORIFICE HOLDER AUX MAY 8286930 Contact Us For Availability
38
MAY W10276498 MAY W10276498 Contact Us For Availability
39
SCREW MAY W10078270 Contact Us For Availability
NI
TUBING, GAS (LR & RR) MAY W10115908 Contact Us For Availability
NI
TUBING, GAS (LF & RF) MAY W10115910 Contact Us For Availability
NI
TUBING, GAS (LF - SIMMER) MAY W10115911 Contact Us For Availability
NI
TUBING, GAS MAY W10280797 Contact Us For Availability
NI
CLEANER, APPLIANCE MAY 31682 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
BACKGUARD, ADJUSTABLE MAY 8284756 Contact Us For Availability
NI
MAY 9758677 MAY 9758677 Contact Us For Availability
NI
MAY W10115776 MAY W10115776 Contact Us For Availability
NI
MAY W10116096 MAY W10116096 Contact Us For Availability
NI
HARNESS, SWITCH MAY W10116174 Contact Us For Availability
NI
HARNESS, IGNITION MAY W10145992 Contact Us For Availability
NI
COVER, GRIDDLE MAY W10160195 Contact Us For Availability
NI
RING, WOK MAY W10216179 Contact Us For Availability
NI
LP CONVERSION KIT MAY W10221288 Contact Us For Availability
NI
DUAL-POSITION BACKGUARD W/ SHELF MAY W10285448 Contact Us For Availability
× ![]()
