Model Maytag JGCP436WP02 COOKTOP, GAS, 36 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

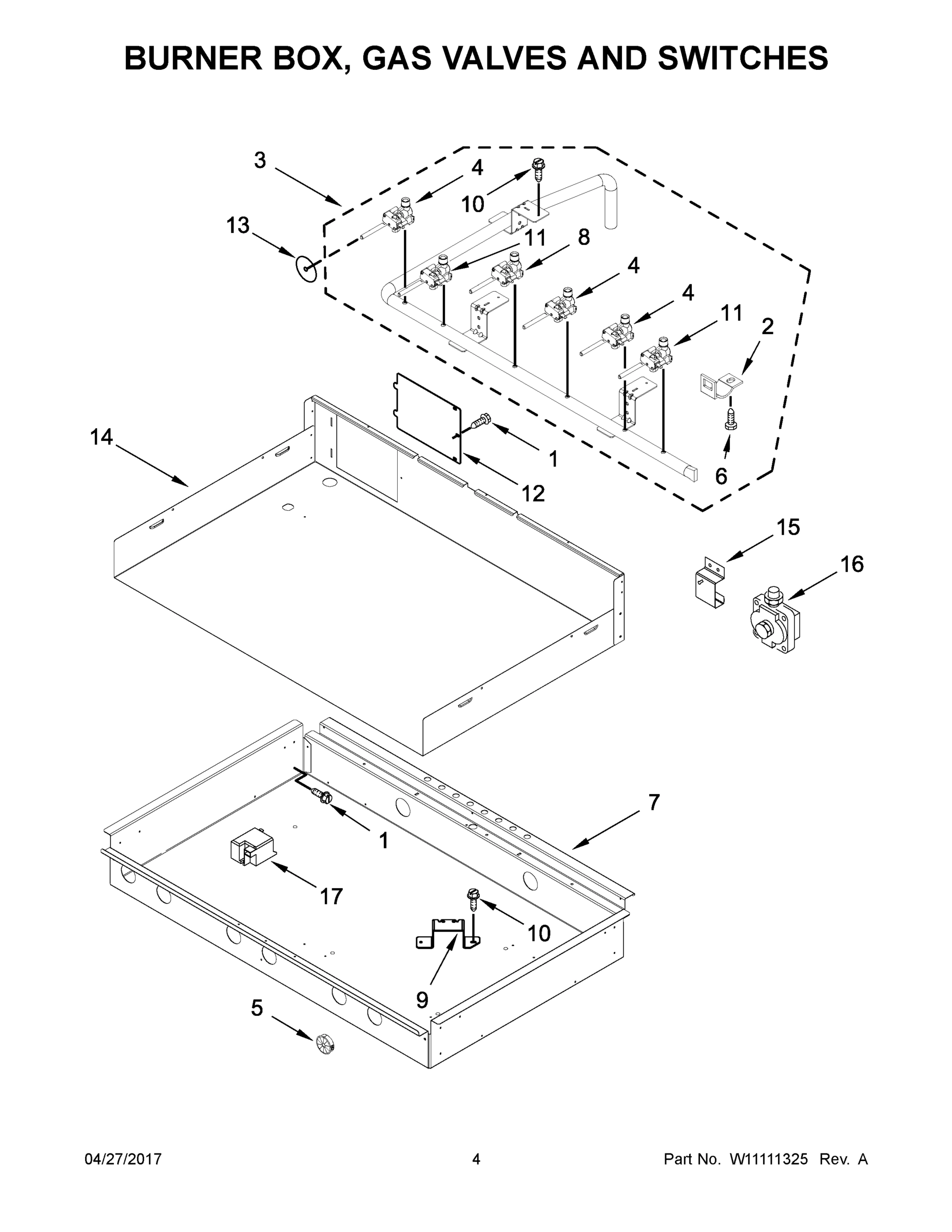

03 - BURNER BOX, GAS VALVES AND SWITCHES
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP436WP02 COOKTOP, GAS, 36 INCH
1
SHEET, TECH MAY W10403307 Contact Us For Availability
1A
MAY W10849070 MAY W10849070 Contact Us For Availability
1B
MAY W10899358 MAY W10899358 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH MAY W10657945 Contact Us For Availability
2
BRACKET, VALVE MAY W10432260 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT & RIGHT FRONT, LOW MAY W10256132 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (CENTER REAR) MAY W10282663 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT MAY W10846622 Contact Us For Availability
3
ASSEMBLY, MANIFOLD MAY W10402611 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER F MAY W10846623 Contact Us For Availability
4
VALVE, SINGLE (LEFT REAR, CENTER FRONT, RIGHT MAY W10385582 Contact Us For Availability
5
GRATE, BURNER (BLACK) MAY W10276551 Contact Us For Availability
5
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
6
TRIM, ISLAND MAY W10269217 Contact Us For Availability
6
SCREW MAY W10189140 Contact Us For Availability
7
T-STRIP MAY W10271524 Contact Us For Availability
7
BOX, BURNER MAY W10371516 Contact Us For Availability
8
BUMPER, GRATE MAY 9760219 Contact Us For Availability
8
VALVE, SIMMER (CENTER REAR) MAY W10385583 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BRACKET, BURNER MAY W10560553 Contact Us For Availability
10
PLATE, COVER MAY W10250433 Contact Us For Availability
10
SCREW MAY 7101P426-60 Contact Us For Availability
11
SCREW (ALL BUT CENTER REAR) MAY 3177991 Contact Us For Availability
11
VALVE, DUAL (LEFT FRONT & RIGHT FRONT) MAY W10371235 Contact Us For Availability
11A
SCREW (CENTER REAR) MAY 3196160 Contact Us For Availability
12
MAY W10846054 MAY W10846054 Contact Us For Availability
12
COVER, IGNITION MAY W10115843 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT & RIGHT FRONT) MAY W10256034 Contact Us For Availability
13
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR, CENTER FRONT, MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (CENTER REAR)) MAY W10364463 Contact Us For Availability
14
SCREW MAY W10673618 Contact Us For Availability
14
MAY W10778212 MAY W10778212 Contact Us For Availability
15
SPRING, ELECTRODE (ALL BUT CENTER REAR) MAY W10827923 Contact Us For Availability
15
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
15A
SPRING, ELECTRODE (CENTER REAR) MAY 8286863 Contact Us For Availability
16
ELECTRODE, BURNER (CENTER REAR) MAY 8286725 Contact Us For Availability
16
MAY W10449140 MAY W10449140 Contact Us For Availability
17
TRIM, SIDE (LEFT) MAY W10226014 Contact Us For Availability
17
REIGNITOR MAY W10116108 Contact Us For Availability
17A
TRIM, SIDE (RIGHT) MAY W10226015 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352967 Contact Us For Availability
18B
COOKTOP (BLACK (CENTER)) MAY W10352966 Contact Us For Availability
19
MAY W10879806 MAY W10879806 Contact Us For Availability
19A
SPREADER, FLAME (LEFT REAR, CENTER FRONT, RIG MAY W10256027 Contact Us For Availability
19B
SPREADER, FLAME (CENTER REAR) MAY W10282515 Contact Us For Availability
20
KNOB (STAINLESS (ALL EXCEPT LEFT FRONT & RIGH MAY W10145454 Contact Us For Availability
21
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
22
SCREW MAY 7101P500-60 Contact Us For Availability
23
MAY W10779891 MAY W10779891 Contact Us For Availability
24
KNOB (STAINLESS ( MAY W10145568 Contact Us For Availability
25
MAY W10475147 MAY W10475147 Contact Us For Availability
26
MAY 8286930 MAY 8286930 Contact Us For Availability
27
MAY 7103P166-60 MAY 7103P166-60 Contact Us For Availability
28
MAY W10883622 MAY W10883622 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY 8286921 MAY 8286921 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10283996 MAY W10283996 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10631509 MAY W10631509 Contact Us For Availability
NI
MAY W10763504 MAY W10763504 Contact Us For Availability
NI
TUBE, (LEFT REAR) MAY W10280797 Contact Us For Availability
NI
TUBE (RIGHT REAR) (ALSO CENTER REAR) MAY W10353133 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10353141 Contact Us For Availability
NI
TUBE (CENTER FRONT) MAY W10353152 Contact Us For Availability
NI
TUBE (LEFT FRONT) MAY W10353154 Contact Us For Availability
NI
ACCESSORY PARTS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
NI
MISCELLANEOUS, KIT, LP CONVERSION MAY W10393255 Contact Us For Availability
× ![]()
