Model Maytag JGCP436WP00 GAS COOK-TOP – Common Parts & Diagrams

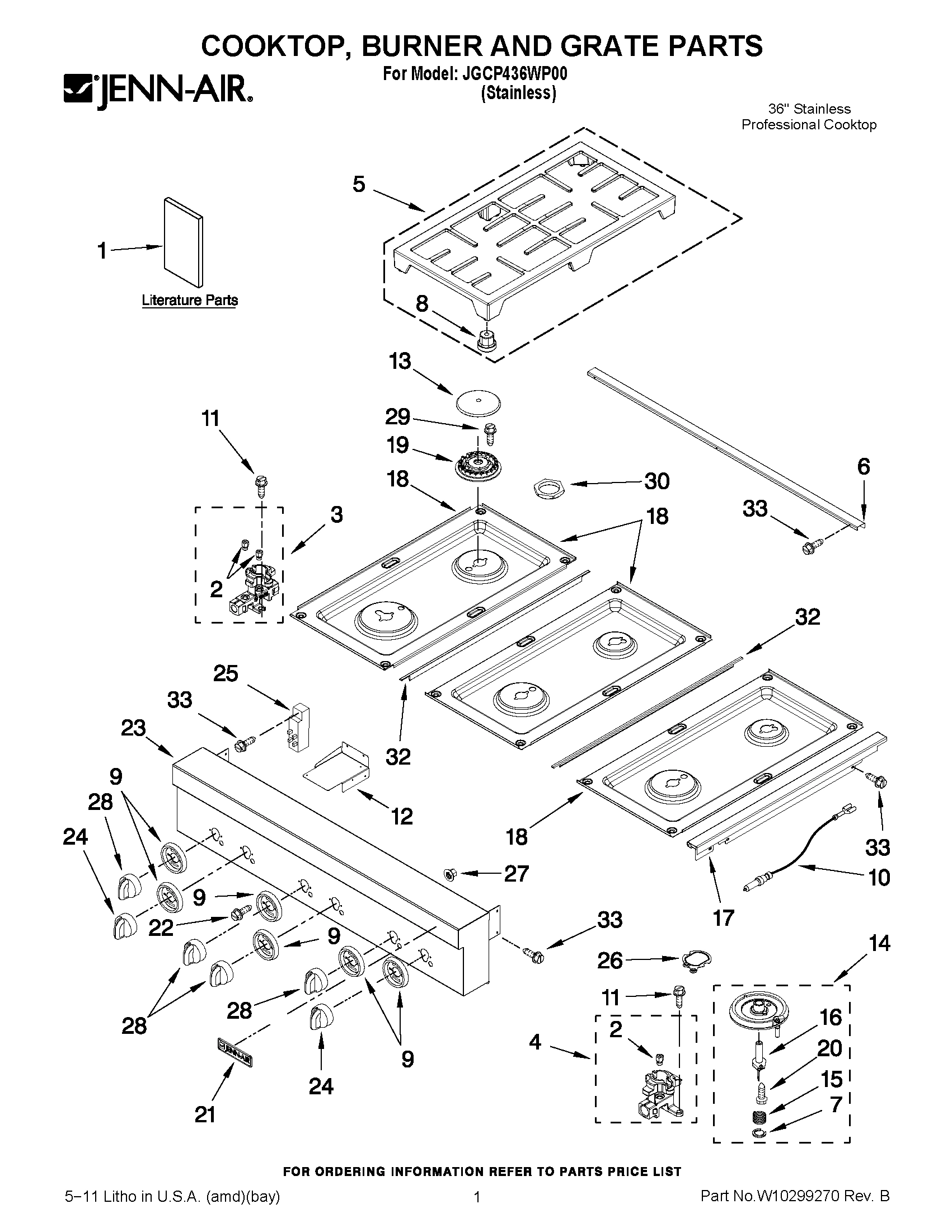

01 - COOKTOP, BURNER AND GRATE PARTS

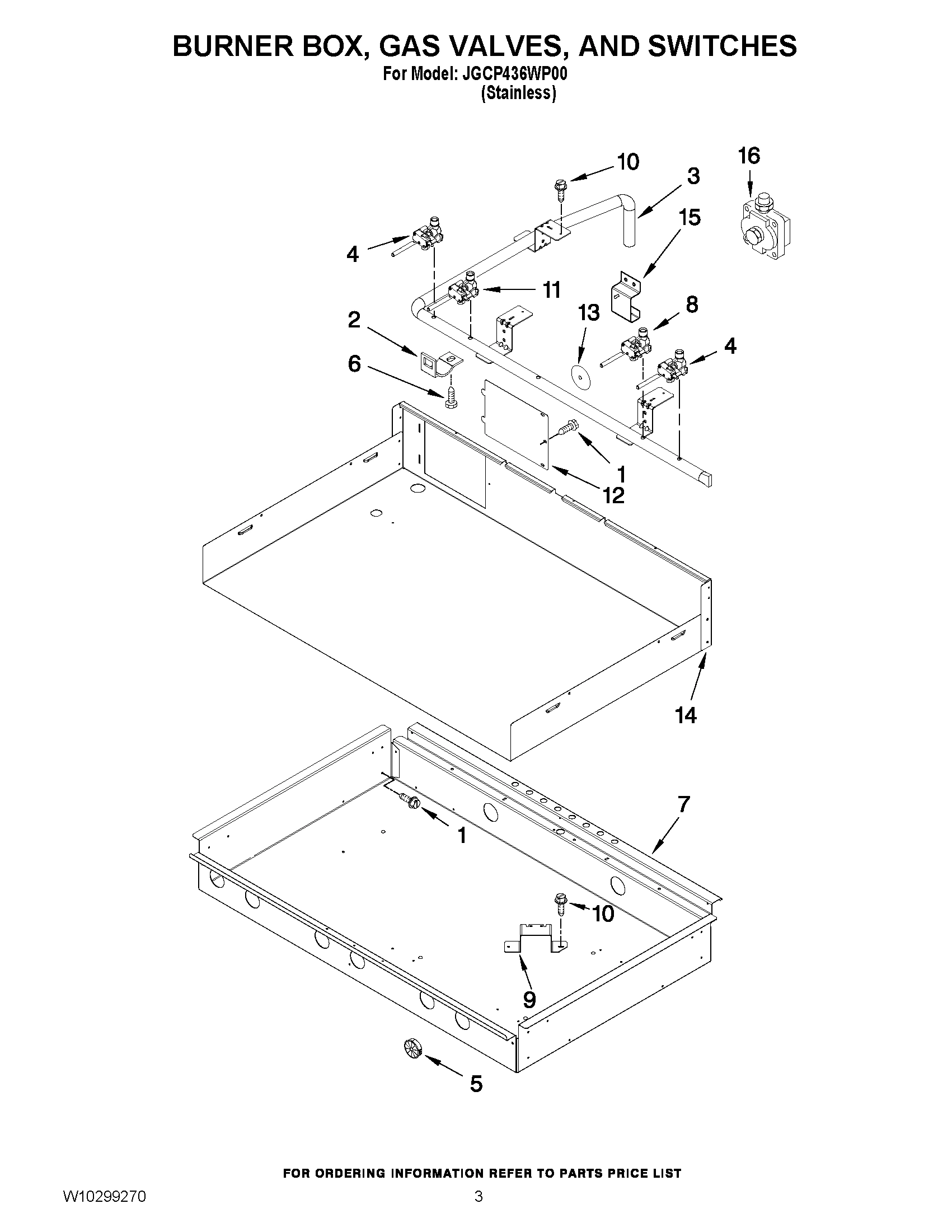

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS
Common parts from model Maytag JGCP436WP00 GAS COOK-TOP
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10145395 MAY W10145395 Contact Us For Availability
1
MAY W10221132 MAY W10221132 Contact Us For Availability
1
MAY W10286834 MAY W10286834 Contact Us For Availability
1
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
ORIFICE (LF & RF - HIGH) MAY W10160179 Contact Us For Availability
2
ORIFICE (LF & RF - LOW) MAY W10160185 Contact Us For Availability
2
ORIFICE (CF & RR) MAY W10160232 Contact Us For Availability
2
MAY W10189107 MAY W10189107 Contact Us For Availability
3
ORIFICE HOLDER (DUAL - LF & RF) MAY W10160187 Contact Us For Availability
3
MAY W10115896 MAY W10115896 Contact Us For Availability
4
ORIFICE HOLDER (LR & CF & RR) MAY W10160234 Contact Us For Availability
4
ORIFICE HOLDER (CR) MAY W10282659 Contact Us For Availability
4
VALVE, SINGLE (LR, CF, & RR) MAY W10250407 Contact Us For Availability
5
MAY W10145532 MAY W10145532 Contact Us For Availability
5
MAY W10189097 MAY W10189097 Contact Us For Availability
6
MAY W10269217 MAY W10269217 Contact Us For Availability
6
SCREW, VALVE MTG MAY W10189140 Contact Us For Availability
7
CLIP, ELECTRODE MAY W10160825 Contact Us For Availability
7
BURNER BOX ORIFICE MOUNTING MAY W10250425 Contact Us For Availability
8
MAY 8286695 MAY 8286695 Contact Us For Availability
8
VALVE, SINGLE (CR) MAY W10284547 Contact Us For Availability
9
BEZEL, FRONT MAY W10276494 Contact Us For Availability
9
BRACKET, BURNER MAY W10280796 Contact Us For Availability
10
CR, ELECTRODE & WIRE MAY W10145991 Contact Us For Availability
10
MAY 74003640 MAY 74003640 Contact Us For Availability
11
SCREW, BURNER RAIL (CR) MAY 8286921 Contact Us For Availability
11
VALVE, GAS (LF & RF) MAY W10250410 Contact Us For Availability
12
MAY W10137323 MAY W10137323 Contact Us For Availability
12
MAY W10115843 MAY W10115843 Contact Us For Availability
13
CAP, BURNER (CR) MAY 8286816 Contact Us For Availability
13
CAP, BURNER (LF & RF) MAY W10115952 Contact Us For Availability
13
CAP, BURNER (CF,LR,RR) MAY W10160229 Contact Us For Availability
13
MAY W10189177 MAY W10189177 Contact Us For Availability
14
BASE, BURNER (LR & CF & RR) MAY W10189082 Contact Us For Availability
14
BASE, BURNER (LF & RF) MAY W10250405 Contact Us For Availability
14
MAY W10189156 MAY W10189156 Contact Us For Availability
15
SPRING, ELECTRODE (CR) MAY 8286863 Contact Us For Availability
15
SPRING, ELECTRODE (LR, CF, RR, LF & RF) MAY W10160826 Contact Us For Availability
15
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
16
ELECTRODE (LR, CF & RR) MAY W10160235 Contact Us For Availability
16
ELECTRODE (LF & RF (DUAL)) MAY W10250406 Contact Us For Availability
16
REGULATOR,PRESSURE MAY 9759091 Contact Us For Availability
17
MAY W10226014 MAY W10226014 Contact Us For Availability
17
MAY W10226015 MAY W10226015 Contact Us For Availability
18
MAY W10189101 MAY W10189101 Contact Us For Availability
18
MAY W10189104 MAY W10189104 Contact Us For Availability
18
COOKTOP (CENTER) MAY W10272902 Contact Us For Availability
19
BURNER HEAD (CF & RR) MAY W10250458 Contact Us For Availability
19
BURNER HEAD (LF & RF) MAY W10250459 Contact Us For Availability
19
BURNER HEAD (CR) MAY W10282515 Contact Us For Availability
21
MAY W10159578 MAY W10159578 Contact Us For Availability
23
MAY W10145535 MAY W10145535 Contact Us For Availability
24
KNOB, CONTROL (DUAL - LF & RF) MAY W10145568 Contact Us For Availability
25
MAY 7431P039-60 MAY 7431P039-60 Contact Us For Availability
26
GASKET, ORIFICE HOLDER AUX MAY 8286930 Contact Us For Availability
27
NUT, HEX MAY 7103P166-60 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
SCREW MAY W10078270 Contact Us For Availability
30
MAY W10115953 MAY W10115953 Contact Us For Availability
32
STRIP, T MAY W10271524 Contact Us For Availability
NI
TUBING, GAS (LF & RF) - LOW MAY W10115908 Contact Us For Availability
NI
TUBING, GAS (LF, CF, & CR) MAY W10115910 Contact Us For Availability
NI
TUBING, GAS (LF & RF) - HIGH MAY W10115911 Contact Us For Availability
NI
TUBING, GAS (CR - SIMMER) MAY W10280797 Contact Us For Availability
NI
CLEANER, APPLIANCE MAY 31682 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY 4454842 MAY 4454842 Contact Us For Availability
NI
BACKGUARD, ADJUSTABLE MAY 8284756 Contact Us For Availability
NI
MAY 9758677 MAY 9758677 Contact Us For Availability
NI
MAY W10115776 MAY W10115776 Contact Us For Availability
NI
MAY W10116173 MAY W10116173 Contact Us For Availability
NI
HARNESS, IGNITION MAY W10145986 Contact Us For Availability
NI
COVER, GRIDDLE MAY W10160195 Contact Us For Availability
NI
RING, WOK MAY W10216179 Contact Us For Availability
NI
LP CONVERSION KIT MAY W10221288 Contact Us For Availability
NI
BURNER BOX, BACK MAY W10247076 Contact Us For Availability
NI
DUAL-POSITION BACKGUARD W/ SHELF MAY W10285448 Contact Us For Availability
× ![]()
