Model Maytag JGCP430WP02 COOKTOP, GAS, 30 INCH – Common Parts & Diagrams

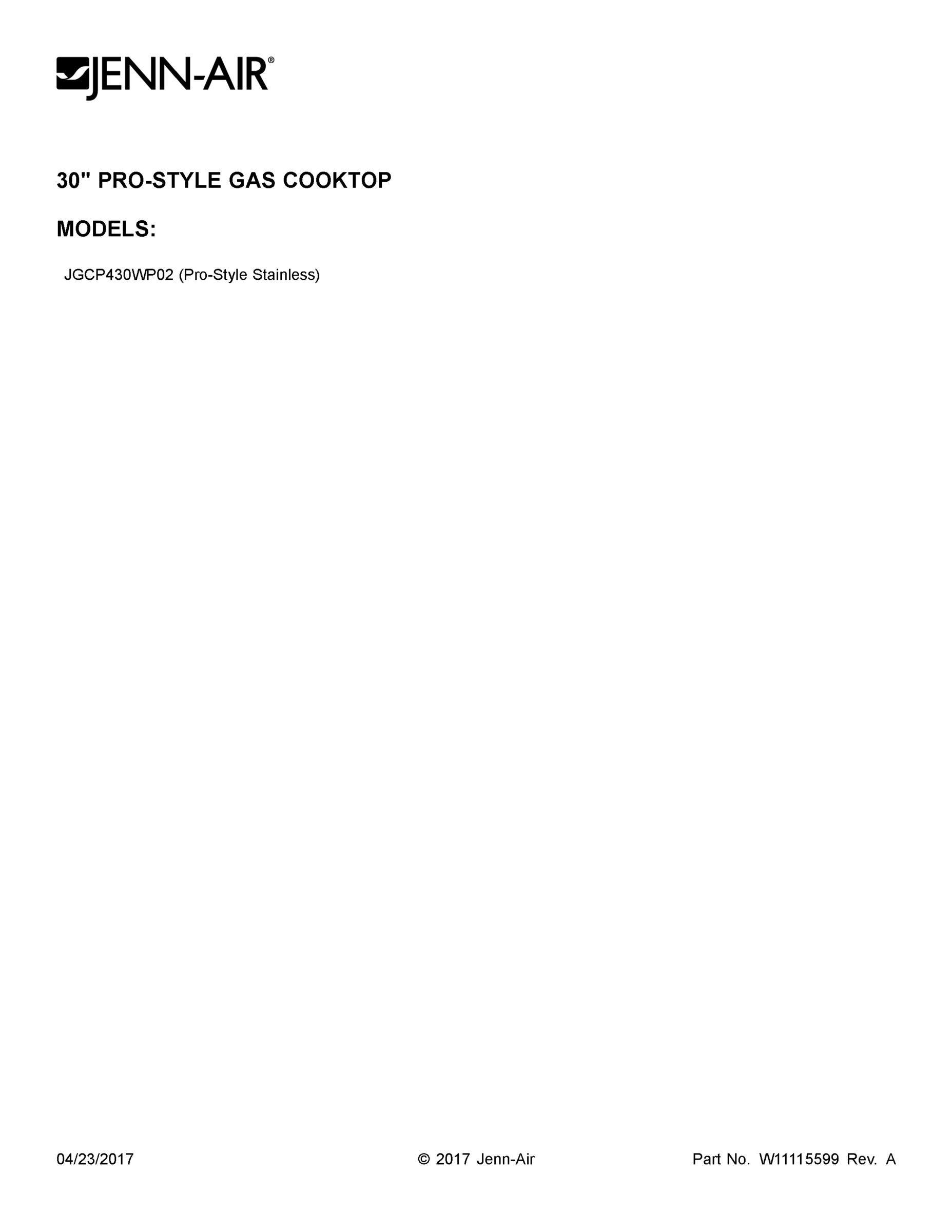

01 - COVER SHEET

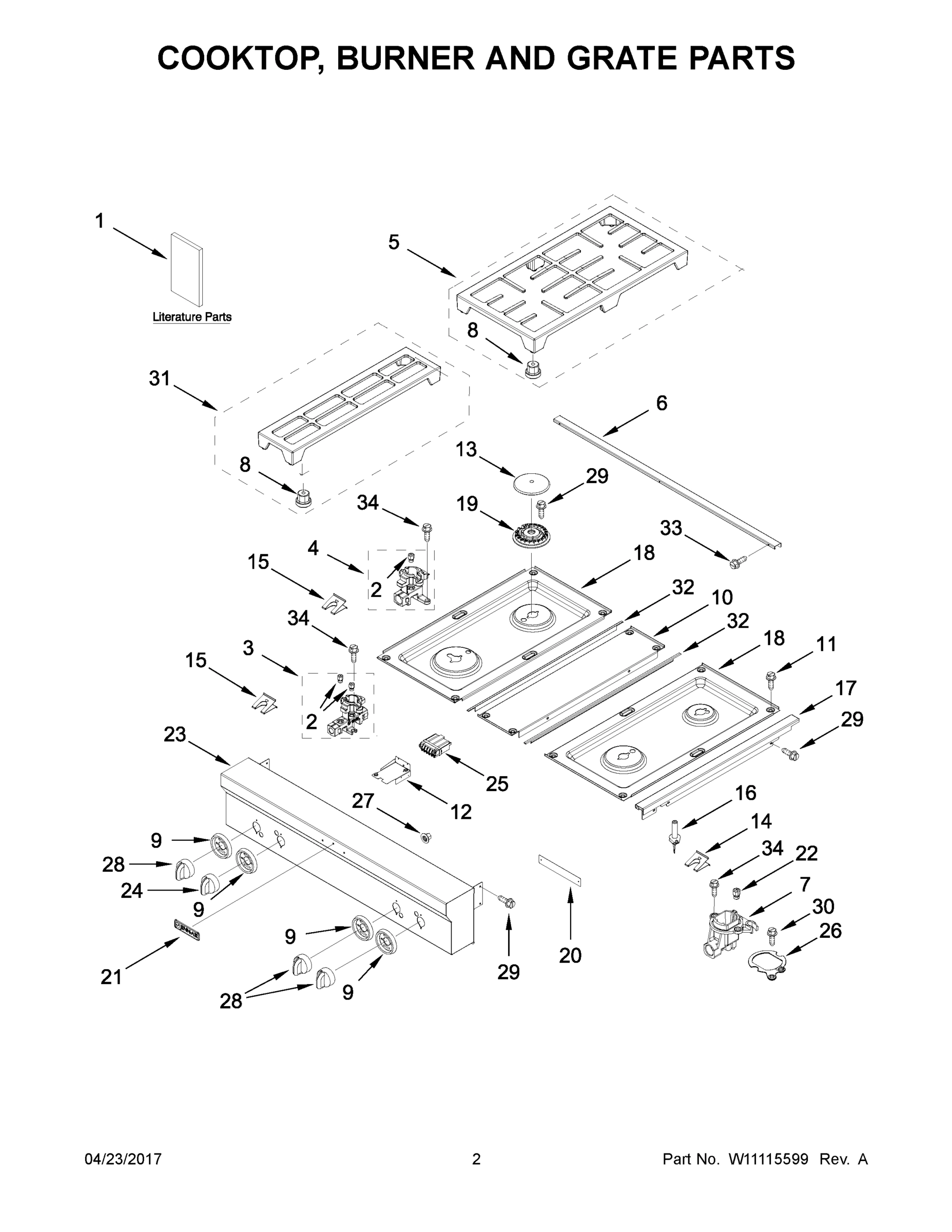

02 - COOKTOP, BURNER AND GRATE PARTS
03 - BURNER BOX, GAS VALVES AND SWITCHES
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP430WP02 COOKTOP, GAS, 30 INCH
1
SHEET, TECH MAY W10403307 Contact Us For Availability
1
VALVE, SIMMER MAY W10385583 Contact Us For Availability
1A
MAY W10849070 MAY W10849070 Contact Us For Availability
1B
MAY W10899358 MAY W10899358 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10657945 MAY W10657945 Contact Us For Availability
2
SCREW MAY 7101P426-60 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT, LOW) MAY W10256132 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR & RIGHT FRONT) MAY W10364221 Contact Us For Availability
3
MAY W10846622 MAY W10846622 Contact Us For Availability
3
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
4
MAY W10846623 MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) MAY W10276551 Contact Us For Availability
5
MAY W10778213 MAY W10778213 Contact Us For Availability
6
TRIM, ISLAND MAY W10269218 Contact Us For Availability
6
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
7
MAY W10883622 MAY W10883622 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402609 Contact Us For Availability
8
BUMPER, GRATE MAY 9760219 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
10
FILLER, COOKTOP MAY W10189105 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
11
SCREW MAY 7101P500-60 Contact Us For Availability
11
MAY W10449140 MAY W10449140 Contact Us For Availability
12
BRACKET, SPARK MODULE MAY W10498407 Contact Us For Availability
12
BOX, BURNER MAY W10371508 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT)) MAY W10256034 Contact Us For Availability
13
BRACKET, BURNER MAY W10560553 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR & RIGHT FRONT)) MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (RIGHT REAR)) MAY W10364463 Contact Us For Availability
14
SPRING, ELECTRODE (RIGHT REAR) MAY 8286863 Contact Us For Availability
14
VALVE, DUAL MAY W10371235 Contact Us For Availability
15
SPRING, ELECTRODE (LEFT FRONT, LEFT REAR, RIG MAY W10827923 Contact Us For Availability
15
COVER, IGNITION MAY W10115843 Contact Us For Availability
16
ELECTRODE, BURNER (RIGHT REAR) MAY 8286725 Contact Us For Availability
17
TRIM, SIDE (LEFT) MAY W10226014 Contact Us For Availability
17A
TRIM, SIDE (RIGHT) MAY W10226015 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352968 Contact Us For Availability
19
SPREADER, FLAME (LEFT FRONT) MAY W10879806 Contact Us For Availability
19A
SPREADER, FLAME (LEFT REAR & RIGHT FRONT) MAY W10256027 Contact Us For Availability
19B
SPREADER, FLAME (RIGHT REAR) MAY W10282515 Contact Us For Availability
20
PLATE, COVER MAY W10250433 Contact Us For Availability
21
NAMEPLATE (STAINLESS) MAY W10159578 Contact Us For Availability
22
ORIFICE (5K) (RIGHT REAR) MAY W10282663 Contact Us For Availability
23
MAY W10779892 MAY W10779892 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) MAY W10145568 Contact Us For Availability
25
MODULE, SPARK MAY W10475147 Contact Us For Availability
26
GASKET, ORIFICE (RIGHT REAR) MAY 8286930 Contact Us For Availability
27
NUT MAY 7103P166-60 Contact Us For Availability
28
KNOB, SINGLE (STAINLESS) MAY W10145454 Contact Us For Availability
30
SCREW MAY 3196160 Contact Us For Availability
31
GRATE, FILLER MAY W10276495 Contact Us For Availability
32
T-STRIP MAY W10271524 Contact Us For Availability
33
SCREW MAY 7101P338-60 Contact Us For Availability
34
SCREW (LEFT FRONT, LEFT REAR, RIGHT FRONT) MAY 3177991 Contact Us For Availability
34A
SCREW, BURNER RAIL (M4) (RIGHT REAR) MAY 8286921 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP MAY W10116174 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10283996 MAY W10283996 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10393255 MAY W10393255 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10763500 MAY W10763500 Contact Us For Availability
NI
TUBE, (LEFT REAR) MAY W10280797 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10353133 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10353141 Contact Us For Availability
NI
TUBE (CENTER FRONT) MAY W10353152 Contact Us For Availability
NI
TUBE (LEFT FRONT) MAY W10353154 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
× ![]()
