Model Maytag JGCP430HM00 COOKTOP, GAS, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

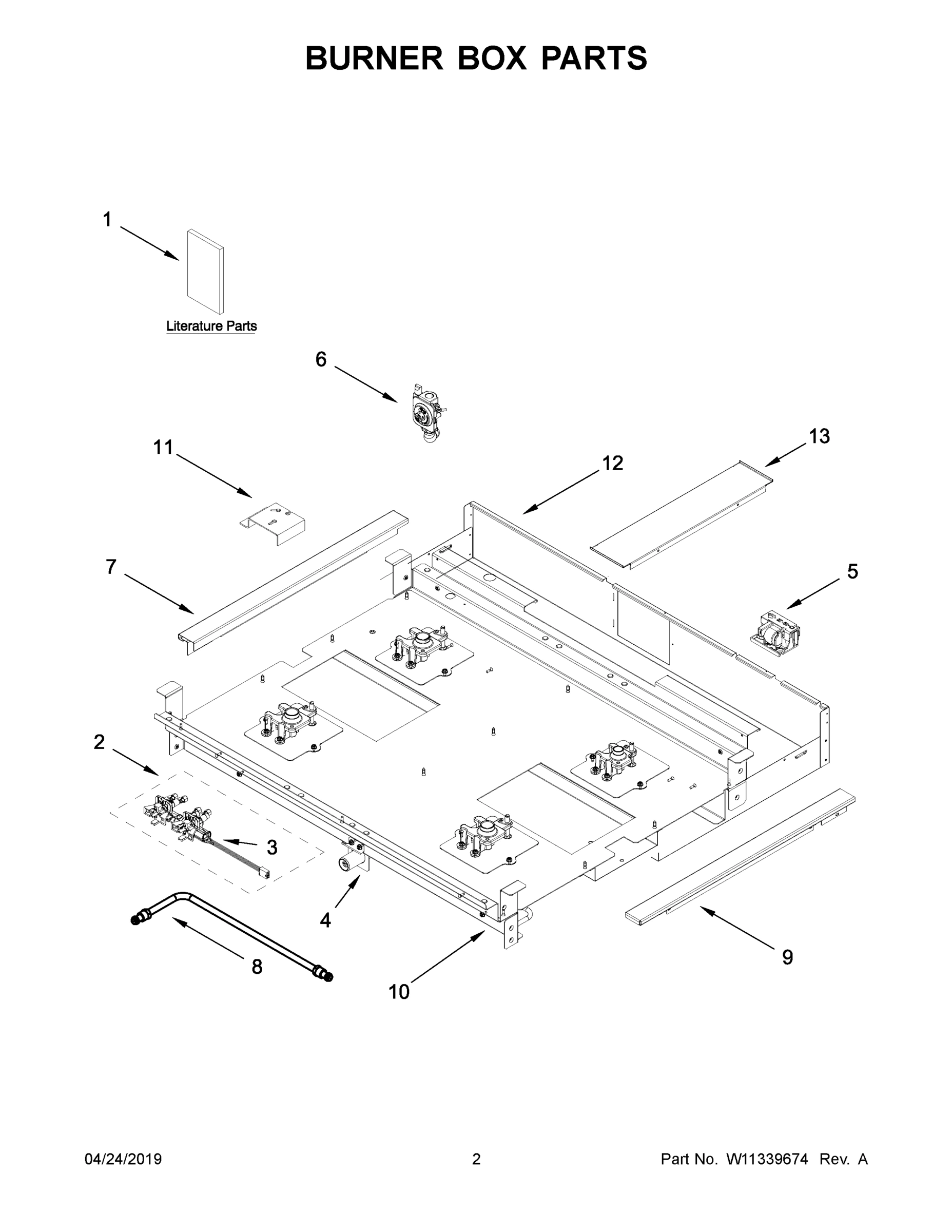

02 - BURNER BOX PARTS
03 - COOKTOP AND BURNER PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP430HM00 COOKTOP, GAS, 30 INCH
1
MAY W11114328 MAY W11114328 Contact Us For Availability
1
MAY W11253799 MAY W11253799 Contact Us For Availability
1A
MAY W11110989 MAY W11110989 Contact Us For Availability
1B
MAY W11266585 MAY W11266585 Contact Us For Availability
1C
MAY W11266565 MAY W11266565 Contact Us For Availability
2
MAY W10893053 MAY W10893053 Contact Us For Availability
2
MAY W10892771 MAY W10892771 Contact Us For Availability
2A
MAY W10893062 MAY W10893062 Contact Us For Availability
2A
MAY W10892486 MAY W10892486 Contact Us For Availability
2B
MAY W10892772 MAY W10892772 Contact Us For Availability
3
SWITCH, HARNESS MAY W11106300 Contact Us For Availability
3
ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, MAY W10892422 Contact Us For Availability
3A
ORIFICE, MAIN (7.2K) (RIGHT REAR) MAY W10892440 Contact Us For Availability
3B
ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR MAY W10892435 Contact Us For Availability
3C
ORIFICE, SIMMER (2.0K) (RIGHT REAR) MAY W10892429 Contact Us For Availability
4
MAY W11121199 MAY W11121199 Contact Us For Availability
4
IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT) MAY W11238758 Contact Us For Availability
4A
IGNITER (RIGHT REAR) MAY W11238756 Contact Us For Availability
5
MODULE, SPARK MAY W11121317 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) (LEFT) MAY W11172289 Contact Us For Availability
5A
ASSEMBLY, GRATE (BLACK) (RIGHT) MAY W11172625 Contact Us For Availability
6
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
6
BUMPER, GRATE MAY W11042504 Contact Us For Availability
7
MAY W11047750 MAY W11047750 Contact Us For Availability
7
SCREW MAY W11196257 Contact Us For Availability
8
MAY W10892070 MAY W10892070 Contact Us For Availability
8
KNOB, BURNER (STAINLESS) MAY W10887596 Contact Us For Availability
8A
MAY W10892072 MAY W10892072 Contact Us For Availability
9
MAY W11047752 MAY W11047752 Contact Us For Availability
9
MAY W10919387 MAY W10919387 Contact Us For Availability
10
MAY W11355759 MAY W11355759 Contact Us For Availability
11
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
11
BEZEL, COOKTOP MAY W11090284 Contact Us For Availability
12
SCREW MAY 7101P338-60 Contact Us For Availability
13
MAY W11121361 MAY W11121361 Contact Us For Availability
13
CAP, BURNER (BLACK (SET OF 4)) MAY W11121391 Contact Us For Availability
14
SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR MAY W10891987 Contact Us For Availability
14A
SPREADER, FLAME (LOW) (RIGHT REAR) MAY W10892022 Contact Us For Availability
15
SCREW MAY 7101P426-60 Contact Us For Availability
16
PANEL, COOKTOP (BLACK) (LEFT) MAY W11038237 Contact Us For Availability
16A
PANEL, COOKTOP (BLACK) (RIGHT) MAY W11038253 Contact Us For Availability
17
TRIM, T-STRIP (BLACK) MAY W10271524 Contact Us For Availability
18
MAY W11172800 MAY W11172800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
CORD, POWER MAY W10624584 Contact Us For Availability
NI
MAY W11038934 MAY W11038934 Contact Us For Availability
NI
MAY W11200328 MAY W11200328 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W11238041 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO MAY 4396920 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORY PARTS, STAINLESS STEEL WALLSPLASH MAY JXA9001CDP Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
NI
ACCESSORY PARTS, BACKSPLASH (48" WITH SHELVES MAY W10285449 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HIGH ALTITUDE BURNER CA MAY W11238043 Contact Us For Availability
NI
MAY W11316873 MAY W11316873 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, GRIDDLE MAY W11317495 Contact Us For Availability
NI
MAY W11317499 MAY W11317499 Contact Us For Availability
NI
MAY W11323012 MAY W11323012 Contact Us For Availability
NI
MAY W11323014 MAY W11323014 Contact Us For Availability
NI
MAY W11323015 MAY W11323015 Contact Us For Availability
NI
MAY W11323024 MAY W11323024 Contact Us For Availability
NI
MAY W11323061 MAY W11323061 Contact Us For Availability
NI
MAY W11323062 MAY W11323062 Contact Us For Availability
NI
MAY W11323067 MAY W11323067 Contact Us For Availability
NI
ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE) MAY W11323068 Contact Us For Availability
× ![]()
