Model Whirlpool JGC9536BDS17 GAS COOK-TOP – Common Parts & Diagrams

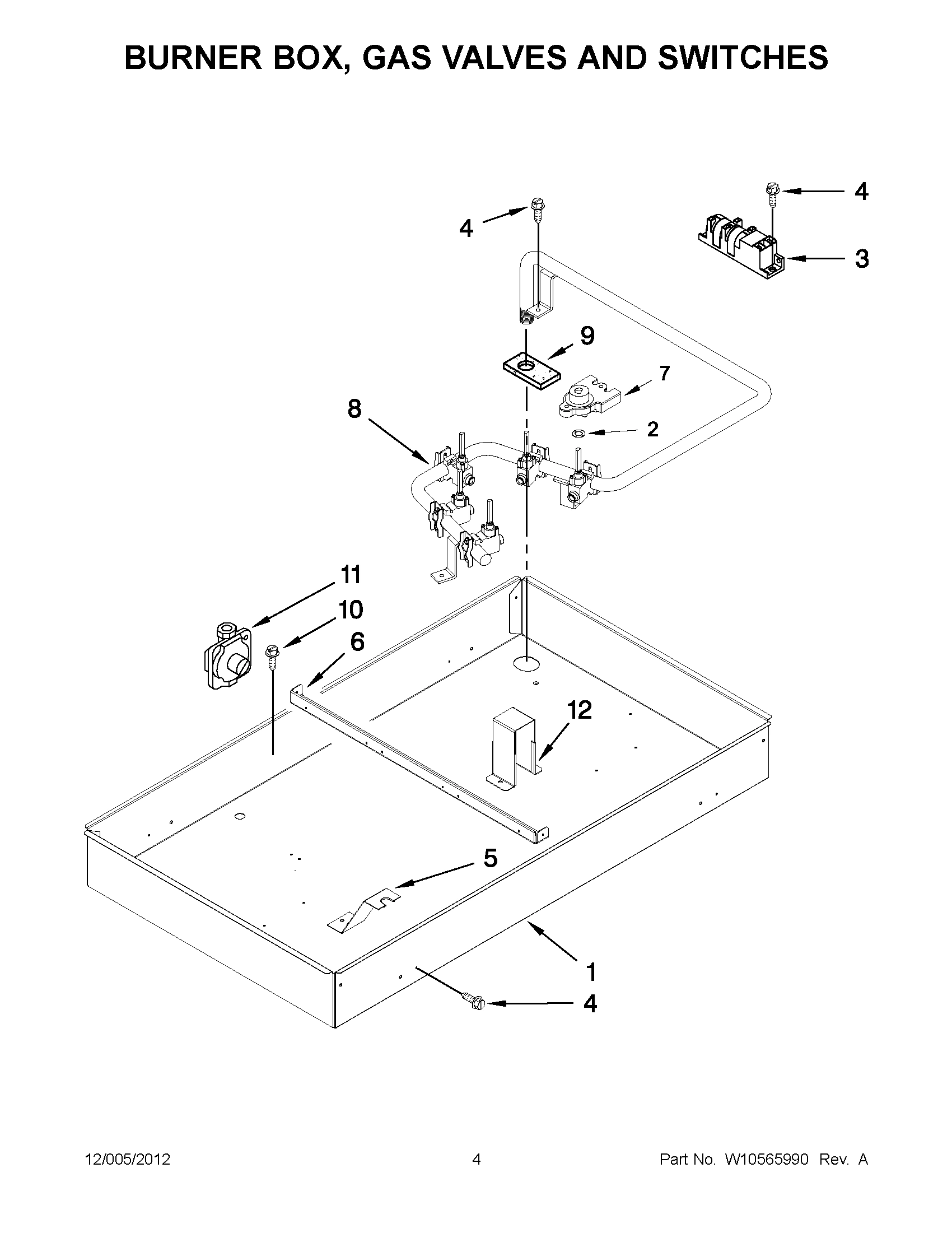

02 - BURNER BOX, GAS VALVES AND SWITCHES

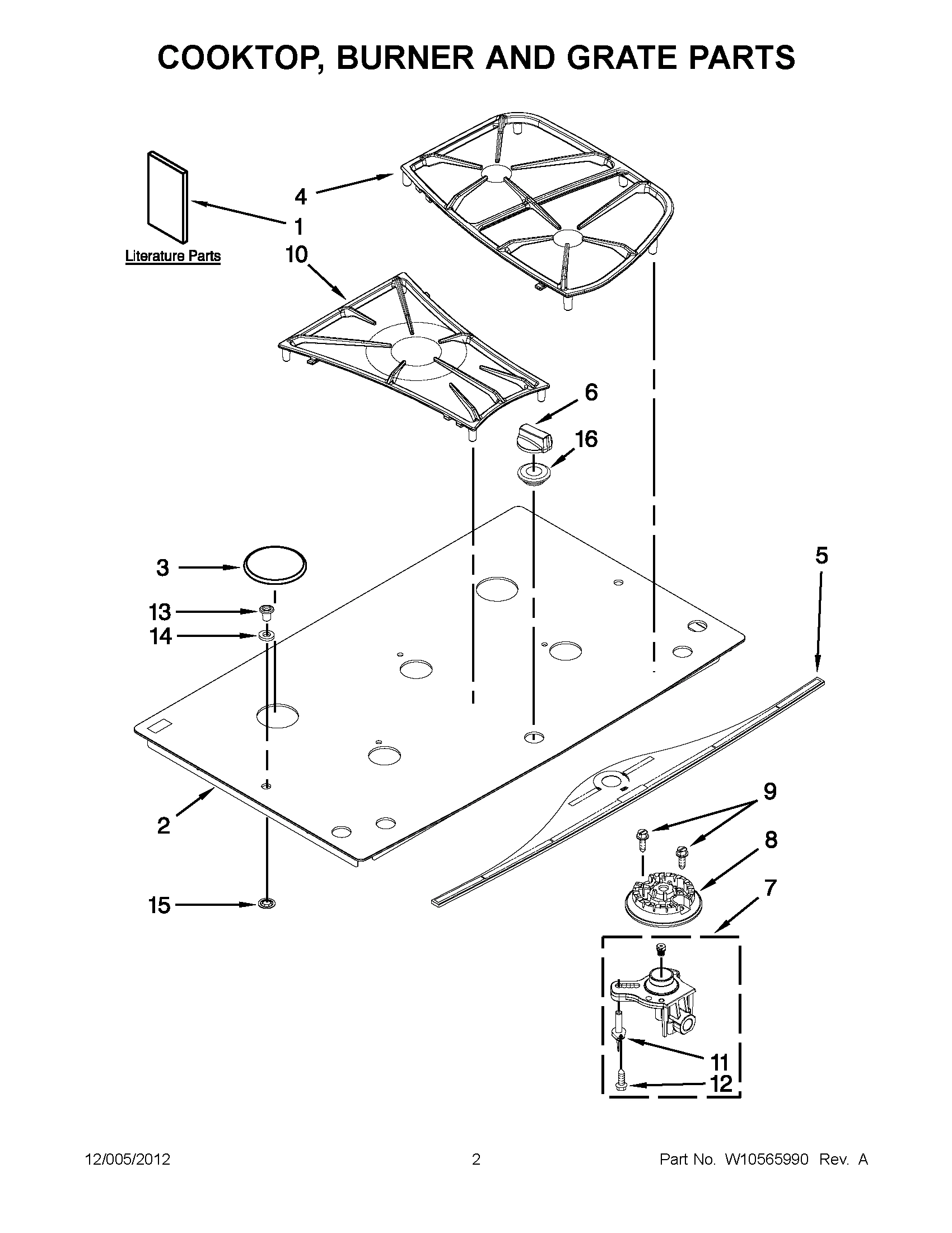

01 - COOKTOP, BURNER AND GRATE PARTS
03 - PARTS NOT ILLUSTRATED
Common parts from model Whirlpool JGC9536BDS17 GAS COOK-TOP
1
TIPS, SAFER COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10203804 Contact Us For Availability
1
USE & CARE GUIDE WPL W10204447 Contact Us For Availability
1
WIRING DIAGRAM WPL W10210795 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10204901 Contact Us For Availability
2
COOKTOP (OILED BRONZE) WPL W10204903 Contact Us For Availability
3
CAP, BURNER (BLACK) (LEFT FRONT & RIGHT FRONT WPL 7504P16560 Contact Us For Availability
3
CAP, BURNER (BLACK) (LEFT REAR & RIGHT REAR) WPL 7504P20260 Contact Us For Availability
3
CAP, BURNER (BLACK) (CENTER) WPL 7504P20460 Contact Us For Availability
4
GRATE, BURNER (LEFT) WPL 7518P45960 Contact Us For Availability
4
GRATE, BURNER (RIGHT) WPL 7518P46060 Contact Us For Availability
5
TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) ( WPL W10168884 Contact Us For Availability
5
TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) ( WPL W10168882 Contact Us For Availability
7
SWITCH, SPARK (RIGHT) WPL 7403P82060 Contact Us For Availability
7
HOLDER, ORIFICE (RIGHT FRONT) WPL 7527P13360 Contact Us For Availability
7
HOLDER, ORIFICE (RIGHT REAR) WPL 7527P13460 Contact Us For Availability
7
HOLDER, ORIFICE (CENTER) WPL 7527P13560 Contact Us For Availability
7
HOLDER, ORIFICE (LEFT FRONT) WPL 7527P13660 Contact Us For Availability
7
HOLDER, ORIFICE (LEFT REAR) WPL 7527P13760 Contact Us For Availability
8
PIPE, MANIFOLD (INCLUDES VALVES) WPL 7513P35160 Contact Us For Availability
8
ASSEMBLY, BURNER (LEFT FRONT & RIGHT FRONT) WPL 7505P30560 Contact Us For Availability
8
ASSEMBLY, BURNER (CENTER) WPL 7505P30660 Contact Us For Availability
8
ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT WPL 7505P33960 Contact Us For Availability
9
Seal, Manifold Pipe Inlet WPL 7208P02460 Contact Us For Availability
9
SCREW-BURNER HEAD WPL 7101P68560 Contact Us For Availability
10
SCREW WPL 7101P46060 Contact Us For Availability
10
GRATE, CENTER WPL 7518P46160 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
11
IGNITOR WPL 7432P12160 Contact Us For Availability
12
SUPPORT, GLASS WPL 3807F68951 Contact Us For Availability
12
SCREW WPL 7101P60660 Contact Us For Availability
13
GROMMET, GRATE WPL 8008P06460 Contact Us For Availability
14
WASHER WPL 7109P08160 Contact Us For Availability
15
RING, RETAINING WPL 7114P00860 Contact Us For Availability
16
GROMMET WPL 8008P07160 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, GREEN WPL 5112P84260 Contact Us For Availability
NI
Cord, Power WPL 7402P08760 Contact Us For Availability
NI
Strain Relief WPL 8007P00360 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL W10161748 Contact Us For Availability
× ![]()
