Model Maytag JGC9536BDR15 GAS COOK-TOP – Common Parts & Diagrams

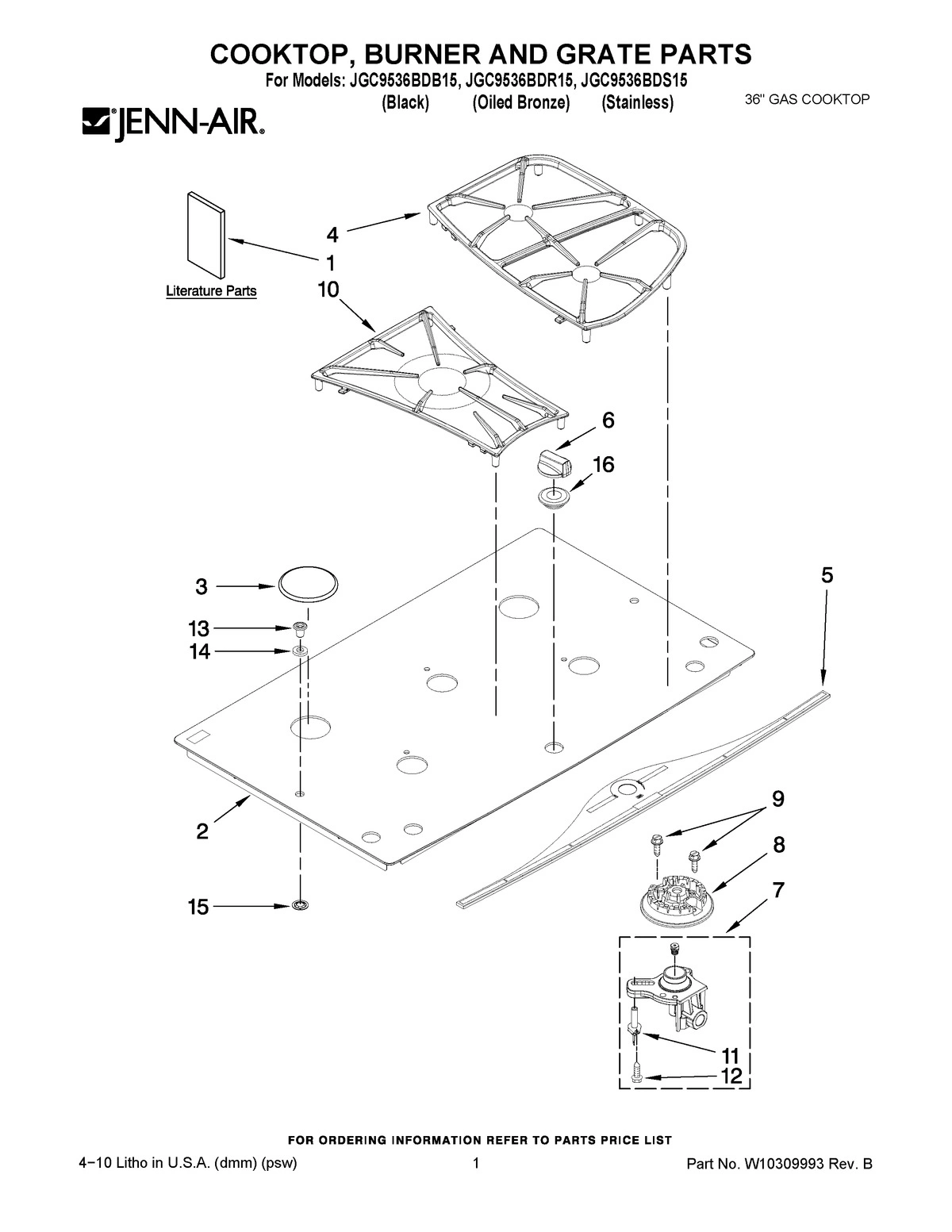

01 - COOKTOP, BURNER AND GRATE PARTS

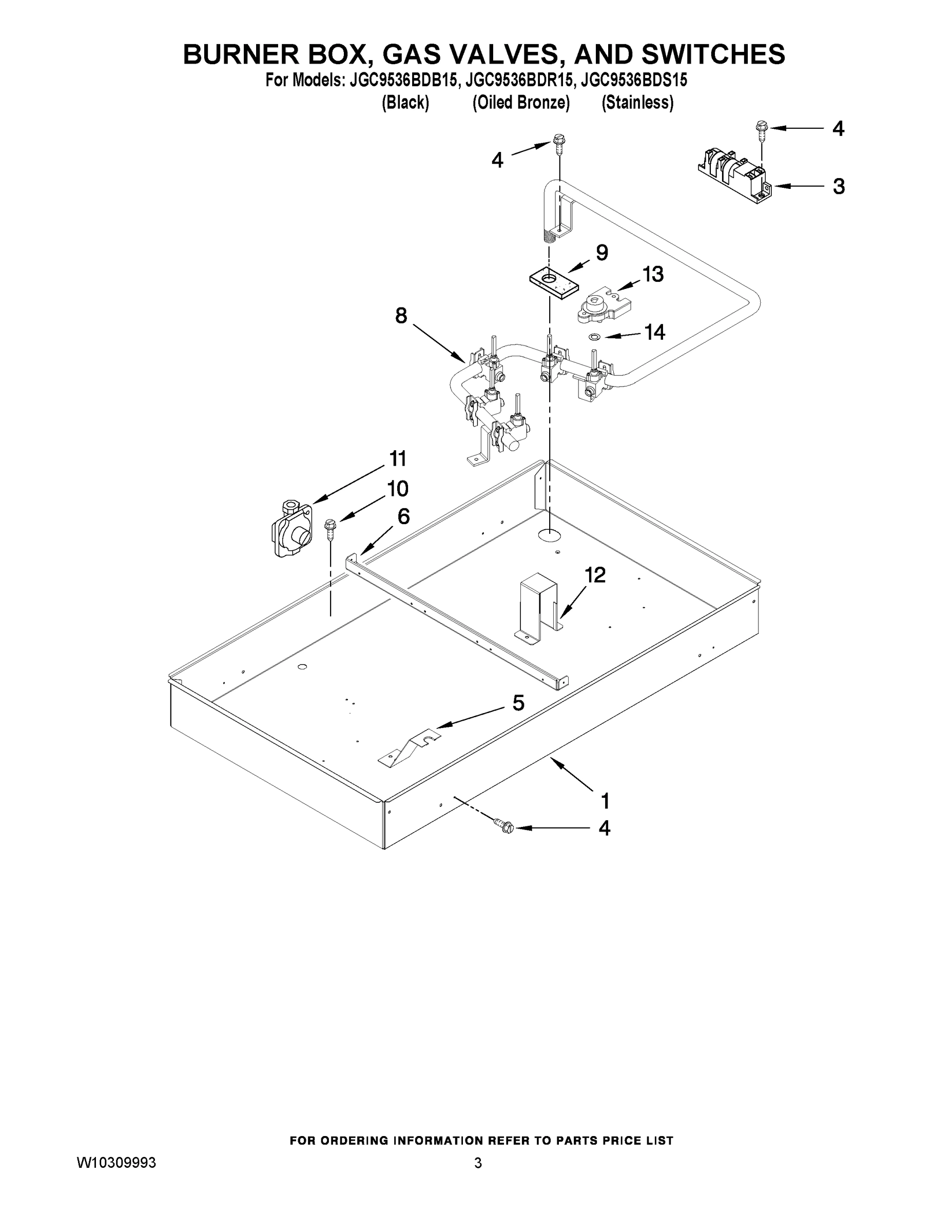

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGC9536BDR15 GAS COOK-TOP
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10203804 MAY W10203804 Contact Us For Availability
1
MAY W10204447 MAY W10204447 Contact Us For Availability
1
WIRING DIAGRAM MAY W10210795 Contact Us For Availability
1
MAY 4011F527-51 MAY 4011F527-51 Contact Us For Availability
2
MAY W10249276 MAY W10249276 Contact Us For Availability
2
MAY W10249278 MAY W10249278 Contact Us For Availability
2
MAY W10249279 MAY W10249279 Contact Us For Availability
3
CAP, BURNER (LF & RF) MAY 7504P165-60 Contact Us For Availability
3
CAP, BURNER (LR & RR) MAY 7504P202-60 Contact Us For Availability
3
CAP, BURNER (CTR) MAY 7504P204-60 Contact Us For Availability
3
SPARK MODULE MAY 7431P049-60 Contact Us For Availability
4
GRATE, BURNER (LEFT) MAY 7518P459-60 Contact Us For Availability
4
GRATE, BURNER (RIGHT) MAY 7518P460-60 Contact Us For Availability
4
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10168882 MAY W10168882 Contact Us For Availability
5
TRIM, COOKTOP FOR SS MODEL ONLY (REAR) MAY W10168884 Contact Us For Availability
5
BRACKET, ORIFICE HOLDER MAY W10190601 Contact Us For Availability
6
MAY W10168628 MAY W10168628 Contact Us For Availability
6
BRACKET, DOWNDRAFT BRACE MAY 8405P087-60 Contact Us For Availability
7
MAY 7527P133-60 MAY 7527P133-60 Contact Us For Availability
7
MAY 7527P134-60 MAY 7527P134-60 Contact Us For Availability
7
MAY 7527P135-60 MAY 7527P135-60 Contact Us For Availability
7
MAY 7527P136-60 MAY 7527P136-60 Contact Us For Availability
7
MAY 7527P137-60 MAY 7527P137-60 Contact Us For Availability
8
HEAD, BURNER (LF & RF) MAY 7505P305-60 Contact Us For Availability
8
HEAD, BURNER (CENTER) MAY 7505P306-60 Contact Us For Availability
8
HEAD, BURNER (LR & RR) MAY 7505P339-60 Contact Us For Availability
8
MAY 7513P351-60 MAY 7513P351-60 Contact Us For Availability
9
MAY 7208P024-60 MAY 7208P024-60 Contact Us For Availability
10
GRATE, CENTER MAY 7518P461-60 Contact Us For Availability
10
Screw, Ground MAY 7101P460-60 Contact Us For Availability
11
IGNITOR MAY 7432P121-60 Contact Us For Availability
11
MAY 7510P093-60 MAY 7510P093-60 Contact Us For Availability
12
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
12
MAY 3807F689-51 MAY 3807F689-51 Contact Us For Availability
13
MAY 8008P064-60 MAY 8008P064-60 Contact Us For Availability
13
MAY 7403P818-60 MAY 7403P818-60 Contact Us For Availability
13
MAY 7403P819-60 MAY 7403P819-60 Contact Us For Availability
13
MAY 7403P820-60 MAY 7403P820-60 Contact Us For Availability
14
MAY 7109P081-60 MAY 7109P081-60 Contact Us For Availability
14
MAY 7201P135-60 MAY 7201P135-60 Contact Us For Availability
14
MAY 7201P144-60 MAY 7201P144-60 Contact Us For Availability
15
MAY 7114P008-60 MAY 7114P008-60 Contact Us For Availability
16
GROMMET (5) MAY 8008P071-60 Contact Us For Availability
NI
WIRE, GREEN (2) MAY 5112P842-60 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
MAY 8007P003-60 MAY 8007P003-60 Contact Us For Availability
NI
MAY W10161748 MAY W10161748 Contact Us For Availability
NI
MAY W10175570 MAY W10175570 Contact Us For Availability
NI
MAY W10175571 MAY W10175571 Contact Us For Availability
NI
MAY W10193535 MAY W10193535 Contact Us For Availability
× ![]()
