Model Whirlpool JGC9536BDB GAS COOK-TOP – Common Parts & Diagrams
02 - SUPPLEMENTAL INFORMATION

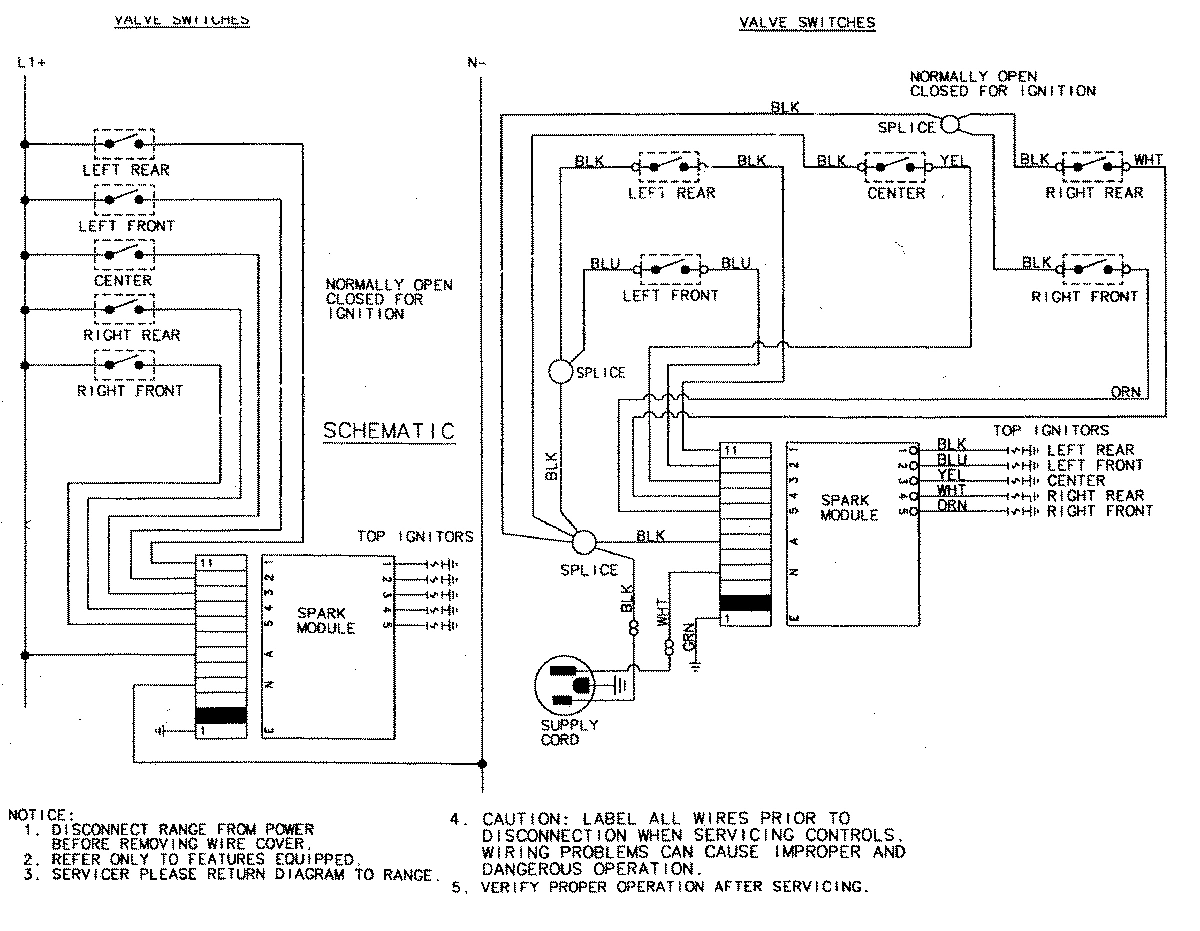

04 - WIRING INFORMATION

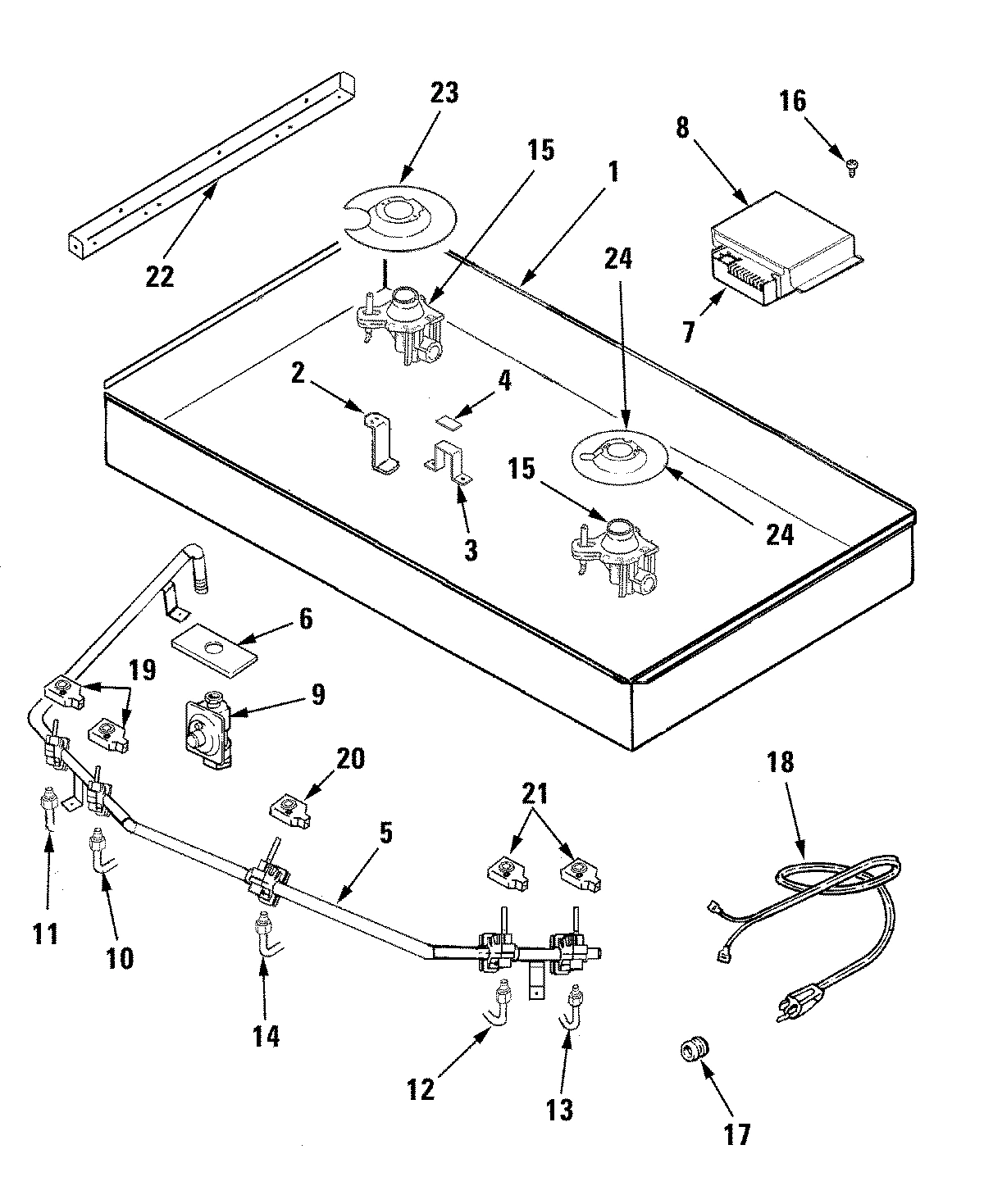

01 - BODY

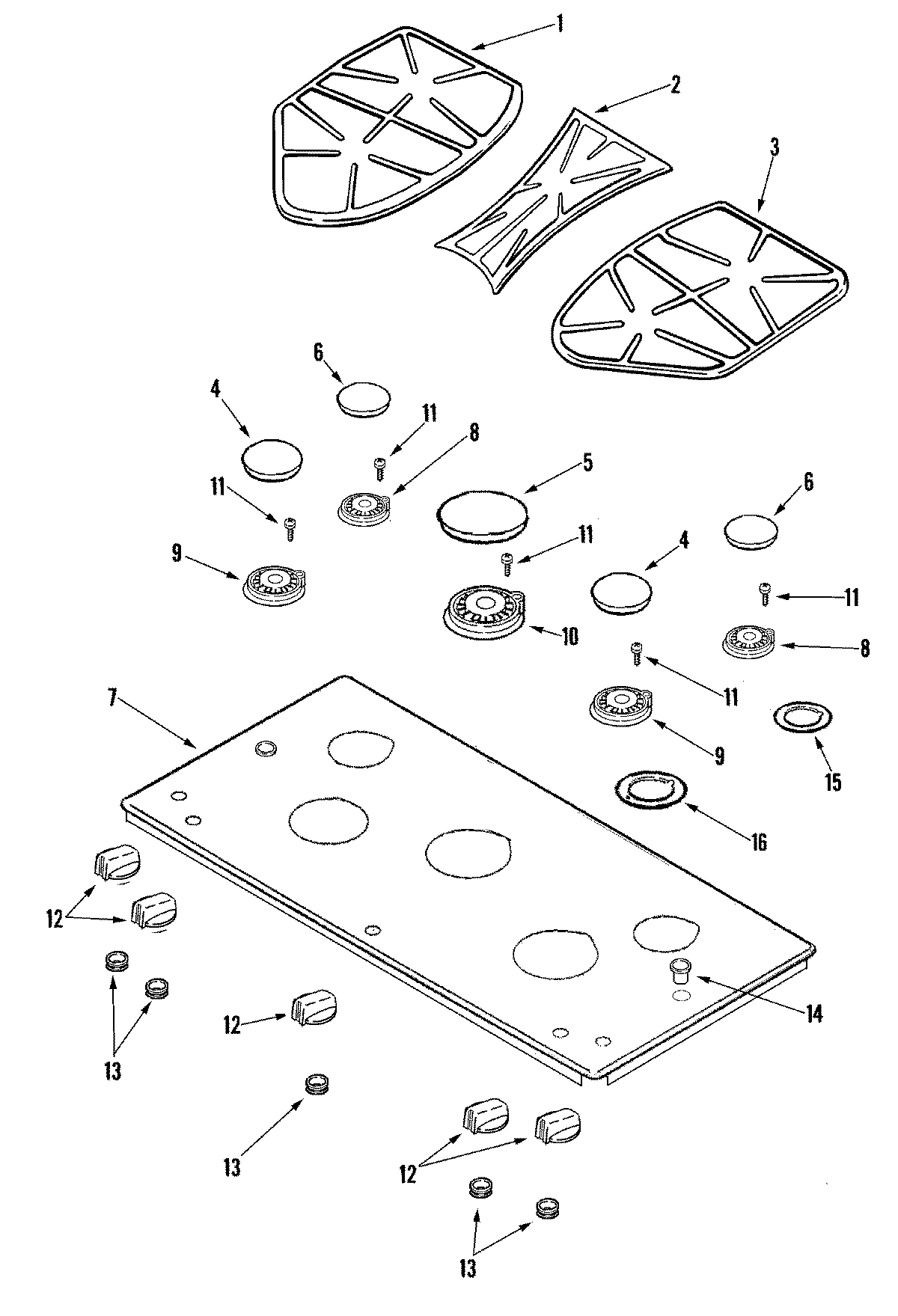

03 - TOP ASSEMBLY
Common parts from model Whirlpool JGC9536BDB GAS COOK-TOP
1
BOTTOM, BURNER BOX WPL 4011F47851 Contact Us For Availability
1
BOX-BURNER WPL W10178384 Contact Us For Availability
1
GRATE (BLK-LT) WPL 7518P45960 Contact Us For Availability
2
SUPPORT, ORIFICE HOLDER WPL 74007973 Contact Us For Availability
2
GRATE (BLK-CTR) WPL 7518P46160 Contact Us For Availability
3
SUPPORT, GLASS TOP WPL 74007968 Contact Us For Availability
3
GRATE (BLK-RT) WPL 7518P46060 Contact Us For Availability
7
GLASS TOP ASY (BLK) WPL 7920P17860 Contact Us For Availability
8
COVER, SPARK MODULE WPL 74005933 Contact Us For Availability
10
TUBE, BURNER (LF) WPL 74007974 Contact Us For Availability
11
TUBE, BURNER (LR) WPL 74007975 Contact Us For Availability
12
TUBE, BURNER (RF) WPL 74007976 Contact Us For Availability
13
TUBE, BURNER (RR) WPL 74007977 Contact Us For Availability
14
WASHER WPL 74007982 Contact Us For Availability
14
GROMMET, GRATE FOOT (BLK) WPL 74007981 Contact Us For Availability
14
TUBE, BURNER (CTR) WPL 74007978 Contact Us For Availability
14
RING, RETAINING WPL 74007983 Contact Us For Availability
15
HOLDER, ORIFICE (9.2) WPL 74007970 Contact Us For Availability
15
HOLDER, ORIFICE (12.5) WPL 74007971 Contact Us For Availability
17
BUSHING - STRAIN RELIEF WPL 550707 Contact Us For Availability
18
CORD, POWER WPL 74007817 Contact Us For Availability
20
SWITCH, BURNER (CTR) WPL 74007773 Contact Us For Availability
22
BRACKET, STIFFENER WPL 74010767 Contact Us For Availability
22
BRACKET, STIFFENER WPL W10188061 Contact Us For Availability
23
PLATE, ORIFICE HOLDER (LRG) WPL 74011124 Contact Us For Availability
24
PLATE, ORIFICE HOLDER (SML) WPL 74011125 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003199 Contact Us For Availability
× ![]()
