Model Maytag JGC9430BDS16 COOKTOP, GAS, 30 INCH – Common Parts & Diagrams

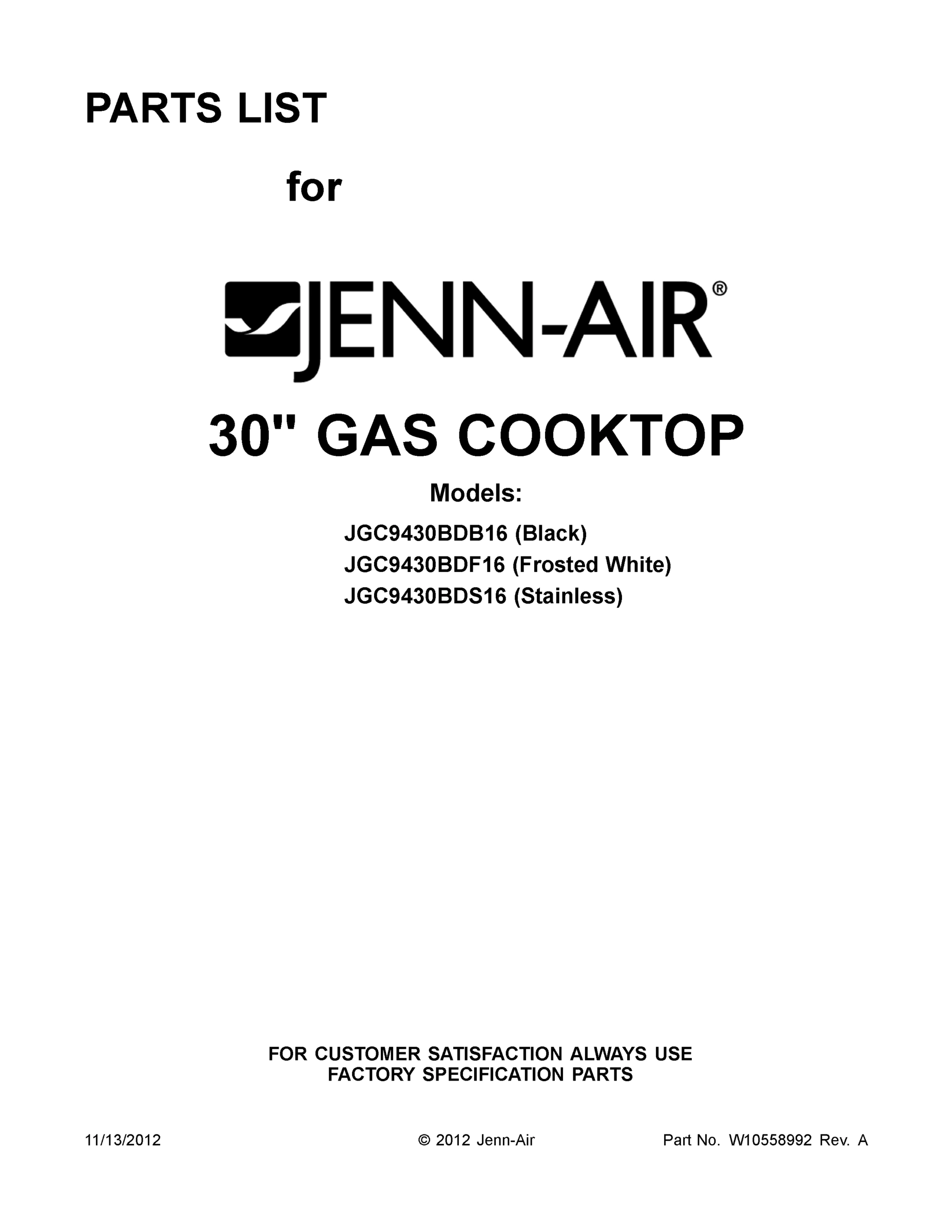

01 - COVER SHEET

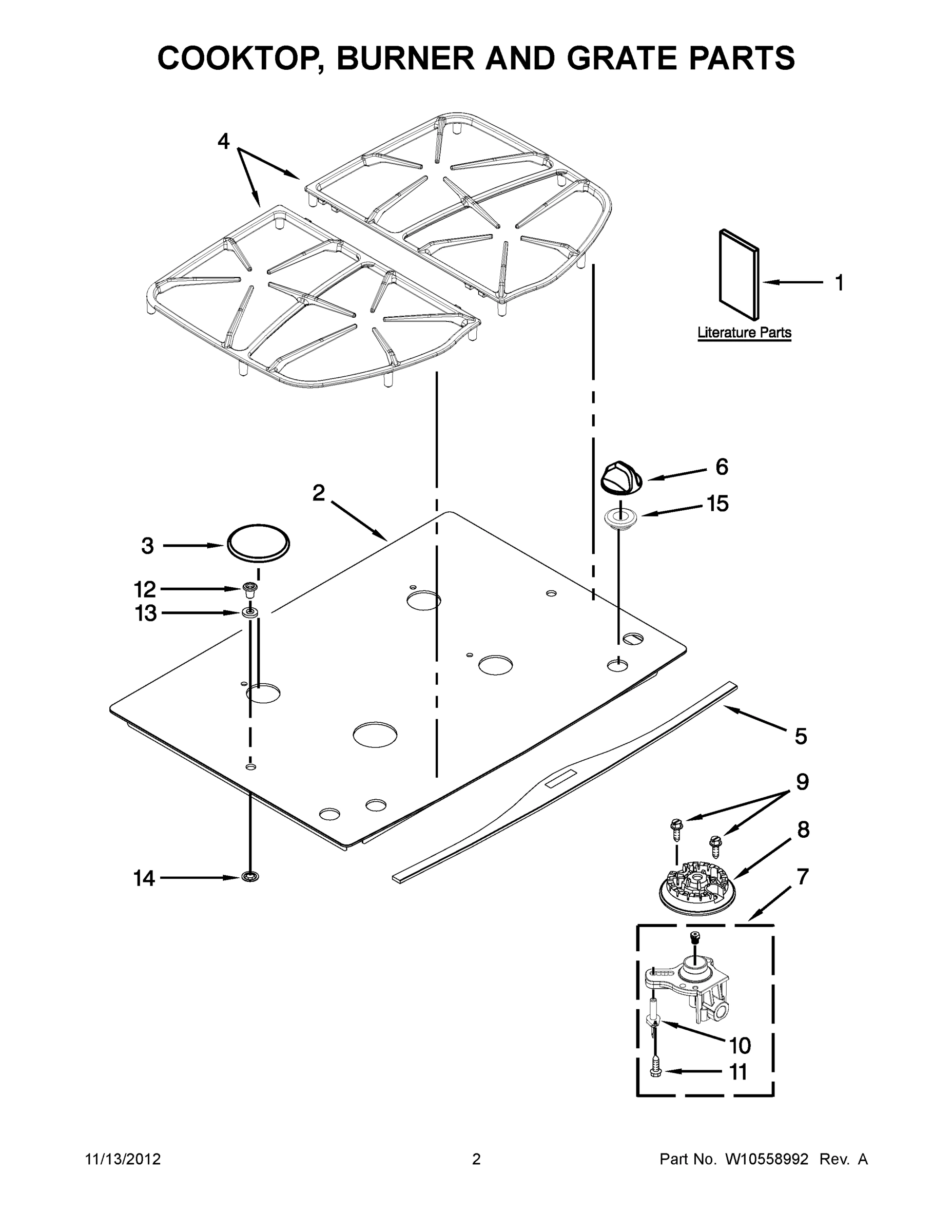

02 - COOKTOP, BURNER AND GRATE PARTS

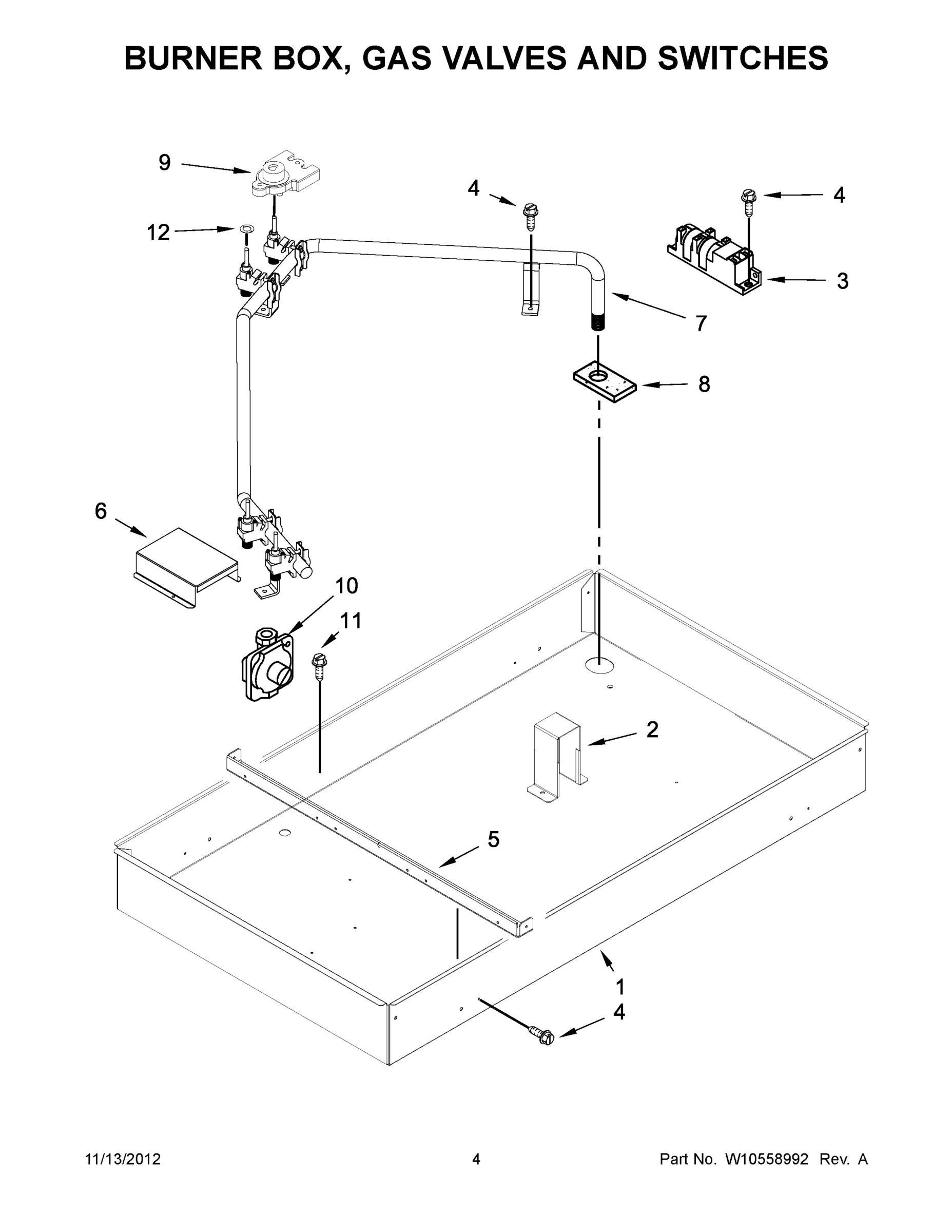

03 - BURNER BOX, GAS VALVES AND SWITCHES
04 - PARTS NOT ILLUSTRATED
Common parts from model Maytag JGC9430BDS16 COOKTOP, GAS, 30 INCH
1
INSTALLATION INSTRUCTIONS MAY W10203804 Contact Us For Availability
1
BURNER BOX MAY 4011F526-51 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10204447 Contact Us For Availability
1B
DIAGRAM, WIRING MAY W10210794 Contact Us For Availability
1C
TIPS, SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10204896 Contact Us For Availability
2
SUPPORT, GLASS MAY 3807F689-51 Contact Us For Availability
2A
COOKTOP (FROST WHITE) MAY W10204898 Contact Us For Availability
3
CAP, BURNER (BLACK (LEFT FRONT)) MAY 7504P202-60 Contact Us For Availability
3
MODULE, SPARK MAY 7431P038-60 Contact Us For Availability
3A
CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR)) MAY 7504P165-60 Contact Us For Availability
3B
CAP, BURNER (BLACK (RIGHT FRONT)) MAY 7504P204-60 Contact Us For Availability
4
GRATE, LEFT MAY 7518P456-60 Contact Us For Availability
4A
GRATE, RIGHT MAY 7518P457-60 Contact Us For Availability
5
TRIM, COOKTOP (SS MODEL ONLY) (STAINLESS (FRO MAY W10168877 Contact Us For Availability
5
BRACKET, DOWNDRAFT BRACE MAY 8405P087-60 Contact Us For Availability
5A
TRIM, COOKTOP (SS MODEL ONLY) (STAINLESS (REA MAY W10168883 Contact Us For Availability
6
KNOB, CONTROL MAY W10168628 Contact Us For Availability
6
COVER, SPARK MODULE MAY 4005F816-51 Contact Us For Availability
7
HOLDER, ORIFICE 5K (LEFT FRONT) MAY 7527P118-60 Contact Us For Availability
7
PIPE, MANIFOLD MAY 7513P305-60 Contact Us For Availability
7A
HOLDER, ORIFICE 10.5K (LEFT REAR) MAY 7527P119-60 Contact Us For Availability
7B
HOLDER, ORIFICE 15K (RIGHT FRONT) MAY 7527P116-60 Contact Us For Availability
7C
HOLDER, ORIFICE 9.2K (RIGHT REAR) MAY 7527P117-60 Contact Us For Availability
8
ASSEMBLY, BURNER AUXILIARY (LEFT FRONT) MAY 7505P339-60 Contact Us For Availability
8
SEAL, MANIFOLD PIPE INLET MAY 7208P024-60 Contact Us For Availability
8A
ASSEMBLY, BURNER (LEFT REAR & RIGHT REAR) MAY 7505P305-60 Contact Us For Availability
8B
ASSEMBLY, BURNER (RIGHT FRONT) MAY 7505P306-60 Contact Us For Availability
9
SWITCH, SPARK LEFT MAY 7403P818-60 Contact Us For Availability
9A
SWITCH, SPARK RIGHT MAY 7403P820-60 Contact Us For Availability
10
IGNITOR MAY 7432P121-60 Contact Us For Availability
10
REGULATOR, PRESSURE MAY 7510P093-60 Contact Us For Availability
11
SCREW MAY 7101P606-60 Contact Us For Availability
11
SCREW MAY 7101P460-60 Contact Us For Availability
12
GROMMET, GRATE MAY 8008P064-60 Contact Us For Availability
12
GASKET (LEFT) MAY 7201P135-60 Contact Us For Availability
12A
GASKET (RIGHT) MAY 7201P144-60 Contact Us For Availability
13
WASHER MAY 7109P081-60 Contact Us For Availability
14
RING, RETAINING MAY 7114P008-60 Contact Us For Availability
15
GROMMET MAY 8008P071-60 Contact Us For Availability
NI
SCREW MAY 7101P426-60 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18" X 25') MAY 241430 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY 5171P939-60 Contact Us For Availability
NI
CORD, POWER MAY 7402P087-60 Contact Us For Availability
NI
STRAIN RELIEF MAY 8007P003-60 Contact Us For Availability
NI
CORD, 4' 40 AMP 3 WIRE RANGE MAY PT220 Contact Us For Availability
NI
CORD, 4' 40 AMP 4 WIRE RANGE MAY PT400 Contact Us For Availability
NI
CORD, 4' 50 AMP 4 WIRE RANGE MAY PT500 Contact Us For Availability
NI
CORD, 4' 50 AMP 3 WIRE RANGE MAY PT520 Contact Us For Availability
NI
CORD, 6' 40 AMP 4 WIRE RANGE MAY PT600 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK MAY W10173478 Contact Us For Availability
NI
MISCELLANEOUS, SPUD KIT MAY W10193535 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
