Model Maytag JGC9430BDB15 GAS COOK-TOP – Common Parts & Diagrams

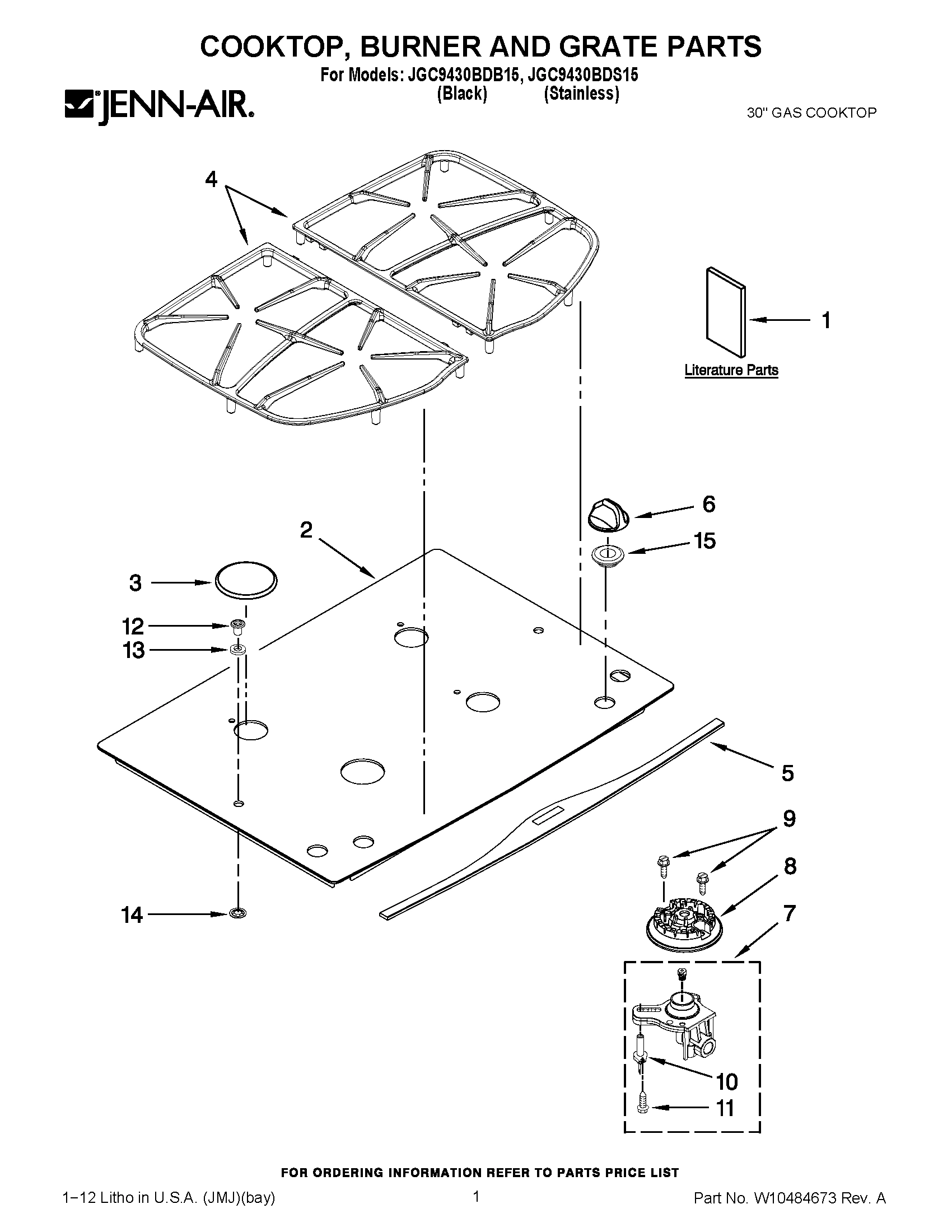

01 - COOKTOP, BURNER AND GRATE PARTS

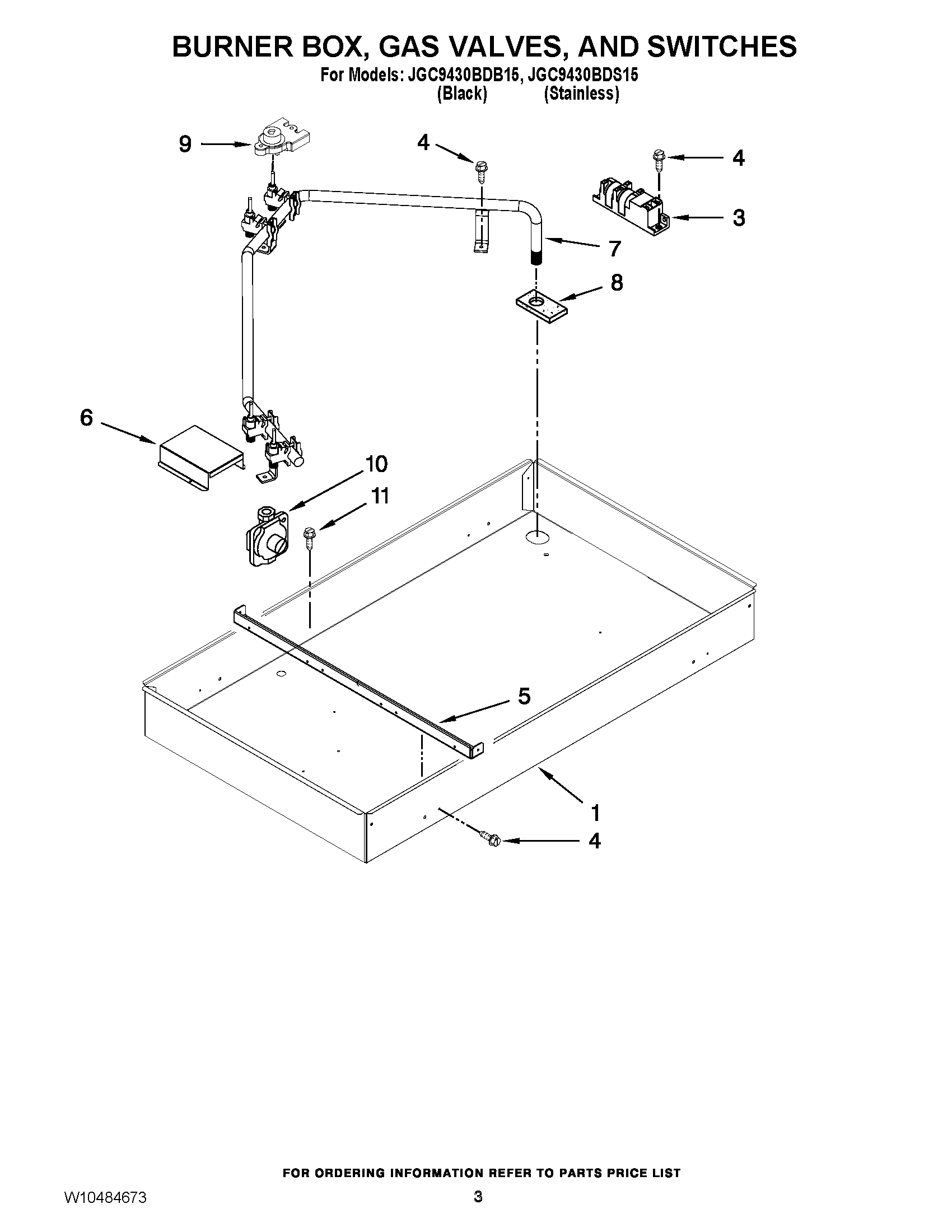

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGC9430BDB15 GAS COOK-TOP
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10203804 MAY W10203804 Contact Us For Availability
1
MAY W10204447 MAY W10204447 Contact Us For Availability
1
MAY W10210794 MAY W10210794 Contact Us For Availability
1
MAY 4011F526-51 MAY 4011F526-51 Contact Us For Availability
2
MAY W10204896 MAY W10204896 Contact Us For Availability
3
CAP, BURNER (LR & RR) MAY 7504P165-60 Contact Us For Availability
3
CAP, BURNER (LF) MAY 7504P202-60 Contact Us For Availability
3
CAP, BURNER (RF) MAY 7504P204-60 Contact Us For Availability
3
SPARK MODULE MAY 7431P038-60 Contact Us For Availability
4
GRATE (LEFT) MAY 7518P456-60 Contact Us For Availability
4
GRATE (RIGHT) MAY 7518P457-60 Contact Us For Availability
5
MAY W10168877 MAY W10168877 Contact Us For Availability
5
TRIM,COOKTOP SS MODEL ONLY (REAR) MAY W10168883 Contact Us For Availability
5
MAY 3801F889-51 MAY 3801F889-51 Contact Us For Availability
6
MAY W10168628 MAY W10168628 Contact Us For Availability
6
MAY 4005F816-51 MAY 4005F816-51 Contact Us For Availability
7
MAY 7527P116-60 MAY 7527P116-60 Contact Us For Availability
7
MAY 7527P117-60 MAY 7527P117-60 Contact Us For Availability
7
MAY 7527P118-60 MAY 7527P118-60 Contact Us For Availability
7
MAY 7527P119-60 MAY 7527P119-60 Contact Us For Availability
7
MAY 7513P305-60 MAY 7513P305-60 Contact Us For Availability
8
HEAD, BURNER (LR & RR) MAY 7505P305-60 Contact Us For Availability
8
HEAD, BURNER (RF) MAY 7505P306-60 Contact Us For Availability
8
HEAD, BURNER (LF) MAY 7505P339-60 Contact Us For Availability
8
MAY 7208P024-60 MAY 7208P024-60 Contact Us For Availability
9
HARNESS & SWITCHES MAY W10173478 Contact Us For Availability
10
IGNITOR MAY 7432P121-60 Contact Us For Availability
10
REGULATOR, PRESSURE (CENTER) ORIFICE HOLDER MAY 7510P093-60 Contact Us For Availability
11
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
11
Screw, Ground MAY 7101P460-60 Contact Us For Availability
12
MAY 8008P064-60 MAY 8008P064-60 Contact Us For Availability
13
MAY 7109P081-60 MAY 7109P081-60 Contact Us For Availability
14
MAY 7114P008-60 MAY 7114P008-60 Contact Us For Availability
15
MAY 8008P071-60 MAY 8008P071-60 Contact Us For Availability
NI
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
NI
HARNESS, COOKTOP (WHITE) MAY 5171P939-60 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
MAY 8007P003-60 MAY 8007P003-60 Contact Us For Availability
NI
MAY W10193535 MAY W10193535 Contact Us For Availability
× ![]()
