Model Maytag JGC8645ADW GAS COOK-TOP – Common Parts & Diagrams
01 - BODY
02 - TOP ASSEMBLY

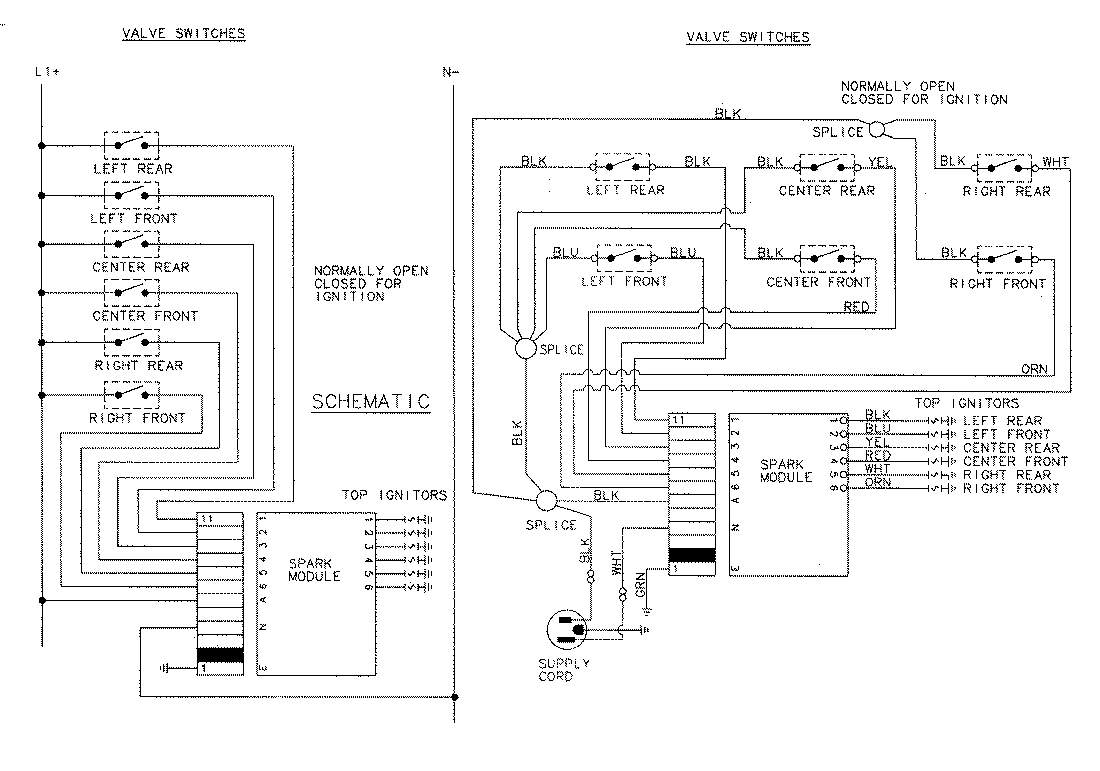

03 - WIRING INFORMATION
Common parts from model Maytag JGC8645ADW GAS COOK-TOP
1
MAY 74005937 MAY 74005937 Contact Us For Availability
1
MAY 74005938 MAY 74005938 Contact Us For Availability
2
MAY 74005981 MAY 74005981 Contact Us For Availability
3
MAY 74007192 MAY 74007192 Contact Us For Availability
3
MAY 74005966 MAY 74005966 Contact Us For Availability
4
MAY 74007197 MAY 74007197 Contact Us For Availability
4
MAY 74005967 MAY 74005967 Contact Us For Availability
5
MAY 74007204 MAY 74007204 Contact Us For Availability
5
MAY 74005968 MAY 74005968 Contact Us For Availability
7
MAY 74005982 MAY 74005982 Contact Us For Availability
8
COVER, SPARK MODULE MAY 74005933 Contact Us For Availability
9
MAY 74005956 MAY 74005956 Contact Us For Availability
10
MAY 74005948 MAY 74005948 Contact Us For Availability
10
MAY 74005957 MAY 74005957 Contact Us For Availability
10
BURNER, BASE (LRG) MAY 74007183 Contact Us For Availability
11
MAY 74005949 MAY 74005949 Contact Us For Availability
12
MAY 74005950 MAY 74005950 Contact Us For Availability
12
MAY 74005942 MAY 74005942 Contact Us For Availability
13
MAY 74005951 MAY 74005951 Contact Us For Availability
13
MAY 74005941 MAY 74005941 Contact Us For Availability
14
MAY 74005974 MAY 74005974 Contact Us For Availability
15
MAY 74005975 MAY 74005975 Contact Us For Availability
15
HARNESS, MAIN WIRE MAY 74005961 Contact Us For Availability
15
HARNESS, SPARK LEAD (RT) MAY 74005963 Contact Us For Availability
15
HARNESS, SPARK LEAD (LT) MAY 74005964 Contact Us For Availability
16
MAY 71003231 MAY 71003231 Contact Us For Availability
16
MAY 74005988 MAY 74005988 Contact Us For Availability
17
MAY 705833 MAY 705833 Contact Us For Availability
17
MANUAL, USE & CARE MAY 74005527 Contact Us For Availability
18
MAY 74005927 MAY 74005927 Contact Us For Availability
18
MAY 74005475 MAY 74005475 Contact Us For Availability
19
HOLDER W/ORIFICE (6.5K) MAY 71002720 Contact Us For Availability
20
MAY 71002727 MAY 71002727 Contact Us For Availability
20
HOLDER W/ORIFICE (9.1K) MAY 74005977 Contact Us For Availability
21
HOLDER W/ORIFICE (10.5K) MAY 74005978 Contact Us For Availability
22
MAY 71002723 MAY 71002723 Contact Us For Availability
25
SWITCH, IGNITER MAY 74005979 Contact Us For Availability
27
VALVE, TOP BURNER MAY 74005944 Contact Us For Availability
28
VALVE, TOP BURNER MAY 74005945 Contact Us For Availability
29
VALVE, TOP BURNER MAY 74005946 Contact Us For Availability
30
VALVE, TOP BURNER MAY 74005947 Contact Us For Availability
31
VALVE, TOP BURNER MAY 74005973 Contact Us For Availability
31
MAY 7724P004-60 MAY 7724P004-60 Contact Us For Availability
32
BRACKET, HOLDDOWN MAY 74006339 Contact Us For Availability
NI
MAY 15002812 MAY 15002812 Contact Us For Availability
× ![]()
