Model Maytag JGC3530GS0 COOKTOP, GAS, 30 INCH – Common Parts & Diagrams

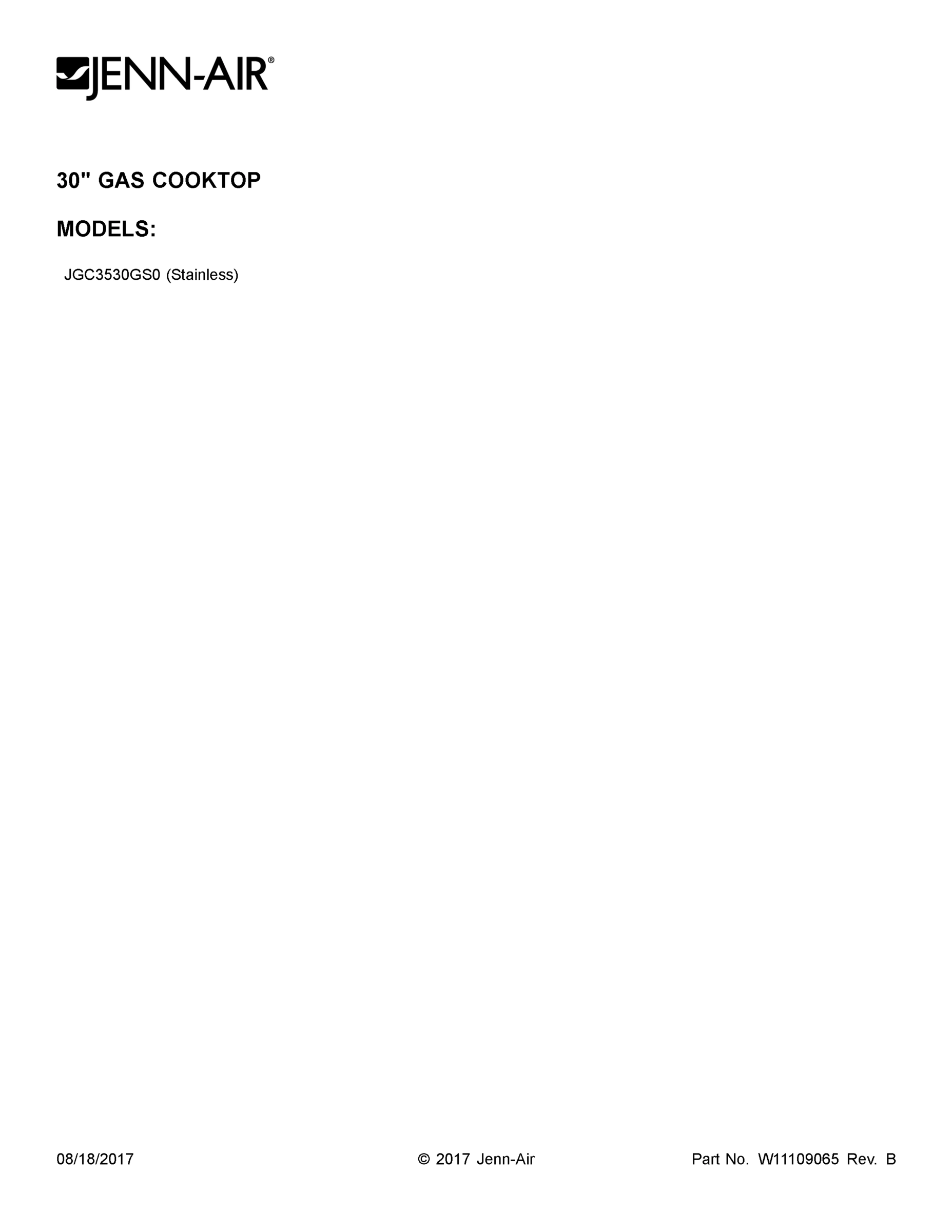

01 - COVER SHEET

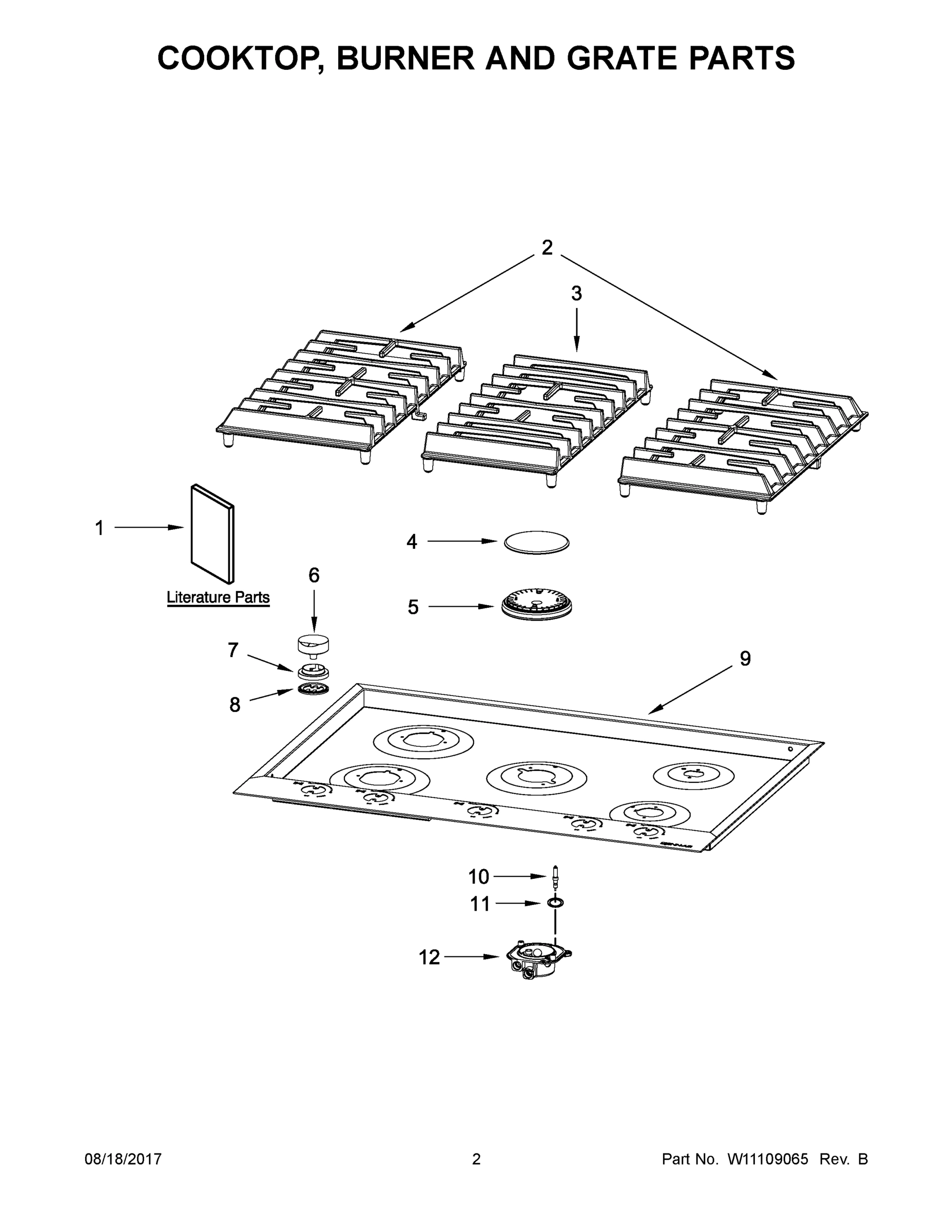

02 - COOKTOP, BURNER AND GRATE PARTS

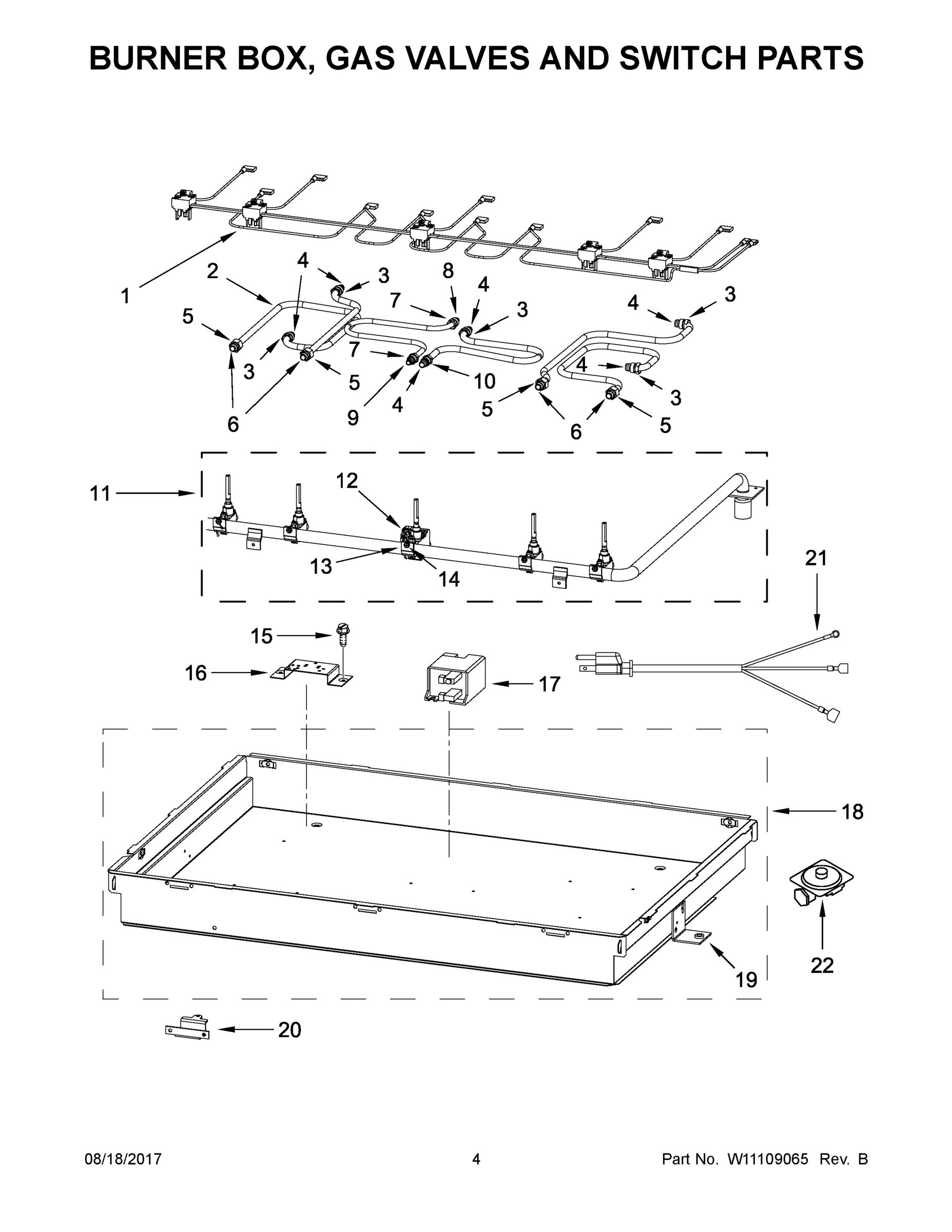

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag JGC3530GS0 COOKTOP, GAS, 30 INCH
1
INSTALLATION INSTRUCTIONS MAY W11032277 Contact Us For Availability
1
HARNESS, SWITCH AND LIGHT MAY W11043536 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11032276 Contact Us For Availability
1B
LP CONVERSION INSTRUCTIONS MAY W11032278 Contact Us For Availability
2
GRATE, BURNER (SIDE) MAY W11109142 Contact Us For Availability
2
TUBING, BURNER (LEFT FRONT) MAY W11109154 Contact Us For Availability
2A
TUBING, BURNER (LEFT REAR) MAY W11109155 Contact Us For Availability
2B
TUBING, BURNER (CENTER) MAY W11109159 Contact Us For Availability
2C
TUBING, BURNER (1/4" CENTER SIMMER) MAY W11109160 Contact Us For Availability
2D
TUBING, BURNER (RIGHT FRONT) MAY W11109161 Contact Us For Availability
2E
TUBING, BURNER (RIGHT REAR) MAY W11109168 Contact Us For Availability
3
GRATE, BURNER (CENTER) MAY W11109143 Contact Us For Availability
3
NUT, INJECTOR MAY W10575398 Contact Us For Availability
4
CAP, BURNER (BLACK (LARGE) (LEFT FRONT, LEFT MAY W10691232 Contact Us For Availability
4
FERRULE, INJECTOR MAY W10575399 Contact Us For Availability
4A
CAP, BURNER (BLACK (DUAL) (CENTER)) MAY W10691282 Contact Us For Availability
4B
CAP, BURNER (BLACK (MEDIUM) (RIGHT FRONT)) MAY W10691230 Contact Us For Availability
4C
CAP, BURNER (BLACK (SMALL) (RIGHT REAR)) MAY W10691229 Contact Us For Availability
4D
CAP, BURNER (BLACK (MELT SMALL BURNER)) MAY W10691233 Contact Us For Availability
5
BASE, BURNER (LARGE) (LEFT FRONT, LEFT REAR) MAY W11043462 Contact Us For Availability
5
NUT, COMPRESSION MAY 8190918 Contact Us For Availability
5A
BASE, BURNER (DUAL) (CENTER) MAY W11043467 Contact Us For Availability
5B
BASE, BURNER (MEDIUM) (RIGHT FRONT) MAY W11043540 Contact Us For Availability
5C
BASE, BURNER (SMALL) (RIGHT REAR) MAY W11043517 Contact Us For Availability
6
KNOB MAY W11042532 Contact Us For Availability
6
SLEEVE, COMPRESSON MAY 8190917 Contact Us For Availability
7
BEZEL, KNOB (STAINLESS) MAY W10618500 Contact Us For Availability
7
NUT, COMPRESSION 1/4" TUBING MAY W10692377 Contact Us For Availability
8
BEZEL, ILLUMINATOR MAY W11042557 Contact Us For Availability
8
FERRULE, DUAL INJECTOR MAY W10845603 Contact Us For Availability
9
COOKTOP, MAIN MAY W11043541 Contact Us For Availability
9
SLEEVE, COMPRESSION 1/4" TUBING MAY W10692371 Contact Us For Availability
10
ELECTRODE (250MM) (LEFT FRONT) MAY W10617810 Contact Us For Availability
10
NUT, COMPRESSION MAY W10692372 Contact Us For Availability
10A
ELECTRODE (450MM) (LEFT REAR) MAY W10571489 Contact Us For Availability
10B
ELECTRODE (300MM) (CENTER) MAY W11109147 Contact Us For Availability
10C
ELECTRODE (180MM) (RIGHT FRONT) MAY W11109148 Contact Us For Availability
10D
ELECTRODE (395MM) (RIGHT REAR) MAY W11109150 Contact Us For Availability
11
CLIP, ELECTRODE MAY W10571930 Contact Us For Availability
11
ASSEMBLY, MANIFOLD MAY W11043521 Contact Us For Availability
12
HOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT RE MAY W10571492 Contact Us For Availability
12
VALVE, GAS (SINGLE) (LEFT FRONT, LEFT REAR) MAY W11043516 Contact Us For Availability
12A
HOLDER, ORIFICE (DUAL, 195MM) (CENTER) MAY W11109151 Contact Us For Availability
12A
VALVE, GAS (DUAL) (CENTER) MAY W11043379 Contact Us For Availability
12B
HOLDER ORIFICE (132MM) (RIGHT FRONT) MAY W10571491 Contact Us For Availability
12B
VALVE, GAS (SINGLE) (RIGHT FRONT) MAY W11043542 Contact Us For Availability
12C
HOLDER, ORIFICE (S2) (RIGHT REAR) MAY W10691684 Contact Us For Availability
12C
VALVE, GAS (SINGLE) (RIGHT REAR) MAY W11043537 Contact Us For Availability
13
BRACKET, VALVE MAY W10617475 Contact Us For Availability
14
SCREW, VALVES MAY W10617476 Contact Us For Availability
15
SCREW MAY W10626012 Contact Us For Availability
16
BRACKET, ORIFICE HOLDER (SINGLE BURNER) (LEFT MAY W11108772 Contact Us For Availability
16A
BRACKET, ORIFICE HOLDER (DUAL BURNER) (CENTER MAY W11108773 Contact Us For Availability
17
SPARK MODULE MAY 8190929 Contact Us For Availability
18
ASSEMBLY, BURNER BOX MAY W11043520 Contact Us For Availability
19
BRACKET, MOUNTING MAY 8190978 Contact Us For Availability
20
BRACKET, CONTROL PANEL MAY W11042981 Contact Us For Availability
21
CORD, POWER MAY W10618502 Contact Us For Availability
22
REGULATOR, GAS MAY W10569189 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, ORIFICE LP CONVERSION MAY W10686634 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GAS GRATE & DRIP PAN MAY 31617 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
