Model Maytag JGC3215GS0 COOKTOP, GAS, 2 BURNER, 15 INCH – Common Parts & Diagrams

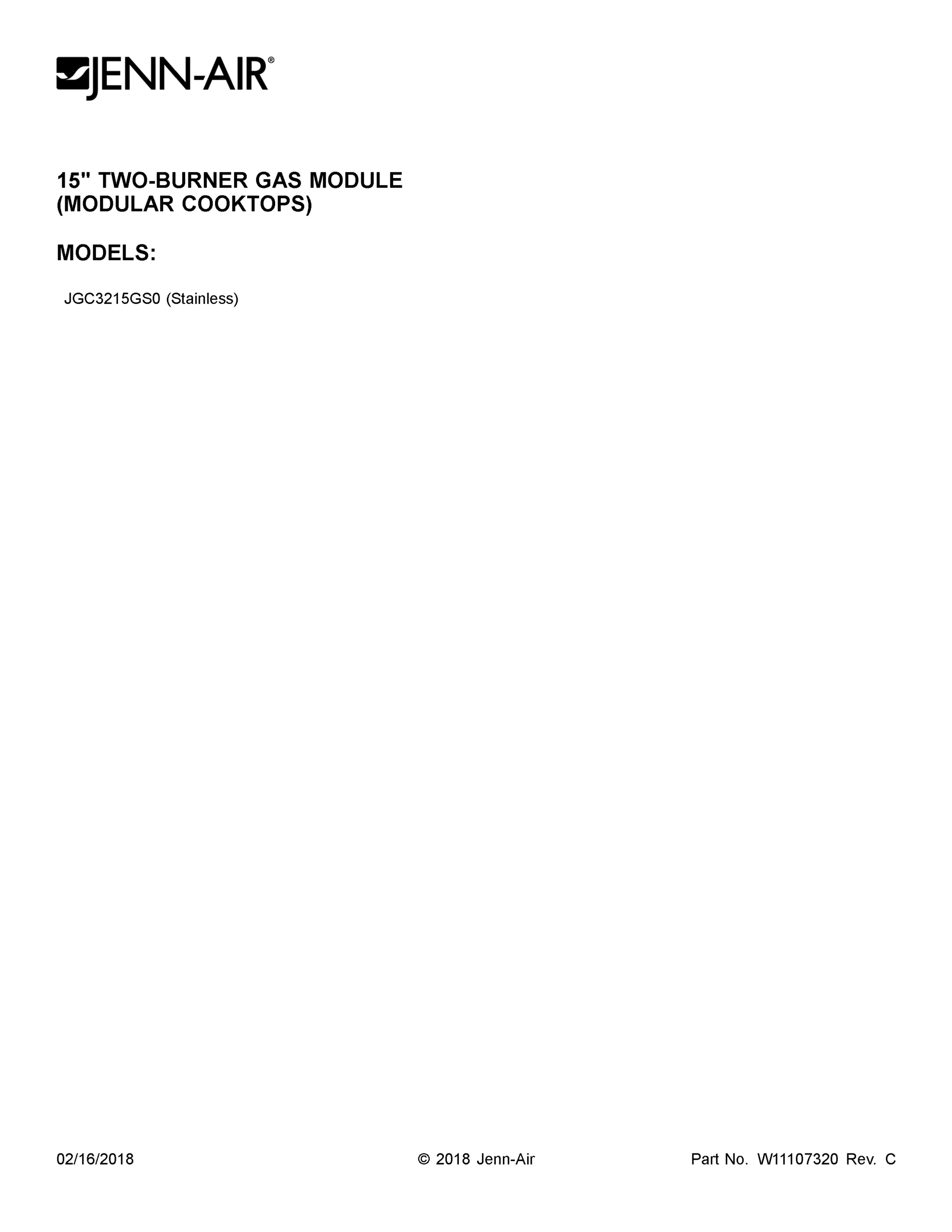

01 - COVER SHEET

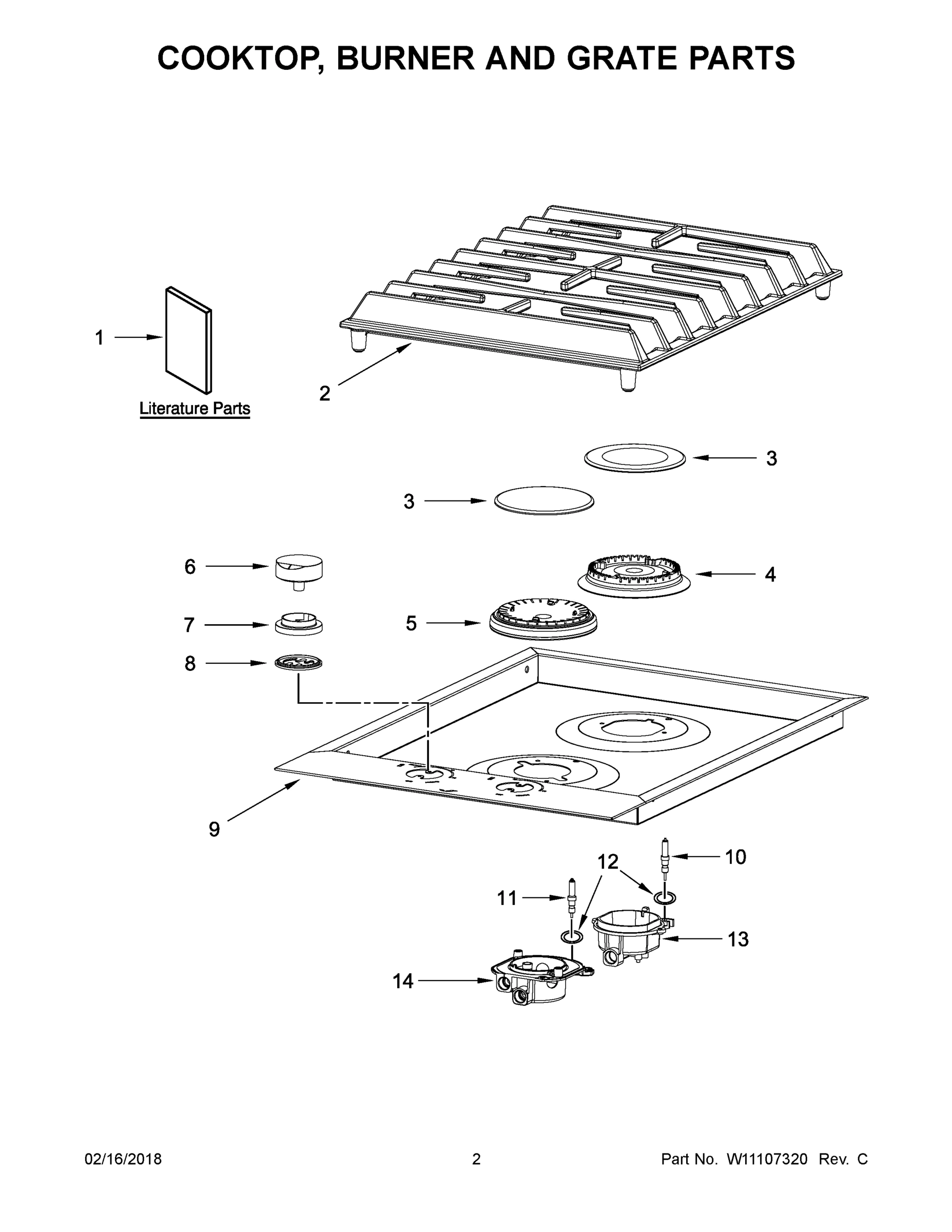

02 - COOKTOP, BURNER AND GRATE PARTS

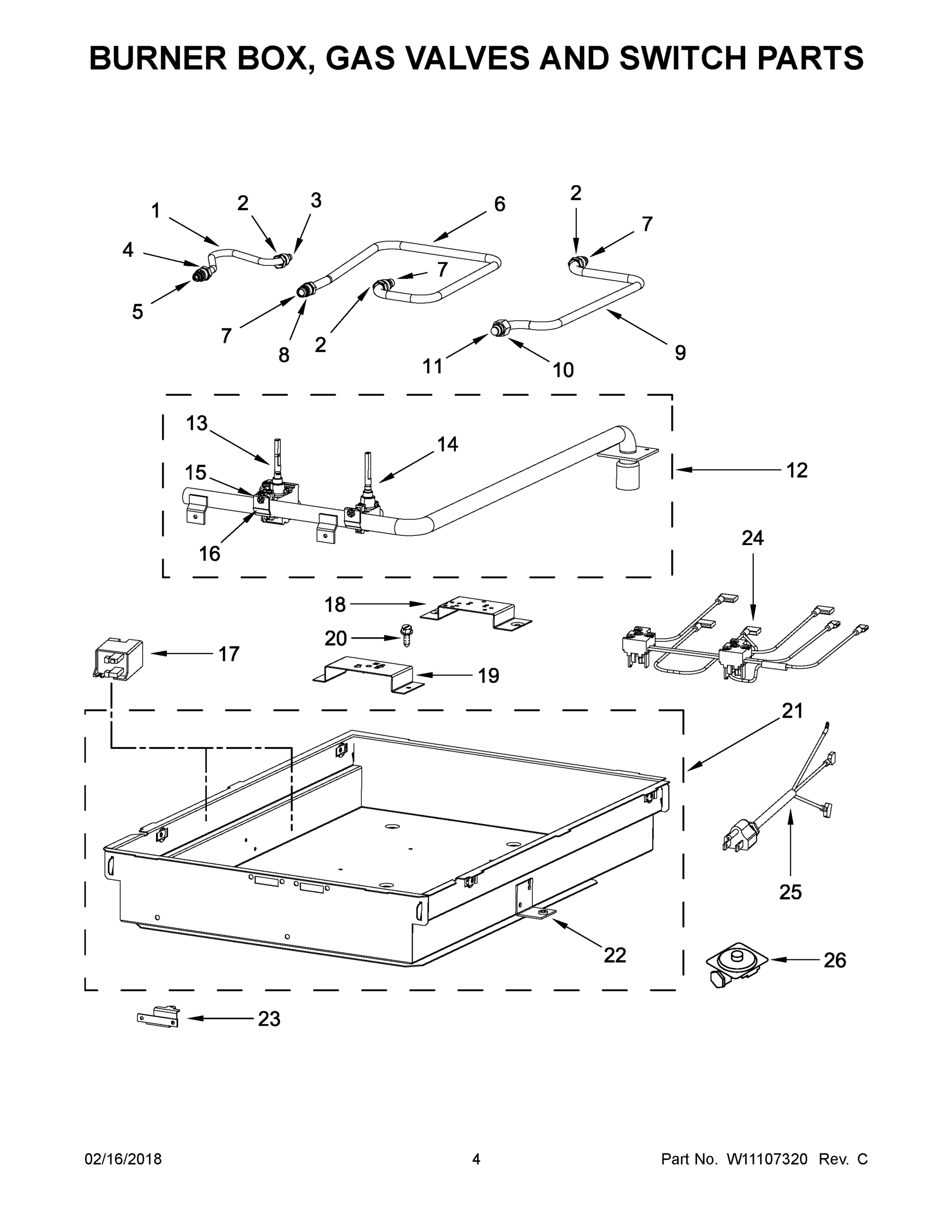

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag JGC3215GS0 COOKTOP, GAS, 2 BURNER, 15 INCH
1
INSTALLATION INSTRUCTIONS MAY W11030506 Contact Us For Availability
1
TUBING, BURNER (FRONT) MAY W11043470 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11027460 Contact Us For Availability
1B
LP CONVERSION INSTRUCTIONS MAY W11032198 Contact Us For Availability
2
GRATE, BURNER MAY W11043450 Contact Us For Availability
2
NUT, INJECTOR MAY W10575398 Contact Us For Availability
3
CAP, BURNER (BLACK (LARGE)) MAY W10691232 Contact Us For Availability
3
FERRULE, DUAL INJECTOR MAY W10845603 Contact Us For Availability
3A
CAP, BURNER (BLACK (DUAL)) MAY W10691282 Contact Us For Availability
4
BASE, BURNER (LARGE) MAY W11043462 Contact Us For Availability
4
NUT, COMPRESSION 1/4" TUBING MAY W10692377 Contact Us For Availability
5
BASE, BURNER (DUAL) MAY W11043467 Contact Us For Availability
5
SLEEVE, COMPRESSION 1/4" TUBING MAY W10692371 Contact Us For Availability
6
KNOB MAY W11042532 Contact Us For Availability
6
TUBING, BURNER (FRONT) MAY W11043471 Contact Us For Availability
7
BEZEL, KNOB (STAINLESS) MAY W10618500 Contact Us For Availability
7
FERRULE, INJECTOR MAY W10575399 Contact Us For Availability
8
BEZEL, ILLUMINATOR MAY W11042557 Contact Us For Availability
8
NUT, COMPRESSION MAY W10692372 Contact Us For Availability
9
COOKTOP, MAIN MAY W11043514 Contact Us For Availability
9
TUBING, BURNER (REAR) MAY W11043513 Contact Us For Availability
10
ELECTRODE (500MM) MAY W10692364 Contact Us For Availability
10
NUT, COMPRESSION MAY 8190918 Contact Us For Availability
11
ELECTRODE (360MM) MAY W11108755 Contact Us For Availability
11
SLEEVE, COMPRESSON MAY 8190917 Contact Us For Availability
12
CLIP, ELECTRODE MAY W10571930 Contact Us For Availability
12
ASSEMBLY, MANIFOLD MAY W11043030 Contact Us For Availability
13
HOLDER, ORIFICE (170MM) MAY W10571493 Contact Us For Availability
13
VALVE, GAS (DUAL) MAY W11043379 Contact Us For Availability
14
HOLDER, ORIFICE (DUAL, 170MM) MAY W11108757 Contact Us For Availability
14
VALVE, GAS (SINGLE) MAY W11043516 Contact Us For Availability
15
BRACKET, VALVE MAY W10617475 Contact Us For Availability
16
SCREW, VALVES MAY W10617476 Contact Us For Availability
17
SPARK MODULE MAY 8190929 Contact Us For Availability
18
BRACKET, ORIFICE HOLDER (SINGLE BURNER) MAY W11108772 Contact Us For Availability
19
BRACKET, ORIFICE HOLDER (DUAL BURNER) MAY W11108773 Contact Us For Availability
20
SCREW MAY W10626012 Contact Us For Availability
21
ASSEMBLY, BURNER BOX MAY W11043428 Contact Us For Availability
22
BRACKET, MOUNTING MAY 8190978 Contact Us For Availability
23
BRACKET, CONTROL PANEL MAY W11042981 Contact Us For Availability
24
HARNESS, SWITCH AND LIGHT MAY W11043515 Contact Us For Availability
25
CORD, POWER MAY W10618502 Contact Us For Availability
26
REGULATOR, GAS MAY W10569189 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W11027216 MAY W11027216 Contact Us For Availability
NI
KIT, LP CONVERSION (HIGH ALTITUDE) MAY W11027217 Contact Us For Availability
NI
KIT, NATURAL GAS (HIGH ALTITUDE) MAY W11027218 Contact Us For Availability
NI
MISCELLANEOUS PARTS, KIT, MODULE MOUNTING BRI MAY W11031680 Contact Us For Availability
× ![]()
