Model Maytag JGC2536EB00 COOKTOP, GAS, COUNTER UNIT – Common Parts & Diagrams

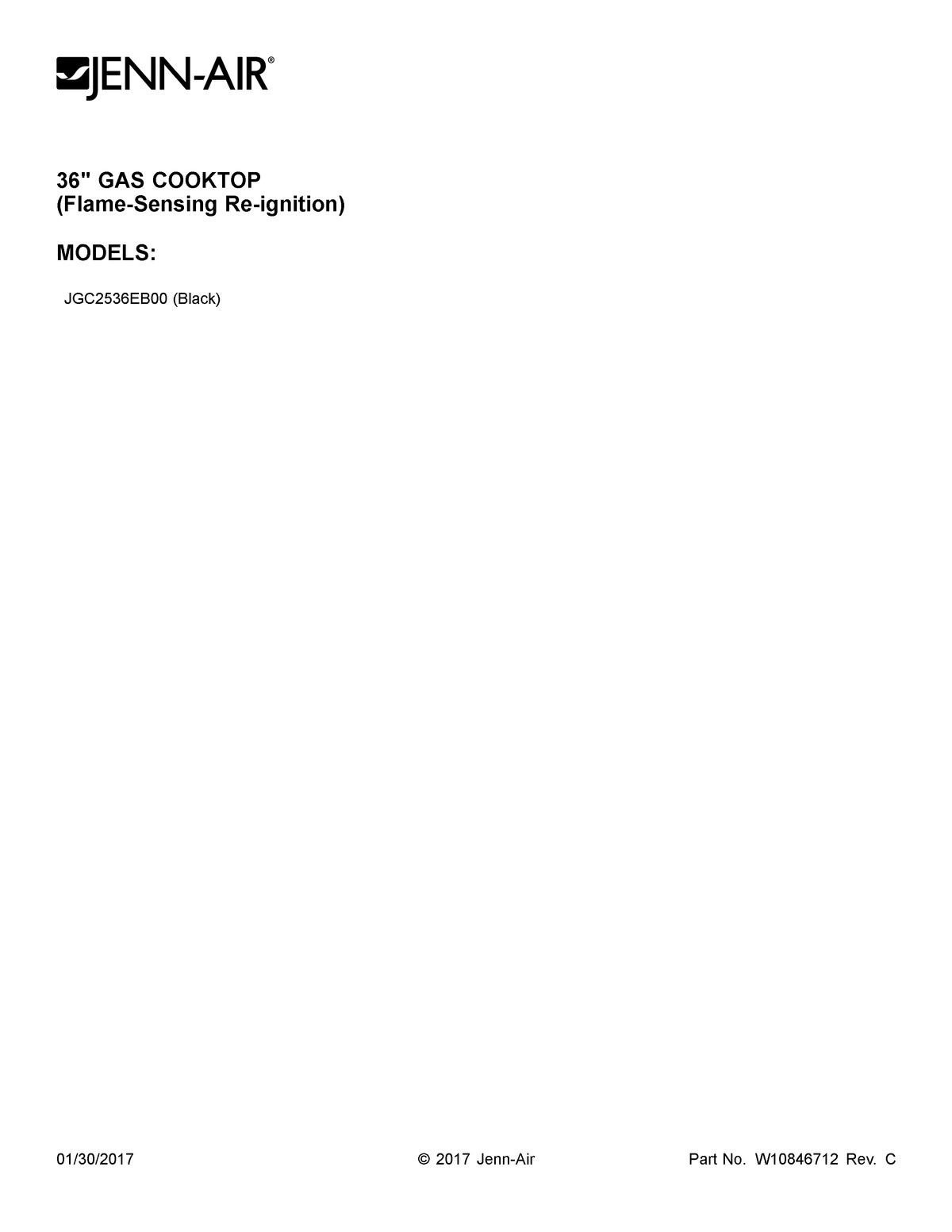

01 - COVER SHEET

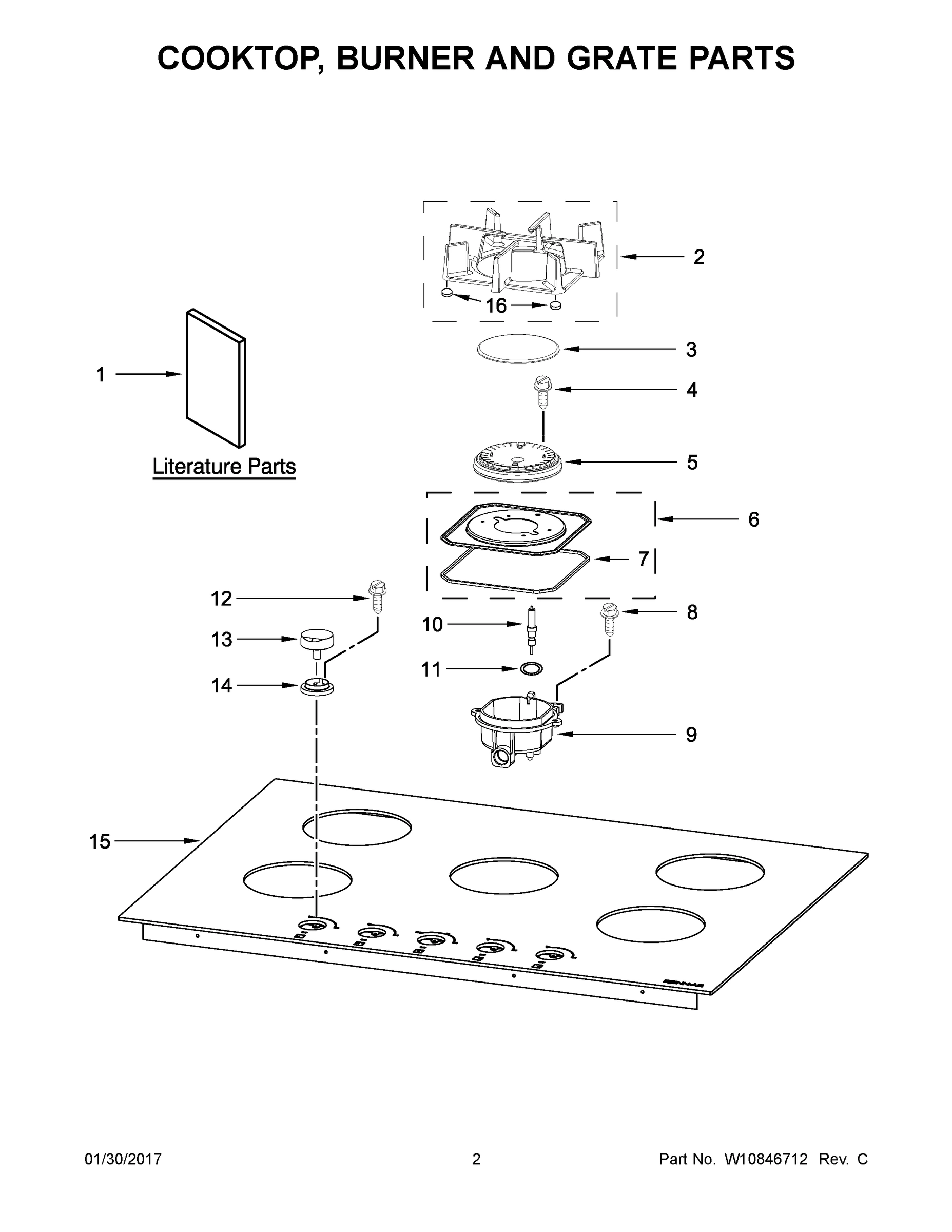

02 - COOKTOP, BURNER AND GRATE PARTS

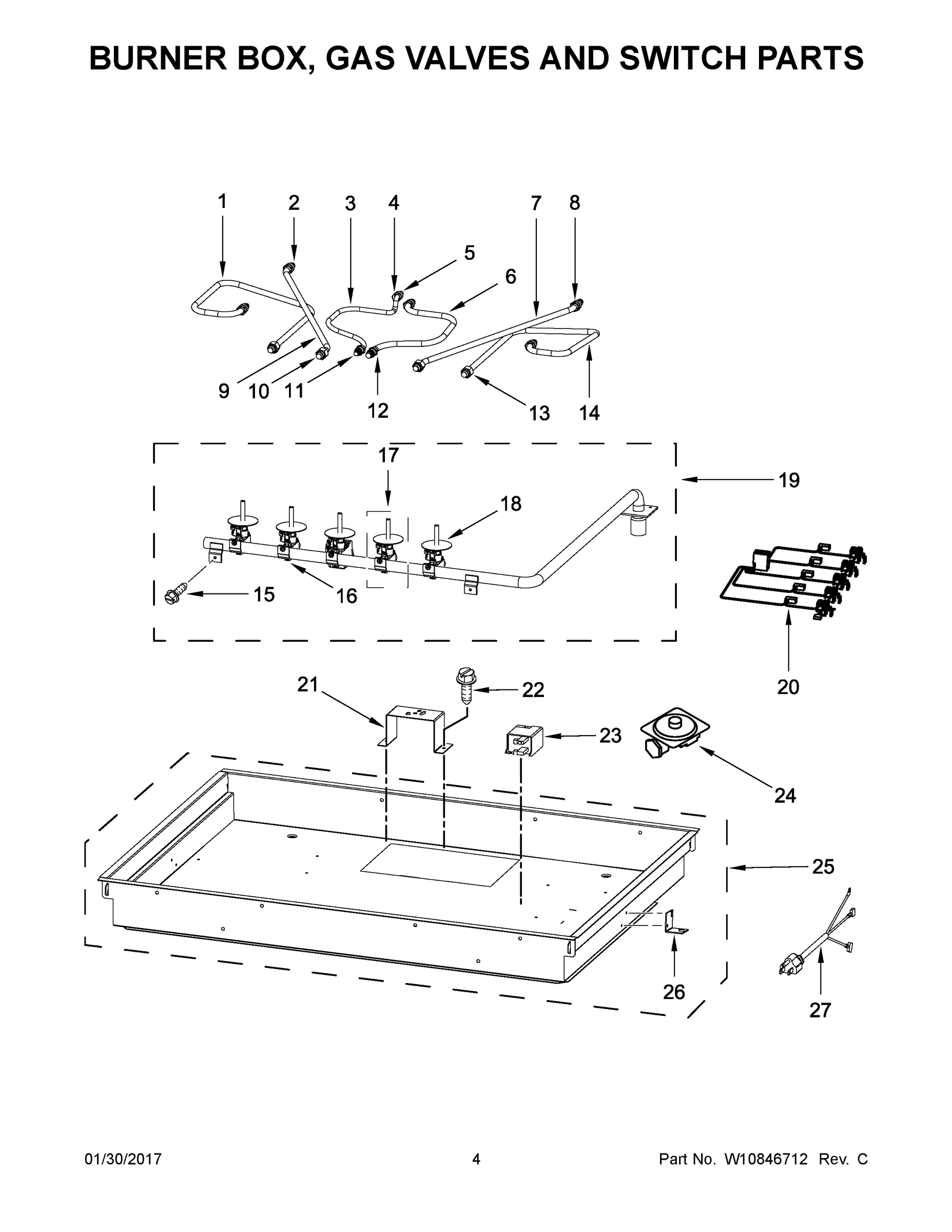

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag JGC2536EB00 COOKTOP, GAS, COUNTER UNIT
1
INSTRUCTIONS, INSTALLATION MAY W10821219 Contact Us For Availability
1
TUBING, BURNER (LEFT FRONT) MAY W10845898 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10821218 Contact Us For Availability
1B
INSTRUCTIONS, LP CONVERSION MAY W10821220 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
GRATE, BURNER MAY W10845770 Contact Us For Availability
2
FERRULE, INJECTOR MAY W10575399 Contact Us For Availability
2A
GRATE, BURNER (CENTER) MAY W10845773 Contact Us For Availability
3
CAP, BURNER (BLACK (MEDIUM) (LEFT FRONT)) MAY W10691230 Contact Us For Availability
3
TUBING, BURNER (CENTER SIMMER) MAY W10845900 Contact Us For Availability
3A
CAP, BURNER (BLACK (SMALL) (RIGHT FRONT)) MAY W10691229 Contact Us For Availability
3B
CAP, BURNER (BLACK (DUAL) (CENTER)) MAY W10691282 Contact Us For Availability
3C
CAP, BURNER (BLACK (LARGE) (LEFT REAR, RIGHT MAY W10691232 Contact Us For Availability
4
SCREW, BURNER BASE (LARGE AND MEDIUM BURNERS) MAY W10626016 Contact Us For Availability
4
NUT, COMPRESSION 1/4" TUBING MAY W10692377 Contact Us For Availability
4A
SCREW, BURNER BASE (SMALL BURNER) MAY W10626017 Contact Us For Availability
5
BASE, BURNER (MEDIUM (LEFT FRONT)) MAY W10691283 Contact Us For Availability
5
FERRULE, DUAL INJECTOR MAY W10845603 Contact Us For Availability
5A
BASE, BURNER (SMALL (RIGHT FRONT)) MAY W10691285 Contact Us For Availability
5B
BASE, BURNER (DUAL (CENTER)) MAY W10691430 Contact Us For Availability
5C
BASE, BURNER (LARGE (LEFT REAR, RIGHT REAR)) MAY W10691284 Contact Us For Availability
6
PLATE, BURNER (KIT OF 5) MAY W10850781 Contact Us For Availability
6
TUBING, BURNER (CENTER) MAY W10845901 Contact Us For Availability
7
GASKET, SILICONE MAY W10845790 Contact Us For Availability
7
TUBING, BURNER (RIGHT REAR) MAY W10845902 Contact Us For Availability
8
SCREW, INJECTOR HOLDER MAY W10626015 Contact Us For Availability
8
NUT, INJECTOR MAY W10575398 Contact Us For Availability
9
HOLDER ORIFICE (132MM) (LEFT FRONT) MAY W10571491 Contact Us For Availability
9
TUBING, BURNER (LEFT REAR) MAY W10845899 Contact Us For Availability
9A
HOLDER, ORIFICE (S2) (RIGHT FRONT) MAY W10691684 Contact Us For Availability
9B
HOLDER, ORIFICE (190MM) (CENTER) MAY W10845766 Contact Us For Availability
9C
HOLDER, ORIFICE (155 MM) (LEFT REAR, RIGHT RE MAY W10571492 Contact Us For Availability
10
ELECTRODE (250MM) (LEFT FRONT, RIGHT FRONT) MAY W10617810 Contact Us For Availability
10
SLEEVE, COMPRESSON MAY 8190917 Contact Us For Availability
10A
ELECTRODE (380MM) (CENTER) MAY W10845237 Contact Us For Availability
10B
ELECTRODE (500MM) (LEFT REAR, RIGHT REAR) MAY W10692364 Contact Us For Availability
11
CLIP, ELECTRODE MAY W10571930 Contact Us For Availability
11
SLEEVE, COMPRESSION 1/4" TUBING MAY W10692371 Contact Us For Availability
12
SCREW MAY W10637348 Contact Us For Availability
12
NUT, COMPRESSION MAY W10692372 Contact Us For Availability
13
KNOB (STAINLESS) MAY W10620810 Contact Us For Availability
13
NUT, COMPRESSION MAY 8190918 Contact Us For Availability
14
BEZEL, KNOB (STAINLESS) MAY W10618500 Contact Us For Availability
14
TUBING, BURNER (RIGHT FRONT) MAY W10845903 Contact Us For Availability
15
TOP, GLASS (INCLUDES BRACKETS) MAY W10845783 Contact Us For Availability
15
SCREW, VALVES MAY W10617476 Contact Us For Availability
16
PAD, GRATE (KIT OF 4) MAY W10850783 Contact Us For Availability
16
BRACKET, VALVE MAY W10617475 Contact Us For Availability
17
VALVE, GAS (LEFT FRONT) MAY W10691432 Contact Us For Availability
17A
VALVE, GAS (RIGHT FRONT) MAY W10691431 Contact Us For Availability
17B
VALVE, GAS (CENTER) MAY W10691438 Contact Us For Availability
17C
VALVE, GAS (LEFT REAR, RIGHT REAR) MAY W10691437 Contact Us For Availability
18
WASHER (SPARK SWITCH) MAY 8190911 Contact Us For Availability
19
ASSEMBLY, MANIFOLD MAY W10845769 Contact Us For Availability
20
HARNESS, SWITCH MAY W10845776 Contact Us For Availability
21
BRACKET, ORIFICE HOLDER MAY W10845767 Contact Us For Availability
21A
BRACKET, ORIFICE HOLDER (CENTER) MAY W10845230 Contact Us For Availability
22
SCREW MAY W10626012 Contact Us For Availability
23
SPARK MODULE MAY 8190929 Contact Us For Availability
24
REGULATOR, GAS MAY W10569189 Contact Us For Availability
25
ASSEMBLY, BURNER BOX MAY W10845797 Contact Us For Availability
26
BRACKET, MOUNTING MAY 8190978 Contact Us For Availability
27
CORD, POWER MAY W10618502 Contact Us For Availability
NI
GASKET (COOKTOP MOUNTING) MAY 8190977 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
RELIEF, STRAIN MAY W10618504 Contact Us For Availability
NI
SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN H MAY W10625905 Contact Us For Availability
NI
SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN H MAY W10625907 Contact Us For Availability
NI
KIT, ORIFICE NG HIGH ALTITUDE CONVERSION MAY W10686629 Contact Us For Availability
NI
KIT, ORIFICE LP HIGH ALTITUDE CONVERSION MAY W10686630 Contact Us For Availability
NI
KIT, ORIFICE LP CONVERSION MAY W10686634 Contact Us For Availability
NI
CAP, BURNER (MELT SMALL BURNER) MAY W10691233 Contact Us For Availability
NI
HARNESS, MAIN MAY W10845779 Contact Us For Availability
× ![]()
