Model Maytag JGC1530BS00 GAS COOKTOP – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

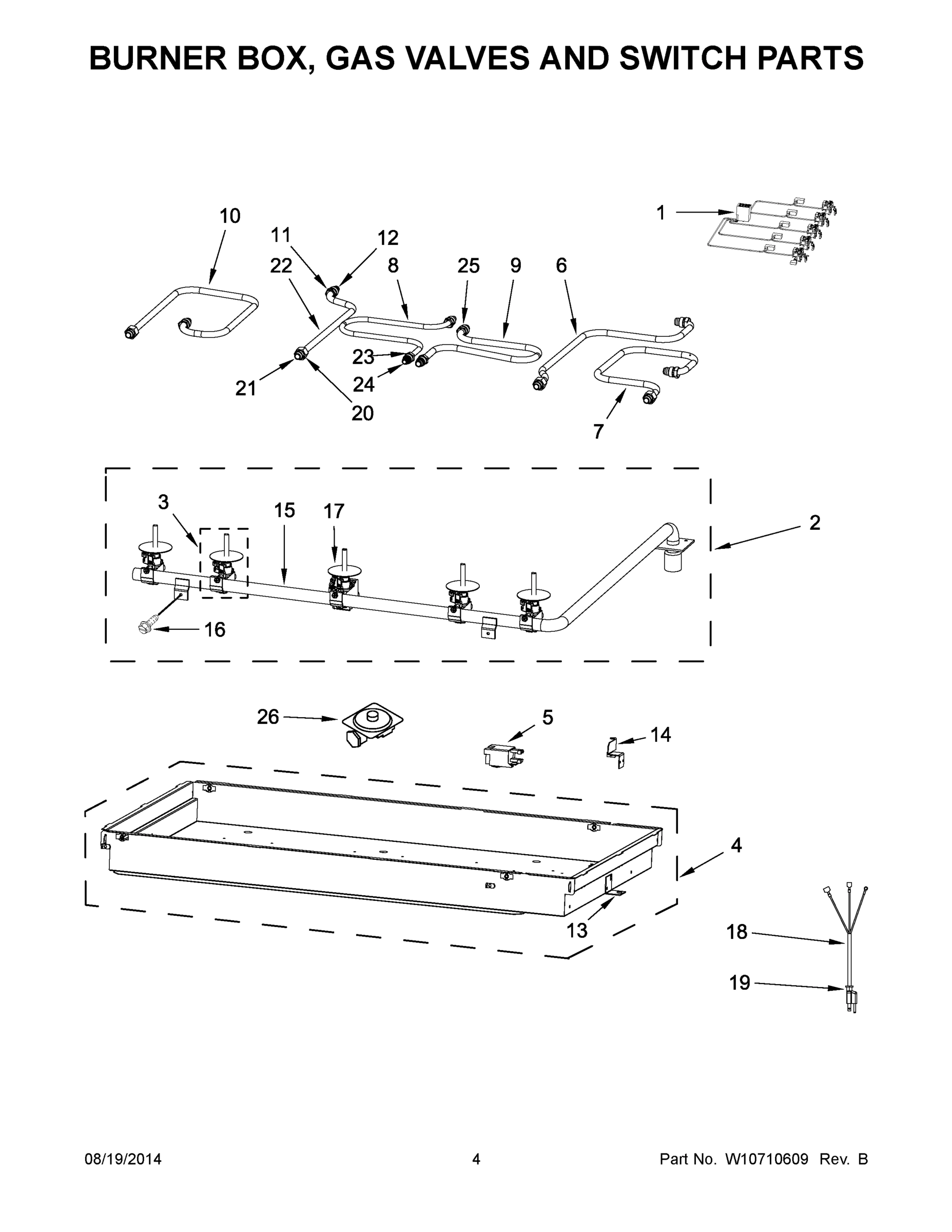

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag JGC1530BS00 GAS COOKTOP
1
MAY W10676382 MAY W10676382 Contact Us For Availability
1
MAY W10691446 MAY W10691446 Contact Us For Availability
1A
MAY W10676381 MAY W10676381 Contact Us For Availability
1B
MAY W10686623 MAY W10686623 Contact Us For Availability
2
MAY W10689383 MAY W10689383 Contact Us For Availability
2
MAY W10691441 MAY W10691441 Contact Us For Availability
2A
MAY W10689381 MAY W10689381 Contact Us For Availability
3
MAY W10626012 MAY W10626012 Contact Us For Availability
3
MAY W10691431 MAY W10691431 Contact Us For Availability
3A
MAY W10691432 MAY W10691432 Contact Us For Availability
3B
MAY W10691438 MAY W10691438 Contact Us For Availability
3C
MAY W10691437 MAY W10691437 Contact Us For Availability
4
MAY W10691232 MAY W10691232 Contact Us For Availability
4
MAY W10691679 MAY W10691679 Contact Us For Availability
4A
MAY W10691282 MAY W10691282 Contact Us For Availability
4B
MAY W10691230 MAY W10691230 Contact Us For Availability
4C
CAP, BURNER (BLACK (SMALL) (RIGHT REAR)) MAY W10691229 Contact Us For Availability
5
MAY W10691284 MAY W10691284 Contact Us For Availability
5
SPARK MODULE MAY 8190929 Contact Us For Availability
5A
MAY W10691430 MAY W10691430 Contact Us For Availability
5B
MAY W10691283 MAY W10691283 Contact Us For Availability
5C
MAY W10691285 MAY W10691285 Contact Us For Availability
6
MAY W10620810 MAY W10620810 Contact Us For Availability
6
MAY W10692359 MAY W10692359 Contact Us For Availability
7
MAY W10618500 MAY W10618500 Contact Us For Availability
7
MAY W10692360 MAY W10692360 Contact Us For Availability
8
HOLDER ORIFICE (132MM) (RIGHT FRONT) MAY W10571491 Contact Us For Availability
8
TUBING, BURNER (1/4" CENTER SIMMER) MAY W10692355 Contact Us For Availability
8A
MAY W10691684 MAY W10691684 Contact Us For Availability
8B
HOLDER, ORIFICE (195 MM) CENTER) MAY W10691686 Contact Us For Availability
8C
HOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT RE MAY W10571492 Contact Us For Availability
9
MAY W10617808 MAY W10617808 Contact Us For Availability
9
MAY W10692356 MAY W10692356 Contact Us For Availability
9A
MAY W10692369 MAY W10692369 Contact Us For Availability
9B
MAY W10692370 MAY W10692370 Contact Us For Availability
9C
MAY W10692363 MAY W10692363 Contact Us For Availability
9D
MAY W10617810 MAY W10617810 Contact Us For Availability
10
MAY W10691680 MAY W10691680 Contact Us For Availability
10
MAY W10692353 MAY W10692353 Contact Us For Availability
11
MAY W10626016 MAY W10626016 Contact Us For Availability
11
MAY W10575399 MAY W10575399 Contact Us For Availability
11A
MAY W10626017 MAY W10626017 Contact Us For Availability
12
MAY W10618476 MAY W10618476 Contact Us For Availability
12
MAY W10575398 MAY W10575398 Contact Us For Availability
12A
MAY W10691683 MAY W10691683 Contact Us For Availability
13
MAY W10626015 MAY W10626015 Contact Us For Availability
13
BRACKET, MOUNTING MAY 8190978 Contact Us For Availability
14
MAY W10571930 MAY W10571930 Contact Us For Availability
14
MAY W10617630 MAY W10617630 Contact Us For Availability
15
MAY W10637348 MAY W10637348 Contact Us For Availability
15
MAY W10617475 MAY W10617475 Contact Us For Availability
16
MAY W10617476 MAY W10617476 Contact Us For Availability
17
WASHER (SPARK SWITCH) MAY 8190911 Contact Us For Availability
18
CORD, POWER MAY W10618502 Contact Us For Availability
19
MAY W10618504 MAY W10618504 Contact Us For Availability
20
MAY 8190918 MAY 8190918 Contact Us For Availability
21
MAY 8190917 MAY 8190917 Contact Us For Availability
22
MAY W10692354 MAY W10692354 Contact Us For Availability
23
NUT, COMPRESSION 1/4" TUBING MAY W10692377 Contact Us For Availability
24
SLEEVE, COMPRESSION 1/4" TUBING MAY W10692371 Contact Us For Availability
25
MAY W10692372 MAY W10692372 Contact Us For Availability
26
MAY W10569189 MAY W10569189 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
SCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HE MAY W10623148 Contact Us For Availability
NI
SCREW, COOKTOP (6-32 X 3/8" PAN HEAD) MAY W10625904 Contact Us For Availability
NI
SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN H MAY W10625905 Contact Us For Availability
NI
SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN H MAY W10625907 Contact Us For Availability
NI
MAY W10626014 MAY W10626014 Contact Us For Availability
NI
MAY W10678586 MAY W10678586 Contact Us For Availability
NI
MAY W10686629 MAY W10686629 Contact Us For Availability
NI
MAY W10686630 MAY W10686630 Contact Us For Availability
NI
MAY W10686634 MAY W10686634 Contact Us For Availability
NI
MAY W10691233 MAY W10691233 Contact Us For Availability
NI
MAY W10691448 MAY W10691448 Contact Us For Availability
× ![]()
