Model Whirlpool JGC1430ADS14 GAS COOKTOP – Common Parts & Diagrams

1
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS WPL 8101P73660 Contact Us For Availability
View on Model
1A
USE & CARE GUIDE WIRING DIAGRAM
USE & CARE GUIDE WIRING DIAGRAM WPL 8111P53660 Contact Us For Availability
View on Model
1B
TIPS, SAFE COOKING (ENGLISH)
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
View on Model
1C
TIPS, SAFE COOKING (FRENCH)
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
View on Model
1D
TECH SHEET
TECH SHEET WPL 8104P82860 Contact Us For Availability
View on Model
2

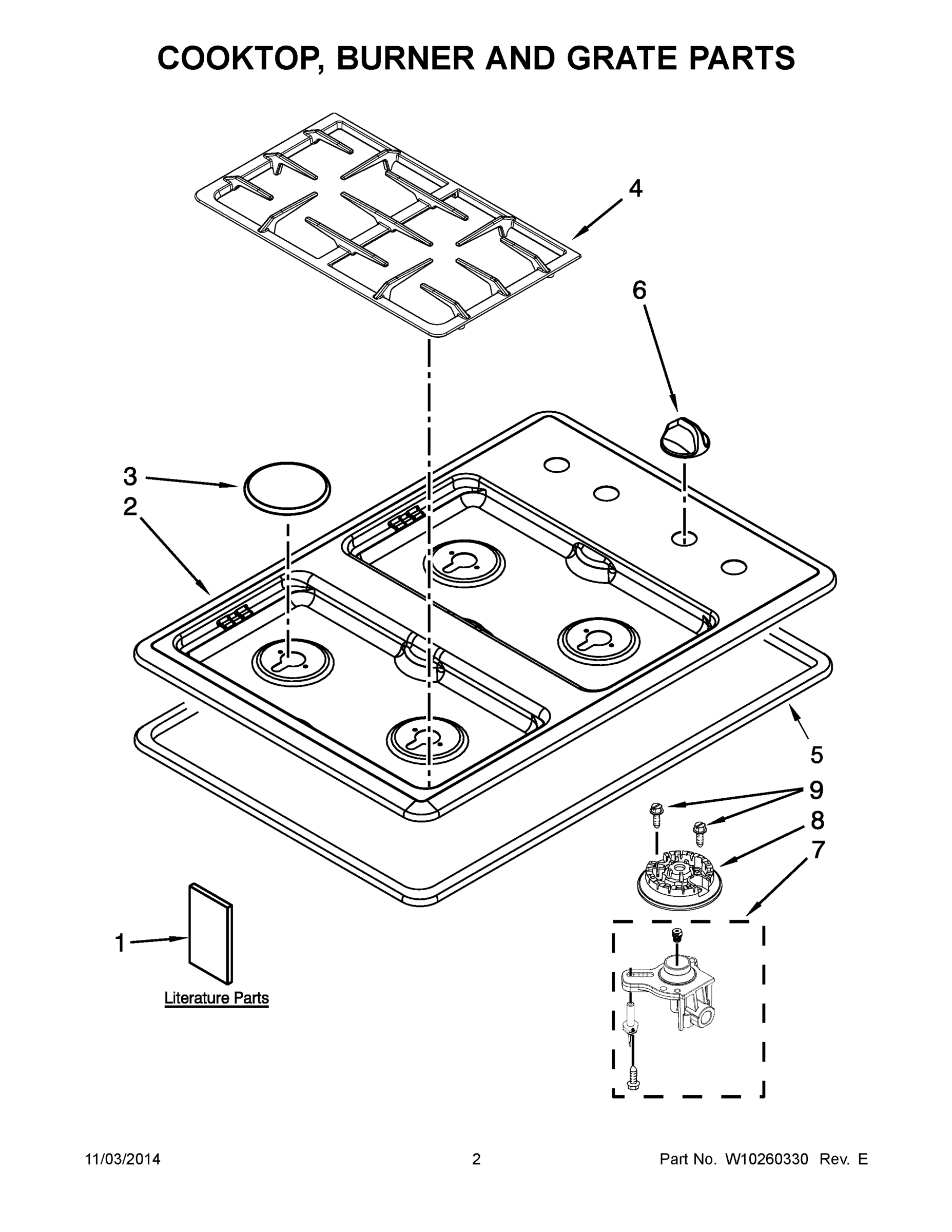

COOKTOP (BLACK)
COOKTOP (BLACK) WPL 2001N29609 Contact Us For Availability
View on Model
2A
COOKTOP (WHITE)
COOKTOP (WHITE) WPL 2001N29681 Contact Us For Availability
View on Model
2B
COOKTOP (STAINLESS)
COOKTOP (STAINLESS) WPL 2001N29455 Contact Us For Availability
View on Model
3
CAP, BURNER (BLACK (LEFT REAR))
CAP, BURNER (BLACK (LEFT REAR)) WPL 7504P20260 Contact Us For Availability
View on Model
3A
CAP, BURNER (BLACK (LEFT FRONT AND RIGHT REAR
CAP, BURNER (BLACK (LEFT FRONT AND RIGHT REAR WPL 7504P16560 Contact Us For Availability
View on Model
3B
CAP, BURNER (BLACK (RIGHT FRONT))
CAP, BURNER (BLACK (RIGHT FRONT)) WPL 7504P20460 Contact Us For Availability
View on Model
4
GRATE, BURNER
GRATE, BURNER WPL 7518P43560 Contact Us For Availability
View on Model
5
SEAL, FOAM
SEAL, FOAM WPL 8270P10560 Contact Us For Availability
View on Model
6
KNOB, CONTROL (STAINLESS)
KNOB, CONTROL (STAINLESS) WPL W10168627 Contact Us For Availability
View on Model
6
TUBING, GAS BURNER (LEFT)
TUBING, GAS BURNER (LEFT) WPL 7506P37560 Contact Us For Availability
View on Model
7
TUBING, GAS BURNER (RIGHT)
TUBING, GAS BURNER (RIGHT) WPL 7506P37460 Contact Us For Availability
View on Model
7
ORIFICE HOLDER (5K) (LEFT REAR)
ORIFICE HOLDER (5K) (LEFT REAR) WPL 7527P00660 Contact Us For Availability
View on Model
7A
ORIFICE HOLDER (12K) (LEFT FRONT)
ORIFICE HOLDER (12K) (LEFT FRONT) WPL 7527P02860 Contact Us For Availability
View on Model
7B
ORIFICE HOLDER (9.5K) (RIGHT REAR)
ORIFICE HOLDER (9.5K) (RIGHT REAR) WPL 7527P02660 Contact Us For Availability
View on Model
7C
ORIFICE HOLDER (17K) (RIGHT FRONT)
ORIFICE HOLDER (17K) (RIGHT FRONT) WPL 7527P11460 Contact Us For Availability
View on Model
8

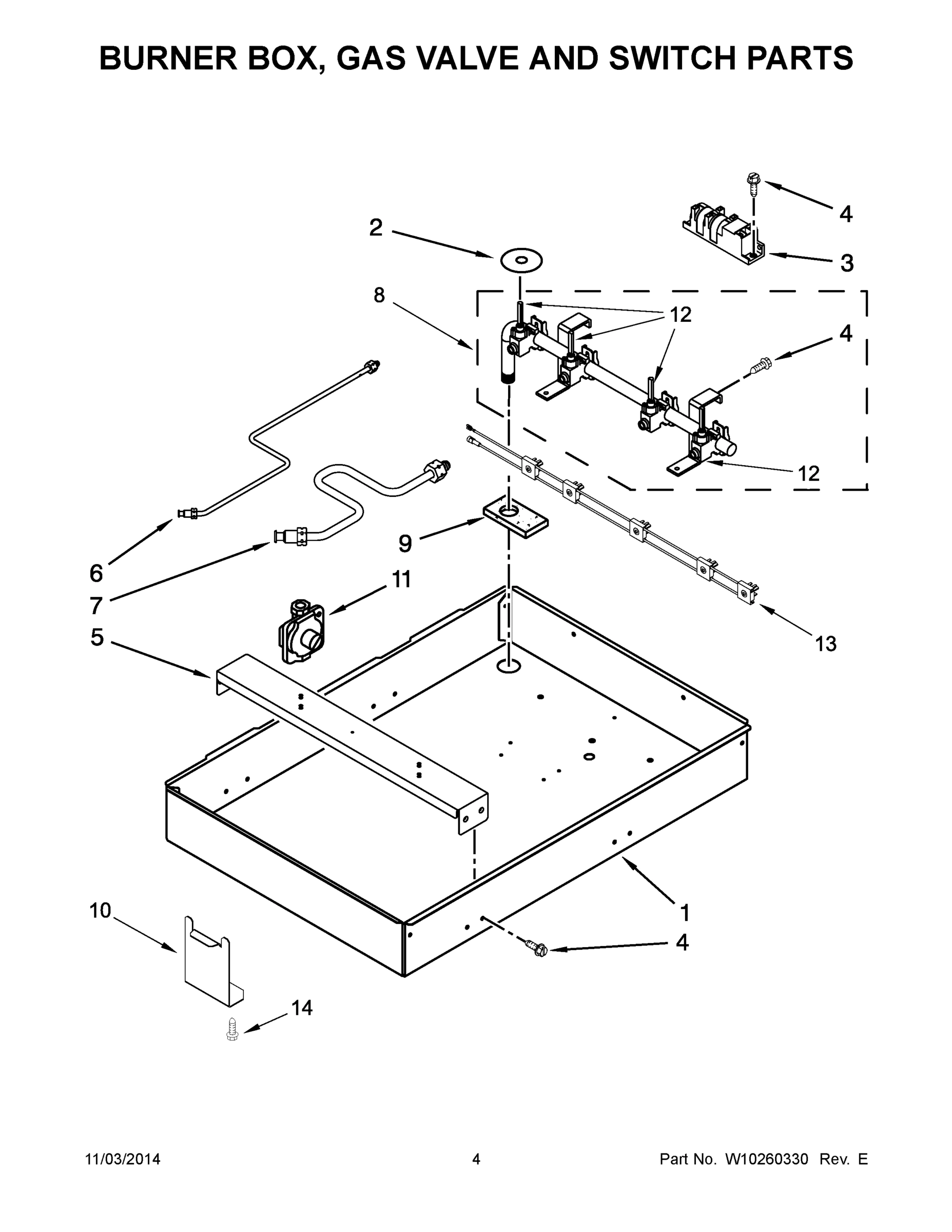

PIPE, MANIFOLD ASSEMBLY
PIPE, MANIFOLD ASSEMBLY WPL 7513P51660 Contact Us For Availability
View on Model
9
SEAL, MANIFOLD PIPE INLET
SEAL, MANIFOLD PIPE INLET WPL 7208P02460 Contact Us For Availability
View on Model
9
SCREW, BURNER HEAD
SCREW, BURNER HEAD WPL 7101P68560 Contact Us For Availability
View on Model
10
BRACKET, MOUNTING
BRACKET, MOUNTING WPL 3801F93551 Contact Us For Availability
View on Model
11
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
View on Model
12
VALVE, GAS (LEFT REAR)
VALVE, GAS (LEFT REAR) WPL 7502P55860 Contact Us For Availability
View on Model
12A
VALVE, GAS (LEFT FRONT AND RIGHT REAR)
VALVE, GAS (LEFT FRONT AND RIGHT REAR) WPL 7502P55960 Contact Us For Availability
View on Model
12B
VALVE, GAS (RIGHT FRONT)
VALVE, GAS (RIGHT FRONT) WPL 7502P56060 Contact Us For Availability
View on Model
13
HARNESS, SWITCH
HARNESS, SWITCH WPL 7450P09760 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 7101P06260 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, CONVERSION KIT LP
MISCELLANEOUS PARTS, CONVERSION KIT LP WPL 7509P17360 Contact Us For Availability
View on Model
NI
WIRE, JUMPER
WIRE, JUMPER WPL 5112P67560 Contact Us For Availability
View on Model
NI
CORD, POWER
CORD, POWER WPL 7402P08760 Contact Us For Availability
View on Model
NI
STRAIN RELIEF
STRAIN RELIEF WPL 8007P00360 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
