Model GE JGBS18GEJ5 Gas Range Or Dual Fuel – Common Parts & Diagrams

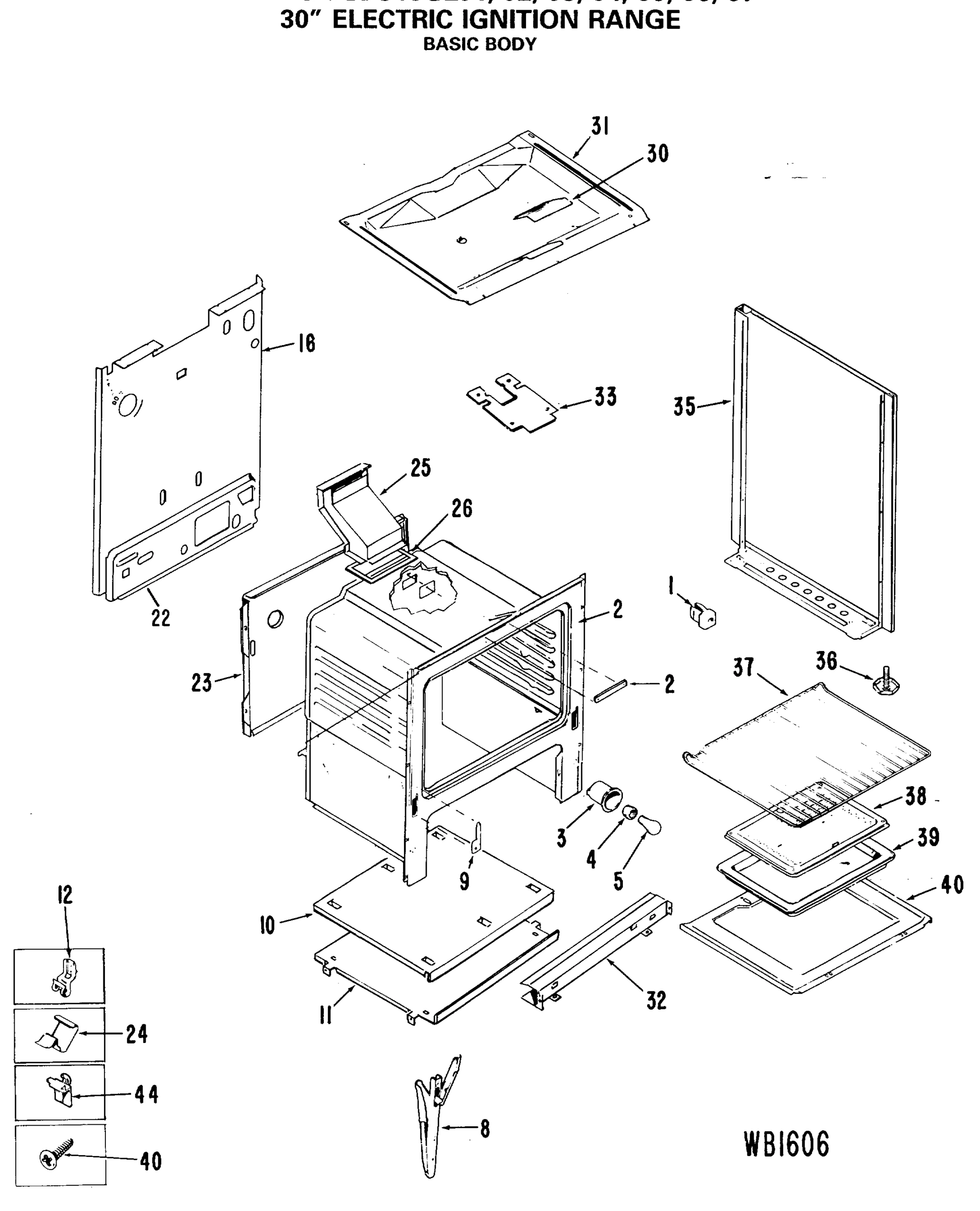

30" ELECTRIC IGNITION RANGE

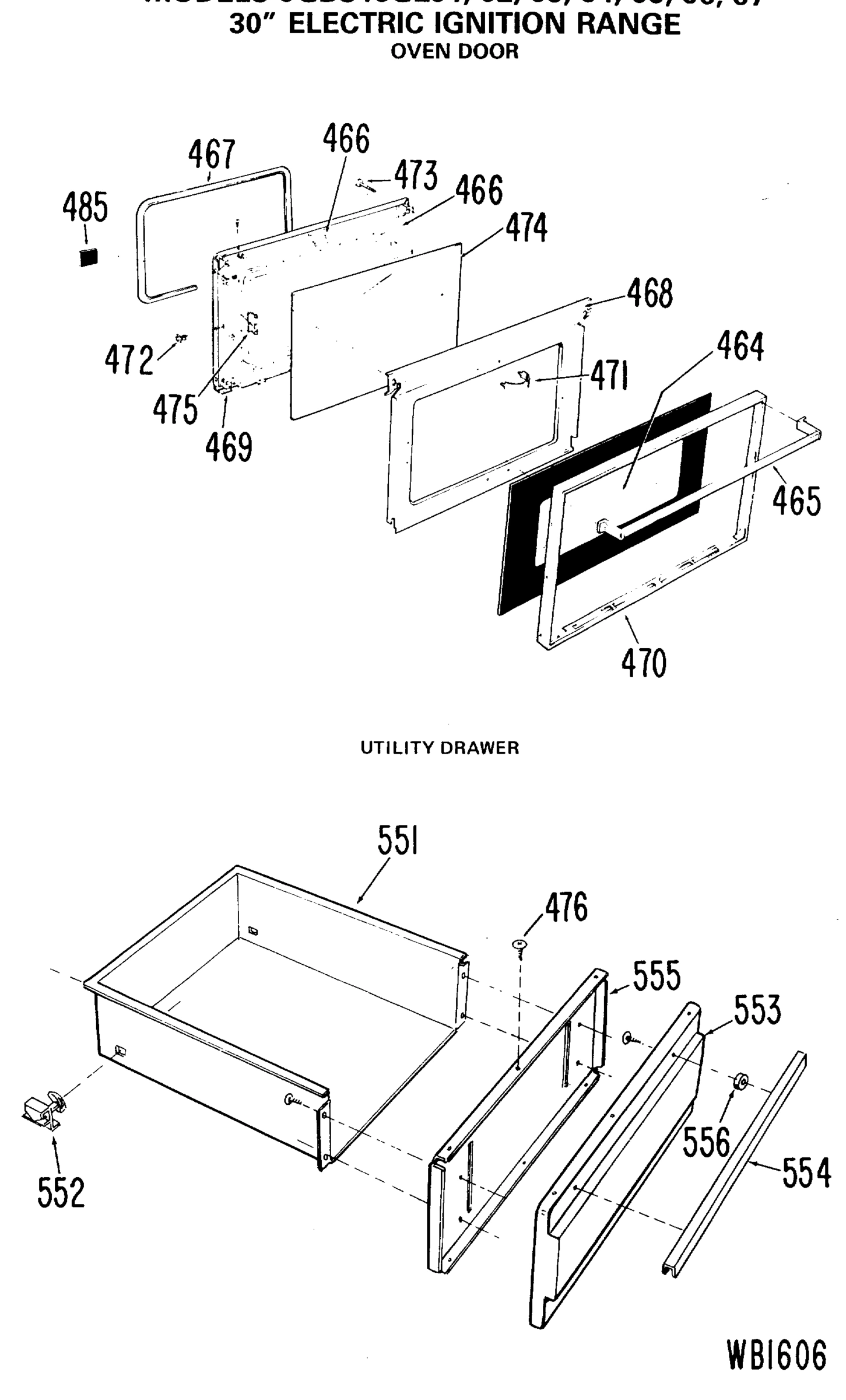

30" ELECTRIC IGNITION RANGE

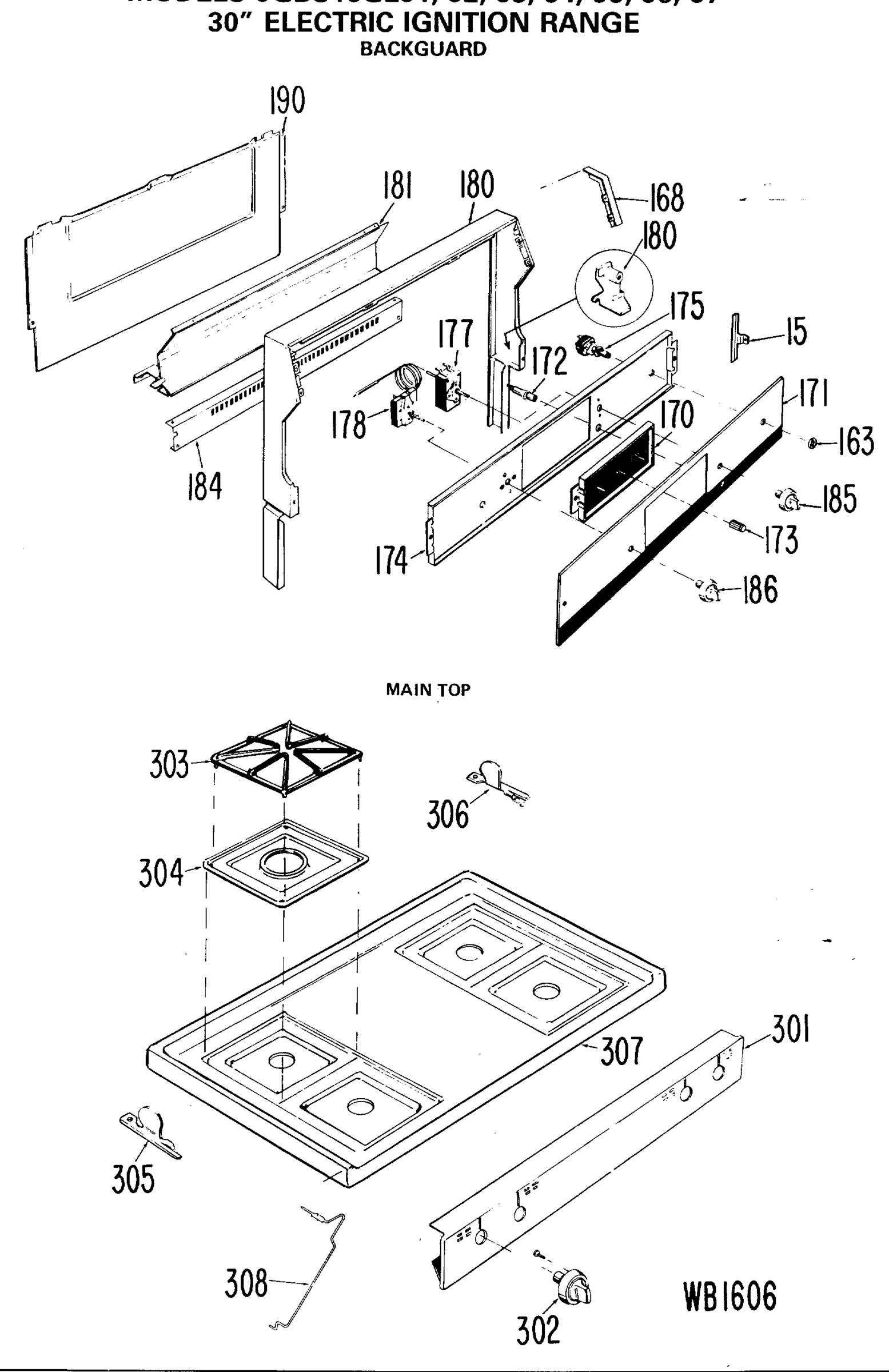

30" ELECTRIC IGNITION RANGE
30" ELECTRIC IGNITION RANGE
Common parts from model GE JGBS18GEJ5 Gas Range Or Dual Fuel
2
LINER/WRAPPER GEN NOT AVAIL Contact Us For Availability
2
GEN WB02X4964 GEN WB02X4964 Contact Us For Availability
2
GEN WB02X4965 GEN WB02X4965 Contact Us For Availability
2
*BUMPER-FRONT MAIN GEN WB02X9044 Contact Us For Availability
2
COVER-FRONT MAIN GEN WB2X10119 Contact Us For Availability
3
GEN WB02X9055 GEN WB02X9055 Contact Us For Availability
4
GEN WB08X0277 GEN WB08X0277 Contact Us For Availability
5
BULB-40 WATT-APPLIANCE GEN BUY LOCAL Contact Us For Availability
8
GEN WB01X0936 GEN WB01X0936 Contact Us For Availability
8
GEN WB01X1013 GEN WB01X1013 Contact Us For Availability
8
GEN WB09X0228 GEN WB09X0228 Contact Us For Availability
8
GEN WB10X0245 GEN WB10X0245 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB63X0273 GEN WB63X0273 Contact Us For Availability
11
GEN WB63X0274 GEN WB63X0274 Contact Us For Availability
11
GEN WB63X0275 GEN WB63X0275 Contact Us For Availability
12
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
15
*FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
15
GEN WB18X0255 GEN WB18X0255 Contact Us For Availability
16
BACK-MAIN GEN WB63X0276 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
25
GEN WB38X0106 GEN WB38X0106 Contact Us For Availability
26
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
30
PLATE-COVER GEN WB2X10084 Contact Us For Availability
31
GEN WB01X1142 GEN WB01X1142 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
32
GEN WB63X0278 GEN WB63X0278 Contact Us For Availability
33
GEN WB63X0279 GEN WB63X0279 Contact Us For Availability
35
PANEL-SIDE-RIGHT-WHITE GEN WB63X0340 Contact Us For Availability
35
PANEL-SIDE-RIGHT-ALMOND GEN WB63X0341 Contact Us For Availability
35
PANEL-SIDE-LEFT-WHITE GEN WB63X0342 Contact Us For Availability
35
PANEL-SIDE-LEFT-ALMOND GEN WB63X0343 Contact Us For Availability
36
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
37
GEN WB48X0209 GEN WB48X0209 Contact Us For Availability
40
GEN WB01X1094 GEN WB01X1094 Contact Us For Availability
40
GEN WB02X4776 GEN WB02X4776 Contact Us For Availability
40
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
44
GEN WB39X0064 GEN WB39X0064 Contact Us For Availability
163
GEN WB07X1479 GEN WB07X1479 Contact Us For Availability
168
GEN WB61X0316 GEN WB61X0316 Contact Us For Availability
168
GEN WB61X0317 GEN WB61X0317 Contact Us For Availability
170
GEN WB19X0231 GEN WB19X0231 Contact Us For Availability
171
*BUSHING-GLASS GEN WB02X4391 Contact Us For Availability
171
GEN WB61X0356 GEN WB61X0356 Contact Us For Availability
172
GEN WB25X0091 GEN WB25X0091 Contact Us For Availability
174
GEN WB02X8017 GEN WB02X8017 Contact Us For Availability
174
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
175
GEN WB24X0376 GEN WB24X0376 Contact Us For Availability
177
GEN WB24X0413 GEN WB24X0413 Contact Us For Availability
178
GEN WB21X5286 GEN WB21X5286 Contact Us For Availability
180
GEN WB02X4952 GEN WB02X4952 Contact Us For Availability
180
GEN WB07X1577 GEN WB07X1577 Contact Us For Availability
181
GEN WB07X1518 GEN WB07X1518 Contact Us For Availability
184
GEN WB07X1517 GEN WB07X1517 Contact Us For Availability
185
GEN WB03X5794 GEN WB03X5794 Contact Us For Availability
186
GEN WB03X0758 GEN WB03X0758 Contact Us For Availability
190
GEN WB61X0319 GEN WB61X0319 Contact Us For Availability
301
GEN WB07X1556 GEN WB07X1556 Contact Us For Availability
302
GEN WB03X0714 GEN WB03X0714 Contact Us For Availability
303
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
304
DRIP PAN-TOP BURNER GEN WB32X0090 Contact Us For Availability
305
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
306
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
307
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
307
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
308
GEN WB02X4736 GEN WB02X4736 Contact Us For Availability
464
GEN WB56X1888 GEN WB56X1888 Contact Us For Availability
465
GEN WB15X0245 GEN WB15X0245 Contact Us For Availability
466
GEN WB55X0636 GEN WB55X0636 Contact Us For Availability
466
GEN WB56X7024 GEN WB56X7024 Contact Us For Availability
467
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
468
GEN WB56X7021 GEN WB56X7021 Contact Us For Availability
469
GEN WB02X7964 GEN WB02X7964 Contact Us For Availability
470
GEN WB07X7067 GEN WB07X7067 Contact Us For Availability
471
CLIP-RETAINING GEN WB02X9049 Contact Us For Availability
473
GEN WB01X1016 GEN WB01X1016 Contact Us For Availability
474
GEN WB56X1890 GEN WB56X1890 Contact Us For Availability
475
GEN WB02X4983 GEN WB02X4983 Contact Us For Availability
476
SCREW GEN WB01X0786 Contact Us For Availability
485
GEN WB02X9051 GEN WB02X9051 Contact Us For Availability
551
GEN WB58X0056 GEN WB58X0056 Contact Us For Availability
552
GEN WB39X0060 GEN WB39X0060 Contact Us For Availability
553
GEN WB56X1777 GEN WB56X1777 Contact Us For Availability
553
GEN WB56X1778 GEN WB56X1778 Contact Us For Availability
554
SCREW-HANDLE GEN WB01X1024 Contact Us For Availability
554
GEN WB15X0233 GEN WB15X0233 Contact Us For Availability
555
LINER-DRAWER PANEL GEN WB56X1887 Contact Us For Availability
556
GEN WB02X9052 GEN WB02X9052 Contact Us For Availability
701
GEN WB49X0591 GEN WB49X0591 Contact Us For Availability
702
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
703
GEN WB28X0065 GEN WB28X0065 Contact Us For Availability
704
GEN WB28X0074 GEN WB28X0074 Contact Us For Availability
705
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
706
*RETAINER-IGNITER GEN WB02X9364 Contact Us For Availability
706
GEN WB02X9365 GEN WB02X9365 Contact Us For Availability
707
BURNER TUBE-LT/RT FRONT GEN WB02X9053 Contact Us For Availability
708
GEN WB02X4743 GEN WB02X4743 Contact Us For Availability
709
GEN WB02X4744 GEN WB02X4744 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
712
GEN WB02X9366 GEN WB02X9366 Contact Us For Availability
713
GEN WB02X4749 GEN WB02X4749 Contact Us For Availability
714
GEN WB21X0443 GEN WB21X0443 Contact Us For Availability
715
GEN WB01X1027 GEN WB01X1027 Contact Us For Availability
715
GEN WB02X4750 GEN WB02X4750 Contact Us For Availability
716
GEN WB24X0393 GEN WB24X0393 Contact Us For Availability
718
IGNITER-OVEN BURNER GEN WB2X10016 Contact Us For Availability
719
GEN WB02X4753 GEN WB02X4753 Contact Us For Availability
720
GEN WB02X4755 GEN WB02X4755 Contact Us For Availability
721
GEN WB01X0947 GEN WB01X0947 Contact Us For Availability
725
GEN WB02X4756 GEN WB02X4756 Contact Us For Availability
727
TUBE REG. MANIFOLD GEN WB02X7956 Contact Us For Availability
728
GEN WB02X4759 GEN WB02X4759 Contact Us For Availability
729
GEN WB02X4998 GEN WB02X4998 Contact Us For Availability
730
GEN WB01X1145 GEN WB01X1145 Contact Us For Availability
730
GEN WB21X0423 GEN WB21X0423 Contact Us For Availability
732
GEN WB21X0424 GEN WB21X0424 Contact Us For Availability
733
GEN WB02X4772 GEN WB02X4772 Contact Us For Availability
734
NUT-SPECIAL-HEX-10-24 GEN WB01X0694 Contact Us For Availability
736
GEN WB02X4801 GEN WB02X4801 Contact Us For Availability
737
GEN WB01X0928 GEN WB01X0928 Contact Us For Availability
9999
GEN 49-4890 GEN 49-4890 Contact Us For Availability
32767
GEN 31-0627 GEN 31-0627 Contact Us For Availability
32767
GEN WB02X9804 GEN WB02X9804 Contact Us For Availability
× ![]()
