Model GE JGBS16GPJ2 – Common Parts & Diagrams
30" STANDING PILOT
BACKSPLASH ASSEMBLY

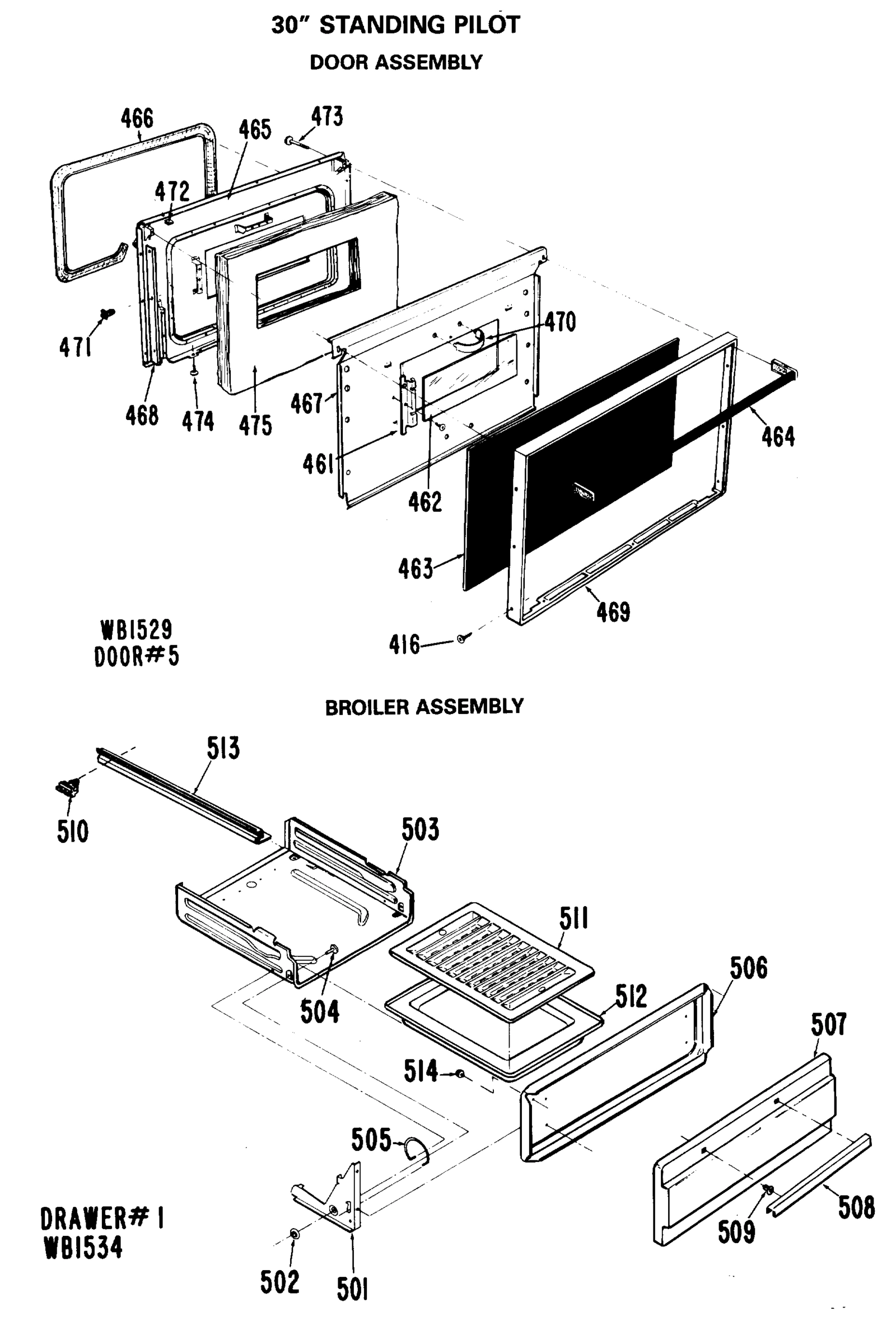

DOOR ASSEMBLY

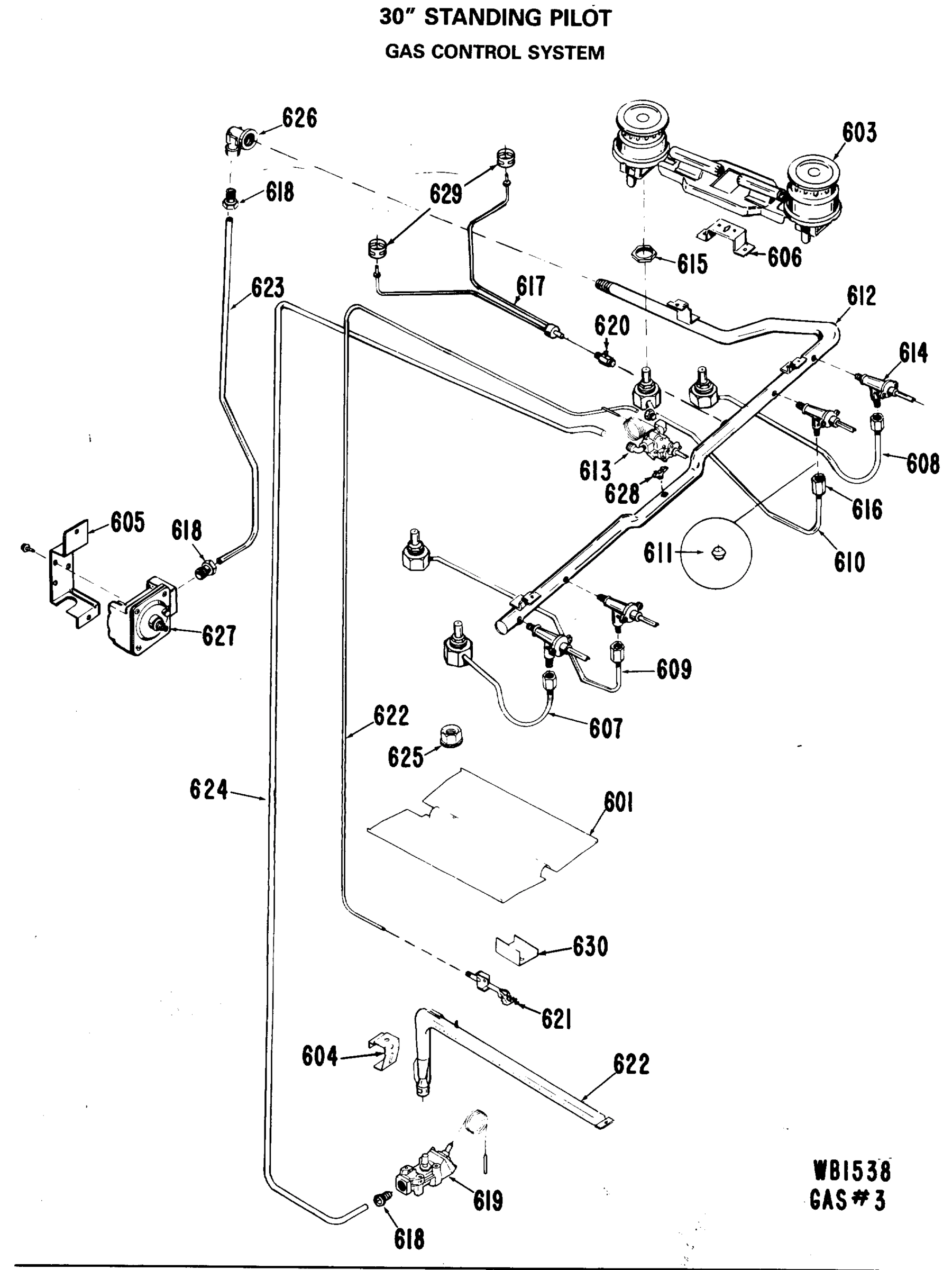

GAS CONTROL SYSTEM
Common parts from model GE JGBS16GPJ2
1
GEN WB01X1012 GEN WB01X1012 Contact Us For Availability
2
GEN WB02X10119 GEN WB02X10119 Contact Us For Availability
3
GEN WB08X0262 GEN WB08X0262 Contact Us For Availability
5
SPRING-OVEN DOOR HINGE GEN WB09X0228 Contact Us For Availability
5
HINGE-OVEN DOORT GEN WB10X0245 Contact Us For Availability
6
GEN WB02X4955 GEN WB02X4955 Contact Us For Availability
7
BACK MAIN GEN WB49X0576 Contact Us For Availability
8
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
10
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
11
GEN WB38X0094 GEN WB38X0094 Contact Us For Availability
13
GEN WB02X4963 GEN WB02X4963 Contact Us For Availability
14
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
15
PANEL-SIDE-LH-ALMOND GEN WB63X0281 Contact Us For Availability
15
PANEL-SIDE-LH-WHITE GEN WB63X0282 Contact Us For Availability
15
PANEL-SIDE-RH-ALMOND GEN WB63X0283 Contact Us For Availability
15
PANEL-SIDE-RH-WHITE GEN WB63X0284 Contact Us For Availability
16
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
17
OVEN RACK GEN WB48X0190 Contact Us For Availability
18
GEN WB01X1094 GEN WB01X1094 Contact Us For Availability
18
GEN WB02X4964 GEN WB02X4964 Contact Us For Availability
18
INSULATION-OVEN-BACK GEN WB02X4965 Contact Us For Availability
18
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
19
CLIP-THERM BULB GEN WB01X0706 Contact Us For Availability
19
FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
19
CORD POWER GEN WB18X0255 Contact Us For Availability
20
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
21
GEN WB38X0095 GEN WB38X0095 Contact Us For Availability
22
GEN WB02X4776 GEN WB02X4776 Contact Us For Availability
22
GEN WB02X4966 GEN WB02X4966 Contact Us For Availability
22
GEN WB02X4967 GEN WB02X4967 Contact Us For Availability
22
GEN WB02X4968 GEN WB02X4968 Contact Us For Availability
22
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
23
GEN WB63X0287 GEN WB63X0287 Contact Us For Availability
23
CLIP-HINGE GEN WB01X1015 Contact Us For Availability
111
TRIM-WRAPPER-SURROUND GEN WB07X1516 Contact Us For Availability
112
PLATE-INSTRUMENT MOUNTING GEN WB02X4945 Contact Us For Availability
113
TRIM-GLASS RETAINER (2) GEN WB02X4946 Contact Us For Availability
114
BEZEL GEN WB07X1479 Contact Us For Availability
115
GEN WB24X0376 GEN WB24X0376 Contact Us For Availability
116
CLOCK GEN WB19X0231 Contact Us For Availability
117
END CAP-LH GEN WB61X0316 Contact Us For Availability
117
END CAP-RH GEN WB61X0317 Contact Us For Availability
118
CONTROL PANEL-GLASS GEN WB61X0318 Contact Us For Availability
119
GEN WB07X1517 GEN WB07X1517 Contact Us For Availability
120
GEN WB07X1518 GEN WB07X1518 Contact Us For Availability
121
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
122
SCREW-BACKSPLASH (8) GEN WB01X0786 Contact Us For Availability
122
GEN WB01X0918 GEN WB01X0918 Contact Us For Availability
122
GEN WB01X1011 GEN WB01X1011 Contact Us For Availability
122
SHIELD-REARWALL GEN WB61X0319 Contact Us For Availability
122
GEN WB61X0320 GEN WB61X0320 Contact Us For Availability
331
GEN WB62X1646 GEN WB62X1646 Contact Us For Availability
331
GEN WB62X1647 GEN WB62X1647 Contact Us For Availability
332
GEN WB10X0241 GEN WB10X0241 Contact Us For Availability
333
GEN WB10X0242 GEN WB10X0242 Contact Us For Availability
334
GRATE (4) GEN WB32X0089 Contact Us For Availability
335
ROD-COOKTOP SUPPORT (2) GEN WB02X4736 Contact Us For Availability
336
KNOB-TOPVALVE (4) GEN WB03X0714 Contact Us For Availability
337
GEN WB03X0716 GEN WB03X0716 Contact Us For Availability
338
GEN WB07X1529 GEN WB07X1529 Contact Us For Availability
339
CAP-VENT-PILOT GEN WB38X0091 Contact Us For Availability
461
BRACKET-GLASS (2) GEN WB02X4980 Contact Us For Availability
462
GLASS REAR GEN WB56X1834 Contact Us For Availability
463
GLASS-FRONT GEN WB56X1883 Contact Us For Availability
464
HANDLE GEN WB15X0245 Contact Us For Availability
465
GEN WB55X0601 GEN WB55X0601 Contact Us For Availability
465
COVER-DOOR LINER GEN WB55X0636 Contact Us For Availability
466
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
467
GEN WB02X4988 GEN WB02X4988 Contact Us For Availability
468
SUPPORT-GLASS (2) GEN WB02X4738 Contact Us For Availability
469
GEN WB07X1483 GEN WB07X1483 Contact Us For Availability
470
CLIP-RETAINER (2) GEN WB01X0927 Contact Us For Availability
471
GEN WB01X1020 GEN WB01X1020 Contact Us For Availability
472
FASTENER-SPACER-TOP (3) GEN WB01X0688 Contact Us For Availability
473
SCREW-HANDLE (2) GEN WB01X1016 Contact Us For Availability
474
SCREW-BOTTOM (3) GEN WB01X0787 Contact Us For Availability
475
INSULATION GEN WB02X4985 Contact Us For Availability
501
HINGE-BROILER-LH GEN WB14X0084 Contact Us For Availability
501
HINGE-BROILER-RH GEN WB14X0085 Contact Us For Availability
502
FASTENER-PUSH NUT (2) GEN WB01X0698 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
PIN-HINGE (2) GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
506
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
507
GEN WB56X1853 GEN WB56X1853 Contact Us For Availability
507
GEN WB56X1854 GEN WB56X1854 Contact Us For Availability
508
HANDLE GEN WB15X0233 Contact Us For Availability
509
FASTENER-SPACER (2) GEN WB01X1025 Contact Us For Availability
510
GLIDE-BROILER(6) GEN WB39X0065 Contact Us For Availability
512
SCREW(7) GEN WB01X0784 Contact Us For Availability
512
SCREW(2) GEN WB01X1024 Contact Us For Availability
513
INSULATION-BROILER DOOR GEN WB02X4995 Contact Us For Availability
513
TRACK-BROILER (4) GEN WB39X0066 Contact Us For Availability
514
PLUB-BROILER DRAWER (2) GEN WB02X4996 Contact Us For Availability
601
BAFFLE-OVEN GEN WB49X0594 Contact Us For Availability
602
GEN WB28X0074 GEN WB28X0074 Contact Us For Availability
603
BURNER-TOP-DOUBLE (2) GEN WB28X0067 Contact Us For Availability
605
GEN WB02X10000 GEN WB02X10000 Contact Us For Availability
606
BRACKET BURNER-MOUNTING GEN WB02X10010 Contact Us For Availability
607
BURNER-TUBE-LF GEN WB02X4742 Contact Us For Availability
608
BURNER-TUBE-RF GEN WB02X4745 Contact Us For Availability
609
BURNER TUBE-RR GEN WB02X4743 Contact Us For Availability
610
BURNER TUBE-LR GEN WB02X4744 Contact Us For Availability
611
FERRULE (4) GEN WB02X4746 Contact Us For Availability
612
GEN WB02X10015 GEN WB02X10015 Contact Us For Availability
613
GEN WB21X0446 GEN WB21X0446 Contact Us For Availability
614
VALVE-TOP BURNER (4) GEN WB21X0443 Contact Us For Availability
615
NUT-SPECIAL(4) GEN WB01X0928 Contact Us For Availability
616
NUT-COMPRESSION (4) GEN WB01X1027 Contact Us For Availability
617
TUBE-DUAL-TOP PILOT GEN WB02X4193 Contact Us For Availability
618
GEN WB02X10012 GEN WB02X10012 Contact Us For Availability
619
VALVE-SAFETY GEN WB21X0444 Contact Us For Availability
620
FILTER GEN WB02X4236 Contact Us For Availability
621
GEN WB02X10004 GEN WB02X10004 Contact Us For Availability
622
GEN WB02X10005 GEN WB02X10005 Contact Us For Availability
623
TUBE-3/8" GEN WB02X4758 Contact Us For Availability
624
GEN WB02X10006 GEN WB02X10006 Contact Us For Availability
625
NUT GEN WB01X0694 Contact Us For Availability
626
ELBOW GEN WB02X4750 Contact Us For Availability
627
GEN WB21X0445 GEN WB21X0445 Contact Us For Availability
628
GEN WB02X4190 GEN WB02X4190 Contact Us For Availability
629
CAP-TOP-PILOT(2) GEN WB02X4192 Contact Us For Availability
630
GEN WB02X10014 GEN WB02X10014 Contact Us For Availability
9999
GEN 31-0627 GEN 31-0627 Contact Us For Availability
9999
GEN 49-4809 GEN 49-4809 Contact Us For Availability
× ![]()
