Model GE JGBS16EJ2 Gas Range Or Dual Fuel – Common Parts & Diagrams

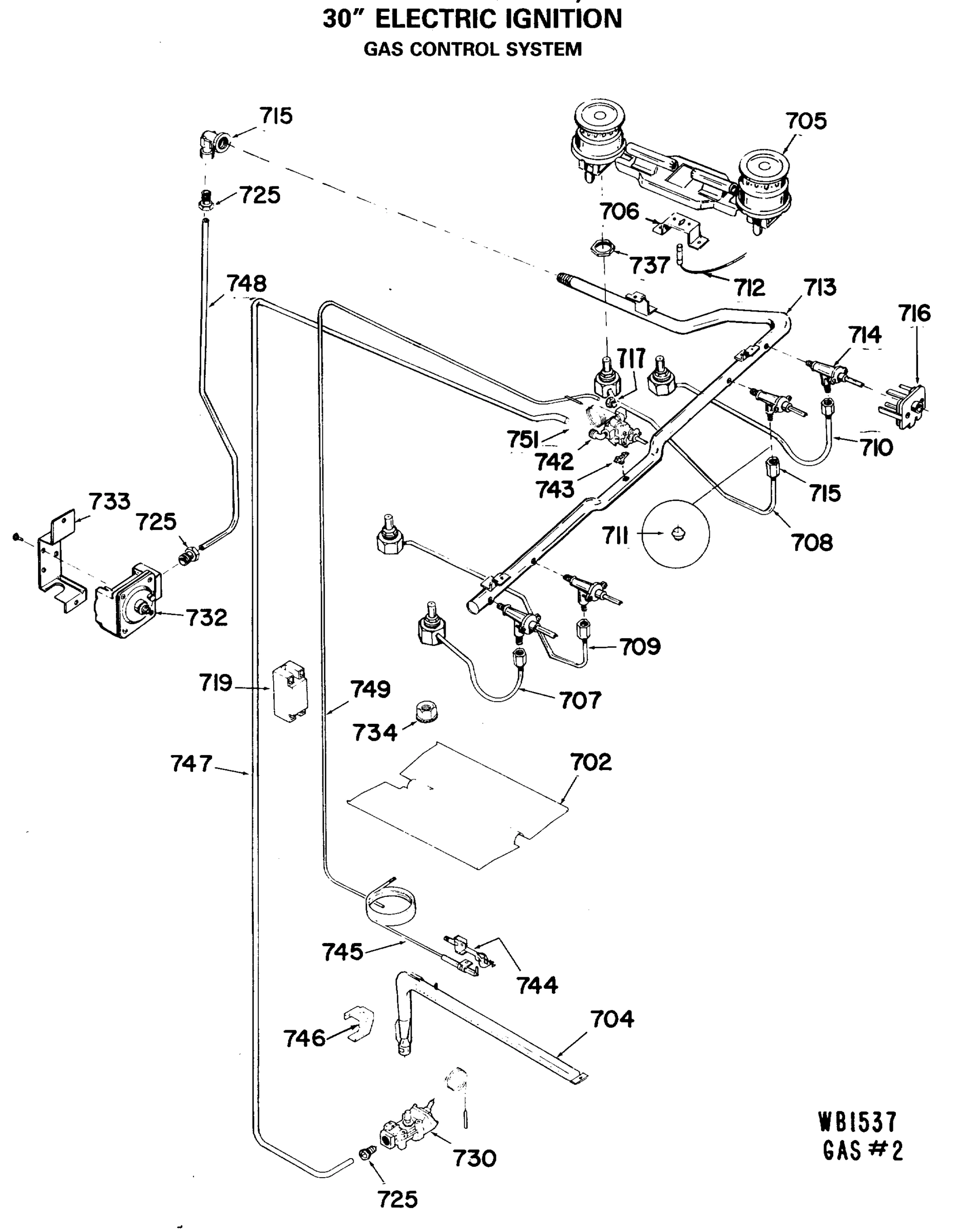

30" ELECTRIC IGNITION

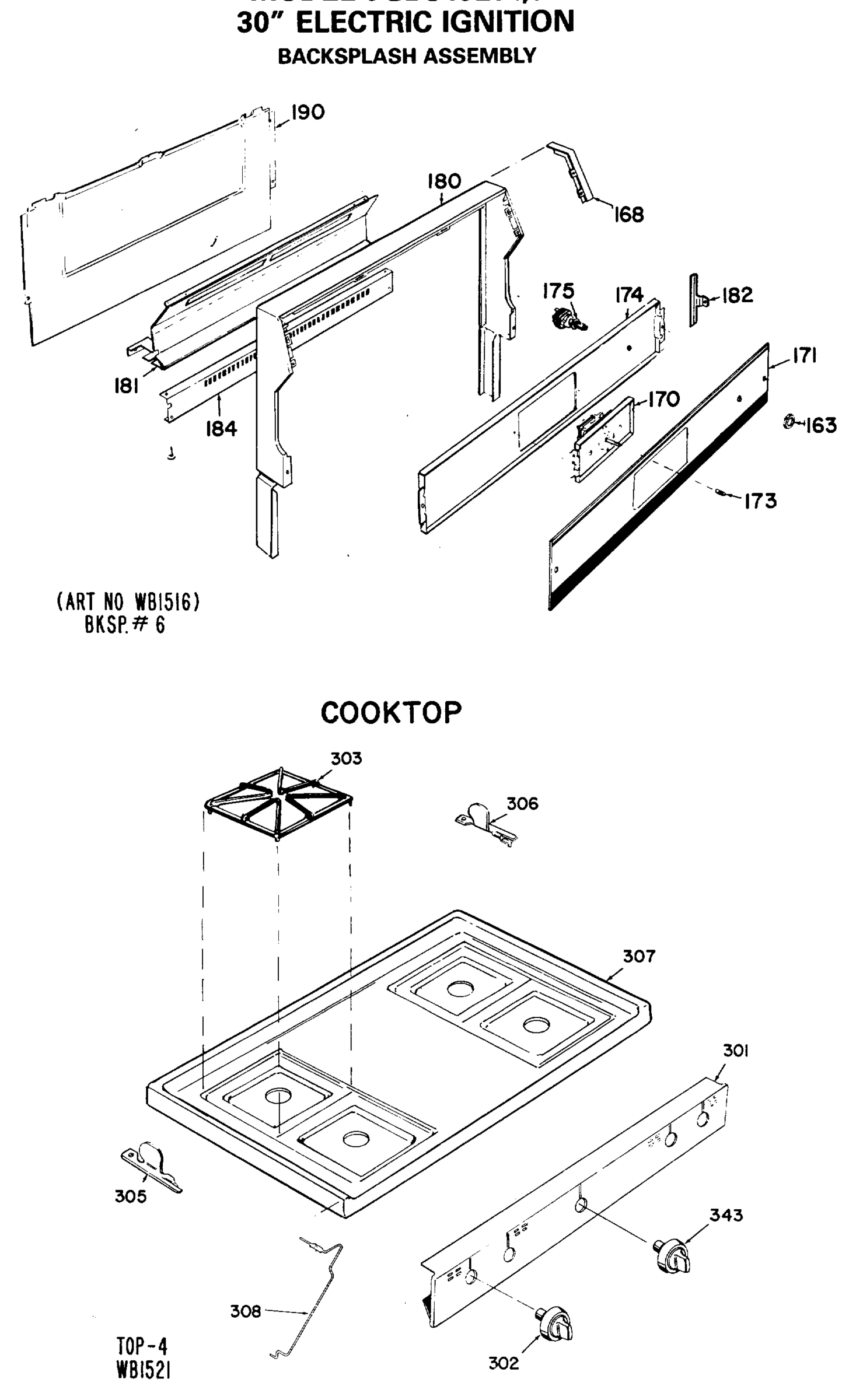

30" ELECTRIC IGNITION
30" ELECTRIC IGNITION
30" ELECTRIC IGNITION
Common parts from model GE JGBS16EJ2 Gas Range Or Dual Fuel
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
LINER/WRAPPER GEN NOT AVAIL Contact Us For Availability
2
GEN WB02X4777 GEN WB02X4777 Contact Us For Availability
2
GEN WB02X4964 GEN WB02X4964 Contact Us For Availability
2
GEN WB02X4965 GEN WB02X4965 Contact Us For Availability
2
*PLATE-COVER GEN WB02X4969 Contact Us For Availability
2
GEN WB2X10119 GEN WB2X10119 Contact Us For Availability
4
GEN WB02X4967 GEN WB02X4967 Contact Us For Availability
4
GEN WB08X0262 GEN WB08X0262 Contact Us For Availability
5
BULB-40 WATT-APPLIANCE GEN BUY LOCAL Contact Us For Availability
8
GEN WB09X0228 GEN WB09X0228 Contact Us For Availability
8
GEN WB10X0245 GEN WB10X0245 Contact Us For Availability
10
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
12
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
15
*CORD-POWER SUPPLY GEN WB18X0255 Contact Us For Availability
16
BACK-MAIN GEN WB49X0576 Contact Us For Availability
19
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
23
GEN WB63X0287 GEN WB63X0287 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
25
GEN WB38X0094 GEN WB38X0094 Contact Us For Availability
26
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
37
GEN WB48X0190 GEN WB48X0190 Contact Us For Availability
40
GEN WB01X1094 GEN WB01X1094 Contact Us For Availability
40
GEN WB02X4776 GEN WB02X4776 Contact Us For Availability
40
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
55
GEN WB01X1015 GEN WB01X1015 Contact Us For Availability
88
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
89
SHIELD-FLUE GEN WB38X0099 Contact Us For Availability
163
GEN WB07X1479 GEN WB07X1479 Contact Us For Availability
168
GEN WB61X0316 GEN WB61X0316 Contact Us For Availability
168
GEN WB61X0317 GEN WB61X0317 Contact Us For Availability
170
GEN WB19X0231 GEN WB19X0231 Contact Us For Availability
171
GEN WB61X0326 GEN WB61X0326 Contact Us For Availability
173
KNOB-CLOCK GEN WB03X0628 Contact Us For Availability
174
GEN WB02X4945 GEN WB02X4945 Contact Us For Availability
175
GEN WB24X0376 GEN WB24X0376 Contact Us For Availability
180
GEN WB02X4952 GEN WB02X4952 Contact Us For Availability
180
TRIM-SURROUND-BACKSPLASH GEN WB07X1516 Contact Us For Availability
181
GEN WB07X1518 GEN WB07X1518 Contact Us For Availability
182
GEN WB02X4946 GEN WB02X4946 Contact Us For Availability
184
GEN WB07X1517 GEN WB07X1517 Contact Us For Availability
190
GEN WB61X0319 GEN WB61X0319 Contact Us For Availability
301
GEN WB07X1529 GEN WB07X1529 Contact Us For Availability
302
GEN WB03X0714 GEN WB03X0714 Contact Us For Availability
303
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
305
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
306
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
307
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
307
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
308
GEN WB02X4736 GEN WB02X4736 Contact Us For Availability
343
GEN WB03X0716 GEN WB03X0716 Contact Us For Availability
464
GEN WB56X1845 GEN WB56X1845 Contact Us For Availability
465
GEN WB15X0245 GEN WB15X0245 Contact Us For Availability
466
LINER-OVEN DOOR GEN WB55X0635 Contact Us For Availability
466
*COVER-DOOR LINER-PLUG GEN WB55X0636 Contact Us For Availability
467
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
468
GEN WB02X4976 GEN WB02X4976 Contact Us For Availability
471
GEN WB02X4989 GEN WB02X4989 Contact Us For Availability
473
GEN WB01X1016 GEN WB01X1016 Contact Us For Availability
474
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
480
GEN WB02X4985 GEN WB02X4985 Contact Us For Availability
492
GEN WB56X1846 GEN WB56X1846 Contact Us For Availability
492
GEN WB56X1847 GEN WB56X1847 Contact Us For Availability
493
GEN WB01X1022 GEN WB01X1022 Contact Us For Availability
501
GEN WB14X0084 GEN WB14X0084 Contact Us For Availability
501
GEN WB14X0085 GEN WB14X0085 Contact Us For Availability
502
GEN WB01X0698 GEN WB01X0698 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
507
GEN WB56X1853 GEN WB56X1853 Contact Us For Availability
507
GEN WB56X1854 GEN WB56X1854 Contact Us For Availability
513
GEN WB39X0066 GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
552
GEN WB39X0065 GEN WB39X0065 Contact Us For Availability
554
GEN WB15X0233 GEN WB15X0233 Contact Us For Availability
555
GEN WB02X4995 GEN WB02X4995 Contact Us For Availability
555
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
556
FASTENER-NYLON GEN WB01X1025 Contact Us For Availability
702
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
704
GEN WB28X0080 GEN WB28X0080 Contact Us For Availability
705
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
706
GEN WB02X4741 GEN WB02X4741 Contact Us For Availability
707
GEN WB02X4742 GEN WB02X4742 Contact Us For Availability
708
GEN WB02X4743 GEN WB02X4743 Contact Us For Availability
709
GEN WB02X4744 GEN WB02X4744 Contact Us For Availability
710
GEN WB02X4745 GEN WB02X4745 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
712
GEN WB2X10007 GEN WB2X10007 Contact Us For Availability
713
GEN WB2X10001 GEN WB2X10001 Contact Us For Availability
714
GEN WB21X0443 GEN WB21X0443 Contact Us For Availability
715
GEN WB01X1027 GEN WB01X1027 Contact Us For Availability
715
GEN WB02X4750 GEN WB02X4750 Contact Us For Availability
716
GEN WB24X0393 GEN WB24X0393 Contact Us For Availability
719
GEN WB20X0093 GEN WB20X0093 Contact Us For Availability
725
GEN WB02X4756 GEN WB02X4756 Contact Us For Availability
730
GEN WB21X0444 GEN WB21X0444 Contact Us For Availability
732
GEN WB02X4751 GEN WB02X4751 Contact Us For Availability
732
GEN WB21X0445 GEN WB21X0445 Contact Us For Availability
733
GEN WB02X4772 GEN WB02X4772 Contact Us For Availability
734
NUT-SPECIAL-HEX-10-24 GEN WB01X0694 Contact Us For Availability
737
GEN WB01X0928 GEN WB01X0928 Contact Us For Availability
742
GEN WB21X0442 GEN WB21X0442 Contact Us For Availability
743
GEN WB02X4190 GEN WB02X4190 Contact Us For Availability
744
GEN WB2X10004 GEN WB2X10004 Contact Us For Availability
745
GEN WB2X10009 GEN WB2X10009 Contact Us For Availability
746
GEN WB2X10010 GEN WB2X10010 Contact Us For Availability
747
GEN WB2X10006 GEN WB2X10006 Contact Us For Availability
748
TUBE-REGULATOR/ELBOW GEN WB02X4758 Contact Us For Availability
749
GEN WB2X10005 GEN WB2X10005 Contact Us For Availability
751
GEN WB2X10003 GEN WB2X10003 Contact Us For Availability
32767
GEN 31-0627 GEN 31-0627 Contact Us For Availability
32767
GEN 49-4946 GEN 49-4946 Contact Us For Availability
× ![]()
