Model GE JGBS03PK3 – Common Parts & Diagrams
0
1
2
3

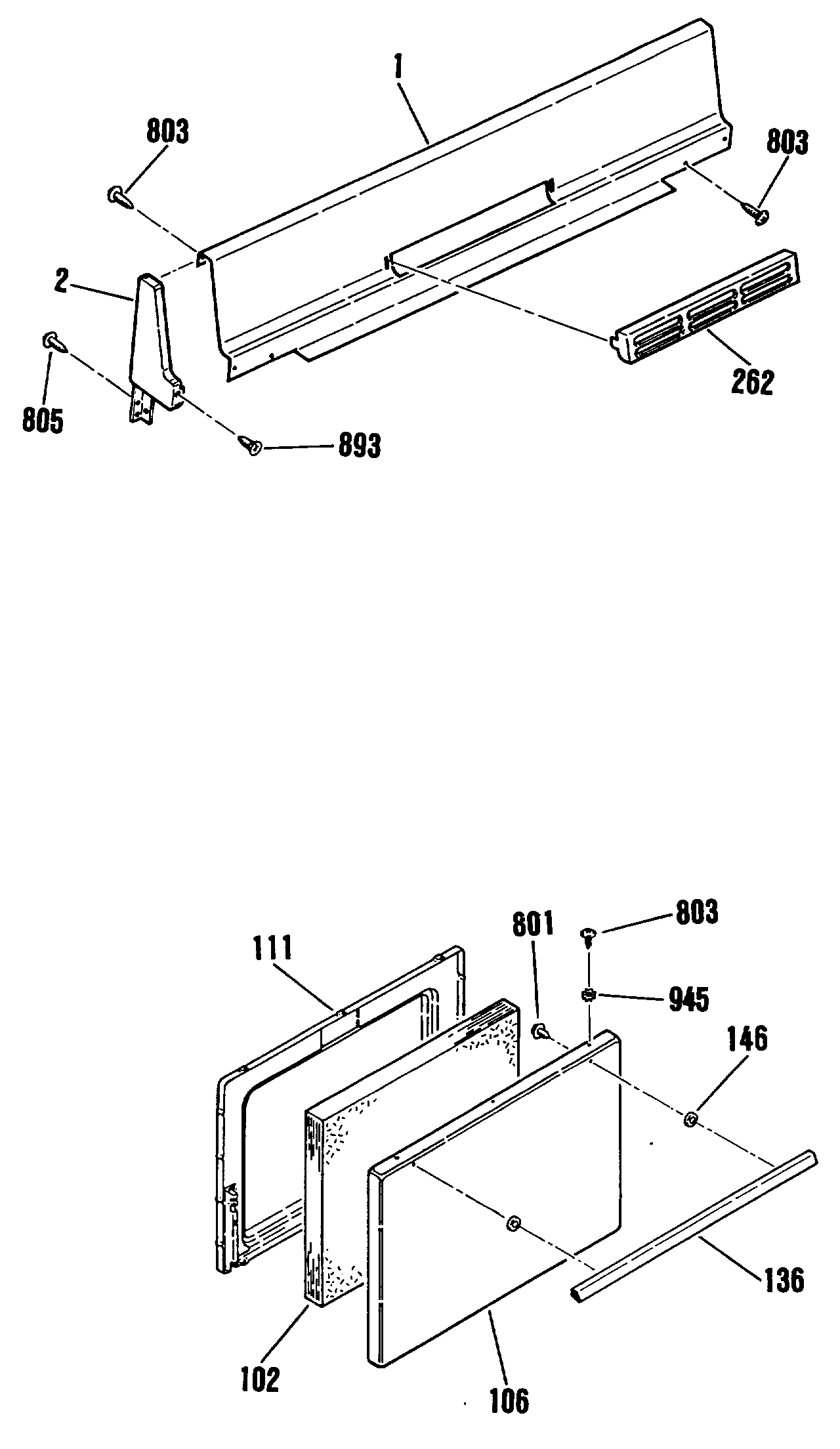

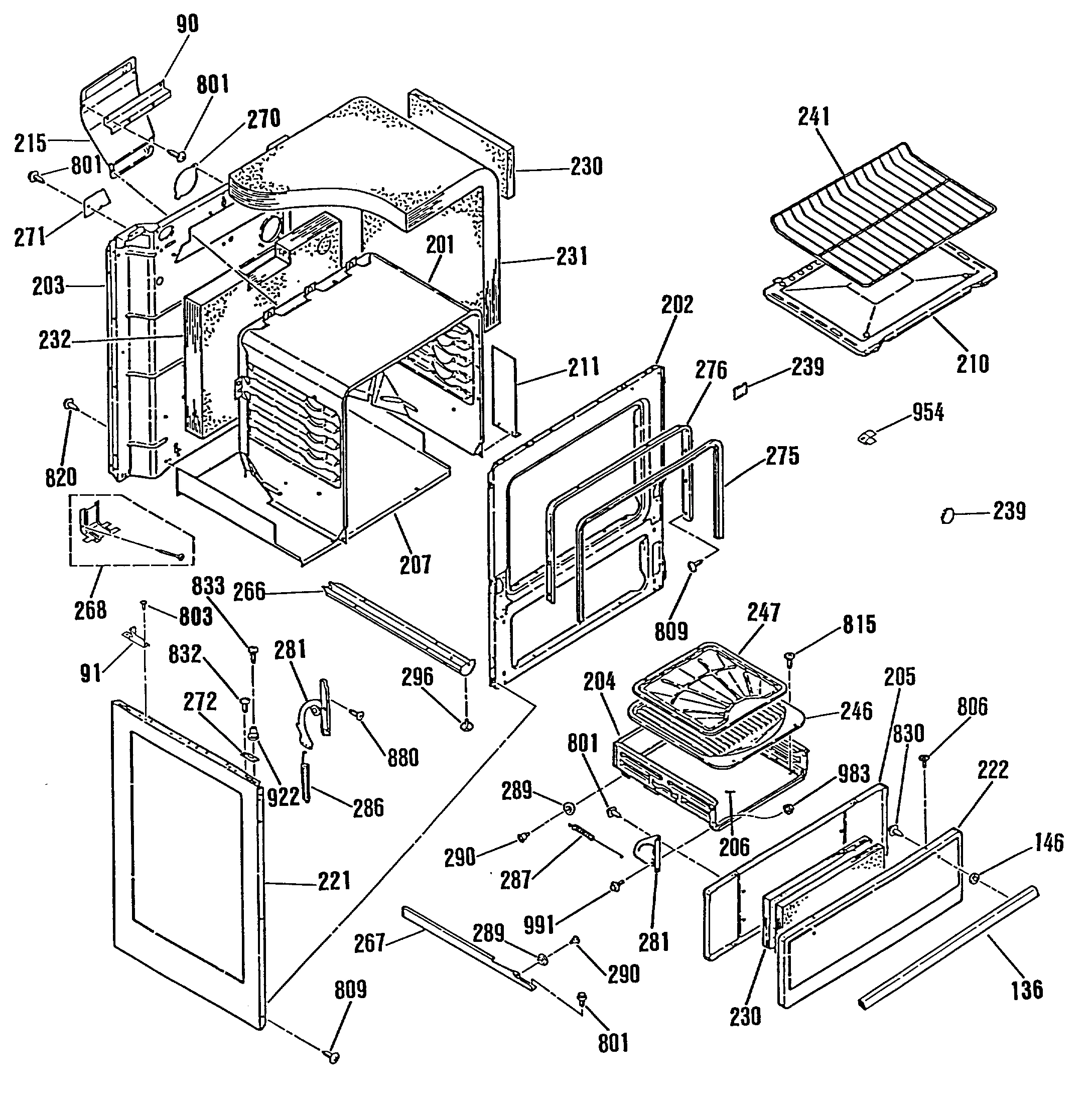

Common parts from model GE JGBS03PK3
1
GEN WB16X0357 GEN WB16X0357 Contact Us For Availability
2
END CAP-LT GEN WB02X9082 Contact Us For Availability
2
END CAP-RT GEN WB02X9083 Contact Us For Availability
29
GAS VALVE KNOB GEN WB03X0760 Contact Us For Availability
51
MAIN TOP-WHITE GEN WB62X1675 Contact Us For Availability
51
MAIN TOP-ALMOND GEN WB62X1676 Contact Us For Availability
52
MANIFOLD PANEL GEN WB07X1580 Contact Us For Availability
61
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIF PANEL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
90
FLUE DEFL Z-SUPPORT GEN WB02X9094 Contact Us For Availability
91
GEN WB14K5004 GEN WB14K5004 Contact Us For Availability
91
GEN WB14K5005 GEN WB14K5005 Contact Us For Availability
102
GEN WB02X9038 GEN WB02X9038 Contact Us For Availability
106
GEN WB56X1896 GEN WB56X1896 Contact Us For Availability
106
GEN WB56X1897 GEN WB56X1897 Contact Us For Availability
111
OV DR LINING GEN WB56K5016 Contact Us For Availability
136
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
201
OVEN BODY GEN WB53X0274 Contact Us For Availability
202
GEN WB63X0328 GEN WB63X0328 Contact Us For Availability
203
GEN WB63M0047 GEN WB63M0047 Contact Us For Availability
204
BRO DRAWER ASM W/ROLLER GEN WB58M0001 Contact Us For Availability
205
BROILER DR LINING GEN WB56X2015 Contact Us For Availability
206
GEN WB49X0625 GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63K5065 Contact Us For Availability
221
GEN WB63K5066 GEN WB63K5066 Contact Us For Availability
222
GEN WB56X2013 GEN WB56X2013 Contact Us For Availability
222
GEN WB56X2014 GEN WB56X2014 Contact Us For Availability
230
INSULATION BBB OR BRO DR GEN WB02X9394 Contact Us For Availability
231
OVEN BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
INSULATION-OV BACK GEN WB02X9631 Contact Us For Availability
239
OV BODY PLUG BUTTON GEN WB02X9097 Contact Us For Availability
239
MT PLUG BUTTON GEN WB02X9587 Contact Us For Availability
241
OV RACK GEN WB48X0210 Contact Us For Availability
246
BROILER PAN GEN WB49X0619 Contact Us For Availability
247
BROILER PAN GRID GEN WB49X0620 Contact Us For Availability
262
VENT TRIM GEN WB02X9081 Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
DRAWER GUIDE-RT GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT-LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT-RT GEN WB02X9024 Contact Us For Availability
275
OV DOOR SEAL GEN WB02X9747 Contact Us For Availability
276
GEN WB02K5123 GEN WB02K5123 Contact Us For Availability
281
BRO DRAWER HINGE-LT GEN WB14X0116 Contact Us For Availability
281
BRO DRAWER HINGE-RT GEN WB14X0117 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0266 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
GEN WB01X1331 GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
301
3/8 TUBE W/NUT GEN WB02X9282 Contact Us For Availability
307
TOP BURNER ASM-FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM-REAR GEN WB28X0111 Contact Us For Availability
309
OV BURNER W/BAFFLE ASM GEN WB16K5011 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
GEN WB21X0471 GEN WB21X0471 Contact Us For Availability
314
GAS VALVE GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
325
3/16 TUBING SLEEVE GEN WB02X9016 Contact Us For Availability
326
TUBING NUT 3/16 GEN WB01X1126 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9087 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
GEN WB02X9186 GEN WB02X9186 Contact Us For Availability
362
GEN WB19M0006 GEN WB19M0006 Contact Us For Availability
363
GEN WB02K5155 GEN WB02K5155 Contact Us For Availability
364
FILTER W/PILOT GEN WB02X9091 Contact Us For Availability
365
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
366
FILTER GASKET GEN WB02X9089 Contact Us For Availability
367
VALVE GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
387
3/16" TUBE GEN WB02X9019 Contact Us For Availability
400
MANIFOLD PIPE ASM GEN WB02X9088 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
834
GEN WB01X1155 GEN WB01X1155 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTING SCREW GEN WB01X1124 Contact Us For Availability
893
GEN WB01X1154 GEN WB01X1154 Contact Us For Availability
922
MAINTOP STRIKE GEN WB14X0105 Contact Us For Availability
954
THMST BULB RET CLIP GEN WB02X9105 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0698 GEN 31-0698 Contact Us For Availability
999
GEN 31-13018 GEN 31-13018 Contact Us For Availability
999
GEN 49-4997 GEN 49-4997 Contact Us For Availability
× ![]()
