Model GE JGBS03EK2 – Common Parts & Diagrams
0
1
2
3

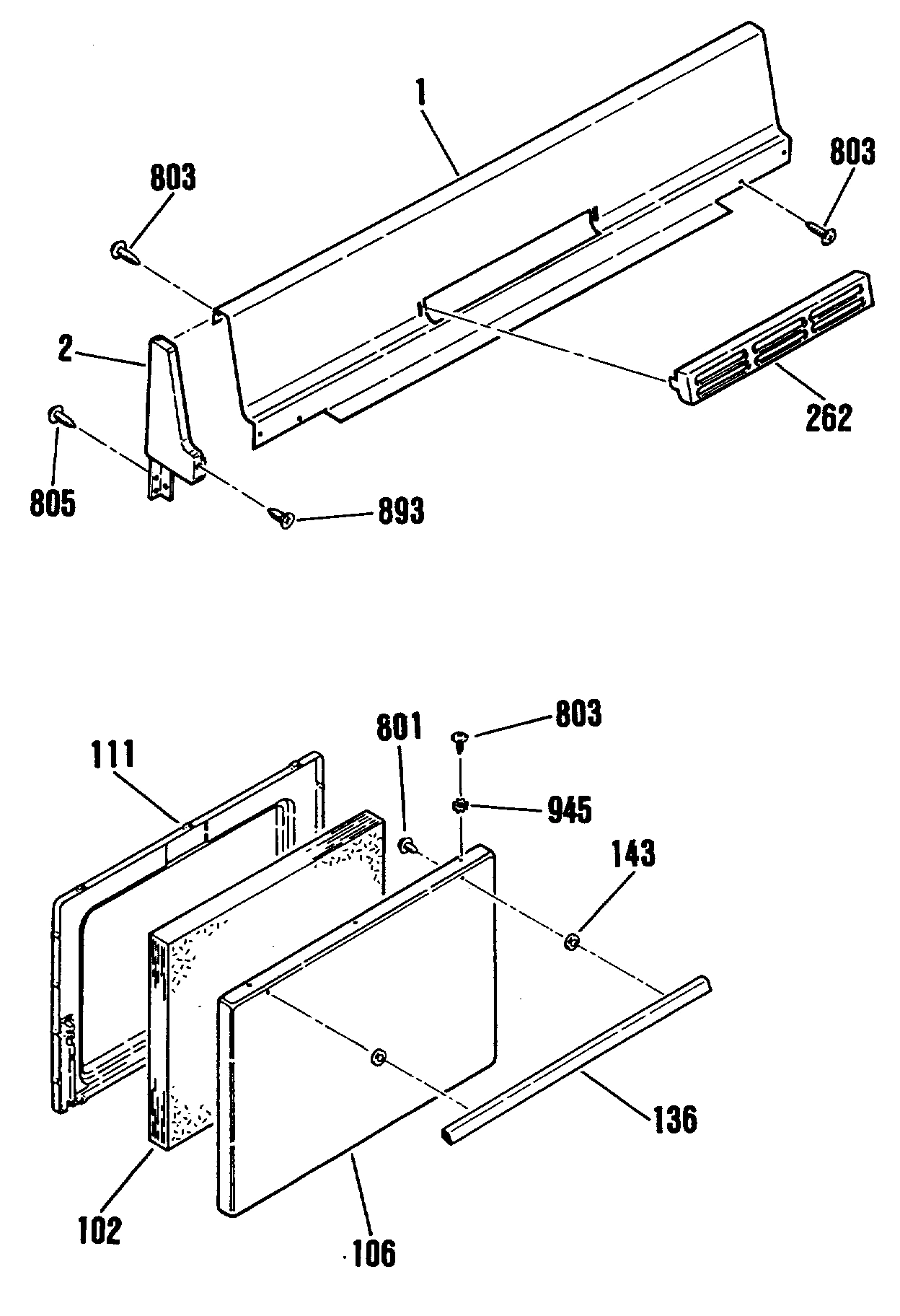

Common parts from model GE JGBS03EK2
1
BACKGUARD PANEL GEN WB61X0357 Contact Us For Availability
2
END CAP-LT GEN WB02X9082 Contact Us For Availability
2
END CAP-RT GEN WB02X9083 Contact Us For Availability
29
GAS VALVE KNOB GEN WB03X0760 Contact Us For Availability
51
MAIN TOP-WHITE GEN WB62X1675 Contact Us For Availability
51
MAIN TOP-ALMOND GEN WB62X1676 Contact Us For Availability
52
MANIFOLD PANEL GEN WB07X1580 Contact Us For Availability
61
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIF PANEL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
90
FLUE DEFL Z-SUPPORT GEN WB02X9094 Contact Us For Availability
91
MAINTOP HINGE-RT GEN WB14X0101 Contact Us For Availability
91
MAINTOP HINGE-LT GEN WB14X0102 Contact Us For Availability
95
MT HINGE BRACKET GEN WB10X0252 Contact Us For Availability
102
GEN WB02X9038 GEN WB02X9038 Contact Us For Availability
106
GEN WB56X1896 GEN WB56X1896 Contact Us For Availability
106
GEN WB56X1897 GEN WB56X1897 Contact Us For Availability
111
OVEN DOOR LINING GEN WB55K5013 Contact Us For Availability
136
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
143
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
201
OVEN BODY GEN WB53X0274 Contact Us For Availability
202
GEN WB63X0328 GEN WB63X0328 Contact Us For Availability
203
GEN WB063M0047 GEN WB063M0047 Contact Us For Availability
204
BRO DRAWER ASM W/ROLLER GEN WB58M0001 Contact Us For Availability
205
BROILER DR LINING GEN WB56X2015 Contact Us For Availability
206
GEN WB49X0625 GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
218
WIRE SHIELD GEN WB02X9101 Contact Us For Availability
219
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63X0326 Contact Us For Availability
221
BODY SIDE-ALMOND GEN WB63X0327 Contact Us For Availability
222
GEN WB56X2013 GEN WB56X2013 Contact Us For Availability
222
GEN WB56X2014 GEN WB56X2014 Contact Us For Availability
230
INSULATION BBB OR BRO DR GEN WB02X9394 Contact Us For Availability
231
OVEN BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
239
ROUND PLUG BUTTON GEN WB02X9097 Contact Us For Availability
241
OV RACK GEN WB48X0210 Contact Us For Availability
246
BROILER PAN GEN WB49X0619 Contact Us For Availability
247
BROILER PAN GRID GEN WB49X0620 Contact Us For Availability
262
VENT TRIM GEN WB02X9081 Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
DRAWER GUIDE-RT GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT-LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT-RT GEN WB02X9024 Contact Us For Availability
275
OV DOOR SEAL GEN WB02X9747 Contact Us For Availability
276
DR SEAL RETAINER GEN WB02X9029 Contact Us For Availability
281
BRO DRAWER HINGE-LT GEN WB14X0116 Contact Us For Availability
281
BRO DRAWER HINGE-RT GEN WB14X0117 Contact Us For Availability
286
OVEN DOOR SPRING GEN WB09X0265 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
290
RIVET GEN WB02X9096 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
300
MAINTOP SPACER GEN WB02X9022 Contact Us For Availability
301
3/8 TUBE W/NUT GEN WB02X9282 Contact Us For Availability
302
3/16" TUBING GEN WB02X9019 Contact Us For Availability
307
TOP BURNER ASM-FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM-REAR GEN WB28X0111 Contact Us For Availability
309
OV BURNER ASM GEN WB16K5011 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
OVEN THERMOSTAT GEN WB21X0466 Contact Us For Availability
314
GAS VALVE GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
317
SPARK IGN GRND BRACKET GEN WB02X9003 Contact Us For Availability
318
GEN WB20X0105 GEN WB20X0105 Contact Us For Availability
322
SPARK IGN ELECTRODE-RT GEN WB02X9005 Contact Us For Availability
322
SPARK IGN ELECTRODE-OVEN GEN WB02X9018 Contact Us For Availability
322
SPARK IGN ELECTRODE-LT GEN WB02X9278 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0412 Contact Us For Availability
325
3/16" SLEEVE TUBING GEN WB02X9016 Contact Us For Availability
326
TUBING NUT 3/16 GEN WB01X1126 Contact Us For Availability
334
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
352
GEN WB02X9007 GEN WB02X9007 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
PILOT W/CUP GEN WB02X9015 Contact Us For Availability
362
PILOT CUP GEN WB02X9017 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
367
THERMOSTAT GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
393
THERMOSTAT SWITCH GEN WB24X0411 Contact Us For Availability
400
GEN WB02X9012 GEN WB02X9012 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
829
GEN WB01X1128 GEN WB01X1128 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTMENT SCREW GEN WB01X1124 Contact Us For Availability
893
GEN WB01X1154 GEN WB01X1154 Contact Us For Availability
908
POP RIVET GEN WB01X1114 Contact Us For Availability
910
ACCORDIAN RIVET GEN WB01X1347 Contact Us For Availability
922
MAINTOP STRIKE GEN WB14X0105 Contact Us For Availability
936
SNAP BUSHING 1/2" GEN WB02X9033 Contact Us For Availability
936
SNAP BUSHING 1 1/2" GEN WB02X9103 Contact Us For Availability
953
GEN WB02X9106 GEN WB02X9106 Contact Us For Availability
954
THMST BULB RET CLIP GEN WB02X9105 Contact Us For Availability
959
GEN WB02X9737 GEN WB02X9737 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
973
SPEED NUT GEN WB02X9100 Contact Us For Availability
980
HEX NUT GEN WB01X1129 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0698 GEN 31-0698 Contact Us For Availability
999
GEN 49-4997 GEN 49-4997 Contact Us For Availability
999
SWITCHES WIRE HARNESS GEN WB18M0035 Contact Us For Availability
999
GEN WB18X0299 GEN WB18X0299 Contact Us For Availability
× ![]()
