Model GE JGBP33GEL1 – Common Parts & Diagrams
0
1
2
3
4
5
6

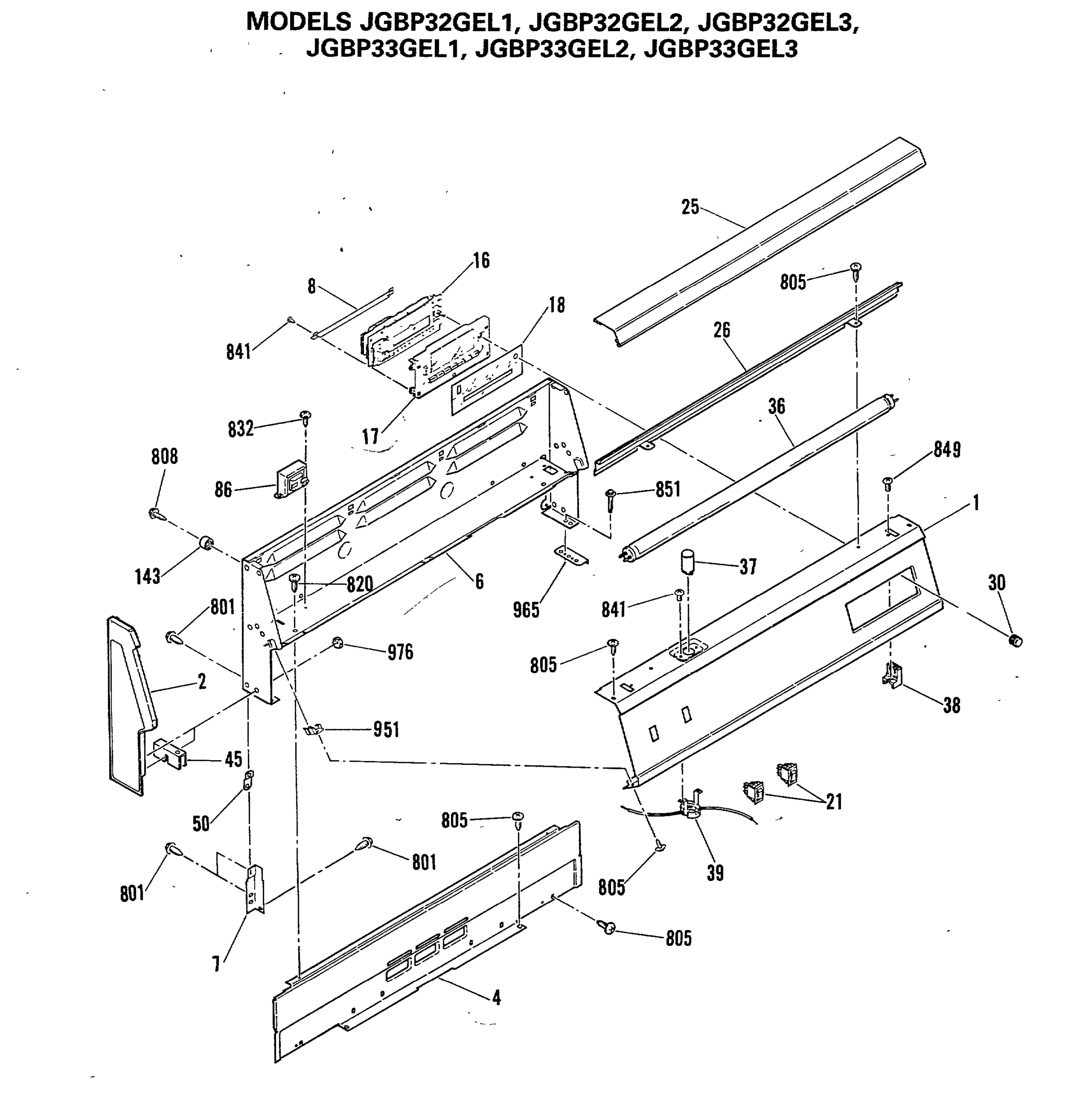

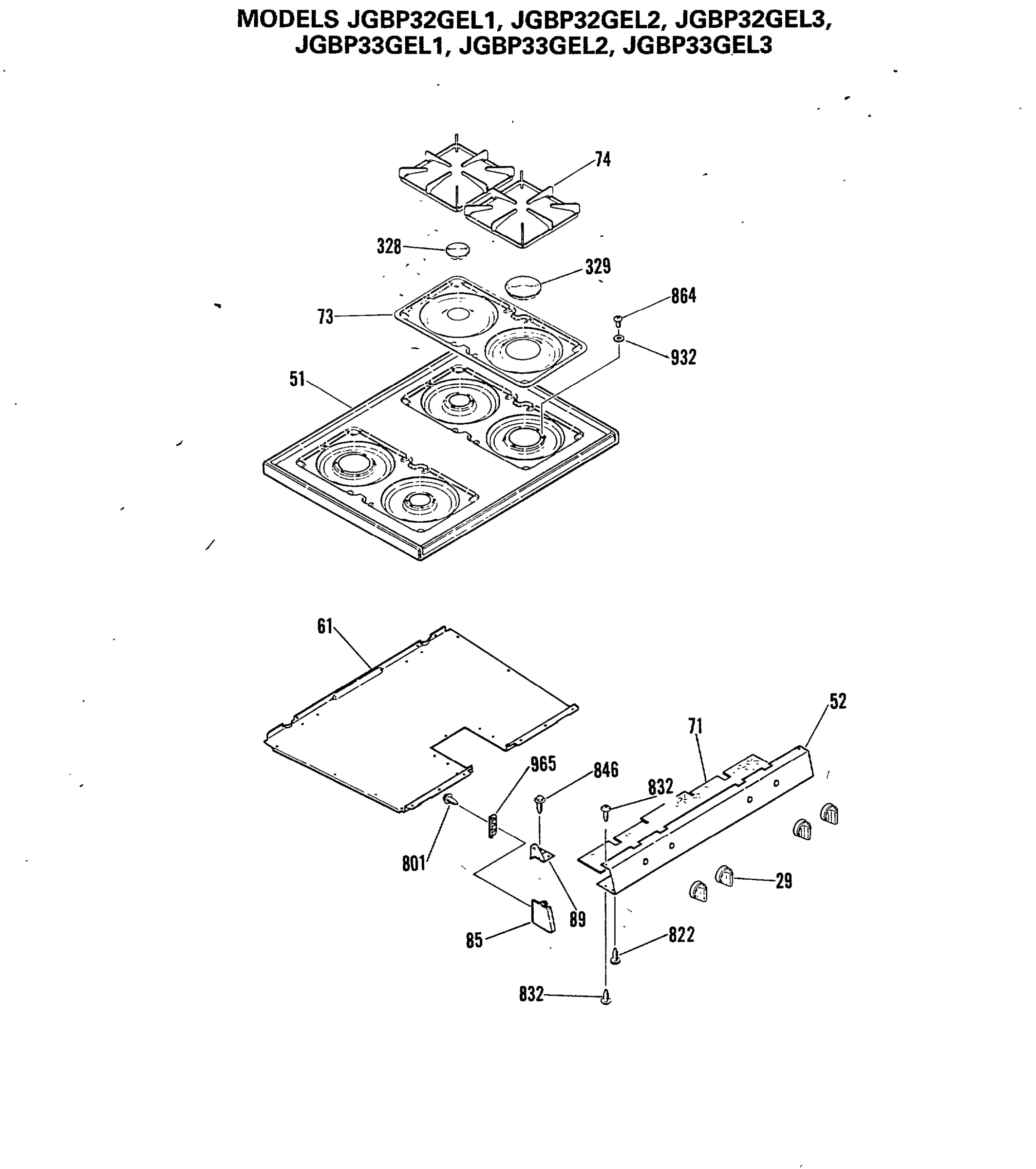

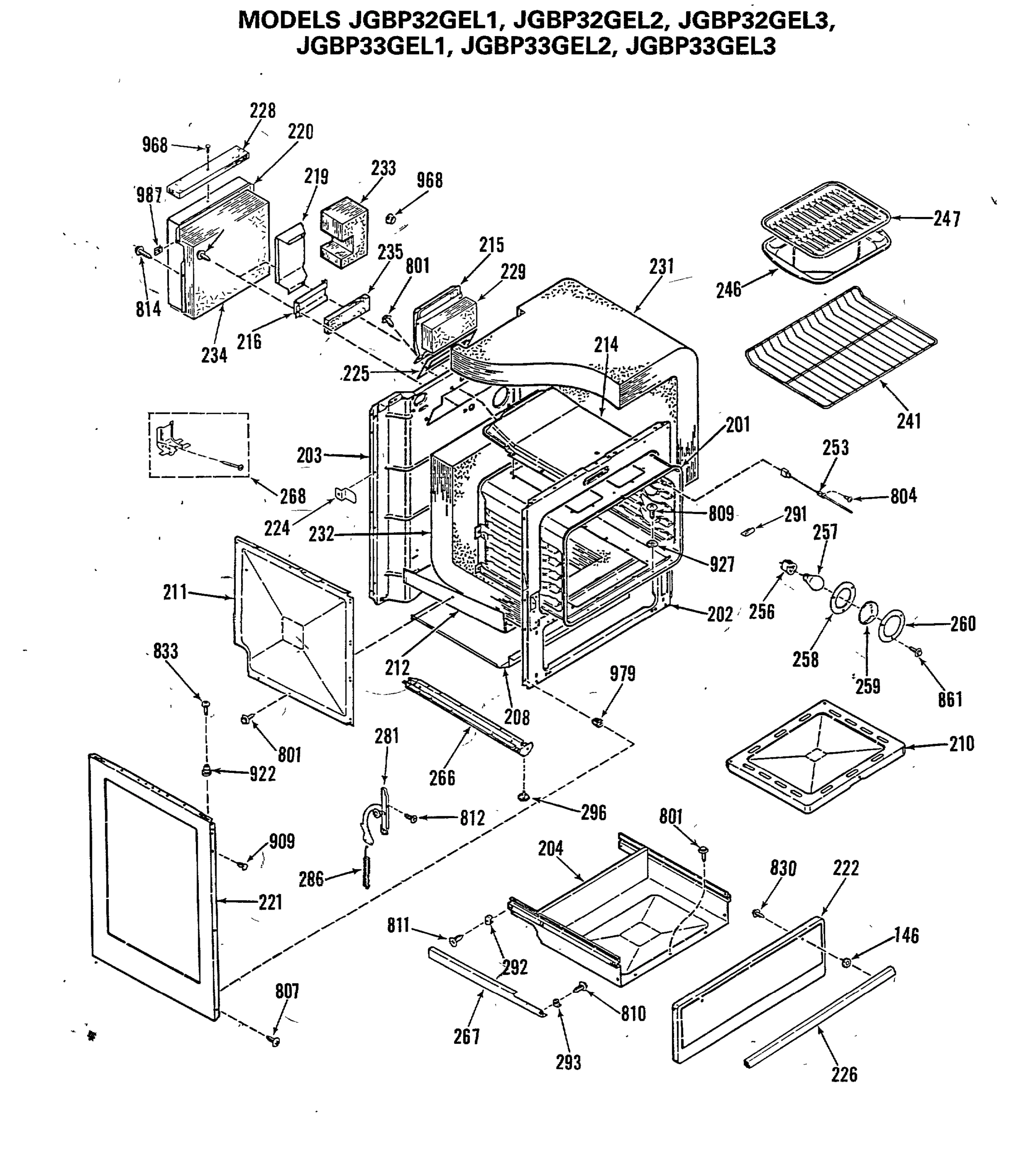

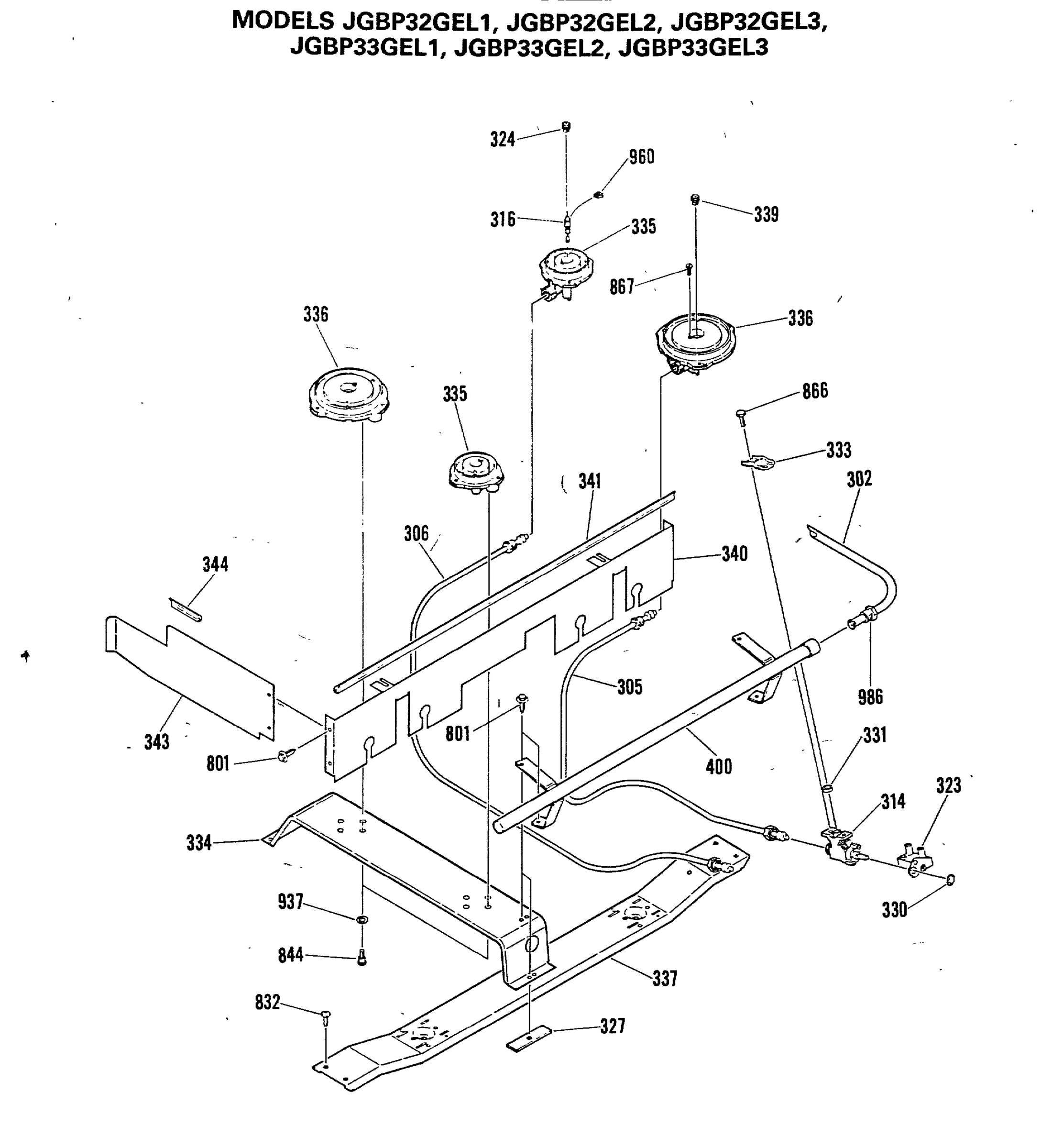

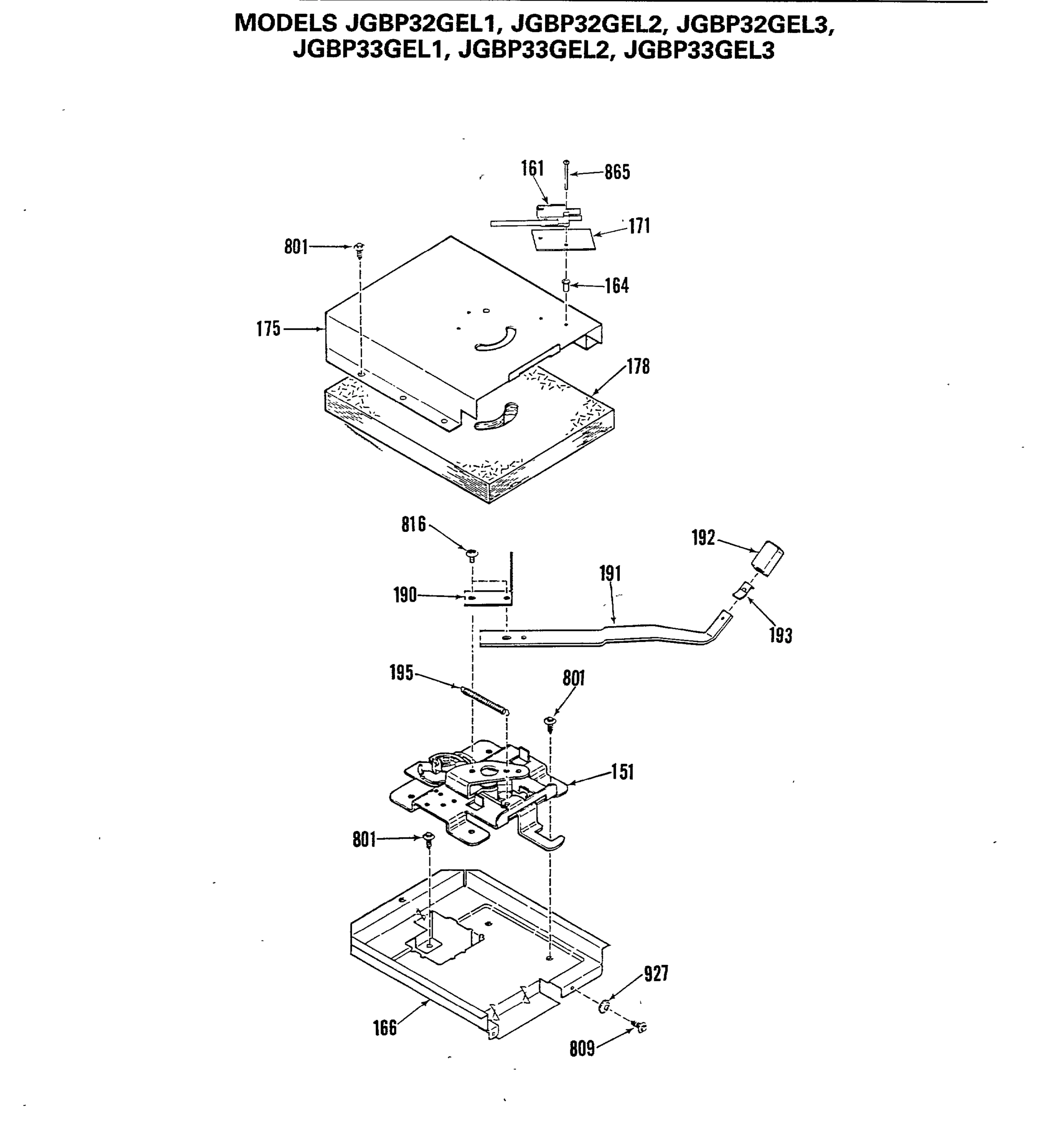

Common parts from model GE JGBP33GEL1
1
GEN WB07X1814 GEN WB07X1814 Contact Us For Availability
2
GEN WB07X1811 GEN WB07X1811 Contact Us For Availability
2
GEN WB07X1812 GEN WB07X1812 Contact Us For Availability
4
GEN WB61X0370 GEN WB61X0370 Contact Us For Availability
6
GEN WB61X0369 GEN WB61X0369 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT-LT GEN WB06X0128 Contact Us For Availability
8
GEN WB02X9884 GEN WB02X9884 Contact Us For Availability
16
GEN WB19X0265 GEN WB19X0265 Contact Us For Availability
17
GEN WB27M0008 GEN WB27M0008 Contact Us For Availability
18
GEN WB02X9663 GEN WB02X9663 Contact Us For Availability
25
CANOPY GEN WB07X1815 Contact Us For Availability
26
GEN WB02X9756 GEN WB02X9756 Contact Us For Availability
29
GEN WB03K5085 GEN WB03K5085 Contact Us For Availability
29
GEN WB03X0830 GEN WB03X0830 Contact Us For Availability
30
GEN WB03X0808 GEN WB03X0808 Contact Us For Availability
31
GEN WB27M0005 GEN WB27M0005 Contact Us For Availability
36
FLUORESCENT LAMP GEN WB02X4666 Contact Us For Availability
37
FLUOR LAMP STARTER GEN WB02X9390 Contact Us For Availability
38
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
39
GEN WB08X0290 GEN WB08X0290 Contact Us For Availability
43
PC SPACER GEN WB02X9158 Contact Us For Availability
45
GEN WB06X0068 GEN WB06X0068 Contact Us For Availability
45
GEN WB06X0069 GEN WB06X0069 Contact Us For Availability
50
GEN WB06X0070 GEN WB06X0070 Contact Us For Availability
51
GEN WB62X1714 GEN WB62X1714 Contact Us For Availability
52
GEN WB06X0073 GEN WB06X0073 Contact Us For Availability
61
GEN WB63X0430 GEN WB63X0430 Contact Us For Availability
71
GEN WB06X0074 GEN WB06X0074 Contact Us For Availability
73
GEN WB32X0120 GEN WB32X0120 Contact Us For Availability
74
GEN WB31M0005 GEN WB31M0005 Contact Us For Availability
85
GEN WB07X1733 GEN WB07X1733 Contact Us For Availability
85
GEN WB07X1734 GEN WB07X1734 Contact Us For Availability
86
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
89
MANIF PANEL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET-RT GEN WB02X9002 Contact Us For Availability
111
DOOR LINING PLUG GEN WB02X9171 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0001 Contact Us For Availability
113
INSULATION RETAINER GEN WB02X9372 Contact Us For Availability
115
DOOR GLASS RETAINER GEN WB02M0001 Contact Us For Availability
116
GLASS MOUNTING PLATE GEN WB02X9178 Contact Us For Availability
117
GEN WB02X9384 GEN WB02X9384 Contact Us For Availability
121
GEN WB56X2056 GEN WB56X2056 Contact Us For Availability
122
OV DR INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
INNER DOOR GLASS GEN WB57M0001 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0292 Contact Us For Availability
140
DOOR FRAME GEN WB07X1622 Contact Us For Availability
143
GLASS SPACER GEN WB02X9039 Contact Us For Availability
143
GEN WB06X0067 GEN WB06X0067 Contact Us For Availability
146
HANDLE SPACER GEN WB02X9640 Contact Us For Availability
147
WASHER GEN WB01X1138 Contact Us For Availability
151
DOOR LATCH ASM GEN WB14X0125 Contact Us For Availability
161
GEN WB24X0436 GEN WB24X0436 Contact Us For Availability
164
GEN WB01X9968 GEN WB01X9968 Contact Us For Availability
166
GEN WB02X9403 GEN WB02X9403 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
175
LOCK BOX COVER GEN WB02X9401 Contact Us For Availability
178
LATCH ASM INSULATION GEN WB02X9405 Contact Us For Availability
190
HANDLE EXTENSION GEN WB02X9402 Contact Us For Availability
191
LATCH HANDLE GEN WB15X0281 Contact Us For Availability
192
GEN WB03X0831 GEN WB03X0831 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB53X0276 GEN WB53X0276 Contact Us For Availability
202
FRONT FRAME GEN WB63X0348 Contact Us For Availability
203
GEN WB63X0431 GEN WB63X0431 Contact Us For Availability
204
GEN WB58X0063 GEN WB58X0063 Contact Us For Availability
208
GEN WB34M0007 GEN WB34M0007 Contact Us For Availability
210
GEN WB63X0335 GEN WB63X0335 Contact Us For Availability
211
GEN WB02X9728 GEN WB02X9728 Contact Us For Availability
212
INSULATION RETAINER GEN WB02X9149 Contact Us For Availability
214
GEN WB38X0109 GEN WB38X0109 Contact Us For Availability
215
GEN WB02X9727 GEN WB02X9727 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
219
GEN WB34M0006 GEN WB34M0006 Contact Us For Availability
220
FLUE DEFLECTOR SHIELD GEN WB02X9395 Contact Us For Availability
221
BODY SIDE PANEL-WHITE GEN WB63X0326 Contact Us For Availability
222
LOWER PANEL GEN WB56X1956 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9143 Contact Us For Availability
226
DOOR HANDLE GEN WB15X0291 Contact Us For Availability
228
INSULATION-FLUE BOX GEN WB02X9394 Contact Us For Availability
229
GEN WB06X0076 GEN WB06X0076 Contact Us For Availability
231
INSULATION-TOP & SIDE GEN WB02X9153 Contact Us For Availability
232
GEN WB02X9144 GEN WB02X9144 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
234
GEN WB06X0075 GEN WB06X0075 Contact Us For Availability
235
GEN WB02X9142 GEN WB02X9142 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
253
GEN WB20X0137 GEN WB20X0137 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
OV LAMP LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LAMP LENS RETAINER GEN WB02X9150 Contact Us For Availability
266
BASE W/LEVELERS GEN WB02X9187 Contact Us For Availability
267
STORAGE DRAWER SUPPORT GEN WB56M0003 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0244 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
301
GEN WB06X0077 GEN WB06X0077 Contact Us For Availability
302
GEN WB02X9730 GEN WB02X9730 Contact Us For Availability
303
GEN WB06X0102 GEN WB06X0102 Contact Us For Availability
304
GEN WB02X9647 GEN WB02X9647 Contact Us For Availability
305
GEN WB06X0085 GEN WB06X0085 Contact Us For Availability
305
GEN WB06X0086 GEN WB06X0086 Contact Us For Availability
306
GEN WB06X0087 GEN WB06X0087 Contact Us For Availability
306
GEN WB06X0088 GEN WB06X0088 Contact Us For Availability
309
GEN WB28X0121 GEN WB28X0121 Contact Us For Availability
310
BURNER BOX BOTTOM GEN WB53X0277 Contact Us For Availability
311
BROILER BURNER GEN WB28X0094 Contact Us For Availability
312
GEN WB21X0524 GEN WB21X0524 Contact Us For Availability
314
GEN WB21X0525 GEN WB21X0525 Contact Us For Availability
314
GEN WB21X0526 GEN WB21X0526 Contact Us For Availability
315
CONTROL VALVE GEN WB21X0475 Contact Us For Availability
316
GEN WB06X0084 GEN WB06X0084 Contact Us For Availability
317
BR BRNR INGTR BRACKET GEN WB02X9155 Contact Us For Availability
318
GEN WB20X0138 GEN WB20X0138 Contact Us For Availability
320
GEN WB34M0004 GEN WB34M0004 Contact Us For Availability
321
GEN WB34M0005 GEN WB34M0005 Contact Us For Availability
323
GEN WB24X0789 GEN WB24X0789 Contact Us For Availability
324
GEN WB06X0083 GEN WB06X0083 Contact Us For Availability
327
GEN WB06X0100 GEN WB06X0100 Contact Us For Availability
328
GEN WB28X0127 GEN WB28X0127 Contact Us For Availability
329
GEN WB28X0128 GEN WB28X0128 Contact Us For Availability
330
GEN WB06X0090 GEN WB06X0090 Contact Us For Availability
331
GEN WB06X0091 GEN WB06X0091 Contact Us For Availability
332
GEN WB20X0139 GEN WB20X0139 Contact Us For Availability
334
GEN WB02M0019 GEN WB02M0019 Contact Us For Availability
335
GEN WB16M0005 GEN WB16M0005 Contact Us For Availability
336
GEN WB16M0006 GEN WB16M0006 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
338
GEN WB06X0080 GEN WB06X0080 Contact Us For Availability
339
GEN WB06X0094 GEN WB06X0094 Contact Us For Availability
340
GEN WB06X0096 GEN WB06X0096 Contact Us For Availability
341
GEN WB06X0097 GEN WB06X0097 Contact Us For Availability
342
GEN WB06X0081 GEN WB06X0081 Contact Us For Availability
343
GEN WB06X0098 GEN WB06X0098 Contact Us For Availability
344
GEN WB32M0011 GEN WB32M0011 Contact Us For Availability
346
GEN WB06X0079 GEN WB06X0079 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
369
GEN WB02M0012 GEN WB02M0012 Contact Us For Availability
373
OVEN BURNER BAFFLE GEN WB49X0631 Contact Us For Availability
374
BR BRNR BAFFLE GEN WB49X0629 Contact Us For Availability
374
BR BURN BAFFLE-LOW GEN WB49X0630 Contact Us For Availability
391
INSULATION RETAINER GEN WB02X9176 Contact Us For Availability
400
GEN WB06X0092 GEN WB06X0092 Contact Us For Availability
554
POWER SUPPLY CORD GEN WB18X0298 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
832
GEN WB01X1119 GEN WB01X1119 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
844
GEN WB01M0004 GEN WB01M0004 Contact Us For Availability
846
SCREW GEN WB01X1169 Contact Us For Availability
849
GEN WB01X1252 GEN WB01X1252 Contact Us For Availability
851
GEN WB01X1419 GEN WB01X1419 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
864
GEN WB01X1420 GEN WB01X1420 Contact Us For Availability
865
GEN WB01X1423 GEN WB01X1423 Contact Us For Availability
866
GEN WB01X1428 GEN WB01X1428 Contact Us For Availability
867
GEN WB01X1429 GEN WB01X1429 Contact Us For Availability
922
GEN WB14X0105 GEN WB14X0105 Contact Us For Availability
932
GEN WB01X1421 GEN WB01X1421 Contact Us For Availability
933
GEN WB01X1256 GEN WB01X1256 Contact Us For Availability
936
BUSHING GEN WB02X9447 Contact Us For Availability
937
GEN WB01X1427 GEN WB01X1427 Contact Us For Availability
949
CLIP GEN WB02X9733 Contact Us For Availability
951
BACKGUARD CLIP GEN WB02X9443 Contact Us For Availability
960
GEN WB06X0095 GEN WB06X0095 Contact Us For Availability
965
CLEAT GEN WB02X9000 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
EXPANSION NUT SPACER GEN WB01X1177 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
987
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
999
GEN 31-0669 GEN 31-0669 Contact Us For Availability
999
GEN 31-13060 GEN 31-13060 Contact Us For Availability
999
GEN 49-8045 GEN 49-8045 Contact Us For Availability
999
GEN WB16M0001 GEN WB16M0001 Contact Us For Availability
999
GEN WB18K5334 GEN WB18K5334 Contact Us For Availability
999
GEN WB18M0011 GEN WB18M0011 Contact Us For Availability
999
GEN WB18M0012 GEN WB18M0012 Contact Us For Availability
999
GEN WB18M0013 GEN WB18M0013 Contact Us For Availability
999
GEN WB18M0014 GEN WB18M0014 Contact Us For Availability
999
GEN WB18M0015 GEN WB18M0015 Contact Us For Availability
999
GEN WB18M0016 GEN WB18M0016 Contact Us For Availability
999
GEN WB21K5006 GEN WB21K5006 Contact Us For Availability
× ![]()
